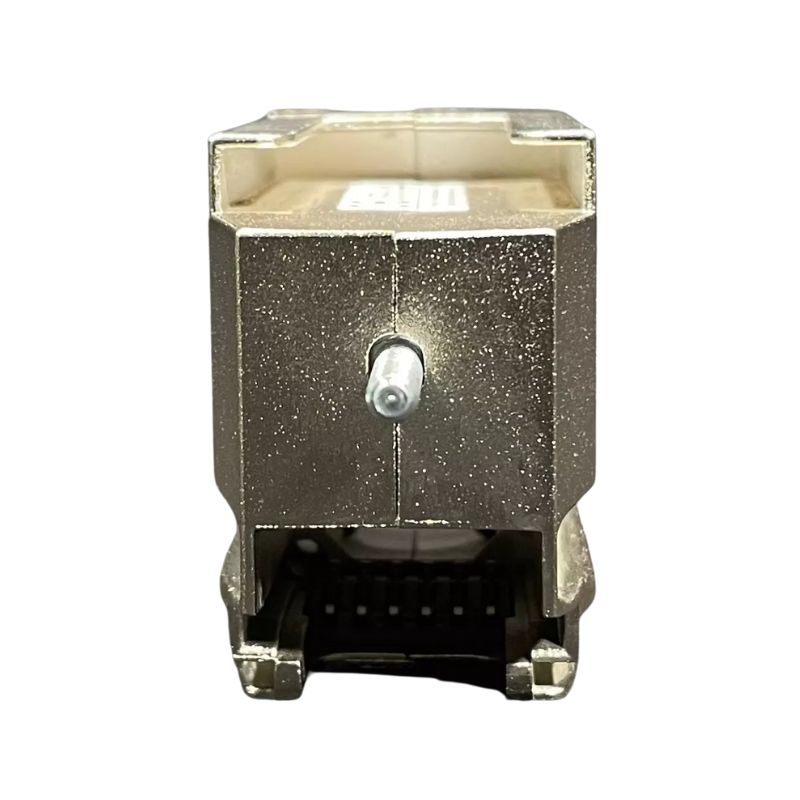

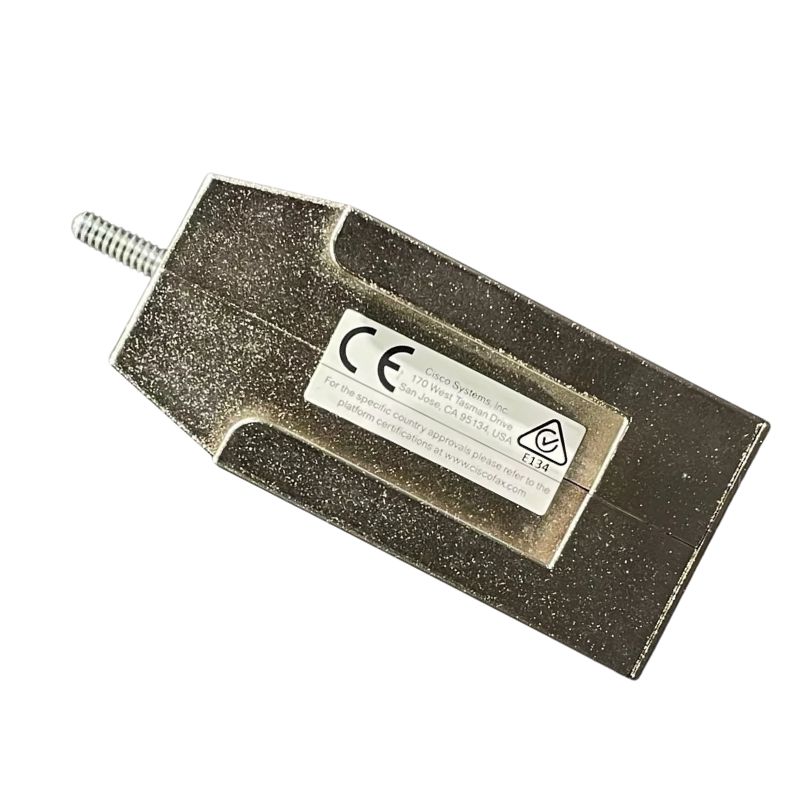

C3650-STACK Cisco C3650 Plug-in Network Stacking Module

Overview of the Network Stacking Module

The C3650-STACK Cisco C3650 Plug-in Network Stacking Module is a dedicated hardware expansion component engineered for the Cisco Catalyst 3650 Series switches, enabling high-performance switch stacking capabilities through Cisco’s proprietary StackWise-160 technology. This module plays a critical role in modern enterprise campus networks where scalability, redundancy, simplified management, and unified control plane operations are required. By integrating multiple Catalyst 3650 switches into a single logical switching unit, the stacking module eliminates operational complexity while enhancing resiliency and bandwidth efficiency across the network infrastructure.

Main Specifications

• Brand: Cisco
• Part Number: C3650-STACK
• Module Type: Network Stacking Module

Technical Information

• Form Factor: Hot-swappable plug-in module architecture
• Installation Location: Rear structural expansion slot panel
• Design Target: Engineered exclusively for Cisco Catalyst 3650 switches

Throughput & Performance

• Stacking Technology: Cisco StackWise-160 processing architecture
• Stacking Bandwidth: 160 Gbps total aggregate throughput capacity
• Stack Configuration: Bidirectional data forwarding paths loop layout
• Active Ring Protocol: Automatic hardware-driven packet loop routing prevention
• Physical Interfaces: 2 specialized proprietary copper StackWise port connectors

 Scaling & Architecture Capacity

• Maximum Stack Members: Up to 9 physical switches grouped together
• Unified Management: Single master switch election configuration architecture
• Single IP Management: Entire stack operates under one IP address
• Master Redundancy: Automatic active master backup election failover protocol
• Cross-Stack EtherChannel: Aggregates network ports across different stack members
• Hot-Add Capability: Allows adding new switches without powering down the stack

 Switch Model Compatibility

• Catalyst 3650 Baseline: Fits standard 24 and 48-port Cisco 3650 models
• WS-C3650-24TS-E: Fits 24-port Data-only IP Services baseline switches
• WS-C3650-24PS-S: Fits 24-port PoE+ IP Base distribution switches
• WS-C3650-48FD-S: Fits 48-port full PoE+ LAN Base distribution switches
• WS-C3650-48FQ-E: Fits 48-port full PoE+ multi-gigabit IP Services switches
• Incompatible Lines: Cannot fit legacy Cisco Catalyst 2960 or 3750 switches
• Incompatible Successors: Cannot fit newer Cisco Catalyst 9300 or 9200 chassis

 Stacking Cable Compatibility

• Short Stacking Cable: Natively matches Cisco STACK-T2-50CM (0.5 meter loop cable)
• Medium Stacking Cable: Natively matches Cisco STACK-T2-1M (1.0 meter loop cable)
• Long Stacking Cable: Natively matches Cisco STACK-T2-3M (3.0 meter loop cable)

The Cisco C3650 Plug-in Network Stacking Module

Designed specifically for plug-in installation into the rear stacking slot of compatible switches, the C3650-STACK module ensures seamless interconnection between switches using high-speed stacking cables. It enables network administrators to manage multiple physical switches as a single entity, significantly reducing configuration overhead and improving operational consistency across enterprise deployments. This capability is particularly valuable in environments requiring high availability and predictable network behavior.

Architecture and Design of C3650-STACK Module

The architectural design of the C3650-STACK module is centered around Cisco’s StackWise-160 architecture, which provides up to 160 Gbps of stack bandwidth. This architecture is built to ensure deterministic traffic forwarding, low latency inter-switch communication, and rapid failover in case of hardware failure within the stack. Each module connects switches in a ring topology, ensuring that data traffic can be rerouted dynamically if one link in the stack becomes unavailable.

The plug-in form factor allows the module to be inserted into a dedicated slot on the rear panel of Cisco Catalyst 3650 switches. Once installed, the module facilitates dual-ring stacking connectivity, improving redundancy and ensuring continuous operation even in fault scenarios. The physical design is optimized for minimal space usage while maximizing airflow efficiency and thermal stability within high-density network racks.

Internally, the stacking system operates as a distributed switching fabric. All switches in the stack share a single control plane, enabling synchronized configuration updates, unified firmware management, and consistent policy enforcement across all connected devices. This architecture eliminates the need for independent switch management, reducing administrative complexity and potential configuration errors.

Features of C3650-STACK Cisco C3650 Plug-in Module

The C3650-STACK module provides a wide range of features that make it essential for enterprise-level network deployments. One of its primary features is high-speed stacking capability, which allows multiple Catalyst 3650 switches to function as a single logical unit. This significantly enhances bandwidth utilization between switches and ensures that traffic flows efficiently without bottlenecks.

Another key feature is redundancy support. The module enables resilient ring topology stacking, which ensures uninterrupted network operation even if a single switch or stacking link fails. Traffic is automatically rerouted through alternative paths within milliseconds, minimizing downtime and ensuring service continuity.

The module also supports hot-swappable installation in supported environments, allowing administrators to add or replace stacking modules without powering down the entire system. This feature is essential in mission-critical environments where downtime must be minimized or eliminated entirely.

Additionally, the C3650-STACK module provides simplified network management by enabling single IP management for the entire stack. This reduces the operational burden on IT teams and ensures consistent configuration across all switches in the stack.

Cisco Catalyst 3650 Series Compatibility and Integration

The C3650-STACK module is specifically designed for use with Cisco Catalyst 3650 Series switches, ensuring full compatibility and optimal performance. These switches are widely used in enterprise campus environments, branch offices, and medium-sized data centers, where scalability and reliability are critical.

Integration with Catalyst 3650 switches allows for seamless deployment of Layer 2 and Layer 3 services across the stack. This includes advanced routing protocols, multicast optimization, and policy-based QoS configurations. The stacking module ensures that all connected switches operate under a unified control plane, enabling efficient resource sharing and centralized management.

In addition, the module supports Cisco IOS XE software integration, allowing administrators to leverage advanced automation, programmability, and security features. This includes support for SD-Access deployments, network segmentation, and automated provisioning workflows.

StackWise-160 Technology and Performance Advantages

StackWise-160 technology is the backbone of the C3650-STACK module, delivering high-performance stacking with up to 160 Gbps bandwidth. This high-speed architecture ensures that inter-switch communication does not become a bottleneck, even in high-traffic enterprise environments.

One of the most significant advantages of StackWise-160 is its ability to maintain consistent forwarding behavior across the stack. Unlike traditional multi-switch environments where each device operates independently, StackWise-160 enables centralized forwarding decisions, reducing latency and improving overall network efficiency.

The architecture also enhances load balancing across multiple physical switches. Traffic can be distributed intelligently across stack members, optimizing resource utilization and preventing congestion. This is especially beneficial in environments with high east-west traffic patterns, such as virtualized data centers and cloud-edge deployments.

Operational Benefits of Stacking with C3650-STACK

The operational benefits of using the C3650-STACK module extend across performance, scalability, and manageability. One of the most important advantages is reduced management complexity. Instead of configuring multiple individual switches, administrators can manage the entire stack as a single device, reducing configuration time and minimizing errors.

Another major benefit is improved scalability. Organizations can easily add additional Catalyst 3650 switches to the stack as network demand grows, without redesigning the entire infrastructure. This modular scalability makes it ideal for growing enterprises and dynamic network environments.

High availability is also a key benefit, as the stacking system ensures continuous operation even in the event of hardware failure. Redundant paths and automatic failover mechanisms ensure that network services remain uninterrupted, which is critical for business continuity.

Use Cases for C3650-STACK Cisco Module in Enterprise Networks

The C3650-STACK module is widely used in enterprise campus networks where multiple access layer switches must be deployed across different floors or buildings. By stacking these switches, organizations can create a unified access layer that simplifies policy enforcement and traffic management.

In branch office environments, the module allows IT teams to deploy scalable network infrastructures with minimal administrative overhead. A stack of Catalyst 3650 switches can function as a single logical switch, reducing the need for on-site IT expertise.

In educational institutions, the stacking module supports high-density user environments such as classrooms, labs, and dormitories. The ability to manage multiple switches as one ensures consistent connectivity and simplified troubleshooting.

In healthcare environments, where uptime and reliability are critical, the stacking module ensures continuous access to medical systems, patient records, and communication platforms by providing redundant and resilient network architecture.

Performance Optimization and Traffic Handling

The C3650-STACK module is designed to optimize traffic handling across stacked switches by enabling distributed forwarding and intelligent load balancing. This ensures that no single switch becomes a performance bottleneck, even under heavy traffic conditions.

The stacking system supports hardware-based forwarding decisions, which reduces CPU load and improves packet processing efficiency. By distributing traffic across multiple switches, the system ensures optimal utilization of available resources.

Quality of Service (QoS) policies can also be applied consistently across the stack, ensuring that critical applications such as voice, video, and enterprise applications receive prioritized bandwidth allocation. This improves user experience and maintains application performance under varying network loads.

Reliability, Redundancy, and Failover Mechanisms

Reliability is a core design principle of the C3650-STACK module. The dual-ring stacking topology ensures that if one link or switch fails, traffic can be rerouted instantly through an alternate path. This minimizes downtime and ensures continuous network availability.

The system also supports rapid failover mechanisms that allow the stack to reconfigure itself automatically in response to hardware or link failures. This ensures that network services remain operational without manual intervention.

Power redundancy and hardware resilience further enhance system reliability, making the stacking module suitable for mission-critical environments where uptime is essential.

Security Considerations in Stack-Based Architectures

The C3650-STACK module supports advanced security features through Cisco IOS XE integration, including access control lists, port security, and secure management protocols. These features can be applied uniformly across all switches in the stack, ensuring consistent security enforcement.

Network segmentation capabilities allow administrators to isolate traffic between different departments or applications, enhancing security and reducing the risk of unauthorized access. Stack-based architecture also simplifies the implementation of security policies across large-scale deployments.

Deployment Strategies for Enterprise Networks

When deploying the C3650-STACK module, organizations typically follow structured strategies based on network size and performance requirements. In small deployments, a simple two-switch stack may be sufficient, while larger enterprises may deploy multiple switches in a fully redundant ring topology.

Deployment planning includes considerations such as stack member priority configuration, cable layout design, and redundancy optimization. Proper planning ensures that the stack operates efficiently and provides maximum resilience.

Integration with existing network infrastructure is also an important consideration, ensuring compatibility with core routers, distribution switches, and access layer devices.

Scalability and Future Network Expansion

The modular nature of the C3650-STACK module allows organizations to scale their networks incrementally. Additional switches can be added to the stack as demand increases, without requiring major infrastructure changes.

This scalability is particularly beneficial for growing enterprises, where network requirements evolve over time. The stacking architecture ensures that expansion is seamless, cost-effective, and operationally efficient.
