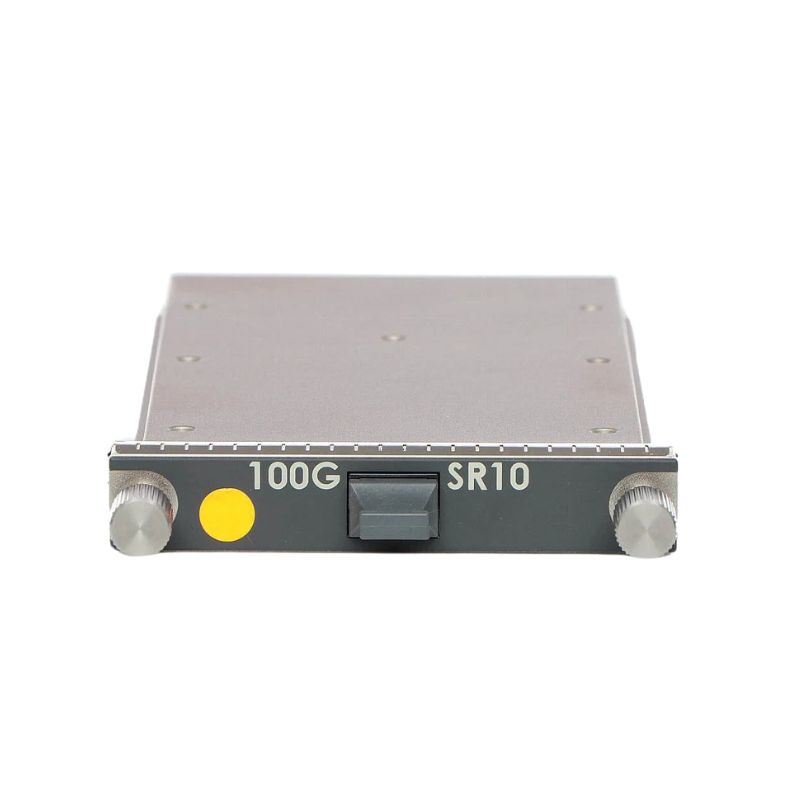

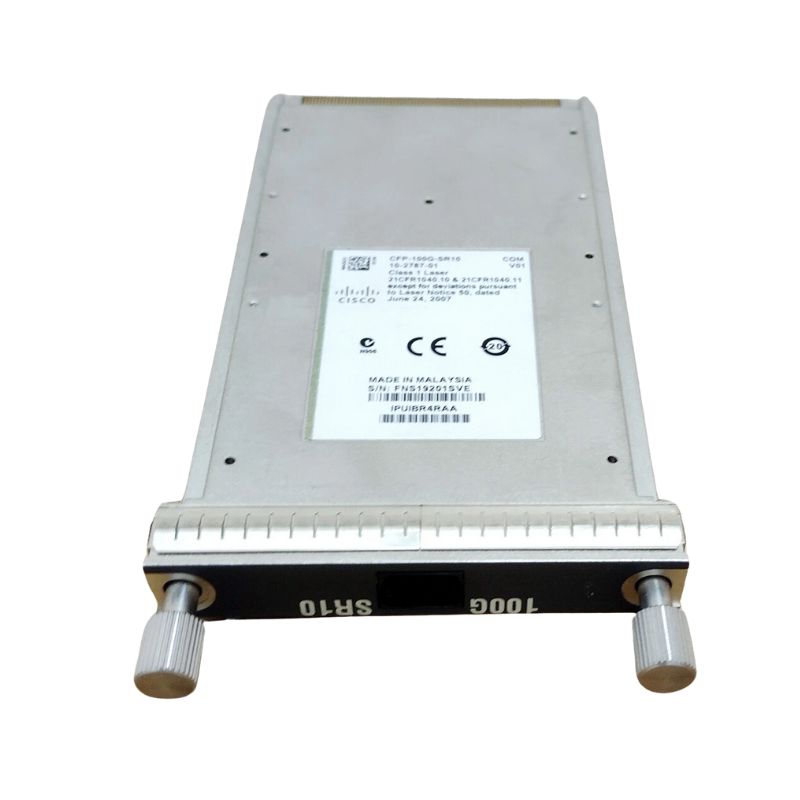

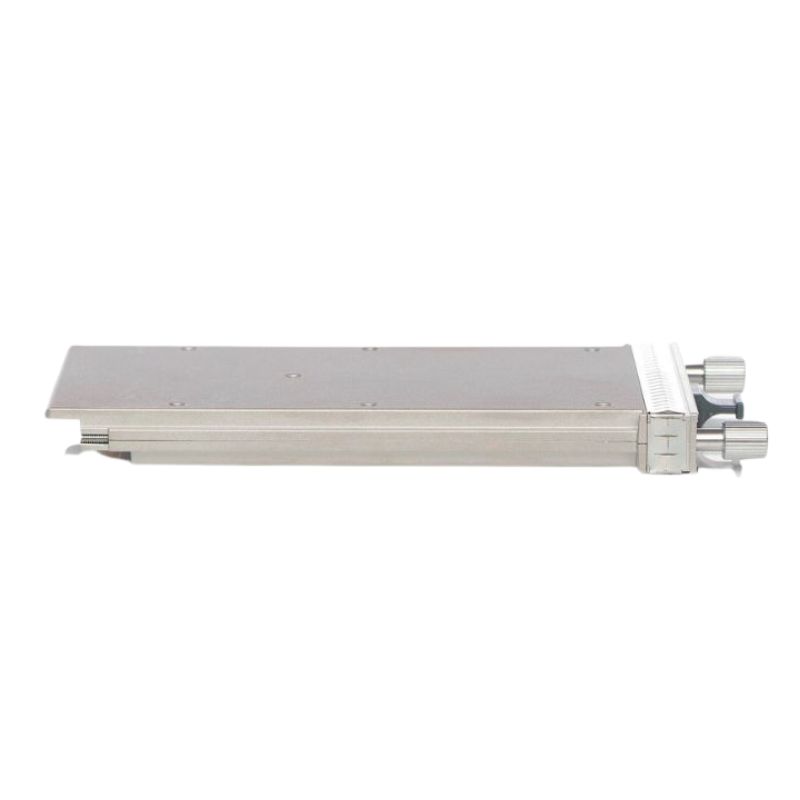

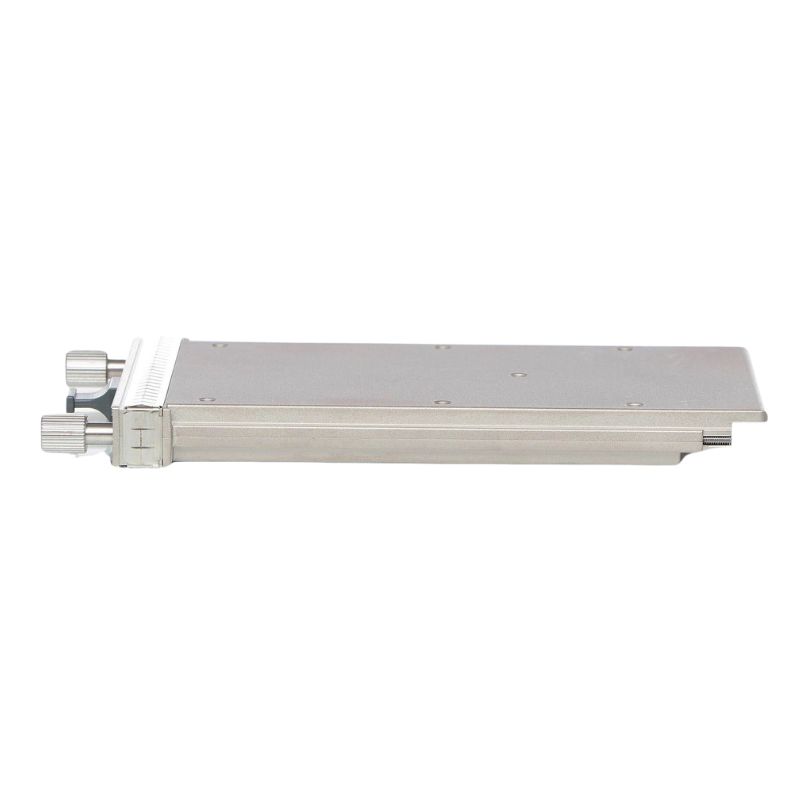

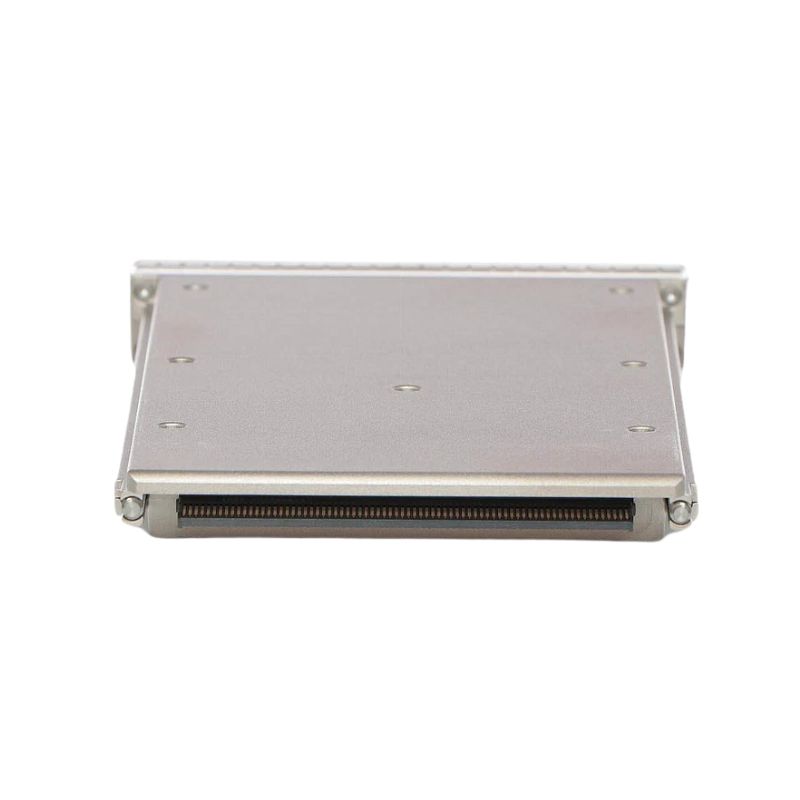

CFP-100G-SR10 Cisco Transceiver Module MMF 150m 850nm

Cisco CFP-100G-SR10 Multimode CFP Transceiver Outline

The Cisco CFP-100G-SR10 is a high-speed 100 Gigabit Ethernet optical transceiver designed for advanced data center and enterprise networking environments. Built for reliable short-reach multimode fiber connectivity, this module delivers exceptional bandwidth performance and scalability.

General Product Information

• Manufacturer: Cisco
• Part Number: CFP-100G-SR10
• Product Category: Optical Transceiver Module

Technical Specifications of CFP-100G-SR10

Data Transmission Capabilities

• Data Rate: 100 Gbps ultra-high-speed connectivity
• Lane Architecture: 10 × 10Gbps (10x10G NRZ parallel lanes)

Optical and Physical Characteristics

• Wavelength: 850nm optimized for short-range transmission
• Connector Type: MPO/MTP 24-fiber (MPO-24 female interface)
• Fiber Support: Multimode Fiber (MMF) compatibility

Transmission Distance and Fiber Compatibility

Supported Fiber Types and Reach

• OM3 Multimode Fiber: Up to 100 meters transmission distance
• OM4 Multimode Fiber: Up to 150 meters transmission distance

Deployment Optimization Tips

• Use high-quality MPO/MTP cabling for maximum stability
• Ensure proper fiber cleanliness to reduce signal loss
• Match fiber grade (OM3/OM4) with required distance needs

Ideal Use Cases and Applications

• High-density data center interconnects
• Cloud computing infrastructure backbones
• Enterprise core and aggregation layer switching
• High-bandwidth server-to-switch connections

Key Product Highlights

• 100Gbps ultra-fast data transmission for modern network infrastructure
• CFP (C Form-factor Pluggable) design for flexible deployment
• 10 parallel optical lanes ensuring stable high-speed throughput
• Optimized for multimode fiber (MMF) environments
• Energy-efficient operation with low power consumption

Cisco CFP-100G-SR10 100GBASE-SR10 Transceiver Module

The Cisco CFP-100G-SR10 100GBASE-SR10 Multimode CFP Transceiver Module represents a high-performance optical networking solution designed for ultra-fast data transmission across modern enterprise and data center infrastructures. Developed to meet the increasing demand for scalable bandwidth and low-latency communication, this transceiver module plays a critical role in enabling 100 Gigabit Ethernet (100GbE) connectivity over multimode fiber (MMF) environments. As part of the advanced optical portfolio from Cisco Systems, it supports high-density aggregation, core switching, and backbone interconnectivity in large-scale networking architectures.

This module is engineered to operate using the CFP (C Form-Factor Pluggable) standard, which is specifically designed for high-speed optical networking applications. The SR10 variant indicates its capability to transmit over short-reach multimode fiber using ten parallel lanes, each carrying 10Gbps, combining to achieve an aggregated throughput of 100Gbps. This architecture provides an efficient balance between cost, scalability, and performance for intra-data-center communication.

Architecture and Design of CFP-100G-SR10 Module

CFP Form Factor Engineering

The CFP form factor is a robust optical transceiver design created to support 40G and 100G Ethernet standards. The Cisco CFP-100G-SR10 leverages this architecture to accommodate high-density optical interfaces while maintaining signal integrity and thermal efficiency. The module is physically larger than newer CFP2 or QSFP28 modules, but it offers strong compatibility with legacy systems and early-generation 100G switching platforms.

Its mechanical structure includes an integrated heat dissipation system, electrical interface connectors, and optical coupling mechanisms designed to ensure stable operation under heavy network loads. The design prioritizes signal reliability, making it suitable for mission-critical environments where consistent throughput is essential.

10-Lane Parallel Optical Transmission

A defining feature of the SR10 transceiver is its 10-lane parallel architecture. Each lane operates at 10Gbps, collectively delivering a total bandwidth of 100Gbps. This parallel transmission method reduces the complexity of extremely high-speed single-lane modulation and enables the use of multimode fiber, which is widely deployed in enterprise data centers.

Each lane operates independently but is synchronized within the module to maintain data alignment and minimize latency discrepancies. This ensures consistent packet delivery across high-speed switching environments.

100GBASE-SR10 Technology and Optical Characteristics

Short-Range Multimode Fiber Operation

The 100GBASE-SR10 standard is designed specifically for short-reach optical communication using multimode fiber. Typically, OM3 or OM4 fiber types are used to support high bandwidth transmission over distances ranging from approximately 100 meters to 150 meters depending on fiber quality and network conditions. This makes it ideal for data center racks, adjacent rack-to-rack communication, and high-density server interconnects.

Multimode fiber allows multiple modes of light to propagate through the core, which reduces installation costs compared to single-mode fiber while maintaining sufficient bandwidth for intra-facility networking. The CFP-100G-SR10 module is optimized for these characteristics, ensuring stable optical signal transmission across short distances.

Parallel Optics and MPO Connectivity

The module uses MPO (Multi-Fiber Push-On) connectors to facilitate parallel optical transmission. Typically, a 24-fiber MPO connector is used, where 10 fibers transmit data and 10 fibers receive data, while the remaining fibers may serve as spares or for future scalability. This parallel connectivity structure ensures high throughput and reduces latency caused by serialization and deserialization processes.

The MPO interface also simplifies cabling in structured cabling systems, enabling easier deployment in dense data center environments where space optimization is critical.

Performance Capabilities and Network Efficiency

High Bandwidth Throughput

The Cisco CFP-100G-SR10 module delivers a consistent 100Gbps data rate, making it suitable for bandwidth-intensive applications such as cloud computing, virtualization, big data analytics, and high-frequency trading platforms. The ability to handle large volumes of traffic without congestion ensures optimal application performance.

This level of throughput is essential for modern enterprises that rely on real-time data processing and high-speed interconnectivity between distributed systems. The module minimizes packet loss and jitter, ensuring reliable communication between network nodes.

Low Latency Communication

Latency reduction is a critical design objective for this transceiver module. The parallel optical design significantly reduces serialization delay compared to traditional serial transmission systems. As a result, data packets are transmitted with minimal delay, which is crucial for latency-sensitive applications such as financial trading systems, AI training clusters, and real-time analytics platforms.

Compatibility with Cisco Networking Infrastructure

Integration with Cisco Switches and Routers

The CFP-100G-SR10 module is designed to integrate seamlessly with compatible Cisco routers and high-end switches that support CFP interfaces. This ensures optimized performance within Cisco’s ecosystem, enabling organizations to build cohesive and scalable network infrastructures.

Its compatibility with Cisco’s optical line cards allows for flexible deployment in core and aggregation layers of enterprise and service provider networks. This ensures smooth interoperability across different network tiers.

Network Scalability and Upgrade Paths

One of the key advantages of the CFP-100G-SR10 module is its ability to support network scalability. Organizations transitioning from 10G or 40G infrastructures can adopt this module to significantly increase bandwidth without requiring a complete overhaul of existing fiber infrastructure.

This makes it a cost-effective upgrade path for enterprises seeking to expand their network capacity while preserving operational continuity.

Data Center Deployment Scenarios

High-Density Data Centers

In high-density data center environments, the CFP-100G-SR10 module is used to interconnect top-of-rack (ToR) switches with aggregation and core switches. Its short-reach multimode capability makes it ideal for intra-building communication where high bandwidth is required over relatively short distances.

This configuration supports virtualization platforms, cloud orchestration systems, and distributed storage architectures, ensuring seamless data flow between compute and storage nodes.

Cloud Infrastructure and Hyperscale Networks

Hyperscale data centers benefit significantly from the deployment of 100GBASE-SR10 modules due to their ability to support massive data throughput. These environments require rapid data synchronization across thousands of servers, making high-speed optical interconnects essential.

The CFP-100G-SR10 module ensures that cloud service providers can maintain service reliability while scaling infrastructure to meet growing demand.

Optical Signal Integrity and Engineering Reliability

Signal Conditioning and Error Reduction

Maintaining signal integrity across multiple parallel lanes is a critical engineering challenge. The CFP-100G-SR10 module incorporates advanced signal conditioning techniques to minimize bit error rates and ensure accurate data transmission. These techniques include equalization, lane alignment, and clock recovery mechanisms.

By reducing optical distortion and crosstalk, the module ensures reliable communication even under high network loads.

Thermal Management System

Due to the high-power consumption associated with 100G transmission, thermal regulation is a key design consideration. The module includes integrated heat sinks and optimized airflow channels to maintain stable operating temperatures. This prevents performance degradation and extends the lifespan of the module in continuous operation environments.

Comparison with Other 100G Optical Modules

CFP vs CFP2 and QSFP28 Architectures

Compared to newer CFP2 and QSFP28 modules, the CFP-100G-SR10 is larger in size but offers strong compatibility with legacy systems. QSFP28 modules provide higher density and lower power consumption, but CFP remains relevant in environments where existing infrastructure is based on CFP interfaces.

The SR10 design also differs from newer single-lane PAM4-based optics by using multi-lane parallel transmission, which simplifies signal processing at the cost of increased physical footprint.

Use Case Differentiation

While QSFP28 is often preferred for greenfield deployments, CFP-100G-SR10 remains valuable in upgrade scenarios where existing Cisco CFP-based infrastructure is already deployed. This ensures investment protection and reduces migration costs.

Advantages in Enterprise Networking Environments

High Reliability and Stability

The module provides consistent performance in mission-critical environments where downtime is not acceptable. Its engineering design prioritizes stability, making it suitable for financial institutions, telecommunications providers, and cloud operators.

Cost-Effective High-Speed Networking

By leveraging multimode fiber infrastructure, the CFP-100G-SR10 reduces deployment costs compared to single-mode alternatives. This makes it an economically attractive option for organizations upgrading to 100G speeds without extensive infrastructure overhaul.

Future Role of CFP-100G-SR10 in Evolving Networks

Transition Toward Higher Bandwidth Architectures

As networking technology continues to evolve toward 400G and 800G systems, the CFP-100G-SR10 module still plays an important transitional role. It enables organizations to incrementally upgrade infrastructure while maintaining operational stability.

Continued Relevance in Legacy Systems

Many enterprise networks continue to rely on CFP-based infrastructure, ensuring ongoing demand for SR10 modules. This long lifecycle ensures continued support in hybrid environments where multiple generations of networking technology coexist.
