SM-ES2-24-P Cisco 24-Port 10/100Base-TX Service Module

Cisco SM-ES2-24-P 24-Port Service Module Overview

The Cisco SM-ES2-24-P Enhanced EtherSwitch Service Module is a high-performance networking solution designed to expand enterprise switch capabilities with reliable Fast Ethernet and Gigabit Ethernet connectivity. Built for modular Cisco platforms, this 24-port service module delivers scalable LAN expansion, efficient data handling, and seamless integration into business-class network infrastructures.

General Information

• Brand: Cisco
• Part Number: SM-ES2-24-P
• Product Category: Service Module

Core Device Classification

• Network Service Module for enterprise switches
• Designed for LAN expansion and switching enhancement
• Supports modular Cisco router and switch platforms

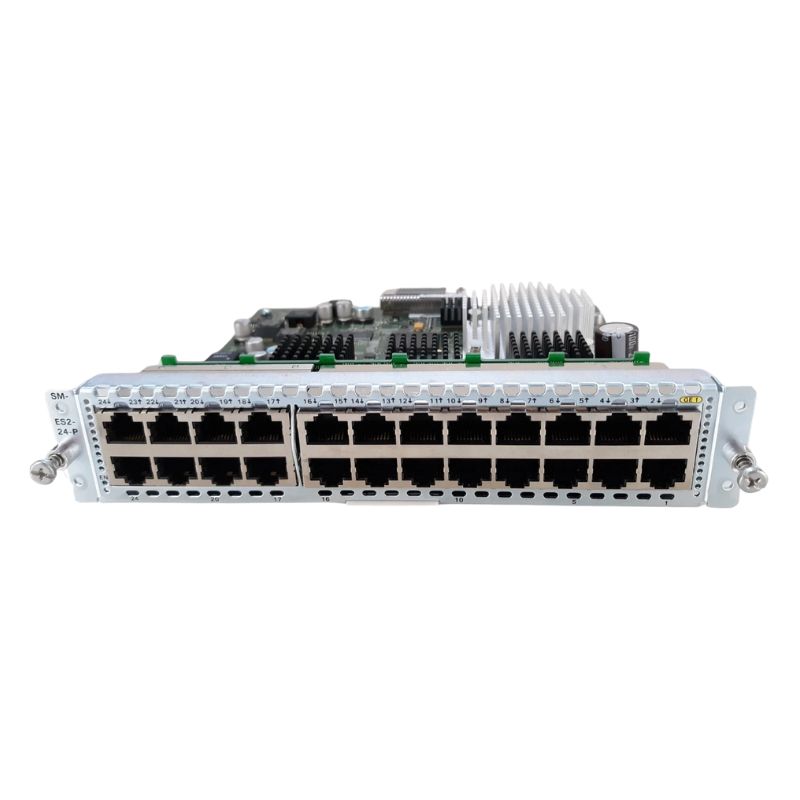

LAN Interface Ports

• 23 x RJ-45 ports supporting 10/100Base-TX
• Auto-negotiation for optimal speed selection
• Twisted pair cabling support for reliable transmission

Uplink Port Capability

• 1 x RJ-45 uplink port
• Supports 10/100/1000Base-T connectivity
• Auto-negotiation for flexible network integration

Supported Ethernet Standards

• 10/100Base-TX for LAN connectivity
• 10/100/1000Base-T for uplink expansion
• Auto-negotiation for adaptive speed control

Performance Optimization Features

• Efficient packet switching for enterprise traffic loads
• Reduced latency in LAN communications
• Improved bandwidth utilization across ports

Dimensions and Physical Characteristics

• Height: 1.6 inches
• Width: 8.1 inches
• Depth: 8.1 inches

Weight Information

• Approximate weight: 2.18 lbs
• Lightweight design for modular deployment
• Easy installation and maintenance handling

Network Compatibility Features

• 10/100Base-TX LAN switching
• 10/100/1000Base-T uplink connectivity
• Full duplex and half duplex operation support

Auto-Negotiation Functionality

• Automatic speed detection for connected devices
• Optimized link performance without manual configuration
• Improved network deployment efficiency

Enterprise Applications

• Corporate office LAN expansion
• Branch office network scaling
• Data center access layer switching
• Campus network infrastructure

Cisco SM-ES2-24-P EtherSwitch 24-Port TX Service Module

Enterprise-Class Switching Integration for Modular Network Architectures

The Cisco SM-ES2-24-P Enhanced EtherSwitch 24-Port 10/100Base-TX Service Module represents a highly integrated switching solution designed for modular Cisco router environments, delivering advanced Ethernet switching capabilities directly within service-oriented routing platforms. This enhanced EtherSwitch module is engineered to extend LAN switching functionality inside Cisco Integrated Services Routers (ISRs), enabling organizations to consolidate routing and switching infrastructure into a unified chassis-based system. By embedding switching intelligence within the router itself, enterprises achieve reduced hardware footprint, simplified cabling architecture, and improved operational efficiency across distributed branch and campus environments.

As part of Cisco’s EtherSwitch service module family, this 24-port 10/100Base-TX module is optimized for organizations requiring scalable Fast Ethernet connectivity for endpoint devices, legacy systems, and access-layer deployments. It delivers consistent wire-speed forwarding performance for Fast Ethernet traffic while maintaining deep integration with Cisco IOS-based management frameworks. The module is especially relevant in environments where predictable performance, centralized management, and modular expansion capabilities are essential.

Designed for Modular Cisco ISR Platforms

The SM-ES2-24-P module is built to operate seamlessly within compatible Cisco ISR chassis systems, leveraging internal backplane connectivity for data forwarding between switching and routing components. This tight integration eliminates the need for external access switches in smaller deployments, making it ideal for branch offices, retail environments, and remote enterprise locations. By embedding switching functionality directly into the router chassis, organizations can achieve a converged networking model that reduces operational complexity while preserving enterprise-grade performance characteristics.

The modular design also supports simplified lifecycle management, as both routing and switching components can be configured, monitored, and updated through unified Cisco IOS command structures. This consistency ensures that network administrators can manage distributed infrastructures without requiring separate switching platforms or additional management overhead.

Hardware Architecture and Switching Capabilities

24-Port Fast Ethernet Access Layer Design

At its core, the Cisco SM-ES2-24-P provides 24 dedicated 10/100Base-TX Ethernet ports, enabling connectivity for a wide range of end-user devices including desktop computers, VoIP phones, printers, wireless access points, and industrial endpoints. Each port supports auto-negotiation for speed and duplex settings, ensuring compatibility with both legacy and modern Ethernet devices. The Fast Ethernet architecture is particularly suitable for environments where Gigabit bandwidth is not strictly required but stable and cost-efficient connectivity is essential.

The module is engineered to handle consistent traffic loads across all ports simultaneously, leveraging internal switching fabric optimization to reduce congestion and maintain predictable throughput. This makes it highly suitable for structured access-layer deployments in enterprise branch networks.

Integrated Switching Fabric

The internal switching fabric of the SM-ES2-24-P is designed for low-latency packet forwarding between ports and between the switch module and the host router. By utilizing the router’s backplane architecture, the module avoids external switching hops, thereby reducing latency and improving packet delivery efficiency. This architecture is particularly beneficial in converged network designs where routing and switching functions must operate in tight coordination.

The switching subsystem supports hardware-based forwarding mechanisms that offload packet processing from the main router CPU, allowing routing resources to focus on Layer 3 operations while the module efficiently handles Layer 2 switching tasks.

MAC Address Management and Table Optimization

The Cisco SM-ES2-24-P maintains a dynamic MAC address table that enables efficient learning and forwarding of Ethernet frames across connected devices. The table dynamically updates based on network activity, ensuring accurate forwarding decisions and minimizing broadcast traffic. This contributes to improved network efficiency and reduced unnecessary packet propagation across the LAN environment.

The MAC address management system is optimized for enterprise branch-scale deployments, where dozens of endpoints may be active simultaneously, requiring reliable and rapid address resolution.

Power over Ethernet and Endpoint Support Capabilities

Integrated PoE Functionality for Network Devices

The “P” designation in the Cisco SM-ES2-24-P indicates integrated Power over Ethernet (PoE) support, enabling the module to deliver both data and electrical power over standard Ethernet cabling. This capability allows connected devices such as IP phones, wireless access points, and security cameras to operate without the need for separate power supplies. By delivering centralized power management through the switch module, organizations can significantly simplify endpoint deployment and reduce electrical infrastructure complexity.

PoE integration is especially valuable in modern enterprise environments where VoIP and wireless technologies are widely deployed. The ability to power endpoints directly through the switching infrastructure enhances deployment flexibility and reduces installation costs.

Efficient Power Distribution Across Ports

The module is designed with intelligent power allocation mechanisms that distribute available PoE budgets across active ports based on device requirements. This ensures optimal usage of power resources while maintaining operational stability across all connected devices. Power management features dynamically adjust allocation based on endpoint demand, preventing overload conditions and ensuring consistent performance across the network.

This power-aware architecture also supports prioritization strategies, enabling mission-critical devices to maintain power availability even under high utilization scenarios.

Layer 2 Switching Features and Network Intelligence

Advanced VLAN Segmentation and Traffic Isolation

The Cisco SM-ES2-24-P supports robust VLAN segmentation capabilities, enabling network administrators to divide physical infrastructure into multiple logical networks. This segmentation improves security, reduces broadcast domains, and enhances traffic management efficiency. VLANs are essential in enterprise environments where departmental isolation, guest network separation, and application-specific traffic control are required.

By implementing VLAN structures at the switch module level, organizations can enforce policy-based segmentation directly at the access layer, improving both security posture and network performance.

Spanning Tree Protocol Optimization

To maintain loop-free network topologies, the module supports Spanning Tree Protocol (STP) and its enhanced variants. These protocols ensure that redundant paths within the network do not create broadcast storms or switching loops. The implementation is optimized for fast convergence, allowing the network to recover quickly from topology changes or link failures.

This is particularly important in modular ISR environments where multiple uplinks or redundant paths may be configured for resilience and failover.

Quality of Service (QoS) Prioritization

The SM-ES2-24-P incorporates Quality of Service mechanisms that prioritize traffic based on type, application, or policy configuration. Voice and video traffic can be assigned higher priority levels to ensure minimal latency and jitter, while less time-sensitive data traffic is handled accordingly. This is critical in converged networks supporting unified communications and real-time applications.

QoS policies can be centrally managed through Cisco IOS, allowing administrators to enforce consistent traffic prioritization across distributed branch environments.

Enterprise Management and Configuration Flexibility

Unified Cisco IOS Management Framework

One of the key advantages of the Cisco SM-ES2-24-P is its integration into the Cisco IOS operating environment. This unified management approach allows administrators to configure routing and switching functions using consistent command-line interfaces and policy structures. The convergence of management simplifies network operations and reduces the learning curve for IT teams managing hybrid infrastructures.

Centralized configuration also enables faster deployment of standardized network policies across multiple branch locations, improving consistency and reducing configuration drift.

Remote Monitoring and Diagnostics

The module supports advanced monitoring capabilities that provide visibility into port status, traffic statistics, error rates, and power consumption metrics. These diagnostic tools enable proactive network maintenance and troubleshooting, allowing administrators to identify and resolve issues before they impact end users.

Remote management capabilities are particularly valuable in distributed enterprise environments where physical access to network equipment may be limited.

Security Features and Access Control

Layer 2 Security Enforcement

The Cisco SM-ES2-24-P incorporates multiple security mechanisms at the data link layer to protect against unauthorized access and network-based threats. Port security features allow administrators to restrict access based on MAC addresses, limiting exposure to unknown devices. This ensures that only authorized endpoints can connect to the network infrastructure.

Additional security features support traffic filtering and segmentation, enhancing overall network protection at the access layer.

Access Control and Policy Enforcement

Access control mechanisms integrated into the switch module allow administrators to define granular policies governing device connectivity, traffic flow, and service access. These policies can be applied consistently across all ports, ensuring uniform enforcement of network security standards throughout the deployment.

Deployment Scenarios and Use Cases

Branch Office Network Consolidation

The SM-ES2-24-P is particularly well-suited for branch office deployments where space, power efficiency, and simplified management are key considerations. By integrating switching directly into the router, organizations can eliminate the need for standalone access switches, reducing both capital and operational expenses.

Retail and Distributed Enterprise Environments

Retail locations benefit from the module’s ability to support multiple endpoint types including point-of-sale systems, surveillance cameras, and customer-facing devices. Its PoE capabilities further simplify installation by reducing the need for separate power infrastructure.

Enterprise Campus Edge Connectivity

In campus environments, the module can serve as an edge switching solution for departmental networks or building-level connectivity. Its integration with Cisco ISR platforms allows seamless routing between campus segments and core network infrastructure.

Performance Optimization and Operational Efficiency

Low-Latency Forwarding

The architecture of the Cisco SM-ES2-24-P is optimized for low-latency switching, ensuring that packets are forwarded quickly between endpoints. This is critical for time-sensitive applications such as voice communications, video conferencing, and real-time data processing.

Scalable Network Expansion Capability

The modular nature of the EtherSwitch service module enables scalable network expansion without requiring major infrastructure redesign. Additional modules or router upgrades can be implemented as organizational needs evolve, supporting long-term network growth strategies.

Energy Efficiency and Resource Optimization

The integration of switching and routing functions within a single chassis contributes to improved energy efficiency compared to separate device deployments. Reduced hardware footprint translates into lower power consumption and simplified cooling requirements.
