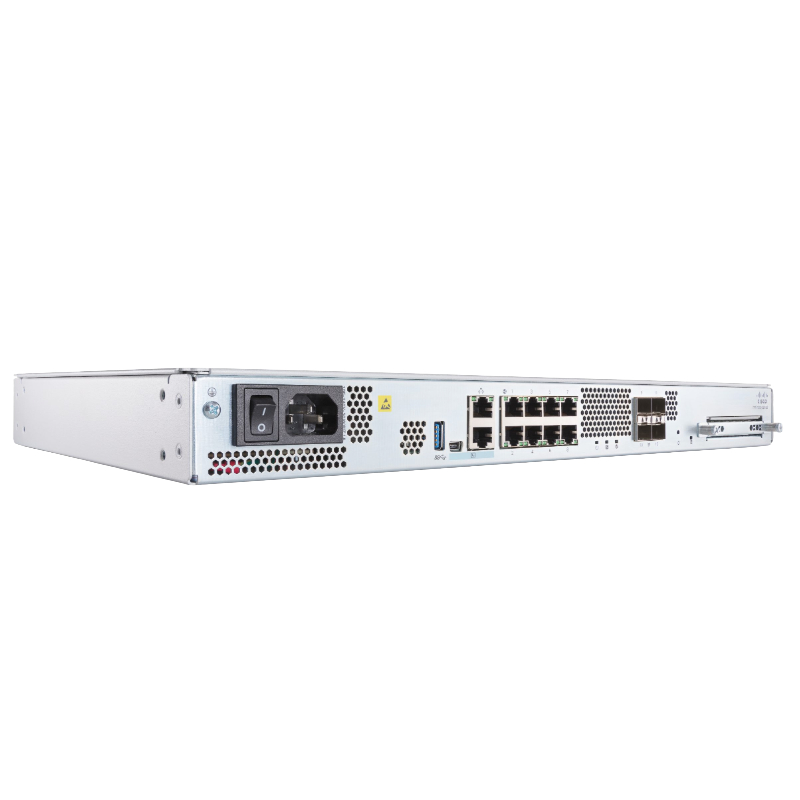

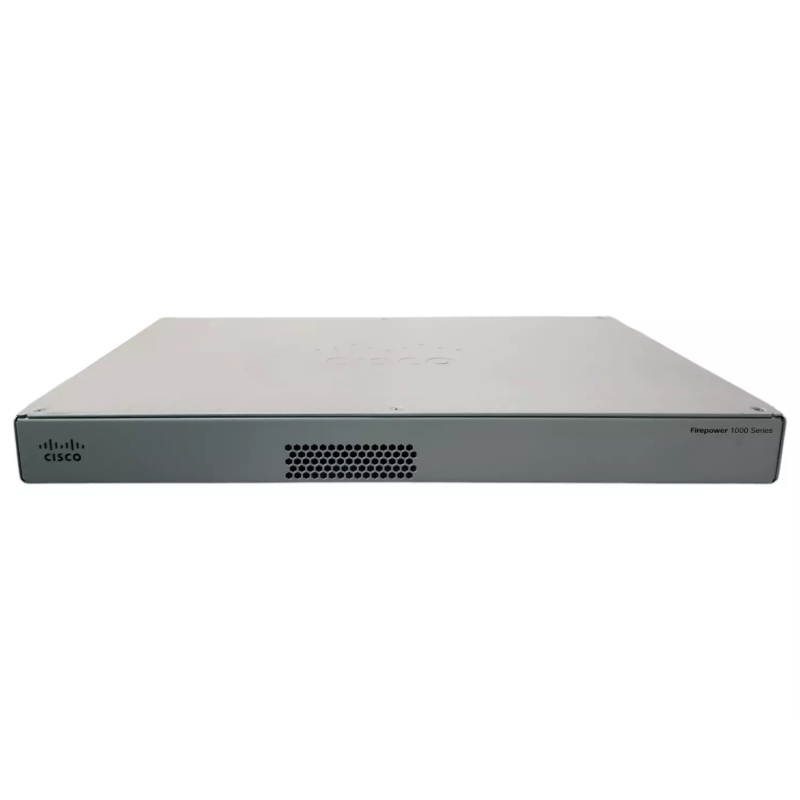

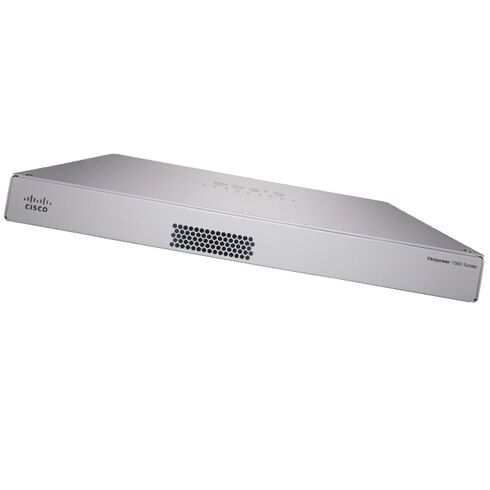

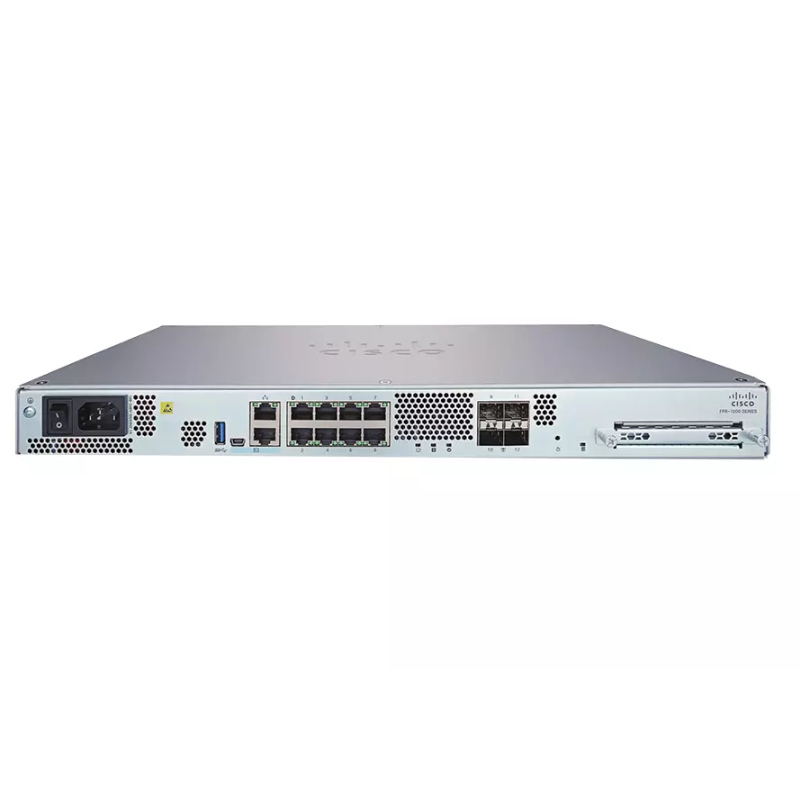

FPR1120-NGFW-K9 Cisco 1120 NGFW 8-Port Firewall 1000Base-T Gigabit Ethernet

Cisco FPR1120-NGFW-K9 1120 NGFW Firewall Appliance

The Cisco FPR1120-NGFW-K9 is a high-performance next-generation firewall appliance built for organizations that need dependable network security, flexible connectivity, and efficient traffic control in a compact 1U rack-mount platform. Designed for wired environments, this Cisco 1120 NGFW firewall delivers up to 4.5 Gbps firewall throughput, supports 2.5 Gbps multiprotocol firewall performance, and provides up to 1 Gbps IPsec VPN throughput for secure site-to-site connectivity. With a versatile interface layout that includes multiple RJ-45 and SFP ports, the appliance is well-suited for branch deployments, distributed offices, growing businesses, and enterprise edge security applications that require strong protection, policy enforcement, and reliable VPN functionality.

General Information

Manufacturer: Cisco
Part Number: FPR1120-NGFW-K9
Product Category: Firewall

Technical Specifications

• Device Type: Cisco Firepower one thousand one hundred twenty next generation hardware firewall security appliance.
• Port Count: Eight built in gigabit ethernet RJfortyfive network communication interface connections.
• Core Speed: Two point three gigabits per second stateful inspection firewall packet filtering traffic throughput.
• Form Factor: One rack unit standard network chassis size for data closet deployment enclosure.
• Software Base: Preloaded Cisco Firepower threat defense code image for advanced application inspection security.
• Design Purpose: Internet edge or branch office deployment secure internet protocol virtual private network management.

Features of the Cisco FPR1120-NGFW-K9 Firewall

• Next-generation firewall appliance in a compact 1U rack-mountable design
• Delivers up to 4.5 Gbps firewall throughput for strong perimeter protection
• Supports 2.5 Gbps multiprotocol firewall throughput for advanced traffic inspection
• Provides up to 1 Gbps IPsec VPN throughput for secure remote and branch connectivity
• Handles up to 200,000 concurrent sessions for busy network environments
• Supports up to 75,000 new connections per second for dynamic traffic loads
• Includes 8 x RJ-45 interfaces for copper Ethernet connectivity
• Equipped with 4 x SFP ports for flexible fiber uplink options
• Dedicated 1000Base-T management port for simplified administration
• Built-in serial console port and USB 3.0 Type-A port for service and maintenance access
• Ships with mounting brackets for rack installation

Performance and Security Throughput

Performance Highlights

• Firewall Throughput (UDP): 4.5 Gbps
• Multiprotocol Firewall Throughput: 2.5 Gbps
• IPsec VPN Throughput: 1 Gbps
• Concurrent Connections: 200,000
• New Connections Per Second: 75,000
• VPN Peers: 150
• Security Contexts: 2

Available Ports and Expansion Interfaces

• 8 x RJ-45 ports for Gigabit Ethernet network connectivity
• 4 x SFP (Mini-GBIC) ports for fiber uplinks or modular network connections
• 1 x 1000Base-T management port (RJ-45) for out-of-band administration
• 1 x serial RJ-45 port for console access and device configuration
• 1 x USB 3.0 Type-A port for maintenance and additional service functions

Storage, Form Factor, and Hardware

Hardware Overview

• Device Type: Firewall appliance
• Form Factor: Rack-mountable
• Rack Height: 1U
• Internal Storage: 200 GB hard drive
• Cooling: 1 fan

Power Specifications

• Power Supply: Internal power supply
• Voltage Required: AC 120/230V
• Frequency: 50/60 Hz

Compliance and Regulatory Standards

• CISPR 22 Class A
• CISPR 24
• EN 61000-3-2
• EN 61000-3-3
• EN 55024
• AS/NZS 60950-1
• EN 61000-4-2 / 4-3 / 4-4 / 4-5 / 4-6 / 4-8 / 4-11
• ICES-003 Class A
• UL 60950-1
• IEC 60950-1
• EN 60950-1
• FCC CFR47 Part 15 A
• VCCI Class A
• EN 300 386
• CAN/CSA-C22.2 No. 60950-1
• AS/NZS CISPR22 Class A

Cisco FPR1120-NGFW-K9 Compatibility

• Gigabit Ethernet switching environments using RJ-45 copper connections
• Fiber-connected uplink deployments that utilize SFP-based connectivity
• VPN-enabled branch-to-headquarters topologies using IPsec site-to-site tunnels
• Managed network security deployments requiring console, management, and service access ports
• Cisco-based network ecosystems where a dedicated firewall appliance is needed for segmentation, threat control, and secure internet access

Cisco FPR1120-NGFW-K9 8 Ports Firewall Appliance

The Cisco FPR1120-NGFW-K9 1120 NGFW 8 Ports Firewall Appliance 1000Base-T Gigabit Ethernet belongs to the Cisco Firepower 1000 family, a platform range built for organizations that need advanced network protection, dependable application control, high-quality threat inspection, and flexible deployment options in a compact rackmount form factor. Positioned for small and medium business networks, branch offices, distributed enterprises, retail environments, financial locations, educational institutions, and healthcare facilities, the Cisco Firepower 1120 appliance combines security enforcement, policy visibility, segmentation support, and secure connectivity in a single platform. This category is especially important for buyers searching for a next-generation firewall appliance that can deliver stronger protection than a traditional firewall while still fitting into branch and edge infrastructure designs where space, management simplicity, and stable throughput matter.

The Cisco FPR1120-NGFW-K9 platform is recognized for blending firewall services with deeper inspection and broader control across users, applications, traffic flows, and encrypted sessions. Instead of acting as a basic packet filter, the appliance is designed to help organizations inspect traffic, apply security rules intelligently, support virtual private networking, and improve visibility into what is moving through the network. The result is a security appliance category that serves both as a perimeter defense platform and as a practical policy enforcement point for branch, campus edge, and small data environments. Businesses evaluating the Cisco Firepower 1120 series often focus on its 8-port 1000Base-T Gigabit Ethernet design, its place within the Cisco Firepower 1000 portfolio, and its suitability for environments that need secure internet edge access, site-to-site connectivity, user access control, and inspection-driven threat defense without stepping into oversized enterprise chassis platforms.

In the Cisco security portfolio, the Firepower 1120 model sits in a space where performance, branch readiness, and layered protection are more important than simple stateful filtering alone. It is used by organizations that want to protect branch traffic, inspect east-west and north-south communications, support hybrid work, connect remote offices to headquarters, and keep control over application usage and policy compliance. Because it is part of a family associated with Cisco Threat Defense and Cisco ASA deployment options, the appliance category also attracts buyers who want operational flexibility and who may already be standardized on Cisco networking and security infrastructure.

Cisco Firepower 1120 Within the Firewall Appliance

The Cisco FPR1120-NGFW-K9 category sits in the broader next-generation firewall appliance market, where organizations expect much more than conventional firewall throughput numbers. In this segment, buyers look for application awareness, intrusion prevention, secure VPN connectivity, visibility into encrypted traffic, centralized policy management, and a manageable upgrade path for future security needs. The Firepower 1120 appliance is relevant because it addresses this demand profile in a 1U rackmount design that is appropriate for branch offices, remote locations, compact server rooms, and security-conscious small enterprise environments.

Unlike older firewall platforms that focused primarily on port-based access control, a next-generation firewall appliance category is expected to examine traffic context. That includes understanding applications, users, network zones, risk indicators, and suspicious behavior patterns. The Cisco FPR1120-NGFW-K9 is associated with that type of modern security approach. For category page visitors, this matters because they are often not searching only for a firewall box. They are searching for a platform that can help with malware defense, application visibility, intrusion inspection, remote office protection, VPN concentration, policy segmentation, and stronger internet edge security.

The Firepower 1120 category is also important for organizations transitioning from legacy branch firewalls to unified threat defense appliances. In these environments, the network edge must handle internet traffic, branch-to-headquarters communication, SaaS application access, remote user tunnels, and segmented access for devices, employees, and guest users. A product in this category must therefore support secure traffic inspection without becoming an operational bottleneck. The Cisco Firepower 1120 appliance is frequently evaluated in this context because it provides a combination of Gigabit Ethernet connectivity, rackmount deployment, advanced software support, and security services suitable for branch and midsize locations.

Hardware Identity and Physical Platform Characteristics

The Cisco FPR1120-NGFW-K9 refers to the Cisco Firepower 1120 Next-Generation Firewall appliance, a model in the Firepower 1000 Series. It is a 1U rackmount platform built to provide enterprise-grade security functionality in a size that fits branch offices and smaller server environments without requiring the footprint of a large data center security chassis. The appliance includes 8 ports of 1000Base-T Gigabit Ethernet connectivity and belongs to a product family that emphasizes sustained security throughput, operational ease, and integration with Cisco security software workflows.

For many buyers, the physical network interface layout is one of the first reasons this category stands out. An 8-port 1000Base-T Gigabit Ethernet firewall appliance is attractive because it offers flexible copper connectivity for LAN segments, WAN links, DMZ zones, security separation, management design, and service insertion roles. In practical network architecture terms, this means the Cisco Firepower 1120 can be used to connect multiple internal zones, uplinks, branch access segments, and external network paths while still leaving room for segmented policy enforcement. This makes the product category suitable not only for a simple internet edge firewall but also for more structured branch network designs where different traffic classes must be separated and protected.

The rackmount form factor is another important element of the category. Desktop security appliances are useful for micro offices, but many businesses prefer a 1U rackmount firewall because it integrates more cleanly into branch cabinets, wiring closets, network racks, managed service provider deployments, and small on-premises data rooms. The Cisco FPR1120-NGFW-K9 fits that need by giving buyers a firewall platform that looks and behaves like a professional network appliance rather than a consumer-style edge box. For organizations standardizing branch infrastructure, this is a major advantage because consistency in mounting, cabling, cooling, and service procedures can reduce deployment complexity across multiple sites.

8-Port 1000Base-T Gigabit Ethernet Design

The 8-port 1000Base-T Gigabit Ethernet design is central to the value of the Cisco FPR1120-NGFW-K9 category. Gigabit copper interfaces remain extremely relevant in branch, SMB, retail, healthcare, and distributed enterprise environments because they provide broad compatibility with existing switching infrastructure, ISP handoffs, access layer devices, and structured cabling installations. Many branch networks still depend heavily on RJ45 copper connectivity, and an appliance with multiple integrated 1000Base-T ports reduces the need for additional adapters, external media conversion, or complicated cabling designs.

In a practical deployment, those ports can be assigned to separate security zones, routed links, VLAN trunks, management paths, DMZ segments, WAN uplinks, guest networks, point-of-sale networks, wireless controller uplinks, or dedicated service paths. That flexibility is one of the main reasons organizations search for a firewall in this category rather than a simpler security gateway with only two or four interfaces. The Cisco Firepower 1120 platform can be adapted to a range of branch topologies, from a single internet edge with internal segmentation to a more complex design that includes partner access, voice systems, surveillance networks, and isolated application environments.

The category is also valuable because copper Gigabit ports simplify branch replacement projects. When an organization is refreshing older Cisco, SonicWall, Fortinet, Juniper, or generic firewall platforms, it often wants a solution that can slot into the existing Ethernet environment without major rewiring. The Cisco FPR1120-NGFW-K9 fits that requirement by providing a familiar interface model for branch IT teams and integrators. This reduces migration friction and helps keep installation windows shorter, especially in locations where downtime must be minimized.

Next-Generation Firewall Architecture

The phrase NGFW in Cisco FPR1120-NGFW-K9 is highly significant because it signals that the appliance belongs to the next-generation firewall category rather than the legacy firewall category. A next-generation firewall is expected to deliver more than stateful packet filtering. It should help identify applications, inspect traffic more deeply, enforce granular security policies, and integrate threat prevention technologies into a single security platform. For organizations selecting a Cisco Firepower 1120 appliance, this means the category should be viewed as a security control point capable of combining routing-aware traffic decisions with inspection and policy enforcement.

In modern enterprise networks, the edge is no longer a simple boundary where inbound connections are blocked and outbound connections are allowed. Employees use SaaS applications, branch offices connect to cloud platforms, remote users require encrypted access, and attackers often attempt to hide malicious activity inside allowed protocols. As a result, the firewall must become a visibility and enforcement platform. The Cisco FPR1120-NGFW-K9 category is attractive because it supports that model of security by fitting into the broader Firepower architecture for inspection, access control, and traffic analysis.

For a business running a branch office, a next-generation firewall appliance can help distinguish between approved and unapproved application traffic, inspect network sessions for suspicious behavior, and provide the policy framework necessary to restrict risky communication patterns. For a school or clinic, it can help control who accesses what, protect internet-facing services, and reduce exposure to known threats. For a retailer, it can isolate point-of-sale devices, protect inventory systems, and secure communications back to central systems. The Cisco Firepower 1120 category remains relevant because it serves these diverse roles while staying within a branch-appropriate hardware profile.

Threat Defense Value for SMB and Branch Security

One of the strongest reasons organizations search for the Cisco FPR1120-NGFW-K9 category is the need for stronger threat defense at the branch and midmarket edge. The branch perimeter is a common target for compromise because it often connects directly to the internet, hosts local users and devices, and may not have the same depth of dedicated security staffing as a central data center. A firewall appliance in this category therefore needs to do more than permit and deny traffic. It must help the organization identify, inspect, and control suspicious behavior before it reaches sensitive internal systems.

The Firepower 1120 category is associated with layered threat protection. In a practical sense, this means the platform can be deployed as a control point for policy inspection, intrusion prevention, VPN security, and broader traffic governance. For small and midsize organizations, the benefit is that multiple security functions can be consolidated into one appliance category rather than spread across several separate products. Consolidation can simplify procurement, reduce rack clutter, streamline management, and create a more coherent security policy model.

Threat defense at the branch is not only about blocking obvious attacks. It is also about maintaining business continuity. A malware outbreak, unauthorized remote access path, compromised endpoint, or unmanaged application channel can interrupt operations, expose data, and create expensive remediation work. The Cisco FPR1120-NGFW-K9 category helps address this risk by placing inspection and policy enforcement at the point where users, devices, internet access, and business applications converge. This is particularly useful in branch offices that handle customer data, financial transactions, patient information, student records, or distributed operational systems.

Secure Branch Connectivity and Site-to-Site Network

Virtual private networking remains one of the most important functions in a branch firewall appliance category, and the Cisco FPR1120-NGFW-K9 is highly relevant in this area. Many organizations deploy branch offices, remote clinics, retail stores, warehouses, field sites, and satellite facilities that must connect securely back to headquarters, data centers, or cloud environments. A firewall appliance in this category should therefore support secure site-to-site connectivity, encrypted data transport, and remote access scenarios without forcing the organization to deploy separate VPN concentrators for every small location.

The Firepower 1120 category is well aligned with secure branch connectivity because the appliance can serve as both the security perimeter and the encrypted connectivity endpoint. This is valuable for businesses trying to simplify branch architecture. Rather than maintaining one device for local firewalling and another for VPN termination, the organization can build a branch edge around a single next-generation firewall appliance platform. That helps reduce operational complexity and can improve consistency across multiple branch rollouts.

Site-to-site VPN use cases are especially common in finance, healthcare, retail, legal services, logistics, and public sector organizations. Branch offices often need to access centralized applications, databases, inventory platforms, VoIP systems, and management services. They also need to send sensitive business traffic across public networks securely. The Cisco FPR1120-NGFW-K9 category is designed for exactly this type of deployment profile, where the appliance is not merely protecting local internet access but is actively forming part of the secure enterprise WAN design.

Cisco Ecosystem Alignment and Management Flexibility

Another major reason organizations evaluate the Cisco FPR1120-NGFW-K9 category is ecosystem alignment. Businesses that already use Cisco switching, routing, wireless, or security tools often prefer a firewall appliance that fits into the same operational model. This can help with staff familiarity, procurement consistency, support relationships, and long-term infrastructure planning. The Firepower 1120 category benefits from being part of Cisco’s broader security family, which is relevant to buyers looking for centralized policy management, consistent software workflows, and a clearer path for multi-site standardization.

Management flexibility is particularly important in distributed environments. A branch firewall appliance should not require excessive hands-on local administration every time a policy change is needed. Organizations want the ability to manage rules, review events, monitor device status, and standardize deployments efficiently. The Cisco Firepower family is frequently considered by buyers who want those capabilities in a Cisco-aligned platform, especially when multiple branch sites need to be secured under a common policy framework.

For channel partners and managed service providers, ecosystem consistency is also valuable because it simplifies lifecycle services. A standardized firewall category makes it easier to build repeatable branch templates, deliver onboarding processes, and support customer environments over time. The Cisco FPR1120-NGFW-K9 therefore has appeal not only as a hardware appliance but as a repeatable security building block in larger deployment programs.

Long-Term Value of the Cisco Firepower 1120 Appliance

The Cisco FPR1120-NGFW-K9 1120 NGFW 8 Ports Firewall Appliance 1000Base-T Gigabit Ethernet category delivers long-term value by addressing several needs at once: secure internet edge control, branch and SMB protection, application-aware policy enforcement, VPN-based site connectivity, segmentation support, and compatibility with professional rackmount network environments. It is a category designed for organizations that want a security appliance to be an active part of their network architecture rather than a passive box that simply forwards or blocks traffic. That distinction matters because modern networks demand more visibility, more control, and more adaptability than traditional branch security platforms were built to provide.

For growing businesses, distributed enterprises, and security refresh projects, the Cisco Firepower 1120 category remains a practical option because it balances branch-appropriate deployment with enterprise-oriented security capability. The platform’s 8-port Gigabit Ethernet design supports flexible topologies, its next-generation firewall positioning supports deeper policy enforcement, and its role within the Cisco Firepower family makes it suitable for organizations that want a firewall appliance aligned with a broader security strategy. Whether deployed in a regional office, a clinic, a store, a school, a professional services branch, or a midsize headquarters edge, the Cisco FPR1120-NGFW-K9 category stands out as a dependable foundation for secure and manageable network operations.
