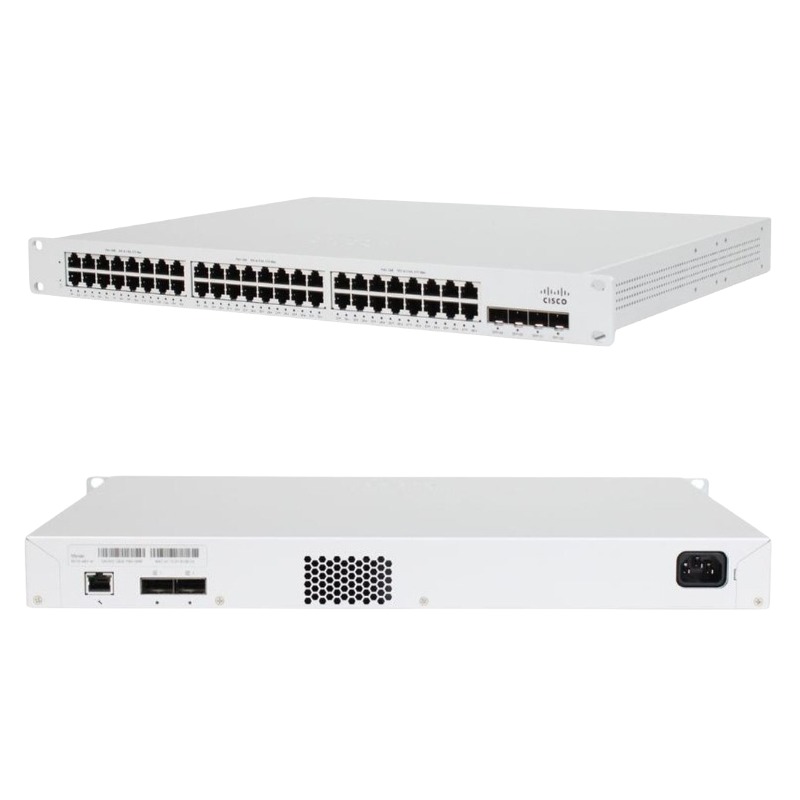

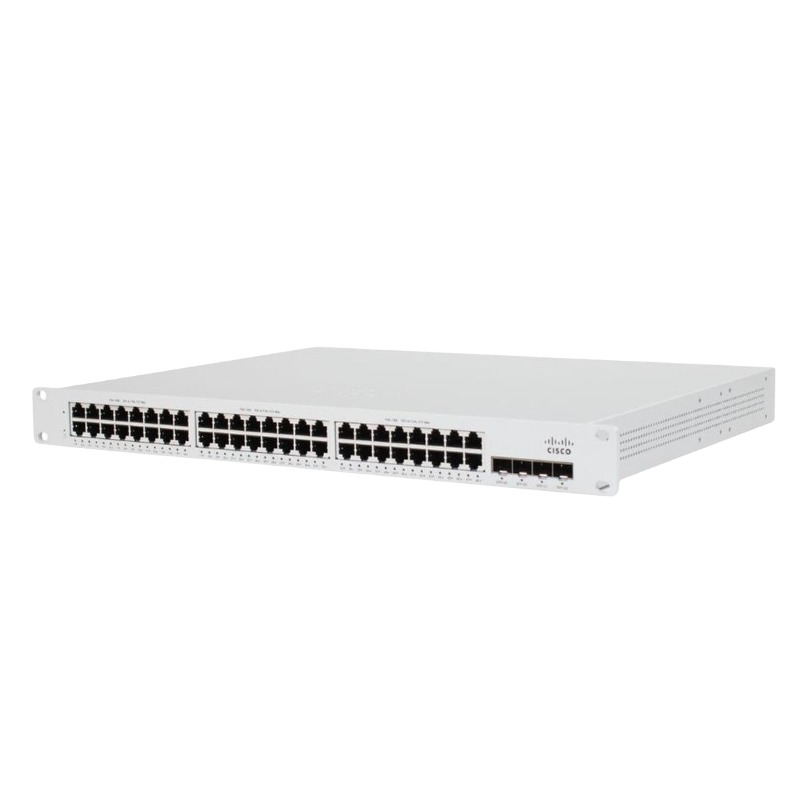

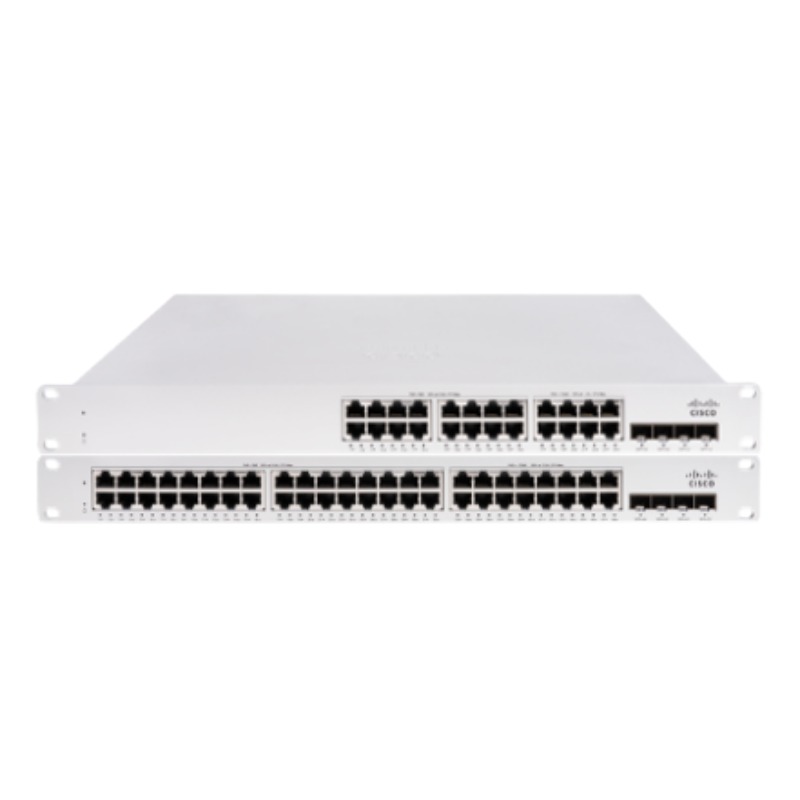

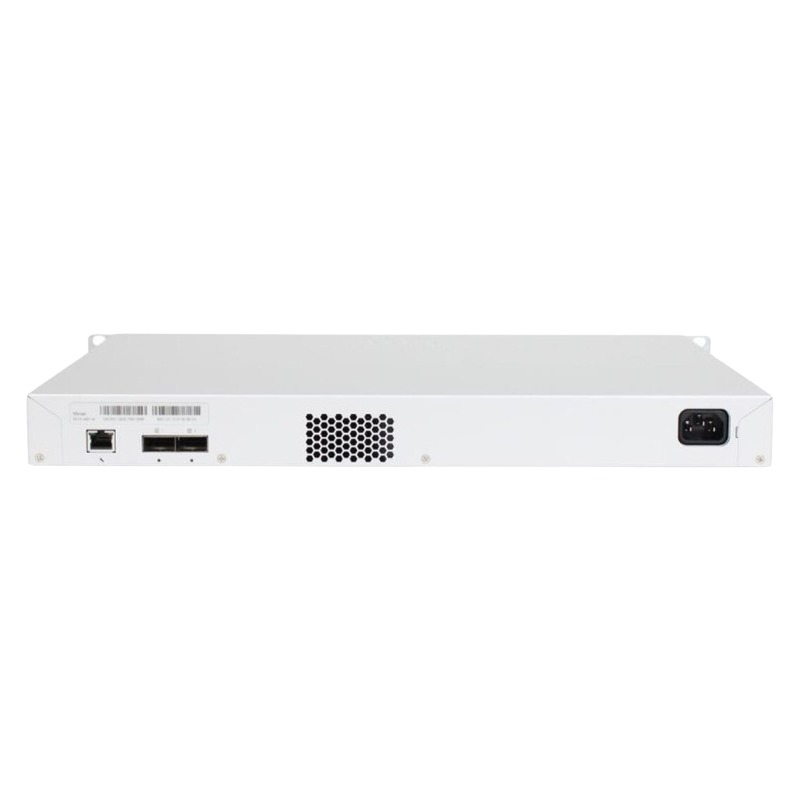

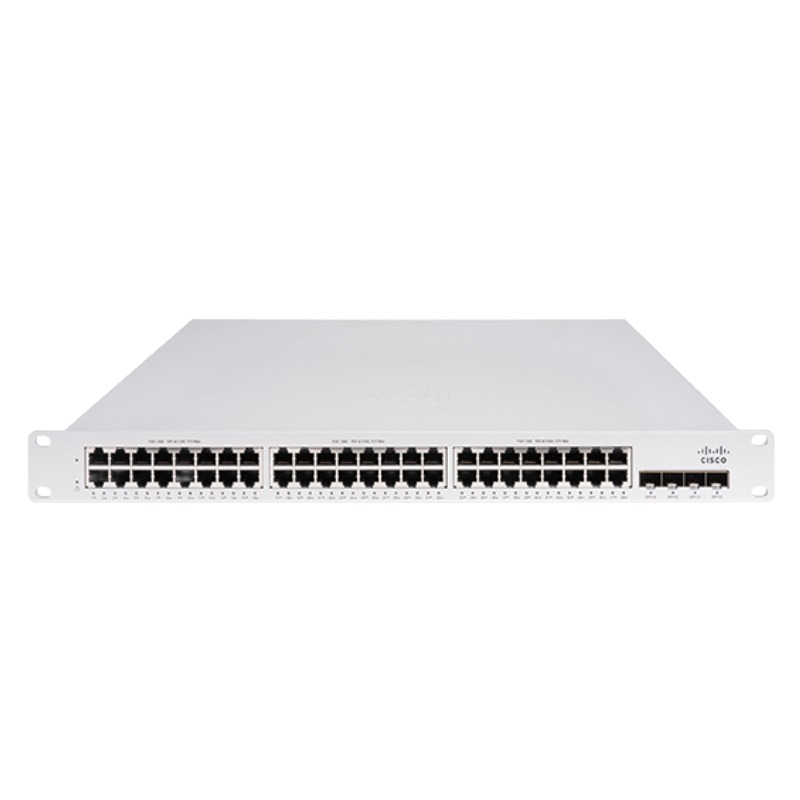

MS150-48LP-4G Cisco Meraki 48 Ports 1GbE PoE+ 4 x Ports SFP L3 1U Switch

Cisco MS150-48LP-4G Meraki 48-Port Managed Switch Overview

High-Performance Enterprise Switching Solution

The Cisco MS150-48LP-4G Meraki switch is a robust, cloud-managed networking device designed for scalable enterprise environments. Built to deliver reliable connectivity, advanced security controls, and efficient power distribution, it is ideal for modern business infrastructures requiring high-density switching and seamless network management.

Key Product Identification

• Manufacturer: Cisco
• Model / SKU: MS150-48LP-4G
• Device Category: Managed Layer 3 Network Switch
• Form Factor: 1U Rack-Mountable Design
• Port Configuration: 48-Port Gigabit Ethernet

Advanced Hardware and Network Capabilities

Switch Architecture and Performance

Engineered for high-speed enterprise networking, this switch ensures optimal throughput and stability under heavy workloads. Its architecture supports efficient data handling and high-capacity traffic processing.

Performance Specifications

• Switching Capacity: 104 Gbps
• Stacking Bandwidth: 80 Gbps
• Forwarding Technology: Layer 3 intelligent routing support

Port and Interface Configuration

• 48 x 10/100/1000 Mbps RJ-45 ports with PoE+
• 4 x 1G SFP uplink ports for fiber connectivity
• 1 x dedicated management interface
• 2 x stacking/network expansion ports

Power over Ethernet (PoE+) Capability

Designed to support modern network devices such as IP cameras, VoIP phones, and wireless access points, the switch provides efficient PoE power distribution across all compatible ports.

PoE Specifications

• PoE Standard: IEEE 802.3bt compliant PoE+
• Total PoE Budget: 370W
• Power Per Port: Up to 30W per RJ-45 port

Software Intelligence and Cloud Management Features

Smart Network Management

The Cisco Meraki platform enables centralized cloud-based administration, simplifying network configuration, monitoring, and troubleshooting from anywhere.

Integrated Network Features

• Static routing for internal traffic optimization
• Automatic firmware updates for improved security
• VLAN tagging for segmented network architecture
• Access Control Lists (ACL) for enhanced security policies
• DHCP snooping and Dynamic ARP Inspection (DAI)
• Broadcast storm control for network stability

Remote Management Protocols

• SNMP-based monitoring
• Syslog event logging and diagnostics
• Cloud-managed dashboard access

Environmental and Compliance Specifications

Durability and Operating Conditions

Built for long-term deployment in demanding environments, this switch maintains reliability across varied temperature and humidity ranges.

Operating Conditions

• Operating Temperature: 32°F to 113°F
• Storage Temperature: -4°F to 158°F
• Humidity Range: 5% – 95% (non-condensing)

Reliability Metrics

• MTBF: 1,063,142 hours
• Status Indicators: Power, Link/Activity, System Status LEDs

Standards and Compliance

• IEEE 802.1Q VLAN tagging support
• IEEE 802.1X network access control
• IEEE 802.3bt PoE standard compliance

Power and Electrical Design

Efficient Internal Power System

The device is powered by a built-in internal power supply designed for consistent and efficient energy delivery in enterprise environments.

Electrical Requirements

• Input Voltage: AC 100–240V
• Frequency Range: 50–60 Hz
• Power Design: Energy-efficient internal PSU

Cisco MS150-48LP-4G Meraki 48 Ports 1GbE PoE+ Switch

The Cisco MS150-48LP-4G Meraki 48 Ports 1GbE PoE+ Layer 3 network switch is a high-performance, cloud-managed switching solution designed for modern enterprise networks that require scalability, reliability, and simplified management. Developed within the enterprise networking ecosystem of, this switch belongs to the Meraki MS150 series, which is engineered to support distributed environments, branch networks, campus deployments, and cloud-first infrastructures. It combines 48 Gigabit Ethernet PoE+ ports, 4 additional 1GbE SFP uplink ports, and advanced Layer 3 routing capabilities in a compact 1U rack-mountable form factor, making it suitable for data-intensive and power-demanding environments.

Enterprise-Grade Switching Architecture

High-Density 48-Port Gigabit Ethernet Access Layer

The MS150-48LP-4G provides 48 x 1GbE RJ45 ports, enabling high-density connectivity for endpoints such as IP phones, wireless access points, surveillance cameras, and workstations. This density makes it ideal for enterprise access layer deployment in offices, campuses, and branch environments. Each port supports auto-negotiation and full-duplex communication, ensuring optimized throughput and minimal latency across connected devices.

Optimized for Endpoint Aggregation

The switch is designed to aggregate large numbers of wired endpoints while maintaining consistent network performance. Whether deployed in educational institutions or corporate environments, the 48-port architecture ensures that network congestion is minimized through intelligent traffic handling and Layer 2/Layer 3 segmentation.

Power over Ethernet Plus (PoE+) Capabilities

With integrated PoE+ support across all access ports, the switch delivers both data and electrical power through a single Ethernet cable. This reduces infrastructure complexity and eliminates the need for separate power supplies for connected devices.

370W PoE Budget for High-Demand Devices

The total PoE budget of approximately 370 watts allows simultaneous powering of multiple high-consumption devices such as PTZ IP cameras, Wi-Fi 6 access points, and VoIP phone systems. Intelligent power allocation ensures that critical devices remain powered even under peak load conditions.

Dynamic Power Allocation Efficiency

The switch dynamically distributes power based on device requirements, ensuring energy efficiency while maintaining network stability. Devices negotiate power levels automatically, reducing unnecessary energy consumption.

Uplink and Expansion Capabilities

4 x 1GbE SFP Uplink Ports

The inclusion of 4 SFP uplink ports enhances network scalability by allowing fiber or copper uplink connections to aggregation switches, core switches, or data center networks. These uplinks provide flexibility in network design, enabling both short-range and long-range connectivity options.

Fiber Integration for High-Speed Backbone Connectivity

The SFP ports support fiber optic modules, enabling high-speed uplinks to backbone infrastructure. This is essential for enterprise environments that require low-latency data transfer between network layers.

Redundant Uplink Design

Multiple uplinks allow for link aggregation and redundancy, ensuring continuous network uptime even if one uplink fails. This improves fault tolerance and network resilience.

Layer 3 Routing Intelligence

Advanced Routing Capabilities

The MS150-48LP-4G supports Layer 3 static routing, enabling efficient inter-VLAN routing directly on the switch. This reduces dependency on external routers and improves overall network performance by minimizing traffic bottlenecks.

Inter-VLAN Communication Efficiency

By handling routing within the switch, traffic between VLANs is processed faster, reducing latency and improving application responsiveness across segmented network environments.

Scalable Routing for Enterprise Networks

Layer 3 capabilities allow network administrators to scale their infrastructure without introducing unnecessary routing complexity at the core layer, making it suitable for growing enterprises and distributed networks.

Cloud-Managed Networking with Meraki Dashboard

Centralized Cloud Control

The switch is fully managed through the Meraki cloud dashboard, providing centralized visibility and control over distributed network environments. Administrators can configure, monitor, and troubleshoot networks remotely without requiring on-site intervention.

Real-Time Network Visibility

The dashboard offers real-time analytics on traffic patterns, device performance, and network health, enabling proactive network management and rapid issue resolution.

Zero-Touch Provisioning

Deployment is simplified through zero-touch provisioning, allowing switches to be shipped directly to remote locations and automatically configured once connected to the internet.

Performance Optimization and Traffic Management

Quality of Service (QoS) Prioritization

The MS150 series incorporates QoS features that prioritize critical traffic such as voice, video conferencing, and real-time applications. This ensures optimal performance even under heavy network loads.

Traffic Classification and Prioritization

Network traffic is intelligently classified and prioritized based on application type, ensuring that latency-sensitive applications receive higher priority over bulk data transfers.

Bandwidth Optimization Techniques

The switch optimizes bandwidth allocation dynamically, ensuring fair distribution of network resources across all connected devices.

Security and Network Segmentation

Enterprise-Grade Security Features

Security is a core component of the MS150-48LP-4G, offering features such as port security, access control lists (ACLs), and network segmentation to protect sensitive data and infrastructure.

VLAN Segmentation and Isolation

Virtual LAN (VLAN) support enables administrators to segment networks into isolated logical groups, reducing broadcast domains and improving security posture.

MAC Address Filtering and Port Security

Advanced port security mechanisms restrict unauthorized devices from connecting to the network, reducing the risk of intrusion and unauthorized access.

Physical Design and Rack Integration

1U Rack-Mountable Form Factor

The switch is designed in a compact 1U rack-mountable chassis, making it suitable for standard server racks in data centers, network closets, and enterprise IT rooms.

Efficient Space Utilization

Its slim design allows organizations to maximize rack space efficiency while maintaining high port density and performance capabilities.

Thermal Management and Cooling

Built-in cooling systems ensure optimal thermal performance even under full PoE load, maintaining system stability and hardware longevity.
