N9K-C9300-FAN2 Cisco Nexus 9K Fan 2 Ports-side Intake

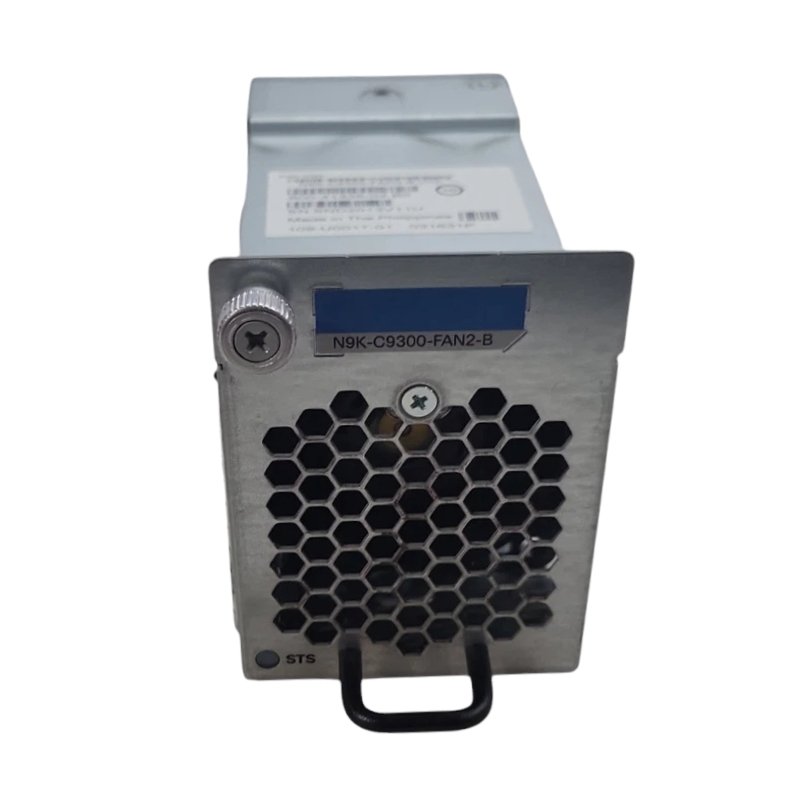

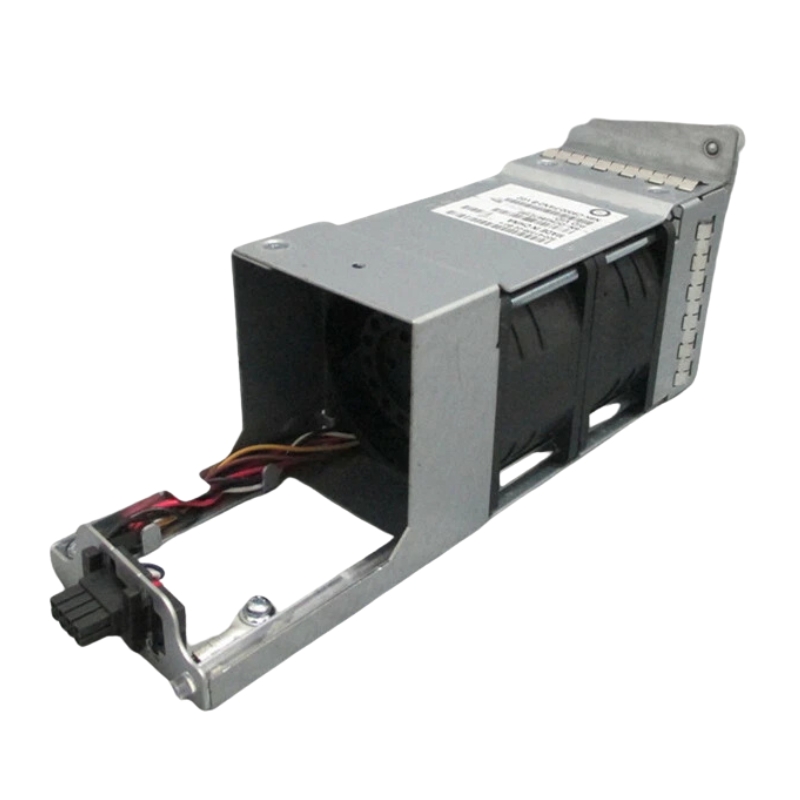

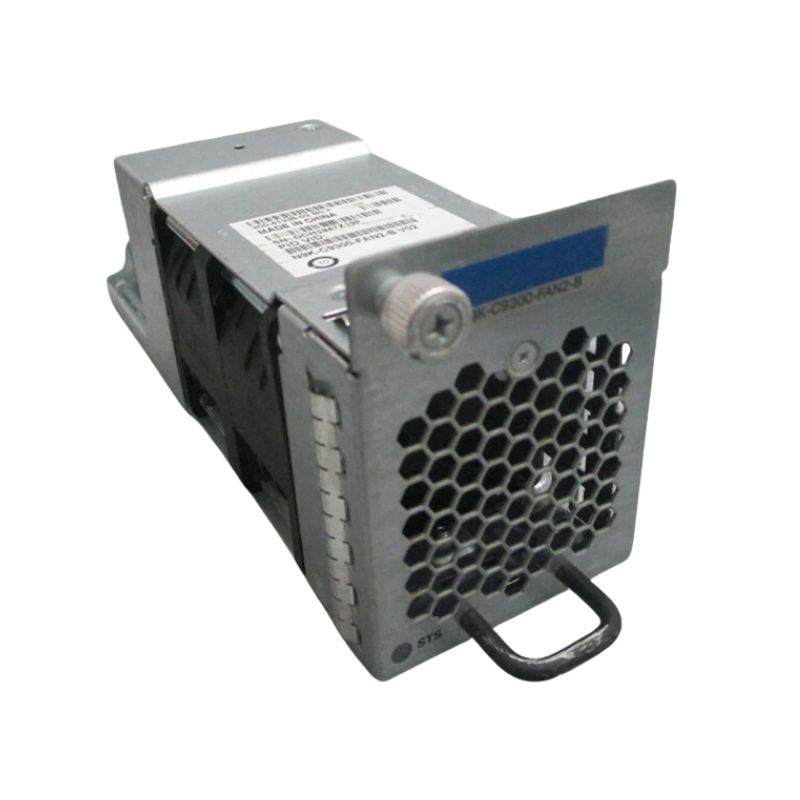

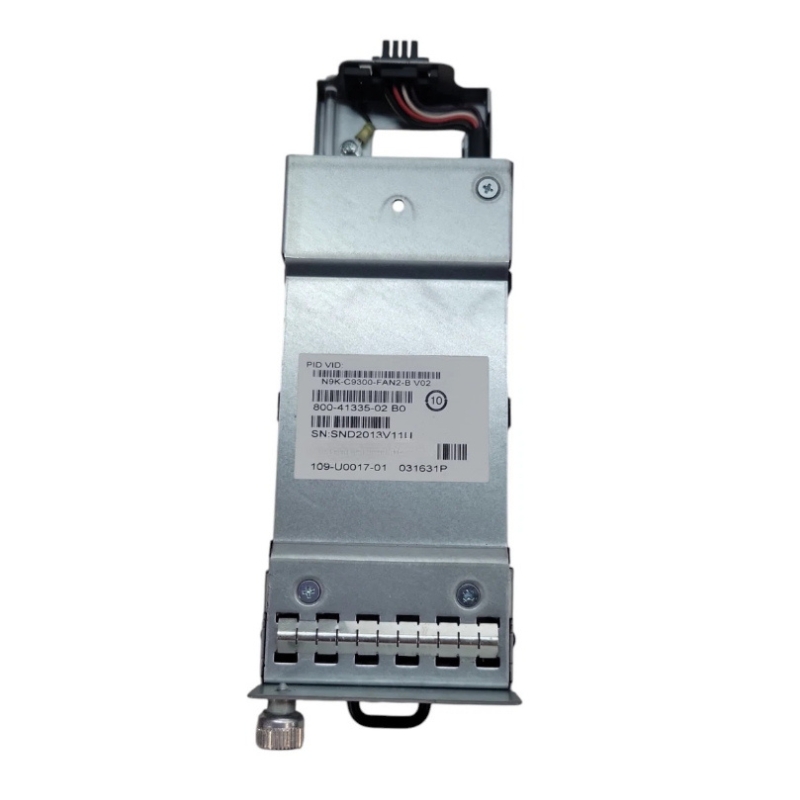

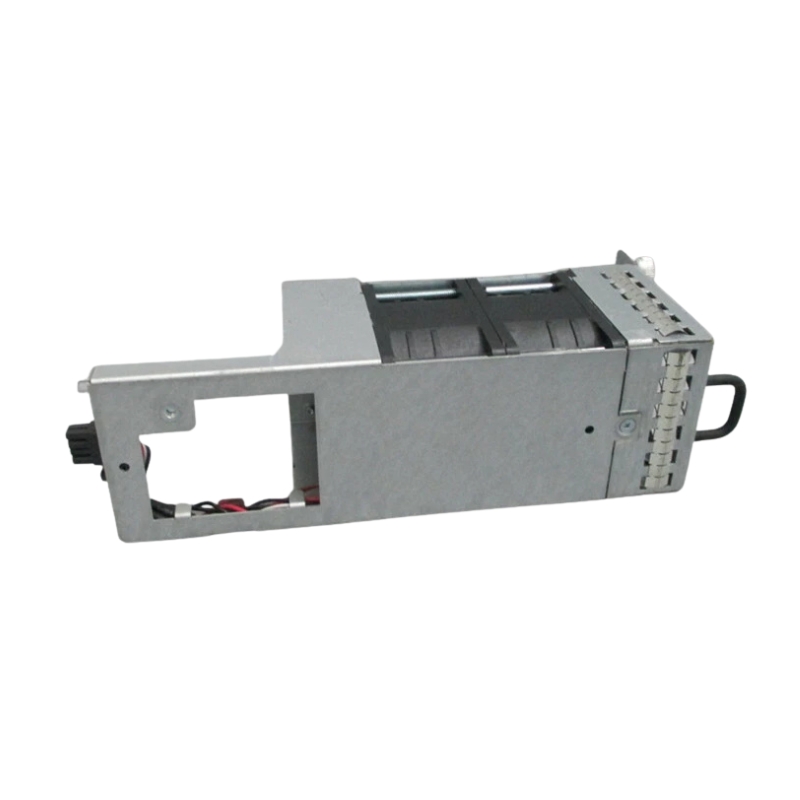

Cisco N9K-C9300-FAN2 Nexus 9300 Fan Tray

The Cisco N9K-C9300-FAN2 is a high-performance cooling solution designed for Nexus 9300 series switches. This fan tray ensures efficient airflow management and reliable hot air exhaust, keeping your networking equipment at optimal operating temperatures.

General Information

• Brand: Cisco
• Part Number: N9K-C9300-FAN2
• Device Type: Hot Air Exhaust Fan Tray

Technical Specifications

• Delivers up to 60 Cubic Feet per Minute (CFM)
• Ensures efficient cooling for high-density networking environments
• Consumes approximately 5 Watts of power
• Designed for energy-conscious data centers
• Green light: Fully operational
• Amber light: Hardware malfunction detected

Compatible Models

• Nexus 93128TX
• Nexus 9396PX
• Nexus 9396PX Hot Air Exhaust

Physical Attributes

• Weight: Around 1.14 lbs (0.5 kg)
• Color Code: Burgundy handle/latch for easy identification
• Function: Port-side intake for cold air pull-in

Cisco N9K-C9300-FAN2 Nexus 9300 Fan Tray Overview

The Cisco N9K-C9300-FAN2 Nexus 9300 Fan Tray is a critical component designed to maintain optimal airflow and cooling efficiency for Nexus 9300 series switches. This ports-side intake fan tray ensures that devices such as the Nexus 93128TX, 9396PX, and 9396PX Hot Air Exhaust models operate within safe thermal limits. By directing airflow from the ports side and expelling hot air effectively, the fan tray supports consistent performance, reliability, and longevity of the networking hardware.
