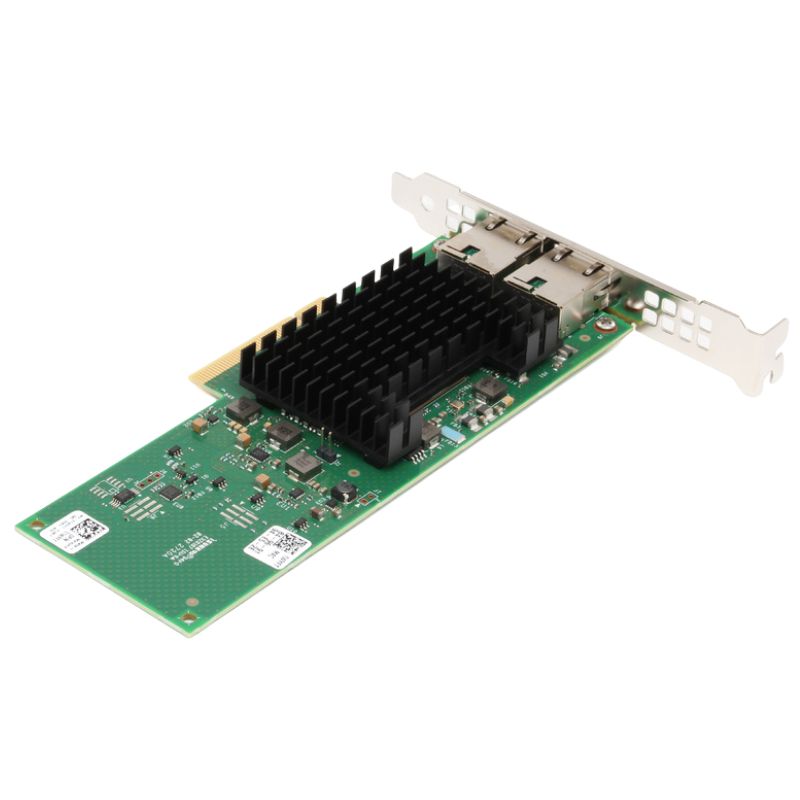

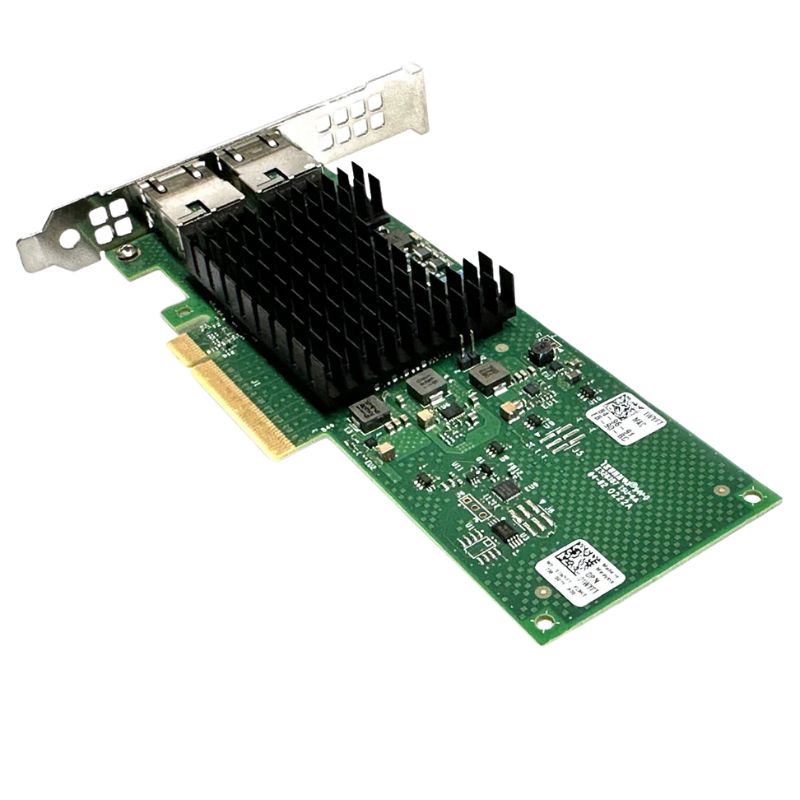

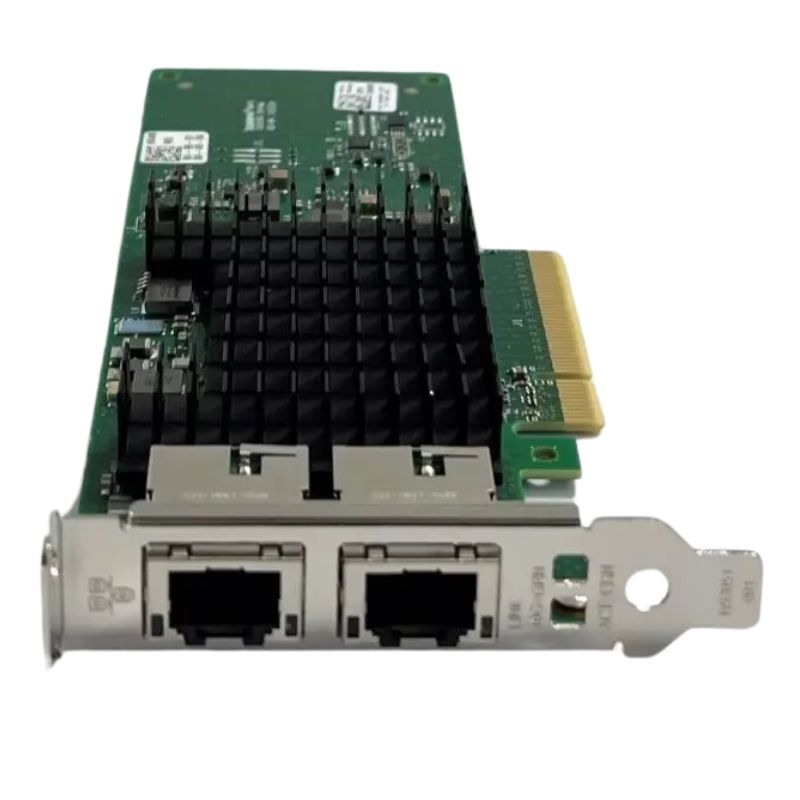

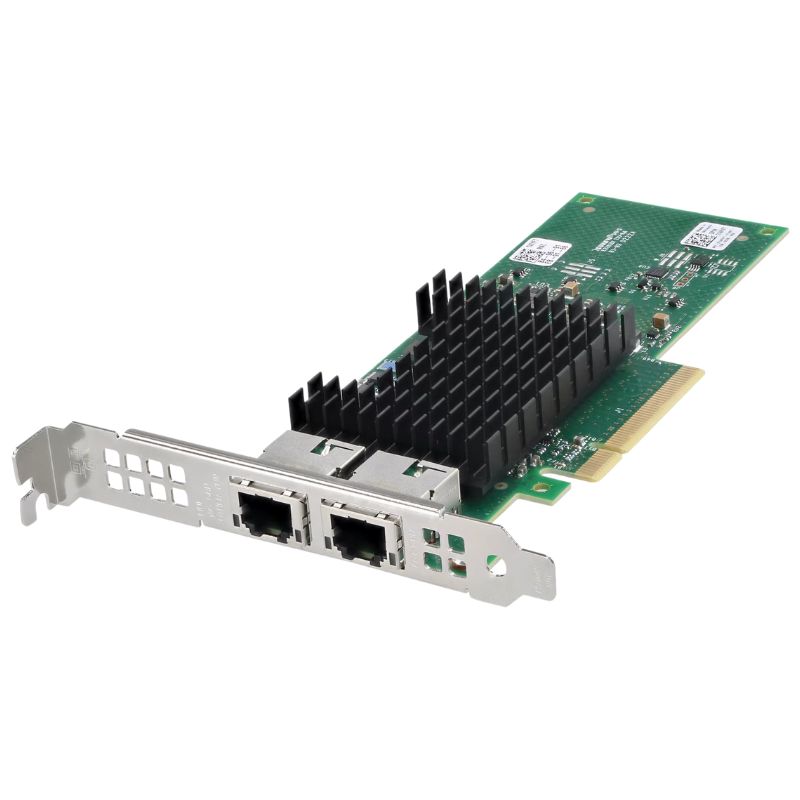

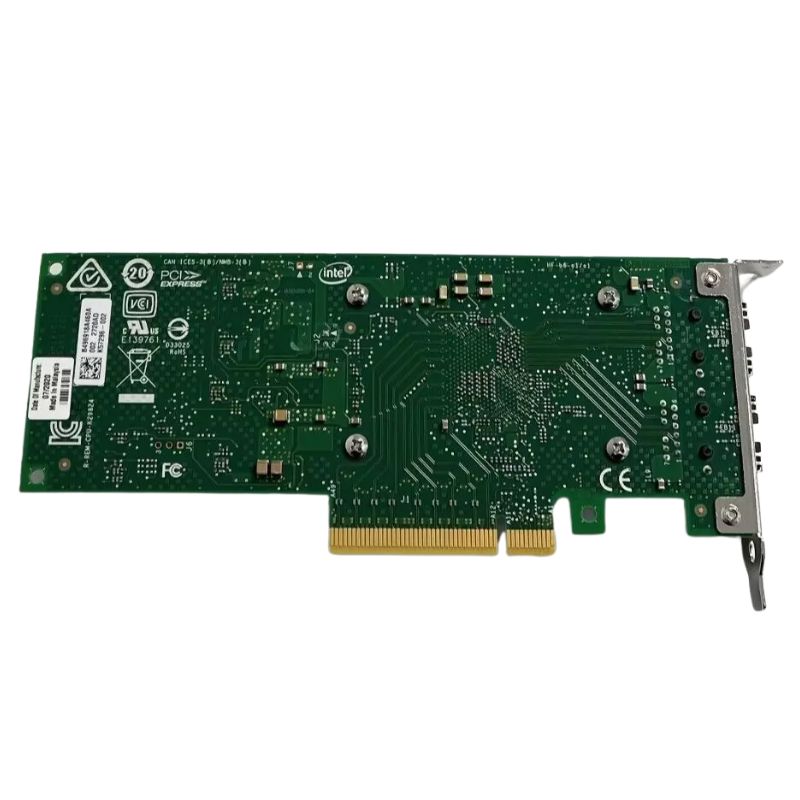

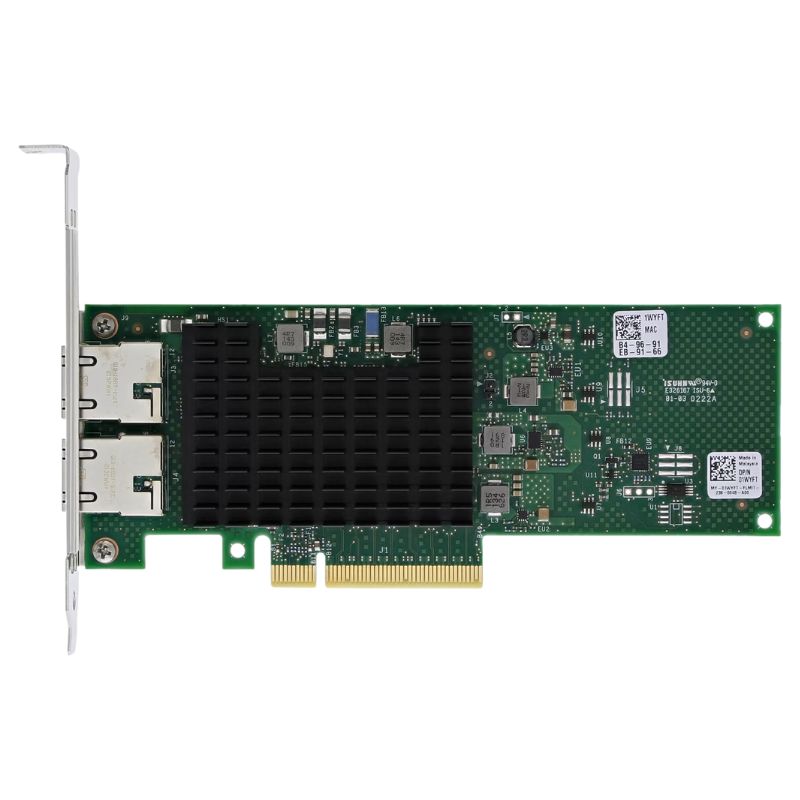

540-BDLB Dell Dual Ports 10GBE PCIE Express Adapter

Dell 540-BDLB 2-Port 10GbE PCIe Network Adapter Overview

High-Performance Enterprise Network Expansion Card

The Dell 540-BDLB is a dual-port 10 Gigabit Ethernet PCI Express network adapter designed to deliver ultra-fast, reliable, and scalable wired connectivity for enterprise-grade systems and professional workstations. Built for demanding workloads, it enhances network throughput and virtualization efficiency while maintaining stability in high-density computing environments.

Key Highlights of Dell 540-BDLB Network Adapter

• Manufacturer: Dell
• Part Number / SKU: 540-BDLB
• Product Type: Dual-Port Network Interface Card (NIC)
• Interface: PCI Express 3.0 x8
• Form Factor: Low-profile plug-in expansion card
• Connectivity: Wired Ethernet solution

Advanced Technical Specifications

Multi-Speed Ethernet Support for Flexible Networking

This adapter supports a wide range of Ethernet speeds, making it ideal for mixed network infrastructures and future-ready deployments.

• 100 Mbps Fast Ethernet
• 1 Gigabit Ethernet
• 2.5 Gigabit Ethernet
• 5 Gigabit Ethernet
• 10 Gigabit Ethernet (up to 10 Gbps per port)

Interface and Bus Architecture

• PCI Express 3.0 x8 bus interface for high-bandwidth data transfer
• RJ-45 connectors supporting 2 x 1/2.5/5/10GBASE-T ports
• Low-profile design for workstation and rack compatibility

Supported Network and Transport Protocols

• iSCSI for storage networking
• NFS for file sharing environments
• Optimized for virtualized and cloud-ready infrastructures

Enhanced Virtualization and Performance Features

Built for Data Center Efficiency

The Dell 540-BDLB integrates advanced hardware acceleration and virtualization technologies to optimize performance in enterprise environments.

Core Performance Technologies

• Virtual Machine Device Queues (VMDq) for efficient packet processing
• Virtualization Technology for Connectivity (VT-c)
• Data Direct I/O Technology (DDIO) for reduced latency
• Flexible Port Partitioning (FPP) for workload segmentation
• Intelligent Offloads to reduce CPU utilization

Ideal Use Cases and Deployment Scenarios

Optimized for Professional and Enterprise Workloads

• High-performance computing (HPC) environments
• Virtualized data centers and cloud infrastructures
• Storage networking with iSCSI and NFS protocols
• Engineering, design, and simulation workloads
• Enterprise workstation network upgrades

Compatible Dell Precision Workstation Systems

Wide System Compatibility Range

This network adapter is engineered for seamless integration with multiple Dell Precision workstation towers, ensuring reliable deployment across professional environments.

• Precision Workstation 3650 / 3650xe Tower
• Precision Workstation 3660 / 3660xe Tower
• Precision Workstation 3680 / 3680xe Tower
• Precision Workstation 5820 / 5860 / 5860xl Tower
• Precision Workstation 7820 / 7865 / 7875 / 7875xl Tower
• Precision Workstation 7920 / 7960 / 7960xl Tower
• Precision Workstation R3930 / R3930 XL
• Precision Workstation T5820xl / T7820xl / T7920xl Tower

Dell 540-BDLB Dual Ports PCI E Adapter

The Dell 540-BDLB Dual Ports 10GbE PCI Express Adapter is a high-performance networking solution designed for enterprise-grade servers, data centers, virtualization environments, and high-throughput computing infrastructures. Built to deliver reliable and ultra-fast network connectivity, this adapter enables seamless integration of dual 10 Gigabit Ethernet ports into compatible server systems. It is widely deployed in environments where bandwidth-intensive workloads, low latency communication, and scalable network architecture are essential for operational efficiency.

Developed under the engineering excellence of Dell Technologies, this PCI Express-based network interface card is optimized for modern IT ecosystems that demand high-speed data transfer between servers, storage systems, and network switches. Its dual-port configuration enhances redundancy, load balancing, and overall network resilience, making it a preferred choice for mission-critical deployments.

Core Features of Dell 540-BDLB 10GbE PCIe Adapter

Dual 10 Gigabit Ethernet Ports

One of the defining features of the Dell 540-BDLB adapter is its dual 10GbE port architecture. Each port supports 10 Gigabit per second throughput, enabling a combined potential bandwidth that significantly improves data transfer performance. This configuration is particularly beneficial for environments that require simultaneous high-speed communication across multiple network channels.

Enhanced Bandwidth Allocation

With dual ports, administrators can distribute network traffic efficiently, reducing congestion and ensuring balanced workload distribution across available network interfaces. This ensures smoother application performance, especially in virtualization clusters and database servers.

Redundancy and Failover Support

The adapter also supports network redundancy, ensuring continuous connectivity even if one port fails. This failover capability is crucial for maintaining uptime in enterprise environments where network interruptions can result in significant operational losses.

PCI Express Interface Architecture

The Dell 540-BDLB uses a PCI Express interface, which ensures high-speed communication between the adapter and the host system. PCIe architecture is known for its scalability, low latency, and high bandwidth efficiency, making it ideal for 10GbE networking cards.

Improved Data Path Efficiency

By leveraging PCIe lanes effectively, the adapter minimizes bottlenecks and maximizes throughput, ensuring that network traffic is processed with minimal delay.

Compatibility with Modern Servers

The PCIe-based design ensures compatibility with a wide range of Dell PowerEdge servers and other enterprise-class systems, allowing seamless integration into existing IT infrastructures.

Performance Optimization in Enterprise Environments

Virtualization Workloads

Virtualized environments rely heavily on fast and reliable networking components. The Dell 540-BDLB adapter supports virtual machine traffic segmentation and high-speed VM migration, making it ideal for platforms such as VMware, Hyper-V, and KVM.

Reduced Latency in VM Migration

Live migration of virtual machines requires stable and high-throughput connections. This adapter helps reduce downtime and ensures smooth transitions between physical hosts.

Efficient Resource Utilization

By distributing network traffic across dual ports, virtualization hosts can efficiently allocate resources without overwhelming a single network interface.

Cloud Computing Infrastructure

Cloud service providers benefit significantly from the high bandwidth and reliability offered by this adapter. It supports scalable network architectures where multiple tenants share computing resources without compromising performance.

Multi-Tenant Network Isolation

The adapter supports advanced networking configurations that allow logical separation of traffic between tenants, improving security and performance in cloud environments.

High Throughput Data Processing

Cloud applications often involve large-scale data processing tasks. The dual 10GbE ports ensure that data flows efficiently across distributed systems.

Technical Specifications and Architecture

Network Interface Capabilities

The Dell 540-BDLB adapter is engineered to support advanced networking standards and protocols. It ensures compatibility with modern data center networking requirements, including jumbo frames, VLAN tagging, and TCP/IP offloading.

Jumbo Frame Support

Support for jumbo frames allows the adapter to handle larger packets, reducing CPU overhead and improving overall network efficiency.

TCP/IP Offloading Engine

By offloading processing tasks from the CPU to the network adapter, system performance is significantly improved, freeing up processing power for application workloads.

Low Latency Architecture

Latency is a critical factor in high-performance computing environments. The Dell 540-BDLB is designed with optimized data pathways that minimize transmission delays and improve responsiveness.

Optimized Packet Processing

The adapter ensures efficient packet handling through hardware acceleration techniques, reducing the time required for data transmission and reception.

Reduced CPU Interrupt Load

By minimizing interrupt requests, the adapter reduces CPU overhead and enhances system stability under heavy network loads.

Use Cases for Dell 540-BDLB Dual Port 10GbE Adapter

Data Centers

Modern data centers require high-speed connectivity to handle massive volumes of data traffic. The Dell 540-BDLB adapter is widely used in server clusters, storage networks, and backend communication systems.

High-Density Server Environments

In rack-mounted server environments, the adapter provides consistent and scalable network performance, ensuring smooth inter-server communication.

Storage Area Networks (SAN)

The adapter supports high-speed access to storage arrays, improving data retrieval times and enhancing overall system performance.

Enterprise Networking

Large organizations depend on stable and secure networking infrastructure. This adapter ensures that enterprise applications remain connected and responsive.

Business-Critical Applications

Applications such as ERP, CRM, and database management systems benefit from the high-speed connectivity provided by the adapter.

Secure Data Transmission

Enhanced networking features help ensure secure and reliable transmission of sensitive business data across corporate networks.

Compatibility and System Integration

Supported Server Platforms

The Dell 540-BDLB adapter is designed for seamless integration with a wide range of Dell PowerEdge servers and other PCIe-compatible systems.

PowerEdge Optimization

When used with Dell Technologies server platforms, the adapter delivers optimized performance through firmware and driver-level integration.

Cross-Platform Support

It also supports major operating systems including Windows Server, Linux distributions, and virtualization hypervisors.

Driver and Firmware Support

Regular firmware updates and driver support ensure long-term reliability and compatibility with evolving network standards.

Automatic Driver Recognition

Modern operating systems can automatically detect and configure the adapter, simplifying deployment processes.

Advanced Configuration Options

IT administrators can fine-tune network performance settings to match specific workload requirements.
