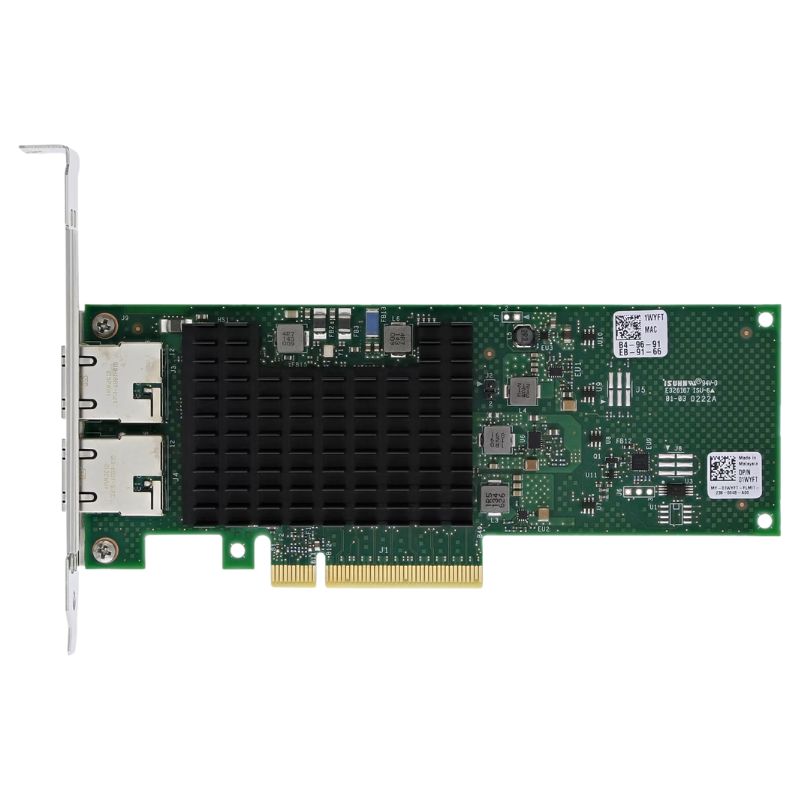

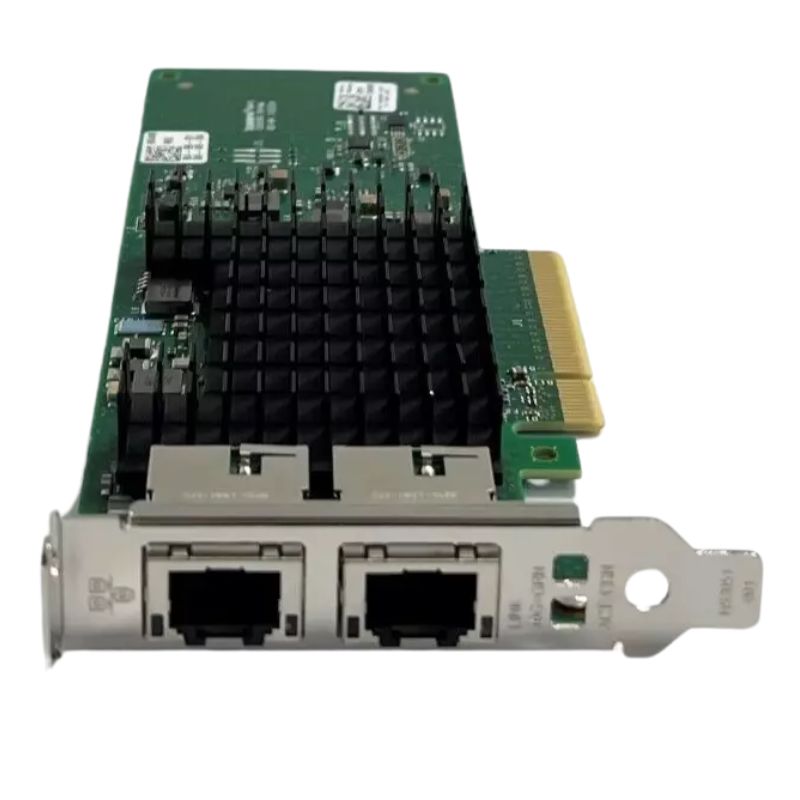

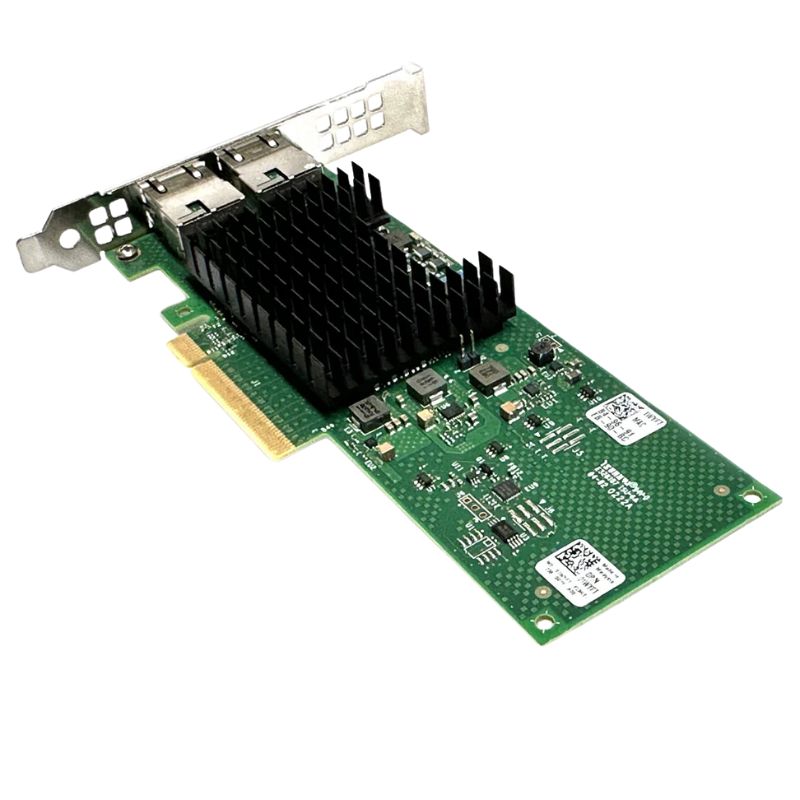

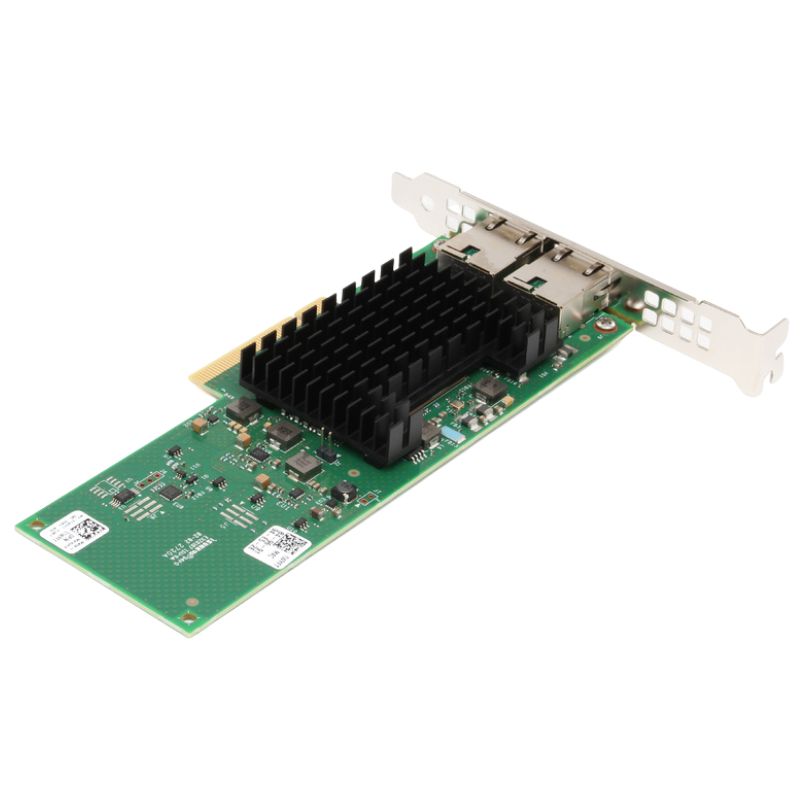

540-BDLB Dell Dual Ports 10GBE PCIE Express Adapter

Dell 540-BDLB Dual Port 10GbE Network Adapter Overview

The Dell 540-BDLB Dual Ports 10GbE PCI Express Network Adapter is a high-performance networking solution engineered for demanding enterprise workloads, virtualization environments, and data-intensive applications. Designed with advanced connectivity and scalability in mind, it delivers ultra-fast transmission speeds and reliable network stability for professional systems.

Key Product Identification Details

Manufacturer & Part Details

• Brand: Dell
• Part Number: 540-BDLB
• Product Category: Network Adapter
• Interface Type: Dual-Port Ethernet Controller

Core Design Type

• Plug-in expansion card architecture
• Low-profile form factor for compact workstation compatibility
• Optimized for enterprise-grade server and workstation deployment

High-Speed Technical Specifications

Interface & Bus Architecture

• PCI Express 3.0 x8 bus interface
• Fully compliant with PCIe 3.0 standards
• Designed for high-bandwidth communication channels

Network Port Configuration

• Dual RJ-45 Ethernet ports
• Supports multi-speed connectivity: 100M, 1G, 2.5G, 5G, and 10GbE
• Flexible auto-negotiation for mixed network environments

Data Transmission Capabilities

• Maximum throughput up to 10 Gbps per port
• Supports both modern and legacy Ethernet standards
• Optimized for low latency and high efficiency data transfer

Supported Protocols & Networking Technologies

Data Link & Transport Support

• Fast Ethernet and Gigabit Ethernet compatibility
• 10 Gigabit Ethernet performance for high-demand workloads
• Support for 2.5G and 5G multi-gig networking environments

Enterprise Protocol Integration

• iSCSI support for storage networking
• NFS compatibility for shared file systems

Advanced Features for Virtualization & Performance

Performance Optimization Technologies

• Virtual Machine Device Queues (VMDq) for improved VM efficiency
• Virtualization Technology for Connectivity (VT-c)
• Data Direct I/O (DDIO) for reduced CPU overhead

Traffic Management & Offloading

• Flexible Port Partitioning (FPP) for network segmentation
• Intelligent hardware offloads to enhance system performance

Physical Interfaces & Connectivity

Port Specifications

• 2 x RJ-45 Ethernet ports (1G/2.5G/5G/10GBASE-T)
• Standard twisted-pair copper cabling support
• Backward compatibility with existing infrastructure

Compatible Dell Precision Workstations

Supported Tower Models

• Precision Workstation 3650 / 3650XE Tower
• Precision Workstation 3660 / 3660XE Tower
• Precision Workstation 3680 / 3680XE Tower
• Precision Workstation 5820 / T5820XL Tower
• Precision Workstation 5860 / 5860XL Tower

High-End Workstation Compatibility

• Precision Workstation 7820 / T7820XL Tower
• Precision Workstation 7865 Tower
• Precision Workstation 7875 / 7875XL Tower
• Precision Workstation 7920 / T7920XL Tower
• Precision Workstation 7960 / 7960XL Tower
• Precision Workstation R3930 / R3930XL

Dell 540-BDLB Dual Ports PCI Express Adapter

The Dell 540-BDLB Dual Ports 10GbE PCI Express Adapter is a high-performance network interface card designed to meet the demanding requirements of modern enterprise networking, data center connectivity, virtualization workloads, and high-throughput server environments. Built for scalability and reliability, this adapter enables servers to achieve significantly improved network bandwidth compared to traditional Gigabit Ethernet solutions, making it an essential component in high-density computing infrastructures.

Developed under the engineering standards of this dual-port 10 Gigabit Ethernet adapter is optimized for mission-critical applications where low latency, high throughput, and consistent performance are required. It is commonly deployed in virtualization clusters, cloud computing environments, storage area networks (SAN), and high-speed data transfer systems.

Core Architecture and Design Philosophy

The architecture of the Dell 540-BDLB adapter is built around efficient PCI Express lane utilization and advanced Ethernet controller technology. By leveraging dual 10GbE ports, the adapter enables simultaneous high-speed data transmission and redundancy, ensuring uninterrupted network connectivity even under heavy traffic loads.

PCI Express Interface Efficiency

This adapter utilizes the PCI Express interface to ensure maximum data transfer efficiency between the network card and the host system. The PCIe architecture minimizes latency while maximizing throughput, allowing servers to fully utilize available bandwidth without bottlenecks.

Lane Optimization

The adapter intelligently distributes network traffic across PCIe lanes, reducing congestion and ensuring balanced workload distribution across both ports. This improves overall system responsiveness in multi-threaded and virtualization-heavy environments.

Dual-Port Network Capability

The dual-port configuration provides both redundancy and load balancing capabilities. Administrators can configure the adapter for failover protection or aggregate bandwidth using link aggregation techniques, significantly improving network reliability.

Failover Configuration

In failover mode, if one port experiences failure or degradation, the secondary port automatically takes over traffic, ensuring continuous network availability for critical applications.

Load Balancing Mode

Load balancing distributes network traffic across both ports, enhancing throughput and reducing congestion during peak usage periods, particularly in cloud hosting and enterprise server clusters.

Performance Characteristics and Benefits

The Dell 540-BDLB adapter is designed for environments that demand high bandwidth and ultra-low latency. It significantly improves data transfer rates compared to standard 1GbE network cards, making it ideal for high-performance computing environments.

High Throughput Capabilities

With dual 10GbE ports, the adapter delivers an aggregate potential throughput of up to 20Gbps under optimal configurations. This makes it suitable for data-intensive workloads such as virtualization clusters, big data analytics, and large-scale database operations.

Optimized Packet Processing

Advanced packet processing capabilities reduce CPU overhead by offloading network processing tasks from the host system. This improves overall system efficiency and frees up CPU resources for application workloads.

Low Latency Networking

The adapter minimizes packet transmission delays through optimized hardware acceleration features. Low latency is crucial in environments such as financial trading systems, real-time analytics platforms, and distributed computing clusters.

Hardware Offloading Features

Features such as TCP segmentation offload (TSO) and large send offload (LSO) help reduce processing overhead, ensuring smoother and faster data transmission across the network.

Enterprise Use Cases and Deployment Scenarios

The Dell 540-BDLB Dual Ports 10GbE PCI Express Adapter is widely used in enterprise IT infrastructures due to its flexibility, scalability, and reliability. It is designed to support a variety of workloads across different industries.

Data Center Networking

In modern data centers, high-speed connectivity is essential for maintaining efficient server communication. This adapter ensures seamless data flow between servers, storage systems, and networking equipment.

Server-to-Server Communication

The adapter enhances east-west traffic within data centers, allowing servers to communicate with minimal latency and maximum efficiency.

Virtualization Environments

Virtualized infrastructures such as VMware, Hyper-V, and KVM benefit significantly from high-bandwidth network adapters. The Dell 540-BDLB ensures that virtual machines receive sufficient network resources without performance degradation.

Virtual Machine Density Optimization

High throughput and low latency enable organizations to increase virtual machine density per host without compromising network performance.

Cloud Infrastructure Support

Cloud service providers rely on high-performance networking hardware to maintain service-level agreements (SLAs). This adapter is ideal for private, hybrid, and public cloud deployments.

Scalability in Cloud Systems

The dual-port design allows cloud infrastructure to scale efficiently while maintaining consistent performance under variable workloads.

Compatibility and System Integration

The Dell 540-BDLB adapter is designed for broad compatibility across enterprise server platforms. It integrates seamlessly with Dell PowerEdge servers and other PCIe-compatible systems.

Operating System Support

This network adapter supports major operating systems including Windows Server, Linux distributions, and virtualization hypervisors. This ensures flexibility across different IT environments.

Driver Optimization

Optimized drivers ensure stable performance and compatibility with enterprise-grade network stacks and kernel modules.

Hardware Compatibility

The adapter is compatible with a wide range of PCI Express slots, ensuring easy installation in modern server architectures.

Server Platform Integration

It integrates seamlessly with Dell server ecosystems, ensuring optimal firmware compatibility and system-level performance tuning.

Advanced Networking Features

VLAN Tagging and Segmentation

VLAN support allows administrators to segment network traffic efficiently, improving security and performance in multi-tenant environments.

Traffic Isolation

VLAN segmentation ensures that sensitive workloads remain isolated from general network traffic, reducing the risk of data leakage and congestion.

Quality of Service (QoS)

QoS features enable prioritization of critical network traffic, ensuring that latency-sensitive applications receive the necessary bandwidth.

Bandwidth Prioritization

Administrators can define traffic classes to prioritize mission-critical workloads over less important data streams.

Virtualization Offloads

Support for SR-IOV (Single Root I/O Virtualization) allows virtual machines to directly access network hardware resources, reducing overhead and improving performance.

SR-IOV Efficiency

By bypassing the hypervisor in certain network operations, SR-IOV significantly reduces latency and increases throughput in virtualized environments.

Storage Networking and Data Transfer Optimization

iSCSI Acceleration

The adapter enhances iSCSI storage performance by offloading network processing tasks, enabling faster and more efficient storage access over Ethernet.

High-Speed Storage Access

Organizations using network-attached storage (NAS) or storage area networks (SAN) benefit from improved data transfer rates and reduced latency.

Backup and Disaster Recovery

High-speed connectivity ensures that backup and replication processes complete faster, reducing downtime and improving disaster recovery capabilities.

Efficient Data Replication

Dual-port redundancy ensures uninterrupted data replication even in the event of network failure.

Security Features and Network Protection

Traffic Segmentation Security

The adapter supports secure segmentation of network traffic, reducing exposure to unauthorized access and potential network attacks.

Secure Data Channels

Dedicated network paths ensure that sensitive data is transmitted securely across isolated channels.

Hardware-Based Security Offloads

Security-related processing tasks can be offloaded to hardware, reducing CPU overhead while maintaining strong security enforcement.

Encryption Support

Hardware acceleration for encryption protocols enhances secure communication without compromising performance.
