540-BDON Dell Intel XXV710-DA2 25GB Ethernet PCI-E 2 Ports Network Adapters

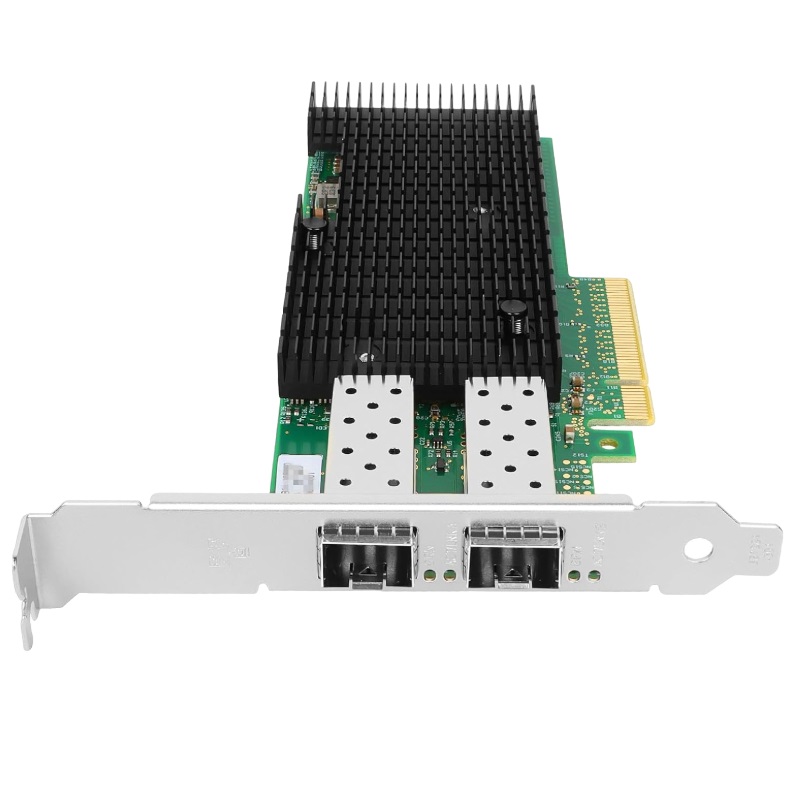

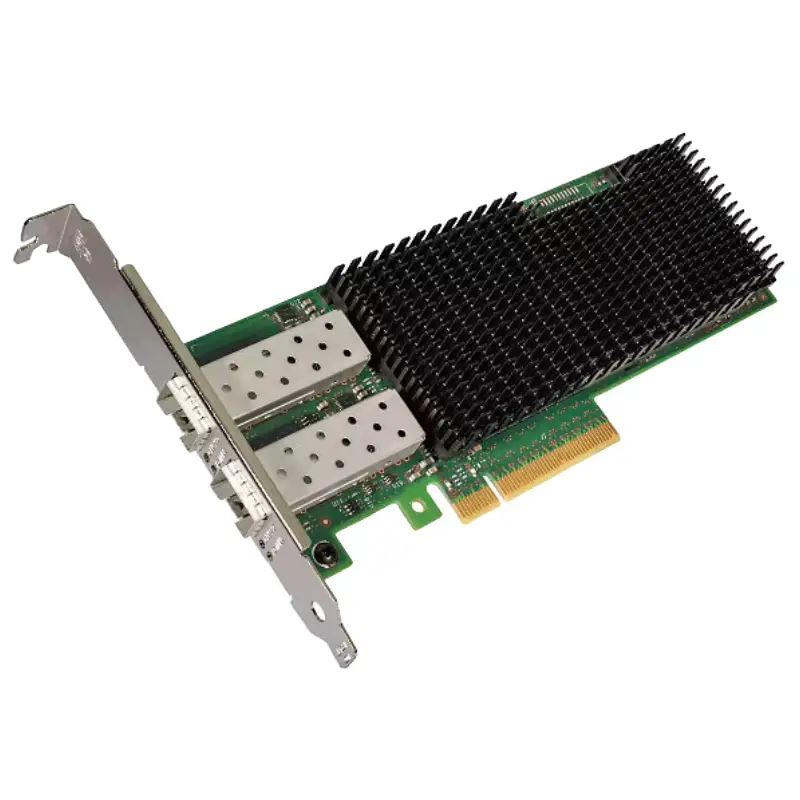

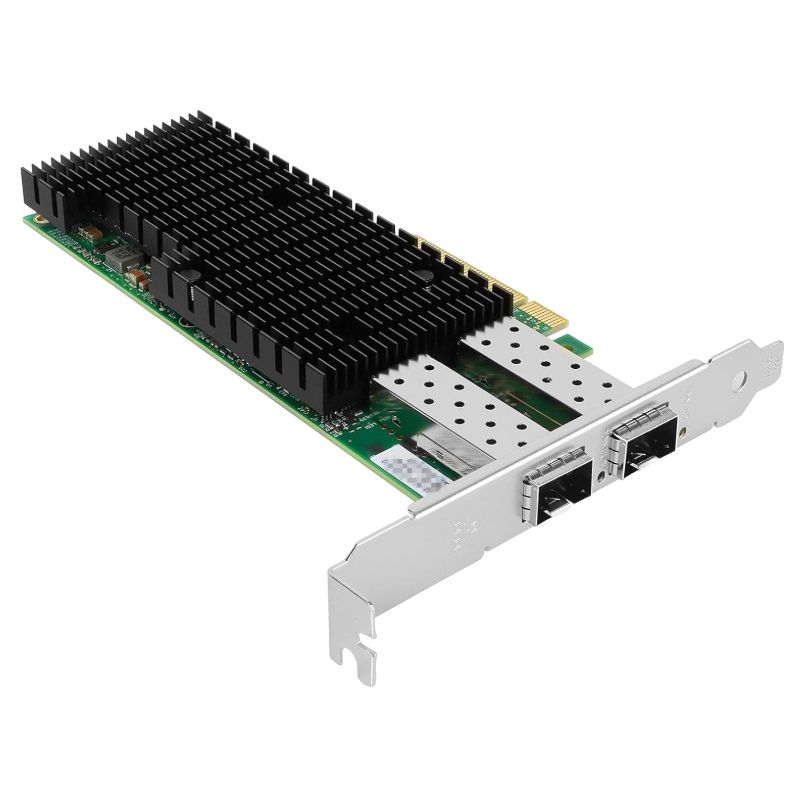

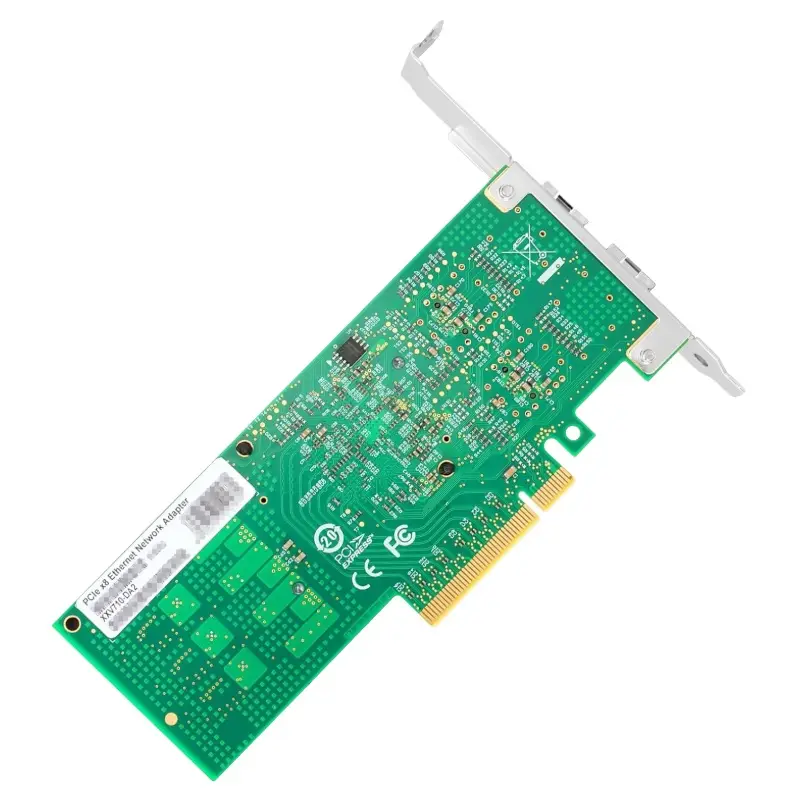

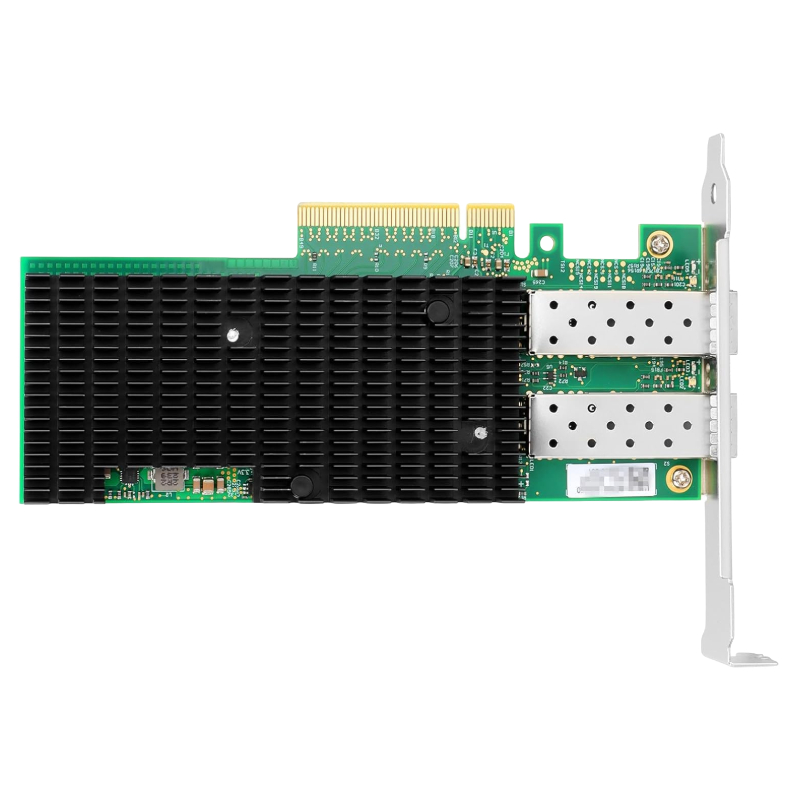

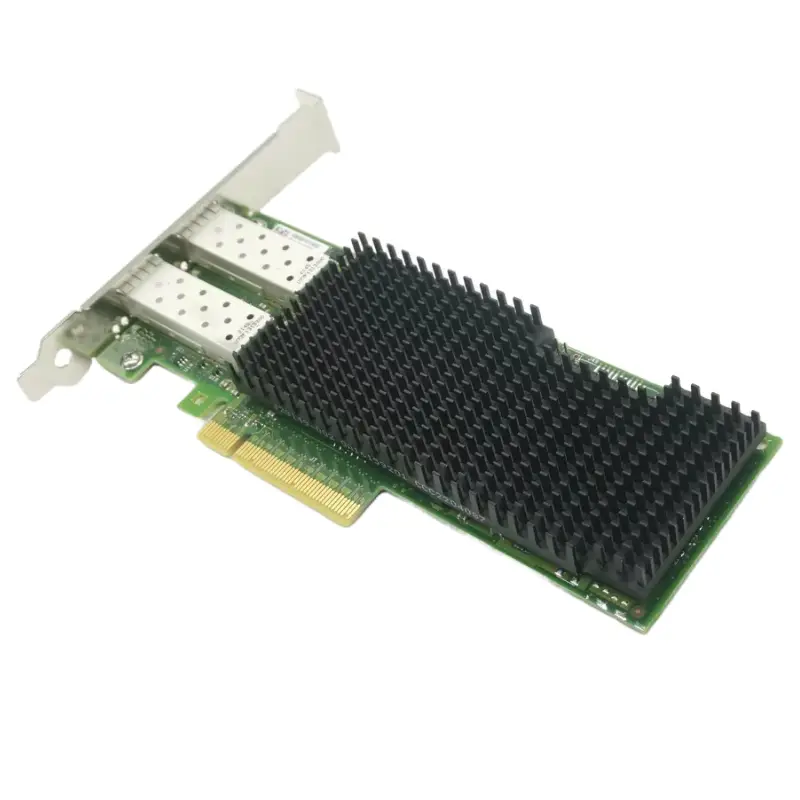

Dell 540-BDON Intel XXV710-DA2 25GbE Network Adapter

High-Performance Dual-Port Networking Solution

The Dell 540-BDON Intel XXV710-DA2 is a powerful dual-port network interface card engineered for enterprise-grade connectivity. Designed to support ultra-fast 25 Gigabit Ethernet speeds, it delivers scalable performance for modern data centers, virtualization environments, and high-throughput workloads.

Key Highlights of Dell 540-BDON Adapter

• Manufacturer: Dell
• Part Number / SKU: 540-BDON
• Device Type: Advanced network interface card (NIC)
• Port Configuration: Dual-port architecture for enhanced bandwidth utilization

Technical Architecture and Hardware Design

Form Factor and Interface Standards

Built in a compact low-profile plug-in card design, this adapter ensures compatibility with space-constrained server environments while maintaining high efficiency.

Interface and Bus Type

• PCI Express 3.0 x8 interface for high-speed data exchange
• Optimized for server and enterprise motherboard integration

Physical Dimensions

• Width: 6.6 inches
• Depth: 2.7 inches

Network Performance and Connectivity Features

Multi-Speed Ethernet Compatibility

This adapter supports flexible network scaling with compatibility across multiple Ethernet standards, ensuring seamless integration into diverse IT infrastructures.

Supported Data Link Protocols

• Gigabit Ethernet (1GbE)
• 10 Gigabit Ethernet (10GbE)
• 25 Gigabit Ethernet (25GbE)

Data Transfer Capability

• Maximum throughput: up to 25 Gbps per port
• Optimized for low latency and high bandwidth operations

Advanced Networking Protocol Support

• TCP/IP and UDP/IP for standard networking communication
• iSCSI for storage networking
• SMB and NFS for file sharing environments

Industry Standards and Compliance

IEEE Certification Support

The adapter adheres to multiple IEEE standards, ensuring interoperability and performance stability across enterprise networks.

Supported Standards

• IEEE 802.3 for Ethernet communication
• IEEE 802.1Q for VLAN tagging
• IEEE 802.1p for traffic prioritization
• IEEE 802.3ad (LACP) for link aggregation
• IEEE 802.1AS for time synchronization
• IEEE 802.3by for 25GbE support

Remote Administration and Management Features

Monitoring and Control Protocols

Designed for enterprise manageability, the adapter integrates advanced remote monitoring capabilities to streamline network administration.

Management Protocols Supported

• SNMP (Simple Network Management Protocol)
• RMON (Remote Network Monitoring)

Operating System and Virtualization Compatibility

Broad System Support

The Dell 540-BDON network adapter is optimized for a wide range of operating systems and virtualization platforms, making it highly versatile for mixed IT environments.

Supported Platforms

• Microsoft Windows Server (2008 R2, 2012, 2012 R2, 2016 64-bit)
• Linux Kernel versions 2.6, 4.x
• Red Hat Enterprise Linux 6.9 and 7.3
• SUSE Linux Enterprise Server 11 SP4 and 12 SP1
• Ubuntu 14.04 LTS and 16.04 LTS
• VMware ESXi 5.1, 5.5, 6.0 Update 3, 6.5
• FreeBSD 10.3 and 11

Use Cases and Deployment Scenarios

Enterprise and Data Center Applications

This dual-port 25GbE adapter is well-suited for demanding workloads requiring high bandwidth, low latency, and reliable network throughput.

Ideal Deployment Environments

• Cloud computing infrastructures
• Virtualized server clusters
• High-performance storage networks
• Enterprise data centers
• Big data analytics environments

Performance Optimization Benefits

Enhanced Network Efficiency

With advanced offloading capabilities and high-speed architecture, this adapter reduces CPU overhead while maximizing packet processing efficiency.

Core Advantages

• Improved network throughput with dual 25GbE ports
• Reduced latency for mission-critical applications
• Scalable architecture for future network expansion
• Reliable performance under heavy workloads

Dell 540-BDON 25 Gigabit Ethernet PCI-E Network Adapters

The Dell 540-BDON Intel XXV710-DA2 25 Gigabit Ethernet PCI-Express Network Adapter with 2 Ports category represents a high-performance networking solution engineered for modern enterprise environments, hyperscale data centers, virtualization clusters, and high-bandwidth computing workloads. Built on Intel’s advanced Ethernet controller architecture, these adapters deliver ultra-fast 25GbE connectivity designed to meet the demands of next-generation cloud infrastructure, storage-intensive applications, and low-latency networking environments.

As organizations transition from 1GbE and 10GbE infrastructures to higher-speed networks, 25GbE adapters such as the Intel XXV710-DA2 provide an optimal balance of performance, scalability, and cost efficiency. This category includes dual-port PCI Express network adapters that enhance throughput while reducing congestion and improving data transmission efficiency across enterprise-grade systems.

Architecture and Hardware Design

Intel XXV710 Controller Technology

At the core of the Dell 540-BDON adapter lies the Intel Ethernet Controller XXV710, a high-performance chipset designed specifically for 25 Gigabit Ethernet workloads. The controller supports advanced offloading capabilities, including TCP/IP stateless offloads, checksum offload, segmentation offload, and virtualization acceleration technologies. These features reduce CPU overhead and enhance system efficiency in demanding networking environments.

PCI Express Interface Integration

The adapter utilizes a PCI Express interface, ensuring high-speed communication between the network card and the host system. PCIe lanes provide the necessary bandwidth to support dual 25GbE ports without bottlenecks. This makes the adapter suitable for servers requiring consistent low-latency data transfer, particularly in clustered storage systems and distributed computing environments.

Lane Efficiency and Throughput Optimization

The PCIe architecture optimizes data flow by allocating dedicated lanes to network traffic, minimizing packet loss and jitter. This ensures stable performance even under heavy network loads, making it ideal for virtualization platforms and high-frequency transaction systems.

Dual-Port 25 Gigabit Ethernet Capabilities

High-Bandwidth Networking

The dual-port configuration of the Dell 540-BDON adapter enables simultaneous 25GbE connections, effectively doubling available bandwidth and improving redundancy. Each port operates independently, allowing load balancing, failover configurations, and traffic segmentation for improved network reliability.

Link Aggregation Support

This category supports link aggregation technologies such as IEEE 802.3ad (LACP), enabling administrators to combine multiple network interfaces into a single logical channel. This enhances throughput while providing redundancy in case of link failure.

Failover and Redundancy Mechanisms

In enterprise deployments, redundancy is critical. Dual-port adapters ensure continuous connectivity by automatically switching traffic to a secondary port in the event of a primary link failure. This minimizes downtime and maintains service availability in mission-critical systems.

Performance Optimization Features

Low-Latency Data Transmission

The Intel XXV710 architecture is optimized for ultra-low latency communication, making it ideal for high-frequency trading systems, real-time analytics platforms, and cloud-native applications. Reduced latency ensures faster packet processing and improved application responsiveness.

Hardware Offloading Capabilities

Hardware-based offloading significantly reduces CPU utilization by transferring networking tasks from the processor to the adapter. This includes checksum calculation, segmentation offload, and virtualization packet processing, resulting in improved server efficiency.

Interrupt Moderation Techniques

Interrupt moderation helps reduce CPU overhead by controlling the rate at which network interrupts are generated. This improves system stability under high network traffic conditions and ensures smoother performance during peak workloads.

Virtualization and Cloud Integration

SR-IOV Support

Single Root Input/Output Virtualization (SR-IOV) is a key feature supported by the Dell 540-BDON adapter category. SR-IOV enables a single physical network adapter to appear as multiple virtual devices, allowing virtual machines to access network resources directly with near-native performance.

Virtual Machine Optimization

In virtualized environments such as VMware, Microsoft Hyper-V, and KVM, the adapter ensures efficient resource allocation and reduced hypervisor overhead. This enhances VM density and improves workload distribution across servers.

Network Isolation in Multi-Tenant Environments

For cloud service providers, network isolation is critical. This adapter supports secure traffic segmentation, ensuring that multiple tenants can operate on shared infrastructure without compromising performance or security.

Data Center Deployment Scenarios

High-Performance Computing (HPC)

The Dell 540-BDON Intel XXV710-DA2 adapter is widely deployed in HPC clusters where massive data transfers occur between nodes. Its 25GbE capability ensures minimal bottlenecks in distributed computation workloads such as scientific simulations, AI training, and machine learning pipelines.

Enterprise Storage Networks

Storage Area Networks (SANs) and Network Attached Storage (NAS) systems benefit significantly from high-speed 25GbE connectivity. Faster data access and transfer speeds improve backup operations, replication tasks, and database performance.

Software-Defined Storage Integration

Modern software-defined storage platforms require scalable and high-throughput networking. This adapter ensures seamless integration with solutions like Ceph, VMware vSAN, and Microsoft Storage Spaces Direct.

Cloud Infrastructure Scaling

Cloud environments demand flexible and scalable network interfaces. The dual-port architecture allows dynamic scaling of bandwidth based on workload requirements, supporting elastic cloud architectures.

Compatibility and System Integration

Server Platform Compatibility

The adapter is compatible with a wide range of Dell PowerEdge servers and other enterprise-grade x86 server platforms. Its PCIe form factor ensures easy integration into existing infrastructure without requiring extensive hardware modifications.

Operating System Support

The Intel XXV710-DA2 adapter supports major operating systems including Windows Server, Linux distributions, and VMware ESXi. This ensures broad compatibility across enterprise environments and simplifies deployment processes.

Driver and Firmware Optimization

Regular driver updates and firmware optimizations ensure sustained performance improvements and security enhancements. IT administrators can manage updates through centralized management tools.

Security and Reliability Features

Advanced Packet Filtering

Security is a critical aspect of modern networking hardware. The adapter includes hardware-based packet filtering capabilities that help prevent unauthorized access and reduce exposure to network-based threats.

Encryption Offload Support

By offloading encryption tasks to hardware, the adapter reduces CPU load while maintaining secure communication channels. This is particularly useful for secure data transmission in enterprise and cloud environments.

Network Isolation Techniques

The adapter supports VLAN tagging and segmentation, allowing administrators to isolate network traffic based on organizational requirements or security policies.

Power Efficiency and Thermal Design

Energy-Efficient Architecture

The Intel XXV710 chipset is designed with energy efficiency in mind, reducing overall power consumption while maintaining high throughput performance. This is essential for large-scale data centers aiming to reduce operational costs.

Thermal Management Systems

Efficient heat dissipation ensures stable operation under continuous heavy workloads. The adapter is engineered to maintain optimal temperatures even in densely populated server environments.

Adaptive Power Scaling

Adaptive power scaling adjusts energy usage based on network load, ensuring that power is not wasted during low-traffic periods while still delivering peak performance when required.

Advanced Networking Protocol Support

RDMA over Converged Ethernet (RoCE)

Remote Direct Memory Access (RDMA) over Converged Ethernet enables low-latency, high-throughput communication between systems. This is particularly useful in HPC and storage environments where performance is critical.

iSCSI and NVMe over Fabrics

The adapter supports modern storage protocols such as iSCSI and NVMe over Fabrics, allowing faster storage communication and reduced latency compared to traditional storage networking methods.

TCP/IP Stack Optimization

Optimized TCP/IP processing ensures faster packet handling and reduced CPU involvement, making the adapter suitable for high-throughput applications.

Use Cases in Modern IT Infrastructure

Enterprise Application Hosting

Businesses running ERP, CRM, and database applications benefit from high-speed networking that ensures consistent application performance and reduced latency.

Artificial Intelligence and Machine Learning

AI and ML workloads require rapid data transfer between GPUs, storage systems, and compute nodes. The 25GbE capability ensures efficient model training and data processing.

Big Data Analytics Platforms

Big data frameworks such as Hadoop and Spark rely heavily on network throughput. This adapter supports efficient distributed processing and data shuffling.

Media Streaming and Content Delivery

High-bandwidth requirements for video streaming platforms and CDN networks are effectively handled by dual 25GbE ports, ensuring smooth content delivery.
