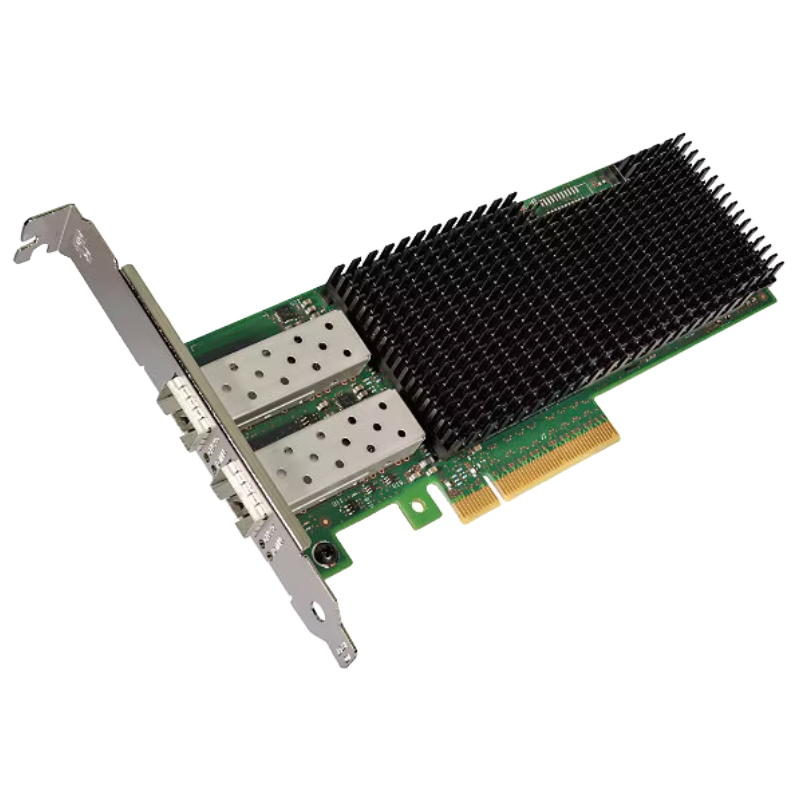

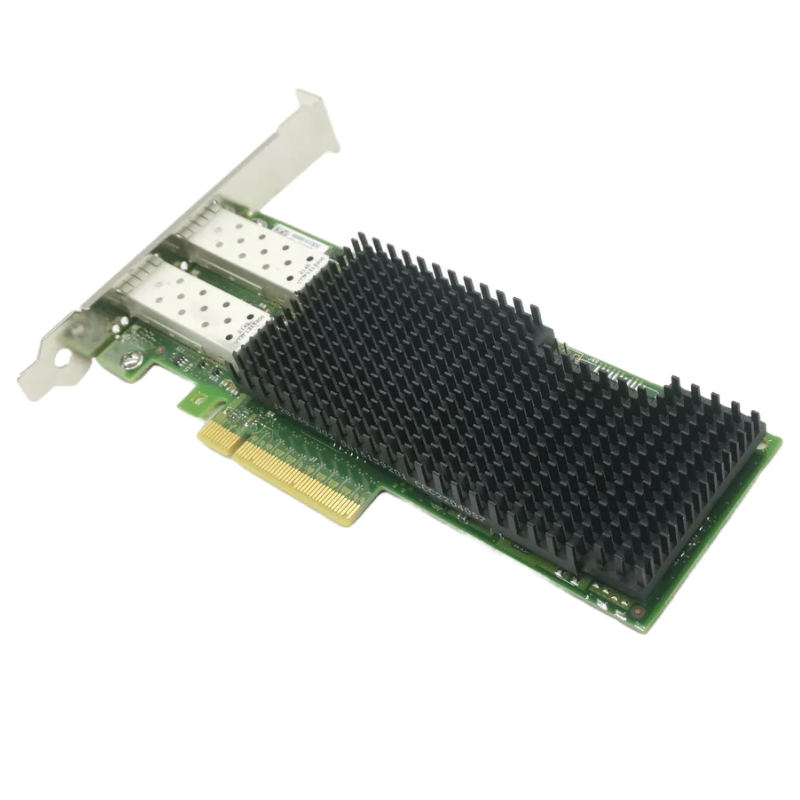

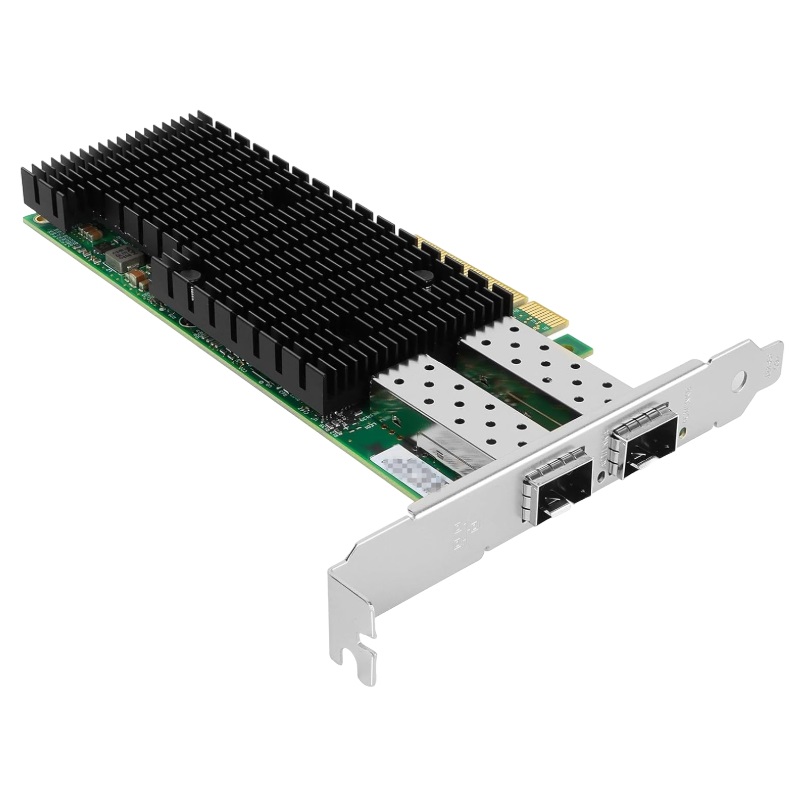

540-BDON Dell XXV710-DA2 25GbE PCIe Network Adapters with 2 Ports

Dell 540-BDON Intel XXV710-DA2 25GbE 2-Port Network Adapter

High-Performance Enterprise Networking Solution

The Dell 540-BDON Intel XXV710-DA2 is a powerful dual-port 25 Gigabit Ethernet PCI-Express network adapter engineered for modern data centers and high-throughput enterprise environments. Built to deliver ultra-fast connectivity and enhanced scalability, it supports advanced networking workloads, virtualization, and storage-intensive applications.

Key Highlights of the Network Adapter

• Manufacturer: Dell
• Part Number: 540-BDON
• Product Category: High-speed network interface card (NIC)
• Configuration: Dual-port design for improved redundancy and throughput
• Interface Standard: PCI Express 3.0 x8

Advanced Hardware Architecture

Form Factor and Design

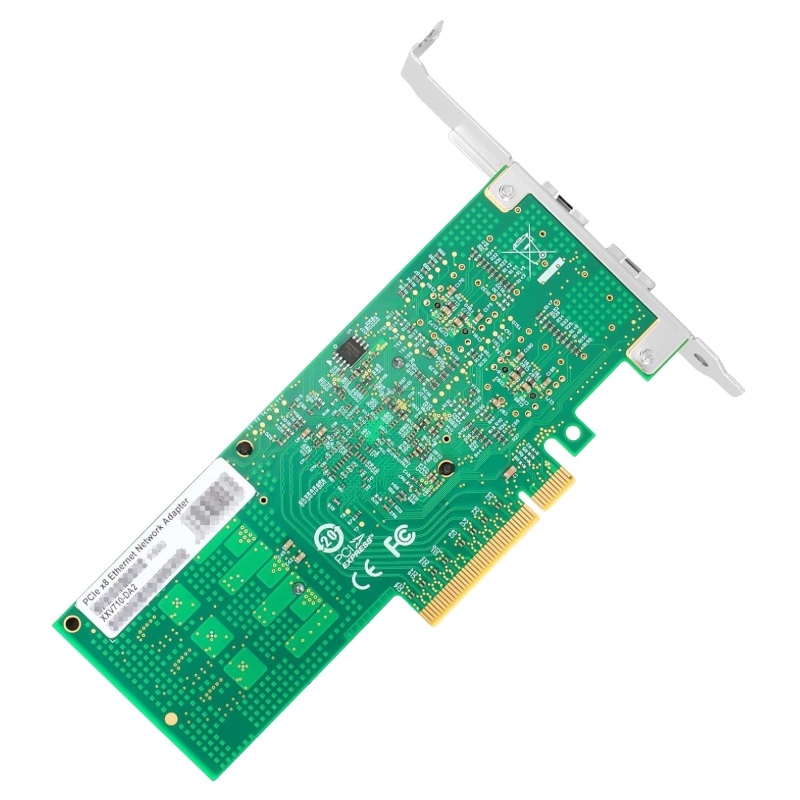

This adapter features a low-profile plug-in card form factor, making it suitable for compact server environments while maintaining optimal airflow and thermal efficiency. Its compact dimensions ensure compatibility with a wide range of enterprise server chassis.

Physical Specifications

• Width: 6.6 inches
• Depth: 2.7 inches
• Design: Low-profile PCIe expansion card

Exceptional Network Performance

Speed and Connectivity

Designed for high-bandwidth environments, this adapter supports multiple data rates, enabling flexible deployment across evolving infrastructure requirements. It ensures seamless handling of heavy network traffic with minimal latency.

Supported Data Rates

• 25 Gigabit Ethernet (primary performance mode)
• 10 Gigabit Ethernet compatibility
• 1 Gigabit Ethernet support

Port Configuration

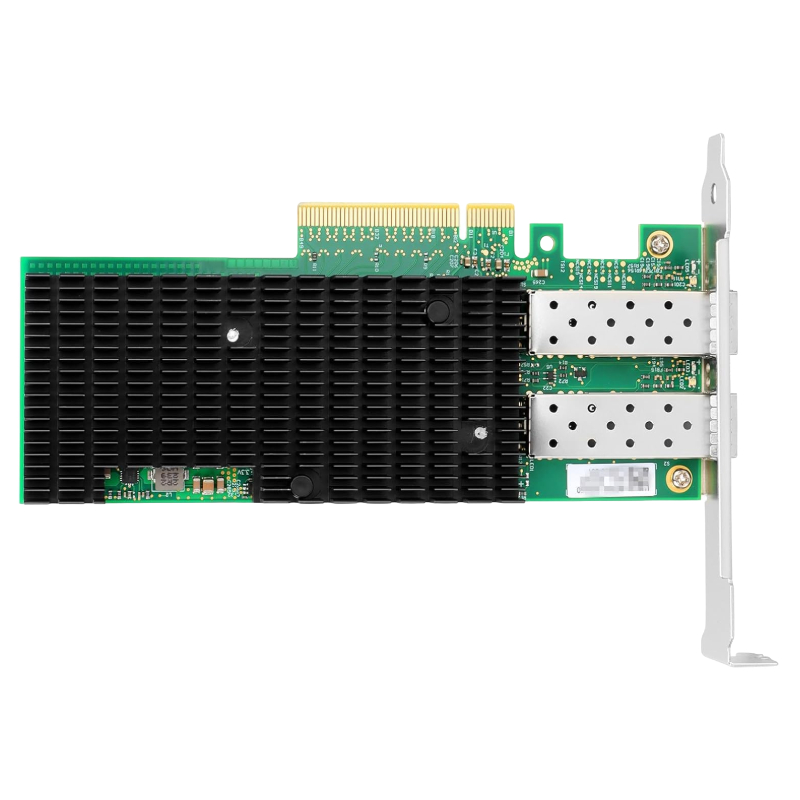

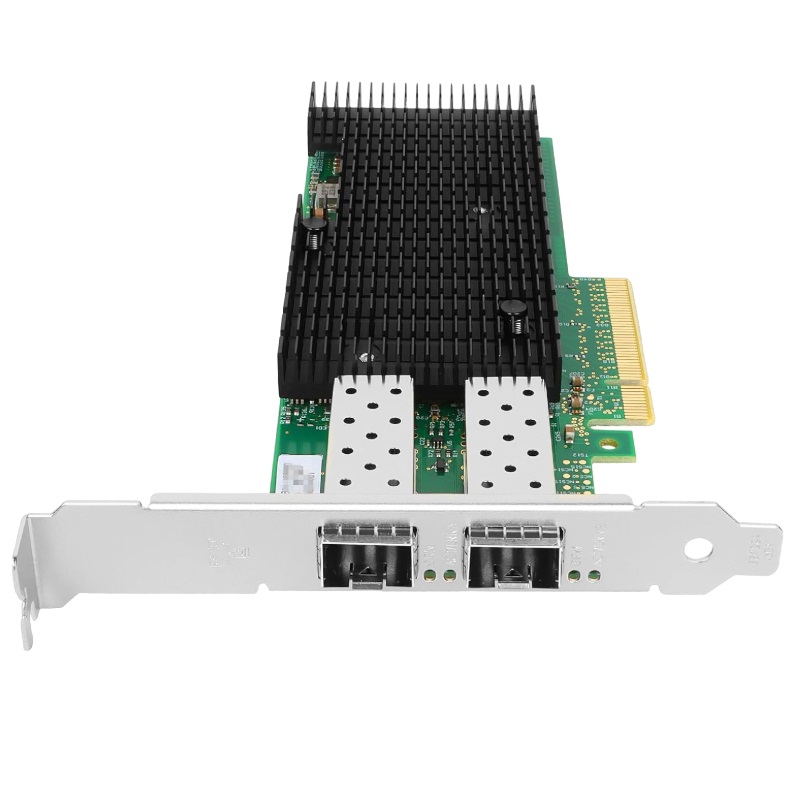

• 2 x SFP28 ports for fiber connectivity
• Wired connectivity technology for stable transmission

Protocol and Standard Compliance

Supported Networking Protocols

The adapter ensures broad compatibility with enterprise-level networking environments through support for widely used transport and communication protocols.

• TCP/IP and UDP/IP for standard data communication
• iSCSI for storage networking
• SMB and NFS for file sharing environments

Industry Standards Compliance

• IEEE 802.3 Ethernet standards
• IEEE 802.1Q VLAN tagging
• IEEE 802.1p QoS prioritization
• IEEE 802.3ad (LACP) link aggregation
• IEEE 802.1AS time synchronization
• IEEE 802.3by 25GbE specification support

Operating System and Virtualization Compatibility

Broad OS Support

The Dell 540-BDON adapter is compatible with a wide range of operating systems and virtualization platforms, making it suitable for mixed enterprise environments and hybrid infrastructures.

• Microsoft Windows Server (2008 R2, 2012, 2012 R2, 2016)
• Linux distributions including Red Hat Enterprise Linux (6.9, 7.3)
• SUSE Linux Enterprise Server (11 SP4, 12 SP1)
• Ubuntu (14.04 LTS, 16.04 LTS)
• FreeBSD (10.3, 11)
• VMware vSphere (5.1, 5.5)
• VMware ESXi (6.0 Update 3, 6.5)
• Linux Kernel versions 2.6 and 4.x

Virtualization Readiness

Optimized for virtualized environments, this adapter enhances workload distribution, improves network efficiency, and supports scalable cloud infrastructure deployments.

Enterprise Use Cases and Applications

Ideal Deployment Scenarios

• High-performance data centers
• Cloud computing infrastructures
• Virtualized server environments
• Storage area networks (SAN)
• Enterprise-grade networking systems

Operational Benefits

• Reduced network latency for mission-critical workloads
• Enhanced bandwidth utilization for large-scale data transfers
• Improved redundancy through dual-port architecture
• Scalable connectivity for growing enterprise demands

Dell 540-BDON 25 Gigabit Ethernet PCI-E Network Adapter

The Dell 540-BDON Intel XXV710-DA2 25 Gigabit Ethernet PCI-Express Network Adapter with 2 Ports represents a high-performance networking solution designed for modern enterprise environments, cloud data centers, virtualization platforms, and high-bandwidth computing infrastructures. Built on Intel’s advanced Ethernet controller architecture, this dual-port 25GbE PCIe network adapter is engineered to deliver ultra-low latency, high throughput, and reliable packet processing capabilities. As organizations transition from 10GbE to 25GbE networks, this adapter plays a critical role in enabling scalable and efficient data transmission across servers, storage systems, and network fabrics.

High-Speed 25GbE Architecture for Modern Data Centers

Next-Generation Network Throughput

The Dell 540-BDON Intel XXV710-DA2 network adapter is designed to support 25 Gigabit Ethernet speeds per port, providing a significant performance boost over traditional 10GbE solutions. This increased bandwidth allows enterprises to handle more virtual machines, larger datasets, and high-performance applications without network congestion. With dual 25GbE ports, the adapter supports aggregated bandwidth scenarios reaching up to 50Gbps, making it ideal for high-demand workloads.

Optimized PCI Express Interface

Leveraging a PCI Express interface, the adapter ensures direct and efficient communication between the network card and the server CPU. This reduces bottlenecks and enhances data flow efficiency. The PCIe architecture is optimized for modern server motherboards, ensuring compatibility with a wide range of Dell PowerEdge servers and other enterprise-grade systems that support high-speed PCIe lanes.

Intel XXV710 Controller Technology

Advanced Network Processing Engine

At the core of the Dell 540-BDON adapter lies the Intel XXV710 Ethernet controller, which is designed for high-efficiency packet processing and advanced networking features. This controller offloads critical network processing tasks from the CPU, enabling better system performance and reduced latency in data-intensive environments.

Hardware Offloading Capabilities

The Intel XXV710 architecture supports a variety of hardware offloading features including TCP segmentation offload (TSO), large receive offload (LRO), and checksum offload. These capabilities significantly reduce CPU overhead and improve overall system efficiency, particularly in virtualized and cloud computing environments.

Support for Virtualization Acceleration

Virtualization environments benefit from features such as Single Root I/O Virtualization (SR-IOV), allowing multiple virtual machines to share a single physical network adapter while maintaining near-native performance. This makes the adapter highly suitable for VMware, Hyper-V, and KVM-based infrastructures.

Dual-Port Design for Maximum Flexibility

Load Balancing and Redundancy

The dual-port design of the Dell 540-BDON Intel XXV710-DA2 adapter allows administrators to configure load balancing and failover mechanisms. In enterprise environments where uptime is critical, this ensures continuous network availability even in the event of a port failure or maintenance activity.

High-Density Server Connectivity

With two independent 25GbE ports, server administrators can connect multiple network fabrics or separate traffic types such as storage traffic, management traffic, and application traffic. This segmentation improves network efficiency and reduces congestion in high-density computing environments.

Link Aggregation Support

The adapter supports link aggregation (LACP), enabling both ports to be combined into a single logical channel. This enhances bandwidth utilization and provides redundancy, ensuring uninterrupted data flow for mission-critical workloads.

Enterprise-Grade Performance for Cloud and Virtualization

Cloud Infrastructure Optimization

Cloud service providers and enterprise data centers rely heavily on high-speed networking components like the Dell 540-BDON Intel XXV710-DA2 adapter to ensure smooth operation of scalable infrastructure. The adapter's high throughput and low latency make it ideal for private clouds, hybrid clouds, and public cloud deployments.

Virtual Machine Density Enhancement

By reducing CPU overhead and increasing packet processing efficiency, the adapter enables higher virtual machine density per physical host. This results in better resource utilization and reduced infrastructure costs while maintaining performance consistency across workloads.

Support for Containerized Environments

Modern container orchestration platforms such as Kubernetes benefit from the high-speed connectivity provided by 25GbE adapters. The Dell 540-BDON Intel XXV710-DA2 ensures fast inter-container communication and efficient service mesh performance across distributed clusters.

Advanced Networking Features and Capabilities

Quality of Service (QoS) Optimization

The adapter supports advanced Quality of Service configurations that allow network administrators to prioritize critical traffic types. This ensures that latency-sensitive applications such as VoIP, video streaming, and financial transactions receive priority over less critical data transfers.

VXLAN and NVGRE Offloading

To support modern software-defined networking (SDN) environments, the adapter includes hardware support for VXLAN and NVGRE encapsulation and decapsulation. This reduces CPU load and improves performance in virtualized network overlays commonly used in cloud infrastructures.

Jumbo Frame Support

Jumbo frames enhance network efficiency by reducing overhead associated with packet headers. The Dell 540-BDON adapter supports jumbo frame configurations, enabling improved throughput for large file transfers and storage replication workloads.

Compatibility and System Integration

Server Platform Compatibility

This network adapter is widely compatible with Dell PowerEdge server platforms and other enterprise-grade servers that support PCIe-based network expansion cards. Its flexible design ensures smooth integration into both new deployments and existing infrastructure upgrades.

Operating System Support

The Dell 540-BDON Intel XXV710-DA2 adapter supports major operating systems including Windows Server, Linux distributions such as Red Hat Enterprise Linux (RHEL), SUSE Linux Enterprise Server (SLES), Ubuntu Server, and VMware ESXi. Comprehensive driver support ensures stable and optimized performance across all platforms.

Driver and Firmware Optimization

Regular firmware updates and driver enhancements from Intel and Dell ensure that the adapter remains secure, stable, and optimized for evolving enterprise workloads. Administrators are encouraged to maintain updated firmware for best performance and security compliance.

Data Center and Enterprise Use Cases

High-Performance Computing (HPC)

In HPC environments, the need for fast inter-node communication is critical. The Dell 540-BDON Intel XXV710-DA2 adapter provides the necessary bandwidth and low latency required for scientific computing, simulations, and large-scale data processing.

Storage Networking and NVMe over Fabrics

The adapter is ideal for storage-heavy workloads including NVMe over Fabrics (NVMe-oF), iSCSI, and high-speed SAN environments. Its ability to handle large data streams efficiently ensures fast access to storage resources and improved application performance.

Big Data and Analytics Workloads

Big data platforms such as Hadoop, Spark, and distributed analytics systems benefit significantly from the high throughput and low latency capabilities of 25GbE networking. The adapter enables fast data ingestion and processing across distributed clusters.

Performance Optimization and Tuning

Interrupt Moderation Settings

Network administrators can fine-tune interrupt moderation settings to balance CPU utilization and network latency. Proper configuration ensures optimal performance in both high-throughput and low-latency environments.

RSS (Receive Side Scaling) Support

Receive Side Scaling distributes network processing across multiple CPU cores, improving efficiency and reducing bottlenecks in multi-threaded applications. The Intel XXV710 controller provides robust RSS support for scalable performance.

Flow Control and Congestion Management

Advanced flow control mechanisms help prevent packet loss during network congestion. This is particularly important in environments with heavy east-west traffic, such as virtualization clusters and distributed applications.
