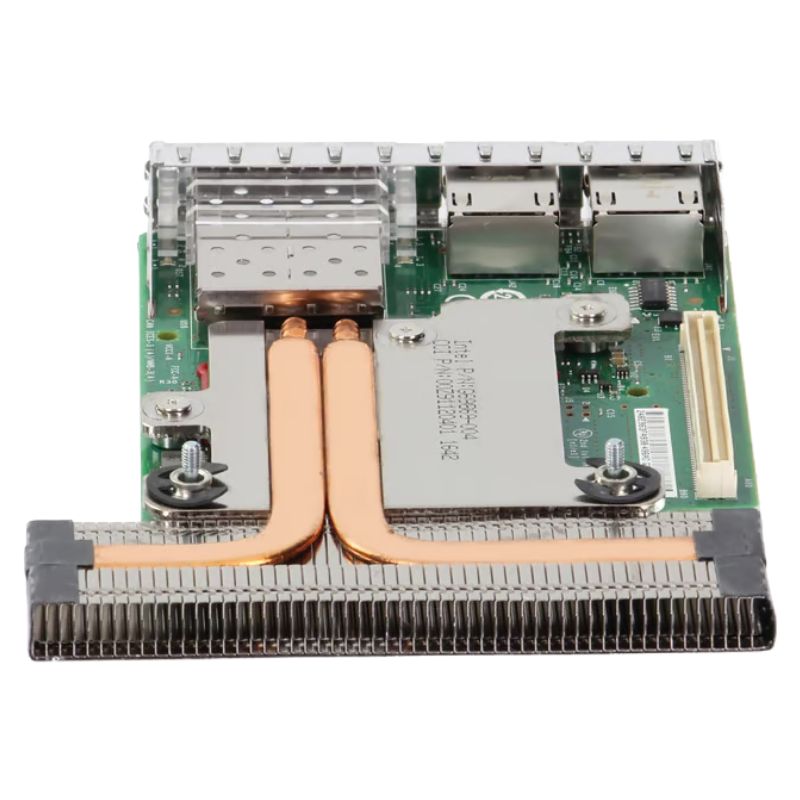

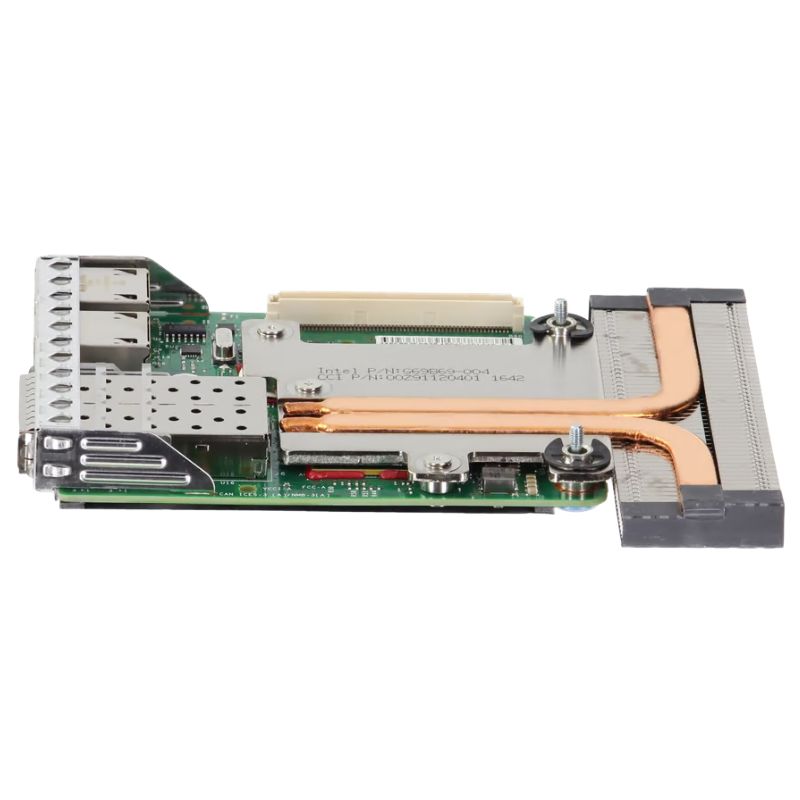

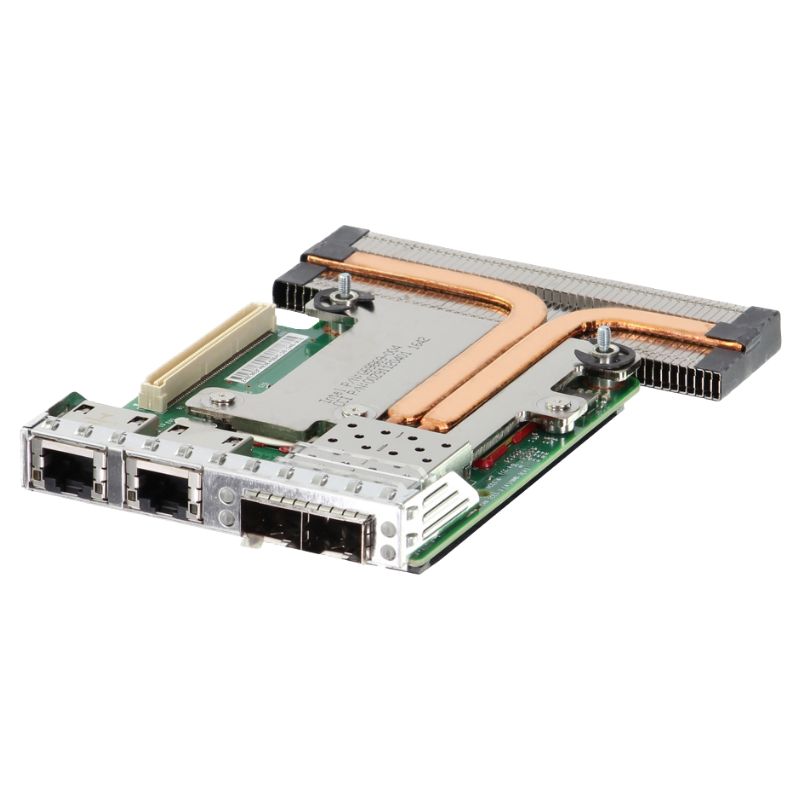

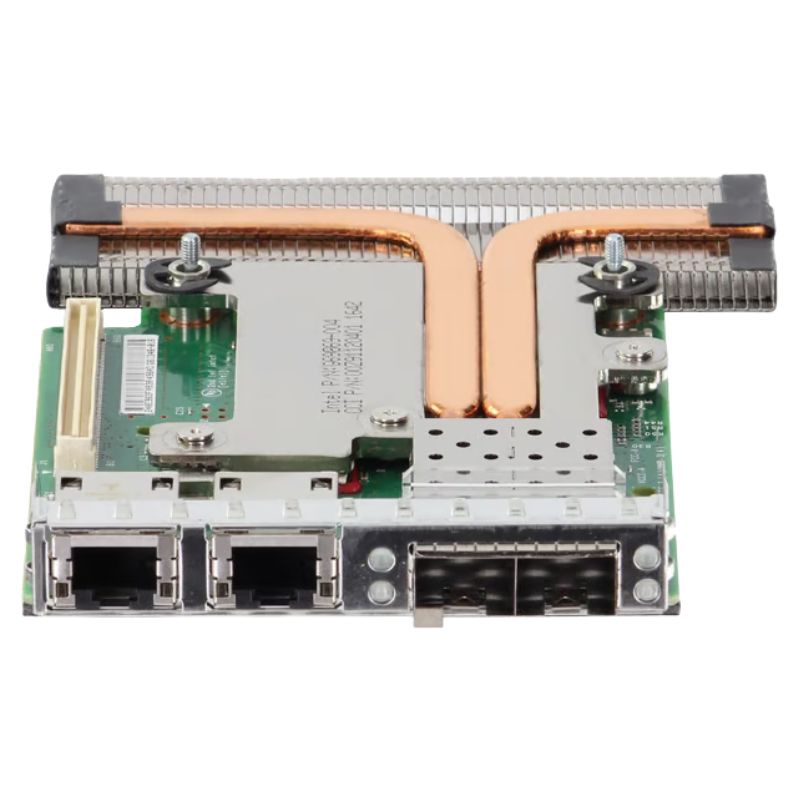

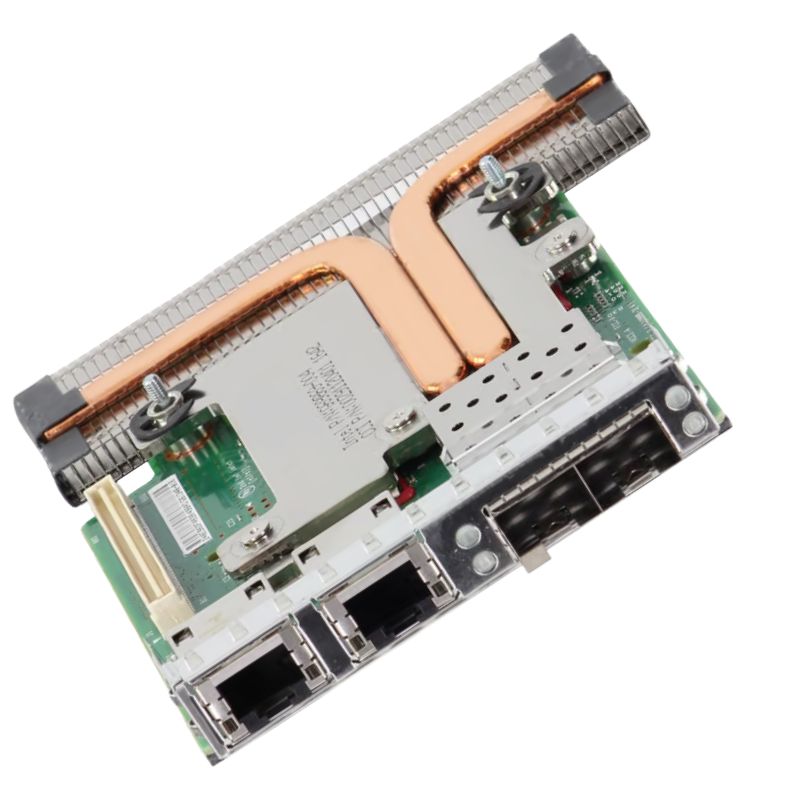

MT09V Dell 57800S 4-Port SFP+ Rack CNA Daughter Card

Dell MT09V Broadcom 57800S 4-Port SFP+ Rack Adapter

The Dell MT09V Broadcom 57800S 4-Port SFP+ Rack Converged Network Adapter (CNA) Daughter Card is a high-performance enterprise networking solution engineered to deliver dependable, high-speed connectivity for modern data centers, virtualization environments, cloud infrastructure, and rack servers. Designed to maximize network efficiency, this PCI Express 2.0 plug-in adapter combines Gigabit Ethernet and 10 Gigabit Ethernet connectivity into a single compact daughter card, simplifying network deployment while improving bandwidth availability and reducing infrastructure complexity.

Featuring Broadcom's proven networking technology, the Dell MT09V supports multiple networking protocols, advanced traffic optimization capabilities, and virtualization features that help businesses maintain reliable communication between servers, storage systems, and enterprise applications. Its flexible interface configuration makes it an excellent choice for organizations requiring scalable, low-latency, and highly available network performance.

General Information

• Manufacturer: Dell
• Part Number: MT09V
• Product Type: Network Adapter
• Controller: Broadcom 57800S
• Form Factor: Plug-in Card
• Bus Interface: PCI Express 2.0

Technical Information

• Connectivity Technology: Wired
• Maximum Data Transfer Rate: 10 Gbps
• Ethernet Support: 10 Mbps, 100 Mbps, 1 Gigabit, and 10 Gigabit Ethernet
• Supports SFP+ fiber connectivity
• Supports Gigabit Ethernet copper connections

Expansion and Connectivity

• 2 × 1000BASE-T interfaces
• 2 × 10Gb Ethernet SFP+ interfaces
• Compatible with PCI Express 2.0 slot

High-Speed Data Transmission

• 10 Mbps Ethernet compatibility
• 100 Mbps Fast Ethernet support
• 1 Gigabit Ethernet connectivity
• 10 Gigabit Ethernet performance
• Reliable wired networking architecture

Optimized Network Processing

• Reduced CPU utilization
• Efficient packet handling
• Improved server responsiveness
• Enhanced virtualization efficiency
• Reliable enterprise networking performance

Benefits of PCI Express Connectivity

• High-bandwidth communication
• Fast data exchange between server components
• Stable enterprise performance
• Reliable hardware compatibility
• Efficient system integration

Interface Configuration

• 2 × 1000BASE-T Ethernet ports
• 2 × 10Gb Ethernet SFP+ ports
• PCI Express 2.0 compatible slot

Supported Network Protocols

• TCP/IP
• IPX/SPX
• NetBEUI / NetBIOS
• IP/IPX
• CSMA/CA

Supported IEEE Standards

• IEEE 802.3z
• IEEE 802.1Q VLAN
• IEEE 802.3x Flow Control
• IEEE 802.3ad Link Aggregation (LACP)
• IEEE 802.1AB LLDP

Dell MT09V 4-Port Converged Network Adapter Overview

The Dell MT09V Broadcom 57800S 4-Port SFP+ Rack Converged Network Adapter (CNA) Daughter Card represents an advanced networking solution designed for enterprise rack servers that require high-performance connectivity, flexible network management, and efficient data center operations. This converged network adapter combines Ethernet networking and storage networking capabilities into a single high-speed adapter platform, helping organizations simplify infrastructure while improving bandwidth utilization and reducing hardware complexity.

Designed for Dell PowerEdge server environments, the MT09V adapter integrates Broadcom 57800S technology to provide reliable 10 Gigabit Ethernet connectivity through four SFP+ ports. By supporting converged networking features, this adapter enables businesses to consolidate traditional LAN and SAN traffic over a unified Ethernet infrastructure. The result is improved server communication, enhanced application performance, and streamlined data center architecture.

The Dell MT09V Broadcom 57800S CNA daughter card is engineered for demanding workloads such as virtualization, cloud computing, database applications, high-performance computing environments, and enterprise storage networks. With multi-port connectivity, advanced protocol support, and efficient traffic management capabilities, this adapter provides the scalability needed for modern server deployments.

Key Features of Dell MT09V Broadcom 57800S Converged Network Adapter

The Dell MT09V is built around the Broadcom 57800S controller, a highly integrated converged networking chipset optimized for enterprise server applications. The adapter delivers powerful networking performance by combining multiple communication technologies into one compact daughter card design.

Four-Port SFP+ 10GbE Connectivity

One of the primary advantages of the Dell MT09V CNA is its four-port SFP+ interface configuration. Each port supports high-speed 10 Gigabit Ethernet connectivity, allowing servers to achieve substantial network throughput for data-intensive applications. The four-port architecture provides additional flexibility for network segmentation, redundancy, load balancing, and traffic optimization.

SFP+ ports allow administrators to select compatible optical or direct-attach cabling solutions based on deployment requirements. This flexibility makes the adapter suitable for various data center environments, including short-distance server rack connections and longer-distance fiber-based network architectures.

Broadcom 57800S Controller Technology

The Broadcom 57800S controller integrated into the Dell MT09V delivers advanced networking functionality with efficient processing capabilities. Broadcom networking solutions are widely used in enterprise server platforms because of their reliability, performance optimization, and compatibility with demanding workloads.

The controller supports converged networking features that allow multiple types of traffic to operate over a shared Ethernet infrastructure. By combining network communication and storage communication through one adapter, organizations can simplify cabling requirements and reduce the number of separate interface cards installed in servers.

Converged Network Adapter Architecture

A Converged Network Adapter, commonly known as a CNA, combines traditional Ethernet networking functions with storage networking capabilities. The Dell MT09V enables organizations to transport Ethernet traffic, Fibre Channel over Ethernet (FCoE), and other data streams through a unified network connection.

This converged approach helps businesses create more efficient data center environments by reducing infrastructure complexity. Instead of deploying separate adapters for Ethernet and storage connectivity, administrators can utilize one high-performance adapter to support multiple communication requirements.

Efficient Data Center Network Consolidation

Network consolidation is an important strategy for modern enterprises looking to improve operational efficiency. The Dell MT09V Broadcom 57800S CNA supports this strategy by allowing multiple network services to share the same physical adapter resources while maintaining performance and reliability.

Through intelligent traffic handling and advanced network management capabilities, this adapter helps optimize server connectivity and simplifies hardware deployment. It is particularly valuable in environments where virtualization, cloud services, and storage-intensive applications require flexible and scalable networking solutions.

Enterprise Server Compatibility and Dell PowerEdge Integration

The Dell MT09V Broadcom 57800S 4-Port SFP+ CNA Daughter Card is designed specifically for integration with compatible Dell PowerEdge rack server platforms. As a Dell-qualified networking component, it provides reliable compatibility with Dell server architectures and enterprise management tools.

Daughter card designs provide an advantage over traditional PCI Express network adapters because they integrate directly with supported server motherboards. This approach helps preserve valuable PCIe expansion slots for additional storage controllers, graphics accelerators, or specialized hardware components.

Optimized Rack Server Connectivity

Rack servers used in enterprise data centers often require high-speed networking solutions to support virtualization clusters, distributed applications, and large-scale data processing. The Dell MT09V delivers the connectivity required for these environments by providing multiple high-bandwidth network interfaces within a compact server form factor.

The adapter enables servers to communicate efficiently with network switches, storage systems, and other infrastructure components. Its multi-port design supports flexible network configurations, including dedicated management networks, application networks, storage networks, and redundant connections.

Virtualization and Cloud Infrastructure Support

Virtualized environments depend heavily on reliable and scalable network adapters because multiple virtual machines often share the same physical server resources. The Dell MT09V Broadcom 57800S helps support virtualization platforms by providing high throughput, efficient packet processing, and flexible traffic management.

With advanced virtualization capabilities, the adapter allows administrators to optimize network resources across multiple virtual workloads. This makes it suitable for private cloud deployments, enterprise virtualization clusters, and software-defined data center environments.

Performance Advantages of Dell MT09V CNA Technology

Modern businesses require networking solutions that can handle increasing amounts of data generated by applications, users, and connected devices. The Dell MT09V Broadcom 57800S adapter addresses these requirements by delivering high-speed connectivity and efficient network processing.

High-Bandwidth Data Transmission

The four 10GbE SFP+ ports provide substantial bandwidth capacity for demanding workloads. Multiple ports allow organizations to distribute traffic across different network paths, improving overall performance and supporting higher levels of data transfer.

High-bandwidth connectivity is especially important for applications such as database servers, enterprise analytics platforms, video processing systems, backup environments, and virtualization infrastructures. The Dell MT09V helps reduce network bottlenecks and improves communication between servers and storage resources.

Advanced Network Traffic Management

The Dell MT09V supports intelligent traffic management technologies that help maintain consistent network performance. Features such as traffic prioritization and virtualization-aware networking allow administrators to allocate bandwidth efficiently according to application requirements.

By managing different traffic types effectively, organizations can ensure that critical workloads receive the necessary network resources. This capability is essential for environments where multiple applications compete for shared infrastructure.

Reliable Enterprise-Class Networking

Enterprise data centers require networking components that deliver continuous operation and dependable performance. The Dell MT09V Broadcom 57800S CNA is designed to meet these expectations by providing stable connectivity and compatibility with professional server environments.

Its robust architecture makes it suitable for organizations that require reliable network access for business-critical applications. Whether deployed in corporate data centers, cloud environments, or high-performance computing facilities, the adapter provides a dependable foundation for server connectivity.

Applications of Dell MT09V Broadcom 57800S 4-Port SFP+ CNA

The Dell MT09V adapter supports a wide range of enterprise applications where high-speed and flexible networking are essential. Its converged architecture allows organizations to optimize their infrastructure for various operational requirements.

Data Center Networking

Large-scale data centers rely on efficient networking equipment to connect thousands of servers and storage systems. The Dell MT09V provides the high-speed interfaces required for modern data center architectures, enabling efficient communication between computing resources and network infrastructure.

Storage Area Network Environments

Storage performance is a critical factor in enterprise computing. The Dell MT09V supports converged storage networking technologies that allow organizations to integrate storage communication into existing Ethernet networks. This reduces infrastructure requirements while maintaining fast and reliable access to storage resources.

Virtual Infrastructure Deployments

Virtual machines, containers, and cloud workloads require flexible networking solutions that can scale with changing demands. The Dell MT09V provides the connectivity and performance necessary for virtualized server environments, helping administrators build efficient and responsive infrastructures.

Enterprise Cloud Platforms

Cloud computing platforms require powerful network adapters capable of supporting large numbers of users and applications. The Dell MT09V helps cloud infrastructure providers deliver consistent network performance by providing multiple high-speed connections and advanced networking features.

High-Performance Computing Environments

High-performance computing applications generate significant amounts of data and require fast communication between systems. The Dell MT09V Broadcom 57800S adapter provides the bandwidth and connectivity needed for scientific computing, engineering simulations, financial modeling, and other intensive workloads.

Flexible Network Configuration Options

The four-port SFP+ design enables various network configurations depending on business requirements. Organizations can configure connections for redundancy, increased bandwidth, network isolation, or specialized traffic management.

Improved Infrastructure Efficiency

By combining multiple networking functions into one adapter, the Dell MT09V helps reduce hardware requirements and simplify data center operations. This efficiency can contribute to lower management complexity and improved resource utilization.
