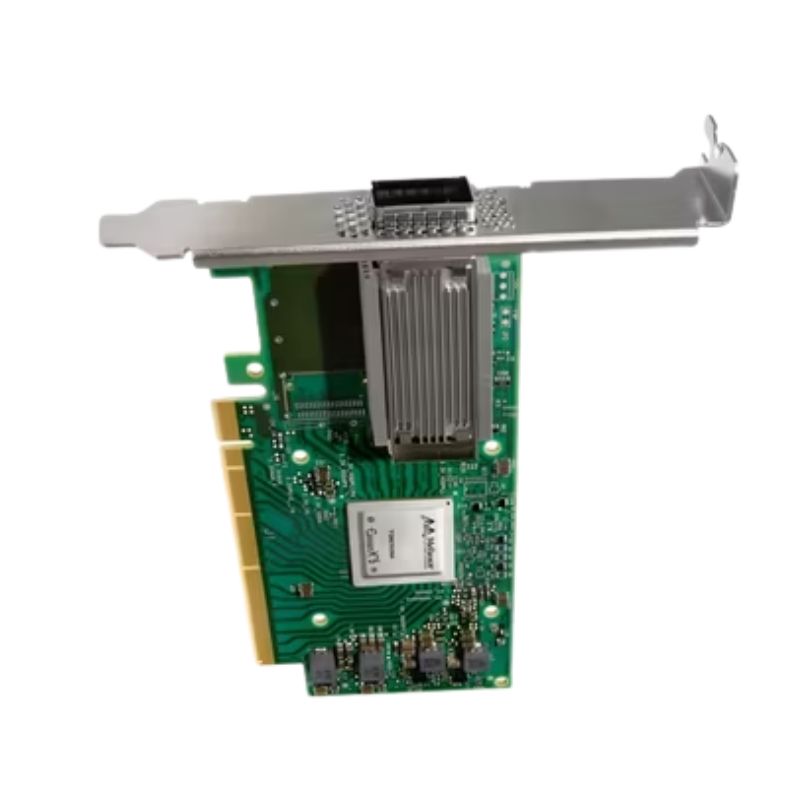

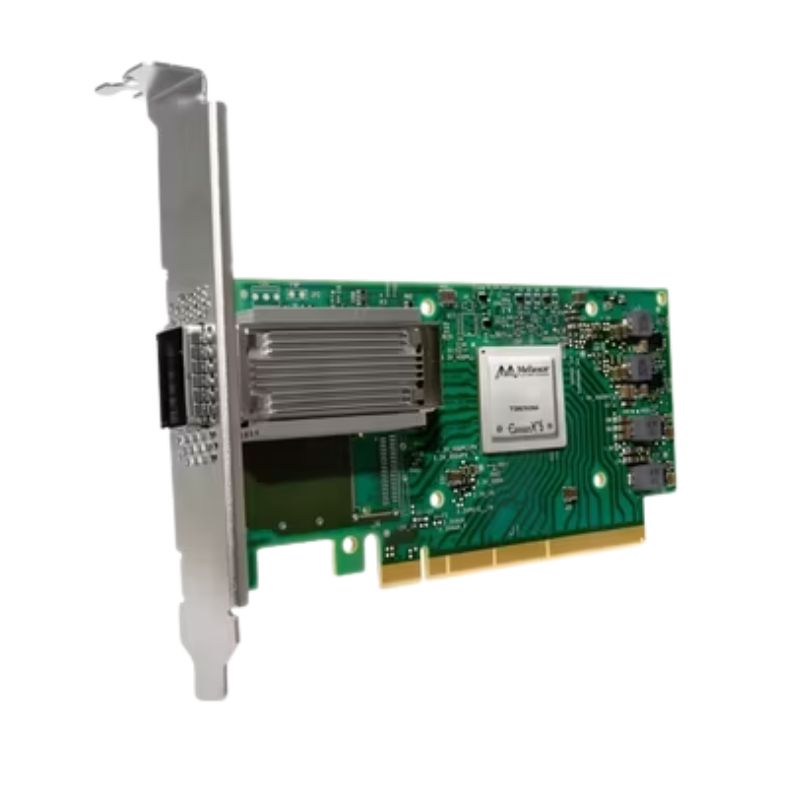

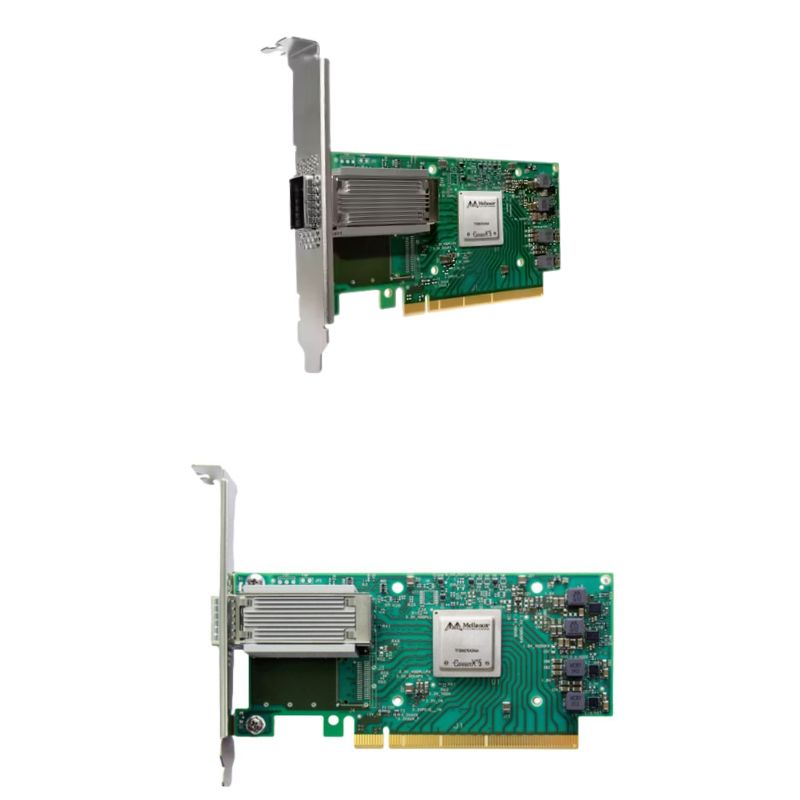

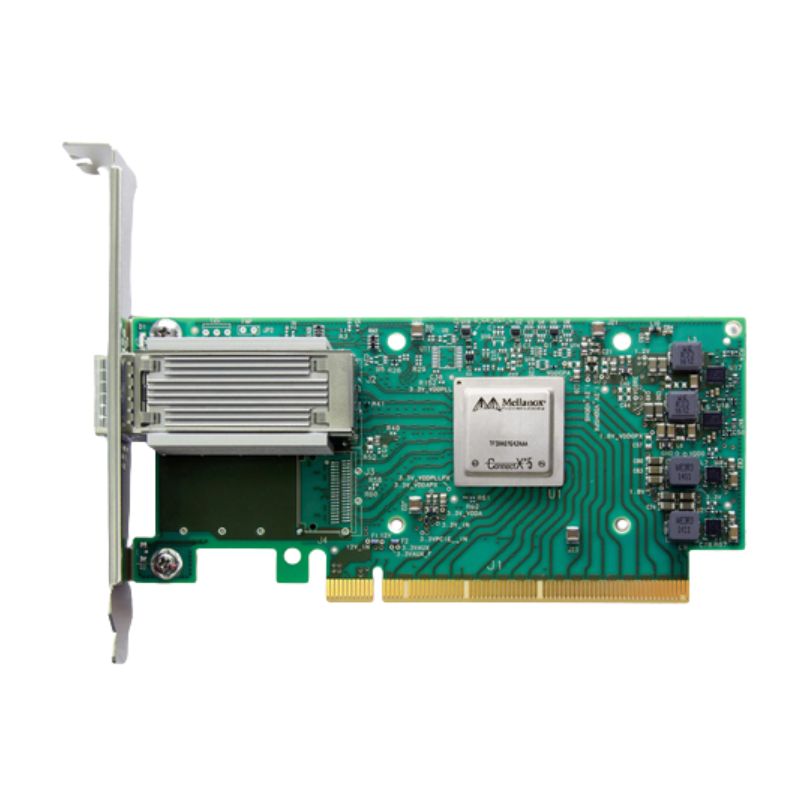

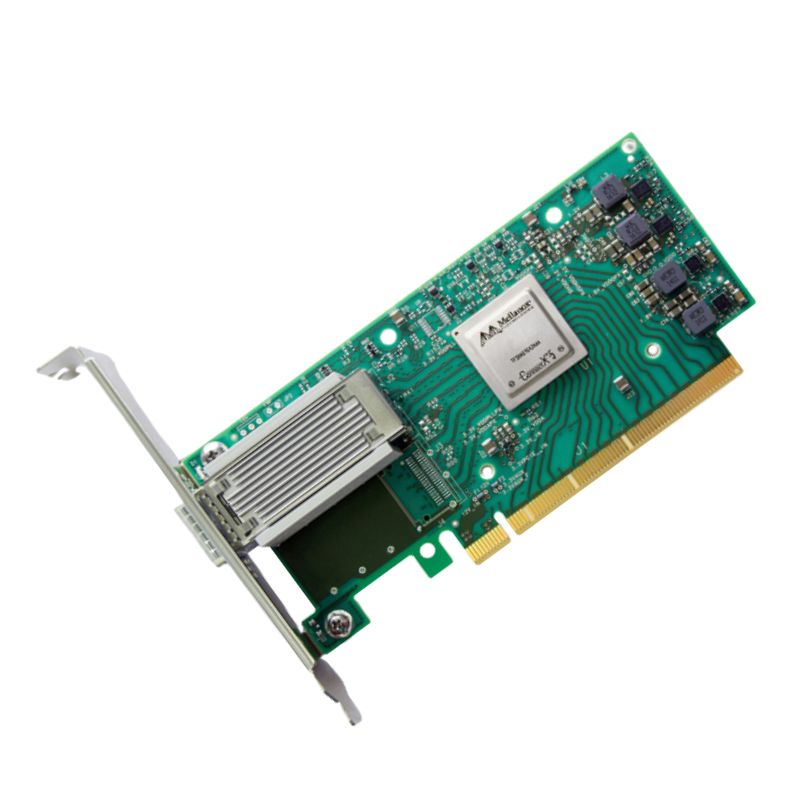

540-BCDK Dell Connectx-5 100GB QSFP28 PCI-Express 1 Port Network Adapter

Dell 540-BCDK Mellanox ConnectX-5 100Gb Network Adapter

High-Performance 100Gb Ethernet and InfiniBand Connectivity Solution

The Dell 540-BCDK Mellanox ConnectX-5 is a premium-grade 100 Gigabit network interface adapter engineered for ultra-fast data center communication, enterprise networking, and high-performance computing environments. Designed to deliver exceptional throughput and reliability, this PCIe-based adapter enhances server scalability and network efficiency.

Key Product Identifiers and Manufacturer Details

• Brand: Dell
• Part Number / SKU: 540-BCDK
• Category: High-speed Network Adapter
• Speed Class: 100 Gigabit Ethernet / InfiniBand

Advanced Technical Specifications

Hardware Architecture and Interface Design

Plug-in Card Form Factor

This adapter is built as a compact plug-in expansion card, ensuring seamless integration into compatible server systems and enterprise hardware platforms.

PCI Express Interface Support

• Interface Type: PCI Express 3.0 x16
• Backward Compatibility: PCIe 1.1, PCIe 2.0, PCIe 3.0

Network Port and Connectivity Capabilities

Single High-Speed QSFP28 Port

• Port Type: 100Gb Ethernet / 100Gb InfiniBand
• Connector: QSFP28 x 1

Multi-Speed Network Compatibility

The adapter supports a wide range of networking standards, enabling flexible deployment across different infrastructures and workloads.

• Gigabit Ethernet (GbE)
• 10GbE, 25GbE, 40GbE, 50GbE
• 100Gb Ethernet and 100Gb InfiniBand

Data Transfer and Performance Capabilities

Ultra-Fast Throughput for Enterprise Environments

Maximum Bandwidth Efficiency

• Data Transfer Rate: Up to 100 Gbps
• Optimized for low-latency and high-bandwidth workloads

Supported Network and Transport Protocols

• TCP/IP and UDP/IP
• iSCSI storage networking support

Industry Standards and Protocol Compliance

Broad IEEE and IBTA Certification Support

The Dell 540-BCDK adapter adheres to multiple industry standards, ensuring compatibility, performance optimization, and reliable interoperability in modern data center environments.

Supported IEEE Standards

• IEEE 802.1Q, 802.1p, 802.1ad (LACP)
• IEEE 802.3ae, 802.3ap, 802.3az
• IEEE 802.3ba, 802.3bj, 802.3bm, 802.3by
• IEEE 802.1ax, 802.1qbb, 802.1qaz, 802.1qau
• IEEE 1588v2 precision time protocol support

Dell 540-BCDK 100Gb QSFP28 PCI-E 1 Port Network Adapter

The Dell 540-BCDK Mellanox ConnectX-5 100Gb QSFP28 PCI-Express 1 Port Network Adapter represents a high-performance, enterprise-grade networking solution designed for modern data centers, cloud infrastructures, high-performance computing (HPC) environments, and storage-intensive workloads. Built on the advanced ConnectX-5 architecture by Mellanox (now part of NVIDIA networking solutions), this adapter delivers ultra-low latency, exceptional throughput, and advanced offloading capabilities that significantly enhance server efficiency and network scalability.

This category of network adapter is engineered for organizations requiring extreme bandwidth and reliability, particularly where traditional 1GbE or 10GbE solutions are insufficient. With a single 100 Gigabit QSFP28 port, the adapter is optimized for dense compute environments, virtualization clusters, AI training systems, distributed storage architectures, and cloud-scale deployments.

Core Architecture and Engineering of Mellanox ConnectX-5

Advanced ASIC Design for High Throughput

At the heart of the Dell 540-BCDK network adapter lies the ConnectX-5 ASIC, a highly optimized silicon design built to handle massive parallel data flows. This architecture supports up to 100Gbps Ethernet connectivity while maintaining extremely low CPU utilization. The ASIC integrates multiple hardware acceleration engines that reduce bottlenecks and offload network processing tasks from the host CPU.

PCI-Express Interface Optimization

The adapter uses a PCI-Express Gen 3.0/4.0 compatible interface depending on system configuration, ensuring maximum data transfer efficiency between server and network hardware. This high-speed bus interface is critical for maintaining line-rate performance in demanding workloads such as distributed AI training and real-time analytics systems.

QSFP28 Optical and DAC Compatibility

The QSFP28 port supports a variety of optical transceivers and direct attach copper (DAC) cables, enabling flexible deployment options. This adaptability makes the adapter suitable for short-range rack connectivity as well as long-distance fiber networking within large-scale enterprise environments.

Key Features of Dell 540-BCDK Network Adapter Category

100GbE High-Speed Connectivity

The most defining feature of this category is its 100 Gigabit Ethernet capability, which enables ultra-fast data transmission between servers, switches, and storage systems. This level of bandwidth is essential for modern data-intensive applications such as AI model training, big data processing, and high-frequency trading systems.

Low Latency Networking Performance

Designed for latency-sensitive environments, the adapter minimizes packet processing delays using hardware-based acceleration. This ensures consistent performance for workloads requiring microsecond-level responsiveness, including financial trading platforms and real-time analytics engines.

Advanced Offload Engines

The ConnectX-5 architecture includes multiple offload engines that reduce CPU overhead, including TCP/UDP/IP stateless offloads, checksum offload, and segmentation offload. These features allow servers to dedicate more processing power to application workloads rather than network management.

RDMA over Converged Ethernet (RoCEv2)

One of the most powerful features in this category is support for RDMA over Converged Ethernet (RoCEv2). This technology enables direct memory-to-memory communication between servers without involving the CPU, dramatically reducing latency and improving throughput for distributed applications and storage systems.

Performance Optimization Capabilities

CPU Offload and System Efficiency

By shifting networking tasks from CPU to dedicated hardware, the adapter improves system efficiency and reduces power consumption. This is especially beneficial in virtualized environments where CPU resources are heavily shared among multiple virtual machines.

Multi-Queue and Parallel Processing

The adapter supports multiple transmit and receive queues, enabling parallel packet processing. This ensures balanced workload distribution across CPU cores, enhancing scalability in multi-threaded server environments.

Packet Steering and Flow Control

Advanced packet steering mechanisms allow intelligent distribution of network traffic, optimizing throughput and reducing congestion. Flow control features ensure reliable communication even under heavy network load conditions.

Virtualization and Cloud Integration

SR-IOV (Single Root I/O Virtualization)

The Dell 540-BCDK adapter supports SR-IOV technology, allowing a single physical NIC to be partitioned into multiple virtual functions. This enables direct assignment of virtual NICs to virtual machines, improving I/O performance and reducing hypervisor overhead.

VMware, Hyper-V, and KVM Compatibility

This network adapter is widely compatible with major virtualization platforms such as VMware ESXi, Microsoft Hyper-V, and KVM-based Linux environments. This ensures seamless integration into enterprise virtual infrastructures.

Cloud-Native Networking Support

Modern cloud-native applications benefit from the adapter’s ability to support containerized networking frameworks such as Kubernetes CNI plugins. This ensures efficient communication between microservices and distributed applications.

Storage Networking and NVMe over Fabrics

High-Speed Storage Access

The adapter is designed to support storage-intensive environments where high-speed access to distributed storage systems is critical. It reduces bottlenecks in storage traffic by enabling faster communication between storage nodes and compute nodes.

NVMe over Fabrics (NVMe-oF)

Support for NVMe-oF allows the adapter to facilitate ultra-low latency storage communication over Ethernet networks. This technology enables high-performance storage architectures that rival traditional SAN systems while offering greater scalability.

Distributed Storage Optimization

In environments using Ceph, vSAN, or other distributed storage platforms, the adapter significantly improves read/write performance by reducing network overhead and improving data transfer efficiency.

High-Performance Computing (HPC) Applications

Scientific Computing and Simulations

HPC environments rely heavily on fast interconnects, and the 100Gbps bandwidth provided by this adapter is ideal for scientific simulations, weather modeling, and molecular research applications.

AI and Machine Learning Workloads

Artificial intelligence workloads require rapid data exchange between GPU clusters and storage systems. The low latency and high throughput capabilities of the ConnectX-5 adapter make it an essential component in AI training infrastructures.

Distributed Cluster Communication

Large-scale compute clusters benefit from reduced communication overhead, enabling faster synchronization between nodes and improving overall computational efficiency.

Security Features and Network Protection

Hardware-Based Security Acceleration

The adapter includes built-in security acceleration features that help offload encryption and decryption tasks, improving secure communication performance without burdening the CPU.

Network Isolation and Segmentation

Support for VLAN tagging and advanced segmentation allows secure isolation of network traffic within enterprise environments, ensuring compliance with security policies and reducing attack surfaces.

Secure Boot and Firmware Integrity

Firmware-level security ensures that only authenticated and verified firmware is executed on the adapter, protecting against unauthorized modifications and potential vulnerabilities.

Deployment Scenarios and Enterprise Use Cases

Enterprise Data Centers

In enterprise environments, the Dell 540-BCDK adapter is deployed to support mission-critical applications that require high availability, redundancy, and consistent performance under heavy workloads.

Hyperscale Cloud Providers

Cloud service providers utilize this category of network adapter to scale infrastructure efficiently while maintaining consistent performance across thousands of virtual machines and containers.

Financial Trading Systems

High-frequency trading platforms rely on ultra-low latency networking to execute trades in microseconds. The adapter’s optimized architecture ensures minimal delay in data transmission.

Media and Content Delivery Networks

Streaming platforms and CDN infrastructures benefit from high bandwidth capacity, enabling fast content distribution to global audiences with reduced buffering and latency.
