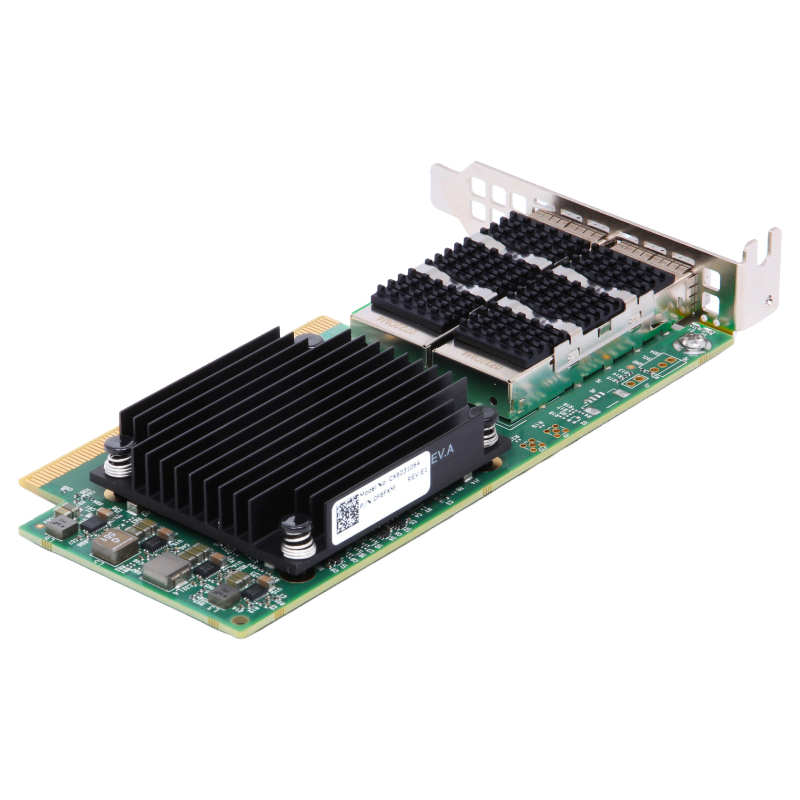

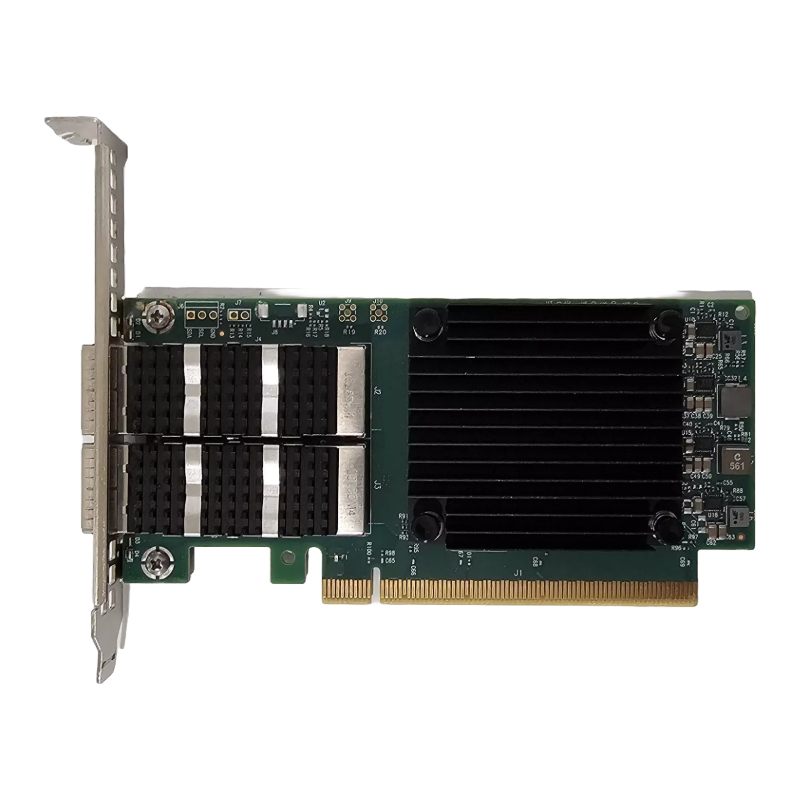

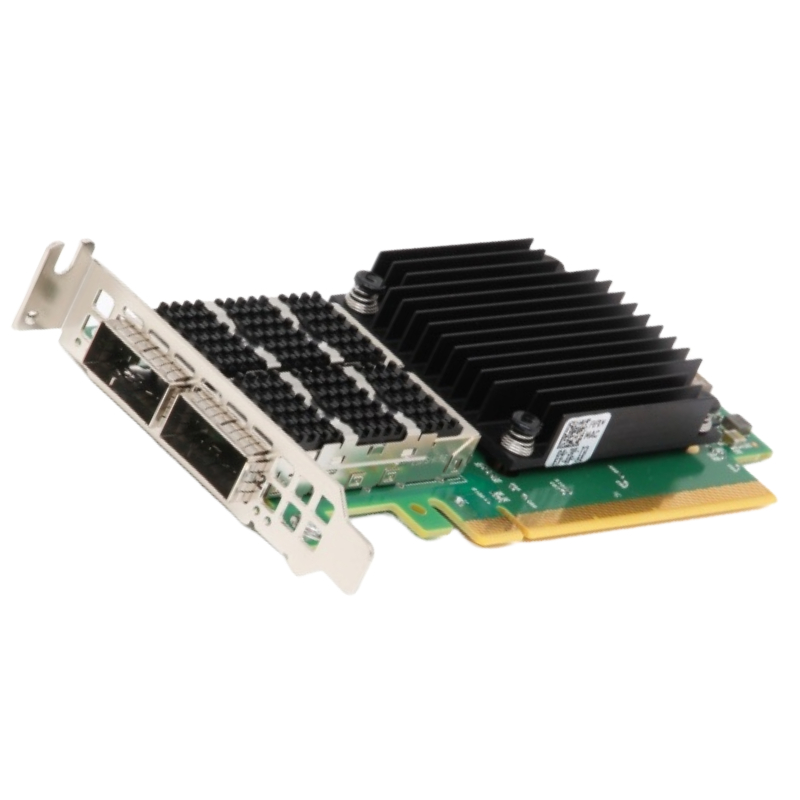

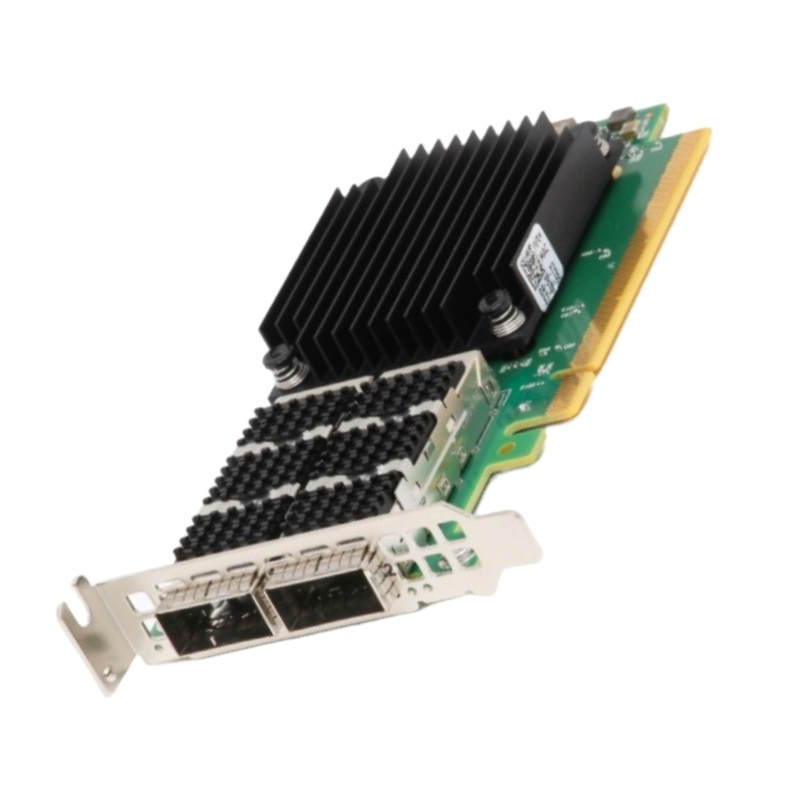

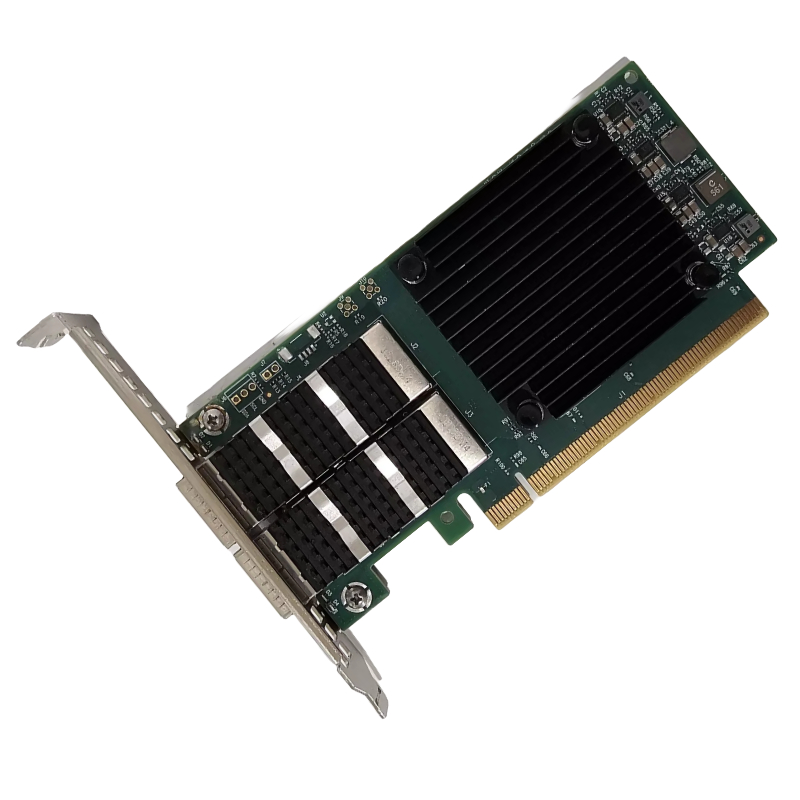

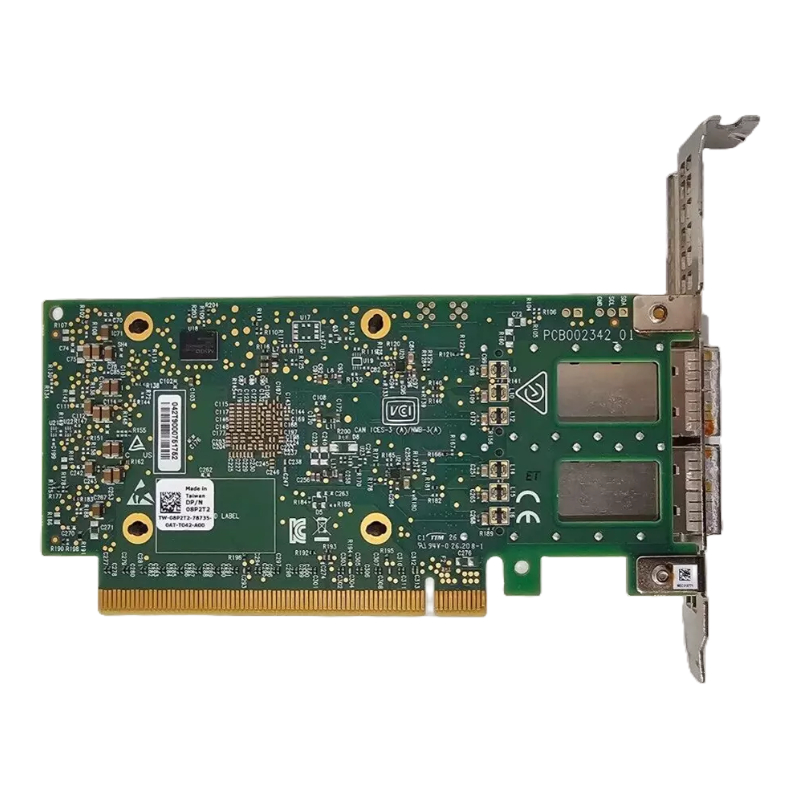

F6FXM Dell Mellanox ConnectX-6 Dx EN 100 Gigabit Ethernet Card

Overview of the Dell Network Adapter

The F6FXM Dell Mellanox ConnectX-6 Dx EN 100 Gigabit Ethernet Card represents a next-generation network interface solution designed for hyperscale data centers, enterprise infrastructures, cloud-native platforms, and high-performance computing environments. Built to deliver ultra-low latency, advanced hardware offloads, and exceptional throughput scalability, this adapter is engineered to meet the increasing demands of modern workloads such as artificial intelligence pipelines, distributed storage systems, real-time analytics, and virtualization-heavy architectures.

Main Specifications

• Manufacturer: Dell
• Model Number: F6FXM
• Device Type: Network Adapter

Key Information

• Form Factor: Low-profile internal plug-in adapter card.
• Interface Bus: PCI Express 4.0 x16 mechanical interface slot.
• PCIe Backward Compatibility: Fully compatible with PCIe Gen 3.0, 2.0, and 1.1 slots.
• Network Interfaces: Dual individual network connection ports.
• Connector Type: Two Quad Small Form-factor Pluggable 56 cages.
• Data Transfer Rate: Delivers maximum speeds of 100 Gbps per port.
• Ethernet Speeds: Auto-negotiates 10G, 25G, 40G, 50G, and 100G networks.
• Security Subsystem: Built-in hardware cryptographic engine for IPsec and TLS.
• Encryption Types: Accelerated 128/256-bit AES-GCM and AES-XTS engine.
• Network Virtualization: Single Root I/O Virtualization hardware acceleration engine.
• Virtual Functions: Supports up to 1,000 virtual functions per port.
• Tunneling Offloads: Hardware offloads for VXLAN, NVGRE, and Geneve encapsulation.
• Storage Protocols: Native NVMe over Fabrics target and initiator offloads.
• Network Acceleration: Built-in Data Plane Development Kit engine acceleration.
• Network Protocols: RDMA over Converged Ethernet native capabilities.
• Time Synchronization: Precision Time Protocol hardware clock with under 16ns

Compatibility Information

• PowerEdge C6520
• PowerEdge C6525
• PowerEdge R640
• PowerEdge R650
• PowerEdge R6525
• PowerEdge R660
• PowerEdge R6615
• PowerEdge R6625
• PowerEdge R740
• PowerEdge R740xd
• PowerEdge R740xd2
• PowerEdge R750
• PowerEdge R750xa
• PowerEdge R7525
• PowerEdge R760
• PowerEdge R760xa
• PowerEdge R760xd2
• PowerEdge R7615
• PowerEdge R7625
• PowerEdge R840
• PowerEdge R860
• PowerEdge R940
• PowerEdge R940xa
• PowerEdge R960
• PowerEdge Xe8640
• PowerEdge Xe9640
• PowerEdge Xe9680
• PowerEdge Xr12
• PowerEdge Xr5610
• PowerEdge Xr7620
• PowerEdge Xr8610t
• PowerEdge Xr8620t

High-Performance for Modern Data Centers

As organizations continue to transition toward data-intensive applications, the need for reliable, high-bandwidth, and low-overhead networking becomes critical. This 100Gb Ethernet adapter provides a robust foundation for eliminating bottlenecks between compute, storage, and network layers while ensuring consistent performance under sustained heavy traffic conditions.

Advanced Architecture and Smart NIC Capabilities

The ConnectX-6 Dx EN architecture is built on an advanced Smart NIC design that integrates networking, security, and acceleration capabilities directly into the adapter hardware. This offload-centric design reduces CPU overhead and enables more efficient utilization of server resources, allowing applications to achieve higher throughput without requiring additional compute scaling.

The adapter supports hardware acceleration for packet processing, encryption, and virtualization tasks, which significantly enhances performance in environments running containerized applications, microservices, and multi-tenant workloads. By shifting processing responsibilities from the CPU to the network card, enterprises can achieve better workload isolation and improved system responsiveness.

100 Gigabit Ethernet Performance Optimization

Designed for 100GbE environments, the F6FXM Dell Mellanox ConnectX-6 Dx EN adapter provides extremely high throughput capabilities suitable for bandwidth-intensive workloads. This includes large-scale data replication, streaming analytics, and high-speed backup operations. The adapter ensures minimal packet loss and stable throughput even during peak utilization scenarios.

Its architecture supports multiple lanes of high-speed data transmission with optimized congestion control mechanisms. These features are particularly beneficial in cloud data centers where network traffic patterns are unpredictable and demand rapid adaptation to fluctuating loads.

RDMA Over Converged Ethernet (RoCE) Support

One of the defining capabilities of the ConnectX-6 Dx EN adapter is its support for RDMA over Converged Ethernet (RoCE), enabling direct memory access between servers without involving the CPU. This significantly reduces latency and CPU utilization, making it ideal for latency-sensitive applications such as financial trading platforms, high-frequency analytics, and distributed machine learning workloads.

By bypassing traditional networking stacks, RoCE enables near-native performance for remote data transfers. This capability is essential for environments that require synchronized data processing across multiple compute nodes.

Virtualization and Multi-Tenant Efficiency

In modern cloud environments, virtualization plays a critical role in maximizing infrastructure utilization. The F6FXM ConnectX-6 Dx EN adapter provides advanced virtualization support through Single Root I/O Virtualization (SR-IOV), allowing multiple virtual machines or containers to share a single physical network interface while maintaining isolated performance paths.

This ensures predictable performance across tenants and prevents network contention issues commonly found in legacy adapter designs. The adapter is optimized for environments using hypervisors such as VMware ESXi, Microsoft Hyper-V, and KVM-based Linux distributions.

Security Acceleration and Data Protection

Security is a critical requirement in enterprise and cloud networks. The ConnectX-6 Dx EN adapter includes built-in security acceleration features that support inline encryption, decryption, and secure tunneling protocols. These capabilities ensure data protection without significantly impacting network performance.

By handling encryption tasks at the hardware level, the adapter reduces CPU load while maintaining compliance with modern security standards. This is particularly valuable for industries dealing with sensitive data, including finance, healthcare, and government sectors.

Cloud-Native and Containerized Workload Optimization

The rise of Kubernetes, Docker, and other container orchestration platforms has created new networking challenges in terms of scalability, latency, and service discovery. The F6FXM Dell Mellanox ConnectX-6 Dx EN adapter addresses these challenges with optimized packet processing and efficient container networking integration.

Its ability to handle high volumes of east-west traffic within distributed applications makes it highly suitable for microservices architectures. The adapter ensures that communication between containers remains fast, consistent, and scalable even as workloads dynamically shift.

High-Performance Computing (HPC) Integration

High-performance computing environments demand extreme levels of network efficiency and minimal communication overhead. The ConnectX-6 Dx EN 100Gb Ethernet card is engineered to support HPC workloads such as scientific simulations, weather modeling, genome sequencing, and AI training clusters. Its RDMA capabilities and ultra-low latency architecture allow compute nodes to exchange large datasets rapidly, reducing synchronization delays and improving overall cluster efficiency.

Storage Networking and Data Acceleration

Modern enterprise storage systems rely heavily on high-speed networking to ensure data availability and performance consistency. The F6FXM adapter enhances storage networking by accelerating protocols such as NVMe over Fabrics and iSCSI, ensuring that storage access remains fast and efficient.

This is especially important for environments using distributed storage architectures where multiple nodes access shared data pools simultaneously.

Telemetry, Monitoring, and Observability Features

The ConnectX-6 Dx EN adapter provides advanced telemetry capabilities that allow administrators to monitor network performance in real time. These insights help in identifying bottlenecks, optimizing traffic flow, and ensuring consistent service delivery across data center environments. Granular visibility into packet flows, error rates, and latency metrics enables proactive network management and improved troubleshooting efficiency.

Enterprise Compatibility and Deployment Flexibility

The F6FXM Dell Mellanox ConnectX-6 Dx EN 100Gb Ethernet Card is designed for seamless integration into Dell server ecosystems and other enterprise-grade hardware platforms. It supports a wide range of operating systems and virtualization environments, making it highly adaptable to diverse IT infrastructures. Deployment flexibility is enhanced through standardized PCIe interfaces and driver support across major Linux distributions and Windows Server environments.

Scalability for Future Data Center Growth

As data centers evolve toward higher bandwidth requirements and distributed architectures, scalability becomes a critical factor. The ConnectX-6 Dx EN adapter is designed with future-ready scalability in mind, enabling organizations to expand their networking capabilities without major infrastructure redesigns. Its support for advanced routing, overlay networks, and scalable Ethernet technologies ensures long-term viability in rapidly changing IT environments.

Reliability, Efficiency, and Operational Stability

Reliability is a core requirement in enterprise networking, and the ConnectX-6 Dx EN adapter delivers consistent performance under demanding workloads. Its robust hardware design minimizes packet loss, reduces jitter, and ensures stable connectivity across high-traffic conditions. Energy efficiency optimizations also help reduce operational costs in large-scale deployments, making it suitable for sustainable data center strategies.

Workload Acceleration Across Industries

The versatility of the F6FXM Dell Mellanox ConnectX-6 Dx EN 100 Gigabit Ethernet Card makes it suitable for a wide range of industries including telecommunications, financial services, cloud computing providers, healthcare systems, and scientific research institutions. Each of these industries benefits from reduced latency, increased throughput, and improved compute efficiency, enabling faster decision-making and more responsive applications.

Optimization for Modern IT Infrastructure

The adapter integrates seamlessly into modern IT infrastructures that rely on hybrid cloud, edge computing, and distributed architectures. Its ability to efficiently manage east-west and north-south traffic ensures consistent performance across complex network topologies. This makes it an essential component for organizations aiming to modernize their IT stack and support next-generation applications.
