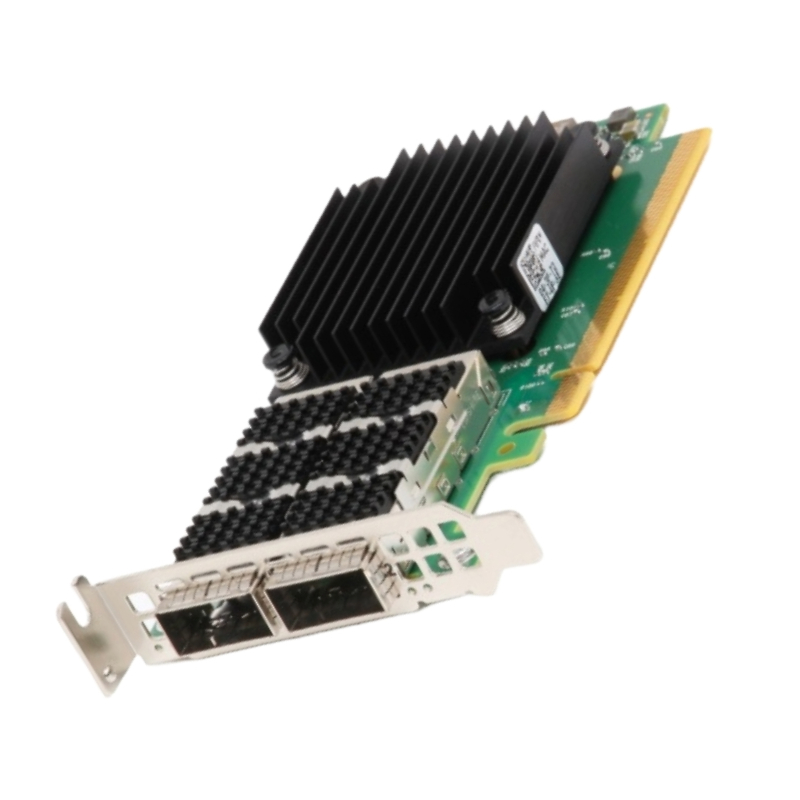

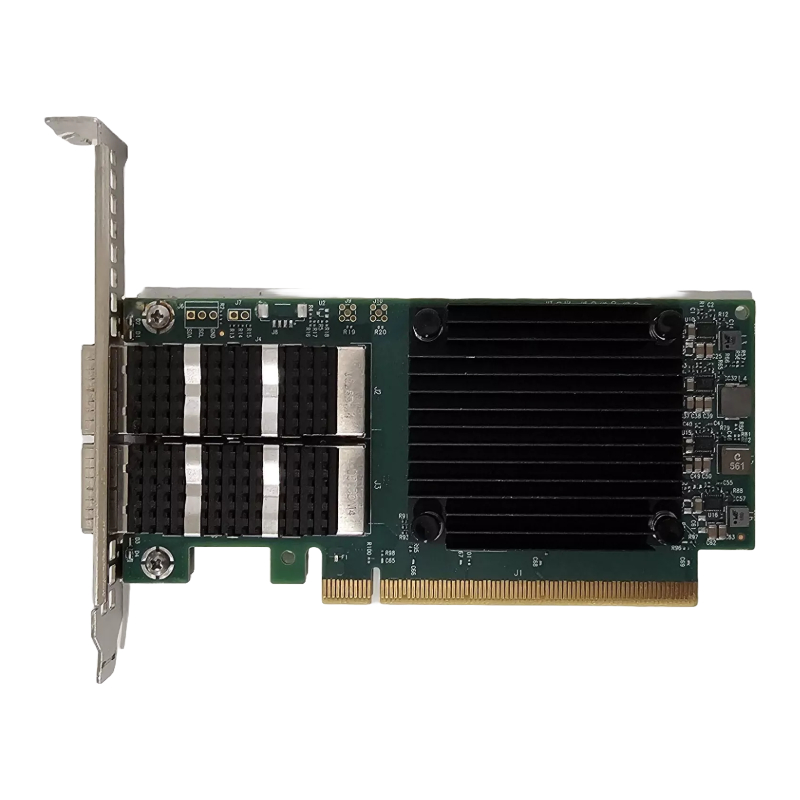

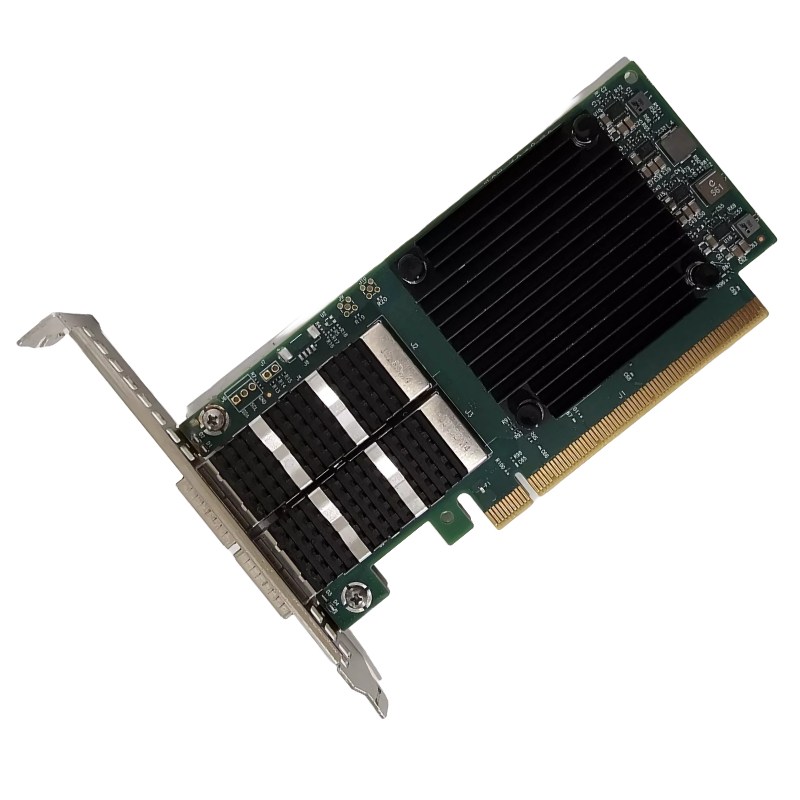

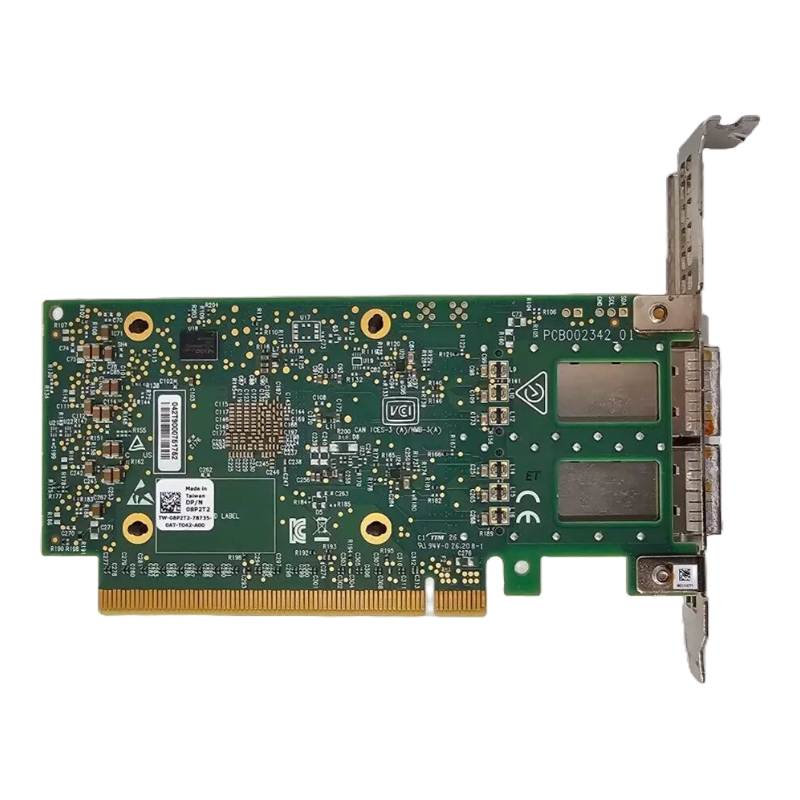

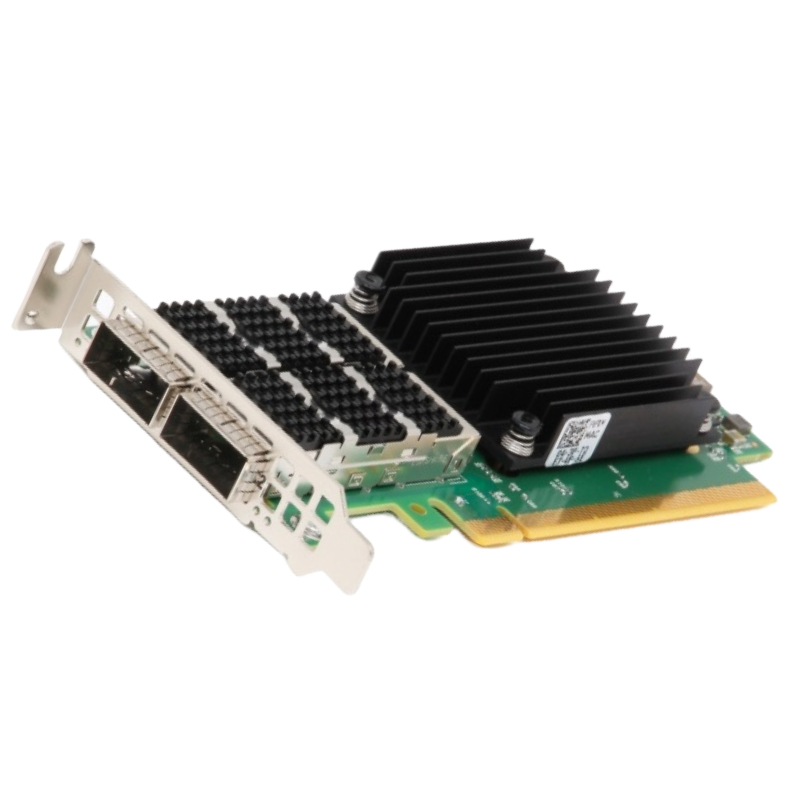

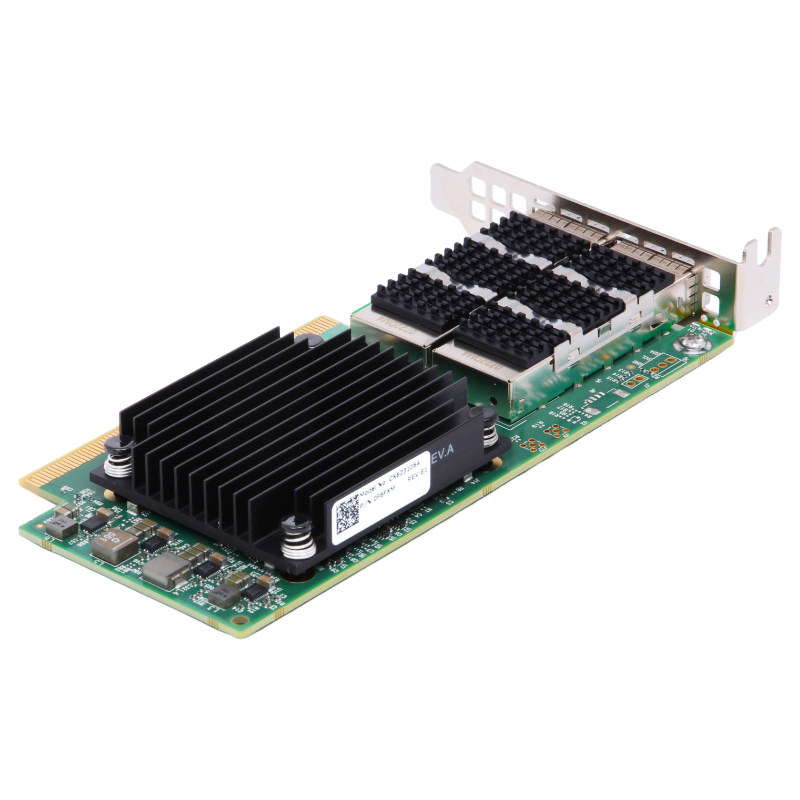

F6FXM Dell Mellanox ConnectX-6 Dx EN 100 Gigabit Ethernet Card

Overview of the 100 Gigabit Network Adapter

The Dell F6FXM Mellanox ConnectX-6 Dx EN 100 Gigabit Ethernet Card represents a high-performance networking solution engineered for modern enterprise data centers, cloud infrastructures, and high-throughput computing environments. Designed to deliver ultra-low latency, advanced hardware offloading, and exceptional bandwidth scalability, this network interface card (NIC) is optimized for workloads requiring deterministic performance and efficient data movement across distributed systems.

Details Specifications

• Manufacturer: Dell
• Model Number: F6FXM
• Device Type: Network Adapter

Technical Information

• Form Factor: Low-profile internal plug-in adapter card.
• Interface Bus: PCI Express 4.0 x16 mechanical interface slot.
• PCIe Backward Compatibility: Fully compatible with PCIe Gen 3.0, 2.0, and 1.1 slots.
• Network Interfaces: Dual individual network connection ports.
• Connector Type: Two Quad Small Form-factor Pluggable 56 cages.
• Data Transfer Rate: Delivers maximum speeds of 100 Gbps per port.
• Ethernet Speeds: Auto-negotiates 10G, 25G, 40G, 50G, and 100G networks.
• Security Subsystem: Built-in hardware cryptographic engine for IPsec and TLS.
• Encryption Types: Accelerated 128/256-bit AES-GCM and AES-XTS engine.
• Network Virtualization: Single Root I/O Virtualization hardware acceleration engine.
• Virtual Functions: Supports up to 1,000 virtual functions per port.
• Tunneling Offloads: Hardware offloads for VXLAN, NVGRE, and Geneve encapsulation.
• Storage Protocols: Native NVMe over Fabrics target and initiator offloads.
• Network Acceleration: Built-in Data Plane Development Kit engine acceleration.
• Network Protocols: RDMA over Converged Ethernet native capabilities.
• Time Synchronization: Precision Time Protocol hardware clock with under 16ns

Compatibility Information

• PowerEdge C6520
• PowerEdge C6525
• PowerEdge R640
• PowerEdge R650
• PowerEdge R6525
• PowerEdge R660
• PowerEdge R6615
• PowerEdge R6625
• PowerEdge R740
• PowerEdge R740xd
• PowerEdge R740xd2
• PowerEdge R750
• PowerEdge R750xa
• PowerEdge R7525
• PowerEdge R760
• PowerEdge R760xa
• PowerEdge R760xd2
• PowerEdge R7615
• PowerEdge R7625
• PowerEdge R840
• PowerEdge R860
• PowerEdge R940
• PowerEdge R940xa
• PowerEdge R960
• PowerEdge Xe8640
• PowerEdge Xe9640
• PowerEdge Xe9680
• PowerEdge Xr12
• PowerEdge Xr5610
• PowerEdge Xr7620
• PowerEdge Xr8610t
• PowerEdge Xr8620t

The Mellanox ConnectX-6 100Gb Ethernet Adapter

Built on the NVIDIA Mellanox ConnectX-6 Dx architecture, this adapter integrates enhanced security capabilities, intelligent traffic management, and flexible virtualization support. It is widely deployed in hyperscale environments where consistent 100GbE connectivity is essential for storage acceleration, artificial intelligence pipelines, financial analytics, and high-frequency transaction systems.

High-Speed 100GbE Networking Architecture

The Dell F6FXM card delivers 100 Gigabit Ethernet performance using advanced SerDes technology and optimized PCIe Gen4 interfaces. This enables massive throughput capabilities that significantly reduce network bottlenecks in data-intensive environments. The architecture is designed to support both traditional networking and next-generation software-defined infrastructures. This combination ensures that enterprises can scale applications without compromising on latency or throughput, making it ideal for distributed storage systems and real-time analytics platforms.

Advanced Mellanox ConnectX-6 Dx Features

The ConnectX-6 Dx chipset embedded within the Dell F6FXM card introduces a wide range of hardware-accelerated capabilities that offload CPU workloads and improve system efficiency. These features are particularly valuable in cloud-native and virtualization-heavy environments.

Hardware Offload Engine

The NIC offloads cryptographic operations, overlay network encapsulation, and packet steering directly to the hardware. This reduces CPU overhead and improves application performance consistency across multi-tenant environments.

RDMA and Low-Latency Communication

Remote Direct Memory Access (RDMA) support enables direct memory-to-memory communication between servers without involving CPU interrupts. This dramatically reduces latency and improves throughput for distributed computing workloads.

Enterprise Data Center Applications

The Dell F6FXM Mellanox ConnectX-6 Dx EN 100GbE card is widely adopted across enterprise and hyperscale data centers due to its ability to handle diverse workloads with predictable performance. It is particularly suitable for environments requiring high-speed east-west traffic between servers.

Cloud Computing Infrastructure

Cloud providers rely on 100GbE adapters like the F6FXM to ensure seamless virtual machine migration, container orchestration, and microservices communication. The adapter’s support for virtualization offloads ensures that multiple tenants can share physical infrastructure efficiently.

High-Performance Computing (HPC)

Scientific simulations, AI training clusters, and financial modeling systems benefit from the extremely low latency and high throughput of this NIC. RDMA capabilities further enhance parallel processing efficiency.

Storage Acceleration Networks

NVMe-over-Fabrics (NVMe-oF) deployments require ultra-fast network connectivity, which is delivered effectively by the ConnectX-6 Dx platform. Storage arrays and compute nodes can communicate at near-local disk speeds over Ethernet.

Virtualization and Multi-Tenant Optimization

Modern data centers rely heavily on virtualization technologies, and the Dell F6FXM card is optimized to support these environments. It provides hardware-assisted virtualization features that reduce hypervisor overhead and improve VM density per server.

SR-IOV Support

Single Root I/O Virtualization (SR-IOV) allows the NIC to present multiple virtual functions, enabling direct VM access to network resources without hypervisor intervention.

Multi-Queue Architecture

The adapter supports multiple transmit and receive queues, enabling efficient load distribution across CPU cores. This ensures balanced processing and prevents network congestion in virtualized environments.

Security Acceleration and Data Protection

Security is a critical requirement in enterprise networking, and the Dell F6FXM Mellanox ConnectX-6 Dx EN card integrates hardware-based security acceleration to protect data in motion without sacrificing performance.

Inline Encryption

The adapter supports inline encryption and decryption, ensuring secure data transmission with minimal performance impact. This is essential for compliance-driven industries such as finance and healthcare.

Secure Boot and Firmware Integrity

Built-in security mechanisms ensure that only authenticated firmware is executed on the NIC, reducing the risk of malicious tampering or unauthorized access.

Performance Optimization for Modern Workloads

The Dell F6FXM Mellanox ConnectX-6 Dx EN adapter is engineered to optimize performance across a wide range of modern workloads, including big data processing, machine learning pipelines, and containerized applications.

Big Data Analytics

Large-scale distributed frameworks such as Hadoop and Spark benefit from high-bandwidth networking, reducing data shuffle times and improving job completion efficiency.

Artificial Intelligence and Machine Learning

AI training clusters require rapid parameter synchronization between GPUs and compute nodes. The low latency of 100GbE ensures faster model convergence and reduced training times.

Containerized Microservices

Kubernetes-based environments rely on efficient pod-to-pod communication. The NIC enhances service mesh performance by reducing network overhead and improving packet flow efficiency.

Energy Efficiency and Thermal Design

Despite its high throughput capabilities, the Dell F6FXM card is designed with energy efficiency in mind. Advanced power management features help reduce overall data center energy consumption. These features make it suitable for large-scale deployments where energy efficiency directly impacts operational costs.

Scalability in Modern Data Center Architectures

Scalability is a defining feature of the Dell F6FXM Mellanox ConnectX-6 Dx EN 100GbE card. It supports next-generation network topologies including leaf-spine architectures and disaggregated infrastructure models.

Leaf-Spine Networking

The adapter enables consistent high-speed connectivity across leaf and spine switches, eliminating bottlenecks and ensuring predictable latency across the network fabric.

Disaggregated Infrastructure

Compute, storage, and networking resources can be independently scaled without affecting performance, thanks to the high-bandwidth and low-latency characteristics of the NIC.

Compatibility and Integration

The Dell F6FXM Mellanox ConnectX-6 Dx EN 100GbE card is designed for seamless integration with Dell PowerEdge servers and other enterprise-grade hardware platforms. It supports major operating systems and virtualization platforms.

Use Cases Across Industries

High-frequency trading systems rely on ultra-low latency networking to execute trades within microseconds. The Dell F6FXM ensures deterministic performance in volatile market conditions.

Telecommunications

5G core networks and edge computing nodes benefit from high-throughput packet processing and virtualization capabilities.

Healthcare and Research

Medical imaging, genomic analysis, and research simulations require rapid data transfer across distributed compute clusters.

Media and Entertainment

Rendering farms and video processing pipelines depend on fast data movement for real-time production workflows.

Hardware Architecture and Design Efficiency

The internal architecture of the Dell F6FXM Mellanox ConnectX-6 Dx EN card is built around a highly optimized ASIC design that integrates multiple processing engines for packet classification, encryption, and routing. This design ensures minimal latency variance and consistent throughput across all workloads.

Reliability and Enterprise-Grade Stability

Enterprise environments demand consistent uptime and predictable performance. The Dell F6FXM NIC is built to deliver long-term operational stability with robust error handling and fault tolerance mechanisms.

Future-Proof Networking Technology

As data center architectures continue to evolve toward AI-driven workloads and edge computing, the Dell F6FXM Mellanox ConnectX-6 Dx EN 100GbE card provides a future-ready foundation. Its programmability and hardware acceleration capabilities ensure compatibility with emerging networking standards and protocols. Organizations adopting this NIC benefit from long-term scalability, reduced infrastructure complexity, and improved total cost of ownership.
