W4GPP Dell SFP28 25GBE 100M SR 850NM Transceiver

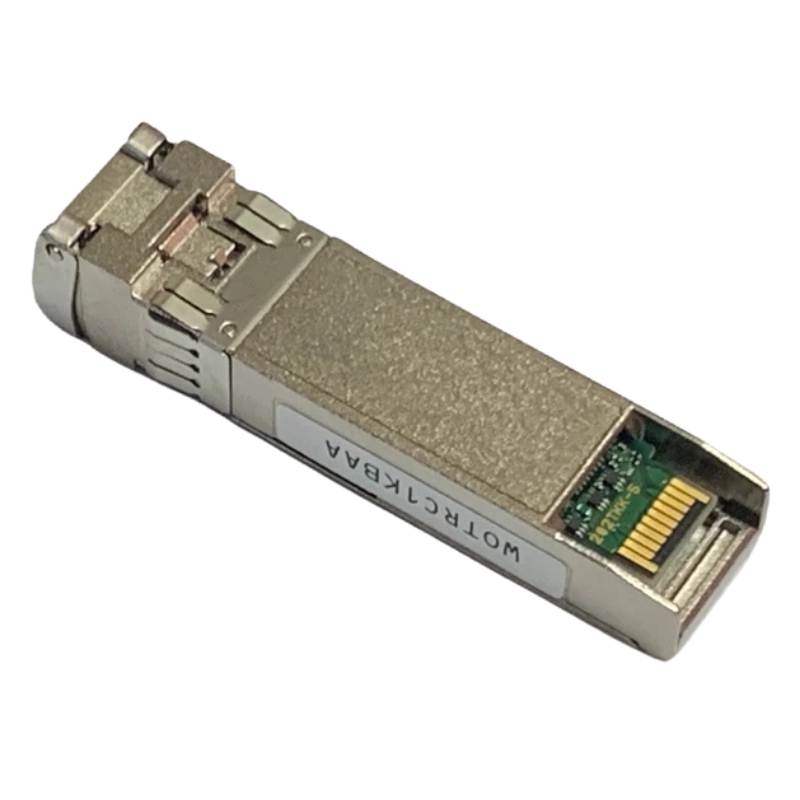

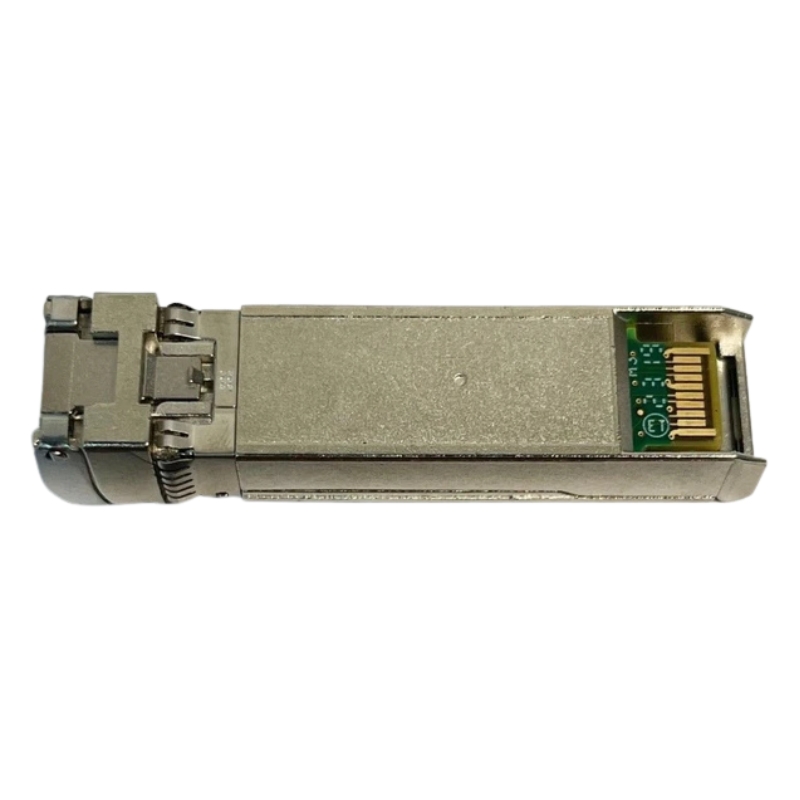

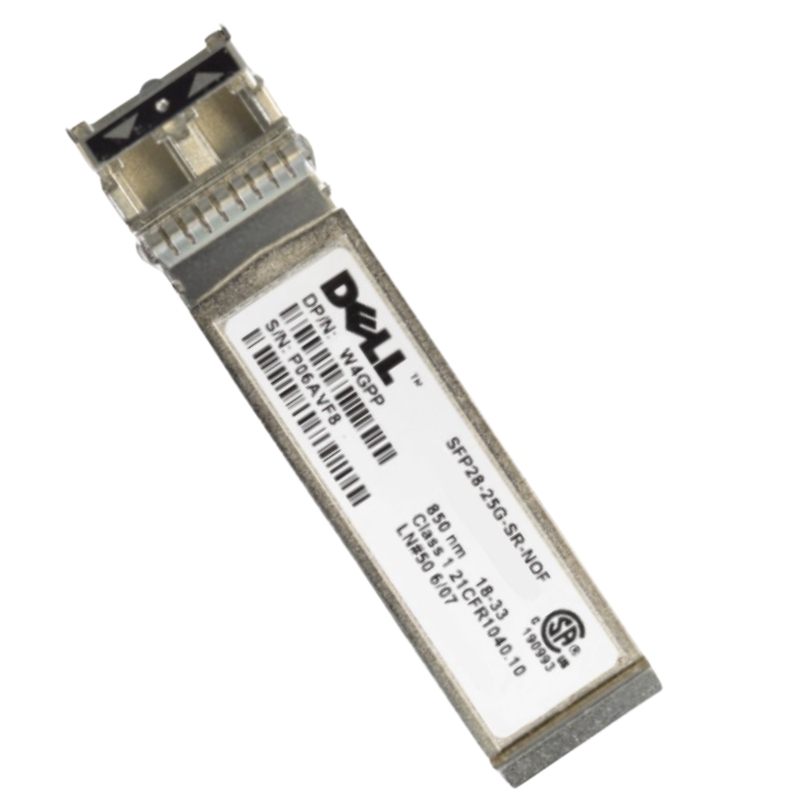

Dell W4GPP 25GbE Transceiver Module Overview

High-Performance 25 Gigabit Fiber Optic Connectivity Solution

The Dell W4GPP is a high-speed 25 Gigabit Ethernet SFP28 SR transceiver module designed for efficient data transmission in modern switching and server environments. It enables reliable short-range fiber connectivity using multimode fiber (MMF) with duplex LC connectors, making it ideal for data centers and enterprise networking.

Manufacturer & Identification

• Brand: Dell
• Part Number / SKU: W4GPP
• Product Category: Optical Transceiver Module
• Speed Class: 25 Gigabit Ethernet

Core Application Areas

• Data center switching networks
• Enterprise server connectivity
• High-speed storage networking
• Cloud infrastructure environments

Technical Specifications

Optical and Transmission Details

• Wavelength: 850 nm
• Maximum Data Rate: 25 Gb/s
• Maximum Reach: Up to 100 meters
• Fiber Type: Multi-mode fiber (MMF)

Interface and Connectivity

• Connector Type: LC Duplex
• Port Standard: 25GBase-SR
• Slot Type: SFP28 / QSFP28 compatible architecture
• Network Interface: Optical fiber transmission

Performance Characteristics

• Optimized for low-latency switching
• Stable high-bandwidth data transfer
• Designed for short-range high-density networking

Physical and Build Characteristics

Design & Form Factor

• Structure: Compact duplex module
• Form Factor: Pluggable transceiver unit
• Weight: Lightweight design for hot-swappable deployment

Durability & Standards

• RoHS compliant
• WEEE certified environmental compliance
• Built for enterprise-grade reliability

System Compatibility

Dell PowerEdge Server Compatibility

• PowerEdge C4140
• PowerEdge C6420
• PowerEdge FC640
• PowerEdge M640 / M640 VRTX
• PowerEdge R440
• PowerEdge R540
• PowerEdge R640
• PowerEdge R6415
• PowerEdge R740 / R740xd / R740xd2
• PowerEdge R7415
• PowerEdge R7425
• PowerEdge R840
• PowerEdge R940 / R940xa
• PowerEdge T440
• PowerEdge T640

Dell PowerSwitch Compatibility

• PowerSwitch N2200-ON
• PowerSwitch N3200-ON
• PowerSwitch S5212F-ON
• PowerSwitch S5224F-ON
• PowerSwitch S5232F-ON
• PowerSwitch S5248F-ON
• PowerSwitch S5296F-ON

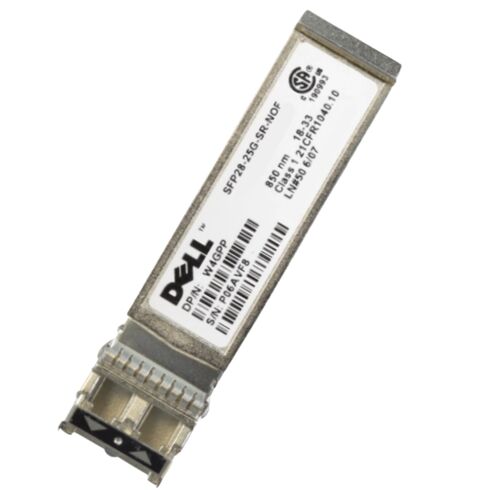

Dell W4GPP 25GbE SFP28 100M MMF Duplex LC Transceiver

The Dell W4GPP 25GbE SFP28 SR 850nm 100M MMF Duplex LC Pluggable Transceiver Module belongs to the advanced class of high-speed optical networking components designed for modern data center, enterprise switching, and high-performance computing environments. This category of optical transceivers is engineered to support 25 Gigabit Ethernet (25GbE) connectivity over multimode fiber (MMF) infrastructure, delivering reliable short-reach data transmission with low latency, high bandwidth efficiency, and strong signal integrity.

As network demand continues to grow due to virtualization, cloud computing, AI workloads, and big data processing, 25GbE SFP28 SR modules such as the Dell W4GPP have become essential building blocks in scalable switching architectures. These modules are widely deployed in leaf-spine data center designs, aggregation layers, and high-density server interconnects where performance and port density must be balanced with energy efficiency.

Core Technology Foundation of SFP28 SR Optical Modules

Understanding SFP28 Form Factor Architecture

The SFP28 (Small Form-factor Pluggable 28) interface is an evolution of the SFP+ standard, specifically optimized for 25Gbps per lane transmission. The Dell W4GPP module utilizes this compact hot-pluggable design to enable high-density port deployment in switches and network interface cards. Its small footprint allows multiple transceivers to be installed in a single chassis without compromising thermal or mechanical efficiency.

The electrical interface of SFP28 is backward compatible with SFP+ cages in many systems, although full performance requires native 25GbE support. This compatibility allows network engineers to gradually upgrade infrastructure without complete hardware replacement, reducing operational costs and downtime.

SR (Short Reach) Optical Transmission Standard

The SR designation in Dell W4GPP refers to “Short Reach” optical transmission. This standard is optimized for multimode fiber applications using an 850nm vertical-cavity surface-emitting laser (VCSEL). SR optics are widely used in intra-data center communication where distances typically do not exceed 100 meters.

The 850nm wavelength is specifically chosen due to its efficiency in multimode fiber transmission, allowing high-speed data transfer over OM3 and OM4 fiber types. OM4 fiber, in particular, extends the reach and improves signal quality, making it ideal for dense data center environments.

100M Distance Capability Over MMF

The Dell W4GPP module supports up to 100 meters over OM4 multimode fiber, which is a standard benchmark for SR 25GbE optics. This distance is sufficient for most rack-to-rack, top-of-rack (ToR) to end-of-row, and intra-row switching connections in enterprise and hyperscale data centers.

OM3 fiber typically supports slightly shorter distances, often around 70 meters at 25GbE speeds, while OM4 fiber extends this to the full 100 meters. This flexibility allows network designers to choose fiber types based on cost, performance requirements, and existing infrastructure.

Physical and Electrical Characteristics

Duplex LC Connector Interface

The module uses a duplex LC connector interface, which is one of the most widely adopted fiber connector standards in modern networking. LC connectors are known for their compact size, high precision alignment, and low insertion loss, making them ideal for high-speed optical communication.

The duplex configuration allows simultaneous bidirectional communication using two fiber strands—one for transmission and one for reception. This ensures full-duplex operation at 25Gbps per channel, providing consistent and reliable throughput.

Connector Advantages in Dense Deployments

In high-density switch environments, LC connectors allow efficient cable management and improved airflow within networking racks. Their small form factor ensures that hundreds of connections can be managed in a single cabinet without excessive cable congestion.

850nm VCSEL Laser Technology

At the heart of the Dell W4GPP module is an 850nm VCSEL laser transmitter. VCSEL technology is preferred for short-range multimode optical communication due to its low power consumption, cost efficiency, and stable performance characteristics.

VCSELs emit light perpendicular to the surface of the semiconductor wafer, enabling precise beam control and reduced noise levels. This contributes to improved signal integrity and lower bit error rates, which are critical in high-speed data center applications.

Energy Efficiency Considerations

Compared to long-reach single-mode optics, SR multimode transceivers consume less power per port. This efficiency translates into reduced cooling requirements and lower operational expenditure for large-scale deployments.

Application Scenarios and Deployment Use Cases

Data Center Leaf-Spine Architectures

The Dell W4GPP module is extensively used in leaf-spine network topologies where high-bandwidth, low-latency interconnectivity is required. In these architectures, 25GbE links connect servers to top-of-rack switches and then to spine switches, forming a non-blocking fabric.

This design ensures predictable performance for cloud workloads, virtualization clusters, and distributed storage systems. The use of SFP28 SR modules helps maintain cost efficiency while scaling bandwidth horizontally.

Server Connectivity in Virtualized Environments

Virtualized environments such as VMware clusters, OpenStack deployments, and containerized Kubernetes clusters benefit significantly from 25GbE connectivity. The Dell W4GPP enables fast east-west traffic flow between virtual machines and microservices.

High-Performance Computing (HPC) Clusters

HPC environments require extremely fast inter-node communication to handle parallel computations, simulations, and AI training workloads. The low latency and high throughput of 25GbE SR optics make them suitable for these demanding workloads.

The module’s ability to maintain stable performance under continuous high utilization ensures reliability in scientific computing, financial modeling, and machine learning applications.

Enterprise Network Upgrades

Enterprises transitioning from 10GbE to 25GbE infrastructure often choose SFP28 SR modules due to their balance of cost, performance, and compatibility. The Dell W4GPP provides a straightforward upgrade path without requiring major fiber infrastructure changes when OM3/OM4 cabling is already in place.

Performance Characteristics and Network Efficiency

25Gbps Data Throughput Optimization

The module supports a raw data rate of 25Gbps per channel, enabling significantly higher throughput compared to legacy 10GbE systems. This increase in bandwidth helps eliminate network bottlenecks in modern distributed computing environments.

Latency Reduction Benefits

Lower latency is one of the key advantages of 25GbE SR optics. By reducing serialization delay and improving packet forwarding efficiency, the Dell W4GPP enhances real-time application performance such as database transactions and live analytics.

Signal Integrity and Error Correction

Advanced signal processing techniques are used within SFP28 modules to ensure data integrity over multimode fiber. These include equalization, pre-emphasis, and forward error correction mechanisms that reduce bit error rates even under high traffic conditions.

Optical Budget Considerations

The optical budget defines the allowable loss between transmitter and receiver. The Dell W4GPP is designed to operate within standard SR optical budgets, ensuring reliable performance over supported distances without signal degradation.

Compatibility and Integration in Dell Networking Ecosystems

Switch and NIC Compatibility

The Dell W4GPP module is designed for compatibility with Dell networking switches and supported network interface cards that accept SFP28 modules. This ensures seamless integration into existing Dell infrastructure ecosystems.

Compatibility validation ensures optimal performance, firmware recognition, and proper diagnostics reporting through Digital Optical Monitoring (DOM) features.

Digital Optical Monitoring (DOM) Features

DOM functionality allows administrators to monitor real-time parameters such as temperature, optical power, voltage, and laser bias current. This enables proactive maintenance and reduces network downtime.

Interoperability with Multivendor Systems

Although optimized for Dell environments, SFP28 SR modules often support interoperability with third-party switches and routers that comply with IEEE 802.3by 25GbE standards. However, performance validation is recommended for production environments.
