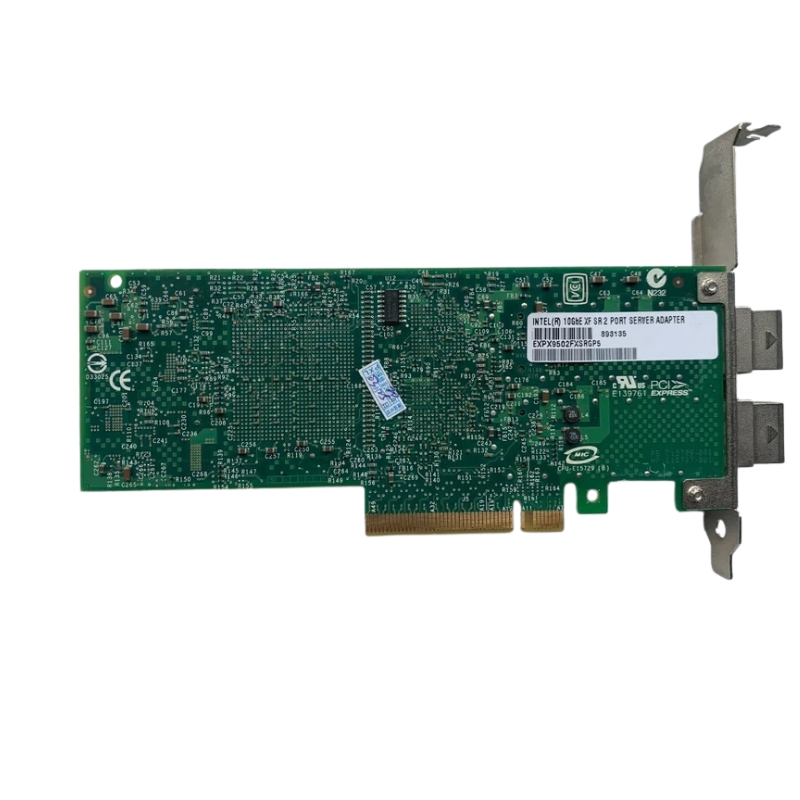

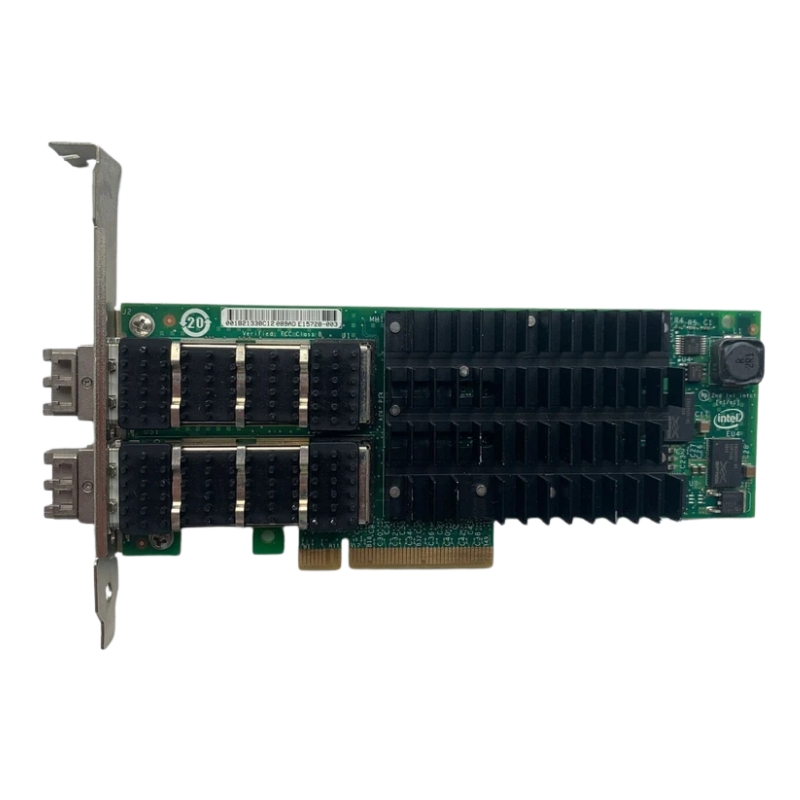

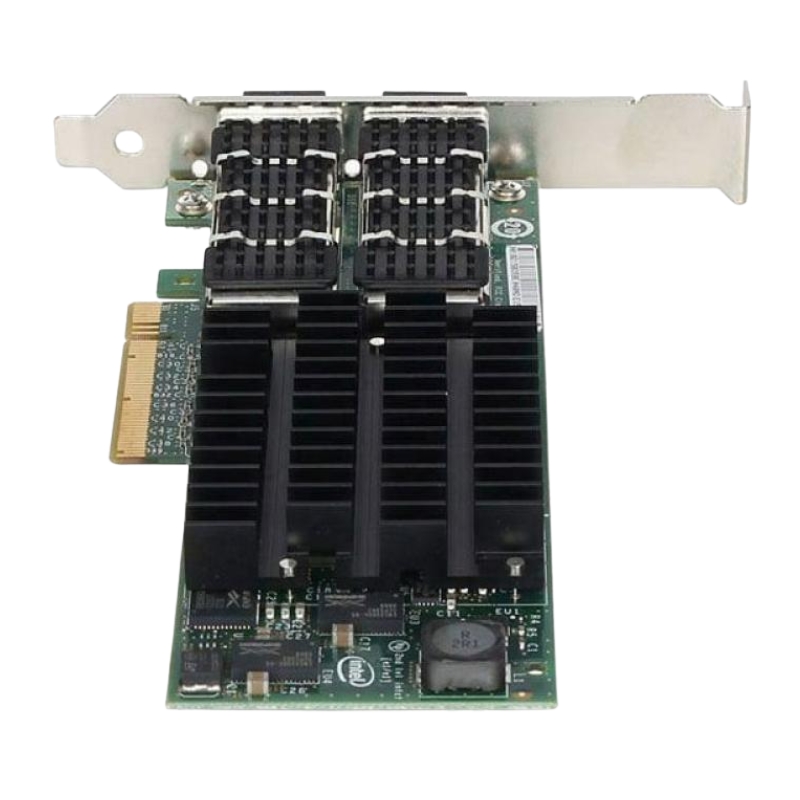

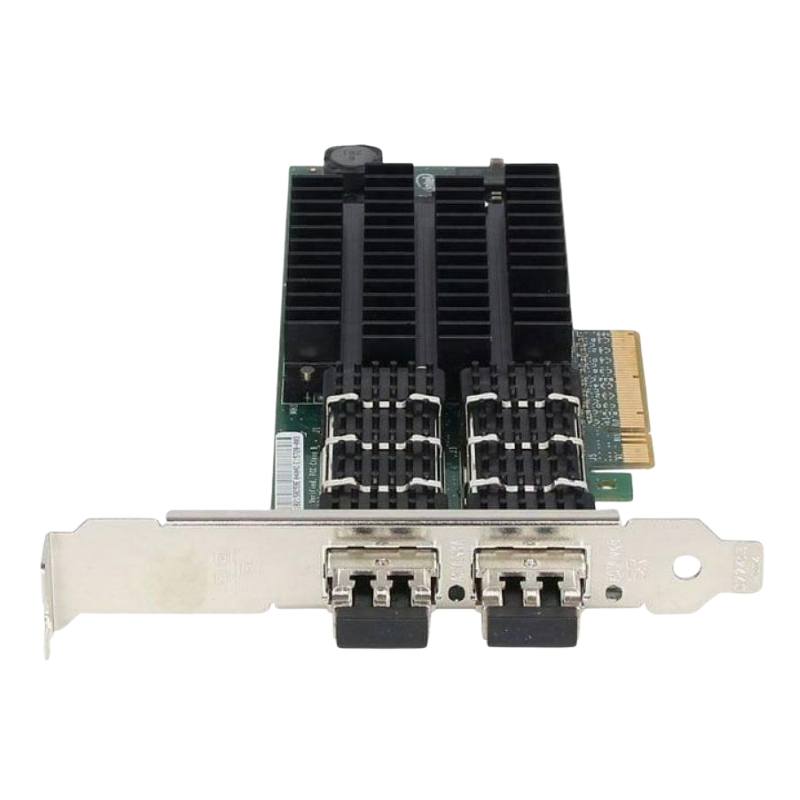

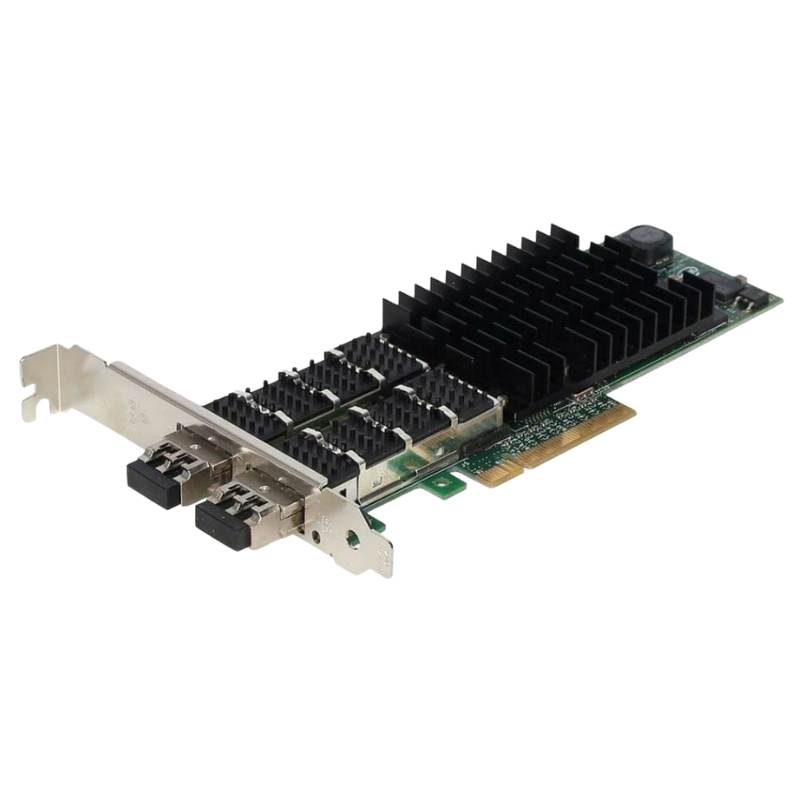

EXPX9502FXSR Intel 10 Gigabit PCI Express Ethernet Adapter

Overview of the Ethernet Adapter

The EXPX9502FXSR Intel 10 Gigabit PCI Express Ethernet Adapter represents a high-performance networking solution designed for enterprise-grade servers, data centers, cloud infrastructure, and high-throughput computing environments. Built on Intel’s advanced Ethernet controller architecture, this adapter is engineered to deliver ultra-fast 10GbE connectivity over fiber optic infrastructure, ensuring consistent low-latency communication and scalable network performance for demanding workloads.

Details Information

• Manufacturer: Intel
• Model Number: EXPX9502FXSR
• Product Type: Gigabit Ethernet Adapter

Key Features

• Controller: Intel 82598EB dual-port 10 Gigabit Ethernet controller.
• Interface: PCI Express 2.0.
• Slot Width: x8 lane PCI Express.
• Data Rate: 10 Gbps per port.
• Ports: 2 XFP optical connectors.
• Cabling: 10GBASE-SR multi-mode fiber (62.5 µm or 50 µm).
• Distance: Supports fiber cable lengths up to 300 meters.
• Form Factor: Low-profile standard form factor.
• Power Consumption: 14 Watts typical.
• Form Factor: Plug-in Card
• Ports: Dual (2) Ports for efficient multi-device connectivity

Server & Hardware Compatibility

• PCIe Slots: Fits standard x8 and x16 physical slots.
• Slot Operation: Operable in x4, x8, and x16 slots (runs at x4 throughput in x4 slots).
• Incompatible Slots: Will not fit physical x1 PCIe slots.
• Chassis Form Factor: Includes brackets for both standard full-height and low-profile servers.

Operating System Compatibility

• Windows: Windows Server 2003, 2008, and legacy desktop architectures.
• Linux: Red Hat Enterprise Linux, SUSE Linux Enterprise.
• Virtualization: VMware ESX / ESXi legacy versions.

The Intel 10 Gigabit PCI Express Ethernet Adapter

As organizations continue to adopt virtualization, distributed computing, and data-heavy applications, the need for robust network interface cards (NICs) such as the EXPX9502FXSR becomes critical. This adapter supports PCI Express (PCIe) integration, allowing seamless installation into compatible server motherboards while maximizing bandwidth utilization across network layers.

Core Architecture and Design Principles

The EXPX9502FXSR Intel 10 Gigabit PCI Express Ethernet Adapter is built on Intel’s proven 10 Gigabit Ethernet controller technology, optimized for fiber-based SFP+ connectivity. Its architecture is focused on delivering reliable throughput, reduced packet loss, and efficient offloading of network processing tasks from the host CPU.

A key aspect of its design is the integration of hardware acceleration features that enhance packet processing efficiency. This includes support for checksum offloading, segmentation offload, and intelligent interrupt moderation. These capabilities reduce CPU overhead and improve overall system performance in multi-tenant or virtualization-heavy environments.

PCI Express Interface Integration

The adapter utilizes the PCI Express interface to achieve high-speed data transfer between the network controller and the system bus. This ensures that the full 10 Gigabit per second bandwidth potential is realized without bottlenecks caused by legacy bus architectures.

Depending on system configuration, the adapter typically operates over a PCIe x8 or compatible slot, providing sufficient lanes to handle bidirectional traffic at full line rate. This makes it suitable for environments where sustained data throughput is essential, such as storage replication, virtualization clusters, and high-performance computing nodes.

10 Gigabit Fiber Connectivity and SFP+ Support

A defining feature of the EXPX9502FXSR Intel 10 Gigabit PCI Express Ethernet Adapter is its support for SFP+ (Small Form-factor Pluggable Plus) optical modules. This enables the use of fiber optic cables for long-distance, high-speed network communication with minimal signal degradation.

Fiber connectivity provides significant advantages over copper-based Ethernet, including improved electromagnetic interference resistance, extended transmission distances, and higher reliability in dense server environments. These characteristics make the adapter particularly suitable for data centers and enterprise backbone networks.

Optical Module Compatibility

The adapter supports a range of Intel-certified SFP+ transceivers, allowing administrators to choose between short-range multimode fiber modules and long-range single-mode fiber modules. This flexibility ensures that the adapter can be deployed in both intra-rack and inter-building networking scenarios.

In addition, compatibility with direct attach copper (DAC) cables may be available depending on configuration, offering a cost-effective alternative for short-range connectivity within racks or adjacent server clusters.

Performance Optimization Features

The EXPX9502FXSR Intel 10 Gigabit PCI Express Ethernet Adapter is engineered to maximize performance under heavy network loads. It incorporates several hardware and firmware-level optimizations that enhance throughput and reduce latency.

Hardware Offloading Capabilities

One of the key strengths of this adapter is its ability to offload computationally intensive networking tasks from the host CPU. This includes TCP/IP checksum calculations, segmentation offload, and large send offload (LSO). By handling these processes in hardware, the adapter frees up CPU resources for application-level workloads.

Low Latency Packet Processing

Low latency is essential in environments such as financial trading systems, real-time analytics, and distributed databases. The adapter is designed to minimize packet processing delays through optimized interrupt handling and efficient buffer management.

Advanced queue management techniques ensure that packets are processed in an orderly and efficient manner, reducing jitter and improving overall network responsiveness.

Multi-Queue and Load Balancing Support

To support multi-core processors, the adapter features multi-queue architecture that distributes network traffic across multiple CPU cores. This improves parallel processing efficiency and ensures balanced system utilization.

Receive-side scaling (RSS) enables intelligent distribution of incoming network packets, reducing CPU contention and improving throughput in virtualized environments.

Enterprise and Data Center Applications

The EXPX9502FXSR Intel 10 Gigabit PCI Express Ethernet Adapter is widely used in enterprise IT infrastructures due to its stability, scalability, and performance consistency. It is particularly suited for environments where network reliability is critical to business operations.

Virtualization Environments

In virtualized server environments such as VMware, Hyper-V, and KVM-based systems, the adapter provides high-bandwidth connectivity between virtual machines and physical network infrastructure. This ensures that virtual workloads can communicate efficiently without network congestion.

Support for virtualization offloads such as Virtual Machine Device Queues (VMDq) improves packet routing efficiency by reducing hypervisor overhead and improving VM-to-network performance.

Cloud Computing Infrastructure

Cloud service providers rely heavily on high-speed networking to support distributed workloads. The adapter enables fast data exchange between compute nodes, storage clusters, and load balancers, ensuring seamless scalability and service reliability. Its ability to handle sustained high-throughput traffic makes it suitable for private cloud deployments and hybrid cloud architectures.

High-Performance Computing (HPC)

In HPC environments, the adapter plays a critical role in ensuring fast communication between compute nodes. Applications such as scientific simulations, AI model training, and large-scale data analysis benefit from the adapter’s low latency and high bandwidth capabilities.

Reliability and Fault Tolerance

Reliability is a cornerstone of the EXPX9502FXSR Intel 10 Gigabit PCI Express Ethernet Adapter design. It includes features that ensure continuous operation even under heavy workloads or partial network failures.

Link Aggregation and Teaming

The adapter supports link aggregation technologies that allow multiple network connections to be combined into a single logical interface. This increases bandwidth availability and provides redundancy in case of link failure. Network teaming further enhances resilience by enabling failover configurations that maintain connectivity even if one adapter or port becomes unavailable.

Error Detection and Correction

Advanced error detection mechanisms ensure data integrity during transmission. The adapter continuously monitors packet integrity and retransmits corrupted data when necessary, maintaining reliable communication across the network.

Power Efficiency

Despite its high performance, the EXPX9502FXSR Intel 10 Gigabit PCI Express Ethernet Adapter is designed with power efficiency in mind. It incorporates dynamic power management features that adjust energy consumption based on network load.

When traffic is low, the adapter reduces power usage to minimize overall system energy consumption. Under heavy load, it scales power usage appropriately to maintain performance without compromising stability.

Thermal Optimization

Efficient thermal design ensures that the adapter operates within safe temperature ranges even in densely populated server racks. Heat dissipation mechanisms are optimized to prevent thermal throttling and maintain consistent performance.

Driver Support and Operating System Compatibility

The adapter is supported across a wide range of operating systems including major Linux distributions, Windows Server editions, and UNIX-based systems. Intel provides regularly updated drivers that ensure compatibility with evolving network standards and security requirements.

Linux Kernel Integration

In Linux environments, the adapter benefits from open-source driver support that integrates directly with the kernel networking stack. This allows for advanced configuration options and fine-tuned performance optimization.

Windows Server Optimization

For Windows Server deployments, the adapter includes support for advanced networking features such as Receive Side Scaling, TCP Chimney Offload, and VLAN tagging. These features improve scalability in enterprise environments.

Security and Network Protection Features

Network security is increasingly important in modern IT infrastructure, and the EXPX9502FXSR Intel 10 Gigabit PCI Express Ethernet Adapter includes several built-in features to enhance data protection and secure communication.

VLAN Tagging and Segmentation

Virtual LAN (VLAN) support enables administrators to segment network traffic logically, improving security and reducing broadcast domain size. This is particularly useful in multi-tenant environments and enterprise networks.

Traffic Isolation and Filtering

The adapter supports traffic filtering mechanisms that allow administrators to control data flow based on predefined rules. This enhances network security and reduces exposure to unauthorized traffic.

Scalability and Future-Proof Networking

As network demands continue to grow, the EXPX9502FXSR Intel 10 Gigabit PCI Express Ethernet Adapter provides a scalable foundation for future expansion. Its 10GbE capability ensures that infrastructure can handle increasing data volumes without requiring immediate hardware replacement.

Organizations can deploy multiple adapters across server clusters to build high-capacity network fabrics capable of supporting next-generation applications such as AI workloads, big data analytics, and edge computing environments.

Integration with Modern Data Center Architectures

The adapter integrates seamlessly into modern leaf-spine network topologies commonly used in hyperscale data centers. This ensures efficient traffic routing and minimal latency across distributed systems.

Use Cases in Specialized Environments

High-bandwidth requirements in video streaming and media production environments make the adapter ideal for transferring large multimedia files, supporting real-time editing workflows, and enabling content distribution networks.

Database and Storage Systems

In database clusters and storage replication systems, the adapter ensures fast synchronization between nodes, reducing latency and improving data consistency across distributed storage environments.

Financial and Trading Systems

Low latency and deterministic performance are essential in financial trading platforms. The adapter’s optimized packet handling ensures rapid execution of time-sensitive transactions.
