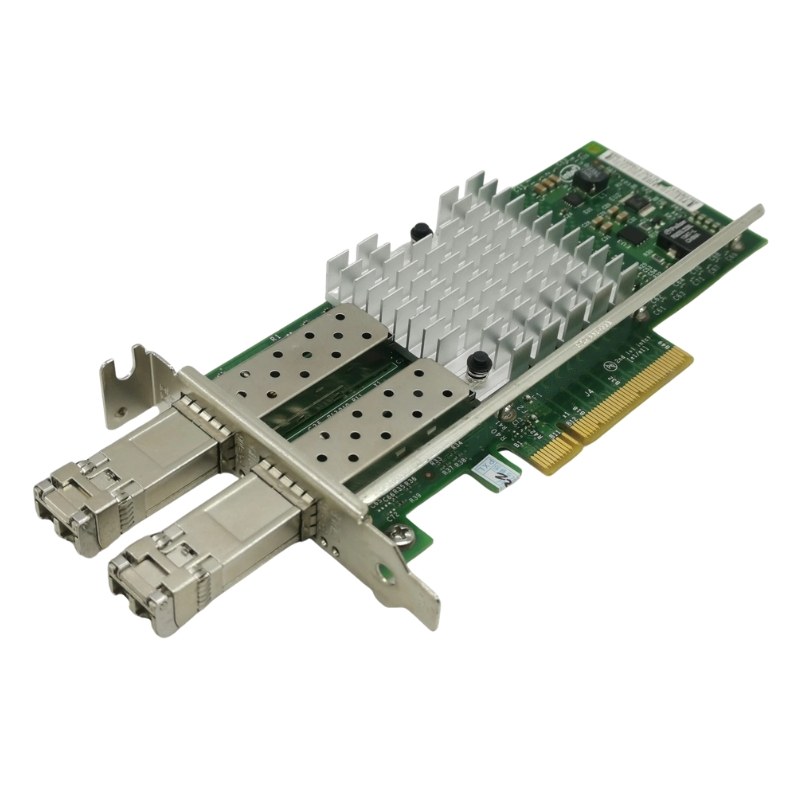

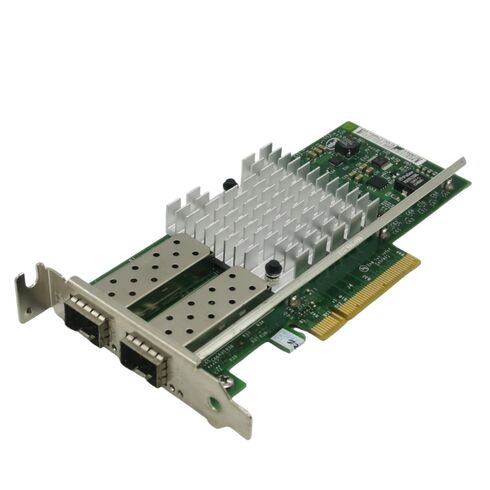

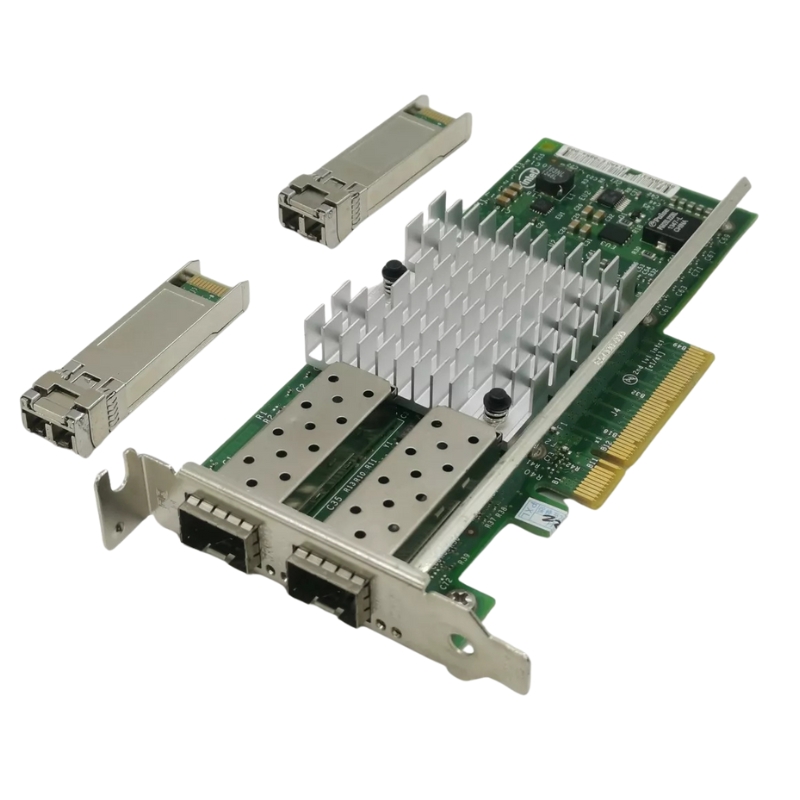

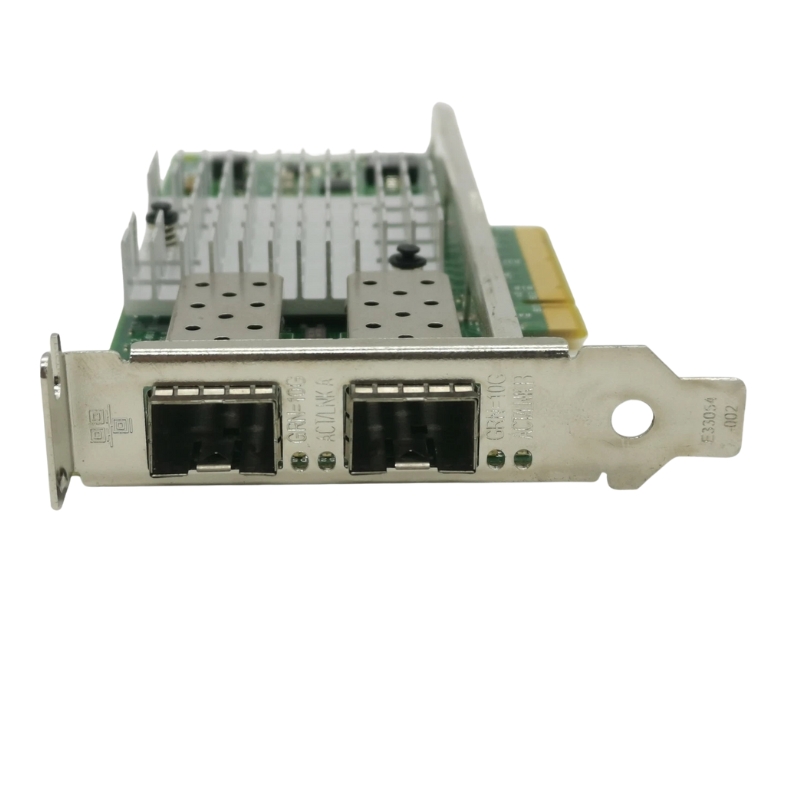

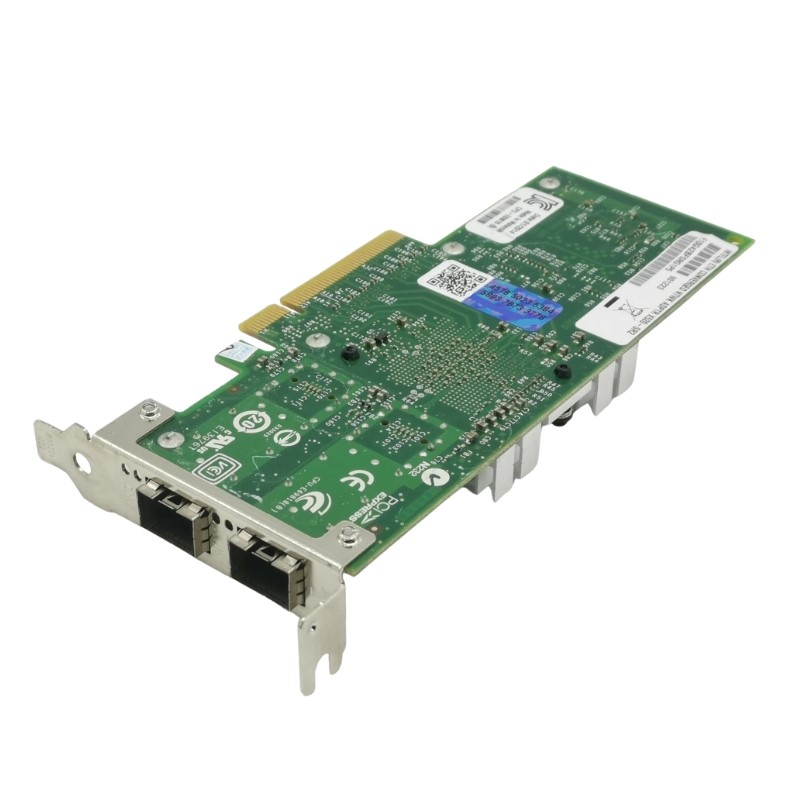

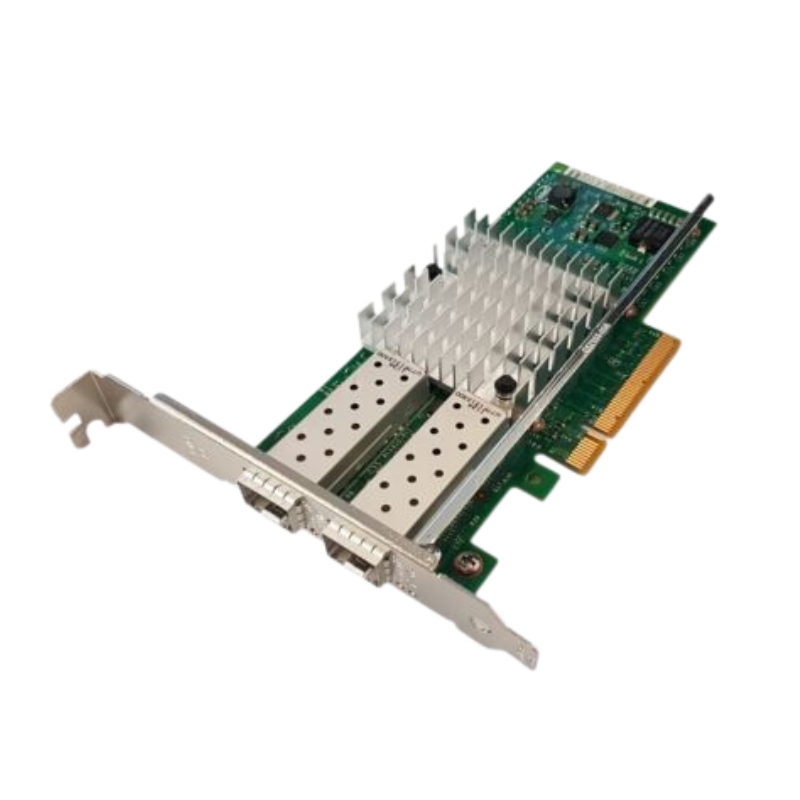

X520-DA2-DELL Dell Server Adapter 10GbE Network Adapters

Overview of Dell X520-DA2-DELL 2-Port Network Adapter

The DELL X520-DA2-DELL 10 Gigabit Ethernet Server Adapter is a high-speed dual-port network interface solution engineered to deliver stable, low-latency, and high-throughput connectivity for enterprise servers. Built on advanced PCI Express architecture, this adapter is optimized for demanding workloads such as virtualization, cloud computing, storage networking, and high-performance data center operations.

Main Information

• Manufacturer:Dell
• Manufacturer Part Number: X520-DA2-DELL
• Device Type: Dual-Port 10GbE Network Adapter

Technical Specification

• Form Factor: Low Profile Plug-in Card
• Bus Interface: PCI Express 2.0 x8
• Technology: Wired Ethernet connectivity
• Data Transfer Speed: 10 Gbps for ultra-fast data throughput
• Protocols Supported: TCP/IP, UDP/IP, iSCSI, IPsec
• Remote Management: SNMP, RMON protocols for efficient monitoring

High-Speed 10 Gigabit Ethernet Performance

• TCP/IP and UDP/IP for standard network communication
• IPsec for secure encrypted data transmission
• iSCSI support for storage over Ethernet networks
• IEEE 802.1Q VLAN tagging for network segmentation
• IEEE 802.1p for traffic prioritization and QoS handling
• IEEE 802.3ad (LACP) for link aggregation
• IEEE 802.1ae for MAC security encryption
• IEEE 802.1AS for time synchronization services

Built-In Intelligence for Network Efficiency

• Flow control for congestion management and packet stability
• VLAN support for segmented network architectures
• Packet filtering for improved traffic control and security
• Quality of Service (QoS) prioritization for critical applications
• Virtual Machine Device Queues (VMDq) for optimized virtualization performance

Processor and Integrated Controller Technology

• Hardware-accelerated packet processing
• Reduced latency for real-time applications
• Improved multi-core CPU utilization balance
• Stable performance under sustained network load

High-Density Server Integration Capability

• Total Expansion Slots: 2 SFP+ ports
• Active Ports: 2 fully functional high-speed interfaces
• Compatible Interface: PCIe 2.0 x8 full-length slot
• Supported Deployment: Low-profile and full-height server chassis

Improved Diagnostics and System Control

• SNMP for centralized network management
• RMON for advanced traffic analysis and monitoring

Indicator Functions

• Link status confirmation
• Port transmission activity display
• Network speed indication
• Connection health verification

Industry-Aligned Networking Architecture

• IEEE 802.1Q for VLAN architecture support
• IEEE 802.1p for traffic prioritization
• IEEE 802.3ad for link aggregation control
• IEEE 802.1ae for MAC security protocols
• IEEE 802.1AS for network time synchronization

Versatile Application Across Enterprise Environments

• Virtualized server farms and hypervisor environments
• Cloud computing infrastructure and distributed systems
• Enterprise storage area networks (SAN)
• High-bandwidth application servers

Outline of Dell X520-DA2 Dual Port 10Gb PCIe Adapter

The Dell X520-DA2 Dual Port 10Gb PCIe Adapter represents a high-performance networking solution engineered for enterprise environments that demand reliable, low-latency, and high-throughput data connectivity. Built around advanced Ethernet controller architecture, this adapter is designed to support modern virtualization workloads, data-intensive applications, cloud infrastructure, and high-speed storage networking. As organizations continue to transition toward consolidated data centers and software-defined networking infrastructures, the importance of efficient and scalable network interface cards such as the Dell X520-DA2 becomes increasingly significant.

This adapter is widely integrated into server ecosystems where bandwidth optimization and network efficiency are critical. It enables dual-port 10 Gigabit Ethernet connectivity, allowing simultaneous high-speed data transmission across multiple channels. The architecture of the adapter supports intelligent offloading features, reducing CPU overhead while improving overall system performance in enterprise-grade deployments.

Architecture and Engineering Design of Dell X520-DA2

Advanced Controller Integration

The Dell X520-DA2 is built on a robust controller platform designed for optimized packet processing and efficient handling of network traffic. The controller architecture is structured to manage multiple data streams simultaneously, ensuring minimal packet loss even under heavy network loads. This makes the adapter suitable for virtualization clusters, database servers, and high-frequency transactional systems where uninterrupted connectivity is essential.

The integration of advanced silicon design allows the adapter to manage network operations with precision. It efficiently distributes workloads across available processing channels, reducing bottlenecks commonly experienced in lower-tier network adapters. This level of optimization is essential in environments where microseconds of latency can impact system performance.

PCI Express Interface Optimization

The Dell X520-DA2 utilizes a PCI Express interface that ensures maximum compatibility with modern server motherboards. The PCIe architecture provides a high-bandwidth communication pathway between the network adapter and the system processor. This direct communication channel reduces latency and ensures that data packets are transmitted and received with minimal delay.

The adapter is engineered to support scalable bandwidth allocation, allowing it to dynamically adjust performance based on workload demands. This flexibility makes it suitable for environments with fluctuating traffic patterns, such as cloud data centers and virtual desktop infrastructures.

Lane Utilization Efficiency

One of the critical strengths of the PCIe-based design is its ability to efficiently utilize available lanes. The adapter leverages multiple lanes to ensure high throughput, enabling consistent 10Gbps performance per port. This design minimizes congestion and ensures that both ports operate independently without performance degradation.

Dual Port 10Gb Ethernet Capabilities

Simultaneous Data Channel Processing

The dual-port configuration of the Dell X520-DA2 provides two independent 10 Gigabit Ethernet channels. This allows servers to handle multiple network streams simultaneously, improving overall data distribution and load balancing. Each port operates independently, which enhances redundancy and ensures continuous network availability even if one channel experiences issues.

In enterprise environments, this dual-port capability is essential for maintaining uptime and ensuring seamless failover support. It enables administrators to configure network paths for redundancy, load balancing, or segmentation based on organizational requirements.

High-Speed Data Transmission Efficiency

With support for 10 Gigabit Ethernet standards, the adapter ensures ultra-fast data transmission rates suitable for modern workloads. Applications such as large-scale virtualization, database replication, and high-performance computing benefit significantly from this level of bandwidth. The adapter reduces congestion in network pipelines and ensures smooth handling of large data packets.

The ability to sustain high throughput under continuous load makes this adapter ideal for mission-critical systems where performance consistency is a priority.

Low Latency Communication Structure

Latency optimization is a key feature of the Dell X520-DA2. The adapter is engineered to reduce delays in packet processing by minimizing software intervention and leveraging hardware-based acceleration. This ensures faster response times in network communication, particularly in environments that require real-time data processing.

Virtualization and Cloud Infrastructure Support

Virtual Machine Optimization

The Dell X520-DA2 is optimized for virtualized environments where multiple virtual machines share the same physical network interface. It supports advanced virtualization technologies that allow efficient distribution of network resources across virtual instances. This ensures that each virtual machine receives adequate bandwidth without interference from other workloads.

By enabling hardware-level virtualization support, the adapter reduces overhead on the host system. This improves performance in hypervisor environments such as VMware, Hyper-V, and KVM-based infrastructures.

Data Center Scalability

In modern data centers, scalability is a key requirement. The Dell X520-DA2 supports scalable deployment models that allow organizations to expand their network capacity without redesigning existing infrastructure. Its compatibility with enterprise servers makes it suitable for large-scale deployment scenarios.

The adapter’s ability to handle high-density virtual workloads ensures that data centers can maintain performance even as demand increases. This makes it a foundational component in cloud computing environments and enterprise hosting solutions.

Resource Allocation Efficiency

Efficient resource allocation is achieved through intelligent traffic management mechanisms embedded in the adapter. These mechanisms ensure that network bandwidth is distributed fairly among active processes, preventing congestion and ensuring optimal utilization of available resources.

Advanced Offloading Features and Performance Optimization

TCP/IP Offload Engine Capabilities

The Dell X520-DA2 includes advanced offloading capabilities that reduce CPU utilization by transferring network processing tasks to the adapter hardware. This includes TCP/IP checksum offloading, segmentation offloading, and packet filtering functions. By handling these tasks at the hardware level, the adapter frees up CPU resources for application-level processing.

This results in improved system efficiency and allows servers to handle more concurrent tasks without performance degradation. It is particularly beneficial in high-traffic environments where CPU cycles are at a premium.

Interrupt Moderation and Packet Coalescing

The adapter incorporates intelligent interrupt moderation techniques that reduce CPU interruptions caused by network traffic. Packet coalescing further enhances efficiency by grouping multiple packets before triggering processing interrupts. This reduces overhead and improves system stability during heavy network loads.

Adaptive Performance Tuning

The adapter is capable of dynamically adjusting performance parameters based on network conditions. This adaptive tuning ensures optimal performance regardless of workload intensity, making it suitable for both steady-state and burst traffic environments.

Enterprise Reliability and Network Stability

Redundancy and Failover Support

The dual-port design inherently supports redundancy configurations that enhance network reliability. In the event of a port failure or network disruption, traffic can be automatically rerouted to the secondary port. This ensures continuous connectivity and minimizes downtime in critical systems.

Enterprise environments benefit significantly from this level of redundancy, particularly in mission-critical applications where uninterrupted service is essential.

Error Correction and Packet Integrity

The Dell X520-DA2 is engineered with advanced error detection and correction mechanisms that ensure data integrity during transmission. These mechanisms reduce packet loss and ensure accurate data delivery across network channels. This is particularly important in financial systems, healthcare databases, and large-scale enterprise applications.

Stable Long-Term Operation

The adapter is designed for continuous operation in demanding environments. Its thermal efficiency and hardware durability ensure stable performance over extended periods, reducing maintenance requirements and improving overall system reliability.

Compatibility and Integration in Server Environments

Enterprise Server Integration

The Dell X520-DA2 is compatible with a wide range of enterprise servers, making it a versatile choice for IT infrastructure upgrades. It integrates seamlessly into rack-mounted servers and blade server architectures, providing high-speed connectivity without requiring extensive configuration changes.

This compatibility ensures that organizations can deploy the adapter across diverse environments without concerns about interoperability or system conflicts.

Operating System and Driver Support

The adapter supports multiple operating systems commonly used in enterprise environments. This includes Windows Server distributions and various Linux-based operating systems. Comprehensive driver support ensures smooth installation and optimal performance across platforms.

High-Performance Networking Use Cases

Data Center Workloads

The Dell X520-DA2 is widely used in data centers where high-throughput networking is essential. It supports workloads such as virtualization clusters, cloud storage systems, and distributed computing environments. Its ability to handle simultaneous high-speed connections makes it a core component in modern IT infrastructures.

High-Performance Computing Environments

In high-performance computing environments, the adapter ensures rapid data exchange between compute nodes. This is critical for scientific simulations, engineering modeling, and AI-based processing systems where large datasets must be transferred quickly and efficiently.

Storage Network Optimization

The adapter is also suitable for storage area networks where fast and reliable data transfer is required. It ensures efficient communication between storage devices and servers, reducing latency and improving data access speeds.

Energy Efficiency and Thermal Design

Power Optimization Features

The Dell X520-DA2 is engineered with energy-efficient components that reduce overall power consumption. This is particularly important in large-scale deployments where energy efficiency directly impacts operational costs. The adapter balances performance and power usage to ensure optimal efficiency.

Thermal Management System

Effective thermal management ensures that the adapter operates within safe temperature ranges even under heavy workloads. This enhances longevity and ensures consistent performance in high-density server environments.

Long-Term Operational Stability

The combination of energy efficiency and thermal regulation contributes to the adapter’s long-term stability. It is designed to maintain performance consistency over extended operational periods, making it suitable for enterprise-grade deployments.
