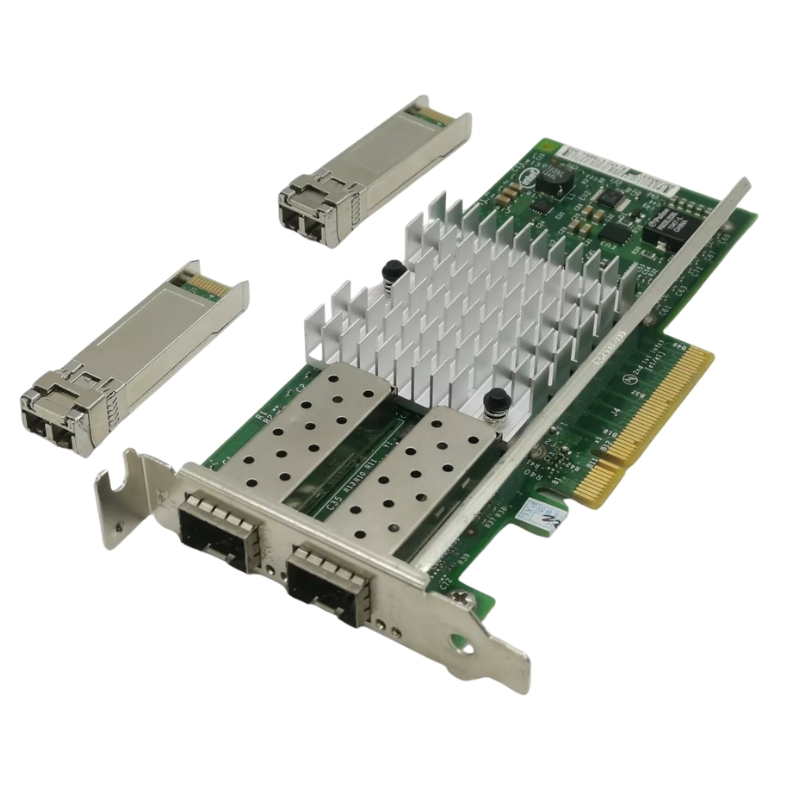

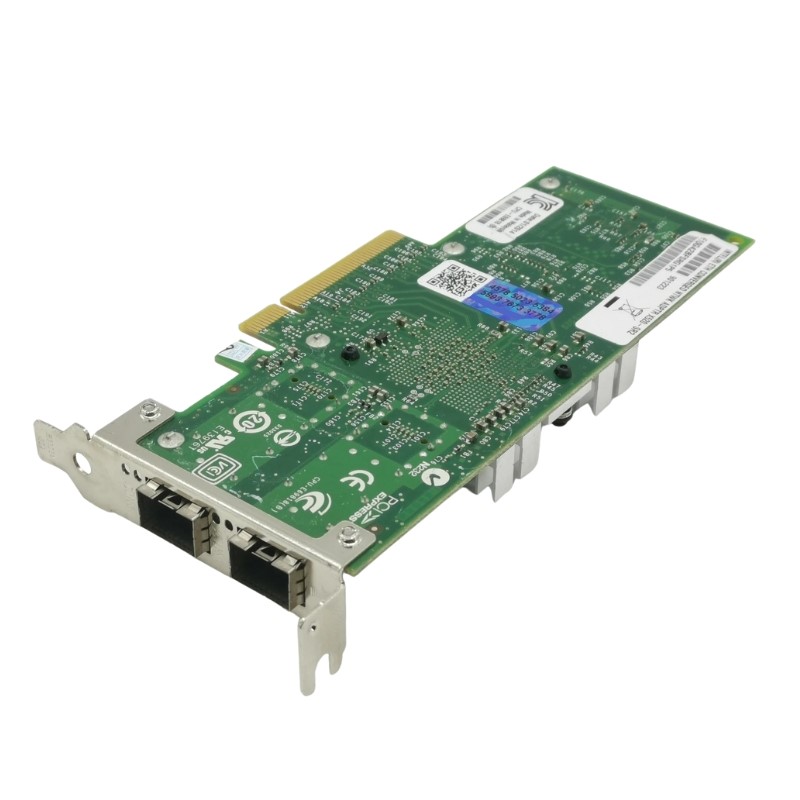

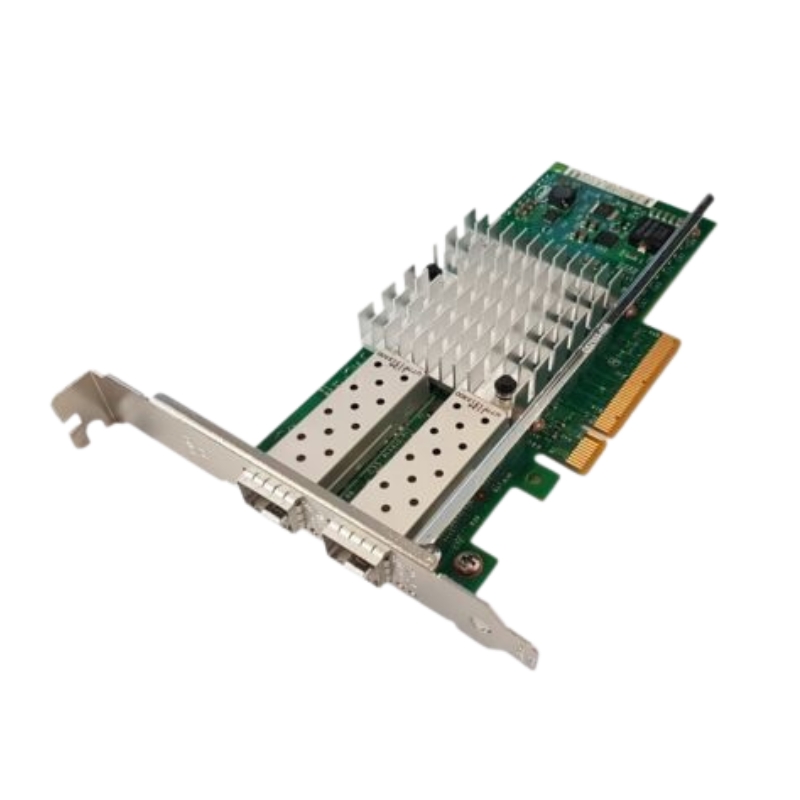

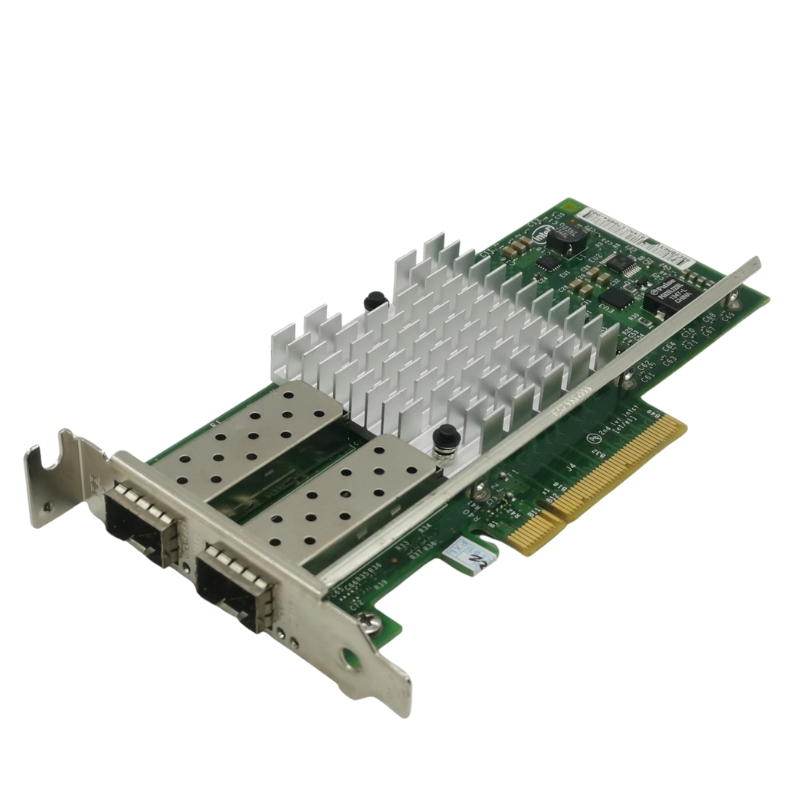

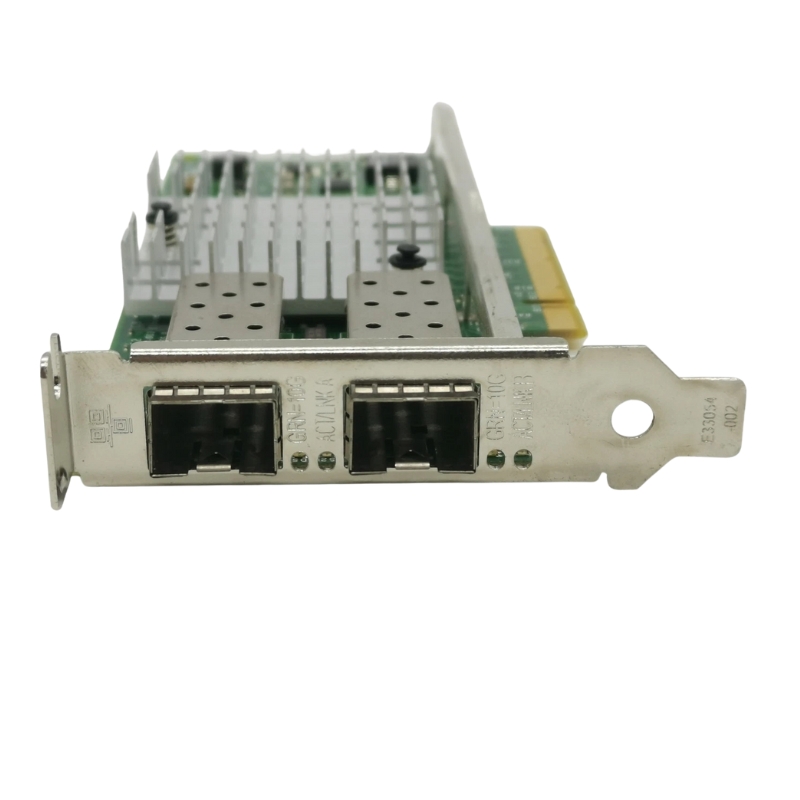

X520-DA2-DELL Dell 10GbE Network Adapters with Bracket

Product Specifications for the DELL X520-DA2 Network Adapter

This high-performance network adapter is engineered for seamless connectivity in demanding environments. The DELL X520-DA2, with dual 10 Gigabit Ethernet ports, ensures that your server infrastructure is optimized for speed and reliability. It offers a versatile PCI Express interface with a low-profile form factor, designed to fit a variety of server configurations.

General Specification

• Manufacturer:Dell
• Part Number: X520-DA2-DELL
• Device Type: Network Adapter

Technical Specification

• Form Factor: Low Profile Plug-in Card
• Bus Interface: PCI Express 2.0 x8
• Technology: Wired Ethernet connectivity
• Data Transfer Speed: 10 Gbps for ultra-fast data throughput
• Protocols Supported: TCP/IP, UDP/IP, iSCSI, IPsec
• Remote Management: SNMP, RMON protocols for efficient monitoring

Advanced Networking Features

• Link Activity and Port Transmission Speed indicators
• Flow control to manage traffic efficiently
• VLAN support for segmented network management
• Packet filtering and enhanced Quality of Service (QoS)
• Virtual Machine Device Queues (VMDQ) for optimized virtual environments

Compliance and Industry Standards

• IEEE 802.1q (VLAN tagging)
• IEEE 802.1p (Priority and traffic management)
• IEEE 802.3ad (LACP for link aggregation)
• IEEE 802.1ae (MAC Security)
• IEEE 802.1as (Time synchronization)

Expansion and Connectivity Options

• Available Expansion Slots: 2 (both are free for future expansion)
• Compatible Slot: 1 x PCI Express 2.0 x8, supporting both full-length and low-profile configurations
• SFP+ Compatibility: Optimized for fiber connections

Overview of Dell X520-DA2 Dual Port 10Gb PCI-E Adapter

The Dell X520-DA2 Dual Port 10Gb PCIe Adapter represents a critical component in enterprise-class networking environments where high throughput, low latency, and stable connectivity are essential for workload-intensive operations. Built to support 10 Gigabit Ethernet standards, this adapter is widely deployed in data centers, virtualization clusters, cloud computing infrastructures, and high-performance storage networks. As organizations continue to scale their digital ecosystems, the demand for reliable network interface cards (NICs) capable of handling heavy data traffic has grown significantly, making dual-port 10Gb adapters a foundational technology in modern server architectures.

Within enterprise server ecosystems, this adapter provides a balance between cost efficiency and high-performance networking. It enables servers to communicate at significantly higher speeds compared to traditional 1Gb Ethernet solutions, reducing bottlenecks and improving overall system responsiveness. This is particularly important in environments where multiple virtual machines, storage systems, and application layers operate simultaneously.

Architectural Foundation of the Dell X520-DA2 Series

PCI Express Interface Integration

The Dell X520-DA2 Dual Port 10Gb PCIe Adapter is designed around the PCI Express architecture, which ensures high-bandwidth communication between the server motherboard and the network controller. PCIe lanes provide dedicated data paths, minimizing congestion and maximizing data throughput. This architecture is especially important in high-density server environments where multiple adapters and hardware components compete for system resources.

Dual-Port Network Design Philosophy

A defining feature of this adapter is its dual-port configuration, allowing two independent 10Gb Ethernet connections from a single card. This design enhances redundancy, load balancing, and network segmentation. Enterprises often utilize each port for different network layers, such as separating storage traffic from general application traffic or isolating management networks from production environments. This improves not only performance but also security and fault tolerance.

Intel-Based Controller Technology

The X520-DA2 series is built on proven Intel Ethernet controller technology, which is widely recognized in the networking industry for its stability, compatibility, and performance optimization. Intel controllers are designed to handle advanced networking features such as checksum offloading, virtualization acceleration, and interrupt moderation, which significantly reduce CPU overhead on host systems.

Performance Characteristics

High Throughput Data Transfer Capabilities

The adapter supports 10 Gigabit per second data transfer rates per port, enabling a combined potential throughput of up to 20Gb in full-duplex dual-port configurations. This level of bandwidth is essential for data-intensive operations such as large-scale database replication, video streaming workloads, big data analytics, and virtual machine migration.

Low Latency Networking for Mission-Critical Applications

Latency is a critical metric in enterprise networking, particularly in financial services, cloud computing, and real-time analytics environments. The Dell X520-DA2 minimizes latency through optimized hardware packet processing, ensuring that data packets are transmitted and received with minimal delay. This makes it suitable for latency-sensitive applications where milliseconds can significantly impact performance outcomes.

Efficient Packet Processing and CPU Offloading

One of the major advantages of this adapter is its ability to offload networking tasks from the CPU. Features such as TCP segmentation offload (TSO), large receive offload (LRO), and checksum offloading allow the network card to handle repetitive processing tasks. This results in reduced CPU utilization, freeing system resources for application workloads and improving overall server efficiency.

Data Center Integration and Scalability

Deployment in Virtualized Environments

Modern data centers heavily rely on virtualization technologies such as VMware ESXi, Microsoft Hyper-V, and KVM. The Dell X520-DA2 is optimized for virtualized environments through support for virtualization offloading technologies like SR-IOV (Single Root Input/Output Virtualization). SR-IOV enables a single physical network adapter to appear as multiple virtual network interfaces, allowing virtual machines to directly access hardware resources with minimal overhead.

Improved VM Density and Network Isolation

With dual 10Gb ports, virtualization hosts can support higher virtual machine densities without experiencing network congestion. Each virtual machine can be assigned dedicated bandwidth resources, ensuring consistent performance across workloads. Network isolation also becomes easier, allowing administrators to segment traffic for security and performance optimization.

Cloud Infrastructure Compatibility

In cloud computing environments, scalability is essential. The X520-DA2 supports dynamic scaling of workloads by ensuring consistent network performance even under fluctuating traffic conditions. Cloud service providers often deploy these adapters in compute nodes to ensure high-speed connectivity between storage arrays, compute clusters, and distributed applications.

Role in High-Performance Storage Networking

iSCSI and NAS Optimization

The adapter is frequently used in storage area networks (SANs) and network-attached storage (NAS) environments, particularly those leveraging iSCSI protocols. High-speed 10Gb connectivity reduces latency in storage access, enabling faster read and write operations across distributed storage systems.

Support for Data Replication and Backup Systems

Enterprise backup systems rely heavily on fast data transfer capabilities. The X520-DA2 ensures that large volumes of backup data can be replicated across data centers efficiently. This is particularly valuable in disaster recovery scenarios where fast synchronization of data is required between primary and secondary sites.

Hardware Design and Physical Characteristics

Form Factor and Server Compatibility

The Dell X520-DA2 is designed in a PCIe form factor that is compatible with a wide range of Dell PowerEdge servers as well as other enterprise-grade server platforms. Its compact design allows it to fit into standard and dense server chassis configurations without obstructing airflow or other hardware components.

Thermal Efficiency and Cooling Considerations

Efficient thermal management is essential in high-density server environments. The adapter is engineered to operate within optimal temperature ranges even under sustained network loads. Its low-power design minimizes heat generation, reducing the strain on server cooling systems and improving overall system reliability.

Power Consumption Optimization

Energy efficiency is a key consideration in modern data centers. The X520-DA2 is designed to consume minimal power while delivering high throughput performance. This helps organizations reduce operational costs while maintaining high-performance networking capabilities.

Advanced Networking Features and Protocol Support

Jumbo Frame Support and Packet Efficiency

The adapter supports jumbo frames, which allow for larger packet sizes compared to standard Ethernet frames. This reduces overhead and improves efficiency in high-throughput environments such as storage networks and large-scale data transfers.

Load Balancing and Failover Mechanisms

With dual ports, the adapter supports load balancing and failover configurations. In the event of a port failure, traffic can automatically be redirected to the second port, ensuring continuous network availability. This redundancy is essential for mission-critical systems that require high uptime.

Enterprise Use Cases for Dell X520-DA2 Dual Port Adapter

Cloud Data Centers and Hosting Providers

Cloud infrastructure providers utilize the X520-DA2 to ensure scalable and high-speed connectivity between compute nodes and storage systems. The adapter supports multi-tenant environments where network isolation and performance consistency are essential.

Financial and Trading Systems

In financial environments where low latency is crucial, the adapter supports high-frequency trading systems and real-time transaction processing platforms. Its ability to reduce packet processing delays ensures faster execution of time-sensitive operations.

Media Streaming and Content Delivery

Media companies rely on high-bandwidth networking solutions for streaming high-definition content. The X520-DA2 enables efficient distribution of large media files and supports continuous streaming without buffering or interruption.

Enterprise Storage and Backup Infrastructure

Backup and archival systems benefit significantly from the adapter’s high throughput capabilities. It ensures fast replication of large datasets across distributed storage systems, improving disaster recovery readiness and data protection strategies.

Driver Support, Compatibility, and Operating Systems

Wide Operating System Compatibility

The Dell X520-DA2 supports multiple operating systems, including various distributions of Linux, Windows Server editions, and virtualization platforms. This ensures seamless integration into heterogeneous IT environments.

Driver Optimization and Firmware Updates

Regular driver updates enhance performance, stability, and compatibility with new network protocols. Firmware optimization ensures that the adapter continues to meet evolving enterprise networking requirements.

Integration with Virtualization Platforms

Compatibility with VMware, Hyper-V, and other hypervisors ensures that the adapter can be deployed in virtualized infrastructures without complex configuration requirements. This simplifies deployment and reduces administrative overhead.

Network Reliability and Fault Tolerance Mechanisms

Redundant Network Path Design

Dual-port architecture allows administrators to configure redundant network paths, ensuring continuous connectivity even if one link fails. This redundancy is a fundamental requirement in enterprise-grade environments.

Automatic Failover Functionality

In the event of a network disruption, failover mechanisms automatically switch traffic to an active port. This minimizes downtime and ensures uninterrupted service delivery.

Link Aggregation and Bandwidth Scaling

Link aggregation allows both ports to be combined into a single logical channel, increasing available bandwidth and improving network resilience. This is particularly useful in high-demand environments where consistent throughput is essential.

Strategic Importance in Modern IT Infrastructure

Supporting Digital Transformation Initiatives

As organizations undergo digital transformation, the need for faster, more reliable networking infrastructure becomes increasingly important. The Dell X520-DA2 supports this transition by providing scalable and high-performance connectivity solutions.

Enabling Hybrid and Multi-Cloud Architectures

Hybrid cloud environments require seamless data exchange between on-premises systems and cloud platforms. This adapter provides the necessary bandwidth and reliability to support such architectures effectively.

Foundation for Next-Generation Data Centers

Next-generation data centers rely heavily on high-speed Ethernet connectivity. The X520-DA2 serves as a foundational component in building scalable, efficient, and high-performance IT infrastructures capable of supporting future workloads.
