FG-80F-BDL-950-36 Fortinet fortigate-80f Hardware Plus Security-Appliance

Fortinet FG-80F-BDL-950-36 fortigate-80f Security-Appliance

The Fortinet FG-80F-BDL-950-36 FortiGate 80F Security Appliance is a high-performance unified threat protection solution designed to deliver advanced network security, robust firewall capabilities, and integrated UTM services. This compact yet powerful appliance ensures seamless protection for modern enterprise networks by combining next-generation firewall features, intrusion prevention, antivirus scanning, and secure VPN connectivity in a single platform.

General Information

• Manufacturer: FORTINET
• Model Number: FG-80F-BDL-950-36
• Category: Network Security Appliance

Technical Specifications

Device Details

• Type: Advanced Security Appliance
• Included Services: 3-Year 24x7 FortiCare Support with FortiGuard Unified Threat Protection (UTM)
• Processor Architecture: 1 × Fortinet FortiASIC SoC4 chipset

Network Architecture & Connectivity

• Deployment Type: Desktop form factor
• Connection Type: Fully wired Ethernet-based networking
• Supported Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
• Security Protocols: IPsec VPN, SSL, TLS 1.3 encryption standards

Performance Capabilities

• VPN Throughput (IPsec 512-bit): 6.5 Gbps
• Next Generation Firewall (NGFW): 1 Gbps
• SSL Inspection Throughput: 715 Mbps
• IPS Throughput: 1.4 Gbps
• CAPWAP Performance: 9 Gbps
• Threat Protection Throughput: 900 Mbps
• Firewall Throughput (UDP 1518 bytes): 10 Gbps
• Firewall Throughput (UDP 512 bytes): 10 Gbps
• Firewall Throughput (UDP 64 bytes): 7 Gbps
• Packet Processing Rate: 10.5 Mpps
• Application Control Throughput: 1.8 Gbps
• SSL VPN Throughput: 950 Mbps

System Capacity

• Maximum Concurrent Sessions: 1,500,000
• New Sessions per Second: 45,000
• Firewall Policies Supported: 5,000
• IPsec Site-to-Site VPN Tunnels: 200
• Client-to-Gateway VPN Tunnels: 2,500
• Virtual Domains (VDOMs): 10
• FortiSwitch Support: Up to 16 devices
• FortiToken Support: 500 users
• FortiAP Support: 32 devices (16 in tunnel mode)
• SSL VPN Users (Concurrent): 200
• SSL Inspection Concurrent Sessions: 100,000 (standard) / 700 (enhanced profile)

Security Features

• Integrated Firewall Protection System
• Advanced Antivirus and Malware Detection
• Intrusion Prevention System (IPS)
• Secure IPsec VPN Connectivity
• Web Filtering and Threat Intelligence
• Fanless silent cooling design for stable operation

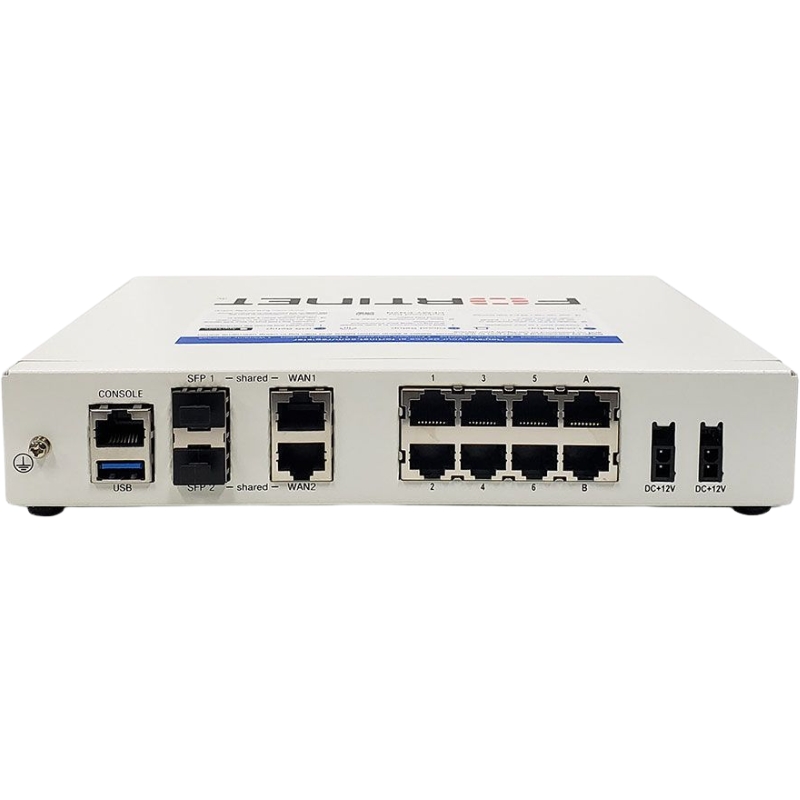

Expansion & Interface Options

• 8 × RJ-45 10/100/1000Base-T Ethernet ports
• 2 × Gigabit RJ-45 / SFP combo ports (mini-GBIC supported)
• 1 × USB 3.0 Type-A port
• 1 × RJ-45 Console management port

Power Specifications

• Power Supply: External adapter-based system
• Power Unit Quantity: 2 included
• Operational Power Consumption: 15.8 Watts (energy-efficient design)

Compatibility Information

• Compatible with FortiSwitch managed network switches
• Supports FortiAP wireless access points for enterprise Wi-Fi deployment
• Integrates with FortiAnalyzer for advanced log analysis and reporting
• Works with FortiManager for centralized security policy administration
• Supports standard Ethernet-based network devices and infrastructure
• Compatible with IPsec and SSL VPN-based remote connectivity solutions

Fortinet FG-80F-BDL-950-36 Security Appliance

The Fortinet FG-80F-BDL-950-36 FortiGate-80F Hardware Plus Security Appliance Unified Threat Protection category represents a next generation network security solution designed for modern enterprise environments that require high performance security processing, integrated threat intelligence, and consolidated network protection services within a compact hardware platform. Built on the FortiGate security architecture, this appliance delivers advanced firewall capabilities, secure SD WAN connectivity, intrusion prevention, application control, web filtering, and encrypted traffic inspection within a unified system that is optimized for distributed enterprise networks, branch office deployments, and mid market infrastructure environments.

The increasing complexity of cyber threats demands security platforms that can consolidate multiple security functions into a single system while maintaining high throughput and low latency. The FortiGate 80F series addresses these requirements by integrating purpose built security processing units that accelerate inspection tasks and enable consistent performance even under heavy traffic conditions. The FG-80F-BDL-950-36 bundle enhances this capability by combining hardware efficiency with subscription based unified threat protection services that extend security coverage across evolving threat landscapes.

Next Generation Firewall Architecture and Security Processing

The FortiGate 80F hardware platform is engineered around a specialized security processing architecture that allows deep packet inspection without compromising network performance. Unlike traditional firewall systems that rely heavily on general purpose CPUs, this appliance incorporates dedicated acceleration components designed to offload cryptographic and inspection workloads. This approach enables consistent traffic handling for encrypted and unencrypted flows while maintaining strict policy enforcement across all network segments.

Modern enterprise environments generate high volumes of application traffic that require granular inspection. The unified threat protection model ensures that traffic is evaluated not only at the network layer but also at the application layer, enabling identification of malicious behavior hidden within legitimate sessions. This approach strengthens the organization’s security posture by reducing blind spots and increasing visibility into network activity patterns.

The firewall system supports dynamic policy enforcement that adapts to changing network conditions. Security administrators can define granular rules that govern application access, user identity verification, and content filtering across multiple network zones. These capabilities are essential for organizations that operate hybrid infrastructures combining on premises systems with cloud based services.

Unified Threat Protection Framework and Integrated Security Services

The Fortinet FG-80F-BDL-950-36 solution integrates a unified threat protection framework that consolidates multiple security services into a single appliance. This integration eliminates the need for multiple standalone devices and reduces operational complexity while improving security correlation across different protection layers.

The unified protection framework includes intrusion prevention systems that analyze traffic patterns to detect and block malicious signatures and behavioral anomalies. Web filtering capabilities help enforce acceptable usage policies and prevent access to harmful or non compliant web resources. Application control mechanisms provide visibility and governance over software usage within the network, allowing organizations to regulate productivity applications and restrict unauthorized tools.

Anti malware scanning functions continuously inspect file transfers and network traffic for known and unknown threats. These mechanisms rely on Fortinet threat intelligence services that are updated continuously through global security research systems. The integration of cloud based intelligence ensures that emerging threats are rapidly identified and mitigated across all deployed devices.

Secure SD WAN Connectivity and Intelligent Traffic Steering

One of the key capabilities of the FortiGate 80F platform is its secure SD WAN functionality. This feature enables organizations to optimize network traffic routing across multiple WAN connections while maintaining security enforcement at all times. The SD WAN system evaluates link performance metrics such as latency, jitter, and packet loss to dynamically select the most efficient path for application traffic.

Secure SD WAN also ensures that sensitive traffic is encrypted and protected as it traverses public or hybrid network infrastructures. This capability is particularly important for organizations with distributed branch offices that rely on cloud applications and remote services. By combining networking intelligence with integrated security controls, the FortiGate 80F simplifies WAN architecture while improving application performance and reliability.

Traffic steering policies can be aligned with business priorities, allowing critical applications to receive priority routing while less important traffic is allocated to secondary paths. This intelligent traffic management helps maintain operational continuity and ensures consistent user experience across geographically distributed locations.

Advanced Threat Detection and Prevention Mechanisms

The FortiGate 80F appliance leverages advanced threat detection mechanisms designed to identify both known signatures and unknown behavioral anomalies. Traditional signature based detection is enhanced through machine learning models and cloud based intelligence feeds that continuously update threat databases.

Intrusion prevention systems analyze packet payloads in real time, detecting exploit attempts, injection attacks, and suspicious protocol behavior. These systems operate inline, enabling immediate blocking of malicious traffic before it reaches internal systems. Behavioral analysis adds an additional layer of protection by identifying deviations from normal network activity patterns, which may indicate zero day attacks or advanced persistent threats.

Sandboxing integration allows suspicious files to be isolated and analyzed in controlled environments. This process helps identify previously unknown malware variants without exposing production systems to risk. The results of sandbox analysis are fed back into the threat intelligence ecosystem to enhance global protection coverage.

FortiOS Security Operating System and Unified Management

The FortiGate 80F runs on the FortiOS security operating system, which provides a centralized management interface for all security functions. FortiOS enables administrators to configure firewall policies, VPN settings, SD WAN rules, and security services through a unified dashboard that simplifies operational management.

The operating system is designed to support scalability and modular security expansion. As organizations grow, additional security features can be enabled without requiring major infrastructure changes. This flexibility allows businesses to adapt to evolving cybersecurity requirements while maintaining operational continuity.

FortiOS also integrates automation capabilities that reduce manual configuration tasks. Security workflows can be standardized and automated to ensure consistent policy enforcement across multiple devices and network segments. This improves operational efficiency and reduces the risk of configuration errors.

Fortinet Security Fabric Integration and Ecosystem Connectivity

The FortiGate 80F is part of the broader Fortinet Security Fabric ecosystem, which provides integrated security across endpoints, networks, cloud environments, and applications. This ecosystem approach enables security data sharing between different Fortinet products, improving visibility and coordination across the entire infrastructure.

Security Fabric integration allows centralized threat intelligence correlation, enabling faster detection and response to security incidents. When a threat is identified in one part of the network, related systems can automatically adjust their security posture to mitigate potential spread or impact. This coordinated response model enhances overall defense effectiveness.

The ecosystem also supports third party integration, allowing organizations to incorporate existing security tools into the Fortinet framework. This ensures that investments in existing infrastructure are preserved while enhancing overall security coverage.

Enterprise Branch Security and Distributed Network Protection

The FortiGate 80F platform is widely used in branch office environments where secure connectivity and centralized policy enforcement are critical. Branch networks often require secure access to corporate resources, cloud applications, and centralized data centers. The appliance provides a secure gateway that ensures consistent security enforcement across all branch locations.

Branch security deployment enables centralized control of security policies, ensuring uniform enforcement across distributed environments. This reduces complexity for IT teams while maintaining strong protection standards. Remote branch locations benefit from the same level of security visibility and control as central headquarters infrastructure.

The compact design of the FortiGate 80F makes it suitable for space constrained environments while still delivering enterprise grade performance. This balance between size and capability makes it ideal for retail networks, remote offices, and regional facilities that require robust security without large hardware footprints.

Cloud Connectivity and Hybrid Infrastructure Security

Modern enterprises increasingly rely on hybrid infrastructures that combine on premises systems with cloud based platforms. The FortiGate 80F supports secure cloud connectivity by providing encrypted communication channels between enterprise networks and cloud environments.

This capability ensures that data transmitted between different infrastructure domains remains protected against interception and unauthorized access. Secure tunneling protocols and integrated encryption technologies help maintain confidentiality and integrity across hybrid environments.

The appliance also supports cloud based application access control, enabling organizations to enforce security policies for software as a service platforms and cloud hosted workloads. This ensures consistent governance across all application types regardless of deployment location.

Virtual Private Network and Secure Remote Access Capabilities

The FortiGate 80F provides comprehensive virtual private network functionality that supports secure remote access for employees, partners, and contractors. VPN services enable encrypted communication between remote users and corporate networks, ensuring that sensitive data remains protected during transmission.

Remote access capabilities are essential in modern workforce environments where employees frequently connect from diverse locations and devices. The appliance supports authentication mechanisms that verify user identity before granting access to internal resources. This strengthens security by ensuring that only authorized users can access critical systems.

Site to site VPN connectivity allows secure communication between multiple office locations, enabling organizations to build unified network infrastructures across distributed environments. This capability is essential for maintaining operational consistency across geographically dispersed operations.

Performance Optimization and Hardware Acceleration

The FortiGate 80F hardware platform is optimized for high performance security processing through the use of specialized acceleration technology. This architecture reduces the burden on general processing units and allows the system to handle high traffic volumes efficiently.

Hardware acceleration improves encryption and decryption performance, enabling secure communications without impacting network speed. This is particularly important for environments with high levels of encrypted traffic such as cloud applications, remote access sessions, and financial transactions.

The optimized design ensures low latency and high throughput, making the appliance suitable for demanding enterprise environments that require both security and performance consistency.

Logging, Monitoring, and Security Analytics

The FortiGate 80F includes comprehensive logging and monitoring capabilities that provide detailed visibility into network activity. Security logs capture information related to traffic flows, security events, policy enforcement actions, and system performance metrics.

These logs can be analyzed to identify patterns, detect anomalies, and support incident response investigations. Security analytics tools integrated within the Fortinet ecosystem help correlate events across multiple devices, enabling faster identification of complex attack chains.

Continuous monitoring ensures that administrators have real time visibility into network health and security status. This supports proactive threat detection and improves overall operational awareness.

Compliance Support and Regulatory Alignment

Organizations operating in regulated industries must adhere to strict compliance requirements related to data protection, privacy, and security governance. The FortiGate 80F supports compliance initiatives by providing audit ready logging, policy enforcement mechanisms, and secure data handling capabilities.

Regulatory frameworks often require organizations to implement strong access controls, encryption standards, and monitoring systems. The integrated security functions of the FortiGate platform help organizations align with these requirements while maintaining operational efficiency.

Compliance support extends across multiple industries including finance, healthcare, education, and government environments where data protection is critical.

Deployment Scenarios and Enterprise Use Cases

The Fortinet FG-80F-BDL-950-36 FortiGate-80F category is applicable across a wide range of deployment scenarios including enterprise branch offices, distributed retail networks, educational institutions, healthcare facilities, and mid sized business environments. Its combination of performance, security integration, and simplified management makes it suitable for organizations seeking to consolidate security infrastructure.

In enterprise environments, it functions as a secure edge device that connects internal networks to external services while enforcing strict security policies. In distributed environments, it ensures consistent protection across multiple locations. In cloud integrated environments, it provides secure connectivity between on premises systems and cloud based applications.

The adaptability of the platform allows it to meet diverse operational requirements while maintaining consistent security standards across all deployment models.

Long Term Security Strategy and Infrastructure

The FortiGate 80F hardware plus unified threat protection bundle represents a long term investment in network security infrastructure. Its integrated architecture reduces dependency on multiple standalone security systems and provides a consolidated platform for managing evolving cybersecurity challenges.

As organizations continue to face increasing cyber threats, the need for scalable and adaptive security solutions becomes more critical. The FortiGate 80F category supports this requirement by combining advanced threat protection, secure networking, and centralized management into a single cohesive platform.

This approach enhances infrastructure value by reducing complexity, improving operational efficiency, and strengthening overall security posture across enterprise environments.
