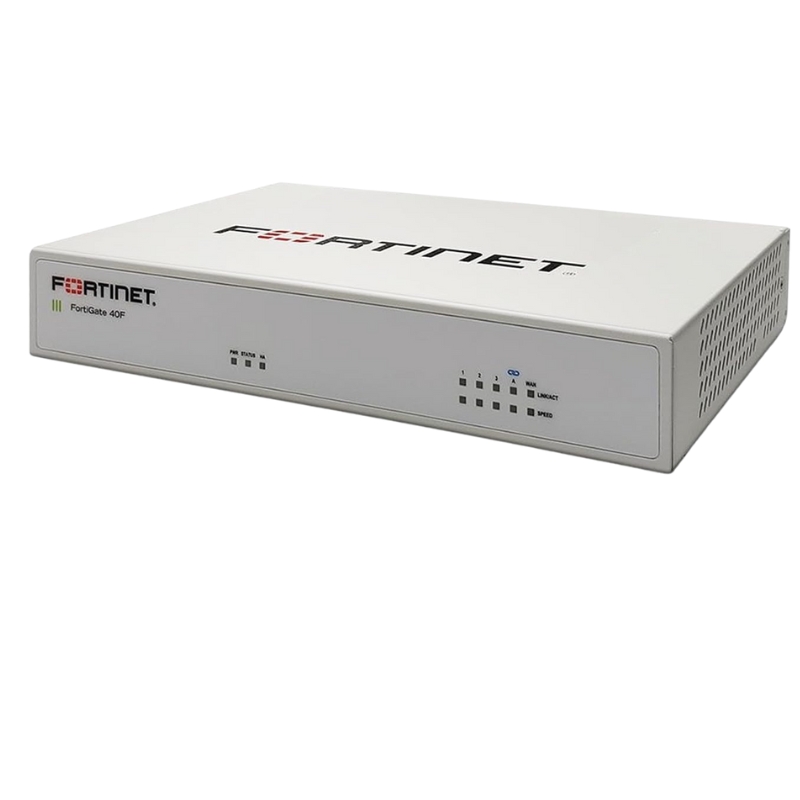

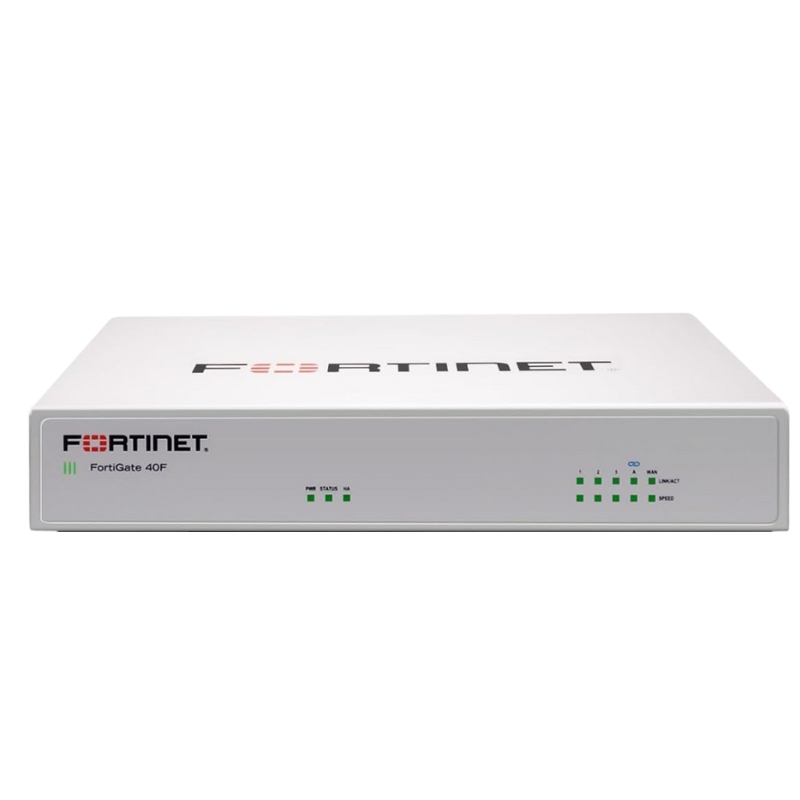

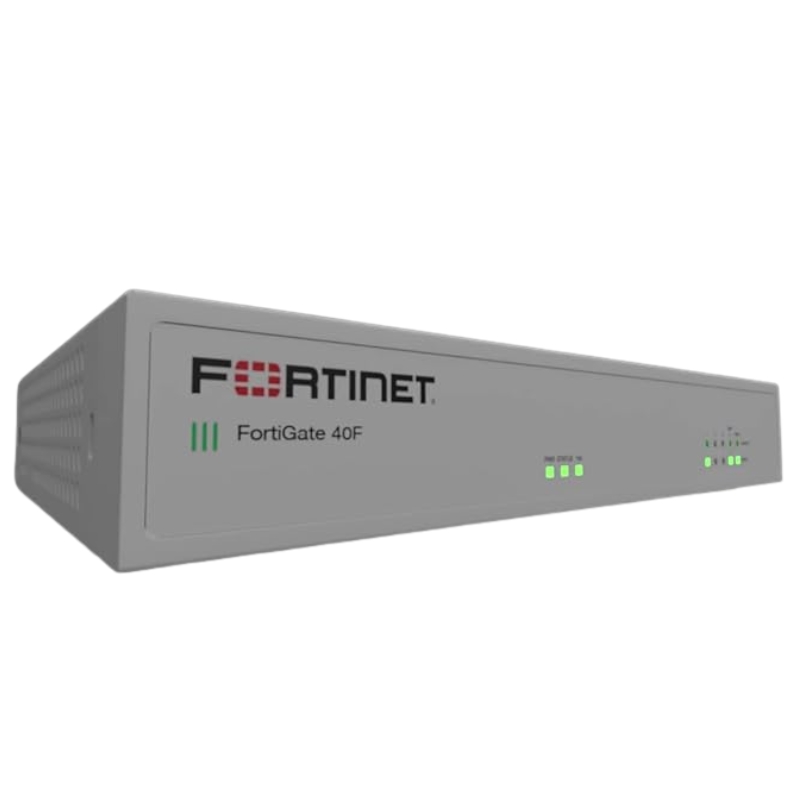

FG-40F Fortinet Fast Ethernet Network Security Firewall Appliance

Fortinet FortiGate Desktop Ethernet Security Appliance

The Fortinet FG-40F FortiGate desktop firewall is a high-performance network security solution designed to safeguard small to medium-sized businesses with advanced protection and reliable throughput.

General Information

• Manufacturer: Fortinet
• Part Number: FG-40F
• Device Type: Security Appliance

Technical Specifications

• Form Factor: Desktop
• IPS Throughput: 1 Gbps
• NGFW Throughput: 800 Mbps
• Threat Protection: 600 Mbps
• VPN (512-bit IPsec): 4.4 Gbps
• SSL Inspection: 310 Mbps
• Firewall Throughput: 5 Gbps (UDP packets)
• Application Control (HTTP 64k): 990 Mbps
• CAPWAP Throughput: 3.5 Gbps

Connectivity Technology

• Wired Ethernet
• Fast Ethernet
• Gigabit Ethernet

Capacity Highlights

• Latency: 4 µs
• Concurrent Sessions: 700,000
• New Sessions per Second: 35,000
• Firewall Policies: 5,000
• Gateway-to-Gateway IPsec VPN Tunnels: 200
• Client-to-Gateway IPsec VPN Tunnels: 250
• Virtual Domains: 10
• FortiSwitch Support: 8
• FortiAP Devices: 10
• FortiToken Devices: 500
• Concurrent SSL VPN Users: 200
• SSL Inspection Concurrent Sessions: 55,000
• FortiClient Devices: 200

Protection Capabilities

• Advanced Firewall Protection
• Intrusion Prevention System (IPS)
• IPsec Virtual Private Network (VPN)
• Web Threat Protection
• Fanless Silent Operation
• FortiLink Mode Integration

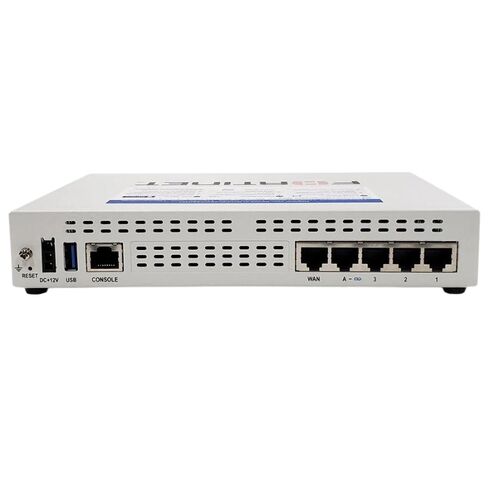

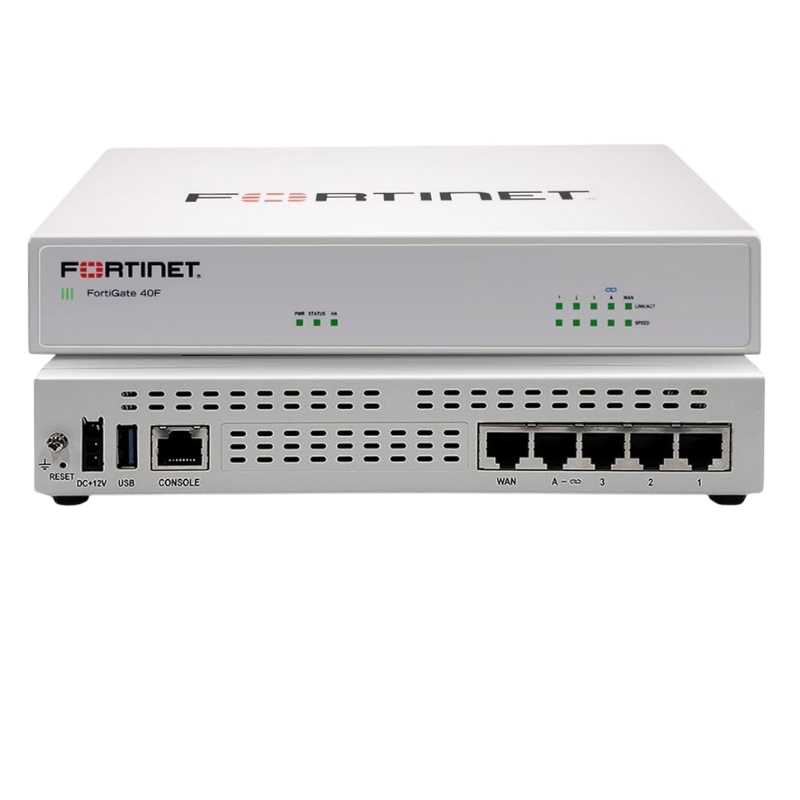

Interface Ports

• 3 x 1000Base-T RJ-45
• 1 x FortiLink RJ-45
• 1 x 1000Base-T RJ-45 (WAN/DMZ)
• 1 x Console RJ-45
• 1 x USB 3.0 Type-A

Electrical Details

• External Power Adapter
• Quantity Installed: 1
• Voltage: AC 120/230 V (50–60 Hz)
• Operational Power Consumption: 16.6 Watt

Supported Protocols

• IPsec
• SSL
• TLS 1.3

Fortinet FG-40F FortiGate Desktop Security Appliance Overview

The Fortinet FG-40F FortiGate Desktop Fast Ethernet Network Security Firewall Appliance is positioned as a compact yet powerful next-generation firewall solution designed to meet the evolving cybersecurity demands of small offices, branch environments, distributed enterprises, and edge deployments. As part of the FortiGate 40F series, this appliance integrates advanced threat protection, secure networking capabilities, and high-performance firewall processing in a desktop-friendly form factor. It is engineered to deliver enterprise-grade security while maintaining operational simplicity and energy efficiency, making it suitable for organizations that require reliable perimeter defense without the complexity of large-scale rack-mounted systems.

Compact Form Factor and Desktop Optimization

The FG-40F is designed with a compact desktop architecture that enables seamless placement in office environments, network closets, and remote branch locations. Its physical design emphasizes silent operation, low power consumption, and efficient thermal management. The absence of bulky chassis design ensures that it can be deployed in space-constrained environments while still supporting robust security workloads. The hardware layout reflects Fortinet’s focus on integrating ASIC acceleration technology to improve throughput and reduce latency during packet inspection and security processing.

Purpose-Built Security Processing Unit

At the heart of the FortiGate FG-40F lies Fortinet’s proprietary Security Processing Unit (SPU) technology, which significantly enhances firewall performance by offloading compute-intensive security tasks from the main CPU. This architecture enables faster inspection of network traffic, including deep packet inspection, intrusion prevention, and application control. By leveraging hardware acceleration, the FG-40F achieves consistent performance even under heavy security loads, ensuring minimal impact on user experience and application responsiveness.

Integrated Networking Interfaces

The appliance includes multiple Fast Ethernet and Gigabit Ethernet interfaces that support flexible network segmentation. These interfaces allow administrators to separate internal, external, and demilitarized zone (DMZ) traffic efficiently. The inclusion of dedicated WAN ports supports dual internet connectivity configurations, enabling redundancy and load balancing. This hardware design ensures that the FG-40F can function as a central security hub in small-to-medium network architectures.

Advanced Firewall Capabilities in FortiGate FG-40F

The FG-40F implements a stateful inspection firewall engine that monitors active connections and enforces security policies based on the context of network traffic. This mechanism ensures that only legitimate traffic flows between trusted and untrusted zones. Each packet is analyzed not only based on static rules but also on the state of the session, allowing dynamic and intelligent decision-making for traffic filtering.

Application-Aware Traffic Control

Modern network environments require granular control over application usage. The FG-40F supports deep application visibility and control, enabling administrators to define policies based on application behavior rather than just IP addresses or ports. This capability is critical for controlling bandwidth usage, restricting unauthorized applications, and ensuring business-critical services receive priority.

Unified Threat Management Integration

The FortiGate FG-40F integrates multiple security functions into a unified threat management framework. This includes firewalling, intrusion prevention, antivirus scanning, web filtering, and anti-spam capabilities. By consolidating these services into a single appliance, organizations reduce operational complexity while improving security consistency across the network.

Automated Response Mechanisms

When a threat is detected, the FG-40F can automatically enforce security actions such as blocking IP addresses, terminating sessions, or isolating affected segments. These automated responses reduce the need for manual intervention and ensure rapid mitigation of security incidents.

Secure Remote Access VPN

The FG-40F supports secure remote access VPN functionality, enabling employees to connect to corporate networks from remote locations. Using encrypted tunnels, the appliance ensures that sensitive data remains protected during transmission over public networks. This feature is essential for remote work environments and distributed workforce scenarios.

Site-to-Site VPN Connectivity

Organizations with multiple branch offices can utilize site-to-site VPN configurations to securely connect geographically distributed networks. The FG-40F facilitates encrypted communication between sites, ensuring data integrity and confidentiality across organizational infrastructure.

Encryption Standards and Protocol Support

The appliance supports industry-standard encryption protocols, including IPsec and SSL VPN technologies. These protocols ensure strong cryptographic protection for data in transit while maintaining compatibility with a wide range of networking devices and systems.

Dynamic Path Selection

The FG-40F incorporates SD-WAN capabilities that allow intelligent routing of traffic based on network conditions. By analyzing latency, jitter, and packet loss, the appliance dynamically selects the most efficient path for data transmission. This ensures optimal application performance and user experience.

Bandwidth Optimization

Through traffic shaping and intelligent load balancing, the FG-40F optimizes bandwidth utilization across multiple WAN links. This is particularly beneficial for organizations with limited internet resources, as it ensures that critical applications receive prioritized bandwidth allocation.

Application-Based Routing Policies

Administrators can define routing policies based on application type, ensuring that mission-critical services such as VoIP, ERP systems, and cloud applications receive stable and high-performance network paths. This enhances operational efficiency and reduces downtime.

Unified Security Architecture

The FG-40F is designed to integrate seamlessly into Fortinet’s Security Fabric, a unified cybersecurity ecosystem that connects multiple security products and services. This integration allows centralized visibility, coordinated threat response, and automated security workflows across the entire network infrastructure.

Centralized Management and Orchestration

The Security Fabric enables centralized management of policies, logs, and configurations. This reduces administrative overhead and ensures consistent security enforcement across multiple network segments and devices.

Low Latency Packet Processing

The SPU-powered architecture ensures that packet processing occurs at extremely low latency, enabling real-time communication applications such as VoIP and video conferencing to function without interruption. This performance optimization is critical for modern cloud-driven environments.

Concurrent Session Handling

The FG-40F is capable of handling a large number of concurrent sessions, making it suitable for environments with multiple users and devices. This ensures stable performance even during peak network usage periods.

Small Business Network Security

For small businesses, the FG-40F serves as a complete security gateway, providing firewall protection, VPN connectivity, and web filtering in a single device. Its ease of deployment and management makes it ideal for organizations without dedicated IT security teams.

Retail and Distributed Environments

Retail networks benefit from the FG-40F’s ability to secure point-of-sale systems, manage guest Wi-Fi access, and protect sensitive customer data. Its compact design makes it suitable for deployment in multiple store locations.

Web-Based Management Console

The FG-40F provides an intuitive web-based management interface that allows administrators to configure policies, monitor traffic, and analyze security events. The interface is designed for ease of use while still offering advanced configuration options.

Security Updates and Threat Intelligence Integration

The FG-40F receives continuous updates to its threat intelligence database, ensuring protection against the latest cyber threats. These updates are delivered through Fortinet’s global security infrastructure.

Cloud-Based Intelligence Services

Cloud integration enhances the appliance’s ability to detect emerging threats by leveraging global telemetry data. This ensures proactive defense against evolving attack vectors.
