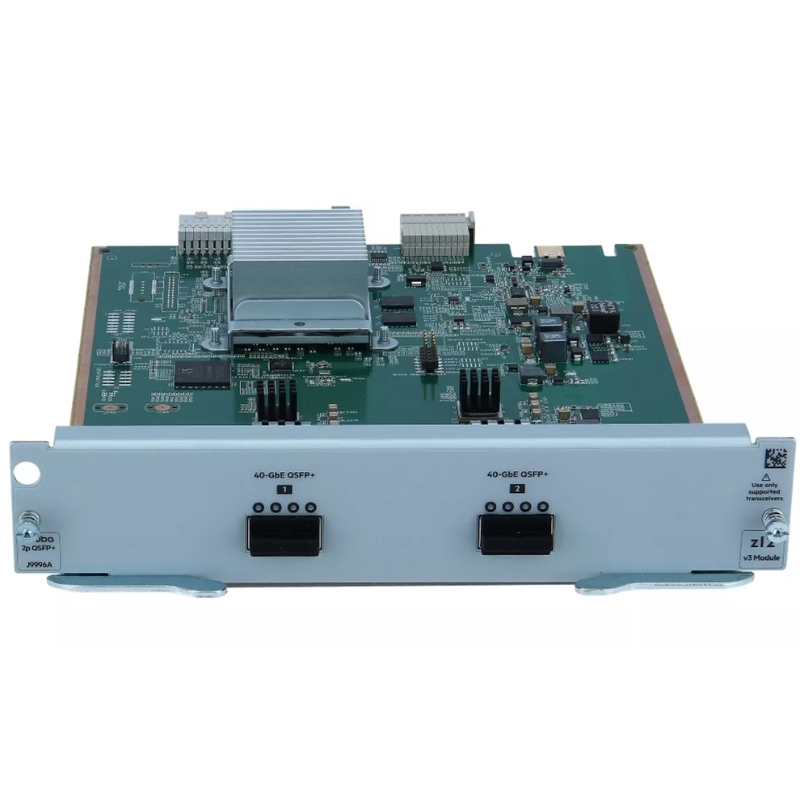

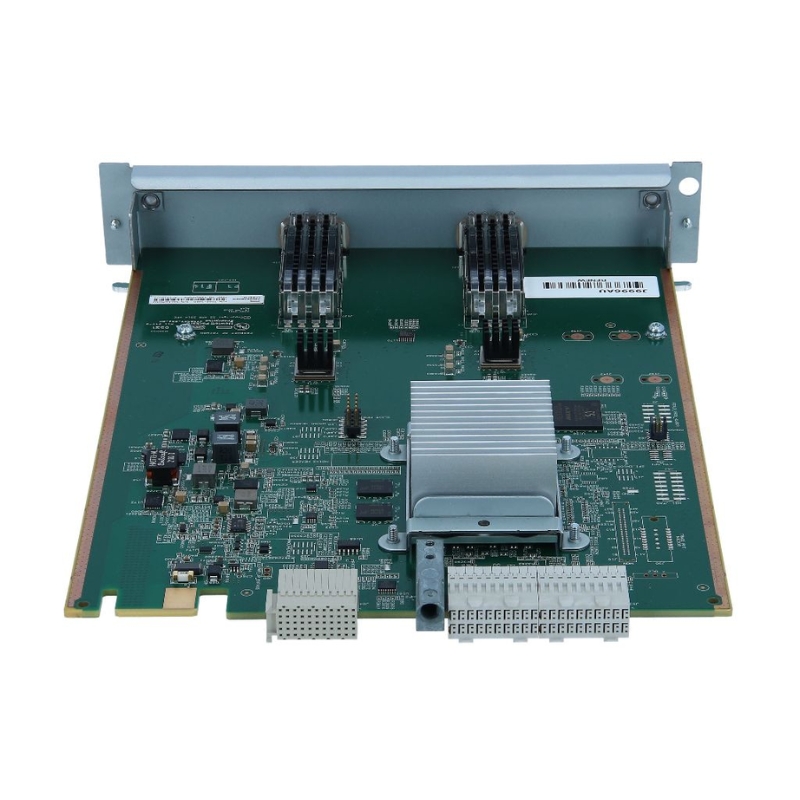

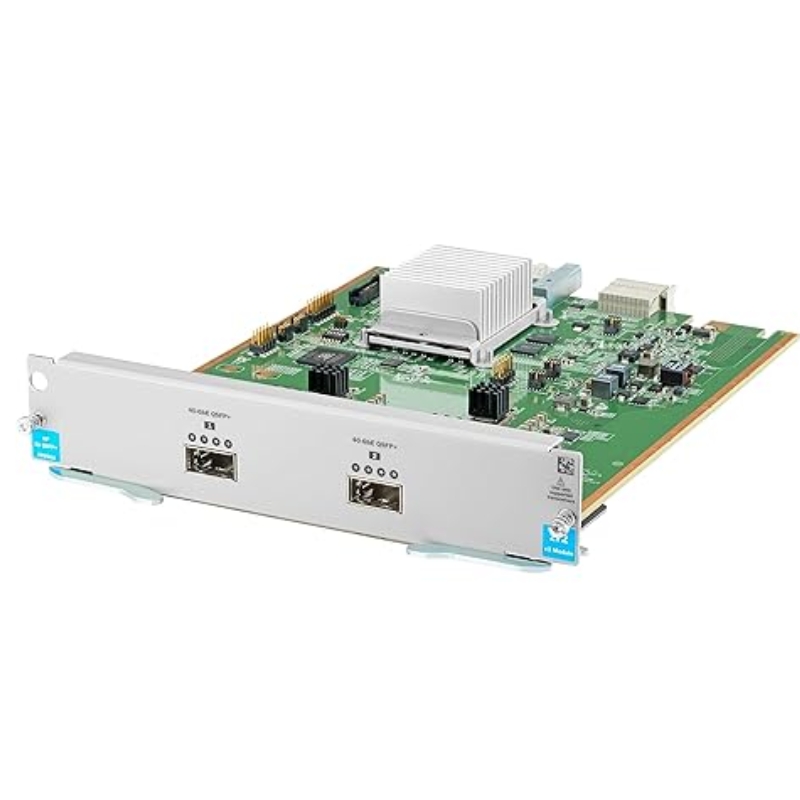

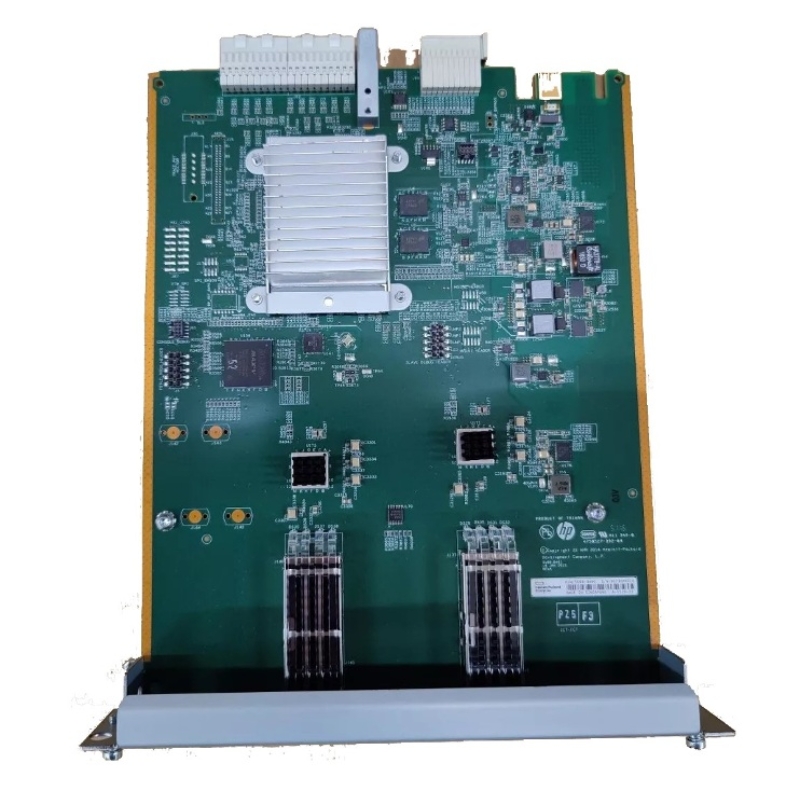

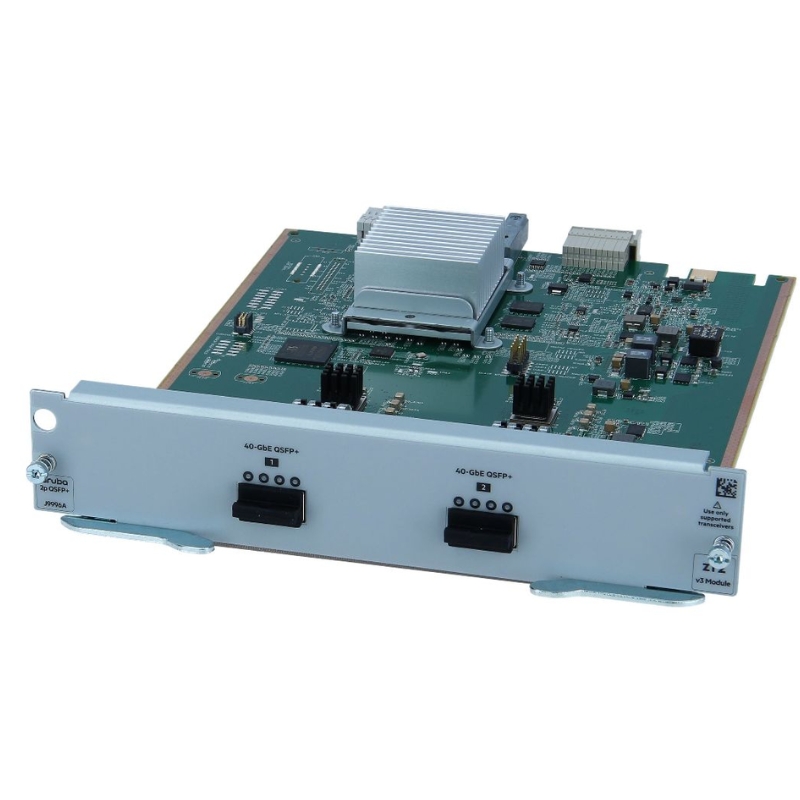

J9996A HPE 40GB Qsfp V3 Zl2 Expansion Module

Overview of the HPE J9996A 2-Ports 40GB Expansion Module

The HPE J9996A 2-Ports 40GB QSFP V3 Zl2 Expansion Module is a high-performance networking component designed to enhance the scalability and throughput of enterprise-grade switches. This expansion module belongs to the Hewlett Packard Enterprise (HPE) family of modular switch accessories, specifically engineered for the Aruba and ProCurve series. By offering dual 40 Gigabit QSFP ports, it provides organizations with the ability to handle massive data flows, reduce latency, and ensure seamless connectivity across demanding workloads. Its role in modern data centers and enterprise networks is critical, as it bridges the gap between traditional gigabit connections and next-generation high-bandwidth infrastructures.

Port Configuration and Bandwidth

The module features two QSFP+ ports, each capable of delivering 40 Gigabit Ethernet speeds. This configuration allows for aggregated throughput of up to 80 Gbps, making it suitable for backbone connections, uplinks, and high-density server clusters. The QSFP standard ensures compatibility with a wide range of transceivers and cables, including direct attach copper (DAC) and active optical cables (AOC), enabling flexible deployment scenarios.

Integration with Zl2 Switch Chassis

Designed for the HPE 5400R Zl2 switch series, the J9996A module integrates seamlessly into the modular chassis architecture. The Zl2 platform supports hot-swappable modules, allowing administrators to add or replace expansion units without disrupting network operations. This modularity ensures that enterprises can scale their infrastructure incrementally, aligning with evolving bandwidth demands.

Performance Optimization

The expansion module leverages advanced switching fabrics within the Zl2 chassis to minimize bottlenecks and optimize packet forwarding. With support for jumbo frames, low-latency switching, and enhanced buffering, it is tailored for environments where high-speed data transfer is essential, such as virtualization clusters, cloud workloads, and storage area networks.

Data Center Connectivity

Within data centers, the HPE J9996A module plays a pivotal role in connecting top-of-rack switches to core aggregation layers. Its 40GbE capability ensures that traffic from multiple servers can be consolidated efficiently, reducing oversubscription and improving application performance. Enterprises deploying virtualization platforms or hyper-converged infrastructure benefit from the module’s ability to sustain high throughput across east-west traffic patterns.

Campus Network Uplinks

In large campus environments, the module provides high-speed uplinks between distribution and core layers. This ensures that bandwidth-intensive applications such as video conferencing, unified communications, and collaborative platforms operate smoothly. The dual-port design allows for redundancy and link aggregation, enhancing reliability and resilience.

Cloud and Hybrid Deployments

Organizations adopting cloud or hybrid IT strategies leverage the J9996A module to establish fast, secure connections between on-premises infrastructure and cloud gateways. Its compatibility with modern optical transceivers makes it suitable for long-distance connections, ensuring that workloads can be migrated or extended without performance degradation.

Compatibility and Ecosystem Integration

The expansion module is primarily designed for the HPE 5400R Zl2 switch series, which is widely recognized for its modularity and enterprise-grade reliability. These switches support a variety of expansion modules, enabling administrators to customize port configurations based on organizational needs. The J9996A complements other modules such as 10GbE SFP+ and PoE expansion units, creating a versatile ecosystem.

Transceiver and Cable Options

The QSFP+ ports support multiple transceiver types, including SR4 for short-range multimode fiber and LR4 for long-range single-mode fiber. This flexibility allows enterprises to deploy the module in diverse environments, from intra-rack connections to inter-building links. Direct attach copper cables provide cost-effective short-distance connectivity, while active optical cables extend reach without compromising performance.

Reliability and Redundancy Features

The J9996A module is engineered with enterprise reliability in mind. Its dual-port configuration supports link aggregation, allowing multiple physical connections to be combined into a single logical link. This not only increases bandwidth but also provides redundancy in case of cable or transceiver failure. Hot-swappable design ensures minimal downtime during maintenance or upgrades.

Resilient Network Topologies

Enterprises can deploy the module within resilient topologies such as spine-leaf architectures, where multiple paths exist between nodes. This design minimizes single points of failure and ensures that traffic can be rerouted seamlessly in case of disruptions. The module’s compatibility with advanced protocols such as LACP and VRRP further strengthens network resilience.

Virtualization and Cloud Workloads

In virtualization environments, where multiple virtual machines share physical resources, network bandwidth becomes a critical factor. The J9996A module ensures that traffic between hypervisors, storage systems, and application servers flows without bottlenecks. Its 40GbE capability supports rapid migration of virtual machines, load balancing, and distributed computing tasks.

Big Data and Analytics

Organizations processing large datasets rely on high-speed interconnects to move information between compute nodes and storage arrays. The expansion module accelerates data transfer, enabling faster analytics and real-time insights. Its ability to handle sustained throughput makes it ideal for industries such as finance, healthcare, and research, where timely data processing is essential.

Multimedia and Collaboration Platforms

Enterprises deploying multimedia applications, including video streaming, conferencing, and digital content creation, benefit from the module’s high bandwidth. It ensures that multiple streams can be transmitted simultaneously without degradation, supporting seamless collaboration across geographically dispersed teams.

Scalability for Growing Demands

As organizations continue to adopt emerging technologies such as artificial intelligence, machine learning, and IoT, network demands will escalate. The J9996A module provides a scalable foundation, allowing enterprises to expand bandwidth incrementally. Its compatibility with evolving QSFP standards ensures that it remains relevant as new transceiver technologies emerge.

Support for Next-Generation Applications

Applications such as augmented reality, virtual reality, and advanced simulation require massive data throughput. The expansion module’s 40GbE capability positions enterprises to support these workloads effectively, ensuring that user experiences remain immersive and responsive.

Installation and Configuration

Installing the J9996A module within a Zl2 chassis is straightforward, thanks to its hot-swappable design. Administrators simply insert the module into an available slot, and the system automatically recognizes and integrates it. Configuration can be performed through command-line interfaces or graphical management tools, allowing for rapid deployment.

Environmental and Power Efficiency

The module is designed with energy efficiency in mind, consuming minimal power relative to its performance output. This aligns with enterprise sustainability goals, reducing operational costs while maintaining high throughput. Its compact design ensures optimal airflow within the chassis, contributing to effective cooling.

Security and Compliance

Security is a critical consideration in modern networks. The module supports advanced security features such as port-based access control, encryption, and traffic monitoring. Compliance with industry standards ensures that enterprises can deploy the module confidently within regulated environments such as healthcare and finance.

10GbE vs 40GbE Modules

While 10GbE modules remain common in many enterprise networks, the J9996A’s 40GbE capability provides a significant performance leap. Organizations with high-density workloads benefit from reduced oversubscription and improved application responsiveness. The choice between 10GbE and 40GbE often depends on workload intensity and future scalability requirements.
