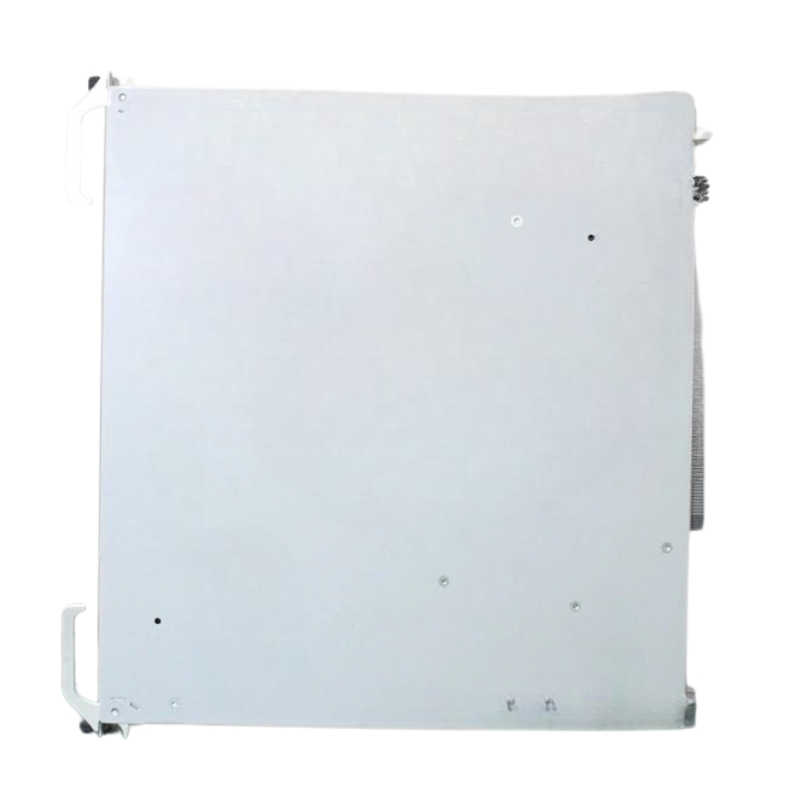

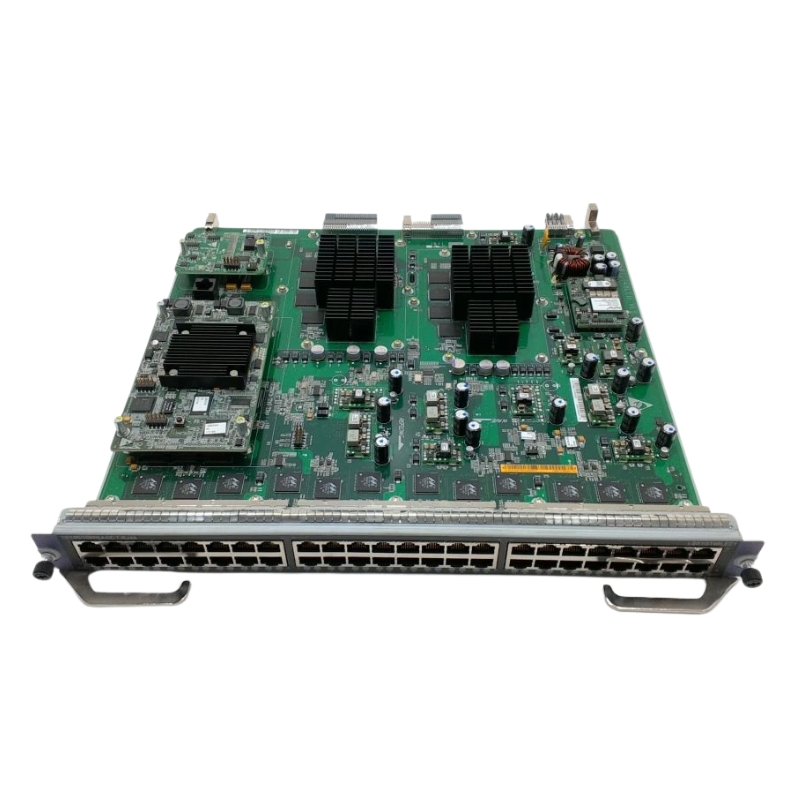

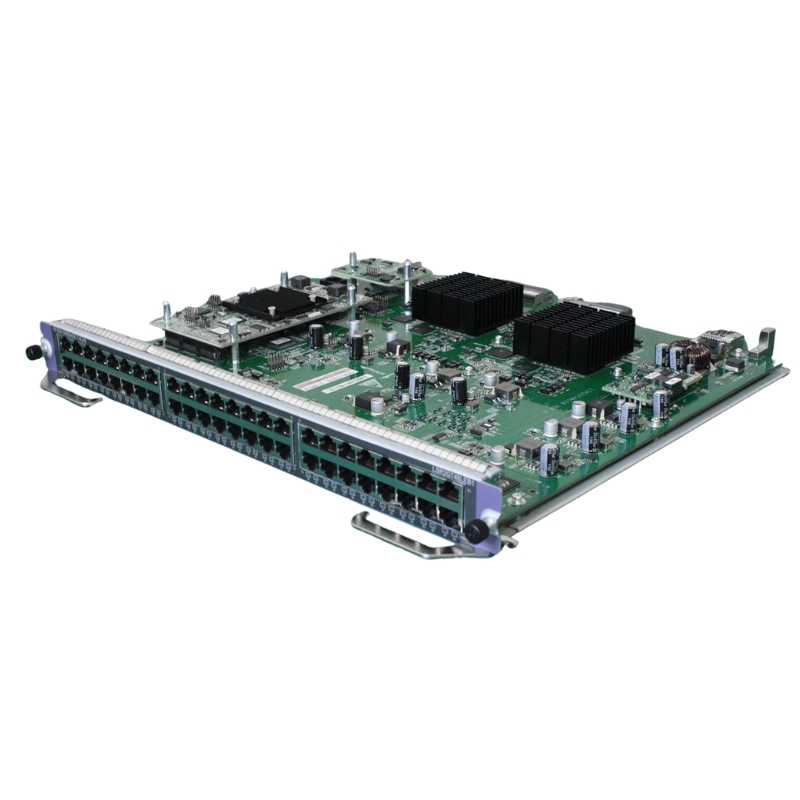

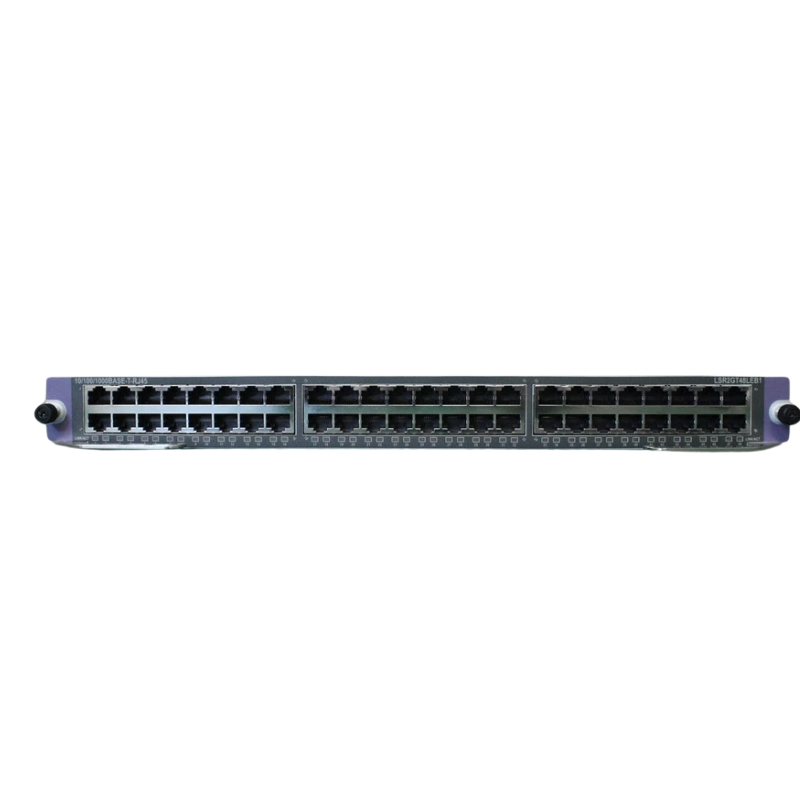

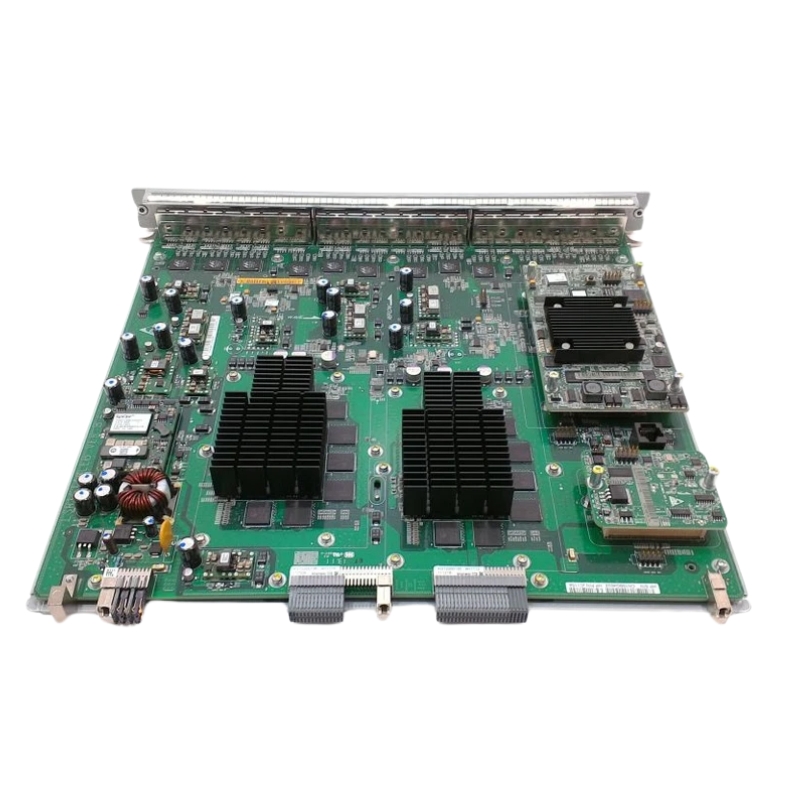

JC115A HPE 9500 LAN 48 Ports Network Switch Module

HPE JC115A 9500 48-Port Gigabit Network Switch Module

The HPE JC115A 9500 LAN RJ-45 10/100/1000 Gigabit Ethernet switch module is a high-performance networking component engineered for enterprise-grade switching environments. Designed to enhance connectivity within HPE 9500 series chassis systems, it delivers stable, scalable, and efficient data transmission across demanding IT infrastructures.

Product Information

• Brand: HPE
• Part Number: JC115A
• Product Type: Network Switching Module

Core Connectivity Capabilities

• Equipped with 48 Gigabit Ethernet RJ-45 ports for extensive network expansion.
• Supports 10/100/1000Base-T Ethernet standards for flexible integration.
• Optimized for twisted pair cabling infrastructure for stable data transfer.
• Ensures consistent performance across high-traffic environments.
• Designed for efficient enterprise switching and routing operations.

Networking Standards and Protocol

• Compliant with IEEE 802.3, 802.3u, 802.3ab, and 802.3z standards.
• Supports advanced Gigabit switching for optimized data flow.
• Provides enhanced forwarding efficiency with high throughput capacity.
• Ideal for enterprise LAN and data center networking environments.

Switching Performance Highlights

• Switching capacity of up to 176 Gbps for high-speed operations.
• Forwarding rate of 131.25 Mpps for efficient packet processing.
• Supports uninterrupted data flow in dense network environments.
• Enhances overall network performance and responsiveness.

Physical and Deployment Characteristics

• Module-based form factor designed for HPE 9500 chassis compatibility.
• 1U optimized structure for efficient rack space usage.
• Supports dual power supply configuration for improved reliability.
• Designed for continuous enterprise-level operation.

Environmental and Operational Conditions

• Operating temperature range: 0°C to 40°C (32°F to 104°F).
• Built for stable performance in controlled data center environments.
• Engineered for long-term durability in enterprise networks.

HPE JC115A 9500 LAN RJ-45 Network Switch Module

The HPE JC115A 9500 LAN RJ-45 10/100/1000 Gig-T LEC 48 Ports Network Switch Module is an enterprise-grade switching solution engineered for high-density wired network environments where reliability, scalability, and consistent performance are essential. As part of the HPE 9500 Series modular switching ecosystem, this 48-port Gigabit Ethernet module is designed to deliver robust Layer 2 and Layer 3 connectivity for enterprise campus networks, data center access layers, and large organizational IT infrastructures.

Built with 10/100/1000 RJ-45 Ethernet interfaces, the module provides flexible compatibility with legacy and modern devices while ensuring stable Gigabit-level performance across all connected endpoints. This makes it a practical choice for organizations transitioning from older Fast Ethernet environments to full Gigabit infrastructure without disrupting operational continuity.

The inclusion of LEC (Local Ethernet Connectivity) architecture within the HPE 9500 framework enables efficient traffic handling, improved switching intelligence, and optimized data flow between network segments. With 48 high-density ports, the module supports large-scale device connectivity including desktops, IP phones, wireless access points, surveillance systems, and networked business equipment.

Enterprise-Class Gigabit Ethernet Switching Architecture

The HPE JC115A 9500 LAN RJ-45 module is built for enterprise networking environments that require predictable performance and high availability. Its Gigabit Ethernet capability ensures that each port delivers up to 1 Gbps throughput, supporting modern business applications that rely on stable and high-speed connectivity.

Enterprise networks are increasingly driven by data-intensive workloads such as cloud applications, virtualization platforms, VoIP communications, and real-time collaboration tools. The switch module provides the foundation required to support these workloads by offering a consistent and scalable switching platform.

Designed for integration into the HPE 9500 chassis-based switching system, the module contributes to a flexible network architecture where organizations can expand capacity based on operational needs without redesigning the entire infrastructure.

48-Port High-Density RJ-45 Connectivity Design

The 48-port configuration of the HPE JC115A module enables organizations to connect a large number of devices within a single switching environment. This high-density design is particularly beneficial for enterprise offices, campus networks, and data center edge deployments where space optimization and centralized connectivity are important.

Each RJ-45 port supports 10/100/1000 Mbps auto-negotiation, allowing seamless integration of legacy devices while ensuring full Gigabit performance for modern endpoints. This flexibility helps organizations maintain operational continuity during infrastructure upgrades.

High-density switching reduces the need for multiple smaller switches, simplifying network architecture and improving manageability. It also helps reduce cabling complexity and centralizes network traffic flow for better performance control.

Flexible Network Integration for Mixed Device Environments

Enterprise networks often include a wide variety of devices with different connectivity requirements. The HPE JC115A 9500 module supports mixed environments where older Fast Ethernet devices coexist with newer Gigabit-enabled systems.

This backward compatibility ensures smooth network transitions and allows organizations to upgrade infrastructure gradually without replacing all connected hardware at once. It is especially useful in large-scale deployments where phased upgrades are necessary for operational stability.

HPE 9500 Series Modular Switching Platform

The HPE 9500 Series is designed as a modular enterprise switching platform that provides flexibility, scalability, and high performance for demanding network environments. The JC115A module integrates into this architecture to enhance port density and connectivity capabilities.

Modular switching allows organizations to customize their network infrastructure by selecting and combining different interface modules based on specific requirements. This approach provides long-term adaptability and investment protection.

By using a chassis-based system, the HPE 9500 Series ensures that switching capacity can be expanded as organizational needs evolve, making it suitable for growing enterprises and large-scale deployments.

Scalable Enterprise Network Expansion

Scalability is a key requirement in modern networking environments where user demand and data traffic continue to increase. The HPE JC115A module supports scalable expansion by adding 48 additional Gigabit ports to the switching infrastructure.

This allows organizations to expand their wired network footprint without replacing existing systems. New departments, floors, or buildings can be integrated into the network using additional modules within the same switching ecosystem.

Scalable design reduces capital expenditure over time and simplifies long-term network planning by allowing incremental infrastructure growth.

Optimized Network Layer Architecture

The HPE 9500 platform supports structured network layer design, enabling organizations to separate access, aggregation, and core functions efficiently. The JC115A module typically operates at the access or aggregation layer, depending on deployment design.

This layered architecture improves network performance by distributing traffic efficiently and reducing bottlenecks. It also enhances security and simplifies troubleshooting by segmenting network functions logically.

Layer 2 and Layer 3 Switching Capabilities

The HPE JC115A 9500 LAN module supports advanced Layer 2 switching functionality and integrates with Layer 3 routing capabilities depending on system configuration. This allows organizations to build intelligent network infrastructures capable of handling complex routing and switching requirements.

Layer 2 switching provides efficient data forwarding within local network segments, ensuring low-latency communication between connected devices. Layer 3 functionality enables routing between different network subnets, supporting segmented enterprise architectures.

This combination allows organizations to build scalable and efficient networks that support both local and distributed communication requirements.

Traffic Management and Network Optimization

Efficient traffic management is essential in enterprise environments where multiple applications compete for bandwidth. The HPE JC115A module contributes to optimized traffic flow through intelligent switching mechanisms.

By prioritizing critical network traffic and managing congestion effectively, the switch helps ensure that business-critical applications receive the necessary bandwidth for consistent performance.

This is particularly important for applications such as VoIP, video conferencing, ERP systems, and cloud-based services that require low latency and stable connectivity.

Quality of Service (QoS) Optimization

Quality of Service mechanisms allow the HPE 9500 Series switch to prioritize network traffic based on application requirements. The JC115A module supports QoS policies that help maintain performance consistency for critical workloads.

By assigning priority levels to different types of traffic, organizations can ensure that time-sensitive applications are not affected by lower-priority network activity.

Enterprise Network Security Features

Security is a fundamental requirement for enterprise network infrastructure. The HPE JC115A 9500 module includes features designed to support secure network operations and controlled access environments.

As cyber threats continue to evolve, organizations require networking equipment that supports access control, segmentation, and monitoring capabilities. The 9500 Series provides a secure foundation for enterprise communication systems.

By integrating security controls at the switching layer, organizations can reduce vulnerabilities and improve overall network resilience.

Network Segmentation and Access Control

Network segmentation allows organizations to divide their infrastructure into logical sections for improved security and performance. The HPE JC115A module supports segmentation strategies that help isolate traffic between departments, systems, and user groups.

This reduces the risk of unauthorized access and limits the spread of potential network issues. It also helps organizations comply with internal security policies and regulatory requirements.

Access control features ensure that only authorized devices and users can connect to specific network resources, strengthening overall infrastructure protection.

Digital Transformation Initiatives

Organizations undergoing digital transformation require reliable and scalable network infrastructure. The HPE JC115A module supports these initiatives by providing consistent connectivity for cloud applications, virtualization environments, and digital business systems.

As enterprises adopt more data-driven technologies, network performance becomes increasingly important for operational efficiency and user experience.

Enterprise Access Layer Deployment

The module is well-suited for deployment at the access layer of enterprise networks, where end-user devices connect to the broader infrastructure. Its 48-port configuration allows centralized connectivity for large groups of users and devices.

This simplifies network design and improves manageability by consolidating access connections into a single modular switching system.

Network Management and Operational Efficiency

The HPE JC115A 9500 Series module supports centralized network management through integration with HPE switching platforms. This allows administrators to monitor, configure, and optimize network performance efficiently.

Centralized management reduces operational complexity and improves visibility into network activity. IT teams can quickly identify issues and make necessary adjustments to maintain performance.

This improves overall network reliability and helps organizations maintain continuous business operations.

Long-Term Reliability and Performance Stability

The HPE JC115A module is designed for long-term enterprise use, providing stable and consistent performance under varying network loads. Its robust architecture ensures dependable operation in demanding environments.

This reliability is essential for organizations that depend on uninterrupted network connectivity for business-critical systems and communication platforms.

Benefits of HPE JC115A 9500 LAN RJ-45 48-Port Module

The HPE JC115A 9500 LAN RJ-45 10/100/1000 Gig-T LEC 48 Ports Network Switch Module delivers a powerful combination of density, flexibility, and performance for enterprise networking environments. Its modular design allows scalable expansion while maintaining high operational efficiency.

By supporting Gigabit Ethernet connectivity across 48 ports, the module provides the infrastructure needed for modern enterprise applications and large-scale network deployments.

Future-Ready Enterprise Network Infrastructure

As organizations continue to expand their digital operations, the need for scalable and reliable network infrastructure becomes increasingly important. The HPE JC115A module provides a future-ready solution designed to support evolving enterprise requirements.

With its high-density design, Gigabit performance, and modular flexibility, it enables organizations to build resilient and efficient network architectures capable of supporting long-term growth.
