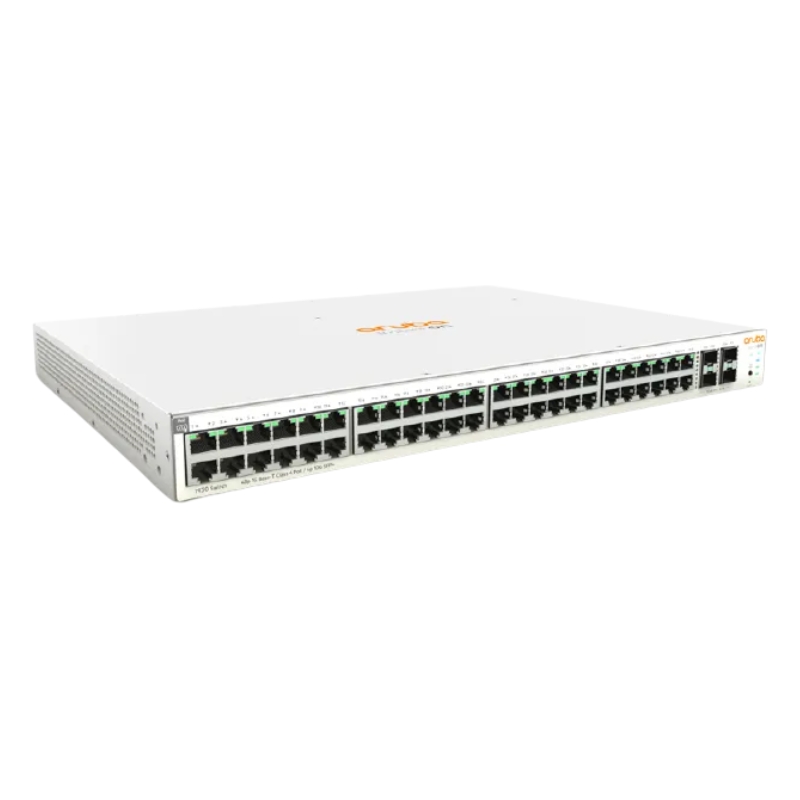

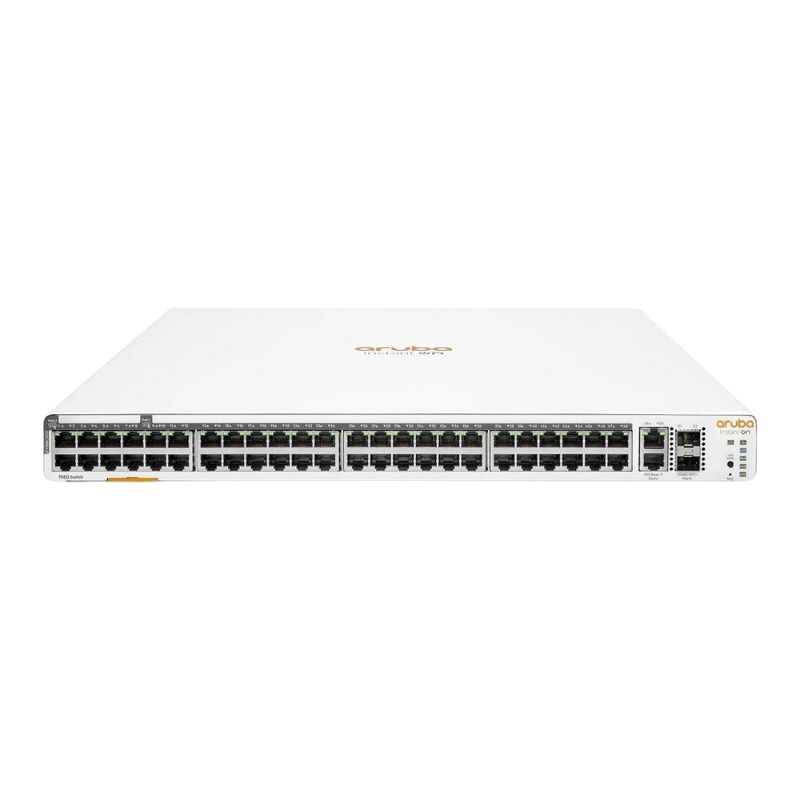

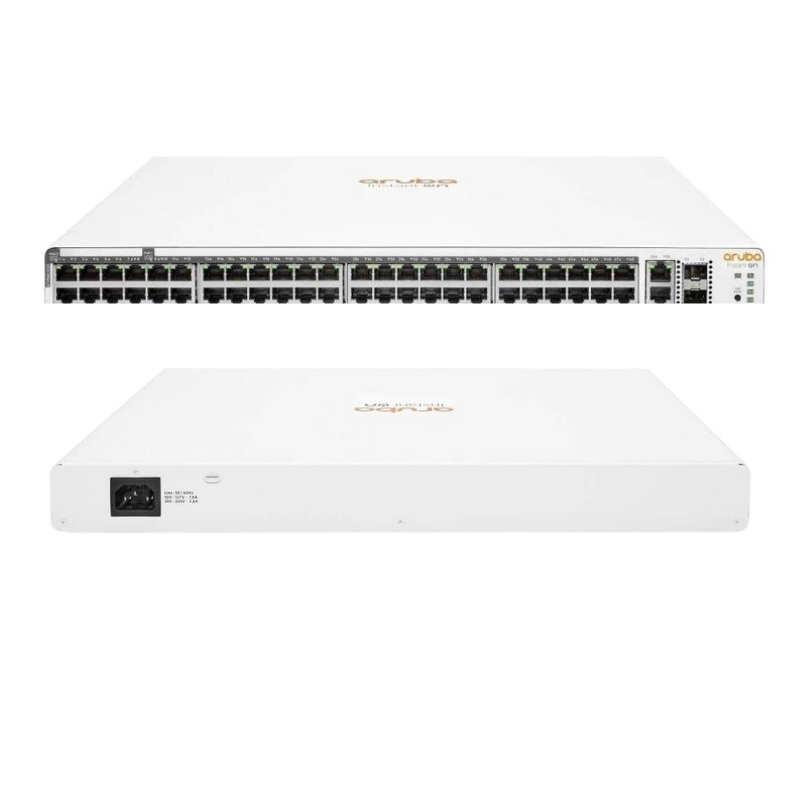

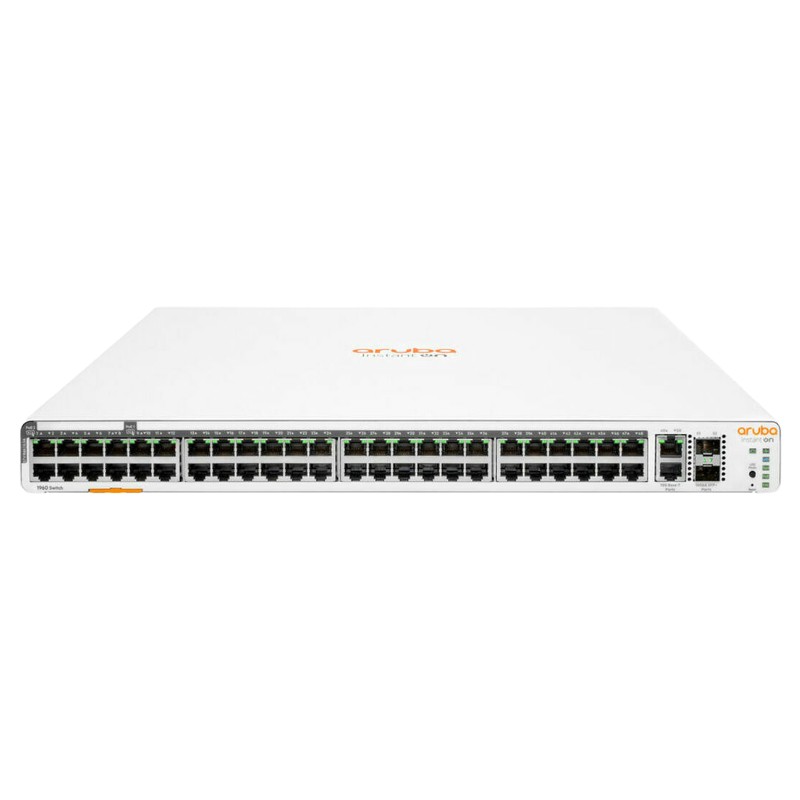

HPE R9Y03-61021 48 Ports SFP Managed Rack-mountable Switch.

HPE R9Y03-61021 Aruba Networking CX 6000: 48-Port PoE+ Managed Switch Overview

The HPE R9Y03-61021 Aruba Networking CX 6000 is a high-performance, rack-mountable switch designed for seamless connectivity and reliable power delivery through Power over Ethernet (PoE). With advanced Layer 2 switching capabilities, this 48-port managed switch is ideal for businesses seeking efficient network solutions.

Device Specifications and Build

• Device Type: Managed Layer 3 Switch – 48 Ports
• Enclosure Type: 1U Rack-Mountable
• Subtype: Gigabit Ethernet
• Power Over Ethernet (PoE): PoE+ (Class 4), delivering a budget of 740W
• Supported Standards: IEEE 802.3, 802.1D, 802.1Q, 802.3af, 802.3at, and more

Network Ports and Connectivity

• 48 x 10/100/1000 Base-T RJ-45 PoE+ Ports (up to 30W each)
• 4 x Gigabit SFP Uplink Ports for high-speed fiber connections
• 1 x USB-C Console for management and configuration
• 1 x USB Type A Host for additional device support

Performance and Efficiency

• Switching Capacity: 176 Gbps
• Throughput: 98.6 Mpps
• Latency: 1.9 µs (1 Gbps), 1.8 µs (10 Gbps)
• Jumbo Frame Support: Up to 9220 bytes for enhanced network efficiency

Advanced Management and Protocol Support

• Layer 2 Switching with RSTP, MSTP, and Rapid PVST+ support
• Comprehensive management options: SNMPv2, SNMPv3, RMON, CLI, and MIB
• Protocols supported: IGMPv2, IGMPv3, MLDv2, and more

Processor and Memory

• Processor: ARM Cortex A9 (1.016 GHz)
• RAM: 8 GB DDR3 SDRAM
• Flash Memory: 16 GB for reliable storage and fast booting

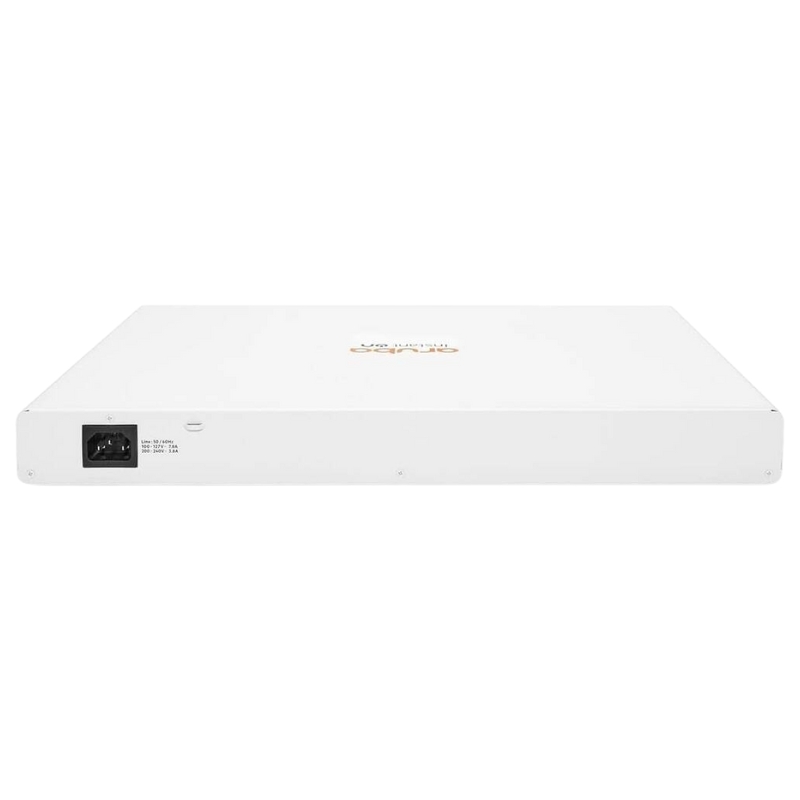

Power and Reliability

• Internal power supply ensures stable and efficient operation
• Supports AC 100-127/200-240 V (50/60 Hz)
• Designed for high availability and minimal downtime

HPE R9Y03-61021 6200 Series Overview

The HPE R9Y03-61021 6200 Series 48 Ports SFP Managed Layer 3 1U Rack-mountable Gigabit Ethernet Switch is a high-performance networking solution designed for businesses that demand advanced capabilities, scalability, and reliability. Featuring 48 SFP ports, this managed Layer 3 switch provides powerful switching capacity, enhanced security features, and comprehensive management options, making it an ideal choice for enterprise and data center environments.

Key Features of the HPE 6200 Series Switch

The HPE 6200 Series switch is engineered to deliver top-notch performance and seamless connectivity in high-demand networking environments. Some of the key features include:

• 48 SFP Ports: Enables high-density fiber connectivity for faster data transfer and scalability.
• Layer 3 Routing: Offers advanced routing capabilities, supporting both static and dynamic routing protocols.
• 1U Rack-Mountable Design: Saves space while offering easy integration into standard server racks.
• Comprehensive Management Options: Includes a web-based interface, CLI (Command-Line Interface), and SNMP support for flexible management.
• Advanced Security Features: Provides robust network security with features like ACLs (Access Control Lists), port security, and 802.1X authentication.
• High-Performance Switching: Supports wire-speed switching for optimized network traffic.

Technical Specifications

The technical specifications of the HPE R9Y03-61021 6200 Series switch highlight its powerful hardware and software capabilities. These specifications ensure reliable and high-speed connectivity across multiple network segments.

Port and Connectivity Specifications

• Ports: 48 x SFP (fiber) ports
• Switching Capacity: Up to 176 Gbps
• Forwarding Rate: Up to 130 Mpps (Million packets per second)
• Stacking Support: Allows multiple switches to be stacked for simplified management and increased scalability.
• Form Factor: 1U rack-mountable

Power and Environmental Specifications

• Power Supply: Redundant power options available
• Power Consumption: Energy-efficient operation with low power consumption
• Operating Temperature: 0°C to 45°C (32°F to 113°F)
• Humidity Range: 10% to 90% non-condensing

Advanced Networking Capabilities

The HPE 6200 Series switch is built with advanced networking capabilities to ensure optimal performance in complex environments.

Layer 3 Functionality

This switch supports full Layer 3 functionality, including static and dynamic routing protocols such as OSPF, RIP, and BGP. Layer 3 routing allows for efficient traffic management across different network segments, reducing latency and improving overall network performance.

QoS (Quality of Service)

Quality of Service (QoS) features ensure that critical applications receive the bandwidth they need. The HPE 6200 Series switch supports advanced QoS configurations, enabling traffic prioritization based on application, port, or user-defined policies.

High Availability and Redundancy

The switch offers multiple high-availability features, such as link aggregation, redundant power supplies, and fast failover support, to ensure maximum uptime and reliability for business-critical applications.

Security Features

Security is a top priority for modern networks, and the HPE R9Y03-61021 6200 Series switch provides a comprehensive suite of security features.

Access Control Lists (ACLs)

ACLs allow network administrators to define and enforce security policies at the port level, blocking unauthorized access and mitigating potential threats.

802.1X Authentication

The switch supports 802.1X network access control, ensuring that only authenticated devices can connect to the network.

Port Security

Port security features protect against MAC address spoofing and other attacks by limiting the number of MAC addresses that can be learned on a port.

Management and Monitoring

The HPE 6200 Series switch offers flexible management options, enabling network administrators to monitor and control the network effectively.

Web-Based Interface

The switch includes an intuitive web-based interface for easy configuration and management, making it accessible even to users with limited networking experience.

Command-Line Interface (CLI)

For advanced users, the CLI provides powerful configuration options and access to detailed diagnostics and monitoring tools.

SNMP Support

Simple Network Management Protocol (SNMP) support allows integration with third-party network management systems for comprehensive monitoring and reporting.

Use Cases and Applications

The HPE R9Y03-61021 6200 Series switch is suitable for a wide range of applications across various industries.

Enterprise Networks

In enterprise environments, the switch provides reliable and high-performance connectivity for large-scale networks, supporting hundreds of users and multiple VLANs.

Data Centers

The switch is an excellent choice for data centers that require high-density fiber connectivity and advanced Layer 3 routing capabilities to manage complex traffic patterns.

Educational Institutions

Schools and universities can benefit from the switch’s scalability and security features, ensuring secure and efficient access to educational resources.

Service Providers

Service providers can use the HPE 6200 Series switch to deliver reliable and high-speed connectivity to their customers while maintaining robust network security and management capabilities.

Benefits of the HPE R9Y03-61021 6200 Series Switch

The HPE 6200 Series switch offers numerous benefits that enhance network performance and simplify management.

Scalability

The 48 SFP ports provide ample capacity for growing networks, allowing businesses to scale their infrastructure as needed.

Reliability

High-availability features and redundant power options ensure that the switch remains operational even in the event of hardware failures.

Energy Efficiency

The switch is designed for energy-efficient operation, helping businesses reduce their power consumption and lower their environmental footprint.

Comprehensive Security

Advanced security features protect the network from unauthorized access and cyber threats, ensuring the safety of sensitive data.

Comparisons with Similar Switches

When considering the HPE R9Y03-61021 6200 Series switch, it is essential to compare it with similar switches in the market to determine the best fit for your networking needs.

HPE 6200 Series vs. HPE 5400 Series

The HPE 6200 Series switch offers higher port density and Layer 3 routing capabilities, making it a better choice for large-scale networks compared to the HPE 5400 Series.

HPE 6200 Series vs. Cisco Catalyst 9300

While the Cisco Catalyst 9300 series offers advanced features and programmability, the HPE 6200 Series switch provides a more cost-effective solution without sacrificing performance or reliability.

Maintenance and Support

Proper maintenance and support are crucial for ensuring the longevity and performance of the HPE R9Y03-61021 6200 Series switch.

Firmware Updates

Regular firmware updates provide access to new features and security patches, keeping the switch up-to-date and secure.

HPE Support Services

HPE offers a range of support services, including 24/7 technical assistance and on-site support, to help businesses maintain their network infrastructure.
