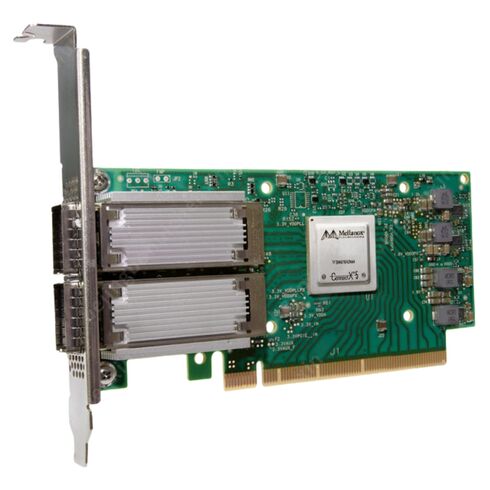

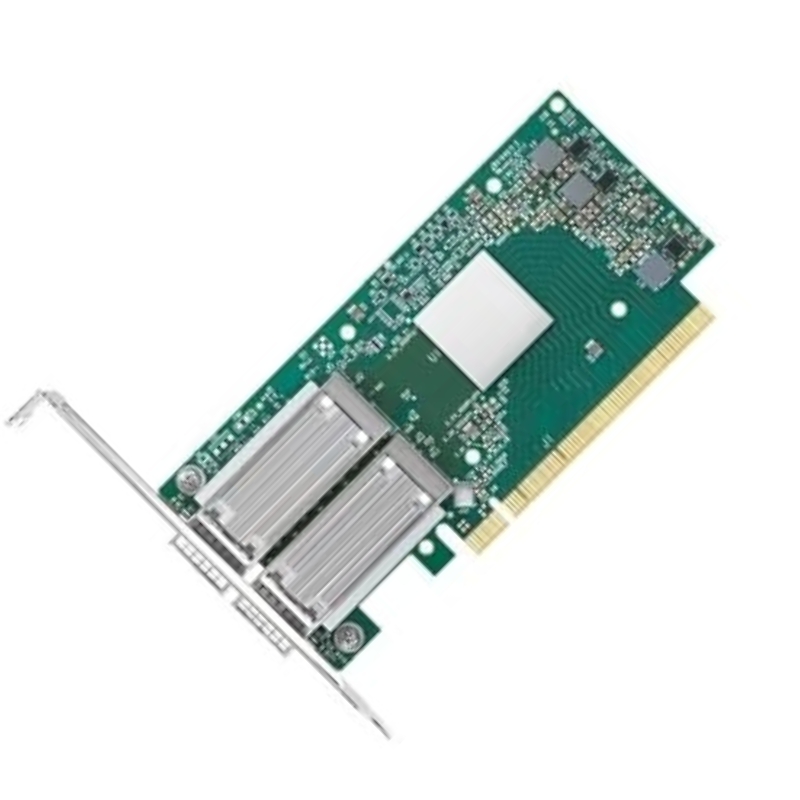

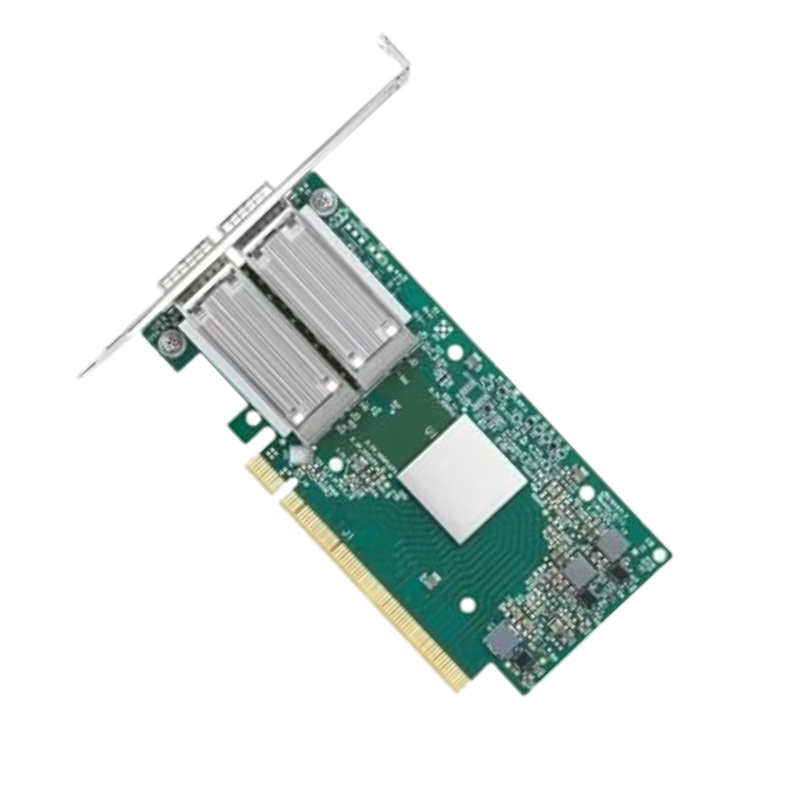

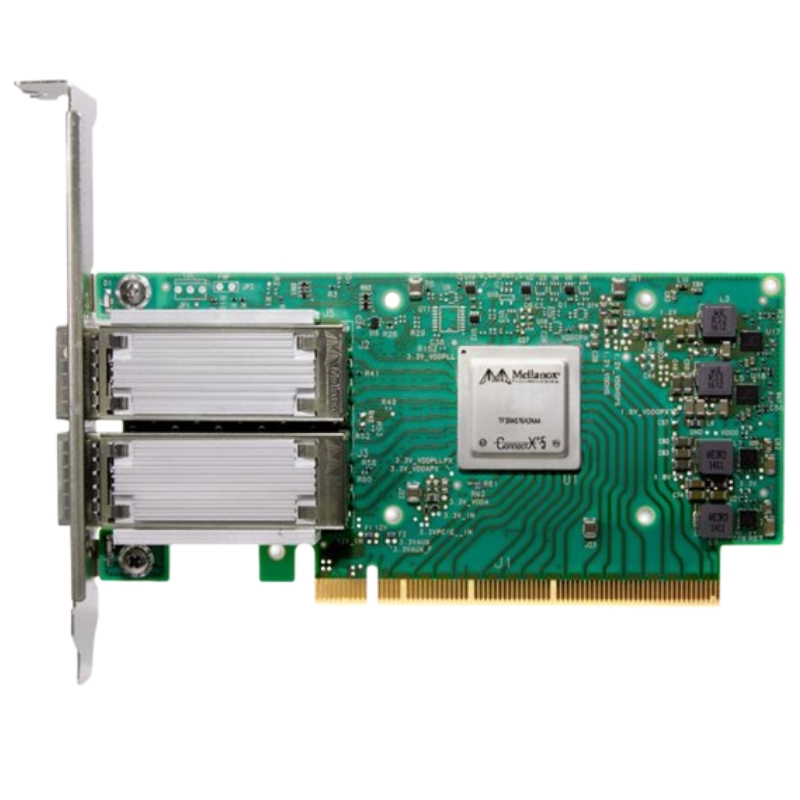

4XC7A08229 Lenovo Connectx-5 EX 25/40GBE 2-Port Adapter

Product Overview of Lenovo 4XC7A08229 2 Ports Adapter

The Lenovo 4XC7A08229 ConnectX-5 Ex, a top-tier 25/40GBE network adapter designed for high-performance and low-latency networking. Ideal for enterprises and data centers, this device ensures smooth, reliable connections for demanding applications.

General Information

• Manufacturer: Lenovo
• Part Number: 4XC7A08229
• Product Type: Dual-Port Network Adapter

Technical Highlights

• Host Interface: PCI Express 4.0 x16
• Expansion Slot Type: QSFP28
• Card Height: Low-profile design
• Technology Standard: 100GBase-X
• Form Factor: Plug-in Card

Network & Protocol Support

Supported Protocols

• TCP/IP
• UDP/IP
• iSCSI

Link Speed Options

• 10 Gigabit Ethernet
• 25 Gigabit Ethernet
• 40 Gigabit Ethernet

Compliance & Standards

Industry Certifications

• IEEE 802.1q, IEEE 802.1p
• IEEE 802.3ad (LACP), IEEE 802.3ae
• IEEE 802.3ap, IEEE 802.3az
• IEEE 802.3ba, IEEE 802.1ax
• IEEE 802.1qbb, IEEE 802.1qaz
• IEEE 802.1qau, IEEE 802.1qbg
• IEEE 1588v2, IEEE 802.3bj
• IEEE 802.3bm, IEEE 802.3by

Lenovo 4XC7A08229 2-Port Low-Latency Adapter

High-Performance Dual-Port Networking Architecture

The Lenovo 4XC7A08229 ConnectX-5 EX 25/40GbE 2-Port Low-Latency Adapter is engineered for enterprise-grade data centers requiring ultra-fast throughput, deterministic latency, and high scalability across virtualized and bare-metal environments. Built on advanced Mellanox ConnectX-5 technology, this adapter delivers dual-port high-speed connectivity supporting both 25GbE and 40GbE Ethernet standards, enabling flexible deployment across modern hybrid infrastructures. It is designed to address the increasing demand for high-bandwidth east-west traffic, distributed computing workloads, and latency-sensitive applications such as financial trading systems, artificial intelligence pipelines, and large-scale cloud platforms.

Core Design Philosophy and Performance Optimization

The adapter is optimized for environments where microsecond-level latency and high packet processing efficiency are critical. By integrating hardware offload engines, the ConnectX-5 EX reduces CPU overhead significantly while maintaining predictable network performance under heavy load. Its architecture ensures that packet processing is handled directly on the NIC, allowing host CPUs to focus on application-level tasks rather than network stack processing.

The dual-port design enhances redundancy and bandwidth aggregation, making it suitable for mission-critical workloads. Each port operates independently and can be configured for load balancing or failover scenarios depending on network topology requirements.

PCI Express Integration

PCIe Gen3/Gen4 Compatibility and Bandwidth Scaling

The Lenovo 4XC7A08229 ConnectX-5 EX adapter utilizes a high-speed PCI Express interface designed to maximize data throughput between the host system and the network controller. With support for PCIe Gen3 x8 or higher configurations, the adapter ensures minimal bottlenecks even when operating at full 40GbE line rate. This tight integration with the system bus allows efficient data movement for high-performance workloads such as distributed storage systems and parallel computing clusters.

Efficient Lane Utilization and Data Path Optimization

The internal architecture of the adapter leverages optimized lane utilization strategies that ensure balanced data flow across PCIe channels. This reduces congestion and improves overall throughput consistency. The design also supports advanced buffering mechanisms that smooth out traffic bursts, maintaining stability in high-traffic environments.

Thermal Efficiency and Heat Dissipation Design

Thermal management is a critical aspect of high-performance networking adapters. The ConnectX-5 EX incorporates low-power silicon design principles and optimized thermal dissipation pathways that reduce heat accumulation under sustained load. This ensures stable performance in dense server environments where multiple high-speed adapters may operate simultaneously.

25GbE and 40GbE Networking Capabilities

Dual-Speed Ethernet Flexibility

The adapter supports both 25 Gigabit Ethernet and 40 Gigabit Ethernet modes, providing flexibility for different infrastructure requirements. This dual-speed capability enables seamless integration into evolving data center architectures, allowing organizations to scale bandwidth incrementally without replacing hardware components. The ability to switch between speeds enhances investment protection and simplifies migration strategies.

High-Throughput

At the core of the adapter lies a high-performance packet processing engine capable of handling millions of packets per second. This engine is optimized for both small and large packet sizes, ensuring consistent throughput across mixed workload environments. The hardware acceleration reduces reliance on software-based packet processing, resulting in lower latency and higher efficiency.

RDMA over Converged Ethernet (RoCE)

The 4XC7A08229 ConnectX-5 EX provides full support for RDMA over Converged Ethernet (RoCE), enabling direct memory access between servers without involving CPU intervention. This significantly reduces latency and increases bandwidth efficiency in distributed systems. RoCE is particularly beneficial for storage replication, high-performance computing clusters, and real-time analytics platforms.

TCP/IP Offload Engine Enhancements

The adapter includes advanced TCP/IP offload capabilities that shift processing tasks such as segmentation, checksum calculation, and packet reassembly from the CPU to the NIC hardware. This results in improved application performance and reduced system overhead, especially in environments with high network concurrency.

Low-Latency Networking Optimization

Kernel Bypass Technology

One of the defining features of the ConnectX-5 EX adapter is its ability to bypass traditional operating system kernel networking stacks using technologies such as RDMA and user-space drivers. This kernel bypass mechanism eliminates unnecessary context switching and system calls, dramatically reducing end-to-end latency in communication paths.

Flow Control

The adapter incorporates intelligent packet steering mechanisms that distribute network flows efficiently across processing queues. This ensures optimal utilization of system resources and prevents congestion in high-density traffic environments. Hardware-based flow control also helps maintain packet integrity during peak transmission periods.

Deterministic Latency for Real-Time Applications

Deterministic latency is essential for applications such as algorithmic trading, telecom signaling, and real-time analytics. The ConnectX-5 EX ensures consistent packet delivery times by minimizing jitter through hardware scheduling and optimized buffer management techniques. This predictability enhances application reliability in mission-critical systems.

Virtualization and Multi-Tenant

SR-IOV and Virtual Function Acceleration

The adapter supports Single Root I/O Virtualization (SR-IOV), enabling multiple virtual machines to directly access physical network resources with near-native performance. Each virtual function operates independently, ensuring isolation and security across tenants in virtualized environments.

Network Function Offloading for Virtual Environments

In cloud and virtualization platforms, network performance often becomes a bottleneck. The ConnectX-5 EX mitigates this by offloading key networking functions to hardware, including packet classification, routing decisions, and encryption tasks. This improves scalability and allows higher VM density per physical host.

Multi-Tenant Security Isolation

Security in multi-tenant environments is reinforced through hardware-enforced isolation mechanisms. These ensure that network traffic from one virtual machine cannot interfere with or access data from another, maintaining strict separation between workloads in shared infrastructure.

Data Center Integration and Enterprise Deployment

High-Density Rack Server Compatibility

The Lenovo 4XC7A08229 adapter is optimized for integration into high-density rack servers commonly deployed in modern enterprise data centers. Its compact form factor and low power consumption make it suitable for environments where space and energy efficiency are critical constraints.

Scalable Fabric Architecture

The adapter integrates seamlessly into leaf-spine and fat-tree network topologies, supporting scalable fabric architectures required by hyperscale data centers. Its ability to handle large volumes of east-west traffic makes it ideal for distributed computing environments.

Load Balancing and Traffic Distribution

Advanced load balancing capabilities allow the adapter to distribute network traffic evenly across multiple paths. This improves resilience and ensures that no single link becomes a performance bottleneck. It also enhances fault tolerance in large-scale deployments.

Storage Networking and NVMe over Fabrics Support

High-Speed Storage Connectivity

The ConnectX-5 EX adapter is widely used in storage networking environments where high throughput and low latency are essential. It supports modern storage protocols including NVMe over Fabrics (NVMe-oF), enabling remote storage access with performance characteristics close to local SSDs.

iSCSI and Ethernet Storage Optimization

For traditional storage networks, the adapter provides optimized iSCSI acceleration, reducing CPU load and improving throughput efficiency. This allows enterprises to maintain compatibility with legacy storage systems while benefiting from modern network performance enhancements.

Data Integrity and Loss Prevention Mechanisms

Built-in error correction and packet integrity verification mechanisms ensure that storage traffic remains reliable even under high load conditions. This is critical for maintaining data consistency in distributed storage systems and backup infrastructures.

Cloud Computing and Hyperscale Infrastructure

Elastic Workload Scalability

In cloud computing environments, workloads fluctuate dynamically based on user demand. The ConnectX-5 EX adapter is designed to scale efficiently under elastic workloads, ensuring consistent performance regardless of traffic spikes. Its high bandwidth capacity supports multi-tenant cloud services and large-scale application hosting.

Automation and Orchestration Compatibility

The adapter integrates with modern cloud orchestration frameworks, enabling automated provisioning and configuration of network resources. This simplifies deployment in environments that rely heavily on infrastructure-as-code and automated scaling mechanisms.

Microservices and Container Networking

Microservices architectures require highly efficient inter-service communication. The low-latency capabilities of the ConnectX-5 EX enhance container networking performance, ensuring rapid data exchange between distributed services in Kubernetes and similar platforms.

High-Performance Computing (HPC) Acceleration

Parallel Computing Optimization

High-performance computing clusters depend on ultra-fast interconnects to synchronize distributed computations. The adapter's RDMA capabilities and low-latency design significantly improve MPI (Message Passing Interface) workloads, reducing communication overhead in parallel processing environments.

Bandwidth Aggregation for Cluster Scaling

The dual-port architecture allows bandwidth aggregation strategies that enhance cluster scalability. This ensures that as more nodes are added to a cluster, network performance scales proportionally without degradation.

Security and Hardware-Based Protection Features

Encrypted Traffic Offloading

Security features in the ConnectX-5 EX include hardware-based encryption offloading, which reduces CPU overhead while maintaining secure communication channels. This is particularly useful in environments requiring encrypted data transmission at high speeds.

Secure Boot and Firmware Integrity

The adapter supports secure boot mechanisms that ensure only trusted firmware is executed. This protects against unauthorized modifications and strengthens the overall security posture of the network infrastructure.

Advanced Threat Isolation Mechanisms

Hardware-level isolation features help protect against network-based threats by segregating traffic flows and enforcing strict access control policies at the NIC level. This reduces the attack surface within shared environments.

Power Efficiency

Energy-Efficient Silicon

The ConnectX-5 EX is built with energy efficiency in mind, using optimized silicon architecture to reduce power consumption while maintaining high performance. This makes it suitable for large-scale deployments where power efficiency directly impacts operational costs.

Dynamic Power Scaling Capabilities

The adapter can adjust power usage dynamically based on workload demands. During periods of low network activity, it reduces power consumption, contributing to overall data center energy savings.

Thermal-Aware Performance

Thermal sensors embedded within the adapter allow it to adjust performance parameters based on temperature conditions. This ensures stable operation even in high-density server racks where cooling efficiency may vary.
