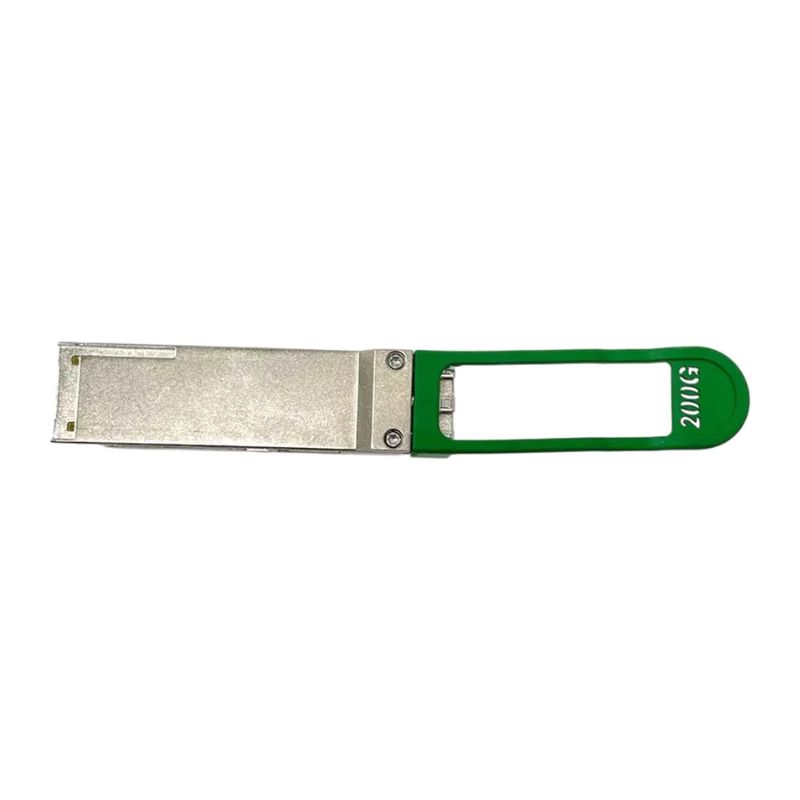

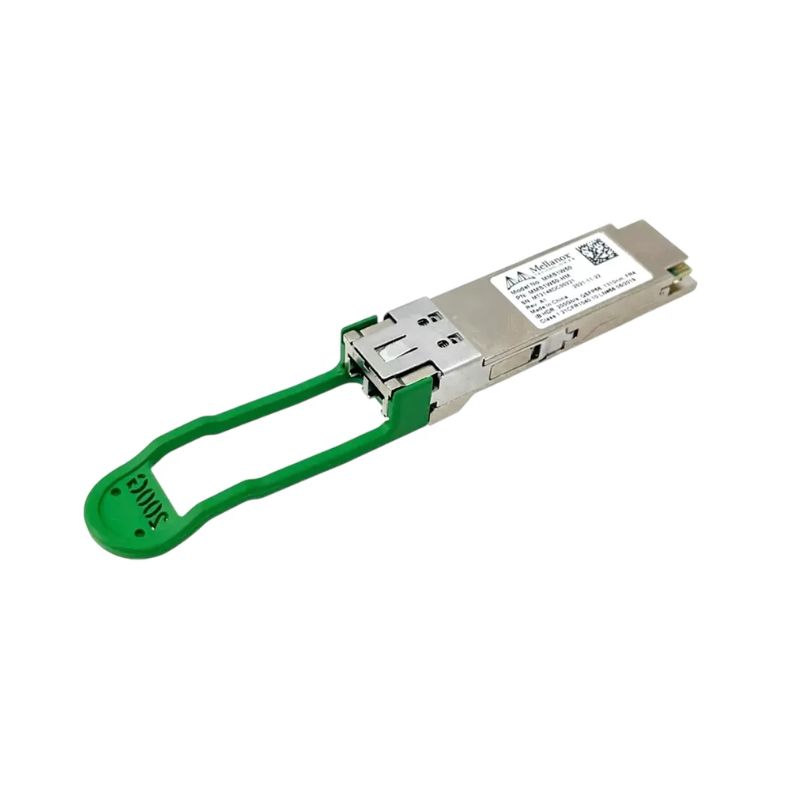

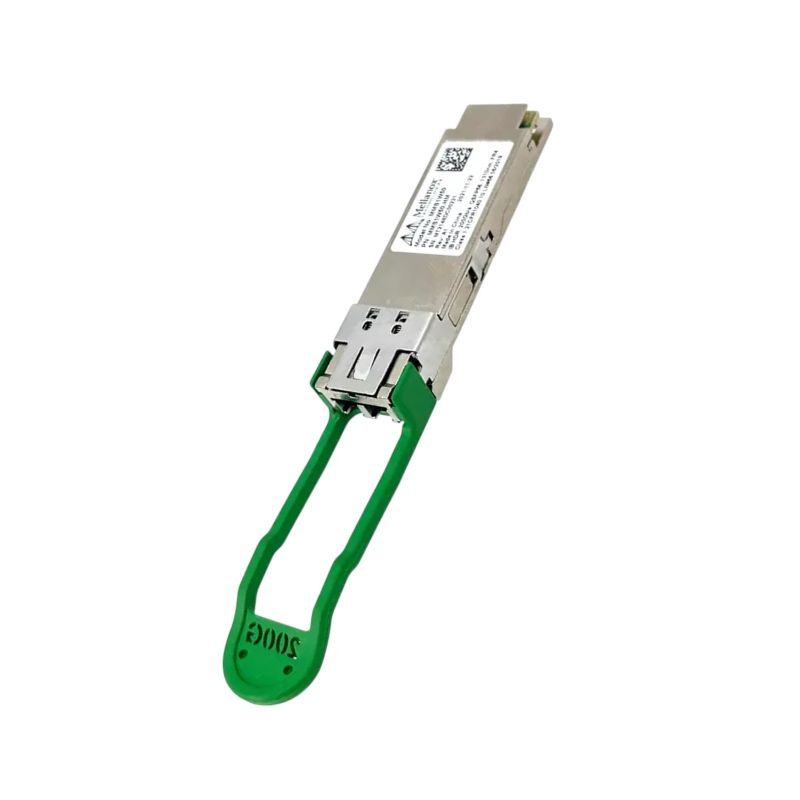

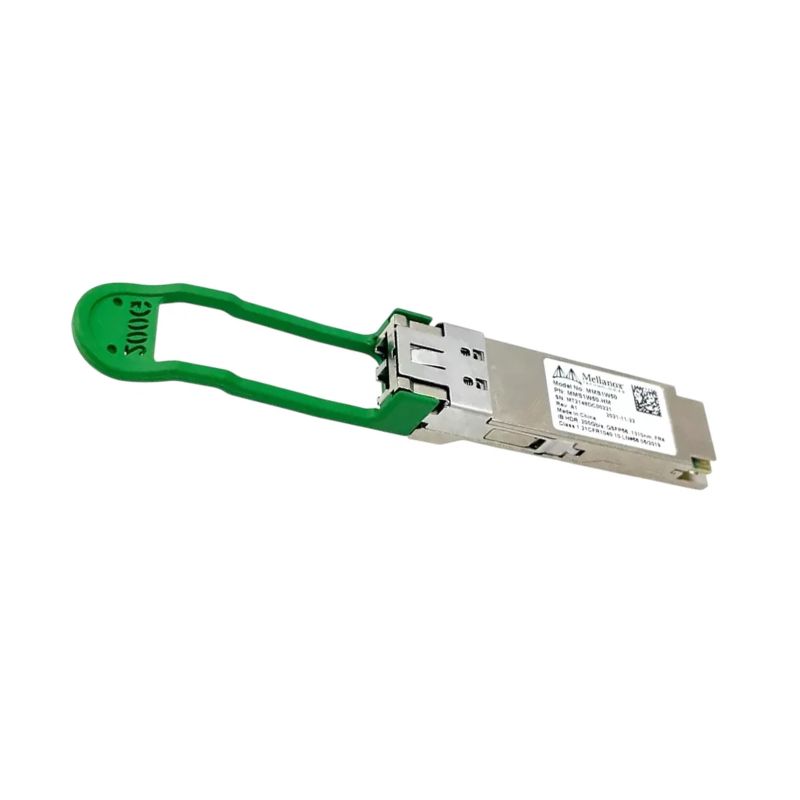

MMS1W50-HM Mellanox 200 Gb/s QSFP56 FR4 Transceiver for 200 GbE LAN

Mellanox MMS1W50-HM QSFP56 Optical Transceiver Overview

The Mellanox MMS1W50-HM 200Gb/s QSFP56 FR4 Optical Transceiver is a high-performance networking module engineered for next-generation 200 Gigabit Ethernet infrastructures and modern data center environments. Designed with an industry-standard hot-pluggable QSFP56 form factor, this optical transceiver delivers exceptional bandwidth, low latency, and reliable long-distance optical connectivity. It is an excellent choice for cloud computing platforms, enterprise networks, hyperscale facilities, storage environments, and high-performance computing (HPC) deployments requiring dependable 200GbE communication.

Featuring advanced PAM4 modulation technology and CWDM optical transmission, the Mellanox MMS1W50-HM supports efficient data transfer across single-mode fiber over distances of up to 2 kilometers. Its low power consumption, intelligent management interface, and enterprise-grade reliability make it a preferred solution for organizations seeking scalable, energy-efficient, and future-ready optical networking.

Product Specifications

• Manufacturer: Mellanox
• Part Number: MMS1W50-HM
• Product Type: QSFP56 Optical Transceiver
• Data Rate: 212.5Gb/s Aggregate Bit Rate

Technical Information

• Ethernet Standard: 200 Gigabit Ethernet
• Optical Technology: FR4 CWDM
• Maximum Distance: Up to 2 km
• Connector Type: Duplex LC UPC
• Electrical Interface: 4 × 50G PAM4 (200GAUI-4)
• Retimed Electrical Interface: 4 × 50Gb/s
• Power Consumption: Maximum 5.5W
• Power Supply: Single 3.3V
• Management Interface: I²C
• Operating Temperature: 0°C to 70°C
• Environmental Compliance: RoHS Compliant
• Form Factor: Hot-Pluggable QSFP56

Optimized for Next-Generation Network Infrastructure

• Cloud data centers
• Enterprise campus networks
• Artificial intelligence infrastructure
• Machine learning clusters
• Storage Area Networks (SAN)
• High-performance computing environments
• Large virtualization platforms
• 200GbE aggregation layers
• Leaf-spine network architecture
• Telecommunication backbone networks

Advantages of Hot-Pluggable Modules

• Quick deployment
• Reduced maintenance time
• No system shutdown required
• Improved service availability
• Supports modular network expansion
• Simplifies equipment upgrades

Benefits of PAM4 Technology

• Higher bandwidth efficiency
• Improved signal performance
• Lower infrastructure costs
• Supports modern Ethernet standards
• Excellent scalability
• Optimized for hyperscale deployments

FR4 Optical Advantages

• Supports long-distance connectivity
• Efficient wavelength multiplexing
• Reduced cabling complexity
• Excellent optical performance
• Reliable high-speed transmission
• Lower infrastructure investment

Fiber Network Benefits

• Low signal loss
• Long transmission reach
• Improved reliability
• Future-proof infrastructure
• Excellent scalability
• Lower maintenance requirements

Energy Efficiency Advantages

• Reduced electrical costs
• Lower cooling demands
• Higher rack efficiency
• Improved sustainability
• Supports green data center initiatives
• Optimized thermal performance

Signal Integrity Benefits

• Stable high-speed transmission
• Reduced bit errors
• Enhanced signal quality
• Reliable Ethernet performance
• Consistent network operation

Connector Features

• Industry-standard LC interface
• Excellent optical alignment
• Secure fiber connection
• Low insertion loss
• Reliable long-term performance
• Easy cable management

200GbE Enterprise Networks

• Enterprise core networks
• Data center aggregation
• Leaf-spine architectures
• Cloud infrastructure
• Campus backbone connectivity
• Server-to-switch links

High-Performance Computing

• AI computing clusters
• Machine learning platforms
• Scientific computing
• Research laboratories
• GPU networking
• High-speed storage connectivity

Mellanox MMS1W50-HM 200Gb/s QSFP56 FR4 Transceiver

The Mellanox MMS1W50-HM is a high-performance optical transceiver designed for next-generation data center networking environments that require reliable, high-bandwidth, and low-latency connectivity. This QSFP56 FR4 optical module delivers 200 Gigabit Ethernet (200GbE) performance while supporting long-distance single-mode fiber communication through an efficient four-channel optical interface. Engineered for demanding cloud computing, artificial intelligence, machine learning, hyperscale infrastructure, and enterprise networking applications, the Mellanox MMS1W50-HM provides a dependable solution for upgrading modern network architectures.

As part of the advanced family of 200Gb/s optical transceiver solutions, the Mellanox MMS1W50-HM combines high-speed electrical signaling with parallel optical transmission technology. The module uses a QSFP56 form factor, allowing network operators to achieve increased port density and improved bandwidth efficiency compared with previous-generation transceiver technologies. It is optimized for use with compatible Mellanox and NVIDIA networking platforms, helping organizations build scalable and future-ready Ethernet infrastructures.

High-Speed 200GbE Optical Networking Technology

The Mellanox MMS1W50-HM QSFP56 FR4 transceiver is developed to address the growing demand for faster network connections in data-intensive environments. With a total data rate of 200Gb/s, this optical module enables rapid movement of large datasets, supporting applications such as distributed storage, high-performance computing clusters, real-time analytics, and artificial intelligence workloads.

The 200GbE capability provides a significant improvement over traditional 100GbE solutions by doubling available bandwidth while maintaining a compact optical module design. This allows data centers to increase network capacity without requiring additional rack space or excessive infrastructure expansion. The QSFP56 interface provides an efficient pathway for organizations transitioning from 100GbE networks to higher-speed Ethernet environments.

Advanced QSFP56 Form Factor Design

The QSFP56 form factor used by the Mellanox MMS1W50-HM represents a modern approach to optical networking hardware. It maintains compatibility with established QSFP-based networking ecosystems while delivering enhanced performance through higher-speed electrical signaling. This compact design enables network equipment manufacturers and data center operators to deploy more high-speed ports within switches, routers, and networking appliances.

The small form factor helps optimize rack space utilization while reducing overall system complexity. By combining high bandwidth with a compact footprint, the QSFP56 FR4 module supports efficient deployment in environments where scalability, power efficiency, and performance are critical considerations.

Key Characteristics of QSFP56 Optical Modules

QSFP56 transceivers are designed to provide several important advantages for modern Ethernet networks. These optical modules support advanced modulation technologies and high-speed transmission standards required by current-generation networking equipment. Their design enables flexible deployment across a wide range of data center applications.

The Mellanox MMS1W50-HM benefits from the QSFP56 architecture by providing reliable optical communication, improved port density, and compatibility with high-performance networking systems. This makes it suitable for organizations requiring consistent performance in mission-critical environments.

200Gb/s QSFP56 FR4 Optical Transmission Capabilities

The FR4 optical configuration of the Mellanox MMS1W50-HM utilizes four optical lanes to deliver a combined 200Gb/s network connection. Each optical channel operates together to provide high-speed data transmission over single-mode fiber infrastructure. This approach improves flexibility and enables efficient connections between switches, servers, storage systems, and other networking devices.

The FR4 specification is widely adopted for high-speed Ethernet applications because it provides a balance between performance, reach, and deployment simplicity. By using parallel optical channels, the module can achieve higher bandwidth while maintaining compatibility with existing fiber cabling environments.

Single-Mode Fiber Connectivity for Data Centers

The Mellanox MMS1W50-HM is designed for single-mode fiber (SMF) connectivity, making it suitable for applications requiring dependable transmission over extended distances compared with multimode fiber solutions. Single-mode fiber technology reduces signal loss and supports consistent optical performance across professional networking environments.

Data centers increasingly rely on single-mode fiber infrastructure to support expanding bandwidth requirements. The Mellanox MMS1W50-HM provides a practical solution for connecting high-speed switches located within and between network zones, helping maintain stable communication paths for demanding workloads.

Reliable Optical Performance for Enterprise Networks

High-speed networks require optical components that deliver consistent operation under continuous workloads. The Mellanox MMS1W50-HM is designed to provide dependable connectivity for enterprise data centers, cloud platforms, and large-scale computing environments where downtime and performance limitations can affect business operations.

The transceiver supports stable optical signal transmission while maintaining efficient power consumption characteristics. This balance between performance and operational efficiency makes it an ideal choice for organizations looking to improve network capacity while managing infrastructure costs.

Applications of 200GbE QSFP56 FR4 Transceivers

The Mellanox MMS1W50-HM 200Gb/s QSFP56 FR4 transceiver is commonly deployed in environments where high bandwidth and low latency are essential. Its capabilities make it suitable for multiple networking applications, including advanced computing platforms and large-scale data processing systems.

Typical applications include high-performance computing clusters, artificial intelligence training environments, cloud data centers, enterprise backbone networks, storage area networks, and large-scale virtualization platforms. These environments benefit from faster data transfer speeds, improved network efficiency, and simplified infrastructure expansion.

Role of Mellanox 200GbE Transceivers in Modern Data Centers

Modern data centers are experiencing rapid growth in network traffic due to increasing adoption of artificial intelligence, cloud services, virtualization, and data analytics. Traditional networking speeds may no longer provide sufficient capacity for these advanced workloads. The Mellanox MMS1W50-HM addresses these challenges by providing a 200GbE optical connection designed for next-generation infrastructure requirements.

High-performance transceivers play an important role in creating efficient network architectures. They enable communication between switching platforms, servers, storage devices, and accelerator systems while maintaining high throughput and low latency. The Mellanox MMS1W50-HM helps organizations achieve improved network scalability while preparing their infrastructure for future bandwidth demands.

Supporting Artificial Intelligence and High-Performance Computing Workloads

Artificial intelligence and machine learning applications require extremely fast communication between computing nodes. GPU clusters and accelerator-based systems generate enormous amounts of data that must move quickly between servers. The Mellanox MMS1W50-HM provides the high-speed optical connectivity required for these intensive workloads.

By supporting 200GbE networking, this transceiver enables efficient communication across distributed computing environments. Faster interconnect speeds help reduce bottlenecks and allow processing systems to operate more effectively, making high-speed optical modules essential components in AI-focused data centers.

Optimized Connectivity for Cloud and Hyperscale Environments

Cloud service providers and hyperscale data centers require networking solutions that can support thousands of connected systems while maintaining predictable performance. The Mellanox MMS1W50-HM provides the bandwidth capacity needed for large-scale deployments where network efficiency directly impacts service reliability.

Its compact QSFP56 design allows high-density installation within modern switching platforms. This enables operators to increase network throughput without dramatically increasing physical infrastructure requirements.

Mellanox MMS1W50-HM Compatibility and Deployment Considerations

The Mellanox MMS1W50-HM is designed for integration with compatible networking hardware that supports QSFP56 optical interfaces. Proper compatibility between transceiver modules, switches, routers, and fiber infrastructure is essential to achieving optimal network performance.

Before deployment, network administrators should verify supported Ethernet standards, optical specifications, firmware compatibility, and system requirements. Correct installation ensures reliable operation and helps maximize the benefits of high-speed 200GbE connectivity.

Efficient Network Upgrades with QSFP56 Technology

For organizations upgrading existing networks, QSFP56 transceivers provide a practical migration path toward higher bandwidth. The Mellanox MMS1W50-HM enables businesses to increase network capacity while utilizing modern switch platforms designed for high-speed Ethernet communication.

This approach helps reduce infrastructure limitations and supports future expansion. As applications continue to generate larger volumes of data, upgrading optical connectivity becomes an important step in maintaining competitive network performance.

Enterprise-Grade Optical Networking Solution

The Mellanox MMS1W50-HM represents a professional-grade optical networking solution built for demanding environments. Its combination of 200Gb/s bandwidth, QSFP56 compatibility, and FR4 optical technology makes it a valuable component for advanced network deployments.

Whether used in enterprise data centers, research facilities, cloud environments, or high-performance computing installations, this transceiver provides the speed and reliability required for modern digital infrastructure.
