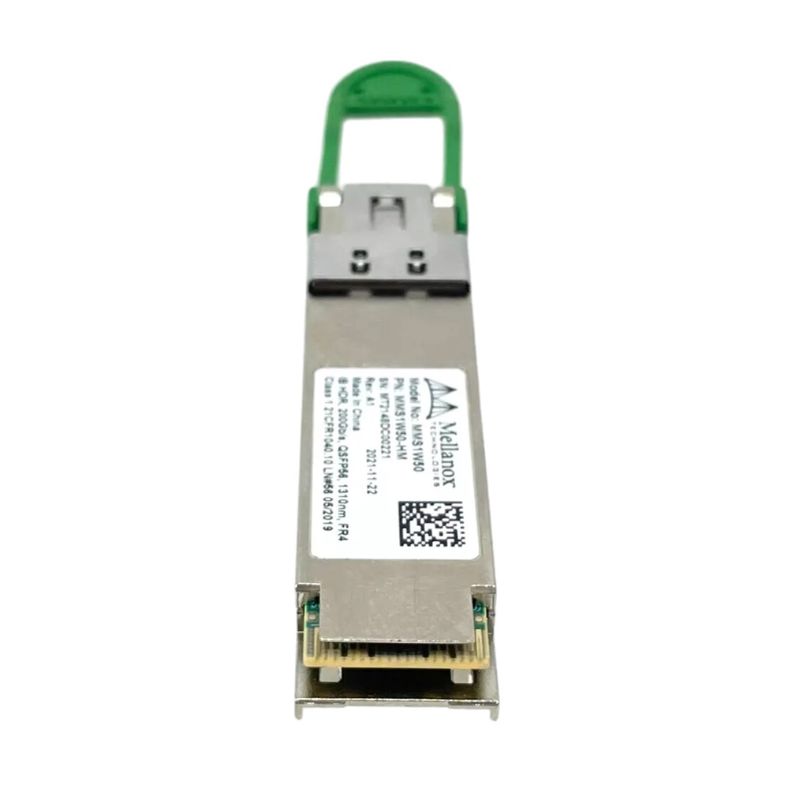

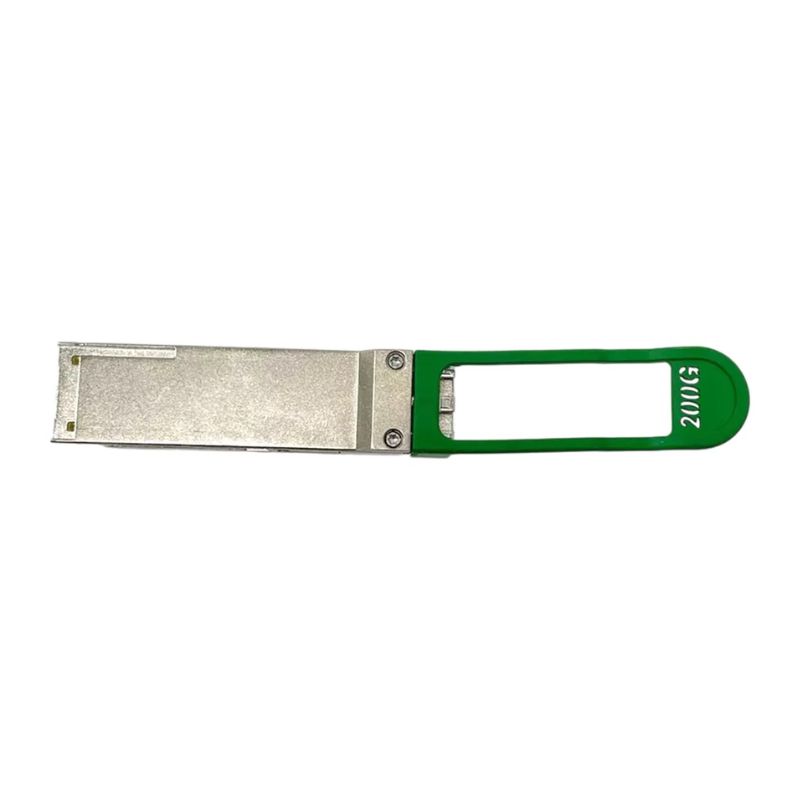

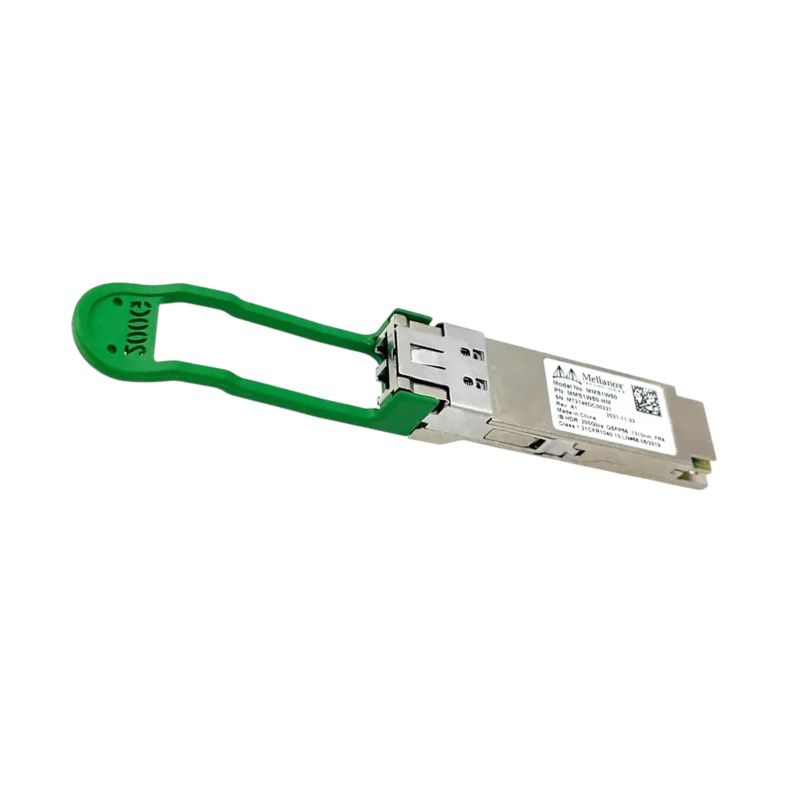

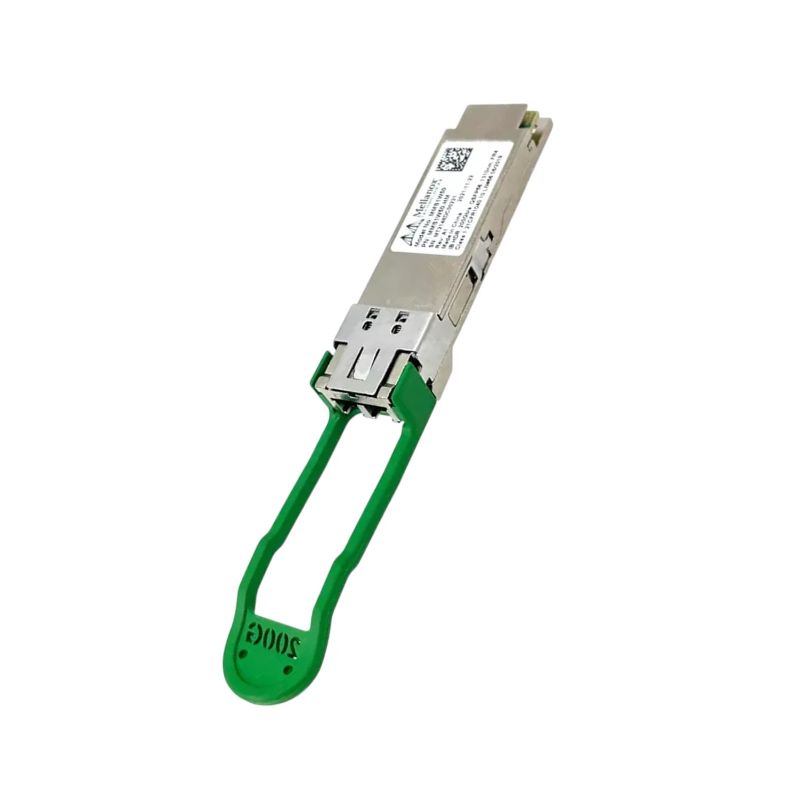

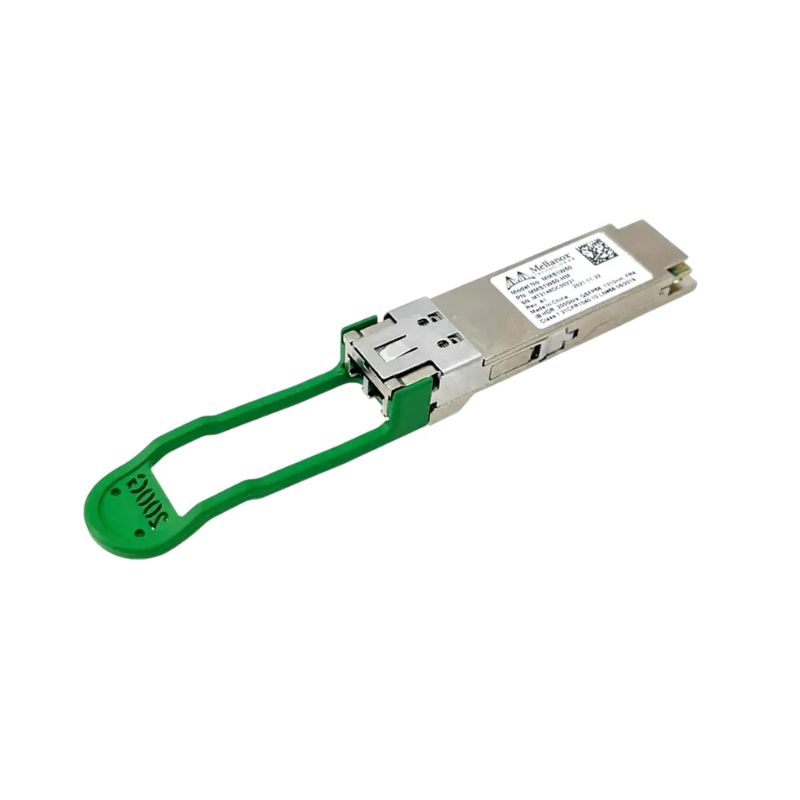

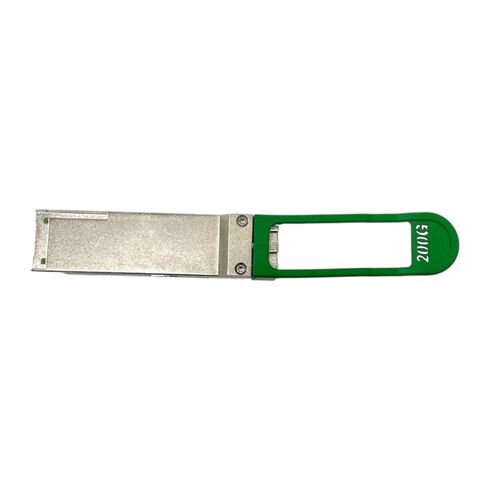

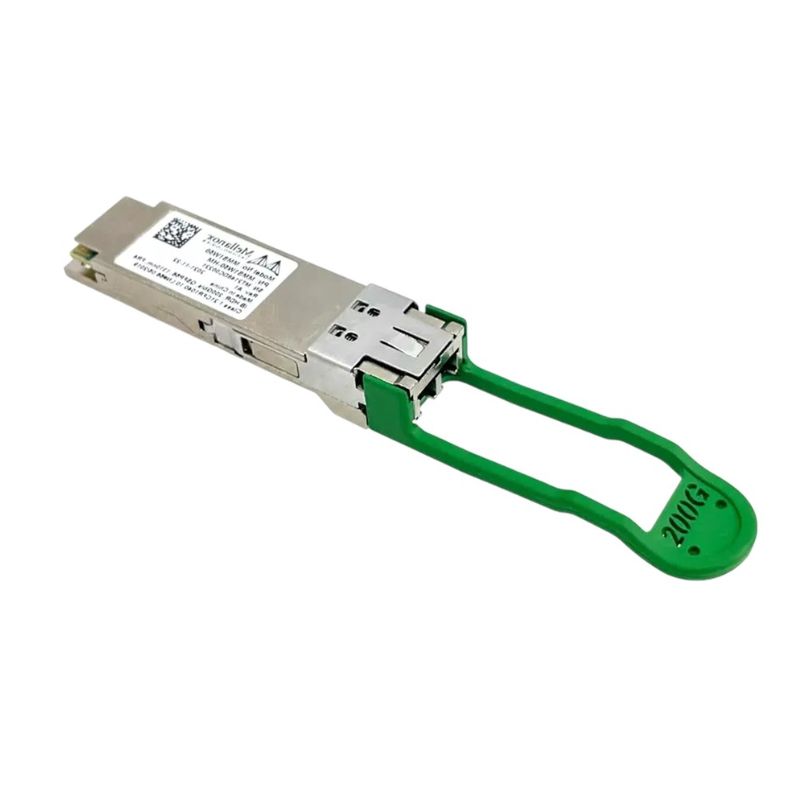

MMS1W50-HM Mellanox 200 Gb/s QSFP56 FR4 Transceiver for 200 GbE LAN

Mellanox MMS1W50-HM Optical Transceiver Overview

The Mellanox MMS1W50-HM 200Gb/s QSFP56 FR4 Optical Transceiver is a high-performance networking module engineered to deliver dependable 200 Gigabit Ethernet connectivity for modern enterprise, cloud, hyperscale, and high-performance computing environments. Designed with a compact QSFP56 form factor, this hot-swappable optical transceiver provides exceptional bandwidth, low latency, and reliable long-distance optical transmission across single-mode fiber.

Supporting an aggregate data rate of up to 212.5Gb/s, the MMS1W50-HM enables organizations to build scalable, high-speed infrastructures while minimizing network congestion. Its advanced PAM4 modulation technology, efficient power consumption, and robust optical design make it an excellent choice for demanding data center applications requiring consistent performance and maximum network availability.

General Information

• Manufacturer: Mellanox
• Part Number: MMS1W50-HM
• Product Type: QSFP56 FR4 Optical Transceiver
• Ethernet Speed: 200 Gigabit Ethernet
• Connector Type: Duplex LC UPC
• Fiber Type: Single-Mode Fiber (OS2)
• Maximum Transmission Distance: Up to 2 km

Optimized for High-Bandwidth Applications

• 200Gb Ethernet LAN connectivity
• Cloud infrastructure deployments
• Enterprise core networking
• Large-scale virtualization
• High-performance computing (HPC)
• Storage area networks
• Artificial intelligence clusters
• Data center interconnects

Benefits of QSFP56 Technology

• Easy installation
• Supports live replacement
• Reduced maintenance windows
• High switch port density
• Space-efficient design
• Ideal for modern data centers

Bandwidth Advantages

• Higher throughput
• Lower network bottlenecks
• Improved application responsiveness
• Enhanced workload distribution
• Efficient data center performance

Advantages of PAM4 Signaling

• Higher data capacity
• Efficient signal transmission
• Reduced cabling complexity
• Supports next-generation Ethernet
• Excellent signal integrity

Benefits of CWDM Technology

• Efficient wavelength utilization
• Stable optical communication
• Reduced fiber requirements
• Reliable long-distance transmission
• Enhanced network scalability

Ideal Deployment Scenarios

• Campus networking
• Enterprise backbone connections
• Building-to-building fiber links
• Data center interconnect
• Cloud infrastructure

Performance Benefits

• Reduced signal degradation
• Lower transmission errors
• Improved stability
• Higher network reliability
• Consistent Ethernet performance

Power Efficiency Benefits

• Reduced electricity usage
• Lower cooling requirements
• Improved rack efficiency
• Supports high-density installations
• Lower total operating cost

Environmental Features

• Commercial operating temperature
• Reliable thermal performance
• Stable long-term operation
• Designed for continuous workloads

Power Supply Advantages

• Industry-standard voltage
• Reliable power delivery
• Simplified hardware compatibility
• Efficient operation

Connector Benefits

• Industry-standard LC interface
• Simple cable installation
• Reliable optical performance
• Excellent signal quality
• Supports single-mode fiber

Environmental Advantages

• RoHS compliant
• Reduced hazardous materials
• Supports green IT initiatives
• Environmentally responsible manufacturing

Mellanox MMS1W50-HM 200Gb/s QSFP56 FR4 Transceiver

The Mellanox MMS1W50-HM 200 Gb/s QSFP56 FR4 Transceiver represents a high-performance optical networking solution designed for modern data center environments requiring reliable, efficient, and high-speed connectivity. This advanced optical module belongs to the QSFP56 transceiver category and is engineered to support 200 Gigabit Ethernet (200GbE) LAN applications. It provides a powerful combination of high bandwidth capacity, low power consumption, compact form factor, and long-distance optical transmission capability for next-generation network infrastructures.

Designed by Mellanox, a leading provider of high-performance computing and networking technologies, the MMS1W50-HM optical transceiver enables seamless communication between switches, servers, storage platforms, and other network devices. It uses advanced optical technology to deliver stable 200Gb/s data transmission while maintaining compatibility with high-density networking systems. This makes it an ideal choice for enterprise data centers, cloud computing platforms, artificial intelligence clusters, machine learning environments, and hyperscale networking deployments.

High-Speed 200GbE Optical Connectivity Solution

The demand for faster network communication continues to increase as organizations process larger datasets, deploy cloud-based applications, and utilize bandwidth-intensive workloads. The Mellanox MMS1W50-HM addresses these requirements by providing 200 Gigabit Ethernet connectivity through a QSFP56 form factor. This transceiver supports high-speed data transfer between network switches and computing systems, helping reduce bottlenecks and improve overall network performance.

The 200GbE capability allows data center operators to increase network capacity without significantly expanding physical infrastructure. By utilizing advanced optical signaling technology, the MMS1W50-HM provides efficient transmission over fiber optic cabling, making it suitable for applications where speed, reliability, and scalability are critical.

QSFP56 Form Factor Technology

The Mellanox MMS1W50-HM features the QSFP56 (Quad Small Form-factor Pluggable 56) design, a compact hot-pluggable optical transceiver format developed for high-speed networking applications. QSFP56 technology provides significant improvements over previous generations by supporting higher data rates while maintaining a familiar and space-efficient module design.

The compact QSFP56 interface enables network administrators to install more high-speed ports within modern switches and network appliances. This high-density architecture allows organizations to maximize rack space utilization while creating flexible and scalable network configurations. The module can be easily inserted or removed from compatible networking equipment without interrupting system operations, simplifying maintenance and upgrades.

Compact Design for High-Density Data Centers

Modern data centers require networking components that deliver maximum performance within limited physical space. The QSFP56 form factor used by the MMS1W50-HM allows multiple high-speed optical connections to operate within densely populated network environments. Its efficient design supports high port density, helping organizations build faster networks while reducing hardware footprint requirements.

Advanced FR4 Optical Technology for 200GbE Networks

The Mellanox MMS1W50-HM utilizes FR4 optical technology, which is optimized for high-performance Ethernet communication over parallel fiber channels. FR4 transceivers are designed to provide reliable transmission performance while supporting longer reach requirements compared with short-range optical solutions.

The FR4 architecture combines multiple optical lanes to achieve the required 200Gb/s bandwidth. By using four optical wavelengths operating across single-mode fiber, the transceiver delivers efficient signal transmission with excellent optical performance. This approach provides network designers with a practical solution for connecting equipment located within data center rows, network aggregation layers, and high-performance computing environments.

Reliable Optical Performance and Signal Integrity

Signal integrity is a critical factor in high-speed networking environments. The Mellanox MMS1W50-HM is designed to maintain stable optical communication with consistent performance across demanding workloads. Advanced optical components help minimize signal degradation, allowing networks to handle large amounts of data with reduced transmission errors.

The transceiver supports dependable operation in environments where continuous uptime is essential. Data centers supporting artificial intelligence, scientific research, financial services, and cloud applications require networking hardware capable of operating under intensive traffic conditions. The MMS1W50-HM provides the optical performance necessary for these mission-critical applications.

Optimized for Data Center and Enterprise Applications

The Mellanox MMS1W50-HM 200Gb/s QSFP56 FR4 Transceiver is designed for a wide range of high-performance networking scenarios. It provides an effective connectivity solution for organizations upgrading from lower-speed Ethernet technologies and preparing their infrastructure for future growth.

Typical application environments include high-performance computing clusters, artificial intelligence platforms, cloud service infrastructure, enterprise server farms, and large-scale storage networks. These environments require rapid data movement between computing nodes, switches, and storage systems, making high-speed optical transceivers an essential component of the overall network architecture.

Supporting Artificial Intelligence and Machine Learning Workloads

Artificial intelligence and machine learning applications generate enormous volumes of data that must be transferred quickly between processors, accelerators, and storage resources. The Mellanox MMS1W50-HM supports these demanding environments by providing high-bandwidth network connectivity for GPU clusters and accelerated computing platforms.

Fast optical communication helps reduce latency between computing resources, improving efficiency for distributed processing tasks. In AI-focused data centers, where multiple systems work together simultaneously, high-speed 200GbE networking plays an important role in maintaining consistent application performance.

200 Gigabit Ethernet Networking Advantages

The transition to 200GbE networking allows organizations to achieve higher throughput while improving infrastructure efficiency. The Mellanox MMS1W50-HM provides the bandwidth required for modern applications that exceed the limitations of traditional network speeds.

Compared with older Ethernet standards, 200GbE technology offers significant improvements in data transfer capacity. This enables faster file movement, improved virtualization performance, quicker database access, and more responsive cloud applications. The increased bandwidth also helps organizations prepare their networks for future technology demands.

Improving Network Scalability and Infrastructure Efficiency

Scalability is a major consideration when designing modern networking environments. The Mellanox MMS1W50-HM allows organizations to expand network capacity while maintaining efficient hardware deployment. Its QSFP56 interface provides compatibility with high-density switching platforms, allowing network architects to increase bandwidth without requiring excessive additional equipment.

By deploying 200GbE optical connections, businesses can create flexible network architectures capable of supporting increasing traffic volumes. This makes the transceiver suitable for environments experiencing rapid digital transformation, increasing cloud adoption, and growing data processing requirements.

Low-Power Optical Networking Design

Power efficiency is an important factor in large-scale data center operations. Networking equipment operates continuously, and even small improvements in power consumption can result in significant operational savings. The Mellanox MMS1W50-HM is designed with efficient optical components that help provide high-speed connectivity while supporting energy-conscious infrastructure designs.

Lower power requirements contribute to improved thermal management and reduced cooling demands. This helps data center operators maintain efficient operations while continuing to increase network performance and capacity.

Hot-Pluggable Installation and Simplified Maintenance

The hot-pluggable QSFP56 design of the Mellanox MMS1W50-HM simplifies installation, replacement, and network upgrades. Administrators can install or replace compatible optical modules without powering down networking equipment, reducing maintenance windows and improving system availability.

This feature is especially valuable in enterprise and cloud environments where uninterrupted service is essential. Easy module replacement helps reduce downtime and allows organizations to quickly adapt their infrastructure as bandwidth requirements change.

Optical Transceiver Compatibility and Deployment Flexibility

The Mellanox MMS1W50-HM is designed for integration into compatible high-speed networking platforms that support QSFP56 optical modules. Its standardized form factor allows organizations to deploy consistent networking solutions across various data center architectures.

Network engineers can use this transceiver to establish reliable connections between switches, routers, servers, and other high-performance computing equipment. The module provides deployment flexibility for both new installations and existing infrastructure upgrades.

Ideal Solution for Modern Network Architectures

Modern network architectures require components that can handle increasing workloads while maintaining operational efficiency. The Mellanox MMS1W50-HM meets these requirements by combining high bandwidth, optical reliability, and compact hardware design.

As organizations continue adopting cloud computing, virtualization, automation, and advanced analytics, the need for faster interconnect solutions continues to grow. High-speed QSFP56 optical transceivers provide the foundation required for building responsive and scalable networking environments.

Enterprise and Cloud Infrastructure Applications

Enterprise organizations and cloud providers rely on advanced optical networking components to connect thousands of computing resources. The Mellanox MMS1W50-HM supports these environments by enabling fast and dependable communication between critical systems.

Whether deployed in private data centers, public cloud facilities, or specialized computing environments, this 200GbE transceiver provides the performance required for bandwidth-intensive applications. It supports efficient network expansion and helps organizations maintain competitive technology infrastructure.

Future-Ready 200GbE Network Expansion

Investing in high-speed optical technology allows organizations to prepare for future networking requirements. The Mellanox MMS1W50-HM 200Gb/s QSFP56 FR4 Transceiver provides a forward-looking connectivity option for businesses seeking to increase bandwidth capacity and improve network performance.
