MX67C-HW-NA Meraki Security Appliance with Fast Ethernet (Model: MX67C)

Overview of Cisco MX67C-HW-NA Meraki Security Appliance

The Cisco MX67C-HW-NA Meraki MX67C is an advanced cloud-managed security appliance designed to deliver reliable, scalable, and intelligent network protection for small and medium-sized business environments. Built as part of the Cisco Meraki MX security platform, this desktop-form-factor appliance combines enterprise-grade firewall capabilities, secure connectivity, wireless and wired networking support, and centralized cloud management into a compact solution. It helps organizations simplify network administration while maintaining strong security controls against evolving cyber threats.

This cloud-managed security gateway provides a powerful combination of next-generation firewall protection, intrusion prevention, content filtering, VPN connectivity, and advanced traffic management features. With simplified deployment, automatic firmware updates, and intuitive cloud-based administration, the Cisco MX67C-HW-NA enables IT teams to manage distributed networks efficiently without requiring complex on-site configurations.

General Information

• Brand: Meraki
• Manufacturer Part Number: MX67C-HW-NA
• Product Type: Modem/Wireless Router

Technical Specifications

• Transmission Technology: Ethernet, Cellular
• Wireless LAN Standard: IEEE 802.11a/b/g/n/ac
• ISM Band: Yes
• UNII Band: Yes
• Maximum Frequency: 2.4 GHz (ISM), 5 GHz (UNII)
• Cellular Generation: 4G
• Cellular Data Technology: LTE
• Wireless Speed: 450 Mbps
• Number of Network (RJ-45) Ports: 4
• Number of Broadband (RJ-45) Ports: 1
• USB Port: Yes

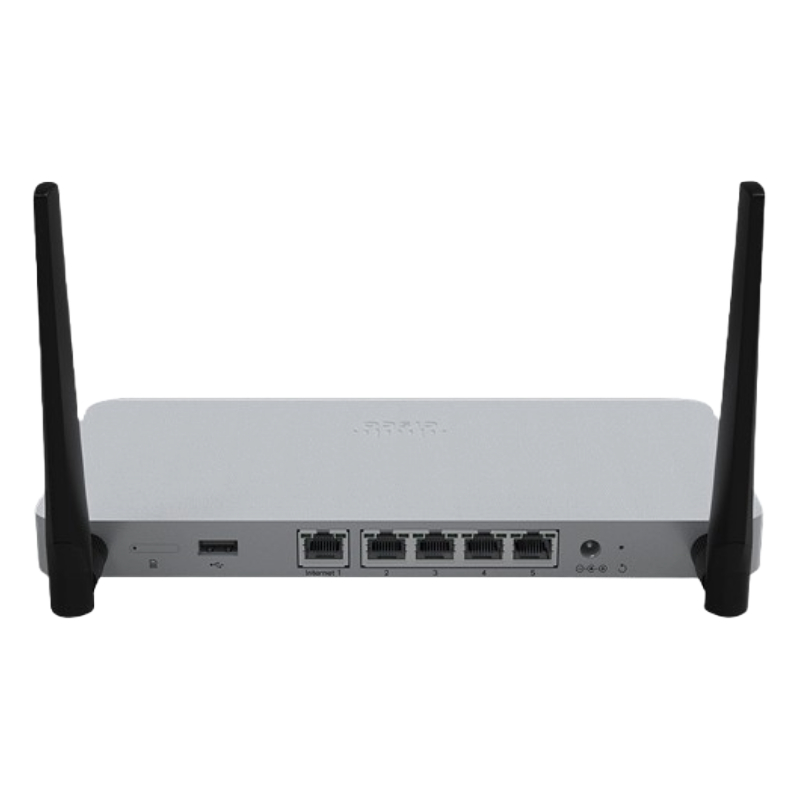

High-Speed Gigabit Ethernet Interfaces

• Four 1000Base-T RJ-45 LAN interfaces for internal network connections.
• One dedicated 1000Base-T RJ-45 WAN port for internet or uplink connectivity.
• USB 2.0 Type-A interface for additional connectivity options.
• Integrated modem support for flexible communication requirements.

Enhanced Security Throughput and Processing Efficiency

• Stateful Firewall Throughput: Up to 450 Mbps for efficient traffic filtering and inspection.
• VPN Throughput: Up to 200 Mbps for secure encrypted connections.
• Secure Traffic Throughput: Up to 300 Mbps when advanced security services are enabled.

Flexible VPN and Network Routing Features

• IPsec Virtual Private Network support for encrypted connections.
• VPN client capability for secure remote user access.
• DMZ support for separating public-facing services from internal networks.
• Static IP routing for controlled network traffic forwarding.

Integrated Networking Features

• DHCP Support: Automatically assigns IP addresses to connected devices.
• NAT Support: Provides secure address translation between internal and external networks.
• VLAN Support: Enables logical network segmentation for improved organization.
• Link Aggregation: Improves bandwidth utilization and connection reliability.
• Firmware Upgrade Capability: Allows continuous feature improvements and security enhancements.

Benefits of Meraki Cloud Management

• Centralized dashboard-based configuration and monitoring.
• Remote troubleshooting and network visibility.
• Automatic firmware updates for improved reliability.
• Easy deployment across branch offices and distributed networks.
• Reduced need for specialized networking expertise.

Deployment-Friendly Hardware Design

• Compact desktop form factor suitable for offices and branch locations.
• Wall-mountable construction for convenient placement.
• SIM card expansion capability for additional connectivity.
• 3G/4G USB dongle compatibility for backup connectivity solutions.

Efficient Power Design and Reliable Operation

• Power Device: External power adapter.
• Power Output: 30 watts.
• Energy Efficient Operation: Designed for reliable performance with optimized power consumption.

Ideal Applications for Cisco MX67C-HW-NA Meraki MX67C

• Small and medium-sized business network protection.
• Branch office internet security and connectivity.
• Remote workforce VPN access.
• Retail and distributed location networking.
• Secure cloud application access.
• Enterprise network segmentation and traffic management.

Cisco MX67C-HW-NA Meraki MX67C Cloud-Managed Security Appliance

The Cisco MX67C-HW-NA Meraki MX67C Cloud-Managed Security Appliance represents a modern approach to enterprise networking by combining advanced security capabilities, cloud-based management, and reliable connectivity into a compact branch-ready platform. Designed for small to medium-sized businesses, distributed offices, retail environments, professional services organizations, and remote locations, this cloud-managed security appliance delivers a simplified method for deploying secure networks without the complexity traditionally associated with enterprise firewall and routing solutions.

As part of the Meraki MX family of security and SD-WAN appliances, the Cisco MX67C-HW-NA provides organizations with an integrated solution that brings together next-generation firewall protection, secure VPN connectivity, intelligent traffic management, wireless WAN capabilities, and centralized cloud administration. The appliance is engineered to help IT teams maintain visibility, control, and security across multiple locations while reducing the time required for installation, configuration, and ongoing maintenance.

Cloud-Managed Security Appliance Designed

Centralized Cloud-Based Network Management

The Cisco Meraki MX67C-HW-NA is built around the Meraki cloud management architecture, allowing administrators to configure, monitor, and troubleshoot networks through an intuitive web-based dashboard. Unlike traditional networking equipment that often requires command-line configuration and manual updates, Meraki appliances provide a streamlined management experience where settings, security policies, firmware upgrades, and network analytics can be handled from a single centralized interface.

Cloud-managed networking allows organizations with distributed offices to maintain consistent security standards across all locations. IT administrators can deploy changes remotely, review network performance, identify potential issues, and manage connected devices without needing physical access to each site. This approach is particularly valuable for businesses operating multiple branches, remote offices, or geographically separated facilities.

Simplified Deployment and Operational Efficiency

The Cisco MX67C-HW-NA is designed with zero-touch deployment capabilities, enabling organizations to install and activate devices quickly with minimal technical involvement at remote locations. Once connected to the internet and registered within the Meraki dashboard, the appliance can automatically receive configuration settings and security policies assigned by network administrators.

This simplified deployment model reduces installation complexity and lowers operational costs. Businesses can efficiently expand their network infrastructure without requiring specialized networking professionals at every location. The appliance provides a practical solution for organizations seeking enterprise-grade security features combined with easier administration.

Advanced Security Features

Next-Generation Firewall Capabilities

The Cisco MX67C-HW-NA functions as a next-generation firewall platform designed to protect business networks against evolving cybersecurity threats. It provides stateful firewall inspection, application-aware security controls, intrusion detection and prevention capabilities, and advanced traffic filtering features to help safeguard critical business resources.

Modern organizations require more than basic perimeter protection. Applications, cloud services, remote users, and connected devices create complex security challenges that demand intelligent monitoring and control. The MX67C-HW-NA addresses these requirements by providing visibility into network activity and allowing administrators to create security policies based on applications, users, devices, and traffic behavior.

Secure Threat Detection and Prevention

Cybersecurity threats continue to evolve, making proactive protection essential for business networks. The Cisco Meraki MX67C-HW-NA integrates security technologies that help identify suspicious activity and prevent unauthorized access attempts. Through cloud-based threat intelligence and security updates, the appliance helps organizations maintain current protection against emerging risks.

The security architecture of the MX67C-HW-NA supports organizations in establishing layered defense strategies. By combining firewall functionality, intrusion prevention, secure connectivity, and centralized monitoring, businesses can strengthen their overall security posture while maintaining operational flexibility.

Content Filtering and Application Visibility

The Cisco MX67C-HW-NA provides application-level visibility that enables administrators to understand how network resources are being used. Instead of viewing traffic only by IP addresses and ports, IT teams can identify applications, services, and traffic patterns across the network.

This application awareness helps organizations manage bandwidth usage, enforce acceptable-use policies, and prioritize important business applications. Administrators can control access to specific applications, optimize performance for critical services, and improve overall network efficiency through detailed traffic insights.

Integrated SD-WAN Capabilities for Business Connectivity

Intelligent Traffic Routing and WAN Optimization

The Cisco MX67C-HW-NA includes software-defined wide area networking functionality that enables organizations to optimize connectivity between branch offices, headquarters, cloud environments, and remote users. SD-WAN technology intelligently manages traffic paths based on application requirements, network conditions, and business priorities.

Traditional WAN architectures often rely on static configurations that may not efficiently adapt to changing network conditions. With SD-WAN capabilities, the MX67C-HW-NA can dynamically select the best available connection path, helping improve application performance and reduce latency for critical workloads.

Reliable Branch-to-Branch and Cloud Connectivity

The appliance supports secure site-to-site connectivity, enabling organizations to connect multiple locations through encrypted tunnels. This makes it suitable for businesses that require secure communication between branch offices, data centers, and cloud platforms.

The integration of SD-WAN and security functionality within a single appliance eliminates the need for separate networking and security devices. This unified approach reduces hardware requirements, simplifies management, and provides a consistent networking experience across different environments.

Cisco Meraki MX67C Hardware Architecture and Connectivity

Compact Form Factor for Flexible Deployment

The Cisco MX67C-HW-NA features a compact desktop-friendly design that makes it suitable for locations where space efficiency is important. Its small footprint allows deployment in branch offices, retail stores, classrooms, clinics, and other environments where traditional rack-mounted equipment may not be practical.

Despite its compact size, the appliance delivers enterprise-level networking functionality. It combines routing, security, VPN, and management capabilities into a single platform, providing organizations with an efficient alternative to multiple standalone devices.

WAN and LAN Connectivity Options

The Cisco MX67C-HW-NA provides flexible connectivity options to support various business networking requirements. Its Ethernet interfaces allow organizations to connect internet services, internal network devices, switches, computers, access points, and other infrastructure components.

The appliance is designed to support modern network environments where reliable wired connectivity and secure internet access are essential. Businesses can integrate the MX67C-HW-NA into existing infrastructures while benefiting from centralized cloud management and enhanced security controls.

Cellular Connectivity Support

The MX67C model includes integrated cellular capabilities, providing additional connectivity flexibility for organizations that require backup internet access or alternative WAN connectivity options. Cellular functionality helps maintain business continuity during primary internet service interruptions.

For branch offices, temporary locations, and remote deployments, cellular connectivity provides an effective way to maintain network availability. Organizations can use cellular WAN as a failover connection, ensuring essential applications and services remain accessible even when traditional internet connections experience disruptions.

Meraki Dashboard Management Experience

Real-Time Monitoring and Analytics

One of the defining features of the Cisco MX67C-HW-NA is its integration with the Meraki dashboard. The dashboard provides administrators with real-time visibility into network performance, connected devices, security events, bandwidth utilization, and application activity.

Detailed analytics allow IT teams to identify performance issues, investigate security events, and make informed decisions about network optimization. The centralized interface eliminates the need to manually access individual devices, making management more efficient for organizations with limited IT resources.

Automated Updates and Lifecycle Management

Cloud-managed firmware updates help ensure that the Cisco MX67C-HW-NA remains current with the latest features, security improvements, and performance enhancements. Automated update processes reduce administrative workload and help organizations maintain a secure networking environment.

The Meraki platform also provides tools for configuration backup, device monitoring, and remote troubleshooting. These capabilities support long-term network reliability and simplify the management of growing infrastructures.

Business Applications and Deployment Scenarios

Small and Medium Business Networking

The Cisco MX67C-HW-NA is an ideal solution for small and medium-sized businesses that require strong security protection without the complexity of traditional enterprise networking equipment. Organizations can benefit from integrated firewall, VPN, routing, and SD-WAN capabilities while maintaining simple management workflows.

Businesses can use the appliance to securely connect employees, applications, cloud services, and branch locations. Its combination of performance, security, and ease of management makes it suitable for organizations looking to modernize their network infrastructure.

Remote Offices and Distributed Enterprises

Companies with multiple locations can use the Cisco MX67C-HW-NA to create standardized network environments across offices. Centralized cloud management allows administrators to apply consistent configurations and security policies throughout the organization.

This approach improves operational efficiency by reducing differences between locations and ensuring that every branch benefits from the same security standards and management capabilities.

Retail, Healthcare, Education, and Professional Services

The flexibility of the Cisco MX67C-HW-NA makes it suitable for industries that require dependable connectivity and strong security. Retail stores can securely connect point-of-sale systems and business applications. Healthcare organizations can protect sensitive information while maintaining reliable access to digital services. Educational institutions can manage connected devices and secure internet access. Professional service companies can support employees and clients with dependable network infrastructure.

Advantages of Choosing Cisco Meraki MX67C-HW-NA

Unified Security and Networking Platform

The Cisco MX67C-HW-NA combines multiple networking functions into a single cloud-managed appliance. Instead of managing separate firewalls, routers, VPN concentrators, and monitoring systems, organizations can operate a unified platform that simplifies infrastructure management.

Scalable Architecture for Future Growth

As organizations expand, their networking requirements often become more complex. The Meraki MX67C platform provides a scalable foundation that allows businesses to add locations, improve connectivity, and enhance security without completely redesigning their infrastructure.

Improved Visibility, Control, and Reliability

Through centralized management, intelligent security features, and detailed analytics, the Cisco MX67C-HW-NA gives administrators greater control over their network environments. Improved visibility helps organizations respond faster to issues, optimize performance, and maintain reliable business operations.

Enterprise-Grade Cloud Networking for Modern Organizations

The Cisco MX67C-HW-NA Meraki MX67C Cloud-Managed Security Appliance delivers a powerful combination of security, connectivity, and simplified administration. By integrating advanced firewall protection, SD-WAN functionality, cloud management, and flexible deployment options, it provides organizations with a dependable solution for modern network challenges. Its compact design, intelligent management features, and comprehensive security capabilities make it a valuable choice for businesses seeking efficient, scalable, and secure networking infrastructure.

```
