MX67C-HW Meraki Wireless Security Appliance

Cisco MX67C-HW Meraki Cloud-Managed Security Appliance

The Cisco MX67C-HW Meraki MX67C is an advanced cloud-managed security appliance designed to deliver reliable, secure, and simplified network connectivity for small and medium-sized businesses, branch offices, and distributed enterprise environments. This powerful desktop security gateway combines enterprise-grade firewall capabilities, intelligent traffic management, wireless and wired networking support, and cloud-based administration into a compact solution that helps organizations protect critical data while maintaining high-performance connectivity.

Built as part of the Meraki MX security appliance family, the MX67C-HW provides centralized visibility, automated configuration, and scalable security management through an intuitive cloud dashboard. It enables administrators to monitor network activity, deploy policies, manage users, and maintain security standards without requiring complex onsite infrastructure. With integrated security features such as intrusion prevention, malware defense, VPN support, VLAN management, and content filtering, this appliance provides a comprehensive approach to network protection.

General Information

• Manufacturer: Meraki
• Manufacturer Part Number: MX67C-HW
• Product Type: Wireless Router

Technical Specifications

• Stateful Firewall Throughput: 700 Mbps
• Advanced Security (IDS/IPS) Throughput: 400 Mbps
• Site-to-Site VPN Throughput: 300 Mbps
• WAN Interfaces: 1x Dedicated GbE RJ45 port and 1x Convertible LAN/WAN GbE RJ45 port.
• LAN Interfaces: 4x GbE RJ45 ports (one can be converted to WAN use).
• Integrated Cellular: Built-in CAT 6 LTE Advanced modem (300 Mbps download speed)
• USB Ports: 1x USB 2.0 port for alternative 3rd-party cellular modem failover.
• Power over Ethernet (PoE): None (PoE capabilities are exclusive to the MX68 series)
• Form Factor: Compact desktop or wall mountable.
• Dimensions (H x D x W): 1.1 x 6.9 x 9.4 inches / 27 x 176 x 239 mm.
• Weight: 1.87 lbs / 0.85 kg.
• Power Supply: 18W DC.
• Power Consumption: 6W (Idle) / 17W (Maximum load).
• Operating Temperature: 32°F to 113°F / 0°C to 45°C.

Key Cloud Management Advantages

• Centralized cloud-based monitoring and configuration for easier network administration.
• Remote troubleshooting and policy management without requiring onsite access.
• Automatic firmware updates to maintain security improvements and feature enhancements.
• Real-time visibility into connected devices, applications, and network performance.
• Simplified deployment for branch offices, remote locations, and distributed environments.

Advanced Threat Prevention Capabilities

Integrated Security Technologies

• Firewall protection for controlling inbound and outbound network traffic.
• Intrusion Detection System (IDS) for identifying suspicious activities.
• Intrusion Prevention System (IPS) for automatically blocking potential threats.
• Anti-malware protection to reduce risks from malicious software and harmful files.
• Content filtering features for managing web access and improving workplace security.
• DMZ support for securely hosting public-facing applications and services.

Optimized Network Throughput and Capacity

• 450 Mbps stateful firewall throughput for efficient traffic inspection.
• 300 Mbps secure traffic processing capability for protected communication.
• 200 Mbps VPN throughput for encrypted remote connectivity.
• Support for up to 50 concurrent users in business environments.
• Ability to maintain up to 50 VPN tunnels for secure remote access requirements.

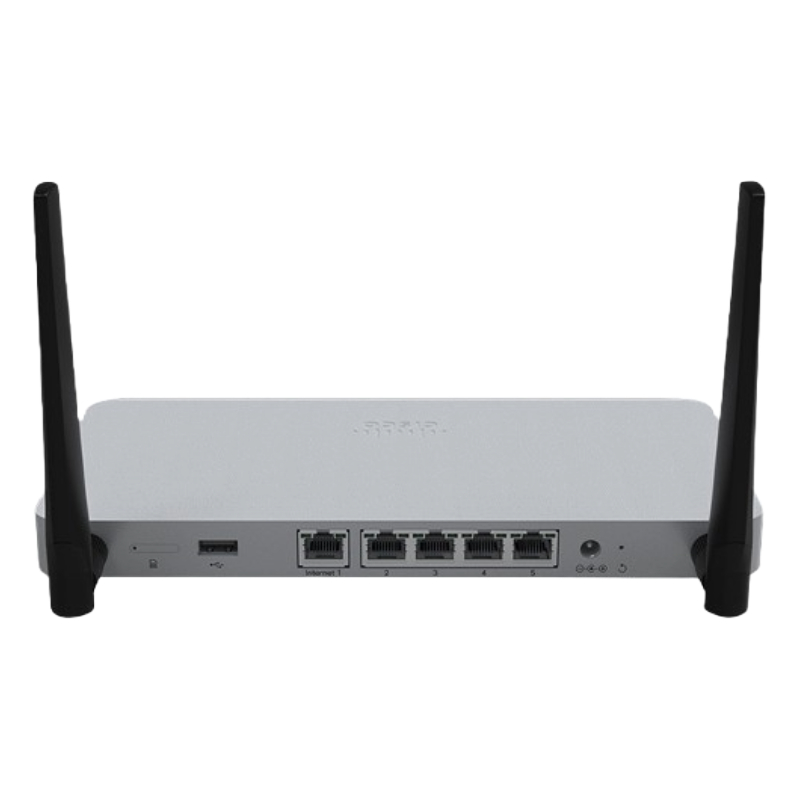

Interface and Port Configuration

Available Connectivity Interfaces

• Four Gigabit Ethernet 1000Base-T RJ-45 LAN interfaces for internal network connections.
• One Gigabit Ethernet 1000Base-T RJ-45 WAN interface for internet connectivity.
• One USB 2.0 Type-A port for additional connectivity options.
• One modem interface for communication expansion.
• One SIM card expansion slot for cellular connectivity support.

Secure Virtual Private Network Features

VPN Support Benefits

• IPsec VPN support for encrypted site-to-site communication.
• VPN client functionality for secure remote user access.
• Support for multiple VPN tunnels to connect distributed locations.
• Reliable encrypted connectivity for branch offices and remote employees.
• Secure access to business applications and private network resources.

Network Administration Features

Supported Networking Functions

• Virtual LAN (VLAN) support for logical network separation.
• DHCP support for automatic IP address assignment.
• NAT support for efficient address management.
• Static IP routing for customized network traffic control.
• Link aggregation support for improved bandwidth utilization.

Deployment and Physical Design Advantages

• Desktop form factor suitable for compact networking environments.
• Wall-mountable design for flexible placement options.
• External power adapter for convenient installation.
• Low-power operation with a 30-watt power supply requirement.
• Space-efficient design for branch and remote office deployments.

Power Specifications

Power Features

• External power adapter included for simple deployment.
• 30-watt power capacity designed for efficient operation.
• Optimized hardware architecture for continuous network security services.

Common Deployment Scenarios

• Small and medium-sized business networks requiring centralized security management.
• Branch offices needing secure connectivity to corporate resources.
• Retail locations requiring reliable internet and network protection.
• Remote offices requiring VPN-based communication.
• Organizations adopting cloud-managed networking solutions.
• Businesses requiring integrated firewall and intrusion prevention capabilities.

Outline of Cisco MX67C-HW Cloud-Managed Security Appliance

The Cisco MX67C-HW Meraki MX67C Cloud-Managed Security Appliance represents a powerful branch security and connectivity solution designed for organizations that require reliable network protection, simplified management, and integrated wireless communication capabilities. As part of the Cisco Meraki MX security appliance family, this platform combines advanced firewall functionality, cloud-based administration, intelligent traffic management, and secure connectivity features within a compact enterprise-grade appliance. The MX67C-HW model is engineered to support distributed organizations, remote offices, retail locations, educational environments, healthcare facilities, and small to medium-sized business networks that require centralized control without the complexity associated with traditional security infrastructure.

Built around the Cisco Meraki cloud-managed networking philosophy, the MX67C-HW provides administrators with a highly intuitive dashboard-based management experience. Instead of relying on complicated command-line configurations and manual device-level maintenance, network teams can configure, monitor, and troubleshoot their security environment through a unified cloud interface. This approach enables faster deployment, easier policy management, and improved visibility across multiple locations. The appliance delivers a balance between enterprise security capabilities and operational simplicity, making it suitable for organizations seeking dependable protection with reduced administrative overhead.

Advanced Cloud-Managed Security Architecture

The Cisco Meraki MX67C-HW is designed around a cloud-first security architecture that allows administrators to manage network services from virtually anywhere. The centralized Meraki dashboard provides real-time insights into network performance, connected devices, security events, application usage, and traffic patterns. This cloud-based management model eliminates the need for on-site configuration for many common network tasks and allows IT teams to maintain consistent security policies across geographically distributed environments.

Unlike conventional standalone firewall appliances that require extensive local configuration, the MX67C-HW simplifies deployment through automated provisioning and centralized policy control. Organizations can create standardized security templates, apply configurations across multiple appliances, and monitor network health from a single interface. This capability is especially valuable for businesses operating multiple branch locations where maintaining consistent security standards is essential.

Unified Network Security and Connectivity Platform

The Cisco Meraki MX67C-HW combines multiple networking and security functions into one integrated platform. It provides next-generation firewall capabilities, secure VPN connectivity, intrusion detection and prevention features, content filtering, application visibility, and traffic optimization. By consolidating these functions into a single appliance, organizations can reduce hardware complexity while improving overall network efficiency.

The integrated security framework enables businesses to protect critical resources against evolving cyber threats while maintaining reliable access to essential applications. The appliance is designed to inspect network traffic intelligently, identify suspicious activities, and enforce security policies according to organizational requirements. This makes it an effective solution for environments where secure internet access, branch connectivity, and centralized management are priorities.

Cloud-Based Firewall Management Capabilities

Firewall management is one of the primary functions of the Cisco MX67C-HW platform. The appliance provides stateful firewall protection that helps control inbound and outbound network traffic based on predefined security rules. Administrators can define access policies, manage network segmentation, and establish secure communication paths between users, devices, and applications.

Through the Meraki dashboard, security teams can review firewall events, analyze traffic behavior, and adjust policies without requiring physical access to the appliance. This streamlined management process improves operational efficiency while reducing the time required for security maintenance and troubleshooting.

Integrated Wireless WAN and Cellular Connectivity Features

The Cisco MX67C-HW Meraki MX67C model includes integrated cellular connectivity capabilities, making it suitable for environments that require flexible WAN options and reliable backup connectivity. Cellular-enabled security appliances provide organizations with an additional communication pathway that can maintain network availability during primary internet service interruptions.

For branch offices, temporary locations, remote facilities, and business environments where uptime is critical, cellular WAN support offers valuable network resilience. The MX67C-HW helps maintain secure connectivity by allowing organizations to use cellular networks as either a primary connection method or a failover option. This capability improves business continuity and ensures that important applications and services remain accessible even when traditional wired connections experience disruptions.

Reliable Branch Office Network Deployment

Modern organizations increasingly depend on distributed networks that connect employees, cloud applications, customers, and business systems across multiple locations. The Cisco MX67C-HW is optimized for branch deployment scenarios where simplicity, security, and scalability are required. Its compact form factor allows installation in offices and locations where rack space may be limited while still providing enterprise-level security functionality.

The appliance supports secure site-to-site connectivity, allowing branch offices to communicate with headquarters, data centers, and cloud environments. With automated VPN configuration features, organizations can establish encrypted connections more efficiently compared with traditional networking solutions. This reduces deployment time and simplifies the expansion of secure corporate networks.

Comprehensive Security Features of Cisco Meraki MX67C-HW

Security threats continue to evolve as organizations adopt cloud services, remote work environments, and connected devices. The Cisco MX67C-HW addresses these challenges by providing multiple layers of protection designed to safeguard network infrastructure and sensitive information. Its security capabilities help organizations identify threats, control access, and maintain visibility over network activity.

Next-Generation Firewall Protection

The next-generation firewall functionality of the MX67C-HW provides advanced traffic inspection and policy enforcement. Traditional firewalls primarily focus on controlling connections based on addresses and ports, while modern security appliances analyze applications, users, and traffic behavior to provide more detailed protection.

With application-aware firewall capabilities, administrators can create more precise security policies based on business requirements. Organizations can prioritize critical applications, restrict unauthorized services, and improve overall network performance by controlling how bandwidth is allocated across different types of traffic.

Intrusion Detection and Prevention System

The Cisco Meraki MX67C-HW incorporates intrusion detection and prevention capabilities that help identify potentially harmful network activity. These features monitor traffic patterns and compare them against known threat indicators to detect suspicious behavior. When threats are identified, administrators can receive alerts and take appropriate action to protect network resources.

The integrated security monitoring approach helps organizations strengthen their defenses against malware, unauthorized access attempts, and other network-based attacks. By combining firewall protection with intrusion prevention technologies, the appliance provides a more complete security strategy for modern business networks.
