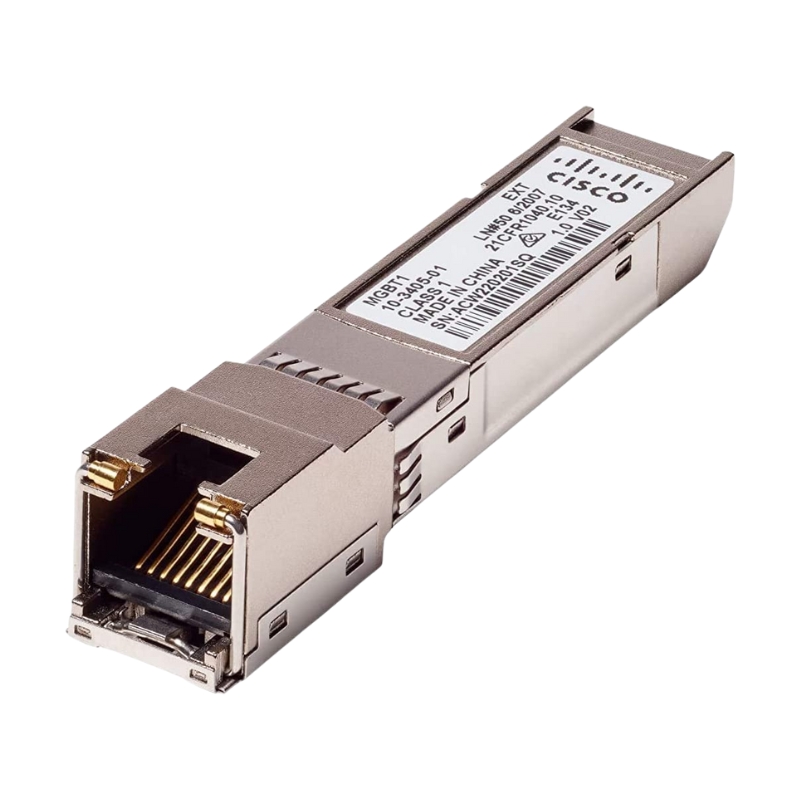

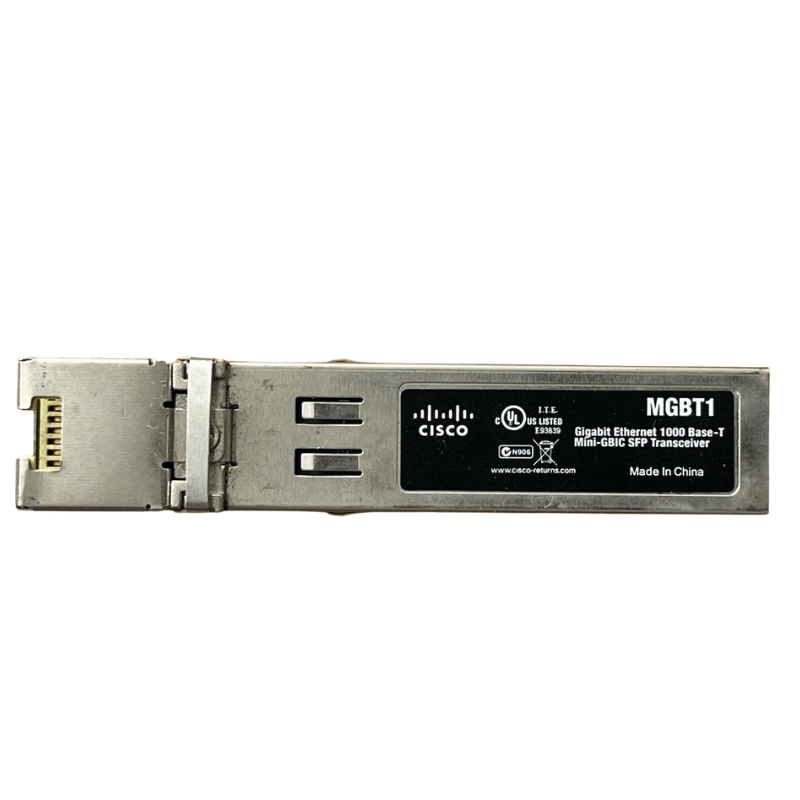

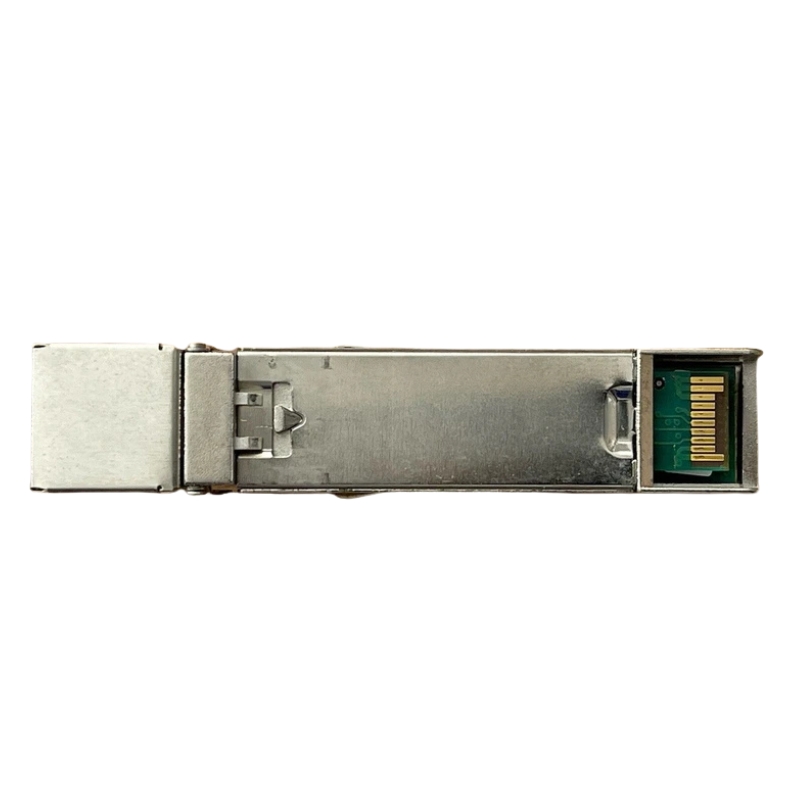

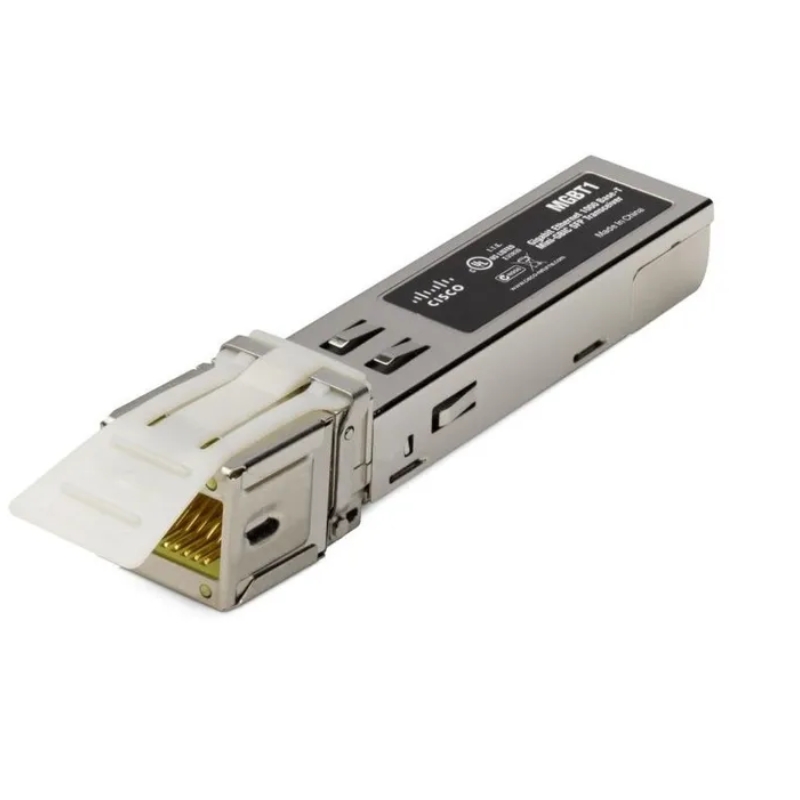

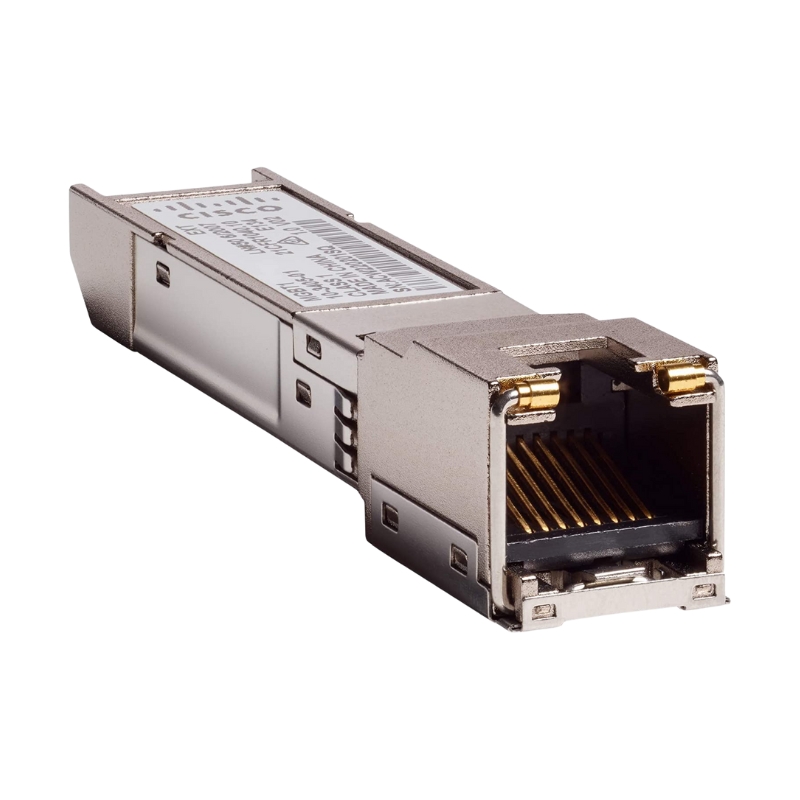

MGBT1 Cisco Mini-GBIC SFP 1GBPS Transceiver Module

Product Overview of Cisco MGBT1 Transceiver Module

The Cisco MGBT1 is a high-performance SFP transceiver designed to enhance your data networking capabilities. This component provides reliable connectivity for various applications, making it an essential part of your networking infrastructure.

General Information

• Manufacturer: Cisco
• Part Number: MGBT1
• Product Type: Transceiver Module

Technical Highlights

• Module Type: SFP (mini-GBIC)
• Port Count: Single Port
• Connector Style: RJ-45
• Interface Details: 1 x RJ-45 1000Base-T LAN
• Supported Medium: Twisted Pair

Networking Capabilities

• Ethernet Technology: Gigabit Ethernet
• Network Protocol: 1000Base-T

Application & Usage

• Designed for data networking environments
• Optimized for LAN connectivity with reliable throughput

Understanding of Cisco MGBT1 SFP Transceiver Module

The Cisco MGBT1 1Gbps 1000Base-T Copper 100m RJ-45 Connector SFP (mini-GBIC) Transceiver Module is a compact and highly efficient networking interface designed to provide Gigabit Ethernet connectivity over standard copper cabling infrastructure. As a Small Form-Factor Pluggable transceiver, the module enables network administrators to deploy reliable 1000Base-T Ethernet links while preserving valuable switch and router port flexibility. The compact architecture allows seamless integration into compatible networking devices equipped with SFP slots, providing a practical solution for enterprise, campus, branch office, and data communication environments.

Designed for Gigabit Ethernet applications, the Cisco MGBT1 transceiver supports transmission speeds of up to 1Gbps over Category 5e, Category 6, and higher-grade twisted-pair copper cabling. The module delivers dependable network performance across distances reaching up to 100 meters, making it suitable for a broad range of structured cabling deployments. Organizations can leverage existing copper network infrastructure while benefiting from the scalability and modularity associated with SFP-based networking hardware.

1000Base-T Gigabit Ethernet Technology

The Cisco MGBT1 transceiver is based on the IEEE 802.3ab 1000Base-T Gigabit Ethernet standard. This technology enables data transmission at 1000Mbps over copper twisted-pair cables while utilizing all four wire pairs simultaneously. The result is high-speed network communication capable of supporting modern business applications, cloud connectivity, file transfers, virtualization traffic, VoIP communications, and multimedia services.

Gigabit Ethernet technology remains one of the most widely deployed networking standards due to its balance between performance, affordability, and compatibility. The Cisco MGBT1 module extends this capability through a modular design that allows network devices to support copper Ethernet links without requiring dedicated fixed RJ-45 ports.

Benefits of IEEE 802.3ab Compliance

Compliance with IEEE 802.3ab standards ensures interoperability with a broad ecosystem of networking equipment and structured cabling systems. Organizations deploying Cisco MGBT1 transceivers can confidently integrate the module into heterogeneous network environments while maintaining consistent communication standards.

IEEE compliance also contributes to predictable network performance, and easier infrastructure expansion. Standardized operation ensures that devices communicate effectively across enterprise, educational, healthcare, government, and commercial network environments.

Compact SFP Form Factor

The Small Form-Factor Pluggable architecture of the Cisco MGBT1 offers significant advantages in modern networking environments. The compact dimensions allow network equipment manufacturers to provide higher port densities while maintaining flexibility through interchangeable transceiver modules.

Network administrators can deploy copper connectivity where required while reserving the option to use fiber-optic transceivers in other ports. This modular approach enables efficient utilization of switch infrastructure and supports evolving network requirements without replacing core hardware platforms.

Hot-Swappable Operation

The Cisco MGBT1 supports hot-swappable functionality, allowing installation and replacement without powering down the host device. This capability reduces maintenance downtime and enhances operational efficiency in mission-critical environments.

Hot-swappability is particularly valuable in enterprise networks where continuous availability is essential. Administrators can perform upgrades, replacements, and expansions while minimizing disruption to network operations.

Reduced Service Interruptions

The ability to replace transceivers without system shutdown contributes to improved network uptime. Organizations operating around-the-clock services can maintain business continuity while performing routine maintenance activities.

RJ-45 Copper Connectivity

The Cisco MGBT1 utilizes a standard RJ-45 connector interface, making it compatible with widely deployed Ethernet cabling systems. RJ-45 connectivity remains the dominant networking medium in commercial and enterprise environments due to its simplicity, affordability, and ease of installation.

By supporting copper Ethernet connections, the module enables organizations to maximize existing infrastructure investments while achieving Gigabit network performance. The familiar RJ-45 interface simplifies deployment and reduces training requirements for technical personnel.

Compatibility with Structured Cabling Systems

The module supports operation over industry-standard structured cabling infrastructures, including Category 5e and Category 6 cables. This compatibility allows organizations to deploy Gigabit Ethernet services without extensive cabling upgrades.

Existing office buildings, campuses, warehouses, and industrial facilities can integrate Cisco MGBT1 transceivers into established network architectures while maintaining compliance with structured cabling standards.

Transmission Distance Capabilities

The Cisco MGBT1 supports transmission distances of up to 100 meters over copper twisted-pair cables. This range aligns with IEEE 1000Base-T specifications and accommodates most office, commercial, and campus networking scenarios.

The 100-meter maximum distance supports connections between network switches, routers, servers, workstations, wireless access points, IP cameras, and various Ethernet-enabled devices located throughout a facility.

Optimized for Building Infrastructure

The transmission range is well suited for structured cabling environments commonly found in office buildings, educational institutions, healthcare facilities, retail environments, and manufacturing operations. Network planners can design Gigabit Ethernet segments confidently while adhering to standard cabling limitations.

Gigabit Performance Characteristics

The Cisco MGBT1 delivers full Gigabit Ethernet throughput, supporting bandwidth-intensive applications across modern network infrastructures. The 1000Mbps data rate provides sufficient capacity for file sharing, application access, video conferencing, cloud services, and enterprise communication systems.

Gigabit performance supports both user access and infrastructure connectivity requirements. Organizations can deploy the module for workstation aggregation, server connectivity, uplink applications, and inter-switch communications.

Full-Duplex Communication

The module supports full-duplex Ethernet operation, enabling simultaneous transmission and reception of data. Full-duplex functionality eliminates collisions and enhances network efficiency compared to legacy half-duplex environments.

This capability contributes to improved application responsiveness, reduced latency, and more efficient utilization of available network bandwidth.

Enhanced Throughput Efficiency

By supporting concurrent bidirectional traffic flows, the Cisco MGBT1 maximizes effective network throughput. Applications requiring frequent data exchanges benefit from the module’s ability to maintain continuous communication streams.

Enterprise Network Deployment Scenarios

The Cisco MGBT1 is suitable for a diverse range of enterprise networking applications. Its compatibility with Gigabit Ethernet standards and copper cabling infrastructure makes it a versatile solution for organizations of varying sizes.

Access Layer Connectivity

Enterprise access switches frequently utilize Cisco MGBT1 transceivers to connect desktop users, wireless access points, printers, surveillance devices, and other network endpoints. The module enables flexible port assignment while maintaining consistent Gigabit performance.

Switch Compatibility and Integration

The Cisco MGBT1 is designed to integrate seamlessly with compatible Cisco networking platforms featuring SFP ports. The module enables flexible media selection, allowing network administrators to choose copper connectivity where appropriate while retaining support for optical alternatives in adjacent ports.

This flexibility enhances network scalability and simplifies infrastructure planning. Organizations can adapt port configurations based on specific deployment requirements without replacing switch hardware.

Flexible Port Utilization

SFP-enabled switches benefit from the ability to support multiple media types through interchangeable transceivers. The Cisco MGBT1 allows copper Ethernet connections to be established quickly and efficiently within modular networking environments.

Mixed Media Environments

Many enterprise networks incorporate both fiber and copper connectivity. The Cisco MGBT1 contributes to mixed-media network architectures by providing Gigabit copper access through standard SFP slots.

Electrical and Signal Integrity Features

Reliable signal transmission is essential for Gigabit Ethernet operation. The Cisco MGBT1 incorporates advanced circuitry designed to maintain signal quality across copper cable installations. Signal conditioning technologies help ensure stable communication while minimizing transmission errors.

The module supports auto-negotiation features that enable connected devices to determine optimal operating parameters automatically. This capability simplifies deployment and reduces configuration complexity.

Advantages

Automatic negotiation reduces manual configuration requirements and helps prevent communication mismatches. This feature contributes to simplified network deployment and ongoing operational reliability.

Network Scalability and Expansion

Organizations frequently require networking solutions that accommodate future growth. The Cisco MGBT1 supports scalable network expansion by providing modular Gigabit Ethernet connectivity that can be deployed as requirements evolve.

Additional transceivers can be installed as network demand increases, allowing organizations to expand connectivity without extensive infrastructure modifications.

Support for Growing Network Demands

As applications become more bandwidth intensive, Gigabit Ethernet continues to serve as a foundational networking technology. The Cisco MGBT1 provides reliable bandwidth for expanding user populations and increasing application requirements.

Modular Growth Strategy

The SFP architecture allows incremental expansion through transceiver deployment. This approach enables organizations to align networking investments with operational growth while maintaining infrastructure flexibility.

Reliability for Business-Critical Applications

Business networks depend on stable and consistent connectivity to support daily operations. The Cisco MGBT1 is engineered to provide dependable Gigabit Ethernet communication across enterprise environments, helping organizations maintain productivity and operational continuity.

The module supports network applications including enterprise resource planning systems, customer relationship management platforms, cloud computing services, unified communications, data backup processes, and virtualized workloads.

Continuous Network Availability

Reliable transceiver operation contributes to overall network stability. The Cisco MGBT1 is designed to support continuous communication requirements across commercial and enterprise infrastructures where uptime is a priority.

Operational Consistency

Consistent performance characteristics help maintain predictable network behavior. Administrators benefit from dependable connectivity that supports long-term infrastructure planning and management objectives.

Data Center and Server Connectivity Applications

While fiber-optic technologies are common in modern data centers, copper Gigabit Ethernet connections continue to play an important role in server access, management networks, and equipment interconnections. The Cisco MGBT1 provides a flexible solution for these deployment scenarios.

Server administrators can utilize the module for management interfaces, network access ports, storage communications, and supporting infrastructure components. The compact SFP design enables efficient utilization of available networking resources.

Server Access Networks

Gigabit Ethernet remains a widely adopted standard for server connectivity. The Cisco MGBT1 supports reliable communications between servers and network switching infrastructure while leveraging standard RJ-45 cabling.

Efficient Resource Utilization

The combination of Gigabit performance, RJ-45 connectivity, IEEE 802.3ab compliance, 100-meter transmission distance support, hot-swappable operation, compact SFP architecture, and seamless integration with compatible networking platforms makes the Cisco MGBT1 1Gbps 1000Base-T Copper 100m RJ-45 Connector SFP (mini-GBIC) Transceiver Module a highly versatile networking component for enterprise, commercial, educational, healthcare, government, industrial, and data communication environments requiring dependable Gigabit Ethernet connectivity over copper infrastructure.
