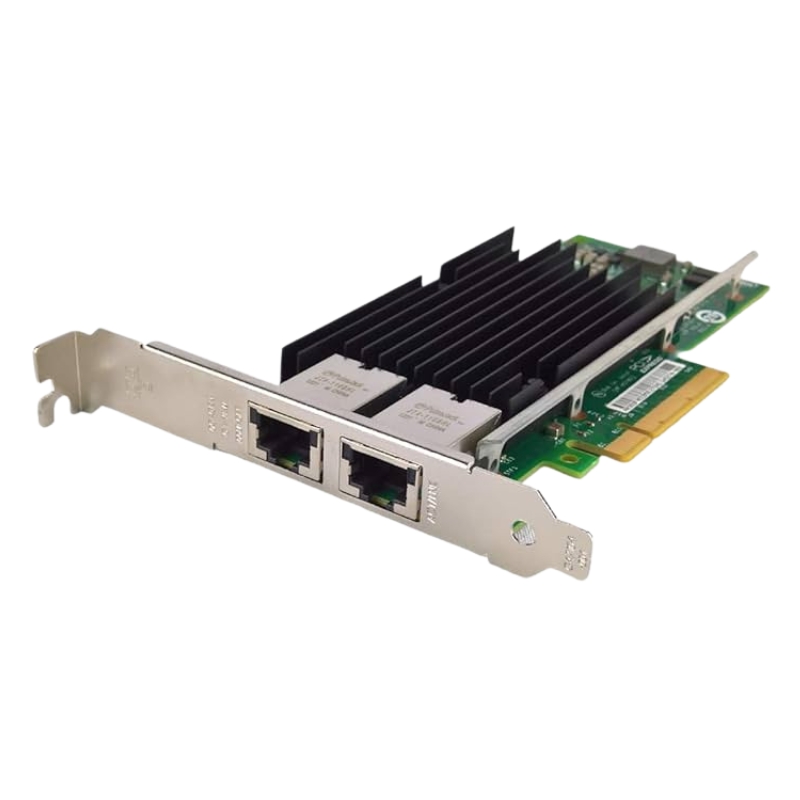

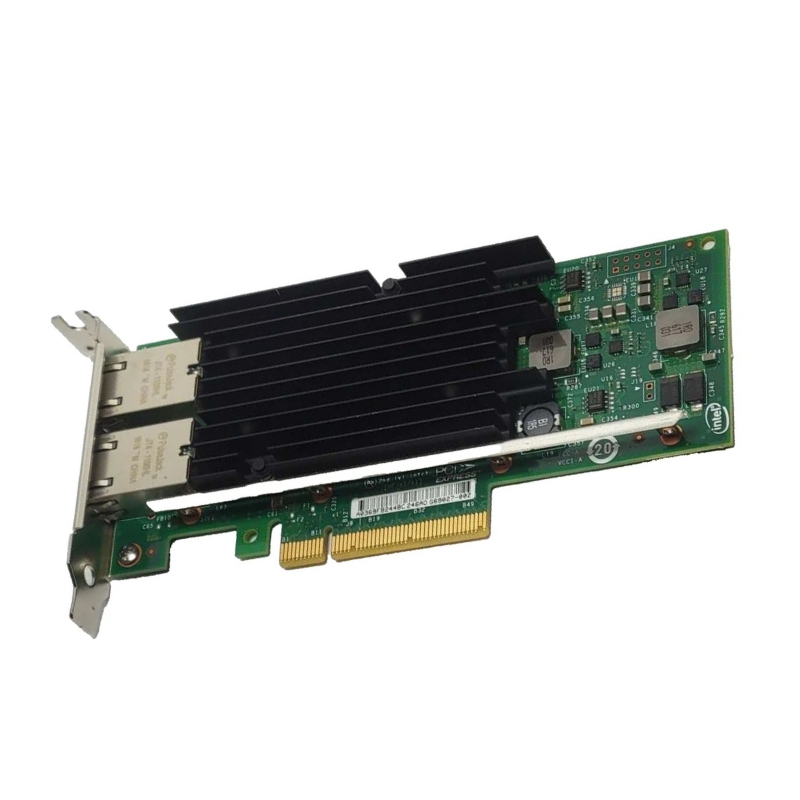

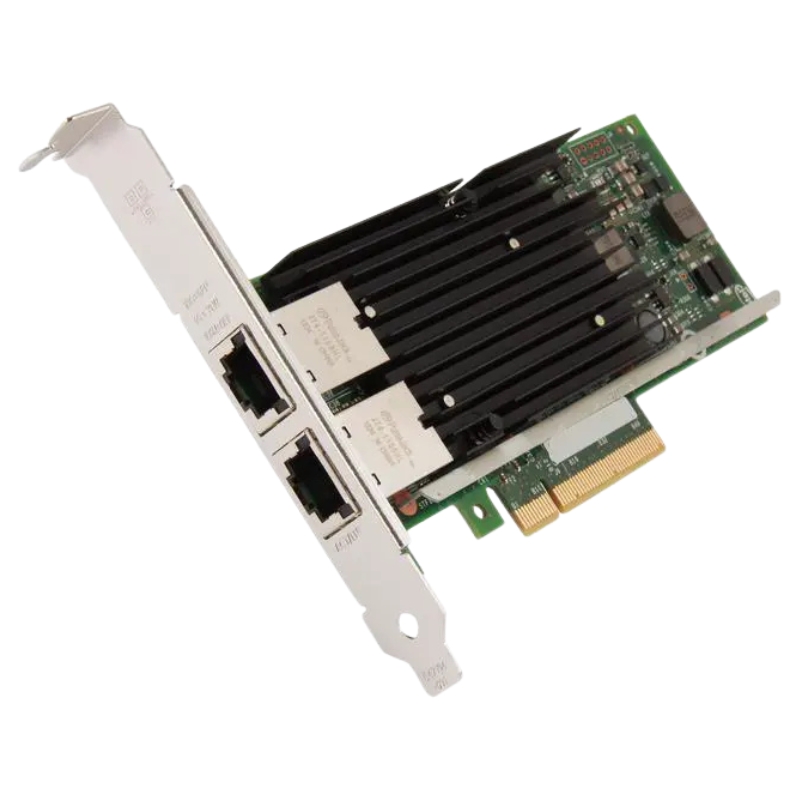

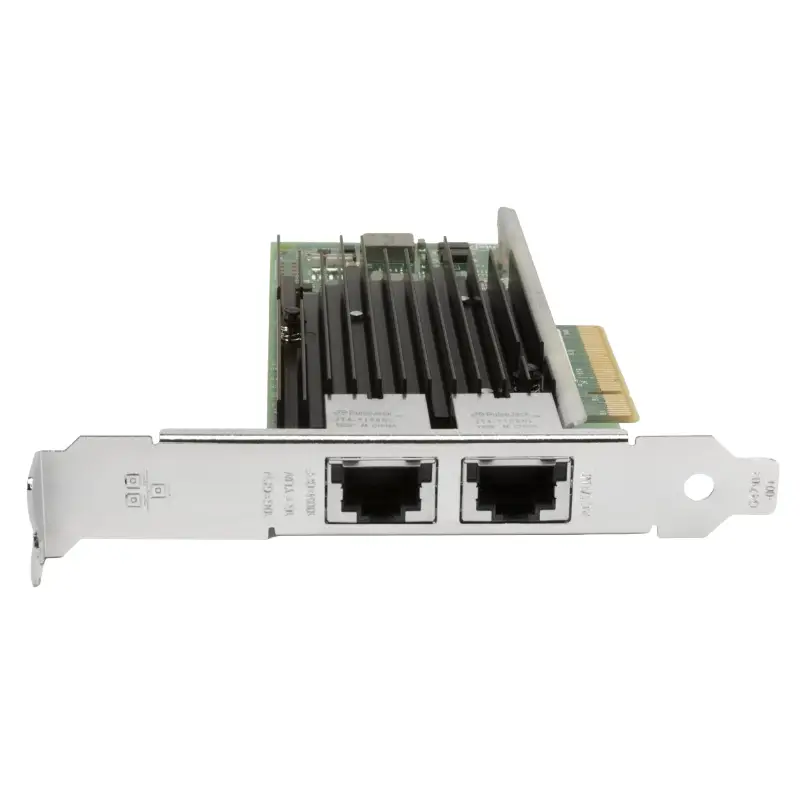

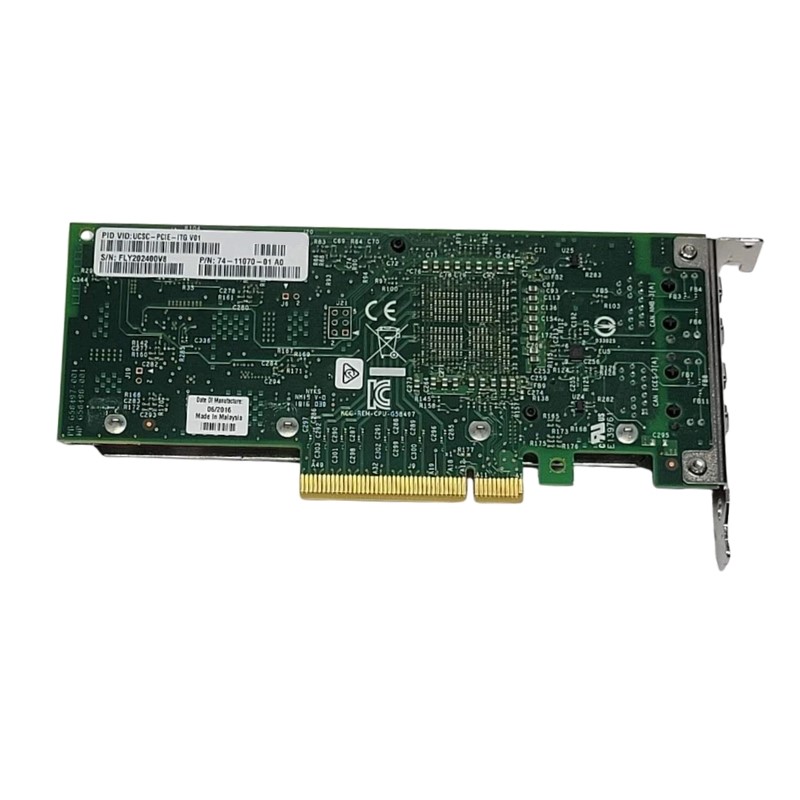

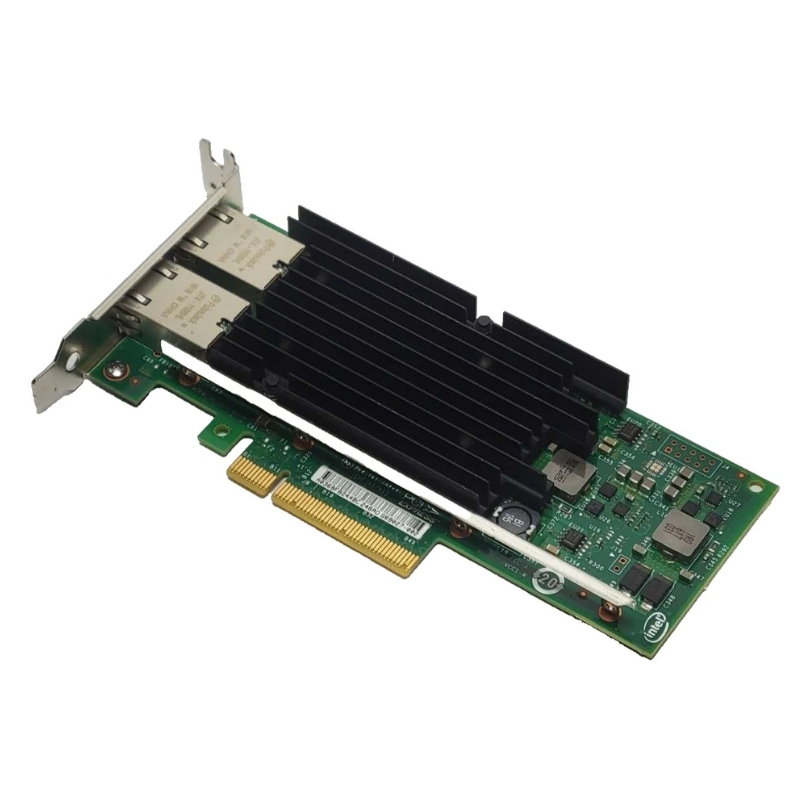

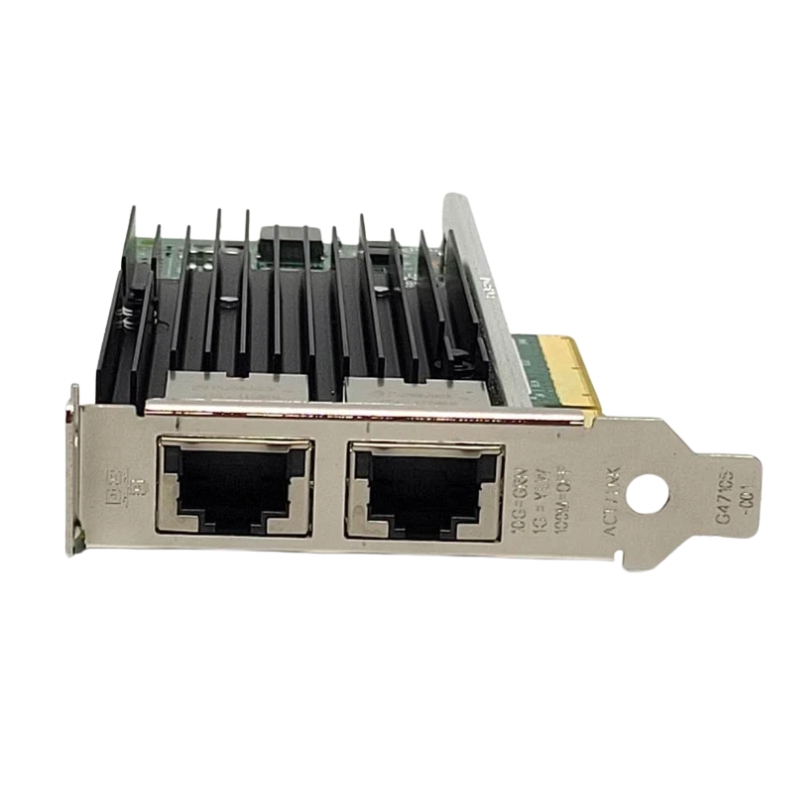

X540-T2 Intel Dual Ports PCI-E Converged Adapter 10GbE Plug-in Card

Highlight of Intel X540-T2 2 Ports Converged Network Adapter

The Intel X540-T2 Dual Port Converged Network Adapter is engineered to deliver robust, high-speed networking performance for enterprise servers, data centers, and advanced workstation environments. Designed with dual 10GbE ports, this adapter ensures efficient data throughput, reduced latency, and reliable connectivity for demanding workloads.

General Specification

• Manufacturer: Intel
• Part Number: X540-T2
• Device Type: Dual Port Network Adapter

Technical Specifications

• Form Factor: Plug-in expansion card with low-profile support
• Interface Bus: PCI Express 2.0 x8
• PCIe Specification: Revision 2.0 compliant architecture
• Connectivity Technology: Wired Ethernet
• Network Standard: 10 Gigabit Ethernet (10GbE)
• Data Transfer Rate: Up to 10 Gbps per port
• Cabling Type: 10GBASE-T copper infrastructure support

Connectivity Breakdown

• Interfaces: 2 x Ethernet 10GBASE-T RJ-45 ports
• Port Configuration: Dual independent network channels
• Compatibility: Standard Ethernet cabling infrastructure

Common Deployment Scenarios

• Virtual machine networking and hypervisor environments
• High-performance database and storage servers
• Cloud computing and distributed processing systems
• Enterprise backbone network expansion

Compatibility Highlights

• Compatible Slot: PCI Express 2.0 x8
• Backward compatibility with PCIe-based systems
• Supports low-profile and full-height chassis configurations

Efficiency Benefits

• Reduced network congestion under heavy loads
• Improved redundancy and failover capability
• Optimized throughput for large-scale data transfers

Outline of Intel X540-T2 Dual Port Converged Network Adapter

The Intel X540-T2 Dual Port Converged Network Adapter with Both Brackets represents a high-performance networking solution designed for enterprise environments, data centers, virtualization platforms, and high-bandwidth server infrastructures. Built on Intel’s advanced Ethernet controller architecture, this adapter delivers reliable 10 Gigabit Ethernet connectivity through two RJ45 copper ports, enabling scalable network performance for modern workloads that demand low latency, high throughput, and efficient data handling across converged infrastructures.

As organizations continue to transition toward virtualization, cloud computing, and software-defined networking, the demand for robust and efficient network interface cards has increased significantly. The Intel X540-T2 meets these requirements by offering a dual-port design that enhances redundancy, load balancing, and network optimization while maintaining compatibility with existing copper-based Ethernet infrastructures. Its converged capabilities make it suitable for unified networking environments where storage, data, and traffic services operate over a single infrastructure.

Advanced Network Architecture and Controller Design

Intel X540 Ethernet Controller Foundation

The Intel X540-T2 is powered by the Intel 10 Gigabit Ethernet Controller, a highly integrated chipset engineered for maximum performance and efficiency. This controller is designed to handle intensive networking tasks while offloading CPU processing, ensuring that server resources remain available for application workloads rather than network overhead. The architecture supports high-speed packet processing, reducing latency and improving overall system responsiveness in demanding enterprise environments.

Dual Port Configuration and Load Distribution

The dual-port configuration of the X540-T2 enables simultaneous data transmission and reception across two independent 10GbE channels. This design provides significant advantages in network redundancy and throughput aggregation. In mission-critical environments, this ensures continuous connectivity even in the event of a port failure. Additionally, load balancing across both ports enhances bandwidth utilization and optimizes traffic flow for virtual machines and distributed applications.

Converged Networking Capabilities

The converged network adapter functionality allows the Intel X540-T2 to support multiple types of traffic, including data, storage, and virtualization workloads over a single network infrastructure. This reduces hardware complexity, minimizes cabling requirements, and simplifies data center design. By consolidating network services, organizations can achieve greater operational efficiency and reduce total cost of ownership while maintaining high performance and scalability.

Performance Optimization and Throughput Efficiency

10 Gigabit Ethernet High-Speed Connectivity

One of the most significant features of the Intel X540-T2 is its support for 10 Gigabit Ethernet over copper cabling. This enables high-speed data transfer rates suitable for modern enterprise applications such as database replication, virtualization clusters, and cloud computing workloads. The use of RJ45 connectors ensures compatibility with standard Category 6A or higher cabling infrastructure, allowing organizations to upgrade network performance without replacing existing physical wiring.

Low Latency Data Processing

The adapter is engineered to minimize latency through hardware-based packet processing and optimized data pathways. This is particularly beneficial in environments where real-time data processing is essential, such as financial trading systems, high-performance computing clusters, and large-scale virtualization platforms. Reduced latency ensures faster communication between servers, improving overall system efficiency and responsiveness.

CPU Offloading and System Efficiency

The Intel X540-T2 supports advanced offloading features that reduce CPU utilization by handling networking tasks directly on the adapter. These offloads include checksum processing, segmentation, and interrupt moderation. By reducing the processing burden on the host CPU, the system can allocate more resources to application-level operations, resulting in improved overall performance and system stability.

Virtualization and Cloud Integration

Support for Virtual Machine Environments

The Intel X540-T2 is optimized for virtualization environments such as VMware, Microsoft Hyper-V, and KVM. It supports technologies that enhance virtual machine performance, including virtual machine direct I/O (VT-d) and single root I/O virtualization (SR-IOV). These features enable multiple virtual machines to share a single physical network adapter while maintaining isolated and high-performance network channels.

Scalable Cloud Infrastructure Support

In cloud computing environments, scalability and flexibility are essential. The dual-port architecture of the X540-T2 allows cloud servers to handle increased workloads efficiently while maintaining consistent network performance. This is particularly important for distributed applications, containerized workloads, and multi-tenant cloud infrastructures where network congestion must be minimized.

Efficient Resource Allocation in Virtual Networks

The adapter enables intelligent resource allocation across virtual networks, ensuring that bandwidth is distributed according to workload requirements. This dynamic allocation improves application performance and ensures that critical services receive sufficient network resources even during peak usage periods.

Hardware Design and Physical Configuration

Dual Bracket Compatibility

The Intel X540-T2 Dual Port Converged Network Adapter includes both full-height and low-profile brackets, ensuring compatibility with a wide range of server chassis and workstation configurations. This flexibility makes it suitable for deployment in rack-mounted servers, tower systems, and custom enterprise hardware setups.

PCI Express Interface Integration

The adapter utilizes a PCI Express interface for high-speed communication with the host system. This ensures low-latency data transfer between the network adapter and the motherboard, supporting high-bandwidth applications and reducing bottlenecks in data-intensive environments. The PCIe interface also enhances scalability and compatibility with modern server architectures.

Thermal Efficiency and Power Management

Designed with energy efficiency in mind, the Intel X540-T2 incorporates advanced power management features that regulate energy consumption based on network activity. This reduces overall system heat output and contributes to improved thermal performance within dense server environments. Efficient cooling and power utilization are critical for maintaining long-term hardware stability in enterprise data centers.

Enterprise Networking Applications

Data Center Deployment Scenarios

The Intel X540-T2 is widely deployed in enterprise data centers where high-speed connectivity and reliability are essential. It supports server clustering, storage networking, virtualization hosts, and high-performance application servers. Its dual-port configuration ensures redundancy and failover support, which is critical in maintaining uptime and service continuity.

High Performance Computing Environments

In high-performance computing (HPC) environments, the X540-T2 provides the necessary bandwidth to handle large-scale computational workloads. Scientific simulations, engineering modeling, and artificial intelligence workloads benefit from the adapter’s high throughput and low latency characteristics, enabling faster processing and data exchange between compute nodes.

Enterprise Storage Connectivity

The converged nature of the adapter allows it to efficiently handle storage traffic alongside traditional data networking. This makes it suitable for storage area networks (SAN) and network-attached storage (NAS) environments where consistent and reliable data transfer is essential for backup, replication, and archival processes.

Network Reliability and Redundancy Features

Failover and Link Aggregation

The Intel X540-T2 supports advanced link aggregation technologies that combine both ports into a single logical connection. This increases available bandwidth and provides automatic failover capabilities in the event of a port failure. Such redundancy is essential in mission-critical environments where uninterrupted connectivity is required.

Error Correction and Data Integrity

To ensure reliable data transmission, the adapter incorporates advanced error detection and correction mechanisms. These features help maintain data integrity during transmission, reducing packet loss and improving overall network reliability in high-traffic environments.

Stable Long-Term Operation

Built for enterprise-grade durability, the X540-T2 is designed to operate continuously under heavy workloads. Its robust architecture ensures long-term stability, making it suitable for 24/7 data center operations where downtime is not acceptable.

Compatibility and System Integration

Operating System Support

The Intel X540-T2 is compatible with a wide range of operating systems, including Windows Server, Linux distributions, and virtualization hypervisors. This broad compatibility ensures seamless integration into diverse IT environments without requiring extensive configuration changes.

Server and Workstation Deployment Flexibility

The adapter is suitable for both enterprise servers and high-performance workstations. Its flexible design allows IT administrators to deploy it across different hardware platforms while maintaining consistent network performance and reliability.

Driver and Management Tools

Intel provides comprehensive driver support and network management tools that allow administrators to configure, monitor, and optimize adapter performance. These tools enhance visibility into network activity and provide diagnostic capabilities for troubleshooting and performance tuning.

Security and Data Protection Capabilities

Secure Data Transmission

The Intel X540-T2 supports secure data handling mechanisms that help protect network traffic from corruption and unauthorized manipulation. These features are particularly important in enterprise environments where sensitive data is transmitted across shared infrastructures.

Virtual Network Isolation

Through virtualization support, the adapter enables secure isolation of network traffic between virtual machines. This ensures that workloads remain separated, reducing the risk of data leakage and improving overall network security in multi-tenant environments.

Enhanced Network Monitoring

The adapter provides detailed network statistics and monitoring capabilities, allowing administrators to track performance metrics and detect anomalies in real time. This improves proactive network management and enhances security response times.

Scalability and Future-Ready Networking

Adaptability to Growing Network Demands

The Intel X540-T2 is designed to support evolving network requirements in modern IT environments. As data traffic continues to grow, the adapter provides scalable performance that accommodates increased workloads without requiring immediate hardware replacement.

Integration with Software-Defined Networking

The adapter is compatible with software-defined networking (SDN) architectures, allowing organizations to dynamically manage network resources through software control layers. This enhances flexibility and enables more efficient utilization of network infrastructure.
