DCS-7050QX-32-R Arista 32 Ports 40GbE Switch.

Arista DCS-7050QX-32-R 7050QX Series 32 Ports Switch

Next-Generation 32-Port 40GbE QSFP+ Network Switching Platform

The Arista DCS-7050QX-32-R is a high-density, low-latency 1U rack-mounted switching solution designed for modern data center environments. Built for scalable cloud and enterprise infrastructures, it delivers advanced Layer 2 and Layer 3 capabilities with exceptional throughput and reliability.

Core Product Identification Details

• Manufacturer: Arista Networks
• Model / Part Number: DCS-7050QX-32-R
• Device Category: Managed Network Switch
• Port Configuration: 32 x 40GbE QSFP+ Interfaces

Advanced Hardware Architecture and System Design

Engineered for Data Center Efficiency and Scalability

This switch is built with a powerful quad-core x86 processor and optimized memory architecture to handle intensive packet processing workloads in high-demand environments.

Key Hardware Specifications

• Processor: Quad-Core x86 CPU
• System Memory: 4 GB DRAM
• Switching Capacity: 2.56 Tbps
• Forwarding Performance: 1440 Mpps (Million packets per second)
• Latency: Ultra-low 550 nanoseconds

Network Interface and Connectivity Options

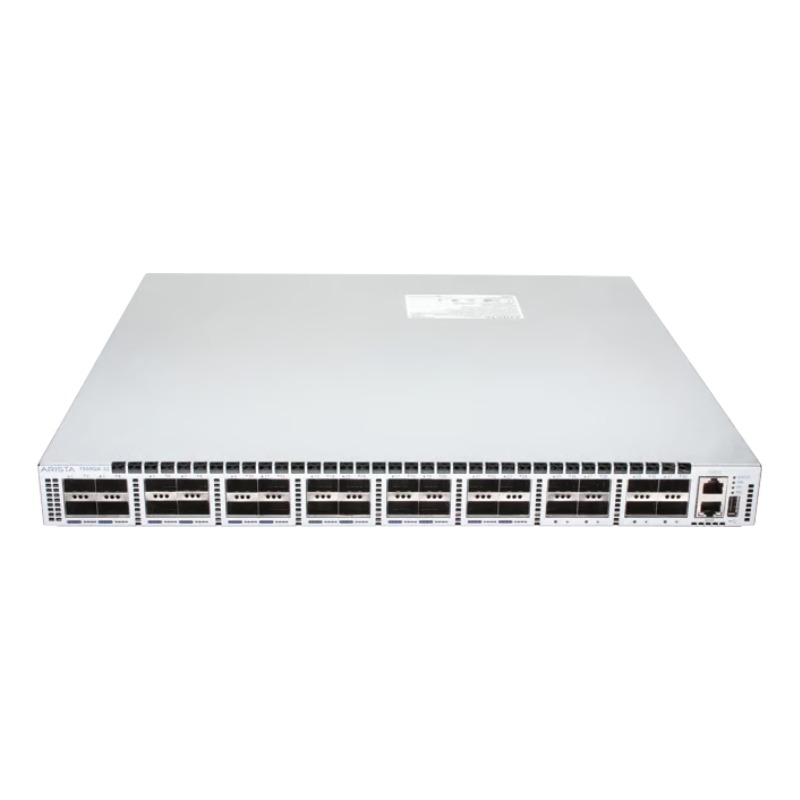

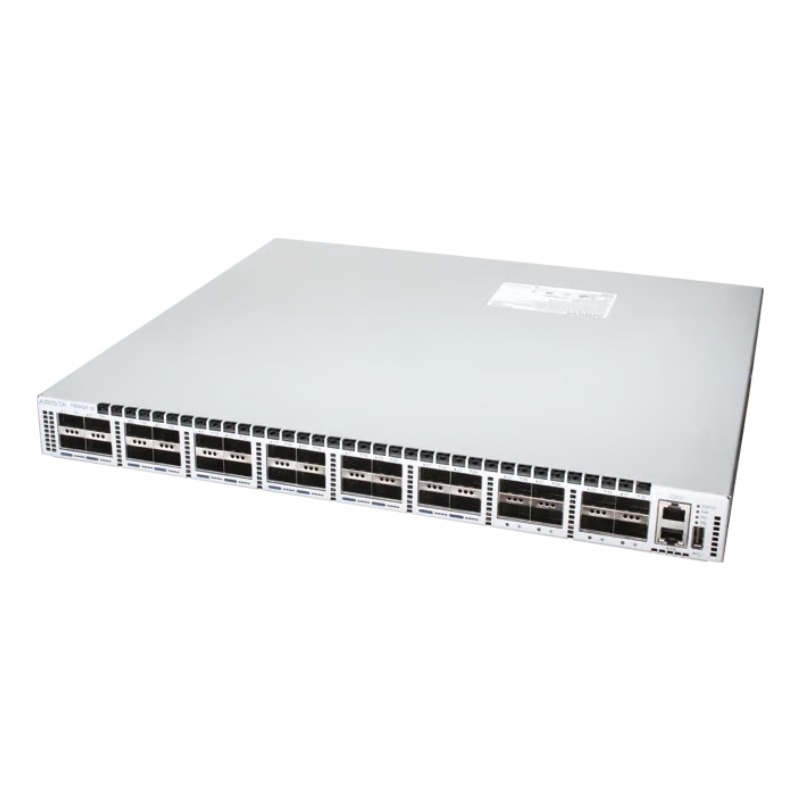

High-Density 40GbE QSFP+ Port Configuration

Designed for backbone and aggregation layers, the device provides robust connectivity through 32 high-speed QSFP+ ports, ensuring seamless data flow across large-scale networks.

Interface Breakdown

• 32 x 40GbE QSFP+ high-speed ports
• 1 x RJ-45 Ethernet management port
• 1 x USB Type-A port for system utilities
• 1 x RS-232 RJ-45 console interface

Thermal Design and Airflow Optimization

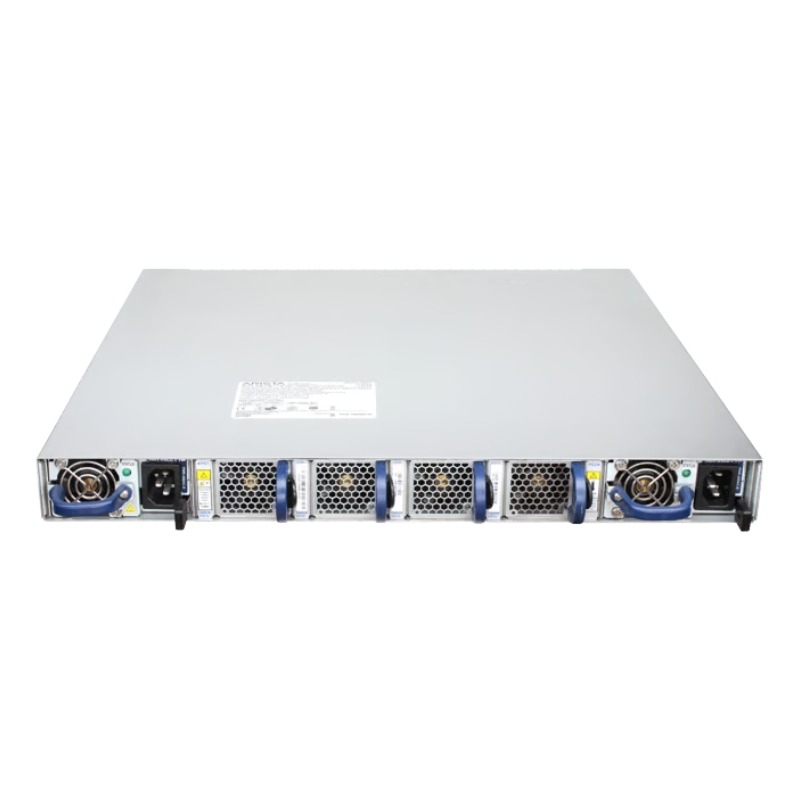

Rear-to-Front Reverse Airflow Cooling System

The switch integrates an optimized thermal design featuring reverse airflow, ensuring efficient cooling in densely populated rack environments while maintaining stable performance under heavy loads.

Cooling and Ventilation Features

• Rear-to-front airflow direction for hot aisle/cold aisle alignment
• 4x hot-swappable high-efficiency fan modules (ASY-00232-10)

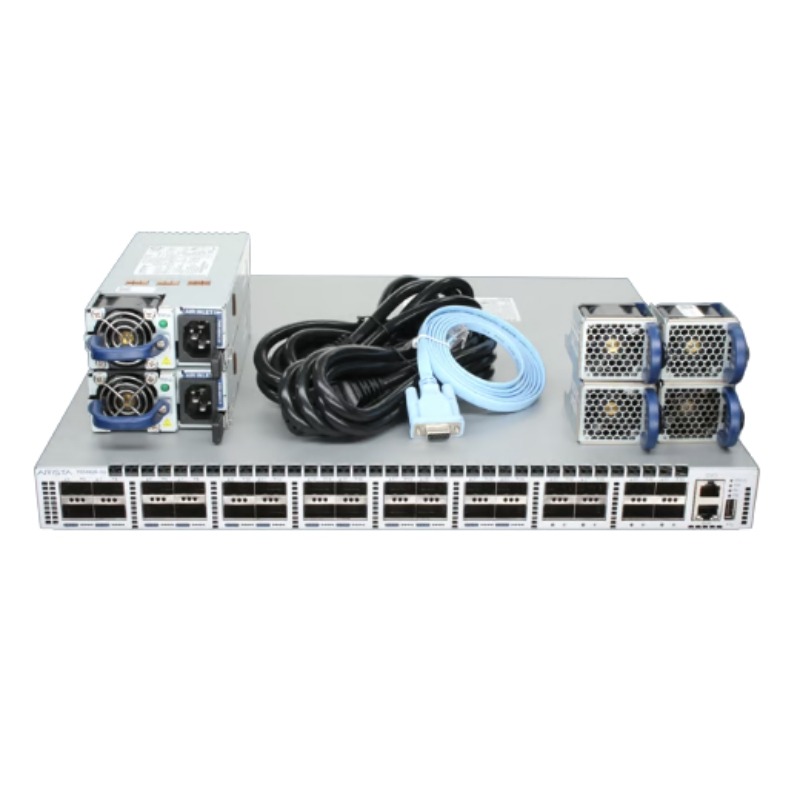

Power Supply and Redundancy Features

Dual Hot-Swappable Power Architecture

Built for maximum uptime, the system includes redundant power supplies to ensure uninterrupted network operations in mission-critical deployments.

Power System Details

• 2x hot-swappable AC power supplies (PWR-460AC-R)
• Redundant power design for fault tolerance

Software Intelligence and Operating System

Arista Extensible Operating System (EOS)

The device runs on Arista EOS, a highly modular and programmable network operating system designed for automation, visibility, and operational consistency across cloud-scale networks.

Software Capabilities

• Advanced Layer 2 and Layer 3 routing support
• Automated network provisioning and orchestration
• High availability and rapid failover mechanisms
• Scalable architecture for modern cloud deployments

Performance Advantages for Enterprise Networks

Optimized for High-Speed Data Center Environments

The Arista 7050QX Series switch is engineered to deliver predictable performance, low latency switching, and high throughput, making it ideal for cloud computing, virtualization, and high-frequency trading infrastructures.

Key Operational Benefits

• Ultra-low latency switching performance
• High throughput for bandwidth-intensive applications
• Scalable architecture for evolving network demands
• Reliable redundancy for continuous uptime

Deployment Use Cases and Applications

Enterprise and Cloud Data Center Integration

This switching platform is widely used in enterprise data centers, cloud service providers, and large-scale virtualization environments requiring high-density 40GbE connectivity.

Typical Use Scenarios

• Data center spine and leaf architectures
• Cloud infrastructure networking
• High-performance computing clusters
• Enterprise core switching deployments

Arista DCS-7050QX-32-R 7050QX Series Overview

The Arista DCS-7050QX-32-R 7050QX Series 32-Port 40GbE QSFP+ L2/L3 Reverse Airflow Managed Switch is engineered for modern data center environments that demand ultra-low latency, high throughput, and advanced Layer 2 and Layer 3 capabilities. Designed, a leader in cloud networking innovation, this switch is part of the widely adopted 7050X series optimized for spine-leaf architectures and scalable cloud infrastructures.

Built in a compact 1U form factor, the Arista DCS-7050QX-32-R delivers exceptional port density with 32 QSFP+ 40GbE interfaces, making it ideal for high-performance computing clusters, large-scale virtualization environments, and hyperscale cloud data centers. Its reverse airflow design ensures compatibility with hot/cold aisle containment strategies, improving thermal efficiency in dense rack deployments.

Core Architecture and Design Philosophy of the 7050QX Series

The 7050QX Series is built around a highly optimized switching architecture that prioritizes performance consistency, low jitter, and predictable latency. The Arista DCS-7050QX-32-R integrates a non-blocking switching fabric capable of handling simultaneous full line-rate traffic across all ports, making it suitable for East-West traffic-heavy workloads common in modern cloud data centers.

High-Speed 40GbE QSFP+ Interface Design

Each of the 32 ports on the switch supports 40GbE QSFP+ connectivity, allowing flexible deployment scenarios such as direct-attached 40GbE links, breakout to 4x10GbE configurations, or integration with high-density optical transceivers. This flexibility enables seamless scaling across leaf-spine architectures without requiring major infrastructure redesigns.

The QSFP+ interfaces are optimized for both short-reach and long-reach deployments, supporting a variety of optical modules and direct attach copper (DAC) cables. This ensures adaptability across different rack configurations and inter-rack connectivity requirements.

Non-Blocking Switching Fabric

A defining feature of the Arista DCS-7050QX-32-R is its non-blocking architecture, which ensures that every port can operate at full capacity simultaneously. This is critical for environments with heavy data replication, distributed storage systems, and real-time analytics workloads.

By eliminating oversubscription at the hardware level, the switch delivers deterministic performance, reducing bottlenecks and improving application responsiveness across distributed systems.

Layer 2 and Layer 3 Capabilities for Modern Networking

The Arista DCS-7050QX-32-R provides advanced Layer 2 and Layer 3 functionality designed for scalable and resilient data center networks. It supports a wide range of protocols that enable flexible segmentation, routing efficiency, and network automation.

Layer 2 Switching Features

At Layer 2, the switch offers features such as VLAN segmentation, link aggregation (LACP), spanning tree enhancements, and advanced MAC learning capabilities. These features allow administrators to build highly segmented and secure network topologies while maintaining simplicity in management.

VLAN Scalability and Segmentation

VLAN support enables logical separation of workloads across shared physical infrastructure. In cloud environments, this is essential for multi-tenancy, where isolation between customers or application tiers must be maintained without compromising performance.

Layer 3 Routing Capabilities

At Layer 3, the switch supports dynamic routing protocols such as OSPF, BGP, and ECMP (Equal-Cost Multi-Path). These capabilities enable efficient traffic distribution across large-scale leaf-spine networks, reducing congestion and improving failover resilience.

ECMP is particularly important in modern data centers as it allows traffic to be load-balanced across multiple equal-cost paths, ensuring optimal bandwidth utilization and redundancy.

Reverse Airflow Design for Optimized Data Center Cooling

The "R" in DCS-7050QX-32-R indicates reverse airflow configuration, which is specifically designed for environments using front-to-back or back-to-front cooling strategies depending on rack orientation. This airflow design aligns with hot aisle/cold aisle containment systems commonly deployed in enterprise and hyperscale data centers.

Thermal Efficiency in High-Density Racks

Reverse airflow ensures that hot air is expelled in the direction aligned with data center cooling systems, minimizing thermal hotspots and improving overall energy efficiency. This is particularly important in dense deployments where multiple high-performance switches operate in close proximity.

Energy Optimization Benefits

By improving airflow alignment, the switch reduces the strain on cooling systems, which can lead to lower operational costs and improved Power Usage Effectiveness (PUE). This makes it a preferred choice for environmentally optimized data centers.

Arista EOS Operating System and Network Automation

The Arista DCS-7050QX-32-R runs on Arista EOS (Extensible Operating System), a Linux-based network operating system known for its modular architecture and robust automation capabilities. EOS enables consistent software behavior across all Arista switching platforms, reducing operational complexity.

Programmability and Automation Features

EOS supports automation through Python scripting, APIs, and integration with modern orchestration tools such as Ansible, Puppet, and Chef. This allows network engineers to automate repetitive tasks, reduce configuration errors, and accelerate deployment cycles.

API-Driven Networking

The switch supports RESTful APIs and JSON-based configurations, enabling integration with DevOps pipelines and Infrastructure-as-Code (IaC) frameworks. This is critical for cloud-native environments where network provisioning must be dynamic and automated.

Stateful Fault Management

EOS includes advanced fault detection and correction mechanisms that continuously monitor system health. In the event of a failure, the system isolates issues and provides detailed logs for rapid troubleshooting, minimizing downtime.

Spine-Leaf Architecture Optimization

The Arista DCS-7050QX-32-R is specifically designed for spine-leaf data center architectures, where predictable latency and high bandwidth are essential. In this topology, the switch typically functions as either a leaf switch connecting servers or as part of a high-speed spine layer interconnecting multiple leaf nodes.

Low-Latency Fabric Design

The low-latency switching fabric ensures that traffic between endpoints traverses the network with minimal delay. This is crucial for workloads such as high-frequency trading, distributed databases, and real-time analytics.

Scalability in Leaf-Spine Networks

As data centers grow, additional leaf switches can be added without redesigning the core architecture. The DCS-7050QX-32-R supports this scalability by maintaining consistent performance across expanded topologies.

Advanced Telemetry and Network Visibility

Modern data centers require deep visibility into network performance, and the Arista DCS-7050QX-32-R provides advanced telemetry features that enable real-time monitoring and analytics.

sFlow and Streaming Telemetry

The switch supports sFlow sampling and streaming telemetry, allowing continuous export of performance metrics to monitoring systems. This enables proactive identification of congestion, packet loss, and latency anomalies.

Integration with Monitoring Platforms

Telemetry data can be integrated with platforms such as Grafana, Prometheus, and other network analytics tools, providing visual dashboards for operational insight and capacity planning.

Security and Network Segmentation

Security is a core consideration in the design of the Arista DCS-7050QX-32-R. It includes multiple layers of security features that protect against unauthorized access, network attacks, and misconfigurations.

Access Control and Authentication

The switch supports role-based access control (RBAC), TACACS+, RADIUS authentication, and secure SSH access. These features ensure that only authorized personnel can modify configurations or access system data.

Control Plane Protection

Control plane policing mechanisms protect the switch from denial-of-service attacks by limiting excessive traffic directed at the management plane. This ensures stable operation even under adverse network conditions.

Quality of Service (QoS) and Traffic Engineering

The Arista DCS-7050QX-32-R includes advanced QoS capabilities to prioritize critical traffic types and ensure fair bandwidth allocation across applications.

Traffic Prioritization Mechanisms

QoS policies can be configured to prioritize latency-sensitive traffic such as voice, video, or financial transactions. This ensures that mission-critical applications receive the necessary bandwidth and low-latency treatment.

Queue Management and Congestion Control

The switch implements sophisticated queue management algorithms that prevent buffer congestion and reduce packet loss during traffic spikes, improving overall network stability.

High Availability and Redundancy Features

High availability is essential in enterprise and cloud environments, and the Arista DCS-7050QX-32-R is designed with multiple redundancy mechanisms to ensure continuous operation.

Power Supply and Fan Redundancy

The switch supports redundant power supplies and hot-swappable fan modules, ensuring that hardware failures do not result in system downtime.

Graceful Failover Mechanisms

In the event of a failure, the system automatically reroutes traffic using redundant paths configured through ECMP and routing protocols, maintaining service continuity.

Cloud Data Center Deployment Scenarios

The Arista DCS-7050QX-32-R is widely used in cloud data centers, enterprise virtualization clusters, and high-performance computing environments. Its flexibility and performance make it suitable for multiple deployment models.

Virtualized Infrastructure Environments

In virtualized environments, the switch provides high-speed connectivity between hypervisors, storage systems, and virtual machines, ensuring low-latency communication and efficient resource utilization.

Big Data and AI Workloads

For big data analytics and AI workloads, the switch supports massive data throughput requirements, enabling distributed processing frameworks such as Hadoop and Spark to operate efficiently.
