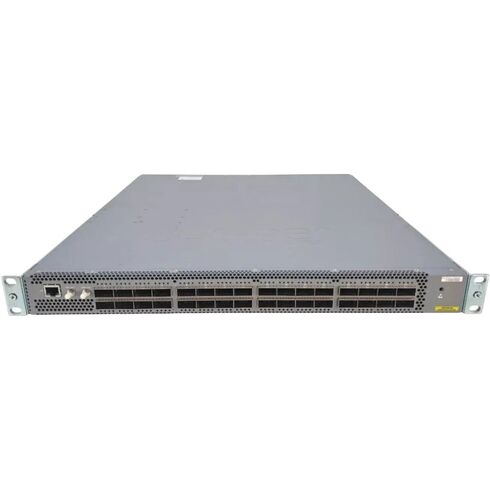

QFX5200-32C-AFO2 Juniper Networks QSFP+ QSFP28 32 Ports Layer 3 Front to Back Airflow Switch

Overview of the Juniper QFX5200-32C-AFO2 Airflow Switch

The Juniper Networks QFX5200-32C-AFO2 is a high-performance Layer 3 Ethernet switch engineered for modern data centers. With 32 QSFP+ and QSFP28 ports, this rack-mountable 1U device ensures seamless scalability and reliable connectivity for demanding workloads.

General Specifications

• Manufacturer: Juniper Networks
• Part Number: QFX5200-32C-AFO2
• Device Type: 32-Ports Airflow Switch

Technical Highlights

• Product Line: Juniper QFX Series
• Base Chassis: QFX5200-32C
• Total Ports: 32 QSFP28
• Supported Types: QSFP+, QSFP28
• Ethernet Speeds: 40GbE and 100GbE
• Rack Size: 1U
• Mounting: Rack-mountable

Application and Cooling

• Primary Use: Data center access and aggregation
• Airflow: Back-to-front cooling system

Performance Metrics

• Forwarding Rate: 4.8 Bpps
• Switching Capacity: 6.4 Tbps

Management Interfaces

• Out-of-Band: Ethernet management port
• Console: Dedicated console port

Power Efficiency

• Type: AC power supply units
• Installed Units: Dual AC PSUs

Key Advantages

• Optimized for high-density data centers
• Reliable airflow design for consistent cooling
• Scalable port options supporting 40GbE and 100GbE
• Robust switching capacity ensuring smooth traffic flow
• Redundant power supplies for uninterrupted operation

Juniper Networks QFX5200-32C-AFO2 Airflow Switch

The Juniper Networks QFX5200-32C-AFO2 is a high-density Layer 3 Ethernet switch engineered to support modern cloud infrastructures, enterprise core environments, large-scale virtualization deployments, and high-performance data center fabrics. Designed in a compact 1U rack-mountable form factor, this platform delivers exceptional throughput, low latency switching, and advanced routing capabilities while maintaining operational efficiency within demanding network environments.

Built around a non-blocking architecture, the QFX5200-32C-AFO2 provides wire-speed forwarding across all interfaces, enabling organizations to scale network performance without introducing bottlenecks. The switch is specifically optimized for spine-and-leaf topologies, high-density aggregation layers, and data center interconnect applications where bandwidth, reliability, and scalability are critical.

32-Port QSFP+ and QSFP28 Interface Configuration

The QFX5200-32C-AFO2 features thirty-two high-speed QSFP+ and QSFP28 ports that support a wide range of Ethernet connectivity options. These interfaces provide deployment flexibility for organizations transitioning between 40 Gigabit and 100 Gigabit Ethernet technologies while preserving infrastructure investments.

Each QSFP28 interface can operate at 100GbE speeds and supports breakout configurations that allow a single high-speed port to connect to multiple lower-speed devices. This capability enables network architects to maximize port utilization while simplifying cabling and reducing equipment requirements.

The port density of the QFX5200-32C-AFO2 allows network operators to deploy large numbers of servers, storage systems, virtualization clusters, and network appliances within a compact switching footprint. The ability to support both QSFP+ and QSFP28 technologies enhances deployment flexibility across mixed-speed environments.

Flexible Ethernet Speed

The platform supports multiple Ethernet speeds through compatible transceivers and breakout configurations. Organizations can deploy 10GbE, 25GbE, 40GbE, 50GbE, and 100GbE connections depending on application requirements, infrastructure design goals, and future growth plans.

This flexibility allows the switch to serve as a migration platform for evolving network architectures. Enterprises can deploy existing infrastructure while gradually introducing higher-speed connections as workload requirements increase.

Advanced Layer 3 Routing Capabilities

As a fully manageable Layer 3 switch, the QFX5200-32C-AFO2 provides extensive routing functionality that enables efficient traffic forwarding across large-scale networks. The platform supports sophisticated routing protocols required for modern enterprise and cloud environments.

Its routing architecture is designed to deliver deterministic performance while maintaining rapid convergence characteristics. This combination supports mission-critical applications that require continuous network availability and predictable communication paths.

Dynamic Routing Protocol

The switch supports advanced routing technologies that facilitate scalable network designs. Dynamic routing functionality allows automated path selection, route advertisement, and failover operations across complex network topologies.

Organizations deploying multi-tier architectures benefit from the ability to create resilient communication paths while simplifying network administration. Dynamic routing capabilities reduce manual configuration requirements and improve operational efficiency.

Data Center Fabric Integration

The QFX5200-32C-AFO2 is optimized for modern fabric architectures that require rapid route propagation and low-latency communication between endpoints. The platform supports large routing tables and high-speed forwarding operations that are essential in virtualized environments.

By supporting scalable routing infrastructures, the switch enables efficient east-west traffic movement across server clusters, storage arrays, and application workloads.

Low-Latency Switching Performance

One of the defining characteristics of the QFX5200-32C-AFO2 is its ability to provide ultra-low latency forwarding. The switching architecture minimizes packet processing delays, ensuring rapid data transmission across connected devices.

Low latency is particularly important in environments such as cloud computing, financial applications, high-performance computing clusters, artificial intelligence infrastructures, and real-time analytics platforms where every microsecond contributes to application performance.

Wire-Speed Traffic Forwarding

All interfaces operate with non-blocking performance characteristics, ensuring traffic can be forwarded at line rate without degradation. Wire-speed forwarding capabilities help maintain application responsiveness and improve overall network efficiency.

Organizations deploying bandwidth-intensive workloads can rely on consistent performance regardless of network utilization levels.

Scalable Data Center Deployment Capabilities

The QFX5200-32C-AFO2 is engineered to support rapidly growing data center environments where scalability is a primary design consideration. Its high-density port configuration and advanced switching architecture enable expansion without requiring major infrastructure redesigns.

Modern organizations often face increasing demands from virtualization platforms, cloud-native applications, containerized workloads, and distributed computing systems. The switch provides the performance foundation required to support these evolving requirements.

Spine-and-Leaf Network Architecture

The platform is ideally suited for spine-and-leaf deployments where high-bandwidth connectivity and predictable latency are essential. In these environments, the switch can operate as either a spine switch or a leaf switch depending on network design requirements.

Its high-density interface configuration allows network architects to create highly scalable fabrics that support thousands of interconnected devices while maintaining efficient traffic flows.

Front-to-Back Airflow

The AFO2 variant incorporates a front-to-back airflow configuration specifically designed for hot aisle and cold aisle data center environments. This airflow direction aligns with industry-standard thermal management strategies and supports efficient cooling operations.

Proper airflow management is essential in high-density data centers where thermal efficiency directly impacts equipment reliability and operational costs.

Data Center Cooling Optimization

The front-to-back airflow design ensures cool air enters through the front of the chassis and exits through the rear. This configuration supports consistent airflow patterns throughout equipment racks and helps maintain stable operating temperatures.

By integrating seamlessly into structured cooling environments, the switch contributes to overall facility efficiency and equipment longevity.

High-Efficiency

Advanced thermal engineering enables the switch to operate reliably under demanding workloads while maintaining appropriate internal temperatures. Intelligent cooling mechanisms help balance performance requirements with energy efficiency objectives.

Effective heat dissipation protects critical components and contributes to long-term operational stability.

High Availability and Reliability Features

Enterprise and service provider networks require uninterrupted operation, making reliability a critical design factor. The QFX5200-32C-AFO2 incorporates multiple technologies intended to enhance availability and reduce downtime risks.

Its hardware design supports continuous operation in mission-critical environments where network outages can significantly impact business operations.

Redundant System Components

The switch platform supports redundant hardware elements that help maintain service continuity during component failures. Redundancy minimizes operational disruption and supports maintenance activities without compromising network availability.

Organizations can implement resilient network architectures that maintain connectivity even during hardware replacement procedures.

Continuous Network Operations

High-availability capabilities allow the switch to participate in resilient infrastructures where uptime requirements are extremely stringent. Fast recovery mechanisms and resilient forwarding technologies contribute to overall network stability.

These features are especially valuable in financial services, cloud platforms, healthcare systems, and large enterprise environments where continuous access to digital resources is essential.

Comprehensive Management and Automation Capabilities

The QFX5200-32C-AFO2 integrates advanced management features that simplify deployment, monitoring, and operational control. These capabilities help administrators manage increasingly complex environments while improving consistency across network infrastructures.

Centralized Network Visibility

Administrators can monitor traffic flows, interface utilization, routing activities, and system performance through comprehensive management tools. Enhanced visibility enables proactive identification of performance trends and operational anomalies.

Automation-Ready Infrastructure

Modern data centers increasingly rely on automation to streamline operations and reduce configuration errors. The switch supports automation frameworks that facilitate large-scale deployments and policy-driven network management.

Automation capabilities enable faster provisioning, improved consistency, and reduced administrative overhead across extensive network environments.

Support for Evolving Network Requirements

The Juniper Networks QFX5200-32C-AFO2 combines high-density 100GbE connectivity, advanced Layer 3 functionality, low-latency switching, scalable architecture, front-to-back airflow efficiency, and enterprise-grade reliability within a compact 1U platform. Its comprehensive feature set makes it a powerful solution for organizations seeking to build high-performance data center fabrics, cloud infrastructures, enterprise cores, and large-scale aggregation networks capable of supporting current and future bandwidth demands.
