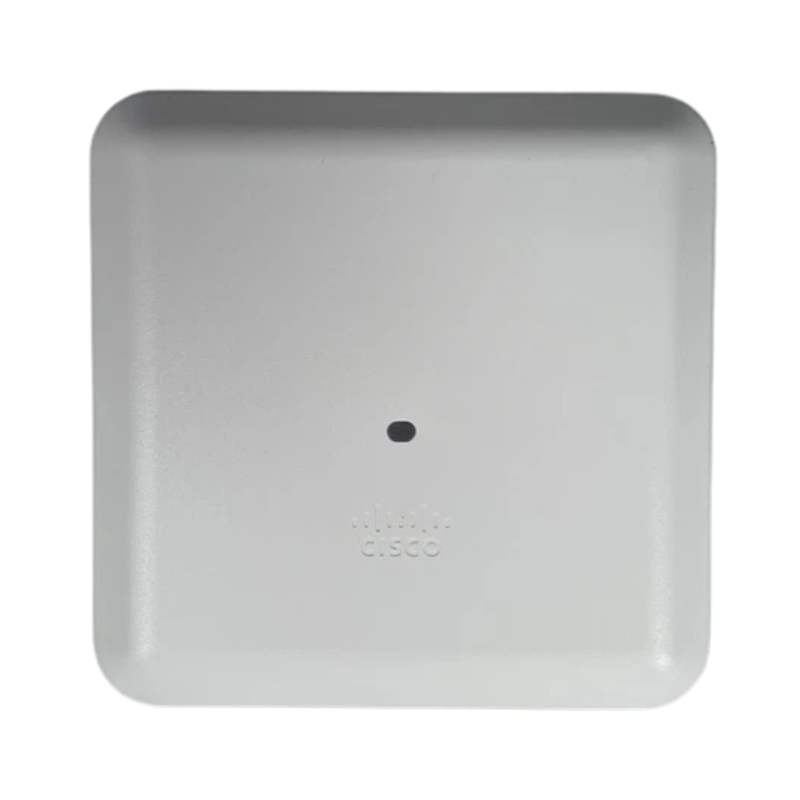

AIR-AP2802I-E-K9 Cisco Wireless Access Point 1.3GBPS

Cisco AIR-AP2802I-E-K9 Aironet Wireless Access Point 1.3GBPS

The Cisco Aironet AIR-AP2802I-E-K9 is a high-performance enterprise-grade indoor wireless access point designed for medium to large business environments. It supports IEEE 802.11ac Wave 2 technology with 4x4 MU-MIMO, delivering fast, reliable, and high-capacity Wi-Fi for high-density deployments. The access point features internal antennas, dual-band wireless connectivity, and is compatible with Cisco Wireless LAN Controllers or Mobility Express deployments. It is an ideal solution for offices, campuses, educational institutions, and enterprise networks that require secure and scalable wireless performance.

General Information

• Manufacturer: Cisco
• Part Number: AIR-AP2802I-E-K9
• Device Type: Network device

Technical Specifications

• Product Model: AIR-AP2802I-E-K9
• Series: Cisco Aironet 2800 Series
• Category: Indoor enterprise wireless access point
• Regulatory Domain: E – compliant with European standards
• Antenna Type: Internal antenna
• Wireless Standard: IEEE 802.11a/b/g/n/ac Wave 2
• Deployment: Tailored for indoor enterprise networks
• Ideal Environments: Large businesses, campuses, hospitals, universities, and dense Wi-Fi areas
• Management Modes: Cisco Wireless LAN Controller
• Power Options: IEEE 802.3at PoE+, Cisco UPOE
• Frequency Bands: Dual-band 2.4 GHz & 5 GHz
• Antenna: Internal 4x4 MIMO
• MU-MIMO: 4x4 MU-MIMO with 3 spatial streams
• Maximum Data Rate: Up to 5.2 Gbps
• Channel Width: 20 / 40 / 80 / 160 MHz
• Beamforming: Supported

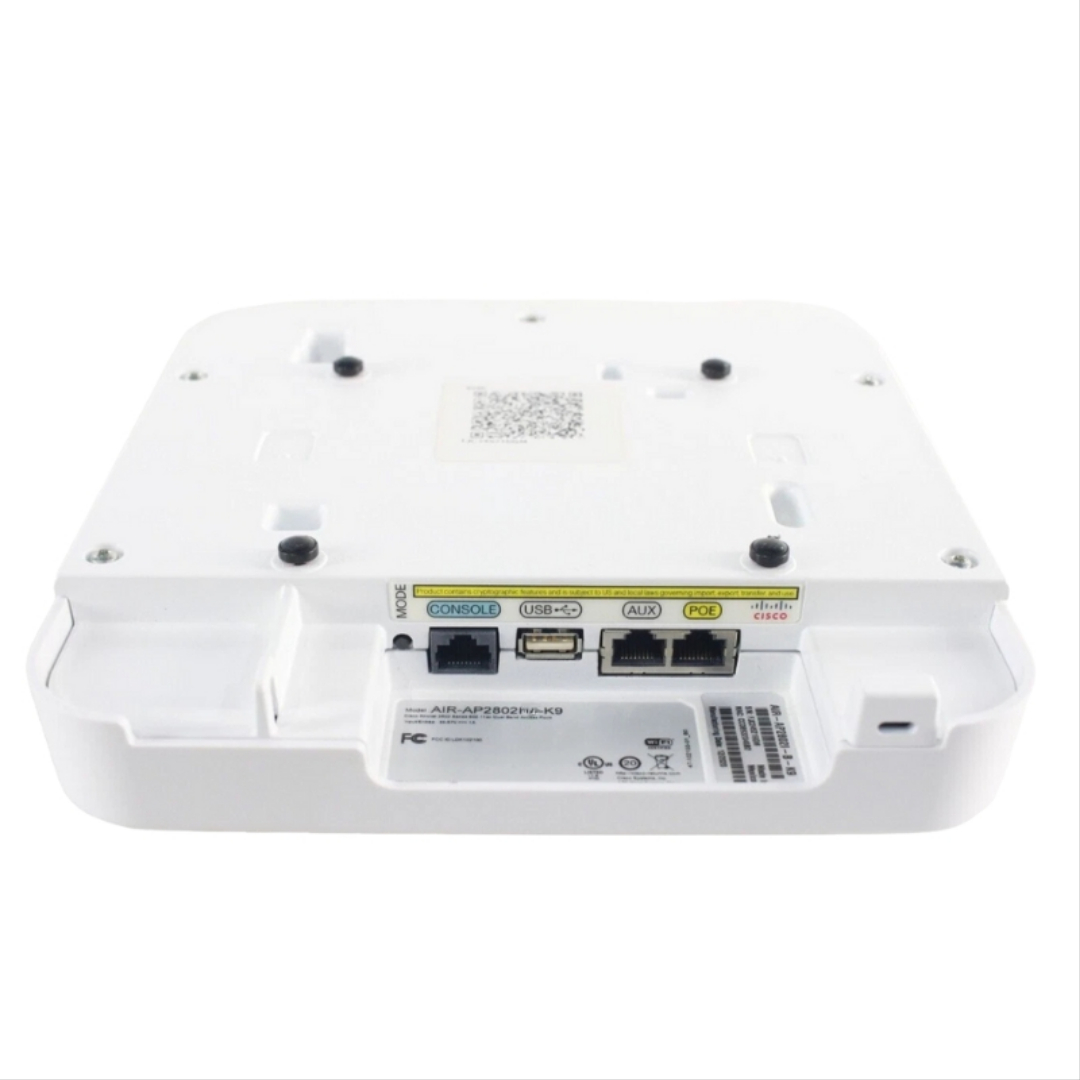

Ports and Interfaces

• Ethernet Ports: 2 × 10/100/1000 Gigabit RJ-45
• Console Port: RJ-45 console for configuration
• USB Port: USB 2.0 versatile expansion capability

Memory and Storage

• DRAM: 1 GB supporting smooth operations
• Flash Memory: 256 MB

Power and Mounting

• Power: 802.3at PoE+, UPOE

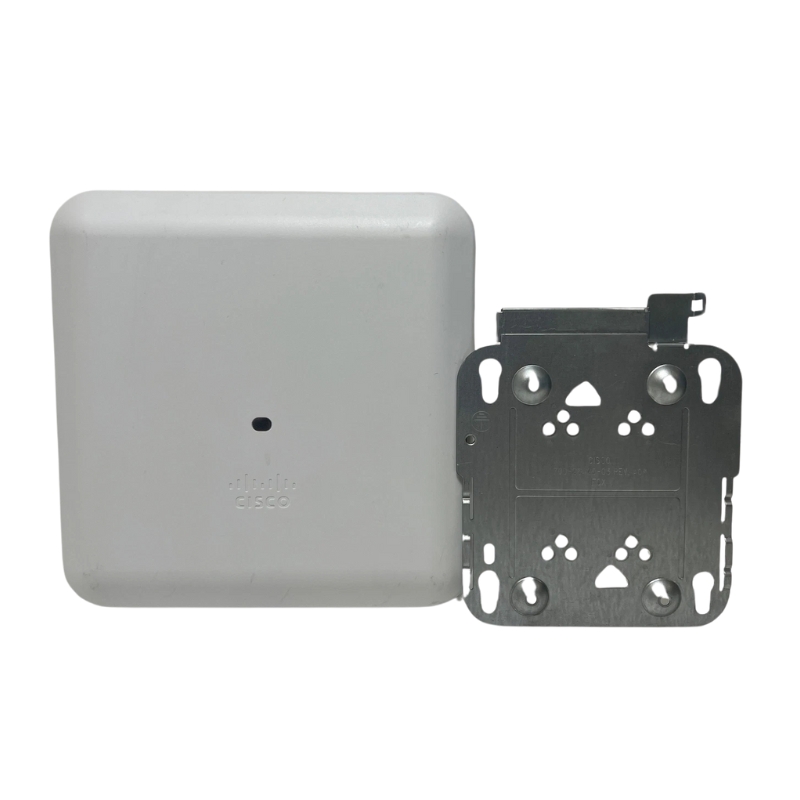

• Mounting Options: Ceiling or wall mount

Physical Dimensions

• Size: 220 × 220 × 55 mm
• Weight: Approximately 1.6 kg

Compatibility

• Cisco Wireless LAN Controllers (2500, 3504, 5508, 5520, 8540 Series)
• Cisco Catalyst 9800 Series Wireless Controllers
• Cisco Mobility Express
• Cisco Catalyst 3650 & 3850 Wireless Controllers

Cisco AIR-AP2802I-E-K9 Aironet Wireless Access Point Overview

The Cisco AIR-AP2802I-E-K9 Aironet Wireless Access Point 1.3GBPS belongs to the advanced Cisco Aironet 2800 Series, designed to deliver enterprise-grade wireless connectivity with exceptional speed, reliability, and scalability. This model supports high-density environments, ensuring seamless connectivity for multiple devices simultaneously. With a maximum throughput of 1.3GBPS, it provides robust performance for modern applications, cloud services, and multimedia streaming. The device integrates intelligent features that adapt to changing network conditions, offering optimized coverage and enhanced user experience across diverse deployment scenarios.

Performance and Throughput Capabilities

The Cisco AIR-AP2802I-E-K9 is engineered to deliver superior wireless performance, supporting data rates up to 1.3GBPS. This high throughput ensures smooth operation of bandwidth-intensive applications such as video conferencing, real-time collaboration tools, and large file transfers. The access point leverages advanced modulation techniques and multiple-input multiple-output (MIMO) technology to maximize efficiency and minimize latency. By intelligently managing traffic, it ensures consistent performance even in environments with heavy user demand, making it ideal for enterprises, educational institutions, and healthcare facilities.

Adaptive Radio Resource Management

One of the standout features of the Cisco AIR-AP2802I-E-K9 is its adaptive radio resource management. This technology continuously monitors the wireless environment, automatically adjusting channel assignments and power levels to reduce interference and optimize coverage. By dynamically adapting to network conditions, the access point ensures stable connectivity and minimizes disruptions. This capability is particularly valuable in high-density environments where multiple access points operate in close proximity, as it helps maintain optimal performance across the entire network.

Multi-User MIMO Technology

The integration of multi-user MIMO technology allows the Cisco AIR-AP2802I-E-K9 to serve multiple clients simultaneously, significantly improving overall network efficiency. Instead of sequentially transmitting data to each device, MU-MIMO enables concurrent streams, reducing wait times and enhancing user experience. This feature is especially beneficial in environments with numerous connected devices, such as offices, universities, and public venues, where demand for bandwidth is consistently high. By supporting multiple streams, the access point ensures equitable distribution of resources and prevents bottlenecks.

Design and Deployment Flexibility

The Cisco AIR-AP2802I-E-K9 is designed with flexibility in mind, allowing seamless integration into various deployment scenarios. Its sleek, compact form factor makes it suitable for installation in diverse environments, from office ceilings to classroom walls. The device supports both centralized and distributed architectures, enabling organizations to tailor deployment strategies according to their specific needs. With support for multiple mounting options and easy installation procedures, the access point simplifies deployment while maintaining aesthetic appeal in professional settings.

Scalability for Growing Networks

As organizations expand, the need for scalable wireless solutions becomes critical. The Cisco AIR-AP2802I-E-K9 addresses this requirement by offering seamless scalability, allowing additional access points to be integrated without compromising performance. Its intelligent load-balancing capabilities ensure that traffic is evenly distributed across the network, preventing congestion and maintaining consistent throughput. This scalability makes the device an ideal choice for enterprises anticipating growth, ensuring that their wireless infrastructure can evolve alongside their operational needs.

Integration with Cisco Digital Network Architecture

The Cisco AIR-AP2802I-E-K9 is fully compatible with Cisco’s Digital Network Architecture (DNA), enabling organizations to leverage advanced automation, analytics, and security features. Through DNA Center, administrators can gain deep visibility into network performance, automate routine tasks, and implement policy-based controls. This integration enhances operational efficiency, reduces administrative overhead, and ensures that the wireless network aligns with broader digital transformation initiatives. By supporting DNA, the access point becomes a strategic asset in modern enterprise networking.

Security Features and Protocols

Security is a paramount concern in wireless networking, and the Cisco AIR-AP2802I-E-K9 incorporates robust security mechanisms to safeguard data and user privacy. The device supports the latest encryption standards, including WPA3, ensuring that communications remain secure against evolving threats. Advanced authentication protocols such as 802.1X provide granular access control, allowing administrators to enforce policies based on user roles and device types. Additionally, the access point integrates with Cisco Identity Services Engine, enabling centralized management of security policies across the network.

Threat Detection and Mitigation

Beyond encryption and authentication, the Cisco AIR-AP2802I-E-K9 offers proactive threat detection and mitigation capabilities. Integrated intrusion prevention systems monitor traffic patterns, identifying anomalies that may indicate malicious activity. By automatically responding to potential threats, the device helps prevent unauthorized access and data breaches. This proactive approach to security ensures that organizations can maintain compliance with industry regulations while protecting sensitive information from cyber threats.

Guest Access and Segmentation

The access point also supports secure guest access, allowing organizations to provide connectivity to visitors without compromising internal resources. Through network segmentation, guest traffic is isolated from corporate data, ensuring that sensitive information remains protected. Administrators can configure customizable guest portals, offering branded experiences while maintaining strict security controls. This feature is particularly valuable in hospitality, education, and healthcare environments where guest connectivity is frequently required.

Advanced Features for Modern Applications

The Cisco AIR-AP2802I-E-K9 is equipped with advanced features that cater to the demands of modern applications. Support for seamless roaming ensures that users can move across different areas without experiencing connectivity drops, enhancing mobility and productivity. The device also supports application visibility and control, allowing administrators to prioritize critical applications while managing bandwidth allocation. By providing granular control over traffic, the access point ensures that essential services receive the resources they need, even in congested environments.

IoT Readiness

With the proliferation of Internet of Things devices, the Cisco AIR-AP2802I-E-K9 is designed to support diverse connectivity requirements. Its ability to handle large numbers of low-bandwidth devices makes it suitable for IoT deployments in smart buildings, healthcare facilities, and industrial environments. By integrating IoT traffic into the broader network infrastructure, organizations can streamline management and enhance operational efficiency. The access point’s robust security features further ensure that IoT devices remain protected against potential vulnerabilities.

Cloud Integration

The device also supports integration with cloud-based management platforms, enabling remote monitoring and configuration. This capability is particularly valuable for organizations with distributed locations, as it allows centralized oversight without the need for on-site administrators. Cloud integration simplifies updates, enhances scalability, and provides real-time insights into network performance. By leveraging cloud capabilities, the Cisco AIR-AP2802I-E-K9 ensures that organizations can maintain agile and responsive wireless infrastructures.

Environmental and Physical Specifications

The Cisco AIR-AP2802I-E-K9 is built to withstand diverse environmental conditions, ensuring reliable performance across different deployment scenarios. Its durable construction allows it to operate in both standard office environments and more challenging industrial settings. The device supports a wide operating temperature range, ensuring consistent performance even in areas with fluctuating climate conditions. Additionally, its energy-efficient design minimizes power consumption, aligning with sustainability initiatives while reducing operational costs.

Power Options and Efficiency

The access point supports multiple power options, including Power over Ethernet (PoE), simplifying installation by eliminating the need for separate power sources. This flexibility allows deployment in areas where traditional power outlets may not be available. Furthermore, the device incorporates energy-saving features that optimize power usage based on network demand. By intelligently managing power consumption, the Cisco AIR-AP2802I-E-K9 reduces environmental impact while maintaining high performance.

Physical Dimensions and Mounting

With a compact and lightweight design, the Cisco AIR-AP2802I-E-K9 can be easily mounted on ceilings, walls, or other surfaces. Its unobtrusive form factor ensures that it blends seamlessly into professional environments without compromising aesthetics. The device includes mounting kits that simplify installation, allowing administrators to deploy access points quickly and efficiently. This ease of deployment reduces installation time and minimizes disruption to ongoing operations.

Use Cases and Applications

The versatility of the Cisco AIR-AP2802I-E-K9 makes it suitable for a wide range of applications across different industries. In corporate environments, it supports high-performance connectivity for employees, enabling seamless collaboration and productivity. Educational institutions benefit from its ability to handle high-density environments, ensuring that students and faculty can access digital resources without interruption. Healthcare facilities leverage its secure and reliable connectivity to support critical applications such as electronic health records and telemedicine.

Support for Emerging Technologies

This designed to support emerging wireless technologies, ensuring that organizations can scale their infrastructure as demands evolve. This future-proofing capability reduces the need for frequent hardware upgrades, saving costs and ensuring continuity in enterprise operations. With support for 802.11ac Wave 2 and readiness for future standards, the device provides a foundation for long-term investment.

Enterprise Environments

In enterprise settings, the Cisco AIR-AP2802I-E-K9 provides the backbone for wireless connectivity, supporting diverse applications from video conferencing to cloud-based collaboration tools. Its scalability ensures that as organizations grow, additional access points can be integrated without compromising performance. By delivering consistent throughput and robust security, the device enables enterprises to maintain efficient and secure operations across multiple locations.

Educational Institutions

For schools, colleges, and universities, the Cisco AIR-AP2802I-E-K9 addresses the challenges of high-density environments where hundreds or thousands of devices may connect simultaneously. Its adaptive resource management ensures that bandwidth is distributed equitably, preventing congestion and maintaining smooth access to digital learning platforms. By supporting secure guest access, institutions can also provide connectivity to visitors while safeguarding academic resources.

Healthcare Facilities

Hospitals and healthcare facilities benefit from the robust performance and security..  Its compliance with healthcare IT standards makes it a trusted solution for this sector. Medical staff rely on wireless devices for patient monitoring, electronic health records, and real-time communication. The AP2802I ensures that these critical applications remain accessible and secure, even in environments where interference from medical equipment is common.
