AIR-AP2802I-E-K9 Cisco AP2802I Wireless Access Point

Cisco AIR-AP2802I-E-K9 Aironet Wireless Access Point

The AIR-AP2802I-E-K9 is a high-performance Cisco Aironet 2800 Series indoor wireless access point designed for enterprise networks. Access point offers a maximum wireless throughput of up to 5.2 Gbps, dual Gigabit Ethernet ports, advanced beamforming technology, and compatibility with Cisco Wireless LAN Controllers and Mobility Express deployments. It is ideal for organizations requiring secure, scalable, and high-capacity wireless networking.

General Information

• Manufacturer: Cisco Systems
• Part Number: AIR-AP2802I-E-K9
• Device Category: Enterprise Indoor Wireless Access Point
• Series: Cisco Aironet 2800 Series

Technical Specifications

• Antenna Type: Internal Antenna
• Wireless Protocols: IEEE 802.11a/b/g/n/ac Wave 2
• Deployment: Indoor enterprise-grade networks
• Best Suited For: Large enterprises, campuses, hospitals, universities, and high-density Wi-Fi zones
• Management Options: Cisco Wireless LAN Controller (WLC) or Mobility Express
• Power Supply: IEEE 802.3at PoE+, Cisco Universal PoE (UPOE), or optional external adapter
• Standards: IEEE 802.11ac Wave 2
• Frequency Bands: 2.4 GHz & 5 GHz
• Antenna: Internal 4x4 MIMO
• MU-MIMO: 4x4 MU-MIMO (3 Spatial Streams)
• Maximum Throughput: Up to 5.2 Gbps
• Channel Widths: 20 / 40 / 80 / 160 MHz
• Beamforming: Supported

Connectivity & Interfaces

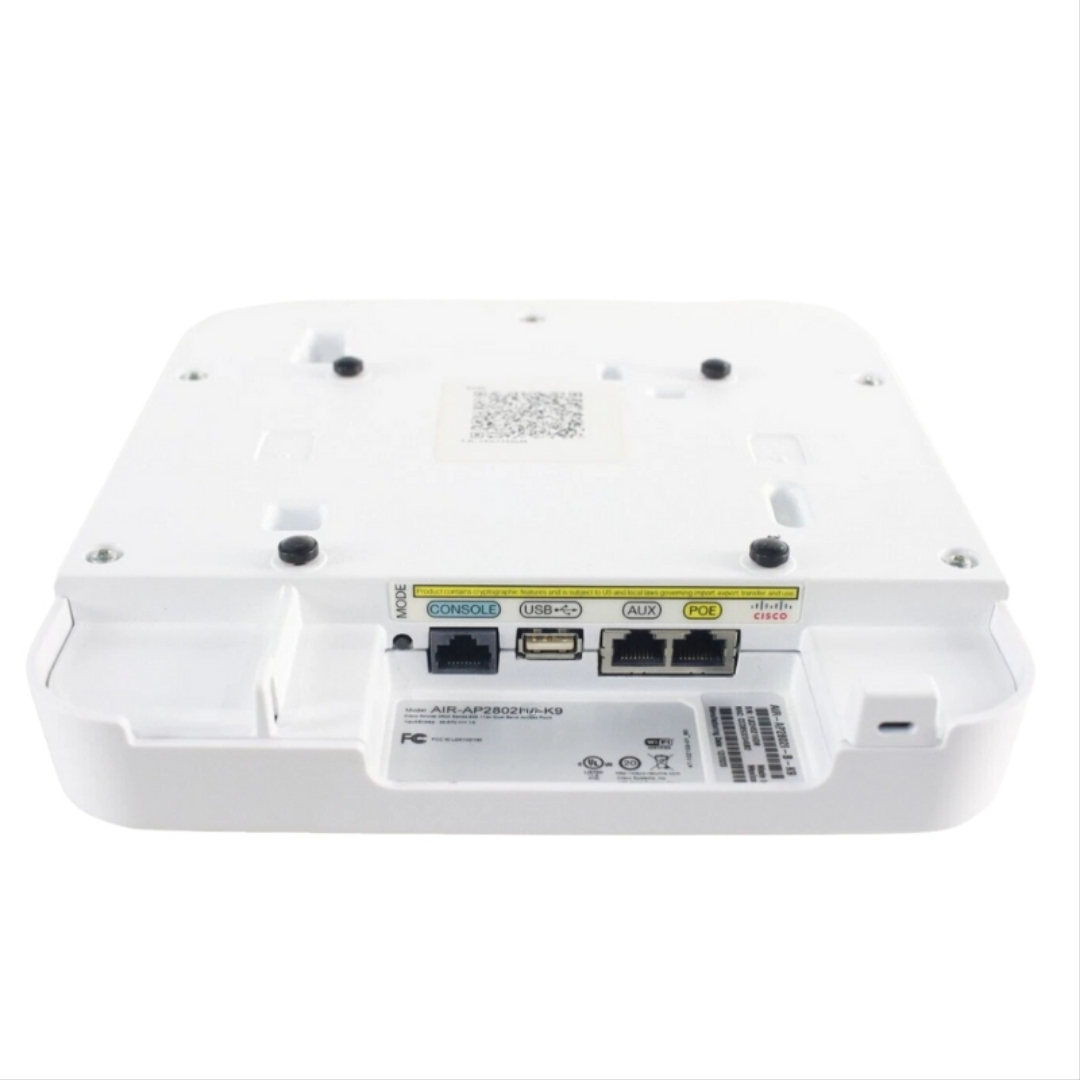

• Ethernet Ports: 2 × 10/100/1000 Gigabit RJ-45
• Console Port: RJ-45 Console
• USB Port: USB 2.0

Memory & Storage

• DRAM: 1 GB
• Flash Memory: 256 MB

Power & Mounting

• Power Options: 802.3at PoE+, UPOE

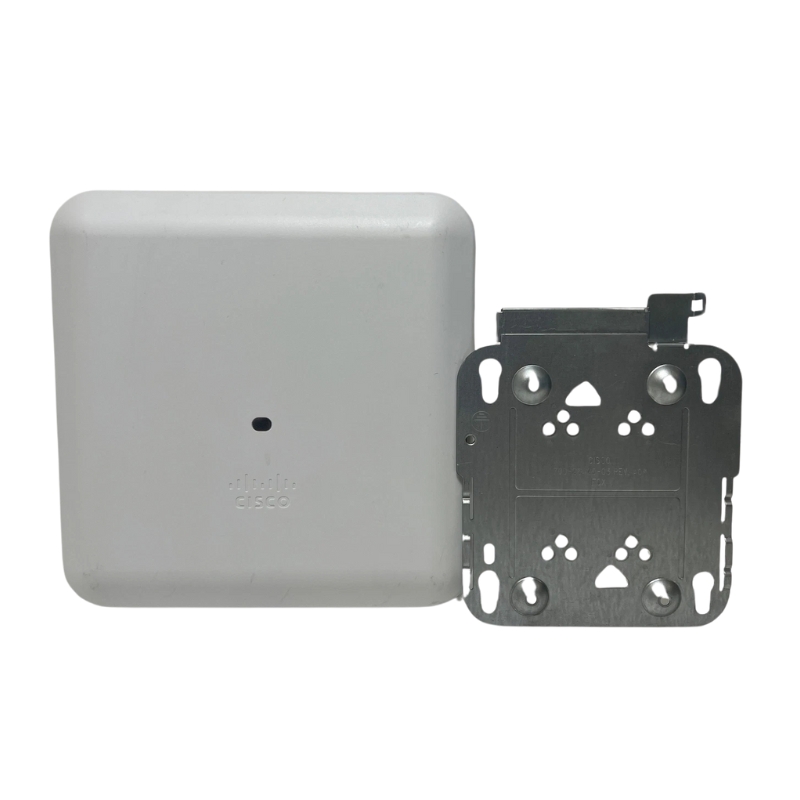

• Mounting: Ceiling or Wall Mount

Physical Dimensions

• Size: 220 × 220 × 55 mm
• Weight: Approximately 1.6 kg

Compatibility & Integration

Supported Controllers

• Cisco Wireless LAN Controllers (2500, 3504, 5508, 5520, 8540 Series)
• Cisco Catalyst 9800 Series Wireless Controllers
• Cisco Mobility Express
• Cisco Catalyst 3650 Wireless Controller
• Cisco Catalyst 3850 Wireless Controller

Overview AIR-AP2802I-E-K9 AP2802I Wireless Access Point

The Cisco AIR-AP2802I-E-K9 Aironet AP2802I Wireless Access Point belongs to the advanced enterprise-grade category of wireless networking devices designed to deliver high-performance connectivity across large-scale environments. This category emphasizes seamless mobility, robust security, and optimized throughput, ensuring that organizations can maintain reliable communication channels even in high-density deployments. The AP2802I model is part of the Cisco Aironet 2800 Series, which is engineered to support next-generation Wi-Fi standards and provide consistent coverage for mission-critical applications.

High-Density Deployment Capabilities

One of the defining characteristics of this category is its ability to handle high-density environments such as offices, universities, hospitals, and industrial campuses. The Cisco AIR-AP2802I-E-K9 is optimized to manage hundreds of concurrent connections without sacrificing performance. This is achieved through intelligent radio resource management, adaptive antenna technology, and advanced load-balancing features that distribute traffic efficiently across multiple access points. As a result, users experience uninterrupted connectivity even during peak usage hours.

Wireless Standards and Performance

The AP2802I supports IEEE 802.11ac Wave 2 standards, enabling multi-user MIMO (MU-MIMO) technology that allows simultaneous data transmission to multiple devices. This significantly enhances throughput and reduces latency, making it ideal for environments where video conferencing, cloud applications, and real-time collaboration tools are heavily used. With dual-band support, the device operates on both 2.4 GHz and 5 GHz frequencies, ensuring flexibility and reduced interference in crowded wireless spectrums.

Radio and Antenna Features

The integrated internal antennas are designed to provide omnidirectional coverage, ensuring that signals reach every corner of the deployment area. The device also incorporates Cisco’s Flexible Radio Assignment technology, which dynamically adjusts radios to serve as either access points or dedicated security monitors. This adaptability enhances both performance and protection, allowing organizations to tailor their wireless infrastructure to specific operational needs.

Power and Energy Efficiency

The Cisco AIR-AP2802I-E-K9 is powered through Power over Ethernet simplifying installation by reducing the need for separate power cables. This feature not only streamlines deployment but also contributes to energy efficiency by centralizing power management. The device is engineered to minimize energy consumption while maintaining optimal performance, aligning with modern sustainability goals in enterprise IT infrastructure.

Advanced Encryption Protocols

Security is a cornerstone of the Cisco Aironet category, and the AP2802I integrates enterprise-grade encryption protocols such as WPA2 and WPA3. These protocols safeguard data transmissions against unauthorized access and ensure compliance with industry standards. The device also supports Secure Sockets Layer and Transport Layer Security for encrypted management sessions, reinforcing the integrity of administrative operations.

Detection and Mitigation

Beyond encryption, the AP2802I incorporates Cisco’s Clean Air technology, which detects and mitigates interference from non-Wi-Fi devices such as microwaves and Bluetooth equipment. This proactive interference management ensures that wireless performance remains stable even in environments with multiple electronic devices. Additionally, integrated rogue access point detection helps administrators identify and neutralize unauthorized devices attempting to infiltrate the network.

Corporate Offices

In corporate office environments, the AP2802I provides seamless connectivity for employees working across multiple floors and departments. Its ability to support high-density connections ensures that video conferencing, VoIP calls, and collaborative cloud applications run smoothly without interruptions. The device’s security features also protect sensitive corporate data from external threats, making it a reliable choice for enterprise communication.

Healthcare Facilities

Hospitals and healthcare facilities benefit from the AP2802I’s robust performance and security. Medical staff rely on wireless devices for patient monitoring, electronic health records, and real-time communication. The AP2802I ensures that these critical applications remain accessible and secure, even in environments where interference from medical equipment is common. Its compliance with healthcare IT standards makes it a trusted solution for this sector.

Educational Institutions

Universities and schools require wireless infrastructure that can support thousands of students and faculty members simultaneously. The AP2802I excels in such environments by delivering consistent coverage across lecture halls, libraries, and dormitories. Its MU-MIMO capabilities allow multiple students to stream lectures, access online resources, and collaborate on projects without experiencing connectivity issues. This makes it an essential component of modern digital learning ecosystems.

Durability and Reliability

The AP2802I is built with durable materials that ensure long-term reliability in diverse environments. Its compact design allows for discreet installation on ceilings or walls, blending seamlessly into office or campus aesthetics. The device is engineered to withstand fluctuations in temperature and humidity, making it suitable for deployment in both controlled indoor spaces and semi-industrial environments.

Ease of Installation

Installation is simplified through PoE support and intuitive mounting options. Administrators can quickly deploy the device without extensive cabling, reducing installation time and costs. The AP2802I also integrates with Cisco’s centralized management platforms, allowing administrators to configure and monitor multiple access points from a single interface. This streamlined management enhances operational efficiency and reduces the burden on IT staff.

Compatibility with Cisco DNA Center

The AP2802I integrates seamlessly with Cisco DNA Center, providing advanced analytics, automation, and assurance capabilities. Administrators can leverage DNA Center to gain insights into network performance, identify bottlenecks, and implement automated policies that optimize connectivity. This integration ensures that the AP2802I is not just a standalone device but part of a holistic enterprise networking solution.

Support for Cisco Mobility Express

For organizations without a dedicated wireless controller, the AP2802I supports Cisco Mobility Express, which allows the device to function as a virtual controller. This feature simplifies deployment in small to medium-sized businesses by providing enterprise-grade wireless management without additional hardware. It ensures that even smaller organizations can benefit from the advanced capabilities of the Aironet category.

Support for Emerging Technologies

The AP2802I is designed to support emerging wireless technologies, ensuring that organizations can scale their infrastructure as demands evolve. With support for 802.11ac Wave 2 and readiness for future standards, the device provides a foundation for long-term investment. This future-proofing capability reduces the need for frequent hardware upgrades, saving costs and ensuring continuity in enterprise operations.

Scalable Deployment Options

Organizations can deploy the AP2802I in scalable configurations, ranging from small office setups to large campus networks. Its compatibility with Cisco’s centralized management tools ensures that scaling does not compromise performance or security. This scalability makes the AP2802I suitable for organizations of all sizes, from startups to multinational corporations.
