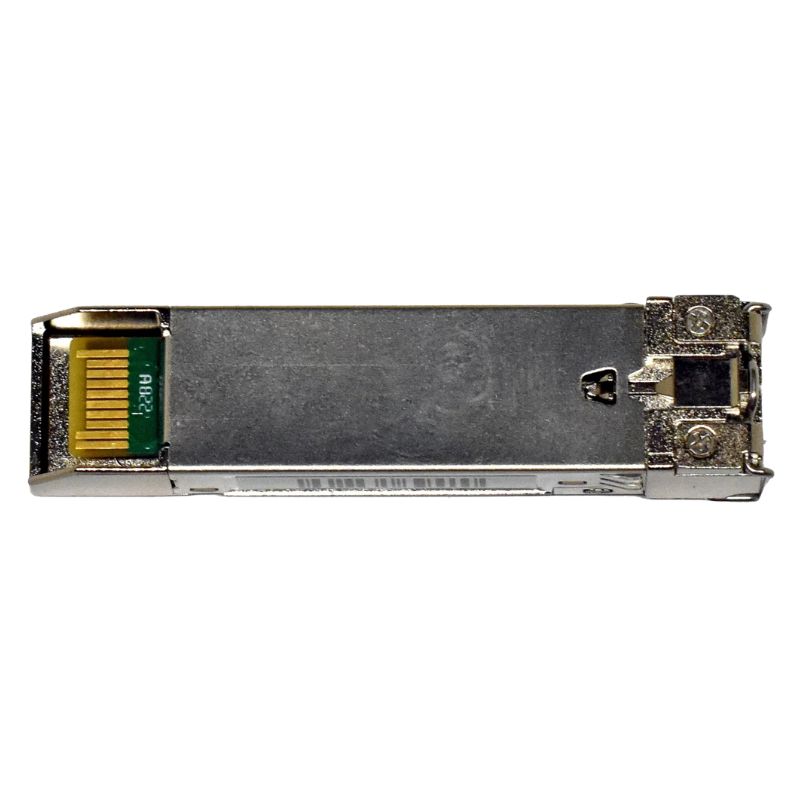

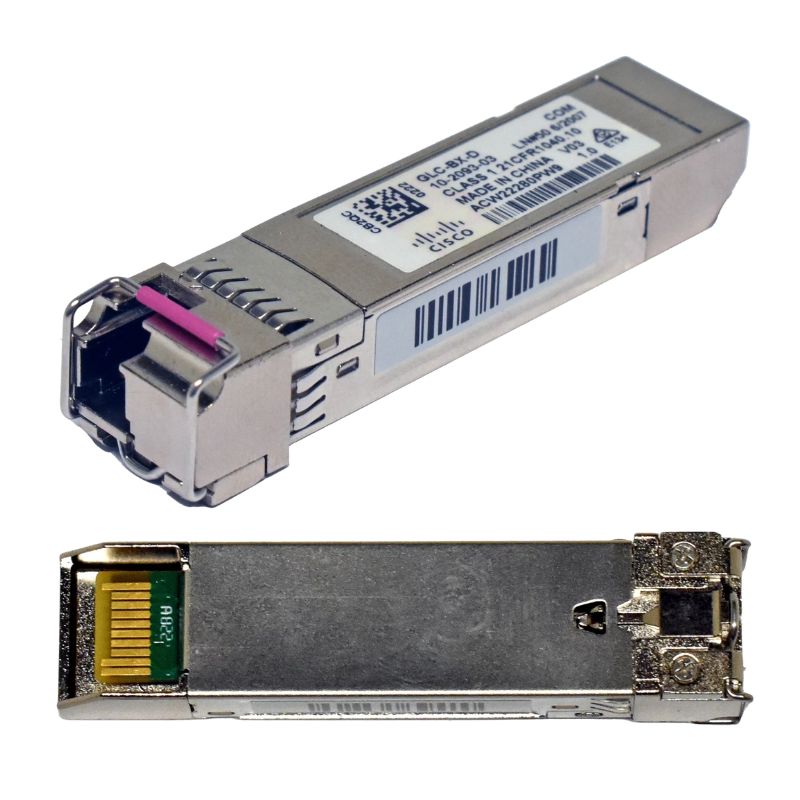

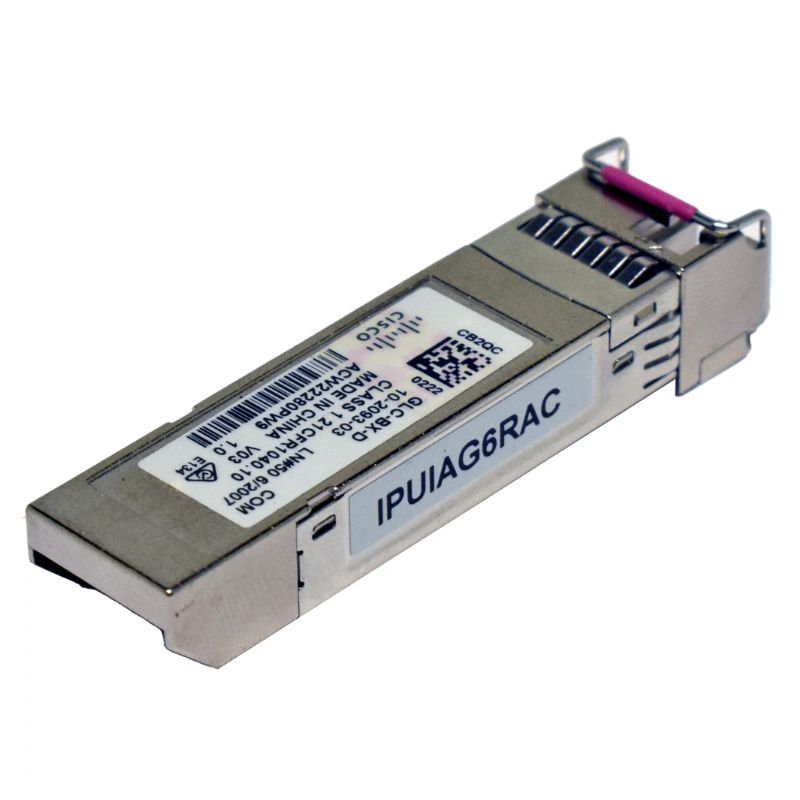

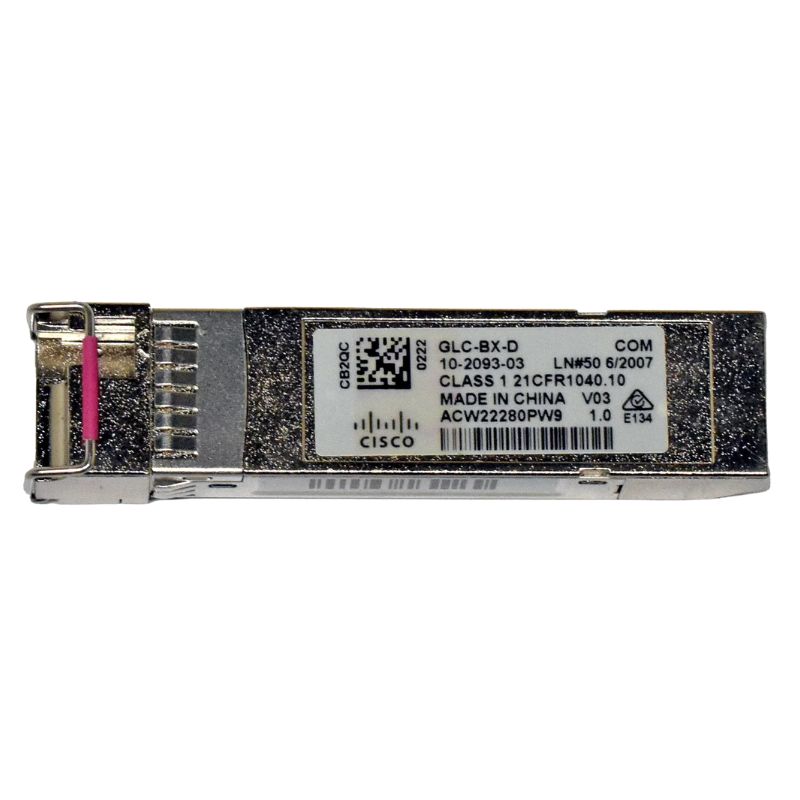

GLC-BX-D= Cisco 1000BASE-BX10 Downstream SFP Transceiver

Details of Cisco 1000BASE-BX10 SFP Transceiver

The Cisco GLC-BX-D= is a high-performance 1Gbps 1000Base-BX-D optical transceiver module designed for reliable data communication over single-mode fiber. It supports a transmission distance of up to 10 kilometers with 1490nm TX and 1310nm RX wavelengths, making it ideal for enterprise networking environments.

General Information

• Manufacturer: Cisco
• Part Number: GLC-BX-D=
• Device Type: Optical Transceiver Module

Technical Specifications

• Total Ports: 1
• Connector Type: LC
• Port Details: 1 x LC 1000Base-BX

Media & Performance

• Supported Media: Optical Fiber
• Fiber Mode: Single-mode

Physical Characteristics

• Form Factor: Hot-swappable
• Height: 0.3"
• Width: 0.5"
• Depth: 2.2"

Additional Details

• Spare product availability
• 1490nm TX / 1310nm RX wavelength support
• Transmission range up to 10 km

Compatibility

Supported Cisco Devices

• Cisco ME 2400
• Catalyst 2960 series
• Cisco ME 3400
• Catalyst 3560 series
• Catalyst 3750 series
• Catalyst 4500 series
• Catalyst 4900 series
• Catalyst 6500 series

Key Benefits

Performance Advantages

• Reliable long-distance fiber transmission
• Compact hot-swappable design for easy installation
• Enhanced compatibility with multiple Cisco Catalyst series

Cisco GLC-BX-D= 1000BASE-BX10 SFP Transceiver Overview

The Cisco GLC-BX-D= 1000BASE-BX10 Downstream SFP Transceiver represents a highly efficient and compact optical networking solution designed for Gigabit Ethernet connectivity over single-mode fiber infrastructure. Developed by, this optical module is engineered to deliver reliable downstream data transmission at 1 Gbps speeds across access, enterprise, and service provider network environments. The GLC-BX-D= is widely recognized as part of Cisco’s small form-factor pluggable (SFP) transceiver family, specifically optimized for bidirectional fiber links that enable cost-effective and scalable fiber deployment without requiring dual fiber strands.

In modern optical networking architecture, the Cisco GLC-BX-D= plays a crucial role in reducing infrastructure complexity while maintaining high performance. It is commonly paired with its complementary upstream module in point-to-point fiber deployments, enabling full-duplex communication over a single strand of fiber. This capability makes it particularly valuable in fiber-to-the-home (FTTH), campus networks, metro Ethernet systems, and enterprise backbone connectivity where fiber optimization is critical.

Architecture of 1000BASE-BX10 Downstream SFP Design

The 1000BASE-BX10 standard defines a Gigabit Ethernet optical transmission method that uses wavelength-division multiplexing (WDM) to transmit and receive data over a single fiber strand. The Cisco GLC-BX-D= is engineered specifically for downstream transmission, meaning it sends data from the service provider or core network toward the end-user or access node. This directional design is part of a paired system where the upstream module operates at a different wavelength to prevent signal interference.

Wavelength Division Multiplexing in GLC-BX-D= Modules

At the core of the Cisco GLC-BX-D= architecture is WDM technology, which allows simultaneous transmission and reception of optical signals on different wavelengths through a single fiber core. The downstream channel typically operates at a 1490 nm wavelength, while the corresponding upstream module operates at 1310 nm. This separation ensures minimal crosstalk and maximizes data integrity across long distances, reaching up to 10 kilometers under standard single-mode fiber conditions.

Optical Signal Processing and Transmission Stability

The optical transmitter within the Cisco GLC-BX-D= utilizes a highly efficient laser diode designed for stable signal output and low noise performance. The receiver section is optimized with photodiode detection technology that ensures accurate signal interpretation even in environments with moderate attenuation. The module’s internal circuitry is built to maintain signal integrity across varying temperatures and network loads, making it suitable for both indoor and outdoor deployment scenarios when properly housed in compatible Cisco networking hardware.

Data Encoding and Ethernet Compatibility

The transceiver supports standard Gigabit Ethernet encoding mechanisms, ensuring seamless integration into IEEE 802.3z compliant networks. This compatibility allows the module to function across multiple Cisco switching and routing platforms without requiring additional configuration layers beyond standard optical interface setup. The encoding system ensures that packet transmission remains synchronized, reducing latency and packet loss in high-demand network environments.

Network Deployment Scenarios and Use Cases

The Cisco GLC-BX-D= is widely deployed in network architectures that require efficient fiber utilization and scalable bandwidth delivery. Its downstream functionality makes it particularly suitable for environments where centralized distribution of data is required, such as enterprise core-to-access layer connectivity or service provider last-mile solutions.

Enterprise Campus Network Integration

Within enterprise environments, the module is often used to establish high-speed links between distribution switches and access switches across multiple buildings. Its single-fiber design significantly reduces cabling complexity while maintaining Gigabit-level performance. This allows organizations to expand their network footprint without incurring the high cost associated with dual-fiber installations.

Fiber-to-the-Home and Metro Ethernet Deployment

In FTTH deployments, the Cisco GLC-BX-D= plays a key role in delivering downstream bandwidth from the service provider’s central office to residential or commercial endpoints. Its long-reach capability ensures stable connectivity over extended distances, making it a reliable choice for metropolitan area networks where fiber infrastructure spans multiple kilometers.

Data Center Interconnect Applications

Although primarily designed for access networks, the module can also be utilized in certain data center interconnect scenarios where Gigabit Ethernet links are sufficient. In such environments, its compact form factor allows efficient port density utilization, enabling network administrators to optimize rack space while maintaining reliable optical connectivity.

Compatibility with Cisco Networking Equipment

The Cisco GLC-BX-D= is designed to be fully compatible with a wide range of Cisco switches, routers, and optical networking devices that support SFP interfaces. This ensures seamless plug-and-play deployment across Cisco’s ecosystem, minimizing configuration complexity and reducing operational overhead for network engineers.

As part of optical transceiver portfolio, the module adheres to strict interoperability standards that ensure consistent performance when used with Cisco Catalyst, Cisco Nexus, and Cisco ISR platforms. This tight integration allows network administrators to maintain high levels of reliability and predictability in mission-critical environments.

Hot-Swappable SFP Design Advantages

One of the key advantages of the Cisco GLC-BX-D= is its hot-swappable capability, which allows installation or replacement without powering down the host device. This feature significantly reduces network downtime and supports continuous service availability in enterprise and carrier-grade environments where uptime is essential.

Auto-Detection and Configuration Support

Cisco devices automatically detect the presence of the GLC-BX-D= module and configure appropriate interface parameters, ensuring smooth integration without manual intervention. This reduces the risk of configuration errors and simplifies large-scale network deployments where multiple optical modules are installed across distributed infrastructure.

Performance Characteristics and Operational Efficiency

The Cisco GLC-BX-D= is engineered to deliver consistent 1 Gbps throughput under a wide range of operating conditions. Its performance is optimized for low latency transmission, ensuring that data packets are delivered efficiently across optical links. The module’s power consumption is also minimized through advanced circuit design, making it suitable for energy-efficient networking deployments.

Transmission Distance and Signal Integrity

With a standard reach of up to 10 kilometers over single-mode fiber, the module is well-suited for medium-distance network links. Signal integrity is maintained through advanced optical filtering and power regulation mechanisms that compensate for attenuation and dispersion effects commonly encountered in fiber networks.

Environmental Stability and Thermal Performance

The GLC-BX-D= is designed to operate within a wide temperature range, ensuring stable performance in both controlled indoor environments and more challenging outdoor or industrial settings. Its thermal management system prevents overheating and ensures consistent optical output, even under sustained network load conditions.

Fiber Cable Selection and Management

Single-mode fiber is required for proper operation of the Cisco GLC-BX-D=. The use of high-quality fiber cabling with low attenuation characteristics ensures maximum transmission distance and signal clarity. Proper cable management practices, including avoiding excessive bending and maintaining clean connector surfaces, contribute significantly to long-term network reliability.

Role in Modern Optical Networking Infrastructure

The Cisco GLC-BX-D= continues to be a vital component in modern optical networking infrastructures, particularly as organizations transition toward more fiber-centric architectures. Its ability to deliver high-speed downstream communication over a single fiber strand aligns with industry trends focused on reducing physical infrastructure costs while increasing bandwidth efficiency.

In hybrid network environments, the module supports seamless integration between legacy copper-based systems and advanced fiber-optic backbones, enabling gradual migration strategies without disrupting existing services. This adaptability makes it a preferred choice for network modernization projects across enterprise and telecom sectors.

Operational Advantages and Strategic Value

The strategic value of the Cisco GLC-BX-D= lies in its combination of cost efficiency, high performance, and deployment flexibility. By reducing fiber strand requirements, organizations can significantly lower infrastructure expenses while expanding network capacity. Additionally, its compatibility with Cisco’s broader ecosystem ensures long-term support and reliability.

Scalability in Large-Scale Network Architectures

As network demands continue to grow, scalability becomes a critical factor in infrastructure planning. The Cisco GLC-BX-D= supports scalable deployment models that allow incremental expansion without requiring major architectural changes. This makes it suitable for growing enterprises and service providers managing expanding customer bases.

Reliability in Mission-Critical Environments

Mission-critical applications require consistent uptime and predictable performance. The GLC-BX-D= meets these requirements through robust optical design and strict adherence to Cisco quality standards. Its stable performance under varying network loads ensures that essential services remain uninterrupted even in demanding operational conditions.
