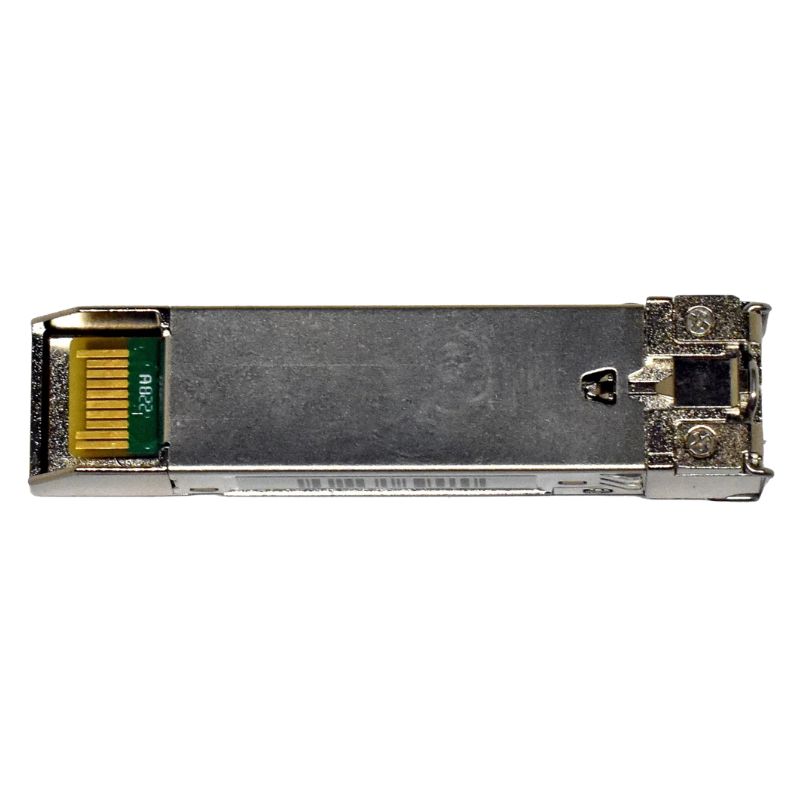

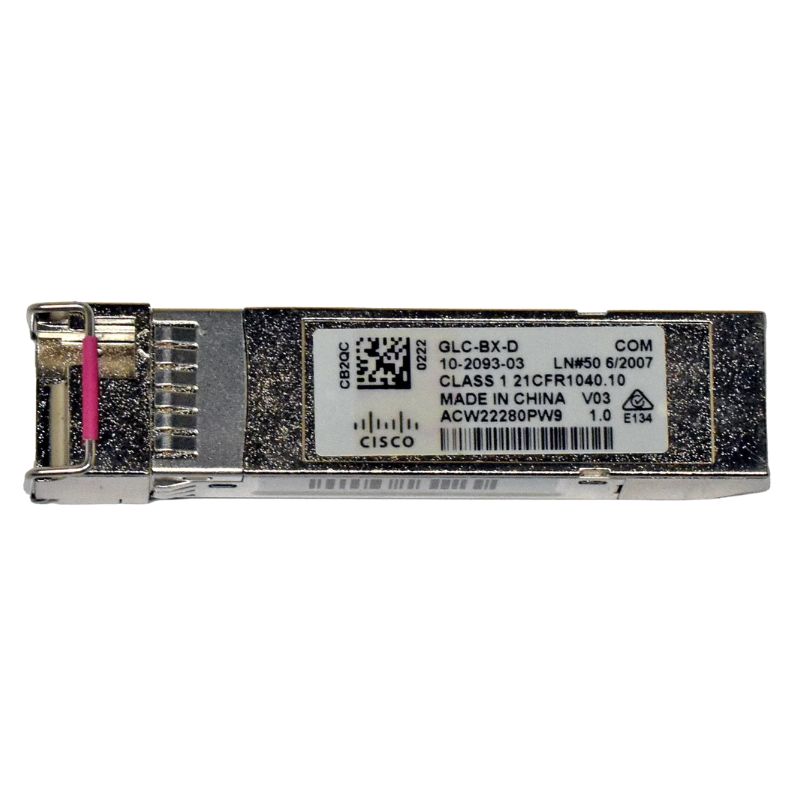

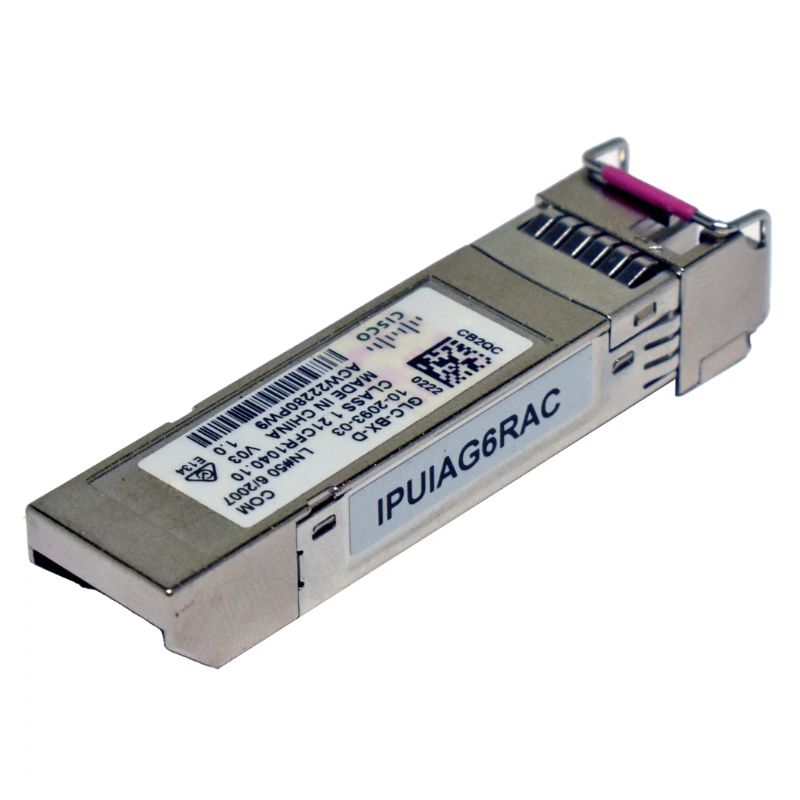

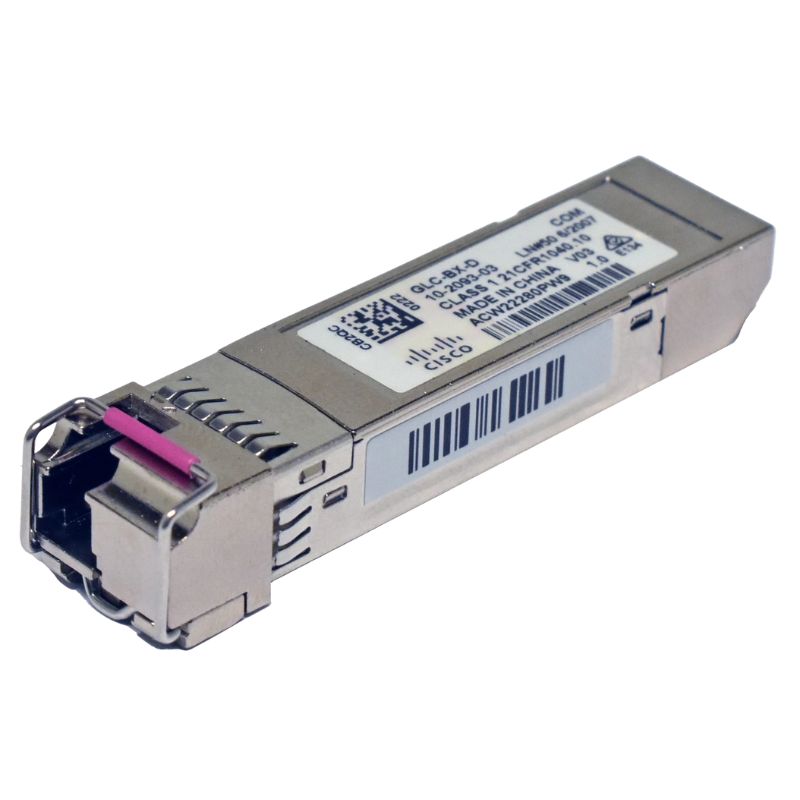

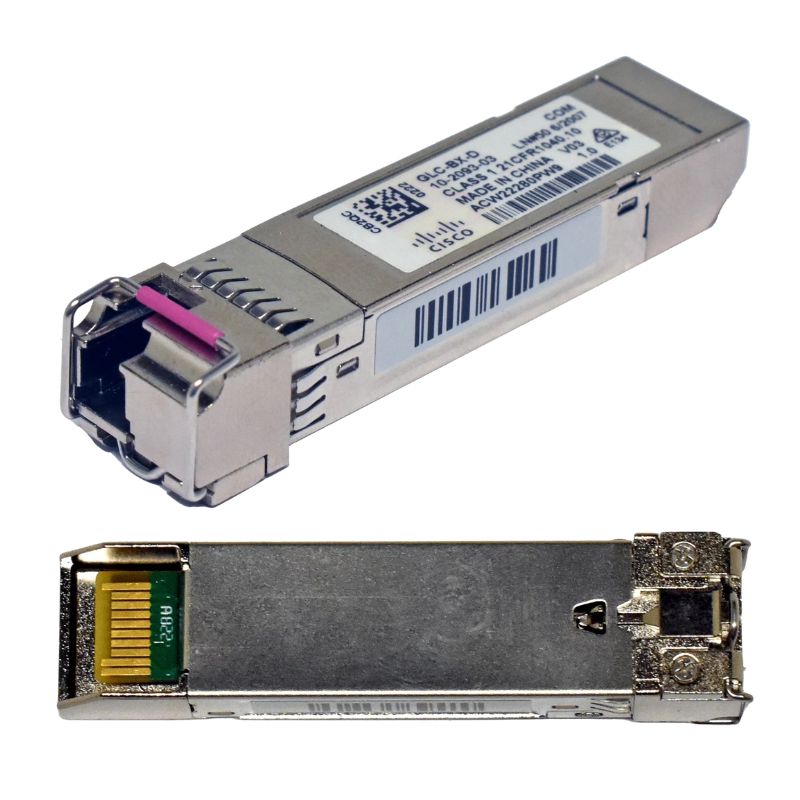

GLC-BX-D= Cisco Single Fiber Transceiver Module 1000base-bx10-d

Highlights of Cisco Single Fiber Transceiver Module

The Cisco GLC-BX-D= is a reliable 1000BASE-BX10 downstream SFP transceiver designed for high-speed gigabit Ethernet connectivity. This optical module ensures stable data transmission across single-mode fiber networks, supporting distances up to 10 kilometers.

Main Information

• Brand: Cisco
• Model Number: GLC-BX-D=
• Product Type: Optical Transceiver Module

Technical Details

• Data Networking
• Optical Network Integration
• Port Details: 1 x 1000Base-BX10-D Network

Media & Performance

• Supported Media: Optical Fiber
• Fiber Mode: Single-mode
• Ethernet Technology: Gigabit Ethernet
• Network Technology: 1000Base-BX10-D

Physical Characteristics

• Form Factor: Hot-swappable
• Height: 0.3"
• Width: 0.5"
• Depth: 2.2"

Compatibility

• Cisco ME 2400
• Catalyst 2960 series
• Cisco ME 3400
• Catalyst 3560 series
• Catalyst 3750 series
• Catalyst 4500 series
• Catalyst 4900 series
• Catalyst 6500 series

Overview of Cisco GLC-BX-D= 1000BASE-BX10 SFP Transceiver

The Cisco GLC-BX-D= 1000BASE-BX10 Downstream SFP Transceiver is a high-performance optical networking module designed to deliver reliable Gigabit Ethernet connectivity over single-mode fiber infrastructure, this Small Form-Factor Pluggable (SFP) device plays a critical role in modern enterprise, data center, and service provider networks where high-density, long-distance, and cost-efficient optical transmission is required. As part of Cisco’s advanced optical transceiver ecosystem, the GLC-BX-D= enables downstream transmission over a single strand of fiber, significantly reducing cabling complexity while maintaining high throughput and signal integrity.

The module operates under the 1000BASE-BX10 standard, which supports Gigabit Ethernet speeds up to 1 Gbps in a bidirectional configuration using wavelength-division multiplexing (WDM). The downstream “D” designation indicates its role in transmitting data in one direction while receiving in the opposite direction over a paired upstream module. This architecture makes it ideal for point-to-point links in campus networks, fiber-to-the-x deployments, and enterprise backbone extensions.

Core Architecture and Optical Design Principles

Bidirectional Single-Fiber Transmission Technology

At the heart of the Cisco GLC-BX-D= transceiver lies bidirectional optical transmission technology, which enables simultaneous sending and receiving of data over a single optical fiber strand. This is achieved through wavelength separation, where the downstream signal typically operates at 1490 nm while the upstream counterpart uses 1310 nm or a complementary wavelength. This separation ensures minimal interference and allows efficient full-duplex communication.

This architecture significantly reduces fiber consumption in network deployments. Traditional dual-fiber systems require separate strands for transmitting and receiving, whereas the BX10 design consolidates both functions, making it highly efficient in environments where fiber availability is limited or costly.

1000BASE-BX10 Standard Compliance

The module complies with the IEEE 802.3ah 1000BASE-BX10 standard, ensuring interoperability with other compliant networking equipment. This standard defines Gigabit Ethernet transmission over single-mode fiber with reach capabilities of up to 10 kilometers, depending on optical conditions and fiber quality. The Cisco implementation enhances this standard with proprietary optimization for signal clarity, power efficiency, and diagnostic capabilities.

Optical Budget Optimization

The optical budget of the GLC-BX-D= is carefully engineered to maintain stable transmission across extended distances. By optimizing laser output power and receiver sensitivity, the module ensures consistent performance even in environments with moderate fiber attenuation or connector loss. This makes it suitable for both metropolitan and campus-scale deployments.

Physical and Electrical Characteristics

Small Form-Factor Pluggable Design

The SFP form factor is one of the most widely adopted modular networking interface standards in the industry. The compact size of the GLC-BX-D= allows network engineers to deploy high-density switch configurations without compromising airflow or rack space. Its hot-swappable nature ensures that installation or replacement can be performed without powering down networking equipment, minimizing downtime and operational disruption.

Low Power Consumption Efficiency

Energy efficiency is a significant advantage of the Cisco GLC-BX-D= module. Designed with low-power laser components and optimized electronic circuitry, it consumes minimal energy while maintaining full Gigabit throughput. This contributes to reduced operational costs in large-scale data centers and enterprise networks where hundreds or thousands of transceivers may be deployed simultaneously.

Digital Diagnostics Monitoring Capability

Modern Cisco optical modules, including the GLC-BX-D=, support Digital Diagnostics Monitoring (DDM), which provides real-time information about optical parameters such as temperature, voltage, laser bias current, and transmitted/received optical power. This feature enhances network visibility and allows administrators to proactively identify performance degradation before it impacts network availability.

Network Compatibility and Integration

Supported Cisco Hardware Ecosystem

The GLC-BX-D= is designed for seamless integration with a wide range of Cisco networking devices, including switches, routers, and aggregation platforms that support SFP interfaces. Its compatibility ensures that enterprises can standardize their optical infrastructure without requiring multiple transceiver types, simplifying procurement and inventory management.

Interoperability Considerations

While optimized for Cisco environments, the module is also engineered to maintain interoperability with other IEEE-compliant networking hardware. However, full feature support, including advanced diagnostics and performance tuning, is best achieved within a Cisco-native ecosystem. This ensures consistent reliability and predictable performance across mission-critical deployments.

Link Partner Configuration

The GLC-BX-D= must be paired with a complementary upstream transceiver, typically the GLC-BX-U= or equivalent, to establish a full bidirectional link. Proper wavelength pairing is essential to avoid signal mismatch and ensure optimal communication performance. This pairing strategy is fundamental to BX10 architecture and must be considered during network design.

Deployment Scenarios and Use Cases

Enterprise Campus Networks

In enterprise environments, the Cisco GLC-BX-D= is commonly used to extend connectivity between buildings or across large campuses. Its 10-kilometer reach capability allows organizations to connect distributed offices, research facilities, and data rooms without deploying additional active equipment in intermediate locations.

Metro Ethernet and Service Provider Networks

Service providers benefit from the BX10 architecture in metro Ethernet deployments where cost-effective fiber utilization is critical. By reducing fiber strand requirements by half, the module significantly improves infrastructure efficiency while maintaining high-speed connectivity for customers.

Data Center Interconnect Applications

The module also plays a role in data center interconnect (DCI) solutions where low-latency, high-reliability links are required between geographically separated facilities. Its stable optical performance ensures consistent throughput for replication, backup, and cloud synchronization workloads.

Performance Characteristics and Reliability Engineering

High Signal Integrity Design

Signal integrity is a core engineering focus of the GLC-BX-D=. The module incorporates advanced optical filtering and signal conditioning technologies to minimize jitter, dispersion, and attenuation effects. This ensures clean data transmission even in electrically noisy or high-density networking environments.

Thermal Stability and Environmental Tolerance

The transceiver is designed to operate reliably across a wide temperature range, making it suitable for both controlled data center environments and less predictable telecom installations. Thermal compensation mechanisms ensure that laser performance remains stable even under fluctuating environmental conditions.

Installation, Configuration, and Operational Considerations

Hot-Swappable Deployment Process

One of the key operational advantages of the SFP design is hot-swappability. The GLC-BX-D= can be inserted or removed from compatible Cisco devices without shutting down the system. This feature is essential in mission-critical environments where uptime is a priority and service interruptions must be avoided.

Link Establishment and Verification

Once installed, the module automatically negotiates link parameters with its paired transceiver. Network administrators can verify link status through device management interfaces, ensuring that optical power levels and connectivity status are within expected ranges. This process is essential for maintaining network stability.

Optical Power Calibration

Proper calibration of optical power levels ensures that the transmitted signal remains within acceptable thresholds for the receiving device. Overpowered or underpowered signals can lead to degradation or loss of connectivity. The Cisco GLC-BX-D= is designed with built-in safeguards to maintain balanced optical output.

Advantages of Cisco GLC-BX-D= 1000BASE-BX10 Transceivers

Cost-Efficient Fiber Utilization

By enabling bidirectional communication over a single fiber strand, the module significantly reduces infrastructure costs. This is particularly beneficial in environments where fiber installation is expensive or physically constrained.

Scalability for Growing Networks

The modular nature of SFP-based systems allows organizations to scale their networks incrementally. Additional transceivers can be deployed as needed without requiring major hardware overhauls, supporting flexible growth strategies.

Enhanced Network Visibility and Management

With integrated diagnostics and compatibility with Cisco management systems, the GLC-BX-D= enhances network visibility. Administrators gain insight into link health, enabling proactive maintenance and improved uptime.
