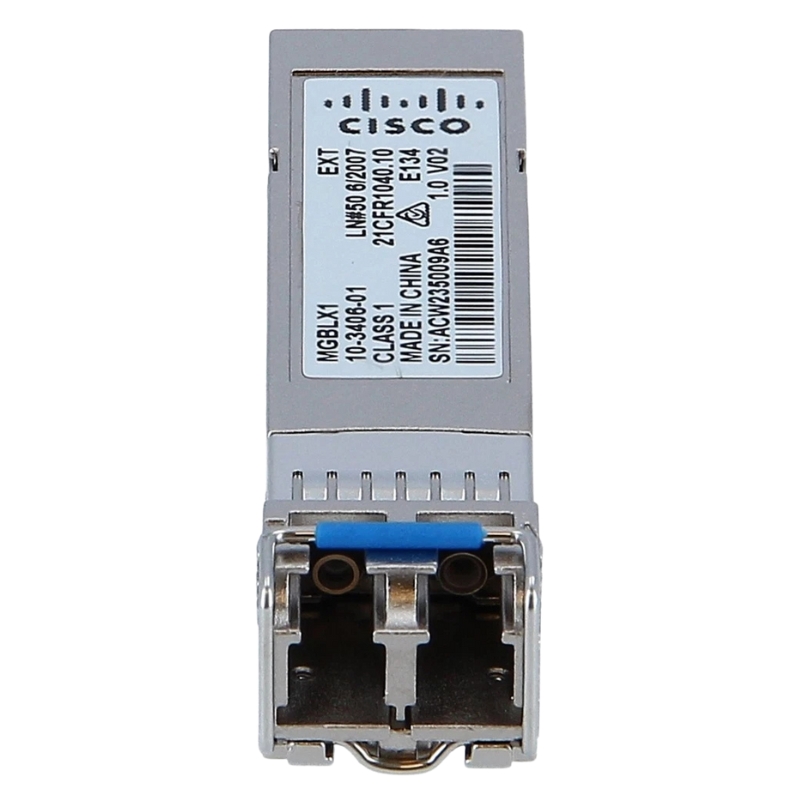

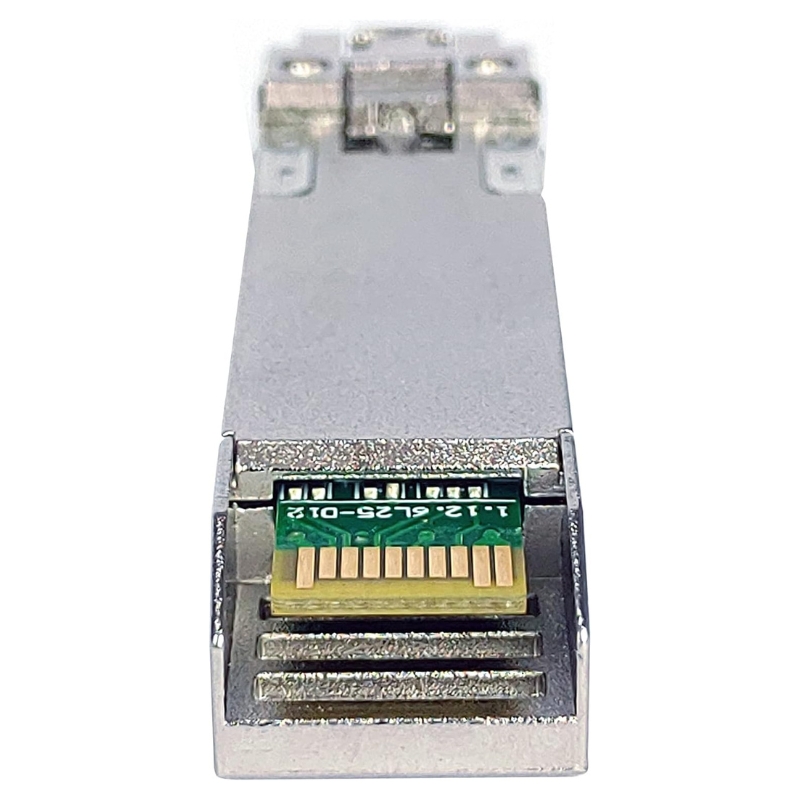

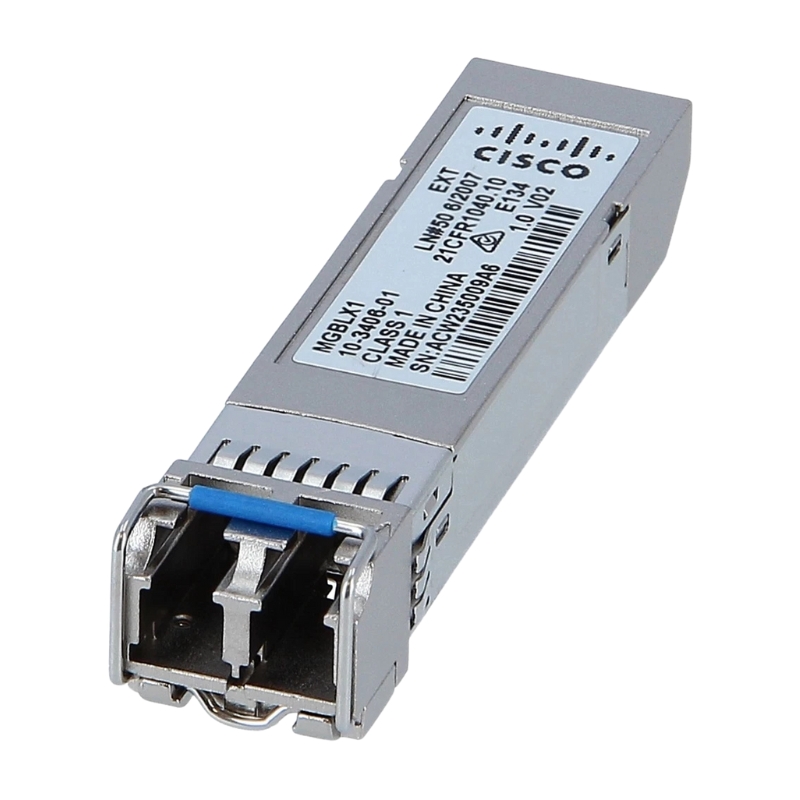

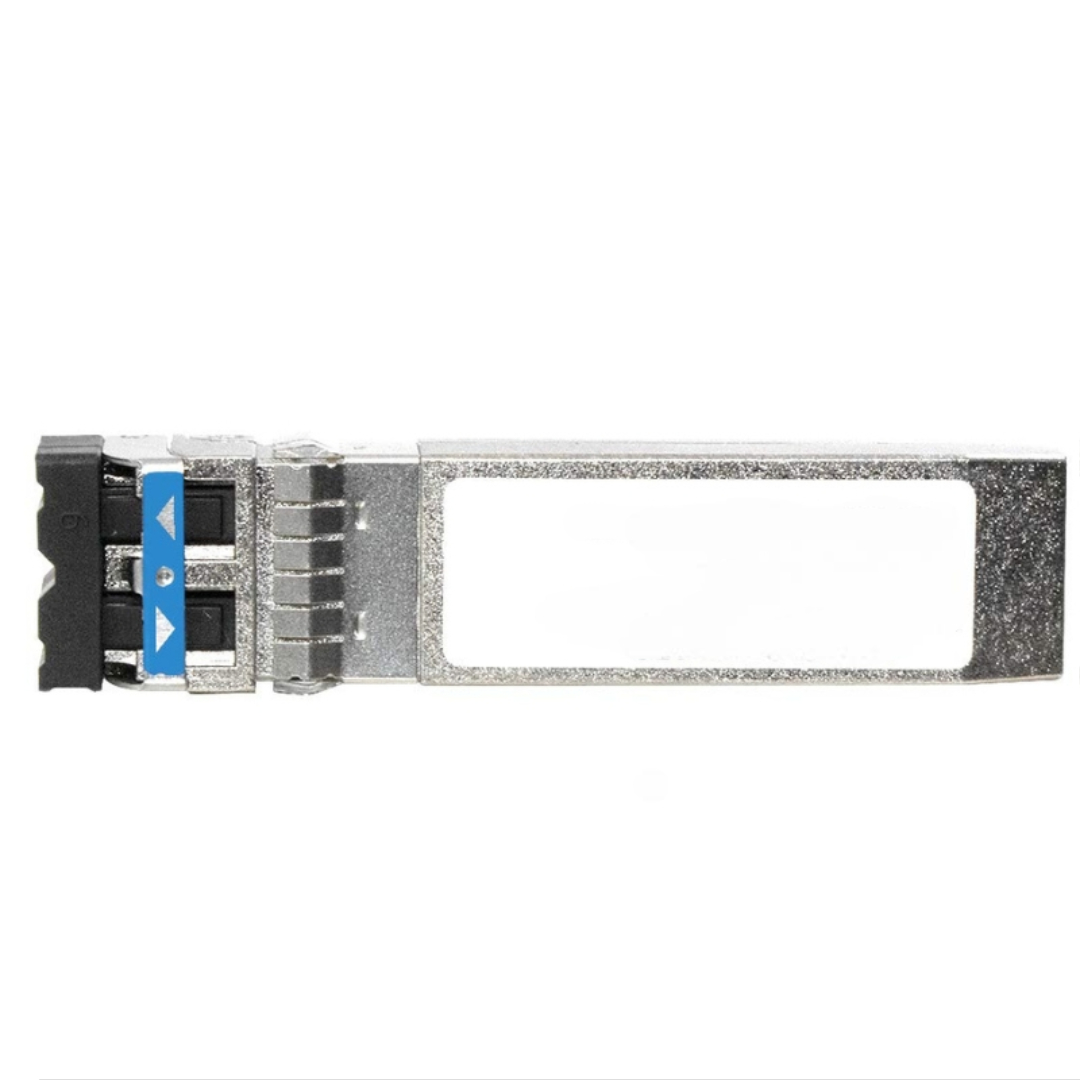

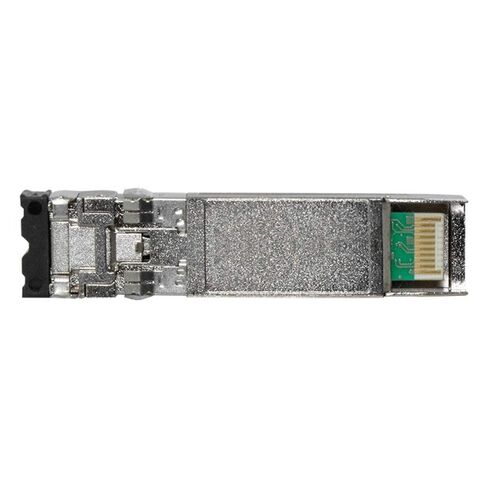

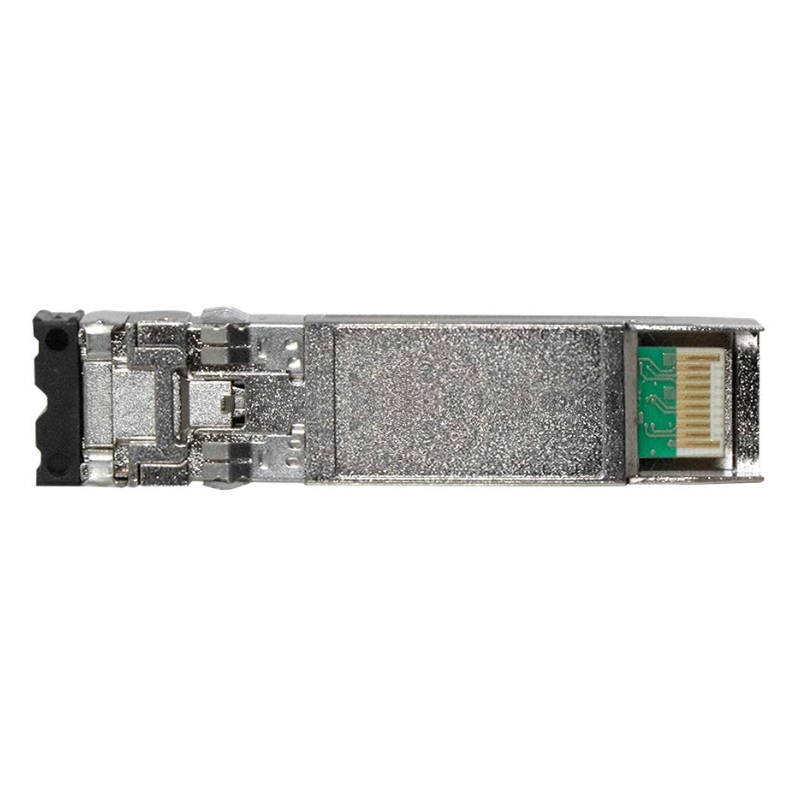

MGBLX1 Cisco Gigabit Ethernet 1GBPS SFP Transceiver Module

Cisco MGBLX1 1Gbps SFP Transceiver Module Overview

The Cisco MGBLX1 Gigabit Ethernet SFP transceiver module is a compact, hot-swappable networking component designed to deliver reliable 1Gbps connectivity over single-mode fiber infrastructure. Engineered for enterprise and small business environments, this SFP (Small Form-Factor Pluggable) mini-GBIC module ensures stable, long-distance data transmission with consistent performance in modern Ethernet networks.

General Information of Cisco MGBLX1

• Manufacturer: Cisco
• Part Number: MGBLX1
• Product Type: SFP Transceiver Module (Mini-GBIC)
• Application: Data networking, enterprise switching, and fiber connectivity expansion

Technical Specifications

• Type: SFP (Mini-GBIC) transceiver
• Ports: 1 x 1000Base-LX interface
• Connector Type: LC Duplex
• Standard: IEEE 802.3z Gigabit Ethernet

Performance Metrics

• Data Rate: 1 Gbps (Gigabit Ethernet)
• Technology: 1000Base-LX
• Wavelength: 1310 nm (transmit and receive)
• Media Type: Single-mode optical fiber
• Supported Fiber Mode: Single-mode only

Key Optical Features

• Optimized for long-reach fiber links
• Stable signal transmission over single-mode fiber
• Low latency optical communication
• Energy-efficient optical design

Environmental Specifications

• Minimum Operating Temperature: 32°F (0°C)
• Maximum Operating Temperature: 158°F (70°C)
• Humidity Range: 10% to 85% (non-condensing)

Compatibility with Cisco Networking Devices

Cisco 250 Series Switches

• SG250X-48P

Cisco Business 110 Series

• 110-24T
• 110-8T-D

Cisco Business 220 Series

• CBS220-24P-4X

Cisco Business 350 Series

• 350-24FP-4G
• 350-24T-4G
• 350-48T-4G
• 350-8T-E-2G

Cisco Small Business Series

• SF100 / SF100D / SF102
• SF110 / SF300 / SF350 / SF500
• SG100 / SG110 / SG112
• SG250 / SG300 / SG350 / SG500

Cisco SG300, SG350, and SG500X Series

• SG300-10
• SG350-24
• SG350X-24
• SG500X-24
• SG500X-48

Cisco MGBLX1 Ethernet SFP Transceiver Module Ecosystem

The demand for scalable, high-speed, and reliable optical networking components continues to grow across enterprise, telecom, and data-driven infrastructures. Within this evolving ecosystem, the Cisco MGBLX1 Gigabit Ethernet 1GBPS SFP Transceiver Module stands as a critical optical networking component engineered to deliver consistent 1Gbps data transmission over long-distance fiber links. As part of Cisco’s extensive Small Form-Factor Pluggable (SFP) portfolio, this module plays a vital role in ensuring seamless connectivity between switches, routers, and fiber-based network infrastructures in both legacy and modern deployments.

The Cisco MGBLX1 Gigabit Ethernet 1GBPS SFP Transceiver Module is designed to meet the requirements of long-range Gigabit Ethernet connectivity, making it an essential component for organizations that rely on stable optical communication across distributed environments. Its architecture supports high-quality signal transmission over single-mode fiber, ensuring minimal attenuation and maximum efficiency in enterprise and service provider networks.

Fundamentals of Gigabit Ethernet SFP Transceiver Technology

Core Functionality of SFP Optical Modules

SFP transceiver modules serve as the bridge between electrical networking equipment and optical fiber infrastructure. They convert electrical signals from switches and routers into optical signals transmitted over fiber cables, and vice versa. The Cisco MGBLX1 operates within this framework by supporting Gigabit Ethernet speeds, ensuring efficient data transfer without compromising signal integrity over long distances.

These modules are hot-swappable, allowing network administrators to install or replace them without shutting down critical infrastructure. This feature significantly enhances network uptime and reduces maintenance windows, making SFP modules indispensable in enterprise environments where continuity is essential.

Role of 1Gbps Optical Transmission in Modern Networks

Despite the emergence of multi-gigabit and 100Gbps technologies, 1Gbps optical links remain widely deployed due to their cost efficiency and compatibility with existing infrastructure. The Cisco MGBLX1 is particularly valuable in backbone extensions, inter-building connectivity, and campus network deployments where stable Gigabit performance is sufficient and preferred.

Its balanced performance ensures that organizations can maintain reliable connectivity without over-investing in unnecessary bandwidth upgrades, making it an optimal choice for hybrid network environments.

Technical Architecture and Optical Engineering of Cisco MGBLX1

Optical Signal Processing and Transmission Design

At its core, the Cisco MGBLX1 utilizes advanced optical components to convert electrical signals into laser-based optical transmissions. This process ensures high signal fidelity over long distances while minimizing latency and jitter. The transceiver is engineered to operate efficiently in demanding environments, maintaining consistent performance across varying temperature and network loads.

Single-Mode Fiber Compatibility and Long-Distance Reach

One of the defining characteristics of the Cisco MGBLX1 is its compatibility with single-mode fiber (SMF). This enables transmission distances that significantly exceed multimode alternatives. In many deployments, the module can support distances up to tens of kilometers depending on fiber quality and network conditions, making it ideal for campus interconnects and metro-area networking.

Wavelength Optimization and Signal Integrity

The module operates at a carefully selected optical wavelength optimized for minimal dispersion and attenuation. This ensures that data signals remain clear and intact even over extended fiber runs. The result is improved network reliability and reduced error rates, which is critical in mission-sensitive applications such as financial systems and cloud interconnects.

Electrical Interface and Hot-Swappable Design

The Cisco MGBLX1 features a standardized SFP electrical interface that enables seamless integration with compatible Cisco networking equipment. The hot-swappable design allows IT teams to replace or upgrade modules without interrupting active network services, reducing downtime and improving operational efficiency.

Network Compatibility and Cisco Infrastructure Integration

Compatibility Across Cisco Switching and Routing Platforms

The Cisco MGBLX1 is designed for broad compatibility across a wide range of Cisco networking devices. It integrates seamlessly with enterprise-grade switches, modular routers, and aggregation platforms that support SFP interfaces. This flexibility ensures that organizations can deploy the module across multiple layers of their network architecture without compatibility concerns.

Enterprise Campus and Branch Network Deployment

In enterprise environments, the Cisco MGBLX1 is commonly used to connect remote buildings, floors, or network closets. Its long-range capability makes it suitable for campus-wide deployments where fiber runs span significant physical distances. The module ensures stable Gigabit connectivity between distributed endpoints, enabling centralized IT management and efficient data flow.

Data Center Edge and Aggregation Layer Connectivity

Within data center environments, the module is often used at the edge or aggregation layers to connect switches across racks or zones. Its reliable optical performance ensures that data flows smoothly between compute clusters, storage arrays, and core switching infrastructure, contributing to overall system efficiency.

Performance Characteristics and Operational Efficiency

Consistent Gigabit Throughput Delivery

The Cisco MGBLX1 is engineered to maintain stable 1Gbps throughput under continuous operation. This consistency is essential in environments where predictable performance is required for applications such as virtualization, cloud services, and enterprise resource planning systems.

Low Latency Optical Transmission

The module’s optical design ensures minimal latency during data transmission. By reducing signal conversion delays and optimizing optical pathways, it supports real-time communication requirements across distributed systems, including VoIP, video conferencing, and transactional data systems.

Signal Stability Under Variable Load Conditions

Even under fluctuating network loads, the Cisco MGBLX1 maintains signal stability through advanced optical modulation techniques. This ensures that packet loss is minimized and overall network performance remains consistent across peak usage periods.

Use Cases Across Enterprise and Service Provider Networks

Campus Network Interconnectivity

In large campus environments such as universities, corporate headquarters, and government facilities, the Cisco MGBLX1 is frequently deployed to connect buildings and departments across fiber links. Its long-distance capability ensures seamless communication across geographically distributed infrastructures.

Telecommunications Backbone Extensions

Telecom operators use the module to extend backbone networks and connect aggregation nodes. Its reliable performance ensures uninterrupted data flow across metropolitan and regional fiber networks.

Cloud and Hybrid Infrastructure Integration

The module also supports hybrid cloud architectures by enabling secure and stable interconnection between on-premises data centers and cloud service providers. This ensures consistent data synchronization and workload distribution across environments.

Comparative Positioning Within Gigabit SFP Market

Advantages Over Short-Range Optical Modules

Compared to short-range multimode SFP modules, the Cisco MGBLX1 offers significantly greater transmission distances and improved signal integrity over long fiber runs. This makes it a preferred choice for inter-building and metropolitan deployments.

Cost Efficiency and Infrastructure Optimization

By leveraging existing single-mode fiber infrastructure, organizations can optimize costs while still achieving high-performance Gigabit connectivity. The module reduces the need for additional infrastructure investments while maximizing network reach.
