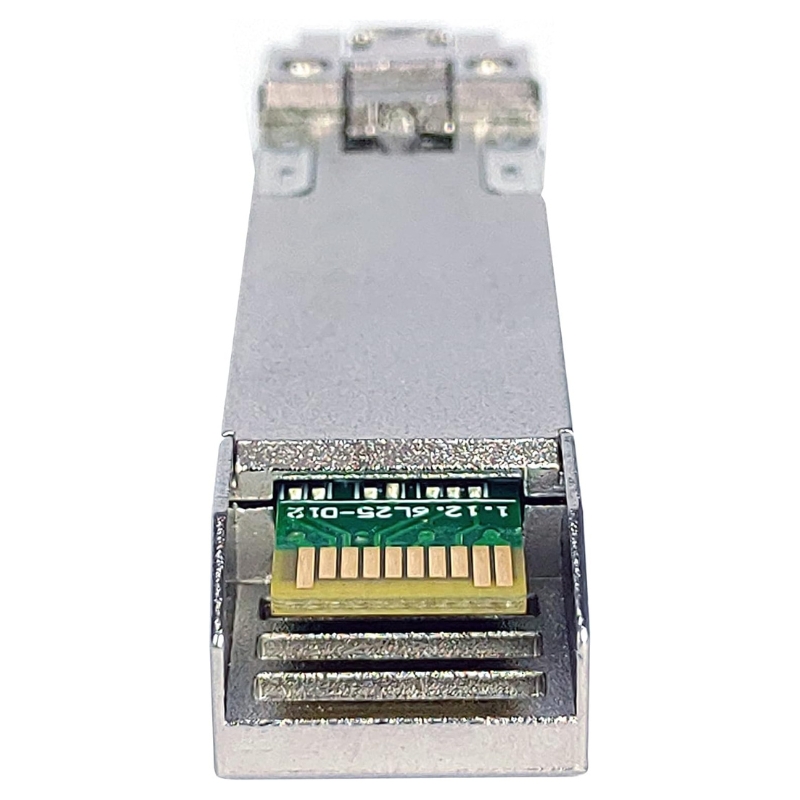

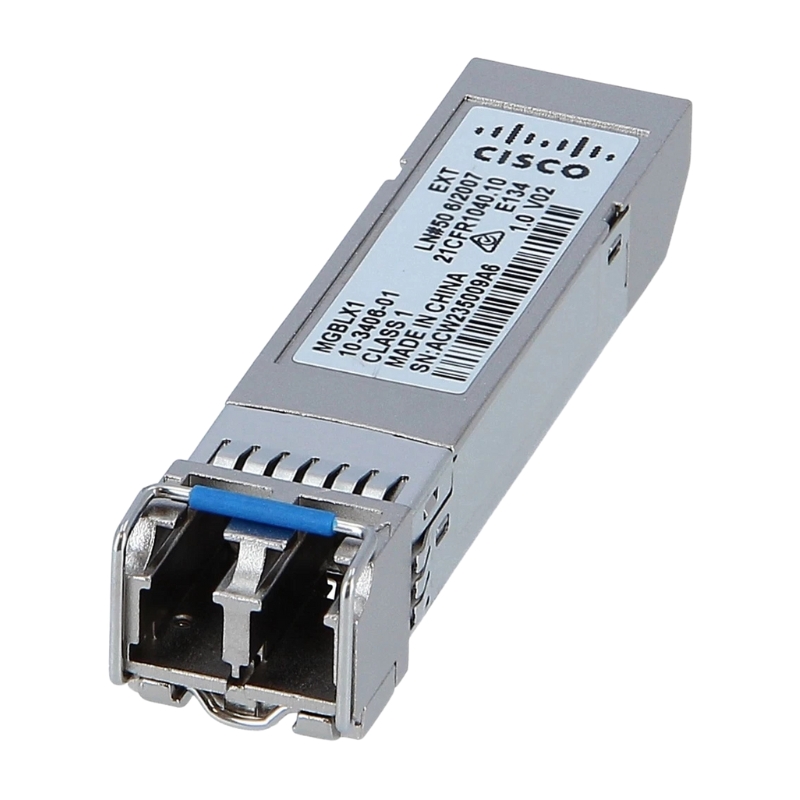

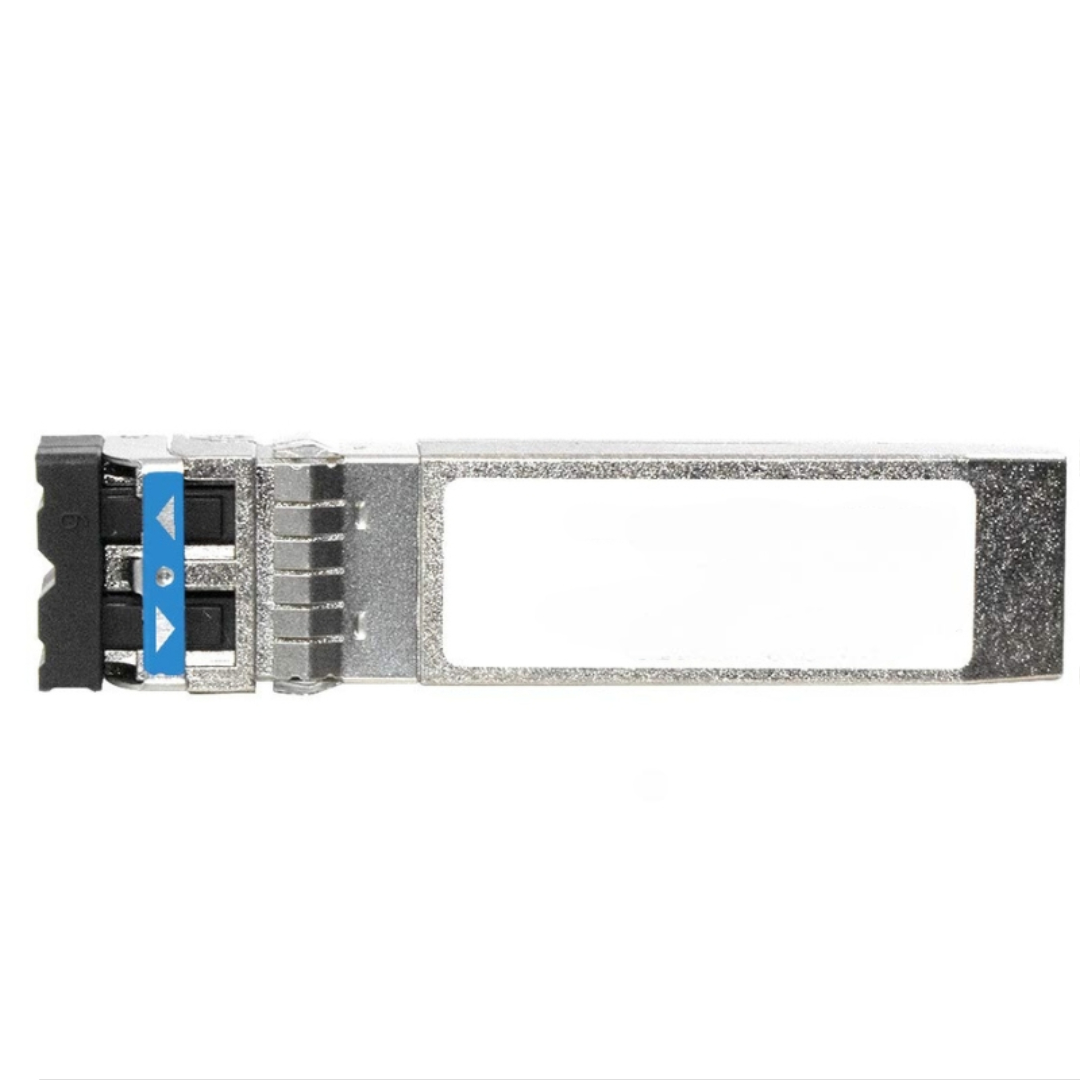

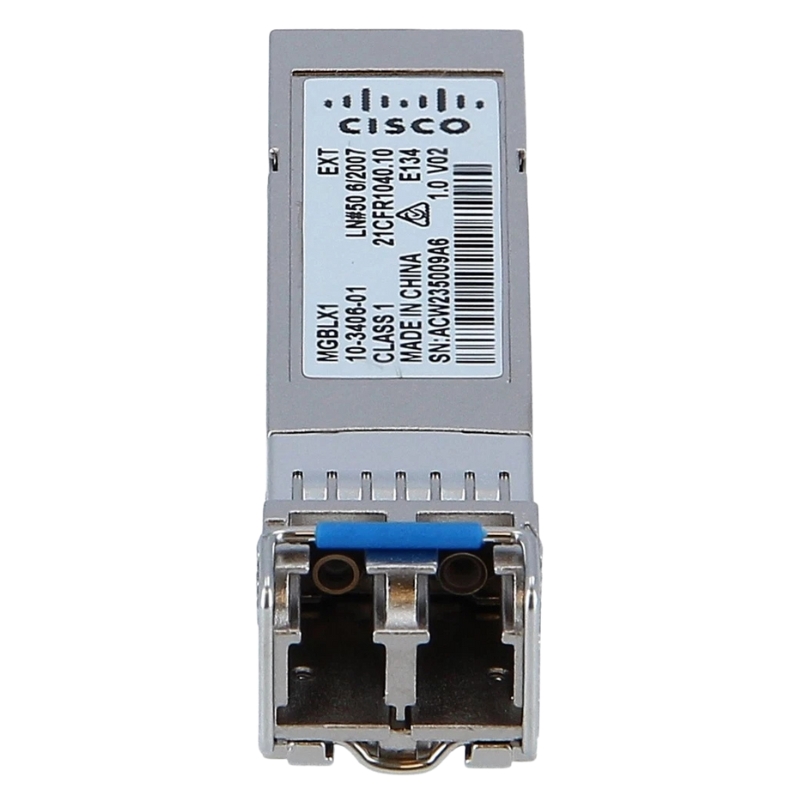

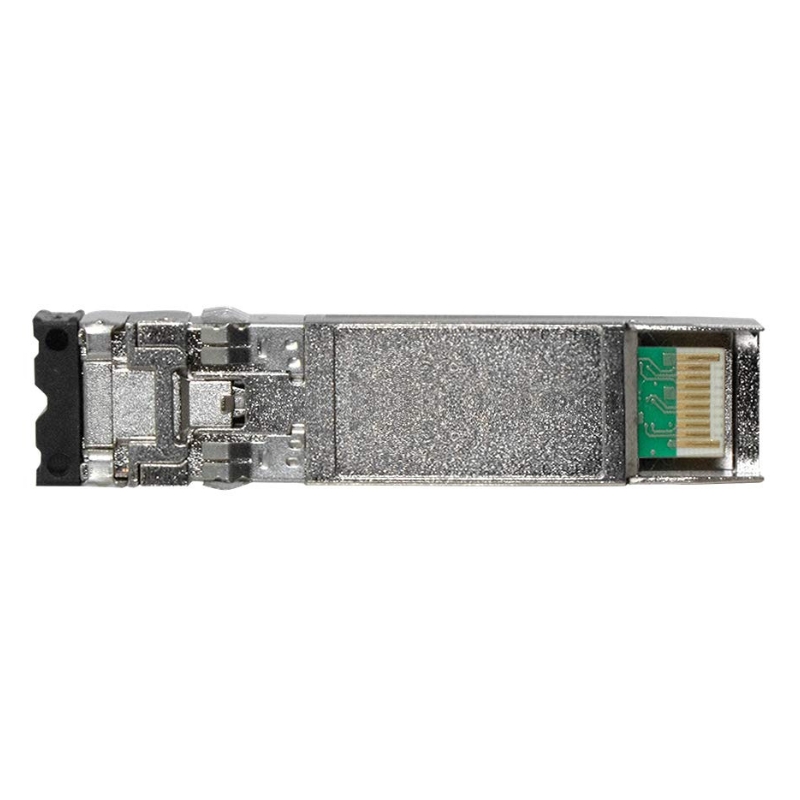

MGBLX1 Cisco Gigabit Ethernet 1GBPS SFP Transceiver Module

Overview of Cisco MGBLX1 Ethernet SFP Transceiver Module

The Cisco MGBLX1 Gigabit Ethernet SFP Transceiver Module is a high-performance optical networking component designed to deliver reliable and stable 1 Gbps connectivity across enterprise and small business network infrastructures. Built for scalability and efficiency, this Small Form-Factor Pluggable (SFP) module supports long-distance data transmission over single-mode fiber, making it a preferred solution for modern Gigabit Ethernet deployments.

Product Information

• Manufacturer: Cisco
• Part Number: MGBLX1
• Device Category: Gigabit Ethernet SFP Optical Transceiver

Technical Specifications of Cisco MGBLX1

• Type: SFP Mini-GBIC transceiver
• Ports: 1 x 1000Base-LX
• Connector Type: LC Duplex interface
• Standard Support: IEEE 802.3 Gigabit Ethernet

Product Classification

• Network Transceiver Module
• SFP (Small Form-Factor Pluggable) Mini-GBIC
• Enterprise-grade optical networking component

Data Transmission Capabilities

• Data Rate: 1 Gbps (Gigabit Ethernet)
• Technology Standard: 1000Base-LX
• Wavelength: 1310 nm (transmit and receive)
• Media Support: Single-mode optical fiber

Optical Performance Details

• Optimized for long-distance fiber connectivity
• Stable signal transmission over enterprise networks
• Low latency and reduced packet loss performance

Optical Media Compatibility

• Single-mode fiber (SMF) support
• Designed for long-range data communication
• High-quality laser-based optical transmission

Network Technology Support

• Gigabit Ethernet (1000Base-LX standard)
• Backward-compatible network integration (switch dependent)
• Enterprise backbone and aggregation layer connectivity

Environmental Operating Conditions

• Minimum Operating Temperature: 32°F (0°C)
• Maximum Operating Temperature: 158°F (70°C)

Humidity & Environmental Tolerance

• Operating Humidity: 10% to 85%
• Designed for controlled enterprise environments
• Reliable performance under variable climate conditions

Performance Benefits of Cisco MGBLX1 Module

• High-speed 1 Gbps data transfer capability
• Reduced network congestion in enterprise systems
• Optimized for backbone and uplink connections

Reliability & Stability

• Consistent optical signal transmission
• Engineered for continuous 24/7 operation
• Minimal signal degradation over distance

Cisco Switch Series Compatibility

• Cisco 250 Series: SG250X-48P
• Cisco Business 110 Series: 110-24T, 110-8T-D
• Cisco Business 220 Series: CBS220-24P-4X

Cisco Business 350 Series Support

• 350-24FP-4G
• 350-24T-4G
• 350-48T-4G
• 350-8T-E-2G

Small Business and Legacy Series

• SF 100, SF 100D, SF 102
• SF110, SF300, SF350, SF500
• SG 100, SG 110, SG 112

SG Series Switch Compatibility

• SG250, SG300, SG350, SG500
• SG300-10, SG350-24
• SG350X-24, SG500X-24, SG500X-48

Deployment Scenarios for Cisco MGBLX1

Enterprise Network Backbone

• Ideal for core switching infrastructure
• Supports high-speed uplink connections
• Enhances inter-switch communication efficiency

Data Center Connectivity

• Used in server-to-switch fiber links
• Supports aggregation layer connectivity
• Optimized for scalable data center architecture

Business Network Expansion

• Enables fiber-based network expansion
• Improves long-distance office connectivity
• Supports secure and stable data transmission

Cisco MGBLX1 Gigabit Ethernet 1GBPS SFP Transceiver Module

The Cisco MGBLX1 Gigabit Ethernet 1GBPS SFP Transceiver Module represents a critical component in high-performance optical networking environments, delivering reliable 1000BASE-LX/LH connectivity across enterprise, campus, and service provider infrastructures. this Small Form-Factor Pluggable (SFP) module is optimized for consistent data transmission over single-mode fiber (SMF) links, supporting extended reach applications where copper Ethernet solutions are insufficient. As modern networking demands continue to scale, optical transceivers such as the MGBLX1 become foundational elements in ensuring uninterrupted, low-latency, and high-bandwidth communication between network devices.

Within the Gigabit Ethernet ecosystem, the Cisco MGBLX1 plays a vital role in bridging switches, routers, media converters, and optical patch panels through fiber optic cabling. Its design supports interoperability in environments requiring long-distance connectivity, typically up to 10 kilometers over single-mode fiber, making it highly suitable for inter-building connections, metropolitan area network (MAN) deployments, and distributed enterprise data centers. The module is part of a broader family of Cisco-compatible SFP solutions that emphasize reliability, scalability, and operational efficiency in mission-critical environments.

Compact Form Factor Engineering for High-Density Networking

The Cisco MGBLX1 is built using the standardized SFP architecture, enabling plug-and-play installation into supported networking hardware without requiring system shutdowns. This hot-swappable capability significantly enhances network uptime and simplifies maintenance cycles, allowing network administrators to replace or deploy modules without service disruption. The compact design ensures compatibility with high-density switch chassis where multiple optical interfaces must coexist within limited physical space.

Thermal efficiency is a key design attribute of the MGBLX1 module, as it is engineered to operate within strict power consumption thresholds while maintaining optimal optical signal performance. This balance between energy efficiency and transmission stability makes it particularly valuable in large-scale deployments where hundreds or thousands of transceiver modules may be in continuous operation. The reduced heat footprint also contributes to overall system longevity and minimizes cooling requirements in densely populated data centers.

The module integrates advanced optical components, including a laser transmitter operating typically at 1310 nm wavelength, paired with a high-sensitivity receiver capable of maintaining signal integrity over long distances. This ensures consistent performance even in environments with potential electromagnetic interference or physical infrastructure limitations.

Optical Performance and Transmission Capabilities

One of the defining features of the Cisco MGBLX1 Gigabit Ethernet SFP Transceiver is its ability to support long-reach optical communication over single-mode fiber infrastructure. This capability allows network designers to implement high-speed Gigabit Ethernet links across geographically dispersed locations without degradation in performance. The module is commonly used in environments requiring up to 10 km reach, depending on fiber quality and network conditions.

The 1000BASE-LX/LH standard implemented within the module ensures compatibility with a wide range of enterprise networking equipment while maintaining consistent throughput at 1 Gbps full-duplex operation. This enables stable data transmission for applications such as server-to-switch uplinks, storage area network connectivity, and campus backbone distribution.

Signal integrity is preserved through precise optical alignment and calibrated laser output, ensuring minimal packet loss and reduced jitter. This is particularly important in latency-sensitive environments such as financial trading systems, cloud computing infrastructure, and real-time communication platforms where even minor transmission delays can have significant operational impact.

Campus LAN and WAN Fiber Expansion Solutions

The Cisco MGBLX1 module is widely deployed in enterprise backbone networks where reliable fiber optic connectivity is required between core switching layers. It enables seamless aggregation of distributed network segments, ensuring that high-volume traffic flows efficiently between access, distribution, and core network tiers.

In campus environments, the module supports LAN and WAN extension strategies that require long-distance optical connectivity between buildings, departments, or remote facilities. This eliminates the limitations of copper-based Ethernet, particularly in scenarios where electrical interference or distance constraints would otherwise degrade network performance.

Within data center architectures, the MGBLX1 is commonly utilized for server aggregation, storage connectivity, and inter-switch uplinks. Its consistent 1 Gbps throughput ensures stable communication between virtualized workloads, cloud infrastructure nodes, and centralized storage arrays, enabling scalable and resilient data center operations.

Multi-Vendor Fiber Infrastructure Support

The Cisco MGBLX1 Gigabit Ethernet SFP Transceiver Module is engineered for seamless integration within a wide range of Cisco networking devices, including enterprise switches, modular chassis systems, and routing platforms equipped with SFP-capable interfaces. This ensures consistent interoperability across network environments built on Cisco infrastructure standards.

In addition to native compatibility within Cisco ecosystems, the module adheres to industry-standard optical specifications, enabling interoperability with other vendor equipment that supports 1000BASE-LX/LH SFP transceivers. This flexibility is critical in heterogeneous network environments where multi-vendor integration is required for cost efficiency and scalability.

The standardized design of the module ensures that optical power levels, connector interfaces, and signal protocols remain consistent across deployments, reducing configuration complexity and minimizing potential compatibility issues during network expansion or upgrades.

LC Duplex Connector Interface Specifications

The Cisco MGBLX1 module is designed specifically for single-mode fiber optic cabling, which enables long-distance signal transmission with minimal attenuation. Single-mode fiber is preferred in enterprise and service provider environments due to its superior bandwidth capacity and reduced signal dispersion over extended distances.

The module typically utilizes LC duplex connectors, which provide secure and low-loss optical connections between transceivers and fiber optic cabling infrastructure. This connector standard is widely adopted in enterprise networking due to its compact size and reliable performance characteristics.

Operating at a wavelength of approximately 1310 nm, the MGBLX1 ensures optimal signal propagation across fiber networks while minimizing interference and signal degradation. This wavelength is ideal for balancing distance coverage and data integrity in Gigabit Ethernet applications.

Enhanced Network Scalability and Infrastructure Efficiency

The adoption of Cisco MGBLX1 SFP transceiver modules significantly enhances network scalability by enabling organizations to expand fiber infrastructure without redesigning core network architectures. This modular approach allows incremental upgrades, ensuring cost-effective scalability in evolving IT environments.

Reduced latency is another key operational advantage, as optical fiber transmission inherently supports faster data propagation compared to copper-based Ethernet solutions. This results in improved application performance, particularly in environments where real-time data exchange is critical.

Reliability is reinforced through Cisco’s engineering standards, which emphasize durability, consistent optical alignment, and long-term operational stability. These characteristics make the module suitable for mission-critical systems where downtime is not acceptable and network continuity is essential.

Cloud Computing and Virtualized Data Centers

Telecommunications providers frequently deploy the Cisco MGBLX1 module in backbone infrastructure to support high-speed data transmission between switching centers and distribution hubs. Its ability to maintain stable performance over long distances makes it ideal for regional and metropolitan network deployments.

In cloud computing environments, the module supports high-speed interconnectivity between virtualized servers, storage clusters, and network fabrics. This ensures efficient workload distribution and seamless data replication across distributed systems.

Government, education, and healthcare institutions rely on stable and secure network infrastructure supported by optical transceivers such as the MGBLX1. These environments demand high availability, data integrity, and secure communication channels, all of which are supported by fiber-based Gigabit Ethernet connectivity.

Scalable Optical Network Architecture Design

The Cisco MGBLX1 contributes to optimized bandwidth utilization by enabling dedicated Gigabit Ethernet links that reduce congestion and improve traffic distribution across network segments. This is particularly important in environments with heavy data flow, such as virtualization clusters and high-performance computing systems.

From a network design perspective, the module supports scalable architecture planning by allowing incremental fiber link deployment without disrupting existing infrastructure. This modular scalability is essential for organizations planning long-term network expansion strategies.

Future-ready infrastructure planning benefits from the module’s adherence to established optical standards, ensuring compatibility with evolving networking technologies and maintaining relevance in next-generation data communication environments.
