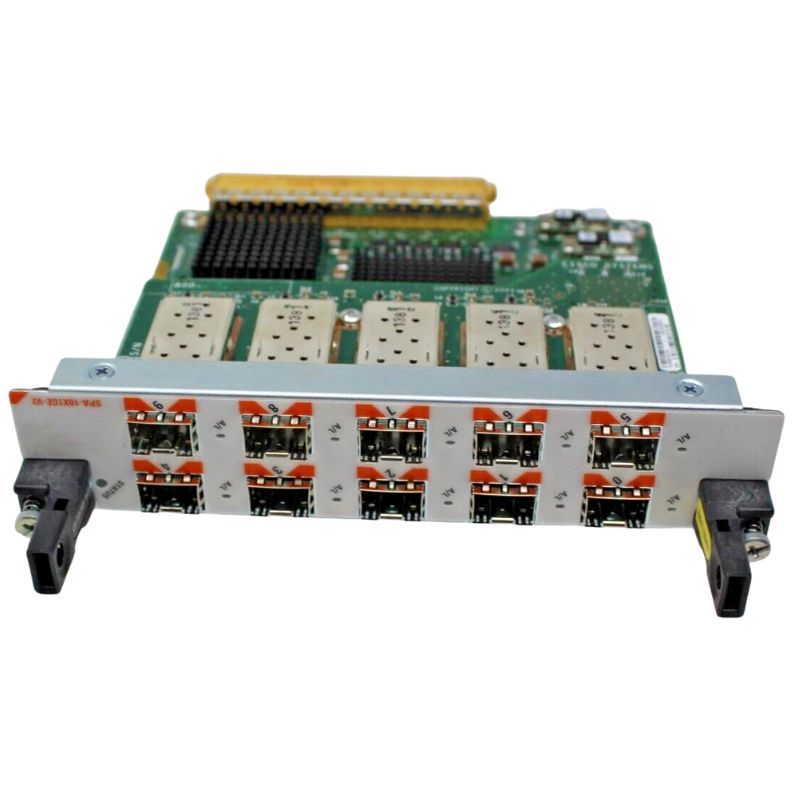

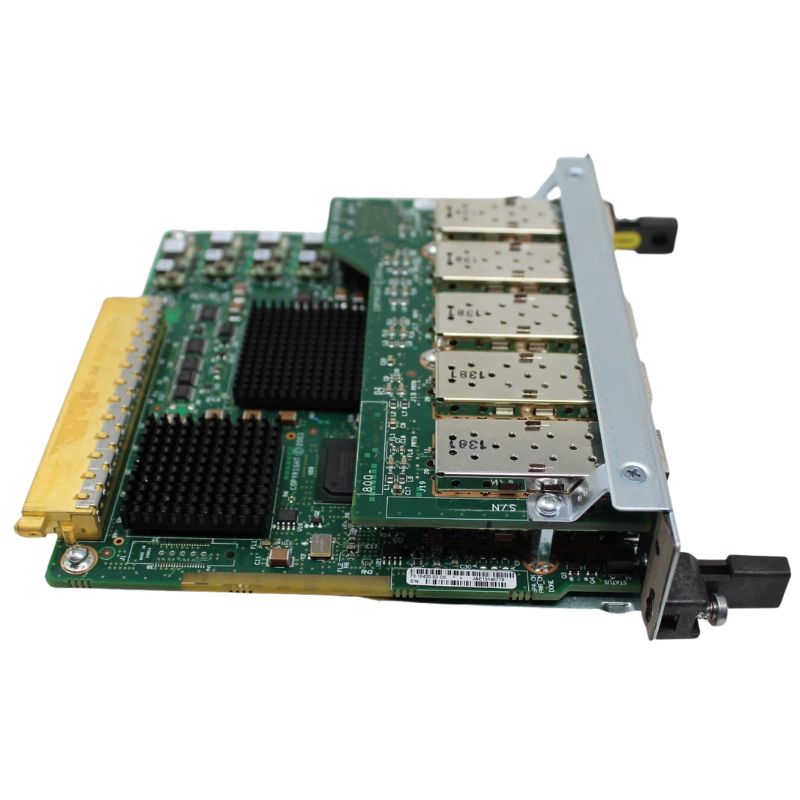

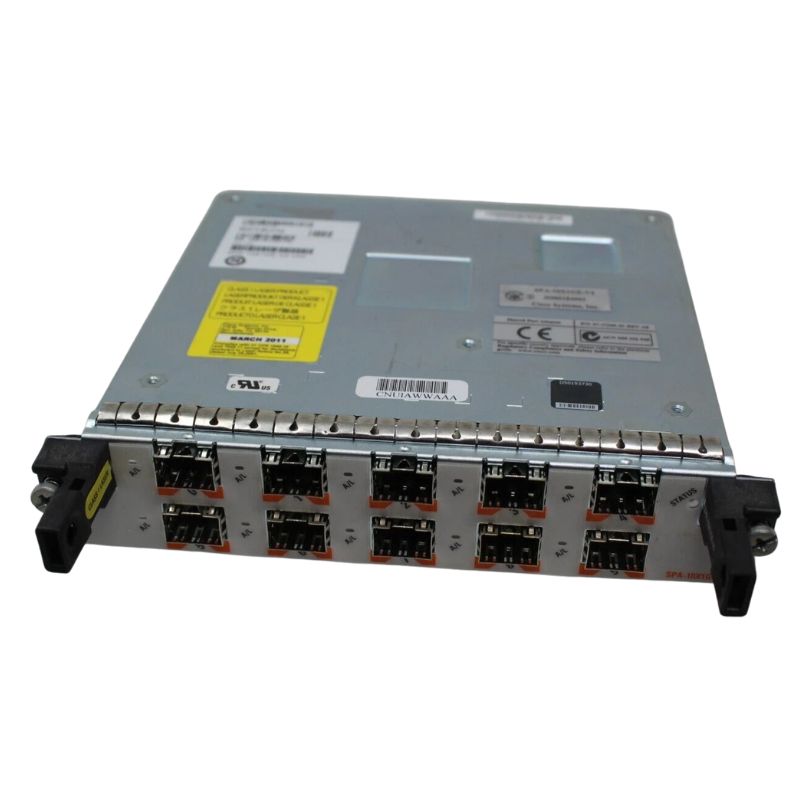

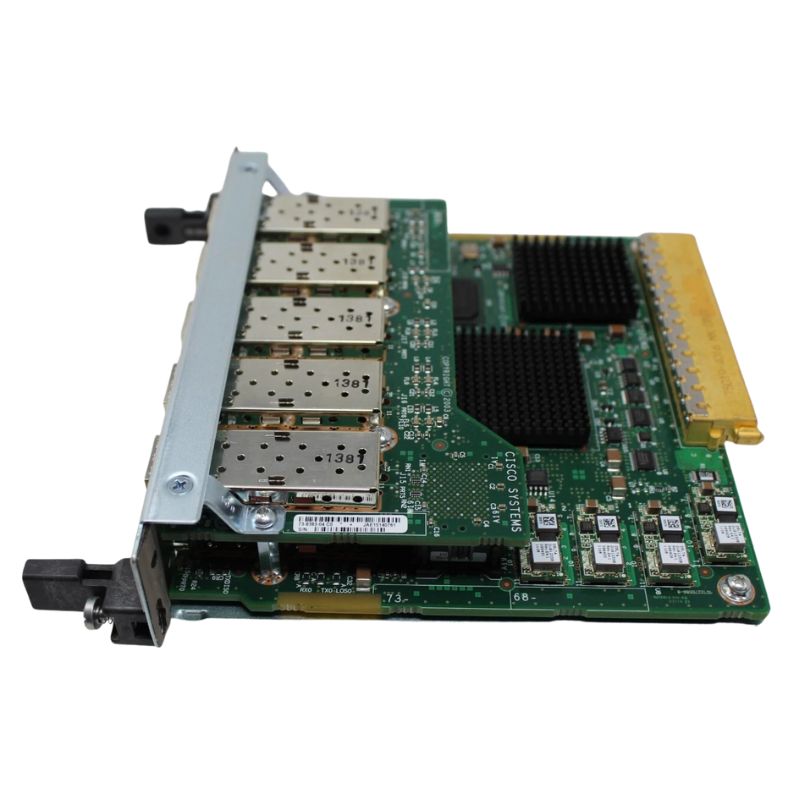

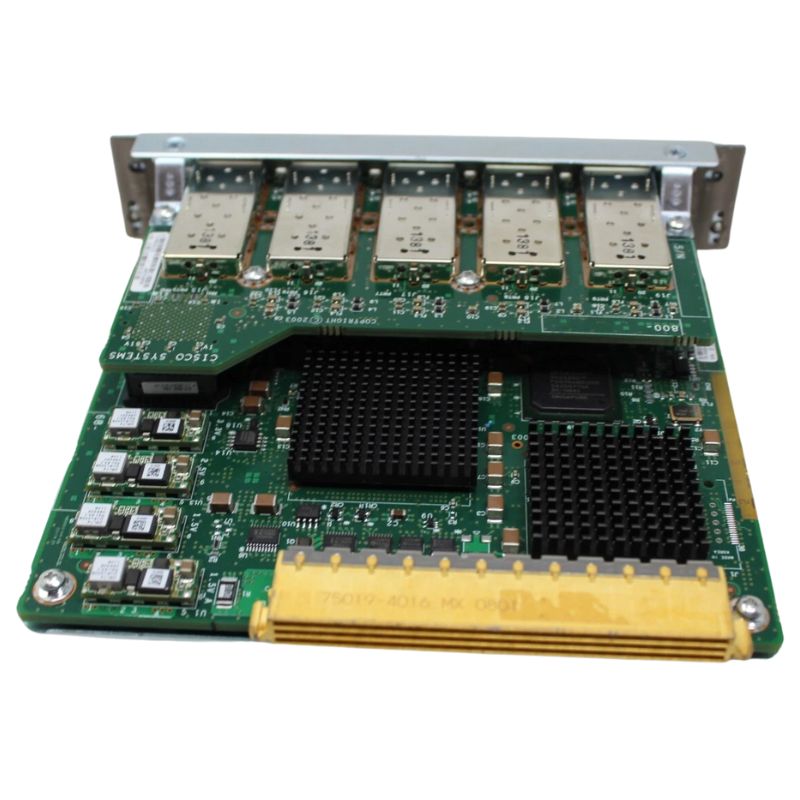

SPA-10X1GE-V2= Cisco 10-Ports Expansion Module

Overview of Cisco SPA-10X1GE-V2= Shared Port Adapter

The Cisco SPA-10X1GE-V2= is a high‑performance engineered to boost network scalability and deliver reliable Gigabit Ethernet connectivity. Designed for enterprise‑grade routing platforms, this plug‑in adapter enhances bandwidth capacity and supports advanced data transport requirements.

General Information

• Brand: Cisco
• Part Number: SPA-10X1GE-V2=
• Category: Expansion Module

Technical Specifications

• Form Factor: Plug‑in Module
• Total Ports: 10 Ethernet Interfaces
• Connection Type: Ethernet 1000BASE‑X
• Data Link Protocol: Gigabit Ethernet LAN
• Max Data Transfer Rate: 1 Gbps

Supported Networking Standards

• IEEE 802.3z
• IEEE 802.1Q
• IEEE 802.3x
• IEEE 802.1ad

Compatibility

Supported Cisco Platforms

• Cisco 12006, 12008, 12010, 12012, 12016
• Cisco 12404, 12406, 12410, 12416
• Cisco 12810, 12816, 7603, 7604, 7606
• Cisco 7609, 7609 Security Bundle
• Cisco 7613, 7613 Security Bundle
• Cisco XR 12404, 12406, 12410, 12416

Cisco SPA-10X1GE-V2= 10-Port Shared Port Adapter

The Cisco SPA-10X1GE-V2= 10-Ports Shared Port Adapter represents a high-density, carrier-class interface expansion module designed for modular routing platforms within modern service provider and enterprise aggregation infrastructures. Developed by , this Shared Port Adapter (SPA) architecture is part of Cisco’s scalable interface ecosystem, enabling network operators to expand Ethernet connectivity without redesigning core routing hardware. The SPA family is engineered to deliver flexible port deployment, high availability, and optimized throughput for converged IP networks where Gigabit Ethernet density and service modularity are critical.

Role of Shared Port Adapters in Modular Network Architecture

Shared Port Adapters function as modular interface building blocks that slot into compatible Cisco carrier-grade routers and aggregation platforms. The Cisco SPA-10X1GE-V2= is specifically designed to provide ten independent 1 Gigabit Ethernet interfaces in a compact form factor. This architecture enables service providers to scale bandwidth incrementally, rather than replacing entire line cards. In high-performance routing environments, this flexibility reduces capital expenditure while improving service agility.

Within the broader category of modular networking hardware, SPAs act as an intermediate abstraction layer between physical network interfaces and the routing chassis. This separation allows operators to upgrade interface density or change interface types without affecting the base system architecture. The SPA-10X1GE-V2= fits into this model by delivering high-density Ethernet access suitable for metro Ethernet, WAN aggregation, broadband access, and enterprise edge deployments.

Design Philosophy of Cisco SPA-10X1GE-V2=

The engineering design behind the SPA-10X1GE-V2= focuses on maximizing port density while maintaining signal integrity and operational stability. Each of the ten Gigabit Ethernet ports is optimized for deterministic forwarding performance, ensuring consistent packet delivery under heavy traffic loads. The hardware architecture integrates advanced buffering and hardware-assisted forwarding mechanisms that reduce latency and improve throughput efficiency.

The modular design allows seamless insertion into Cisco routing platforms that support the SPA interface standard. This ensures backward compatibility across multiple generations of network infrastructure, making it suitable for long-term deployment strategies in carrier networks and enterprise WAN environments.

Technical Ecosystem and Deployment Environments

Service Provider Backbone Integration

In service provider environments, the Cisco SPA-10X1GE-V2= is typically deployed in aggregation routers and edge platforms where high-density Ethernet termination is required. These environments demand consistent performance, low jitter, and high reliability under sustained traffic conditions. The adapter supports the aggregation of multiple customer connections into a single routing platform, enabling efficient backbone utilization.

The modular nature of the SPA architecture allows network operators to dynamically adjust interface capacity based on subscriber growth or service expansion requirements. This scalability is particularly valuable in metro Ethernet deployments and broadband aggregation nodes where traffic patterns can change rapidly.

Enterprise Edge and Data Center Interconnect Usage

Beyond service provider networks, the SPA-10X1GE-V2= is frequently integrated into enterprise edge routers that require high-density Gigabit Ethernet connectivity. Enterprises utilize this adapter for secure WAN connectivity, branch aggregation, and data center interconnect (DCI) applications. The ability to support multiple independent Ethernet circuits through a single modular adapter simplifies network design and reduces hardware footprint.

In data center environments, the adapter contributes to flexible interconnection between server clusters, storage networks, and external connectivity layers. Its high port density supports segmentation of traffic flows and improves overall network segmentation strategies.

Compatibility with Cisco Modular Platforms

The Cisco SPA-10X1GE-V2= is designed to operate within Cisco’s SPA interface architecture, commonly deployed in platforms such as Cisco ASR series routers and other SPA-enabled chassis systems. The compatibility layer ensures that the adapter integrates seamlessly with existing routing engines, forwarding planes, and service modules without requiring additional architectural modifications.

This compatibility is a critical aspect of the SPA ecosystem, as it allows network operators to extend the lifecycle of existing infrastructure investments while adopting newer interface technologies.

Performance Characteristics and Operational Efficiency

High-Density Gigabit Ethernet Architecture

The SPA-10X1GE-V2= is engineered to support ten independent Gigabit Ethernet interfaces, each capable of sustaining high-throughput data transmission. This density allows a single module to replace multiple discrete interface cards, significantly reducing chassis slot consumption and improving overall system efficiency.

Each port is designed for stable packet processing under varying traffic loads, ensuring consistent service delivery even in congested network conditions. This makes the adapter suitable for environments where predictable latency and throughput are essential.

Traffic Optimization and Load Handling

The internal architecture of the SPA-10X1GE-V2= incorporates advanced traffic handling mechanisms that distribute processing load efficiently across available resources. This ensures that no single interface becomes a bottleneck under heavy utilization. The design supports sustained data flows typical of enterprise WAN traffic, cloud service connectivity, and broadband aggregation scenarios.

By optimizing internal forwarding paths, the adapter reduces packet loss and improves overall Quality of Service (QoS) performance. This is particularly important for applications requiring real-time data transmission such as VoIP, video conferencing, and financial transaction systems.

Scalability and Network Expansion Strategy

Incremental Infrastructure Growth Model

One of the key advantages of the Cisco SPA-10X1GE-V2= category is its support for incremental network scaling. Instead of requiring full chassis upgrades or line card replacements, operators can simply add additional SPA modules to expand interface capacity. This modular expansion model aligns with modern network scaling strategies where demand grows unpredictably and must be accommodated without service disruption.

This approach reduces operational complexity and allows network engineers to fine-tune capacity allocation across multiple network segments.

Cost Efficiency in Carrier Networks

From a financial perspective, shared port adapters like the SPA-10X1GE-V2= reduce the total cost of ownership by minimizing the need for redundant hardware investments. By consolidating multiple Ethernet interfaces into a single module, operators reduce chassis consumption, power usage, and maintenance overhead.

This efficiency is particularly valuable in large-scale carrier deployments where hundreds or thousands of interface modules may be required across distributed network nodes.

Reliability, Redundancy, and Carrier-Grade Design

High Availability Network Requirements

Carrier-grade environments demand continuous uptime and minimal service interruption. The Cisco SPA-10X1GE-V2= is engineered with reliability as a core design principle, ensuring stable operation under extended workloads. Its integration into redundant routing architectures allows seamless failover in the event of chassis or system-level issues.

This reliability is essential for mission-critical services including ISP backbone networks, enterprise WAN connectivity, and cloud interconnect services.

Fault Tolerance and Operational Stability

The adapter is designed to maintain operational stability even under partial failure scenarios. Individual port isolation ensures that issues on one interface do not propagate across the entire module. This isolation improves fault tolerance and enhances network resilience.

In combination with Cisco’s routing software ecosystem, the SPA-10X1GE-V2= contributes to a robust network infrastructure capable of self-healing and automated rerouting.

Network Service Applications and Use Cases

Metro Ethernet and Broadband Aggregation

In metro Ethernet deployments, the Cisco SPA-10X1GE-V2= is used to aggregate multiple customer connections into a centralized routing platform. Its high port density allows service providers to efficiently manage large subscriber bases while maintaining consistent service quality.

This makes it ideal for broadband service delivery, where multiple end users require dedicated or shared bandwidth connections through a unified infrastructure.

Enterprise WAN and Branch Connectivity

Enterprise networks leverage the SPA-10X1GE-V2= for WAN aggregation and branch office connectivity. By consolidating multiple Gigabit Ethernet links, enterprises can simplify network architecture while improving performance and manageability.

This is particularly beneficial for organizations with distributed office locations requiring reliable connectivity to centralized data centers.

Cloud Interconnect and Hybrid Infrastructure

Modern hybrid cloud environments rely heavily on high-speed, low-latency interconnects. The SPA-10X1GE-V2= supports these requirements by providing multiple high-performance Ethernet interfaces that can be dedicated to cloud gateways, virtualization clusters, and data synchronization paths.

This ensures efficient data movement between on-premises infrastructure and cloud service providers.

Operational Management and Integration in Network Systems

The Cisco SPA-10X1GE-V2= integrates with Cisco’s network management frameworks, enabling centralized configuration and monitoring of all ten Gigabit Ethernet interfaces. This simplifies administrative tasks and improves visibility into network performance metrics.

Operators can manage interface behavior, traffic prioritization, and service policies using standardized management protocols supported across Cisco routing platforms.

Software Integration and Routing Intelligence

The adapter benefits from deep integration with Cisco routing software, which enhances packet forwarding decisions and improves routing efficiency. This software-hardware synergy ensures optimal utilization of available bandwidth while maintaining strict service-level agreements (SLAs).

Advanced routing intelligence allows dynamic adjustment of traffic flows based on network conditions, improving resilience and throughput efficiency.

Strategic Importance in Modern Network Infrastructure

Evolution of Modular Networking Technologies

The SPA-10X1GE-V2= represents an important stage in the evolution of modular networking technologies, where scalability, flexibility, and service agility are prioritized. As network demands continue to grow, modular systems like SPA platforms provide a sustainable approach to infrastructure development.

This approach aligns with modern networking trends such as virtualization, software-defined networking (SDN), and cloud-native infrastructure design.

Long-Term Infrastructure Value

Investing in modular adapters such as the Cisco SPA-10X1GE-V2= ensures long-term infrastructure value by enabling hardware reuse across multiple deployment cycles. Organizations can upgrade interfaces without replacing entire routing systems, significantly extending equipment lifespan.

This contributes to sustainable IT infrastructure planning and reduces electronic waste while maintaining high performance standards.
