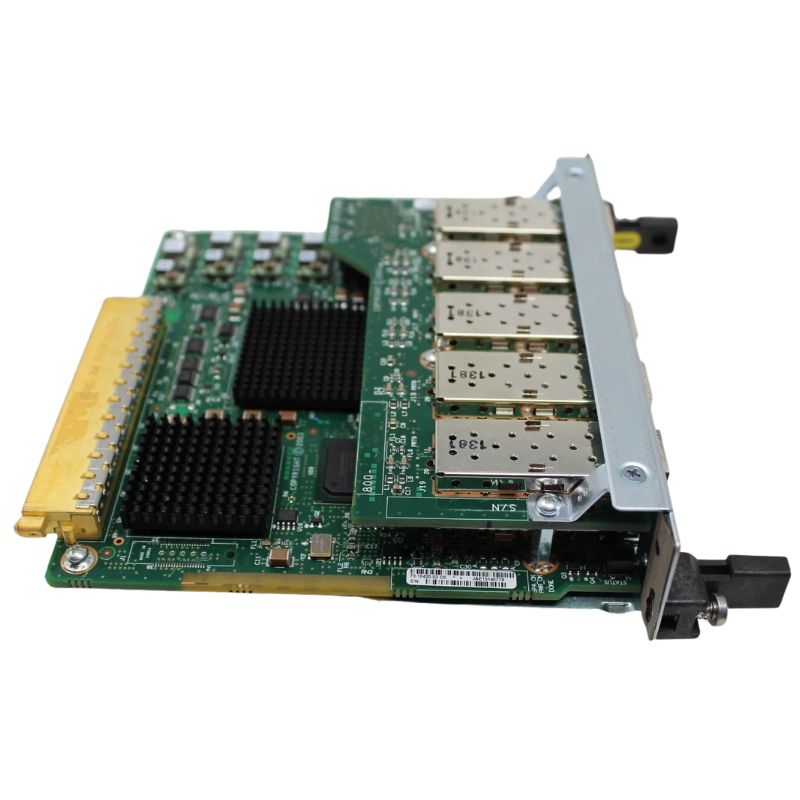

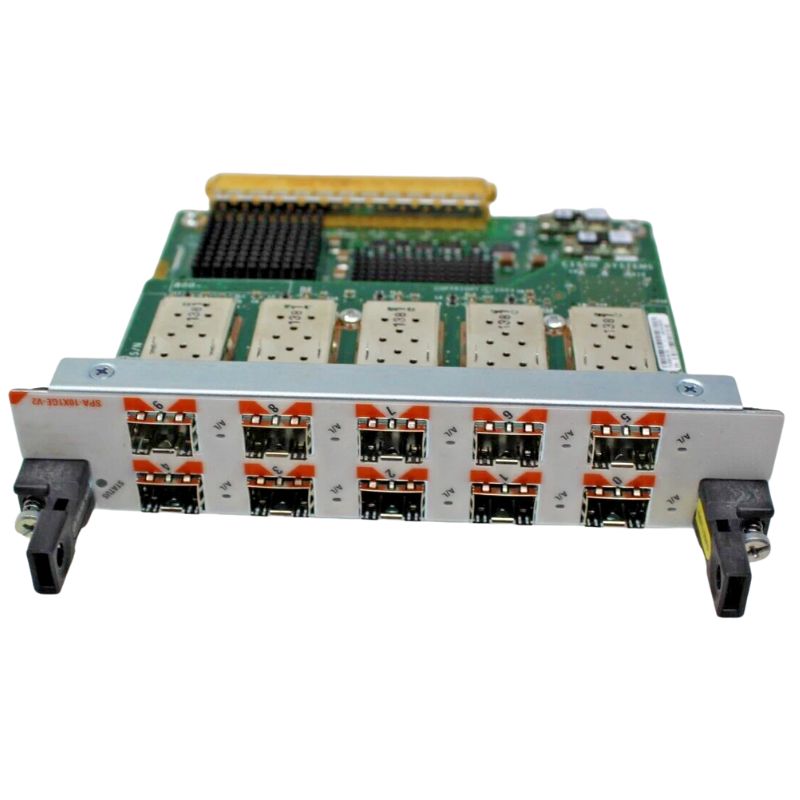

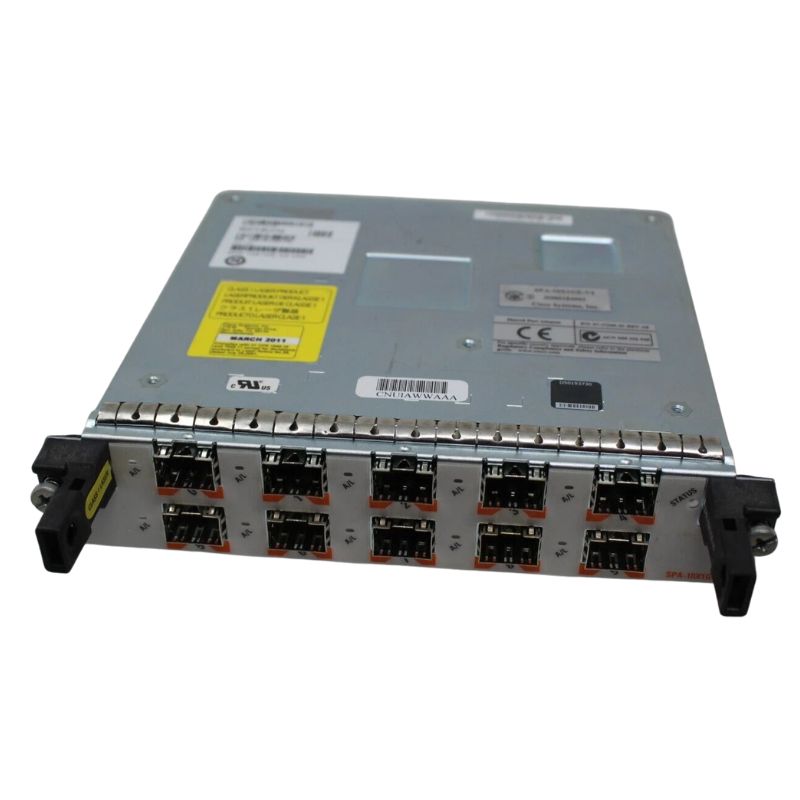

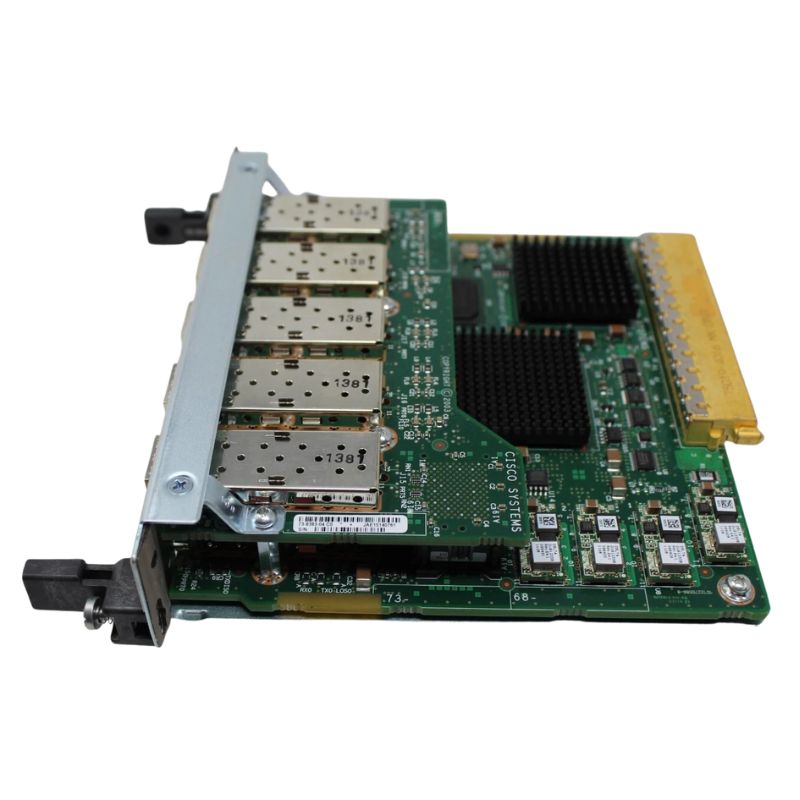

Cisco SPA-10X1GE-V2= 10-Port Shared Port Adapter Overview

The Cisco SPA-10X1GE-V2= Shared Port Adapter is a high-performance 10-port Ethernet expansion module engineered for carrier-grade networking environments. Designed for scalability, reliability, and high-speed Gigabit Ethernet connectivity, this plug-in module enhances modular router capacity and enables efficient data aggregation across enterprise and service provider infrastructures.

Product Information

• Manufacturer: Cisco
• Part Number: SPA-10X1GE-V2=
• Product Type: Shared Port Adapter
• Module Form Factor: Plug-in Network Interface Module
• Total Ethernet Ports: 10 Ports
• Maximum Data Rate: Up to 1 Gbps per port

Core Connectivity Features

• 10 independent Gigabit Ethernet ports
• IEEE 1000BASE-X fiber connectivity support
• Optimized for modular Cisco routers
• Carrier-grade data handling performance

Supported Data Protocols

• Gigabit Ethernet LAN
• IEEE 802.3z (Gigabit Ethernet over fiber)
• IEEE 802.3x (Flow control)
• IEEE 802.1q (VLAN tagging)
• IEEE 802.1ad (Provider bridging / QinQ)

Performance Highlights

• Maximum 1 Gbps per port bandwidth
• Low-latency packet forwarding
• Optimized traffic handling for high-density networks
• Reliable throughput for enterprise workloads

Benefits of Plug-In Architecture

• Easy installation and replacement
• Hot-swappable modular design (platform dependent)
• Reduced network downtime
• Flexible upgrade path for evolving networks

Reliability Features

• Designed for service provider environments
• High durability under continuous operation
• Stable performance under heavy traffic loads
• Optimized for enterprise-grade routing systems

Supported IEEE Standards

• IEEE 802.3z – Gigabit Ethernet over fiber
• IEEE 802.1q – VLAN tagging
• IEEE 802.3x – Flow control mechanisms
• IEEE 802.1ad – Provider bridging (QinQ)

Supported Cisco Systems

• Cisco 12006, 12008, 12010, 12012, 12016
• Cisco 12404, 12406, 12410, 12416
• Cisco 12810, 12816
• Cisco 7603, 7604, 7606, 7609
• Cisco 7609 Security Bundle
• Cisco 7613, 7613 Security Bundle
• Cisco XR 12404, 12406, 12410, 12416

Cisco SPA-10X1GE-V2= 10-Ports Shared Port Adapter

The Cisco SPA-10X1GE-V2= 10-Ports Shared Port Adapter represents a high-density networking expansion module engineered for carrier-grade routing platforms and modular network systems. Designed to deliver scalable Ethernet connectivity, this shared port adapter integrates ten independent Gigabit Ethernet interfaces into a compact form factor that is optimized for service providers, enterprise aggregation layers, and high-performance edge routing environments. The module is part of Cisco’s Shared Port Adapter (SPA) ecosystem, which enables flexible interface expansion while maintaining operational efficiency and consistent performance across supported chassis platforms.

This adapter is widely deployed in environments requiring rapid bandwidth scaling without replacing entire routing infrastructures. Its architecture supports modular upgrades, allowing network operators to enhance port density while preserving existing investments in compatible Cisco carrier-class routers and aggregation systems.

Core Design Principles of Shared Port Adapter Technology

Modular Network Expansion Philosophy

The SPA architecture is built around the concept of modular networking, where interface cards function as interchangeable components that can be inserted into supported SPA interface processors. The Cisco SPA-10X1GE-V2= follows this principle by delivering ten independent Gigabit Ethernet ports in a single adapter, allowing multiple logical or physical network connections to operate simultaneously within a unified system architecture.

This modularity reduces infrastructure complexity by eliminating the need for multiple discrete network interface modules. Instead, operators can scale port density dynamically depending on traffic requirements, making it particularly useful in environments experiencing fluctuating bandwidth demand.

Hardware-Level Integration and Efficiency

The adapter is engineered with tight hardware integration between the SPA interface processor and the physical Ethernet ports. This ensures low-latency data forwarding, reduced packet processing overhead, and optimized throughput distribution. The hardware is designed to offload key packet-handling functions from the main routing engine, improving overall system efficiency.

The Cisco SPA-10X1GE-V2= also incorporates internal buffering mechanisms and high-speed switching fabric integration to ensure smooth traffic flow even under heavy load conditions. This makes it suitable for environments where consistent packet delivery and minimal jitter are critical performance factors.

10-Port Gigabit Ethernet Interface Structure

High-Density Port Configuration

The defining feature of the Cisco SPA-10X1GE-V2= is its ten-port Gigabit Ethernet configuration. Each port operates independently and supports full-duplex communication at 1 Gbps speeds. This configuration enables simultaneous handling of multiple data streams, making it ideal for aggregation points in enterprise and carrier networks.

The high-density port arrangement reduces the physical footprint required for network expansion. Instead of deploying multiple single-port modules, network administrators can rely on one shared port adapter to achieve equivalent or greater connectivity density.

Independent Traffic Processing per Port

Each Gigabit Ethernet interface on the adapter is designed to process traffic independently. This isolation ensures that congestion or heavy traffic on one port does not negatively impact the performance of other ports. The architecture provides predictable throughput and stable performance across all active connections.

Role in Service Provider and Carrier Networks

Edge Routing and Aggregation Deployment

In service provider environments, the Cisco SPA-10X1GE-V2= is frequently deployed at the network edge where traffic aggregation and distribution occur. The adapter enables carriers to consolidate multiple customer connections into a single routing platform, reducing infrastructure complexity while maintaining high throughput performance.

Its ability to handle multiple Gigabit Ethernet streams simultaneously makes it a valuable component in metro Ethernet deployments and broadband aggregation networks. The adapter helps service providers efficiently manage increasing bandwidth demands without requiring major hardware redesigns.

Support for Multi-Service Networks

Modern carrier networks often support a combination of data, voice, and video services. The Cisco SPA-10X1GE-V2= is designed to handle such multi-service traffic environments by providing reliable Ethernet connectivity across multiple channels. Its architecture ensures consistent service quality regardless of traffic type or volume.

Enterprise Network Applications

Data Center Connectivity Expansion

Within enterprise environments, the adapter plays a significant role in expanding data center connectivity. It allows network administrators to scale server connectivity, storage access layers, and internal switching systems without introducing additional hardware complexity. The ten-port configuration supports multiple server clusters or segmented network zones within a unified architecture.

Campus Network Aggregation

In large campus networks, the Cisco SPA-10X1GE-V2= provides a reliable solution for aggregating traffic from multiple buildings, departments, or access switches. This ensures efficient traffic routing between campus segments while maintaining high-speed Gigabit connectivity across the infrastructure.

Improved Network Segmentation

The adapter enables logical segmentation of network traffic, supporting separate VLANs and routing policies per interface. This improves security, performance, and administrative control across enterprise environments.

Performance Characteristics and Throughput Optimization

High-Speed Data Handling Capabilities

The Cisco SPA-10X1GE-V2= is engineered for high-throughput environments where consistent performance is essential. Each port delivers Gigabit-level speeds, and the adapter is designed to sustain aggregate throughput across all active interfaces without degradation.

The internal architecture ensures efficient load distribution, allowing simultaneous high-speed communication across all ten ports. This makes it suitable for environments with heavy east-west or north-south traffic patterns.

Low Latency Packet Processing

Latency reduction is a key design consideration in shared port adapters. The Cisco SPA-10X1GE-V2= minimizes packet processing delays through optimized hardware forwarding paths. This ensures that time-sensitive applications maintain performance integrity even under peak traffic conditions.

Traffic Prioritization Support

The adapter supports quality of service mechanisms that allow prioritization of critical traffic types. This ensures that latency-sensitive services such as VoIP and real-time analytics are processed ahead of less critical data streams.

System Compatibility and Integration

Supported Cisco Platforms

The SPA-10X1GE-V2= is designed for compatibility with Cisco routing platforms that support the Shared Port Adapter architecture. These systems typically include carrier-grade routers and modular network devices designed for scalable interface expansion.

Integration with supported chassis is seamless, allowing administrators to install and configure the adapter without requiring major system modifications.

Interoperability with Network Protocols

The adapter supports standard Ethernet protocols and is compatible with a wide range of networking configurations. It operates within IP-based environments and supports VLAN tagging, routing protocols, and advanced traffic engineering configurations commonly used in modern networks.

Reliability and Carrier-Grade Design

Fault Tolerance and Redundancy Features

The Cisco SPA-10X1GE-V2= is built for high availability environments where downtime must be minimized. Its hardware design incorporates redundancy principles at both the interface and system integration levels, ensuring continuous operation even in demanding conditions.

The adapter is engineered to maintain stable performance under continuous load, making it suitable for mission-critical network deployments where reliability is essential.

Thermal and Power Efficiency

Efficient power management is an important aspect of the adapter’s design. It is optimized to operate within controlled thermal limits, ensuring consistent performance without excessive power consumption. This contributes to improved overall system efficiency in large-scale deployments.

Security and Traffic Control Capabilities

Network-Level Security Integration

The adapter supports integration with network security policies implemented at the routing level. This allows administrators to enforce access control, traffic filtering, and segmentation strategies across all ten interfaces.

Security policies can be applied per interface, enabling granular control over traffic flow and reducing exposure to unauthorized access attempts within the network infrastructure.

Traffic Isolation and Segmentation

Each port on the Cisco SPA-10X1GE-V2= can function within isolated network segments, improving security and operational control. This isolation is particularly valuable in multi-tenant environments where different user groups or services must remain separated.

Scalability in Modern Network Infrastructure

Expansion Without Infrastructure Overhaul

One of the key advantages of the Cisco SPA-10X1GE-V2= is its ability to scale network capacity without requiring complete infrastructure replacement. Organizations can simply add additional adapters to supported systems to increase port density and overall throughput capacity.

This scalability is essential for growing enterprises and service providers that must adapt quickly to increasing bandwidth demands.

Future-Proof Networking Strategy

The modular nature of the adapter supports long-term network planning strategies. As network requirements evolve, the SPA architecture allows incremental upgrades rather than disruptive system replacements, ensuring cost efficiency and operational continuity.

Operational Use Cases Across Network Environments

Metro Ethernet Deployment Scenarios

In metro Ethernet environments, the adapter serves as a key aggregation component, connecting multiple customer endpoints to centralized routing infrastructure. Its high port density and stable throughput make it ideal for handling distributed network traffic efficiently.

Enterprise WAN Connectivity

For enterprise wide area networks, the Cisco SPA-10X1GE-V2= provides reliable connectivity between branch offices, data centers, and cloud integration points. Its performance characteristics support consistent communication across geographically distributed network segments.
