VS-S720-10G-3CXL Cisco Supervisor Engine VSS Module

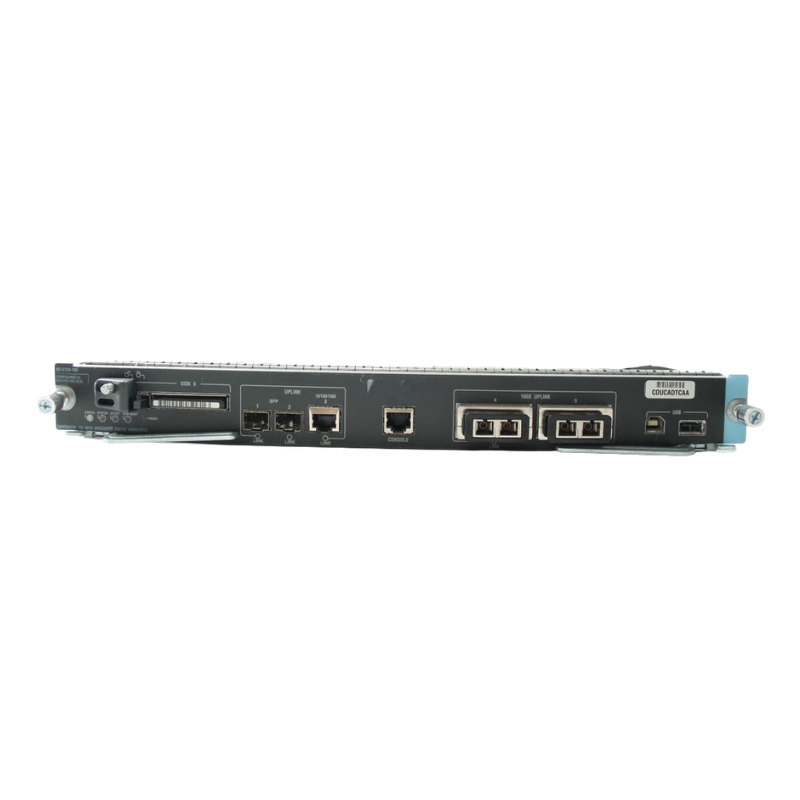

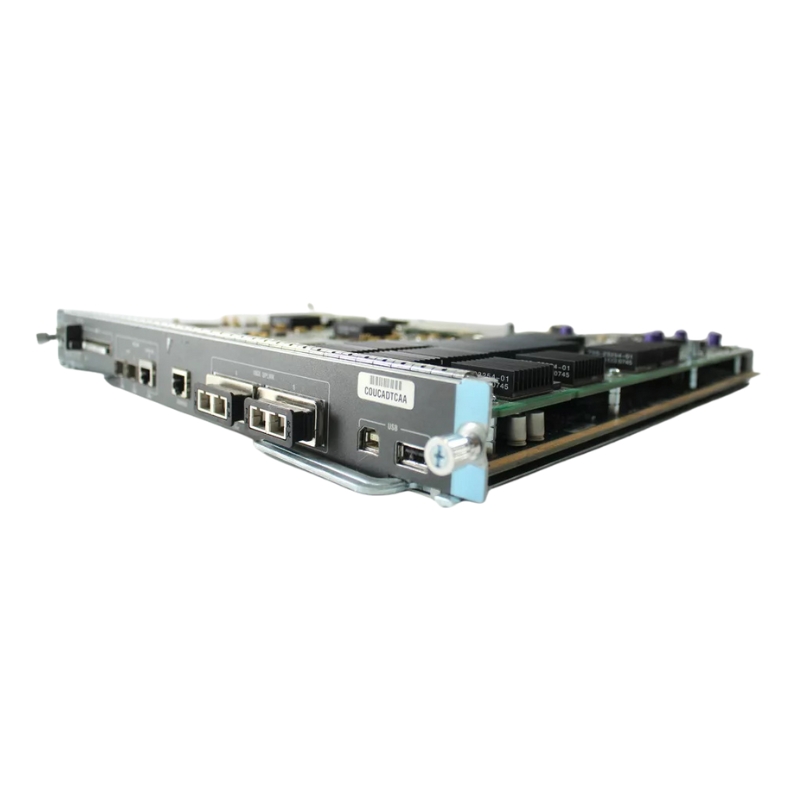

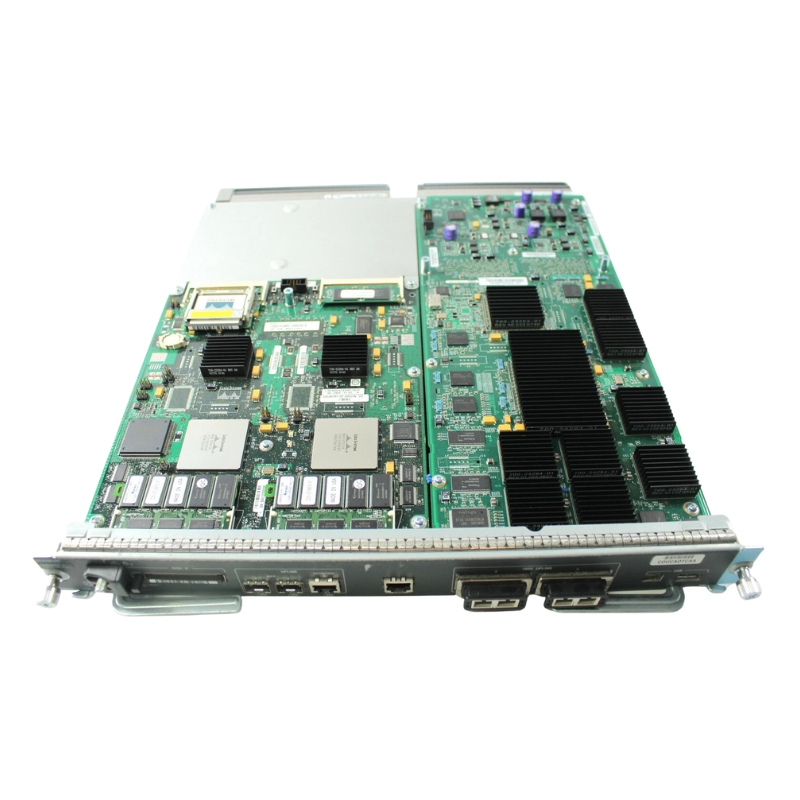

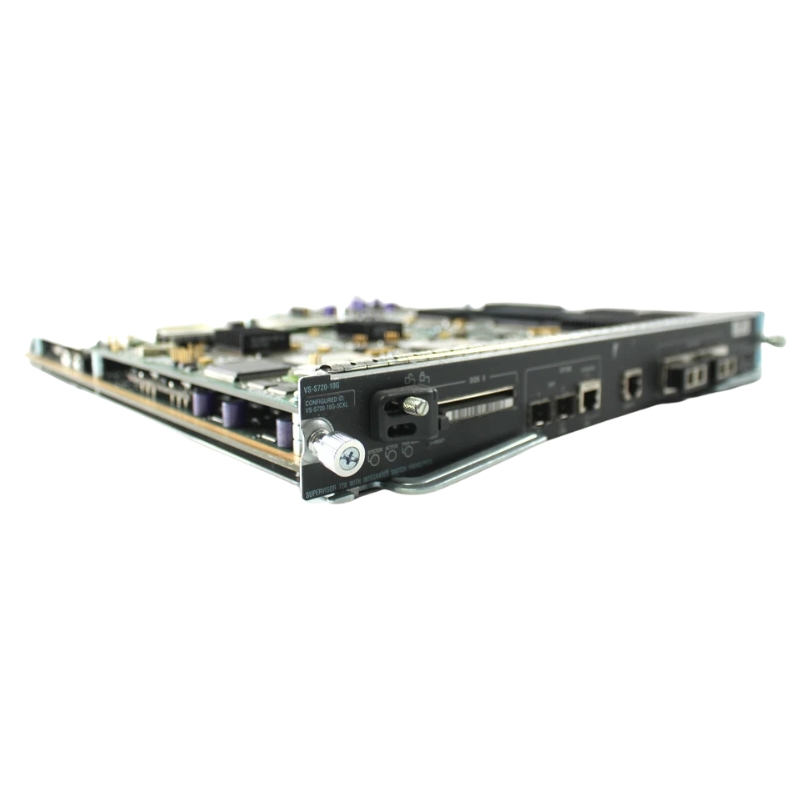

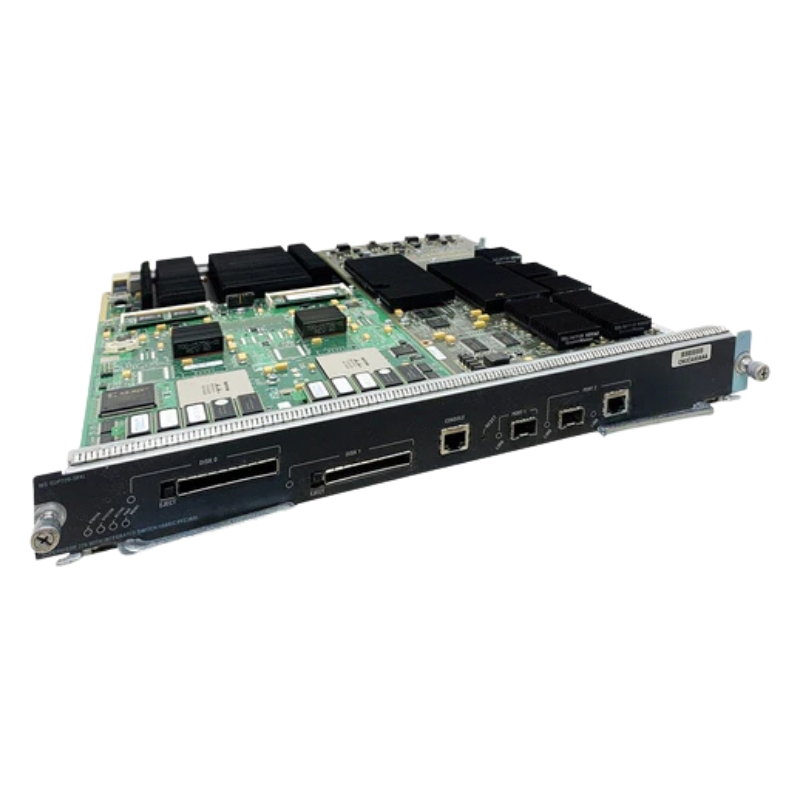

Cisco VS-S720-10G-3CXL Virtual Switching Supervisor Engine

The Cisco VS-S720-10G-3CXL Virtual Switching Supervisor Engine is a high-performance control processor engineered for Cisco Catalyst 6500 Series and Cisco 7600 Series platforms. Designed to deliver enterprise-class switching and routing capabilities, this supervisor engine supports 10 Gigabit Ethernet connectivity, advanced Layer 2 and Layer 3 networking, and extensive scalability for demanding business environments. It combines intelligent traffic management, high availability, and enhanced security features to support mission-critical networks.

Product Information

• Manufacturer: Cisco
• Model: VS-S720-10G-3CXL
• Product Type: Control Processor
• Sub-Type: 10 Gigabit Ethernet Supervisor Engine
• Form Factor: Plug-in Module

Key Features and Benefits

Enterprise-Class Network Performance

• Optimized for high-density enterprise and service provider deployments.
• Supports 10 Gigabit Ethernet for ultra-fast data transmission.
• Delivers reliable Layer 2 switching and Layer 3 routing.
• Provides consistent network performance for bandwidth-intensive applications.
• Designed for continuous operation in business-critical infrastructures.

Advanced Routing Capabilities

The Cisco VS-S720-10G-3CXL supports multiple dynamic routing protocols, enabling flexible and intelligent traffic forwarding across complex enterprise networks.

• OSPF
• RIP
• BGP-4
• IS-IS
• HSRP
• IGMP
• VRRP
• PIM-SM
• PIM-DM
• Bidirectional PIM
• GRE

Technical Specifications

Hardware Specifications

• Device Type: Control Processor
• Dimensions: 37.9 cm × 40.3 cm × 4 cm
• Weight: 11 lbs
• Form Factor: Plug-in Module
• Installed RAM: 2 GB
• Installed Flash Memory: 1 GB
• Internal Hard Drive: None

Performance Specifications

• IPv4 Routing Performance: Up to 450 Mbps
• IPv6 Routing Performance: Up to 225 Mbps
• Wired Connectivity Technology
• Ethernet Switching Architecture
• 10 Gigabit Ethernet Data Link Support

Network Capacity

Large-Scale Routing and Switching Resources

• Supports up to 96,000 MAC Addresses
• Handles up to 1,000,000 IPv4 Routes
• Supports up to 500,000 IPv6 Routes
• Accommodates up to 256,000 NetFlow Entries

Connectivity and Expansion

Network Ports

• 2 High-Speed Network Ports
• 2 Available SFP (Mini-GBIC) Expansion Slots
• 2 Available X2 Expansion Slots
• Type II CompactFlash Card Slot

Management Interfaces

• RJ-45 Gigabit Ethernet Management Port
• RJ-45 Console Interface
• USB Type-A Port
• USB Type-B Port

Integrated Networking Features

Security and Traffic Management

• Network Address Translation (NAT)
• MPLS and MPLS VPN Support
• IPv6 Compatibility
• Access Control Lists (ACL)
• Quality of Service (QoS)
• IGMP Snooping
• Advanced Traffic Prioritization

Operational Status Indicators

• Power Status
• Port Activity
• System Health
• Active Status
• Link Status
• Operational Status

Industry Standards Compliance

Networking Standards

• IEEE 802.1X Authentication
• Ethernet Networking Standards

Regulatory Certifications

• FCC Class A
• CISPR 22 Class A
• CISPR 24
• EN 60950
• IEC 60950
• UL 60950
• CSA 22.2 No. 60950
• EN 55022 Class A
• EN 55024
• EN 61000-3-2
• EN 61000-3-3
• EN 61000-6-1
• EN 300-386
• VCCI Class A
• ICES-003 Class A
• AS/NZS 3548 Class A

Operating Environment

Environmental Specifications

• Operating Temperature: 0°C to 40°C
• Operating Humidity: 10% to 90% (Non-Condensing)
• Designed for stable enterprise deployment environments.

Compatible Cisco Platforms

Cisco Catalyst 6500 Series

• Catalyst 6503
• Catalyst 6503-E
• Catalyst 6504-E
• Catalyst 6506
• Catalyst 6506-E
• Catalyst 6509
• Catalyst 6509-E
• Catalyst 6509-NEB
• Catalyst 6509-NEB-A
• Catalyst 6513

Cisco 7600 Series

• Cisco 7603
• Cisco 7603-S
• Cisco 7606
• Cisco 7606-S
• Cisco 7609
• Cisco 7609-S
• Cisco 7613
• OSR-7609

The Cisco VS-S720-10G-3CXL

Business Advantages

• High-performance 10 Gigabit Ethernet switching.
• Massive routing table scalability for enterprise networks.
• Robust IPv4 and IPv6 support.
• Advanced MPLS and VPN capabilities.
• Comprehensive QoS and ACL functionality.
• Flexible expansion through SFP and X2 interfaces.
• Compatible with a broad range of Cisco Catalyst 6500 and Cisco 7600 chassis.
• Reliable solution for data centers, enterprise campuses, and service provider environments.

Ideal Applications

• Enterprise campus networking
• Core network infrastructure
• Large-scale data centers
• Service provider backbone networks
• High-availability business environments
• Mission-critical network deployments

Overview of Cisco VS-S720-10G-3CXL Virtual Switching

The VS-S720-10G-3CXL Virtual Switching Supervisor Engine is a high-performance switching control module designed for advanced enterprise and data center network infrastructures. It is widely deployed in modular Catalyst switch environments where scalability, redundancy, and high-speed connectivity are essential. This supervisor engine plays a central role in managing switching operations, routing intelligence, and hardware control across a chassis-based system, ensuring stable and efficient network performance in mission-critical environments.

As a Virtual Switching Supervisor Engine, the VS-S720-10G-3CXL is engineered to provide centralized intelligence for switching platforms, enabling seamless packet forwarding, advanced Layer 2 and Layer 3 services, and high availability features. It is especially optimized for 10 Gigabit Ethernet uplinks, making it suitable for modern network backbones requiring high throughput and low latency communication.

Role of Supervisor Engines in Modular Switching Architecture

Centralized Network Control Function

In modular switching systems, the supervisor engine acts as the brain of the switch. The Cisco VS-S720-10G-3CXL manages all control plane functions, including MAC address learning, routing table computation, spanning tree management, and VLAN configuration. Without the supervisor engine, line cards cannot operate efficiently, as they depend on centralized instructions for packet processing logic.

High Availability and Redundancy

One of the key advantages of this supervisor engine is its ability to support redundant configurations. In enterprise environments, downtime is not acceptable. Therefore, deploying dual supervisor engines ensures failover capability. If the primary unit fails, the secondary supervisor takes over instantly, maintaining network continuity without disrupting business operations.

Scalability in Enterprise Networks

The VS-S720-10G-3CXL enables scalable network expansion by supporting multiple line cards and high-density port configurations. This makes it ideal for growing enterprises that require flexible and expandable switching capacity without replacing the entire infrastructure.

10 Gigabit Ethernet Performance Capabilities

High-Speed Data Transmission

The supervisor engine supports 10 Gigabit Ethernet interfaces, which significantly enhance backbone network performance. These high-speed connections allow for faster data transfer between core network devices, reducing latency and improving application responsiveness.

Aggregation of Network Traffic

In large-scale deployments, multiple lower-speed links are often aggregated into 10G uplinks. The VS-S720-10G-3CXL efficiently manages traffic aggregation, ensuring balanced load distribution and optimal bandwidth utilization across the network.

Low Latency Switching

Latency-sensitive applications such as VoIP, video conferencing, and real-time analytics benefit from the low-latency architecture of this supervisor engine. By optimizing packet forwarding and reducing processing delays, it ensures smooth communication across distributed systems.

Mini GBIC (SFP) Interface Support

Flexible Connectivity Options

The Cisco VS-S720-10G-3CXL supports Mini GBIC (Small Form-Factor Pluggable - SFP) modules, allowing administrators to customize network connectivity based on infrastructure requirements. These modular transceivers provide flexibility in choosing fiber or copper connections depending on distance and bandwidth needs.

Hot-Swappable Design

SFP modules are hot-swappable, meaning they can be replaced or upgraded without shutting down the system. This ensures minimal downtime and allows network engineers to upgrade infrastructure dynamically as demand increases.

Multi-Mode and Single-Mode Fiber Compatibility

The system supports both multi-mode and single-mode fiber transceivers, enabling short-range and long-range communication capabilities. This flexibility makes it suitable for both campus networks and wide-area deployments.

Architecture and System Integration

Integration with Catalyst Switching Platforms

The VS-S720-10G-3CXL is designed for integration with Cisco Catalyst modular switches, where it manages distributed switching modules. It coordinates traffic forwarding decisions across multiple line cards, ensuring consistent policy enforcement throughout the network.

Distributed Forwarding Architecture

In distributed forwarding systems, the supervisor engine handles control plane operations while line cards perform data plane processing. This separation improves performance and reduces bottlenecks, allowing large volumes of traffic to be processed efficiently.

Hardware Acceleration Features

To optimize performance, the supervisor engine incorporates hardware-based acceleration for routing, switching, and access control functions. This reduces CPU load and ensures high-speed packet processing even under heavy network traffic conditions.

Enterprise and Data Center Use Cases

Core Network Deployment

The VS-S720-10G-3CXL is commonly deployed in core network layers where high throughput and reliability are critical. It serves as the backbone for enterprise LAN environments, connecting distribution and access layers efficiently.

Data Center Switching Fabric

In data center environments, this supervisor engine plays a vital role in maintaining high-speed switching fabrics that support virtualization, cloud computing, and large-scale application hosting. Its ability to handle high bandwidth traffic ensures smooth data flow between servers and storage systems.

Campus Network Infrastructure

For campus networks, including universities, corporate campuses, and government facilities, the supervisor engine provides centralized control and consistent policy enforcement across multiple buildings and network segments.

Advanced Network Features

VLAN Management and Segmentation

The device supports advanced VLAN segmentation, allowing network administrators to logically separate traffic across different departments or services. This enhances security and improves network organization.

Quality of Service (QoS)

Quality of Service features ensure that critical applications receive priority bandwidth allocation. Voice, video, and mission-critical data traffic can be prioritized over less sensitive traffic, ensuring optimal user experience.

Routing Protocol Support

The supervisor engine supports multiple dynamic routing protocols, enabling efficient data path selection and redundancy. This includes support for enterprise-grade routing architectures that ensure high availability and fast convergence.

Security Capabilities

Access Control and Filtering

Security is a fundamental aspect of the VS-S720-10G-3CXL architecture. It supports access control lists (ACLs) that allow administrators to define granular traffic filtering rules, ensuring only authorized traffic is permitted across the network.

Network Segmentation for Security

By leveraging VLANs and routing policies, administrators can isolate sensitive data traffic from general user traffic, reducing the risk of unauthorized access and lateral movement within the network.

Secure Management Interfaces

The system supports secure management protocols, ensuring that administrative access to the switch is protected through encrypted communication channels and authentication mechanisms.

Hardware Design and Reliability

Robust Industrial-Grade Build

Designed for enterprise environments, the supervisor engine features a robust hardware design capable of continuous operation in demanding conditions. It is built to withstand high network loads and extended uptime requirements.

Redundant Power and Cooling Support

When deployed in modular chassis systems, the supervisor engine benefits from redundant power supplies and cooling mechanisms, ensuring uninterrupted operation even in case of component failure.

Component-Level Monitoring

The system continuously monitors hardware components such as temperature, memory usage, and interface status. This proactive monitoring helps prevent failures and ensures optimal system health.

Performance Optimization Features

High Throughput Packet Processing

The VS-S720-10G-3CXL is optimized for high-throughput environments, enabling efficient packet processing across multiple interfaces simultaneously without performance degradation.

Memory and Buffer Optimization

Efficient memory management ensures that packet buffering and forwarding operations are handled smoothly, reducing packet loss and improving overall network stability.

Load Balancing Across Line Cards

Traffic distribution across multiple line cards ensures balanced network utilization, preventing congestion and optimizing performance across the entire switching system.
