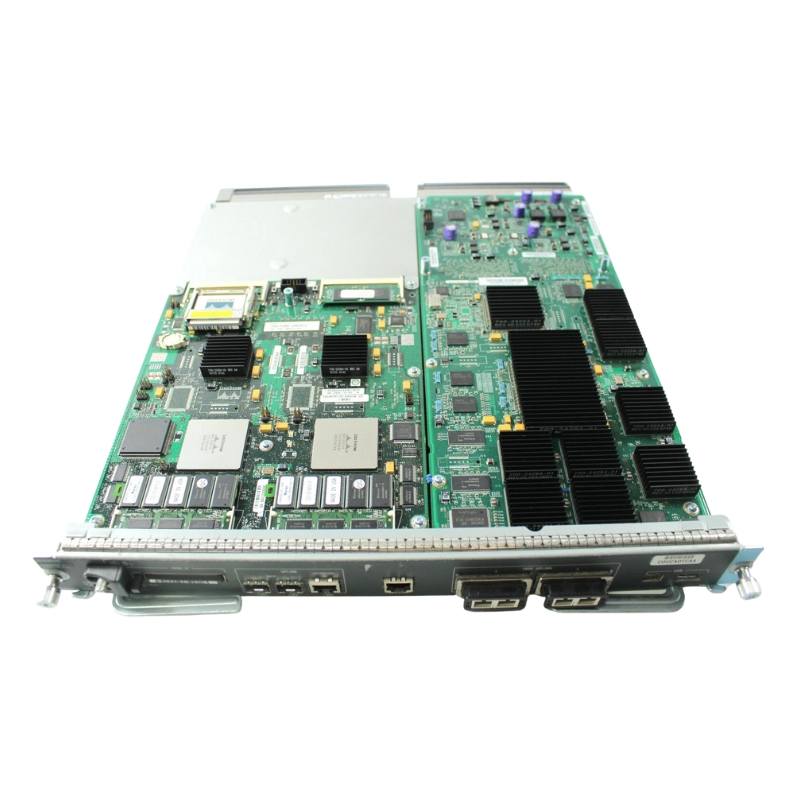

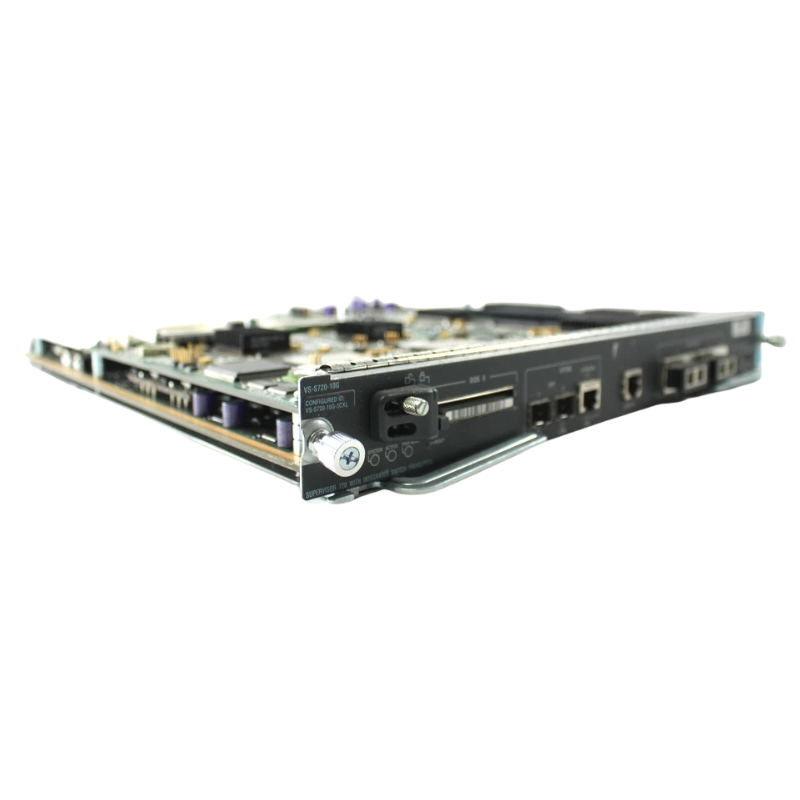

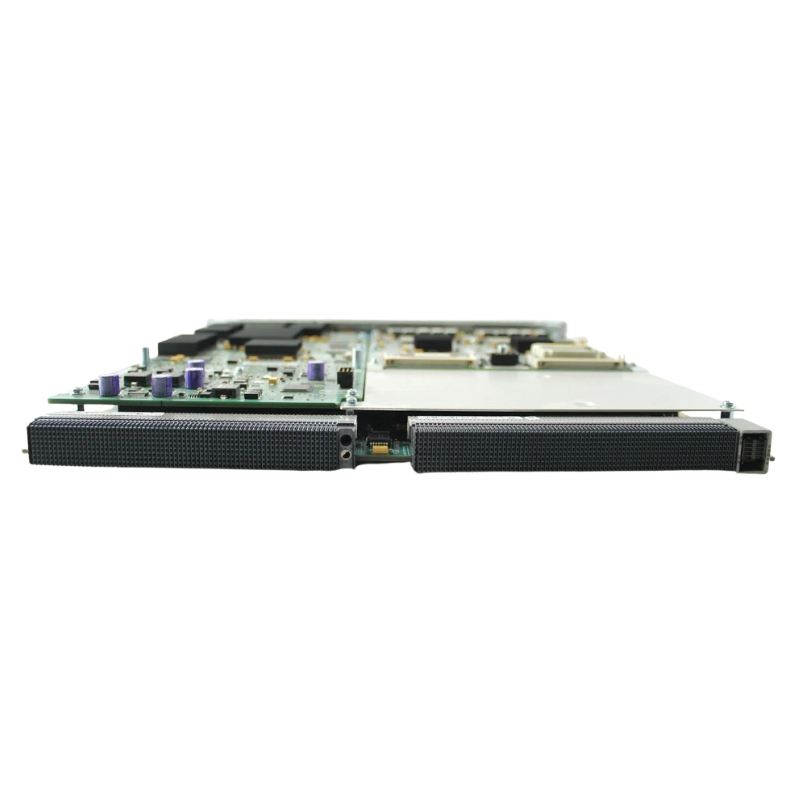

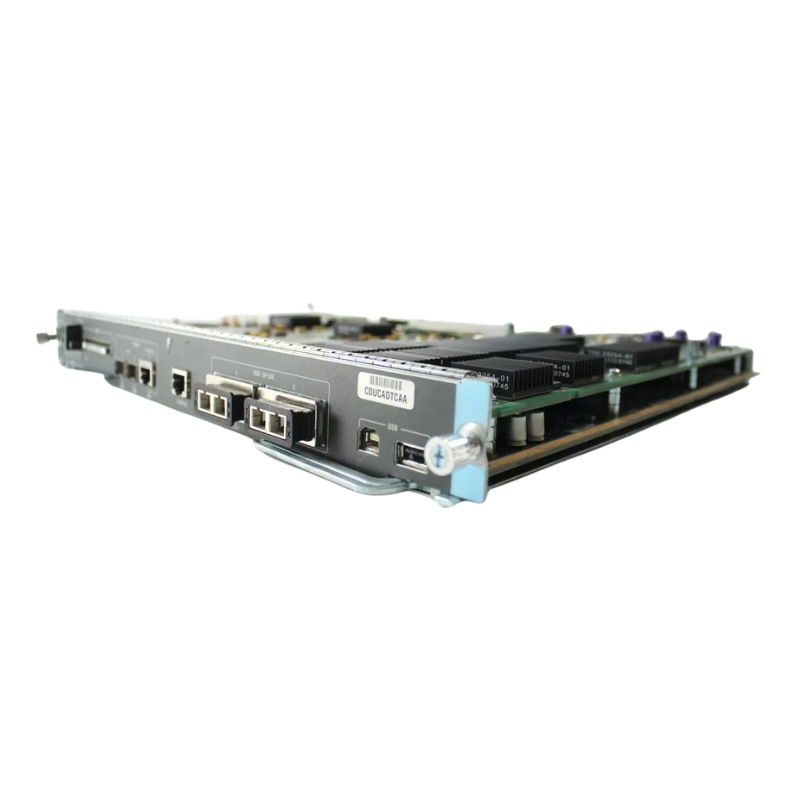

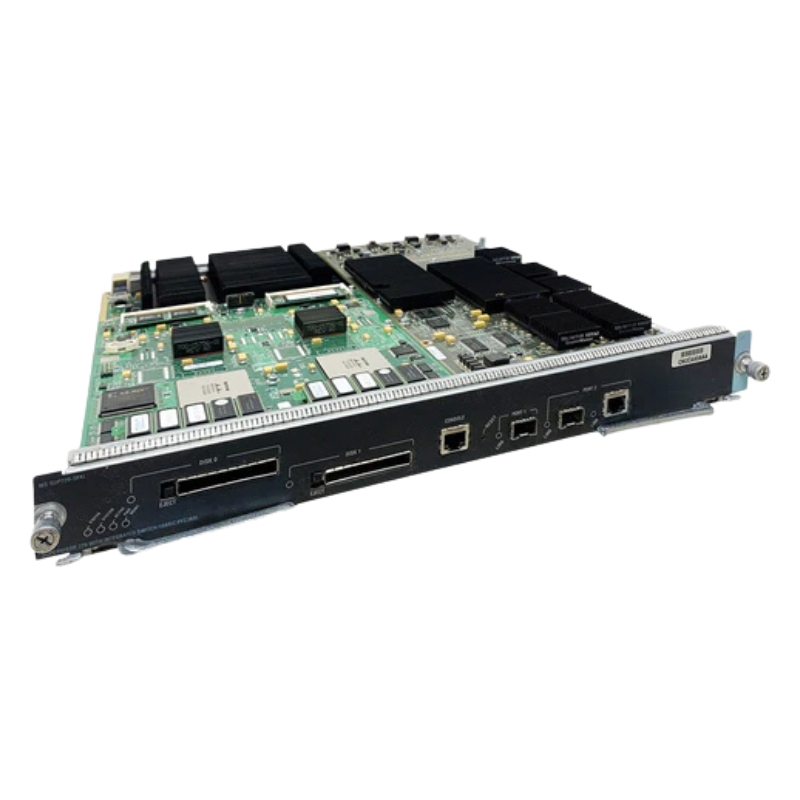

VS-S720-10G-3CXL= Cisco 10GBPS Supervisor Engine Control Processor Fast Ethernet

Cisco VS-S720-10G-3CXL= Virtual Switching Supervisor Engine

The Cisco VS-S720-10G-3CXL= Virtual Switching Supervisor Engine is a high-performance control processor designed to enhance the functionality, scalability, and reliability of Cisco Catalyst 6500 Series and Cisco 7600 Series platforms. Equipped with integrated 10 Gigabit Ethernet Mini-GBIC connectivity, this supervisor engine delivers advanced Layer 2 and Layer 3 networking capabilities, enterprise-class routing, and high-speed switching for mission-critical business environments.

Product Information

• Manufacturer: Cisco
• Part Number: VS-S720-10G-3CXL=
• Product Category: Control Processor
• Sub-Type: 10 Gigabit Ethernet Supervisor Engine
• Form Factor: Plug-in Module

Advanced Performance for Enterprise Networks

The Cisco VS-S720-10G-3CXL= is engineered to support demanding enterprise, campus, and data center infrastructures. Its integrated hardware acceleration enables efficient packet forwarding, intelligent routing, and dependable network management while maintaining excellent performance under heavy traffic loads.

Performance Highlights

• Supports high-speed 10 Gigabit Ethernet connectivity
• Optimized Layer 2 switching and Layer 3 routing
• Enterprise-grade forwarding architecture
• Ideal for large-scale network deployments
• Reliable performance for business-critical applications

Technical Specifications

Hardware Specifications

• Device Type: Control Processor
• Installed Memory: 2 GB RAM
• Flash Memory: 1 GB
• Internal Storage: No Hard Drive
• Width: 37.9 cm
• Depth: 40.3 cm
• Height: 4 cm
• Weight: 11 lbs

Network Performance

• IPv4 Routing Performance: Up to 450 Mbps
• IPv6 Routing Performance: Up to 225 Mbps
• Supports wired Ethernet connectivity
• Switching Protocol: Ethernet
• Data Link Technology: 10 Gigabit Ethernet

Large Routing and Switching Capacity

Routing Resources

• Supports up to 96,000 MAC address entries
• Handles up to 1,000,000 IPv4 routes
• Supports up to 500,000 IPv6 routes
• Accommodates up to 256,000 NetFlow entries

Enterprise Routing Protocol Support

The supervisor engine supports a comprehensive collection of routing protocols, making it suitable for complex enterprise and service provider environments.

• OSPF
• RIP
• BGP-4
• IS-IS
• HSRP
• VRRP
• IGMP
• PIM-SM
• PIM-DM
• Bidirectional PIM
• GRE

Integrated Network Security and Traffic Management

Advanced Networking Features

• IPv6 compatibility
• Network Address Translation (NAT)
• MPLS and MPLS VPN support
• Access Control Lists (ACL)
• Quality of Service (QoS)
• IGMP Snooping
• Optimized multicast traffic management

Security Benefits

• Enhanced traffic filtering
• Improved network segmentation
• Secure enterprise communication
• Reliable access control implementation

Flexible Connectivity Options

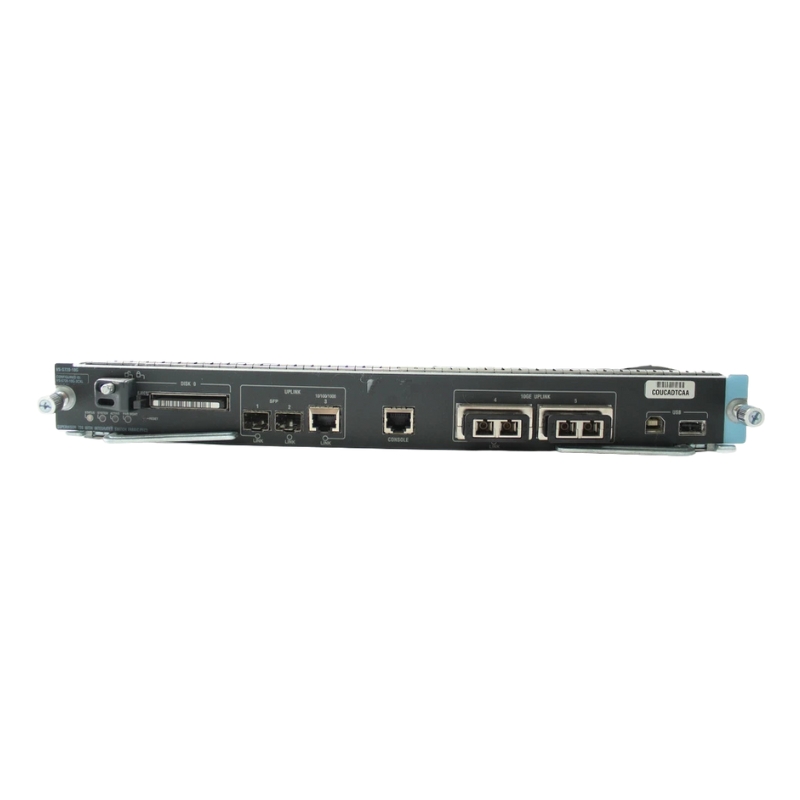

Built-in Ports

• 2 High-Speed Network Ports
• 1 RJ-45 Gigabit Ethernet Management Interface
• 1 RJ-45 Console Port
• 1 USB Type-A Port
• 1 USB Type-B Port

Expansion Capabilities

• Two available SFP (Mini-GBIC) expansion slots
• Two available X2 expansion slots
• CompactFlash Type II slot
• Additional expansion slot compatibility

Status Monitoring and System Management

LED Status Indicators

• Power Status
• System Activity
• Port Status
• Link Status
• Operational Health

Industry Standards Compliance

Networking Standards

• IEEE 802.1X Authentication
• Ethernet Standards Compliance

Regulatory Certifications

• FCC Class A
• CISPR 22 Class A
• CISPR 24
• UL 60950
• IEC 60950
• CSA 22.2 No. 60950
• EN 60950
• EN 55022 Class A
• EN 55024
• EN 61000 Series
• VCCI Class A
• ICES-003 Class A
• AS/NZS 3548 Class A

Operating Environment

Environmental Specifications

• Operating Temperature: 0°C to 40°C
• Operating Humidity: 10% to 90% (Non-condensing)

Platform Compatibility

Supported Cisco 7600 Series

• Cisco 7603
• Cisco 7603-S
• Cisco 7606
• Cisco 7606-S
• Cisco 7609
• Cisco 7609-S
• Cisco 7613
• OSR-7609

Supported Cisco Catalyst 6500 Series

• Catalyst 6503 and 6503-E
• Catalyst 6504-E
• Catalyst 6506 and 6506-E
• Catalyst 6509 and 6509-E
• Catalyst 6509-NEB
• Catalyst 6513
• Multiple Firewall, VPN, IPSec, WiSM, ACE, IDSM, and WLSM bundle configurations

Cisco VS-S720-10G-3CXL= Virtual Switching Supervisor Engine

The Cisco VS-S720-10G-3CXL= Virtual Switching Supervisor Engine represents a high-performance control and management module designed for advanced enterprise switching environments. As part of Cisco’s modular switching architecture, this supervisor engine plays a critical role in delivering intelligent control plane processing, high availability, and scalable switching performance across large campus and data center networks. It is engineered to support virtual switching systems where multiple chassis operate as a single logical switch, improving manageability and operational efficiency in complex network infrastructures.

Core Architecture and Design Philosophy

The architecture of the Cisco VS-S720-10G-3CXL= is built around distributed switching intelligence and centralized control plane management. It is designed to integrate seamlessly into Cisco Catalyst-based virtual switching systems, where redundancy and scalability are essential. The supervisor engine handles essential functions such as routing protocols, switching tables, and system management processes while offloading data forwarding to dedicated line cards.

Virtual Switching System (VSS) Integration

A key feature of this supervisor engine is its support for Virtual Switching System (VSS) technology. VSS allows two physical chassis to operate as a single logical switch, significantly simplifying network design and reducing operational overhead. The supervisor engine synchronizes configuration, state information, and forwarding tables across both chassis to ensure seamless failover and continuous availability.

High Availability and Redundancy Mechanisms

High availability is a foundational principle of the Cisco VS-S720-10G-3CXL= design. It supports Stateful Switchover (SSO) and Non-Stop Forwarding (NSF), ensuring that network traffic continues to flow even during supervisor failover events. Redundant supervisor configurations can be deployed to eliminate single points of failure and enhance resilience in mission-critical environments.

10 Gigabit Ethernet and Mini GBIC Connectivity

The Cisco VS-S720-10G-3CXL= supports high-speed 10 Gigabit Ethernet connectivity, making it suitable for bandwidth-intensive applications in modern enterprise and service provider networks. It leverages Mini GBIC (Gigabit Interface Converter) or SFP+ based interfaces to provide flexible uplink options and modular optical connectivity.

Mini GBIC (SFP/SFP+) Interface Capabilities

Mini GBIC interfaces, commonly known as Small Form-Factor Pluggable (SFP) ports, allow the supervisor engine to support a wide range of optical and copper transceivers. These interfaces provide adaptability for different network distances, media types, and bandwidth requirements. The modular nature of SFP-based connectivity ensures that organizations can tailor their infrastructure without replacing entire hardware systems.

Supported Transceiver Types

Depending on network requirements, the supervisor engine may support various types of optical modules such as short-range (SR), long-range (LR), and extended-range (ER) transceivers. These modules are essential for connecting data centers, campus buildings, and distributed enterprise locations.

Fiber and Copper Flexibility

One of the key advantages of Mini GBIC-based architecture is the ability to switch between fiber optic and copper connections. This flexibility allows network engineers to optimize performance and cost based on deployment scenarios while maintaining consistent switching capabilities.

Performance and Scalability Features

The Cisco VS-S720-10G-3CXL= supervisor engine is engineered for high-throughput environments requiring efficient packet processing and low latency. It supports advanced hardware-based forwarding mechanisms that reduce CPU load and enhance system responsiveness.

Packet Forwarding and Switching Capacity

The switching architecture is optimized for large-scale environments where thousands of endpoints may be connected simultaneously. The supervisor engine manages MAC address tables, routing information bases (RIB), and forwarding information bases (FIB) efficiently to ensure high-speed packet forwarding across the network fabric.

Hardware Acceleration

Hardware acceleration is a key component of the supervisor engine’s performance profile. By offloading forwarding decisions to dedicated ASICs, the system achieves predictable latency and consistent throughput even under heavy traffic loads.

Multilayer Switching Support

The device supports multilayer switching, enabling it to perform both Layer 2 switching and Layer 3 routing. This reduces dependency on external routers and simplifies network topology while improving overall efficiency.

Enterprise Network Deployment Scenarios

The Cisco VS-S720-10G-3CXL= is widely deployed in enterprise campus networks, data centers, and service provider aggregation layers. Its ability to integrate multiple switches into a unified system makes it ideal for environments requiring centralized management and high availability.

Campus Network Integration

In campus networks, this supervisor engine helps unify access, distribution, and core layers into a more streamlined architecture. By leveraging virtual switching, administrators can reduce the complexity of spanning tree configurations and improve overall network stability.

Core Layer Optimization

At the core layer, the supervisor engine ensures fast convergence and high-speed routing between different network segments. This is essential for organizations with high internal traffic loads such as universities, government institutions, and large corporations.

Data Center Applications

In data center environments, the supervisor engine provides the backbone for scalable server connectivity and virtualization support. It enables efficient traffic distribution between compute nodes, storage systems, and external networks.

Virtualization and Cloud Readiness

The system supports virtualized environments where multiple workloads run across shared physical infrastructure. Its ability to handle dynamic routing and high-bandwidth traffic makes it suitable for private cloud deployments and hybrid cloud connectivity.

Advanced Management and Control Features

The Cisco VS-S720-10G-3CXL= includes robust management capabilities that simplify configuration, monitoring, and troubleshooting. Network administrators can leverage Cisco IOS-based command-line interfaces as well as centralized management tools.

Configuration and Monitoring Tools

The supervisor engine supports advanced configuration features such as VLAN management, routing protocol configuration, and interface monitoring. These tools allow administrators to maintain full visibility into network operations.

Real-Time Diagnostics

Real-time diagnostics capabilities enable proactive identification of network issues. This reduces downtime and helps maintain service-level agreements (SLAs) in enterprise environments.

SNMP and Network Telemetry

Support for Simple Network Management Protocol (SNMP) and telemetry-based monitoring ensures integration with enterprise network management systems. This allows centralized visibility into network performance metrics and system health.

Security and Network Protection Capabilities

Security is a critical aspect of the Cisco VS-S720-10G-3CXL= supervisor engine. It includes multiple layers of protection to safeguard network infrastructure from unauthorized access and malicious activity.

Access Control Mechanisms

The system supports advanced access control features such as Access Control Lists (ACLs), role-based access control, and authentication mechanisms. These features ensure that only authorized users and devices can interact with network resources.

Traffic Filtering and Segmentation

Traffic filtering capabilities allow administrators to segment network traffic based on policies, improving both security and performance. This is especially important in multi-tenant environments.

Resilient Network Design

The supervisor engine supports resilient network architectures that minimize downtime and ensure continuous availability. Redundant paths and failover mechanisms ensure that network services remain operational even in the event of hardware failure.

Hardware Integration and Compatibility

The Cisco VS-S720-10G-3CXL= is designed to integrate with compatible Cisco Catalyst chassis and line cards. Its modular design ensures seamless compatibility with a range of hardware components within Cisco’s switching ecosystem.

Line Card Compatibility

The supervisor engine works in conjunction with high-speed line cards that provide additional interface density and bandwidth capacity. This modular approach allows organizations to scale their infrastructure as needed.

Backplane Communication

Efficient backplane communication ensures fast data transfer between line cards and the supervisor engine. This reduces bottlenecks and enhances overall system performance.

Software Compatibility

The device runs Cisco IOS-based software platforms that provide a stable and feature-rich operating environment. Regular software updates enhance functionality and improve security over time.

Operational Efficiency and Maintenance

Maintaining the Cisco VS-S720-10G-3CXL= is streamlined through Cisco’s integrated management ecosystem. The system is designed for ease of maintenance, reducing operational costs and improving lifecycle efficiency.

Firmware Updates and Upgrades

Firmware updates can be deployed with minimal disruption to network operations. This ensures that the system remains secure and up-to-date with the latest features and performance enhancements.

Hot Swappable Components

Support for hot-swappable components allows administrators to replace hardware modules without shutting down the entire system. This is critical in environments where uptime is essential.

Failure Detection and Recovery

Automated failure detection mechanisms continuously monitor system health and trigger alerts in case of anomalies. This proactive approach helps reduce downtime and improves network reliability.

Use Cases Across Industry Sectors

The Cisco VS-S720-10G-3CXL= supervisor engine is used across a wide range of industries including finance, telecommunications, education, healthcare, and government. Each sector benefits from its scalability, reliability, and performance capabilities.

Financial Institutions

Banks and financial institutions rely on this supervisor engine for secure, high-speed transaction processing and data center connectivity.

Telecommunications Providers

Service providers use the system for aggregation and core network functions, ensuring efficient data routing across large geographic regions.

Healthcare and Education

Hospitals and universities benefit from its high availability and centralized management capabilities, ensuring uninterrupted access to critical systems.
