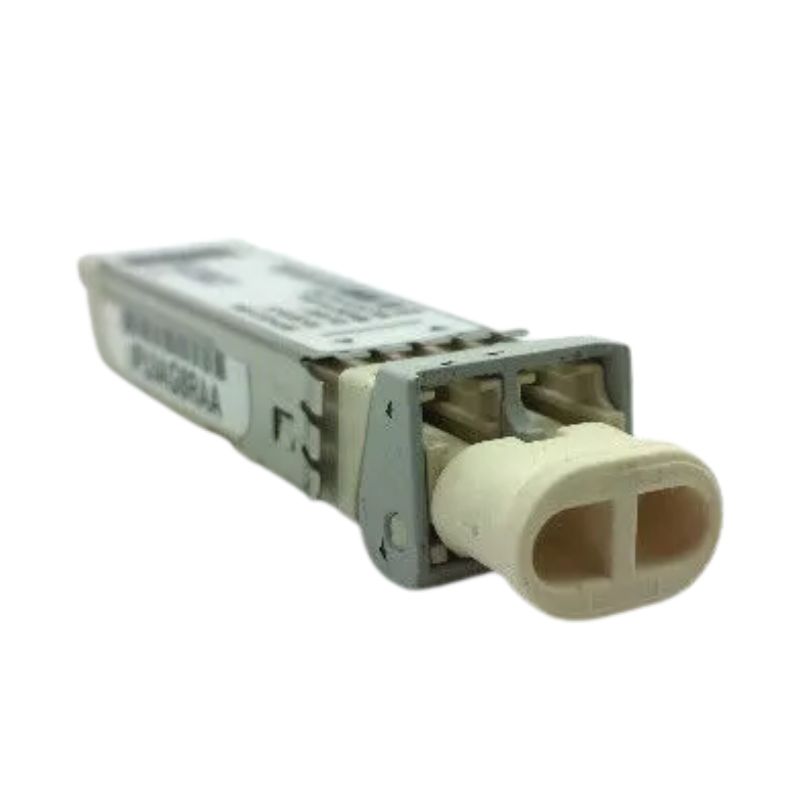

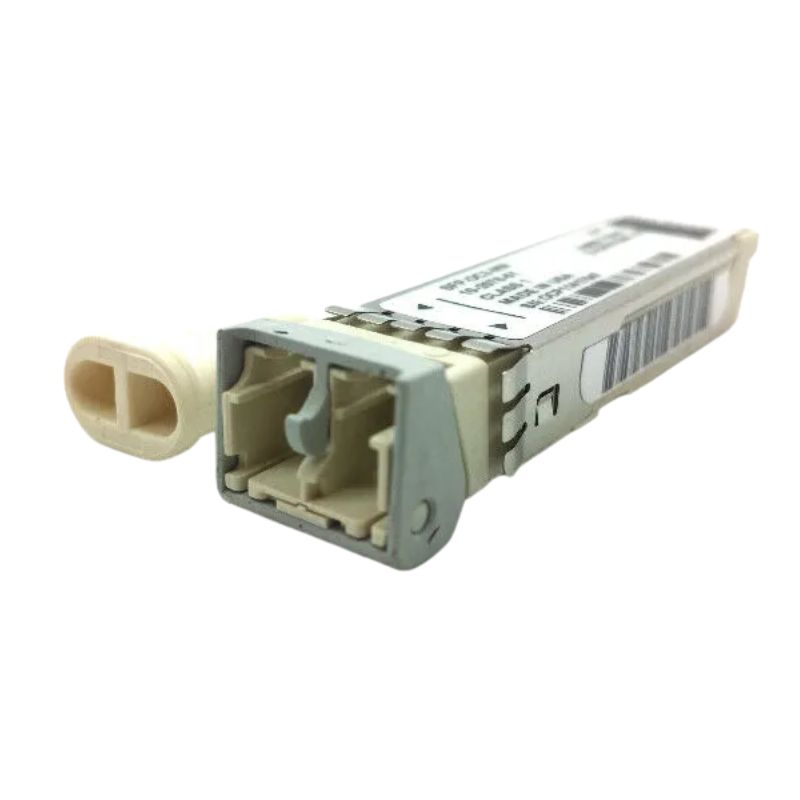

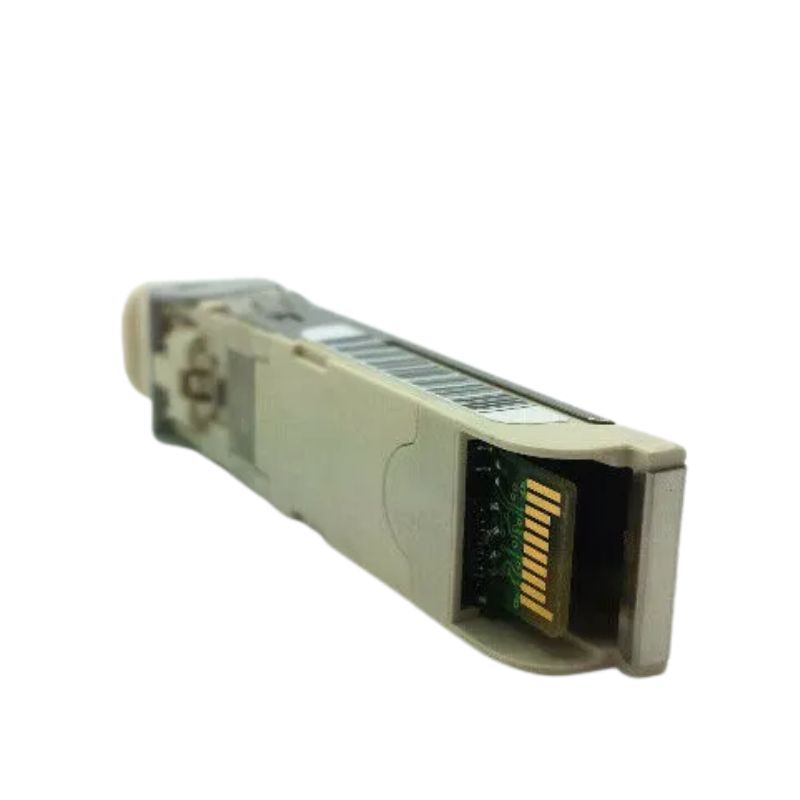

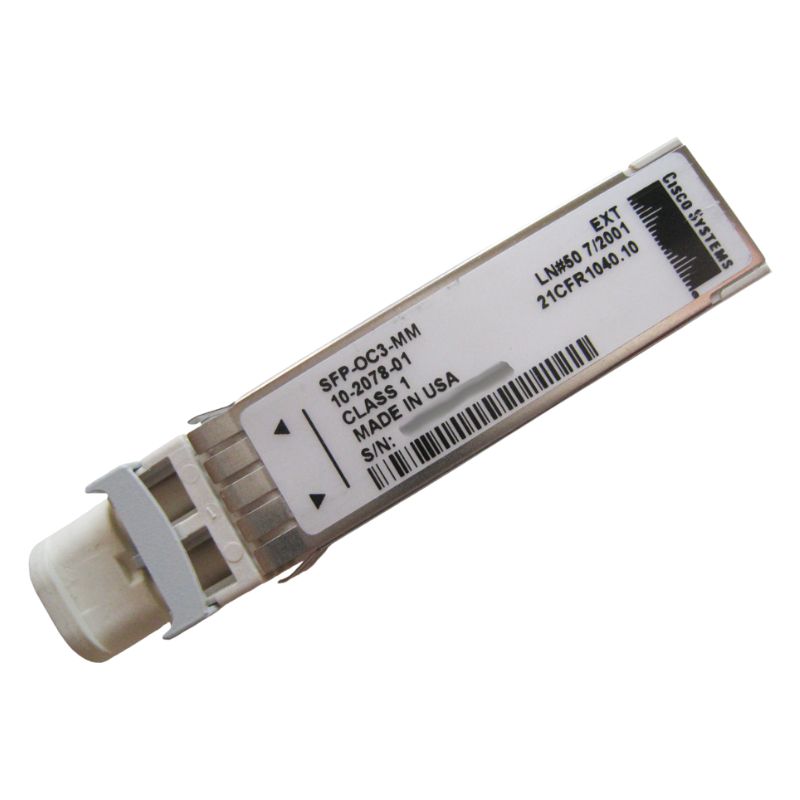

SFP-OC3-MM Cisco OC-3/STM-1 Pluggable Short-Reach Multimode Transceiver

Overview of the Transceiver

The SFP-OC3-MM Cisco OC-3/STM-1 Pluggable Short-Reach Multimode Transceiver represents a high-reliability optical networking component designed for carrier-grade and enterprise-level telecommunications infrastructures. Engineered to support OC-3 (Optical Carrier - 3) and STM-1 (Synchronous Transport Module level-1) standards, this module enables efficient, stable, and cost-effective optical data transmission over multimode fiber cabling within short-reach environments. It is widely adopted in metro networks, access networks, campus backbone systems, and telecom aggregation layers where dependable synchronous transport is essential.

Main Specification

• Brand: Cisco
• Part Number: SFP-OC3-MM
• Product Type: SFP Transceiver Module

Technical Features

• Form Factor: Small Form-Factor Pluggable (SFP).
• Data Rate: 155.52 Mbps.
• Line Rate: OC-3 / STM-1.
• Wavelength: 1310 nm.
• Fiber Type: Multimode Fiber (MMF).
• Max Distance: Up to 2 kilometers.
• Connector Type: LC Duplex.
• Polishing Type: Physical Contact (PC).
• Transmitter Power: -19 to -14 dBm.
• Receiver Sensitivity: Less than -30 dBm.
• Supply Voltage: 3.3V power supply.
• Compliance: SFP MSA and RoHS compliant.
• Digital Diagnostics: Supports real-time optical monitoring (DOM).
• Operating Temperature: 0°C to 70°C (32°F to 158°F).

 Compatibility

• Network Protocols: Fully supports SONET, SDH, and ATM standards.
• Interface Types: Built for Packet-over-SONET/SDH (POS) interfaces.
• Hardware Slot: Fits into any standard SFP mini-GBIC slot.
• Cisco Platforms: Compatible with Cisco 7600 and 7304 routers.
• Module Support: Integrates with Cisco Shared Port Adapters (SPA).
• Switch Support: Compatible with Cisco Catalyst 6500 series switches.
• Vendor Compatibility: Works with MSA-compliant hardware from other vendors.
• Software Support: Requires compatible Cisco IOS software versions.

The OC-3/STM-1 Pluggable Short-Reach Transceiver

As a Small Form-Factor Pluggable (SFP) module, the SFP-OC3-MM Cisco OC-3/STM-1 Pluggable Short-Reach Multimode Transceiver offers hot-swappable functionality, simplified deployment, and flexible integration into supported Cisco networking platforms. Designed for seamless interoperability, it ensures high-quality signal integrity while maintaining low latency and minimal packet loss across supported optical links.

Core Technical Architecture and Functional Design

The architectural foundation of the SFP-OC3-MM Cisco OC-3/STM-1 Pluggable Short-Reach Multimode Transceiver is based on precision optical engineering combined with standardized SONET/SDH communication protocols. It supports synchronous optical networking at 155.52 Mbps, making it ideal for OC-3 and STM-1 transmission environments. The module integrates a transmitter and receiver pair optimized for multimode fiber operation, typically using 850 nm wavelength technology to support short-distance communication links.

The transceiver employs a laser-based optical emitter coupled with a PIN photodiode receiver to ensure accurate optical signal conversion. This architecture ensures minimal signal degradation, even in environments with moderate electromagnetic interference or dense network traffic loads. The internal circuitry is designed to maintain synchronization accuracy while ensuring stable clock recovery across transmission endpoints.

Multimode Fiber Compatibility and Transmission Efficiency

The SFP-OC3-MM Cisco OC-3/STM-1 Pluggable Short-Reach Multimode Transceiver is specifically engineered for multimode fiber infrastructure, typically OM1, OM2, OM3, and OM4 fiber types depending on deployment architecture. Multimode fiber enables the propagation of multiple light paths simultaneously, making it ideal for short-range optical communication systems where cost efficiency and ease of deployment are critical.

By leveraging multimode fiber, this transceiver reduces installation complexity while maintaining reliable data throughput across enterprise and carrier access networks. The short-reach optimization ensures that signal dispersion and attenuation remain within acceptable thresholds, preserving data integrity across interconnected switches, routers, and multiplexing equipment.

Cisco Platform Integration and Interoperability

The SFP-OC3-MM Cisco OC-3/STM-1 Pluggable Short-Reach Multimode Transceiver is designed for seamless integration into Cisco networking hardware that supports OC-3 or STM-1 SFP interfaces. Its plug-and-play architecture allows for rapid deployment without requiring complex configuration procedures. Once inserted into a compatible SFP slot, the module is automatically detected and configured by the host device, enabling immediate optical link establishment.

This transceiver is compatible with a wide range of Cisco routers, multiservice switches, and optical transport platforms. Its interoperability ensures consistent performance across mixed-generation network environments where legacy SONET/SDH systems coexist with modern IP-based infrastructure.

Network Applications and Deployment Scenarios

The SFP-OC3-MM Cisco OC-3/STM-1 Pluggable Short-Reach Multimode Transceiver is deployed across multiple networking environments where reliable short-distance optical communication is essential. Its primary role is to facilitate synchronous data transfer in structured network hierarchies, ensuring smooth traffic flow between aggregation points and core switching systems.

In enterprise environments, it is commonly used to connect building distribution layers, enabling high-speed communication between floors or adjacent data rooms. In service provider networks, it supports aggregation of subscriber traffic at metro edge nodes. In data center environments, it enables interconnection between optical switches, ensuring redundancy and failover capabilities across network fabrics.

Performance Optimization and Signal Integrity

Signal integrity is a critical factor in OC-3/STM-1 optical transmission systems. The SFP-OC3-MM Cisco OC-3/STM-1 Pluggable Short-Reach Multimode Transceiver is optimized to maintain high-quality signal transmission through advanced error reduction and signal conditioning techniques. The internal optical components are precisely calibrated to reduce jitter and minimize attenuation, ensuring that transmitted data remains consistent and error-free.

The module’s receiver sensitivity is engineered to detect weak optical signals accurately, enabling stable communication even in marginal link conditions. This is particularly important in environments where fiber patching, connector wear, or minor alignment issues may impact signal strength.

Hot-Swappable Design and Operational Flexibility

One of the defining characteristics of the SFP-OC3-MM Cisco OC-3/STM-1 Pluggable Short-Reach Multimode Transceiver is its hot-swappable design. This feature allows network administrators to install, replace, or upgrade the module without powering down the host device. As a result, network downtime is minimized, and maintenance operations can be performed without disrupting critical services.

This flexibility is essential in mission-critical environments such as telecommunications hubs and enterprise data centers where continuous uptime is required. The modular design also simplifies inventory management and reduces operational complexity.

Reliability, Durability, and Environmental Tolerance

The SFP-OC3-MM Cisco OC-3/STM-1 Pluggable Short-Reach Multimode Transceiver is built to operate reliably under demanding environmental conditions. It is designed to withstand temperature fluctuations, humidity variations, and continuous operational loads typically found in enterprise and carrier-grade installations.

Its ruggedized construction ensures long-term durability and consistent performance, reducing the need for frequent replacements. This contributes to lower total cost of ownership (TCO) and improved network reliability over time.

Comparison with Long-Reach Optical Modules

Compared to long-reach single-mode optical transceivers, the SFP-OC3-MM Cisco OC-3/STM-1 Pluggable Short-Reach Multimode Transceiver is optimized for shorter transmission distances with lower deployment costs. While single-mode modules are designed for long-haul communication over kilometers of fiber, multimode modules excel in localized environments where simplicity and cost efficiency are prioritized.

The trade-off between reach and cost makes this module ideal for intra-building and campus-level networking rather than inter-city or long-distance telecom applications.

Scalability in Modern Optical Networks

The SFP-OC3-MM Cisco OC-3/STM-1 Pluggable Short-Reach Multimode Transceiver supports scalable network architectures where modular expansion is required. As network demands increase, additional transceiver modules can be deployed to extend connectivity or increase redundancy. This scalability is particularly valuable in growing enterprise environments and evolving telecom infrastructures. Its standardized SFP form factor ensures compatibility with a wide range of networking equipment, making it a flexible solution for phased network expansion strategies.
