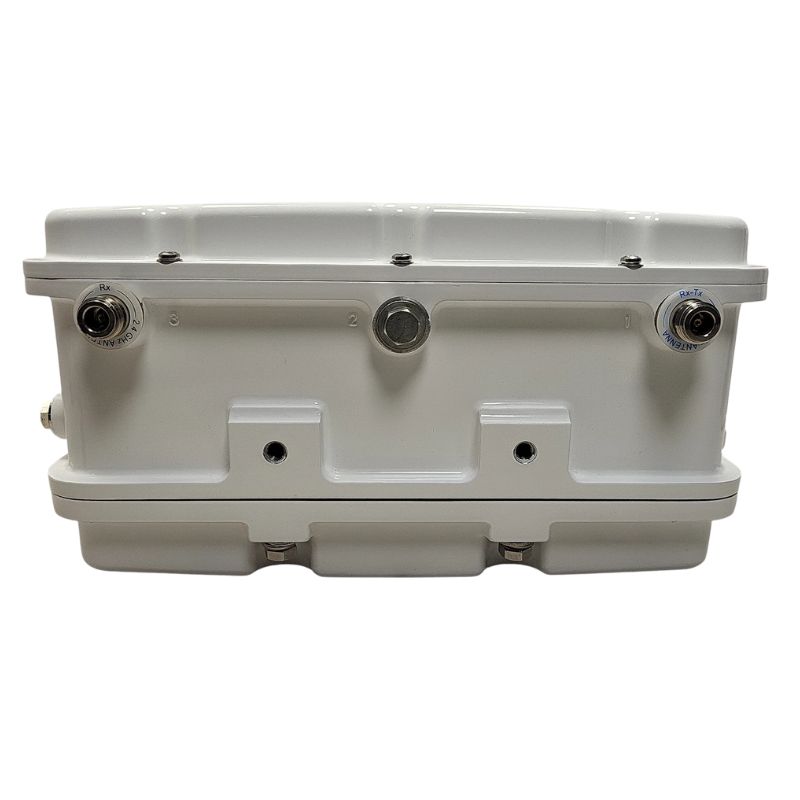

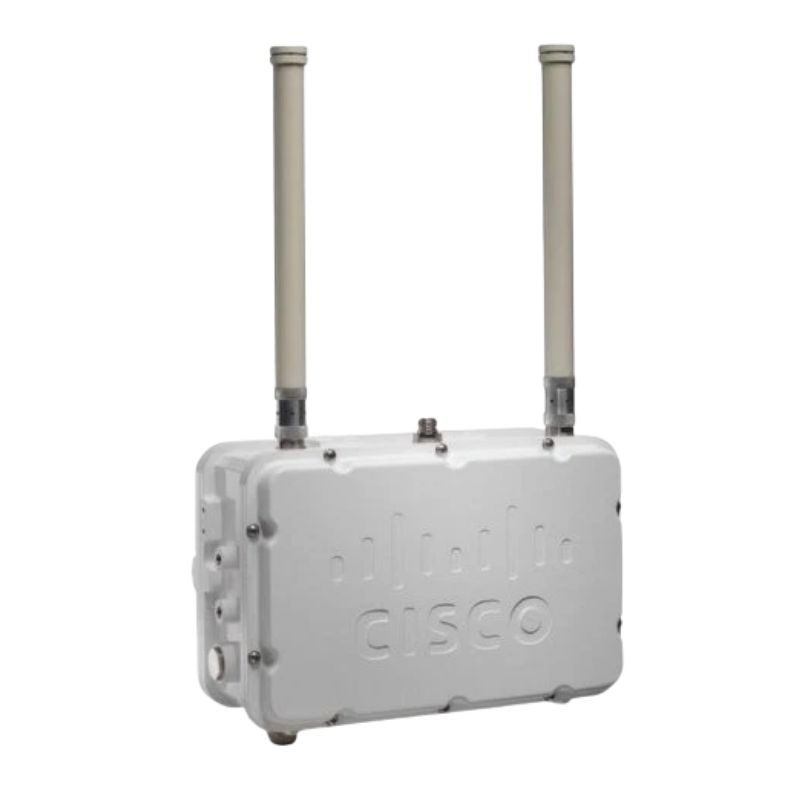

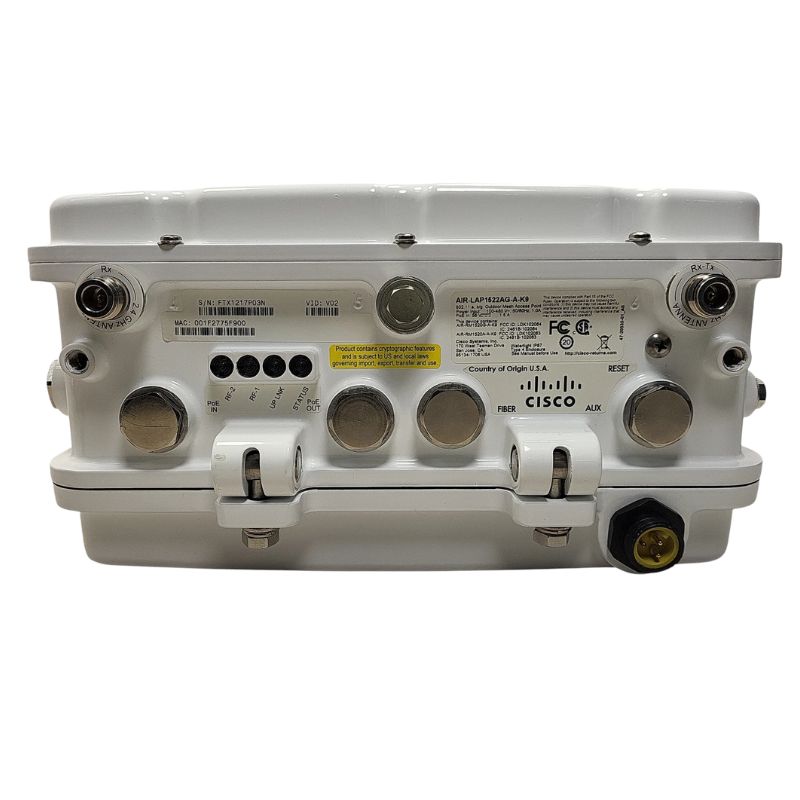

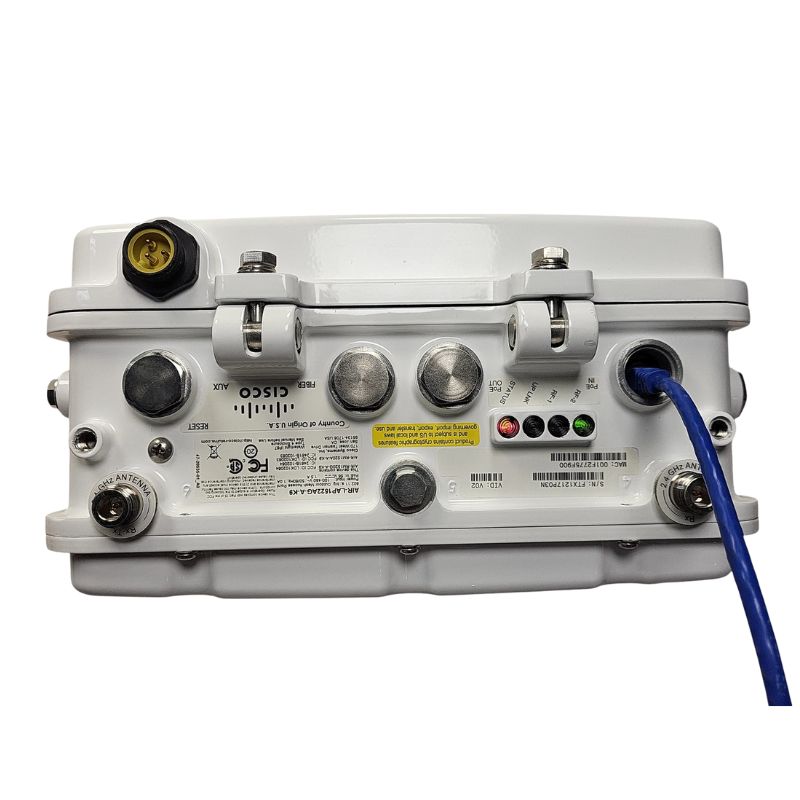

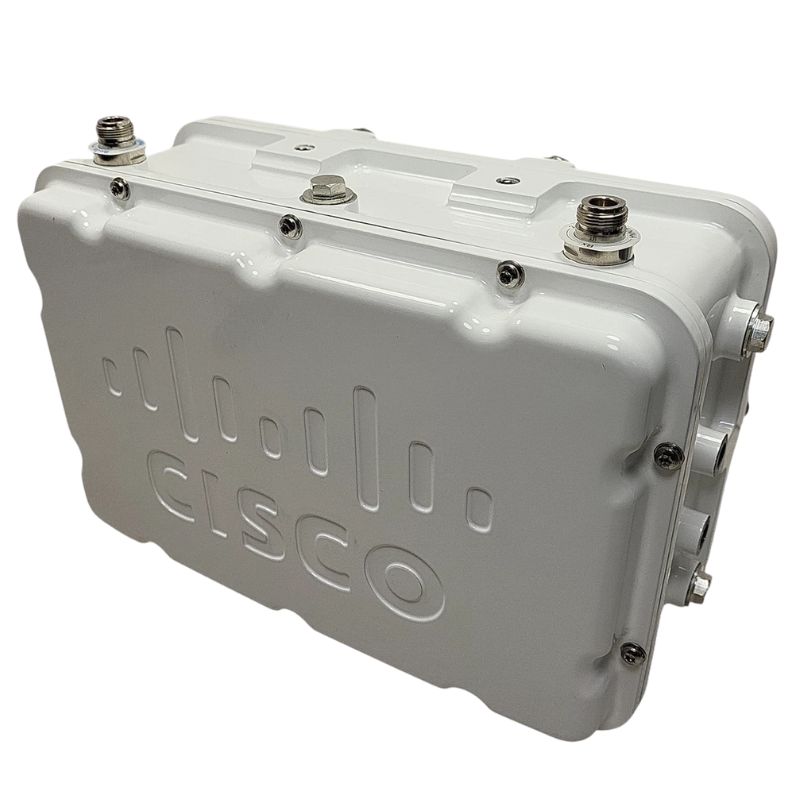

AIR-LAP1522AG-A-K9 Cisco Outdoor Mesh Wireless Access Point

Cisco 54 MBPS Outdoor Mesh Wireless Access Point

The Cisco AIR-LAP1522AG-A-K9 is a rugged outdoor wireless mesh access point engineered for reliable connectivity in challenging environments. It delivers dual-band performance with secure and scalable networking capabilities.

General Information

• Manufacturer: Cisco Systems
• Prat Number: AIR-LAP1522AG-A-K9
• Device Type: Outdoor Wireless Access Point

Technical Specifications

• Dual-radio concurrent operation supporting 802.11a (5 GHz) and 802.11b/g (2.4 GHz)
• Maximum throughput of 54 Mbps per frequency band
• Utilizes OFDM and DSSS modulation techniques for efficient data transmission
• Supports wide-range AC inputs (90 to 480 VAC)
• Compatible with 48V DC power sources
• High-voltage Power over Ethernet (PoE) capability
• Equipped with external N-Type RF connectors
• Compatible with high-gain omnidirectional and directional outdoor antennas

Network Interfaces

• 10/100/1000 Mbps auto-sensing Gigabit Ethernet ports
• Supports seamless integration with wired infrastructure

Enclosure Design

• Heavy-duty aluminum housing
• NEMA Type 4X / IP67 certified for watertight and dustproof protection

Operating Temperature Range

• Designed for extreme climates from -40°C to 55°C (-40°F to 131°F)

Transmit Power

• Delivers up to 28 dBm at 2.4 GHz for extended coverage

Cisco AIR-LAP1522AG-A-K9 Access Point Overview

The Cisco AIR-LAP1522AG-A-K9 54 MBPS Outdoor Mesh Wireless Access Point is designed for organizations that require dependable outdoor wireless networking in environments where conventional indoor wireless equipment cannot deliver the necessary coverage, durability, or performance. Built specifically for challenging outdoor deployments, this enterprise-grade wireless access point provides reliable connectivity for campuses, municipalities, industrial facilities, transportation hubs, educational institutions, hospitality venues, warehouses, and public spaces. Its rugged construction, intelligent mesh capabilities, and seamless integration with Cisco wireless infrastructure make it an excellent solution for extending wireless coverage beyond traditional building boundaries.

Outdoor wireless networking presents unique challenges that include weather exposure, long-distance communication, varying environmental conditions, interference, and difficult installation locations. The Cisco AIR-LAP1522AG-A-K9 addresses these challenges with a weather-resistant enclosure, advanced radio technology, and intelligent mesh networking architecture. Organizations deploying outdoor wireless infrastructure often require dependable connectivity across large geographic areas while minimizing the need for extensive wired infrastructure. This access point satisfies those requirements by enabling wireless backhaul and flexible deployment scenarios that reduce installation complexity and infrastructure costs.

Enterprise Outdoor Wireless Infrastructure

Modern organizations increasingly depend on outdoor wireless connectivity to support employees, customers, security systems, industrial automation, Internet of Things devices, mobile applications, and remote monitoring equipment. The Cisco AIR-LAP1522AG-A-K9 serves as an important component within enterprise outdoor wireless networks by delivering dependable communication between wireless clients and centralized network infrastructure.

Unlike consumer-grade outdoor wireless products, this enterprise-class solution emphasizes long-term operational stability, centralized management, secure communications, and scalability. Organizations can expand outdoor wireless coverage while maintaining consistent network policies across indoor and outdoor environments. This creates a unified wireless experience that benefits administrators as well as end users.

Purpose-Built for Outdoor Deployments

Outdoor environments expose networking equipment to rain, wind, dust, humidity, temperature fluctuations, and prolonged sunlight. Equipment intended for these installations must withstand these conditions without sacrificing wireless performance. The Cisco AIR-LAP1522AG-A-K9 incorporates an industrial-grade enclosure designed to protect internal components while maintaining reliable wireless operation throughout changing environmental conditions.

The durable construction supports deployment on poles, exterior building walls, utility structures, transportation infrastructure, and other outdoor mounting locations. This flexibility enables organizations to create broad wireless coverage across large campuses or outdoor facilities without requiring specialized indoor installations.

Mesh Networking Technology

One of the defining capabilities of the Cisco AIR-LAP1522AG-A-K9 is its support for outdoor wireless mesh networking. Mesh networking enables multiple access points to communicate wirelessly with one another, reducing the dependency on wired Ethernet connections for every deployment location. Instead of requiring a physical network cable to each access point, selected units connect wirelessly through neighboring mesh nodes until traffic reaches a wired gateway.

This architecture significantly simplifies deployment across outdoor environments where installing underground fiber or Ethernet cabling would be expensive, time-consuming, or physically impractical. Municipal parks, university campuses, industrial complexes, recreational facilities, historical sites, and transportation corridors all benefit from mesh networking technology.

Wireless Backhaul Efficiency

Wireless backhaul allows network traffic to move efficiently between access points before reaching the central network. Intelligent routing algorithms continuously evaluate available communication paths, selecting efficient routes based on network conditions. If a particular wireless path becomes unavailable, the mesh architecture can dynamically establish alternative communication routes to maintain service continuity.

This redundancy contributes to higher network availability while reducing the risk of service interruptions caused by localized equipment failures or temporary environmental interference.

Scalable Mesh Expansion

As organizational requirements evolve, outdoor wireless infrastructure often expands to accommodate additional buildings, parking facilities, recreational areas, production facilities, or surveillance systems. The Cisco AIR-LAP1522AG-A-K9 supports scalable deployments by allowing administrators to add additional mesh access points with minimal disruption to the existing wireless network.

The ability to expand coverage incrementally provides long-term investment protection while allowing organizations to adapt their wireless infrastructure according to changing operational requirements.

Dual Radio Wireless Architecture

The Cisco AIR-LAP1522AG-A-K9 incorporates dual-radio functionality that supports multiple wireless frequencies. This architecture allows one radio to provide client connectivity while another radio supports mesh communication or additional wireless services. Separating client traffic from mesh backhaul enhances network efficiency while supporting greater overall performance.

Dual-radio operation also allows network administrators greater flexibility when designing outdoor wireless coverage. Different frequency bands can be optimized for specific deployment objectives, balancing range, throughput, interference resistance, and client compatibility.

Support for 2.4 GHz Wireless Connectivity

The 2.4 GHz frequency band continues to support numerous legacy wireless devices, industrial sensors, handheld terminals, barcode scanners, and mobile equipment. The Cisco AIR-LAP1522AG-A-K9 provides dependable connectivity for compatible devices operating within this widely adopted wireless spectrum.

Support for 5 GHz Wireless Communications

The 5 GHz wireless band offers additional channels and reduced interference compared to crowded wireless environments. Organizations deploying newer wireless devices benefit from improved communication quality, better spectrum utilization, and enhanced network capacity when using supported client equipment.

54 MBPS Wireless Performance

The Cisco AIR-LAP1522AG-A-K9 supports wireless communication speeds up to 54 MBPS based on IEEE 802.11a and IEEE 802.11g standards. While newer wireless technologies offer higher theoretical throughput, many enterprise applications continue to rely on stable, predictable performance rather than maximum transfer speeds.

Applications including inventory management, point-of-sale systems, industrial automation, surveillance monitoring, VoIP communications, environmental monitoring, maintenance operations, and field service connectivity often prioritize reliability, consistent latency, and stable wireless communication over peak bandwidth.

The 54 MBPS capability provides sufficient performance for numerous enterprise outdoor networking applications while maintaining compatibility with established wireless infrastructures.

Centralized Wireless Management

The Cisco AIR-LAP1522AG-A-K9 operates as a lightweight access point designed for centralized wireless controller management. Rather than configuring each outdoor access point independently, administrators manage multiple wireless devices through Cisco wireless LAN controllers that provide centralized configuration, monitoring, firmware updates, security policy enforcement, and performance optimization.

Centralized management simplifies administration across large wireless deployments by ensuring consistent configuration standards throughout the entire network infrastructure. Network administrators can quickly implement security updates, modify wireless settings, optimize radio performance, and troubleshoot connectivity issues from a unified management interface.

Simplified Network Administration

Large organizations frequently deploy dozens or even hundreds of wireless access points across multiple facilities. Managing each device individually increases operational complexity and administrative workload. Centralized controller architecture streamlines routine maintenance while reducing configuration inconsistencies that could otherwise affect wireless performance or security.

Authentication Integration

The access point supports authentication methods commonly used within enterprise environments, allowing organizations to integrate wireless access with existing identity management systems. This centralized authentication model simplifies user administration while improving security policy enforcement.

Encrypted Wireless Communications

Wireless encryption protects information transmitted between client devices and network infrastructure. Organizations handling confidential business information, healthcare records, educational data, industrial control communications, or financial transactions benefit from secure wireless communication channels that reduce exposure to unauthorized interception.

Reliable Outdoor Coverage

Coverage consistency remains one of the most important considerations in outdoor wireless networking. The Cisco AIR-LAP1522AG-A-K9 is engineered to provide dependable signal propagation across open spaces while supporting various antenna configurations for different deployment objectives.

Depending on installation design, antenna selection, mounting height, environmental conditions, and wireless planning, organizations can optimize coverage for large open areas, narrow corridors, parking facilities, sports venues, manufacturing yards, transportation routes, or public gathering locations.

Educational Campuses

Universities, colleges, and schools increasingly require outdoor wireless coverage throughout walkways, athletic facilities, student gathering areas, research campuses, and administrative buildings. The Cisco AIR-LAP1522AG-A-K9 enables seamless connectivity for students, faculty, administrators, and campus services while extending wireless availability beyond classroom environments.

Municipal Wireless Networks

City governments increasingly deploy wireless infrastructure to support public safety, traffic management, surveillance, environmental monitoring, utility operations, and community internet services. Mesh networking architecture allows municipalities to extend wireless coverage efficiently while minimizing construction costs associated with extensive underground cabling.

Hospitality and Recreation

Hotels, resorts, golf courses, outdoor event venues, amusement parks, sports complexes, and recreational facilities utilize outdoor wireless networking to improve guest experiences, support staff communications, facilitate digital services, and enable mobile business operations.

Network Reliability and Availability

Reliable wireless connectivity is essential for organizations that depend upon uninterrupted communications. The Cisco AIR-LAP1522AG-A-K9 contributes to highly available wireless infrastructure through intelligent mesh networking, durable hardware construction, centralized management, and enterprise-grade operational stability.

Network administrators benefit from proactive monitoring capabilities that identify performance trends, connectivity issues, radio utilization, and infrastructure health before minor problems develop into major service disruptions.

Operational Continuity

Organizations operating around the clock require wireless infrastructure capable of supporting continuous business operations. Outdoor access points designed for enterprise deployment provide dependable communication for mission-critical applications including surveillance, industrial automation, emergency communications, logistics coordination, and operational management.

Integration with Enterprise Cisco Infrastructure

The Cisco AIR-LAP1522AG-A-K9 integrates seamlessly into existing Cisco wireless ecosystems, enabling organizations to leverage familiar management tools, controller platforms, authentication systems, and network monitoring solutions. Standardized infrastructure simplifies deployment planning while reducing training requirements for IT personnel already familiar with Cisco networking technologies.

Unified management also enables consistent firmware maintenance, security updates, performance optimization, reporting, and troubleshooting across both indoor and outdoor wireless environments.
