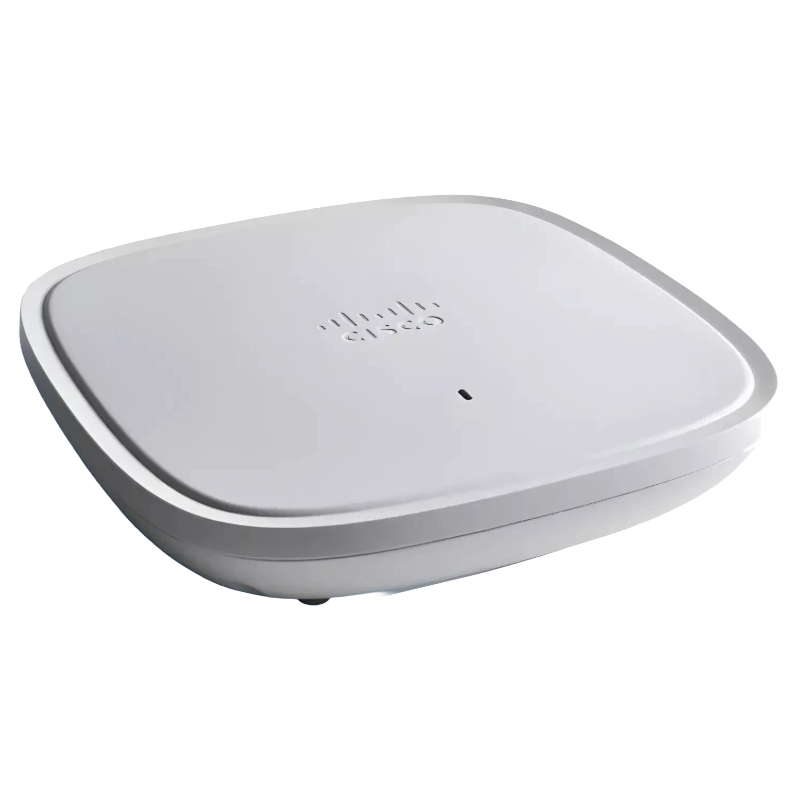

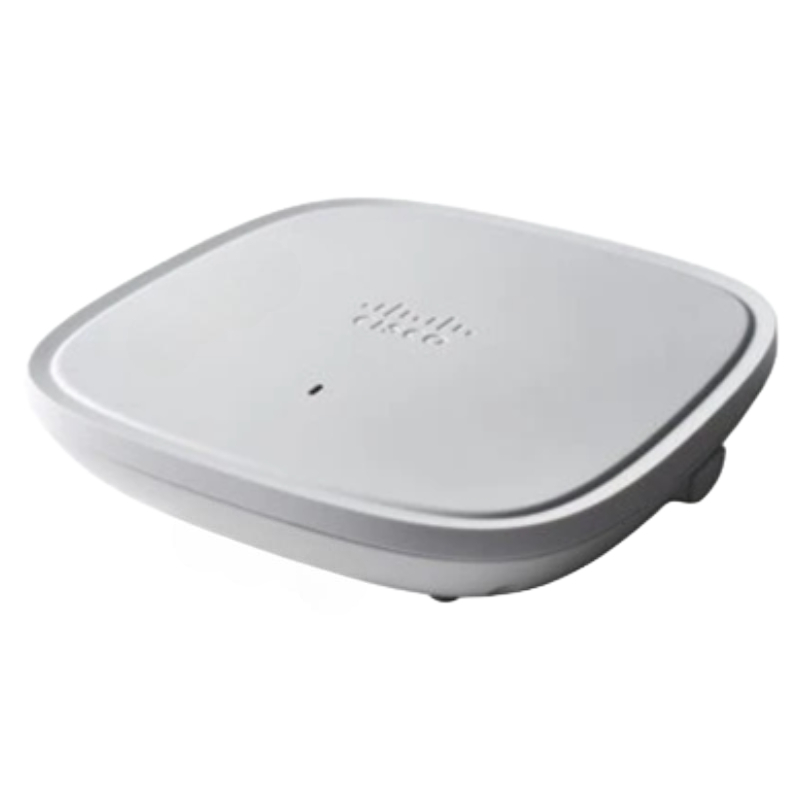

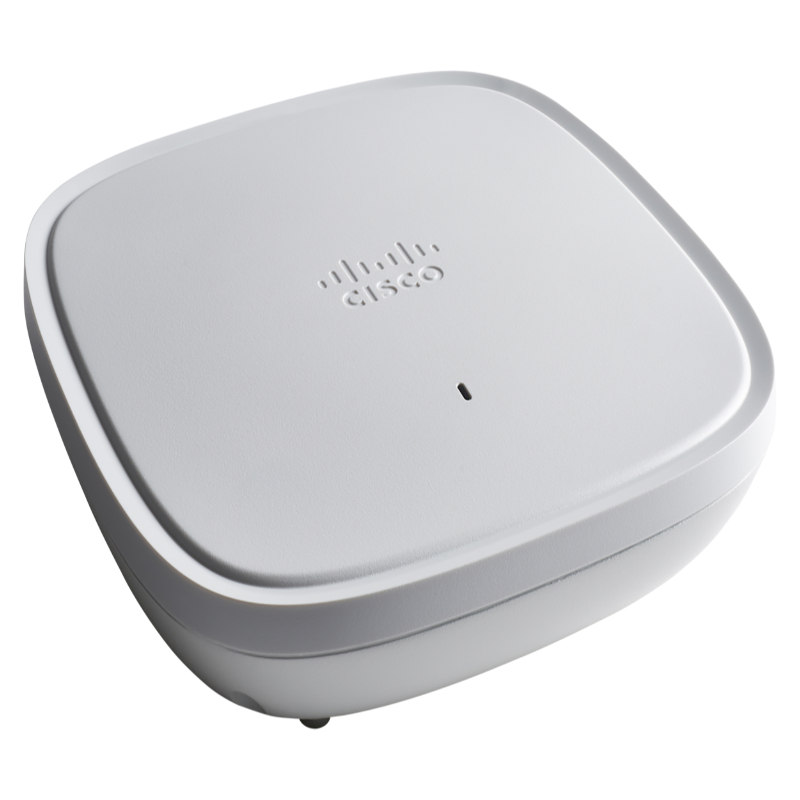

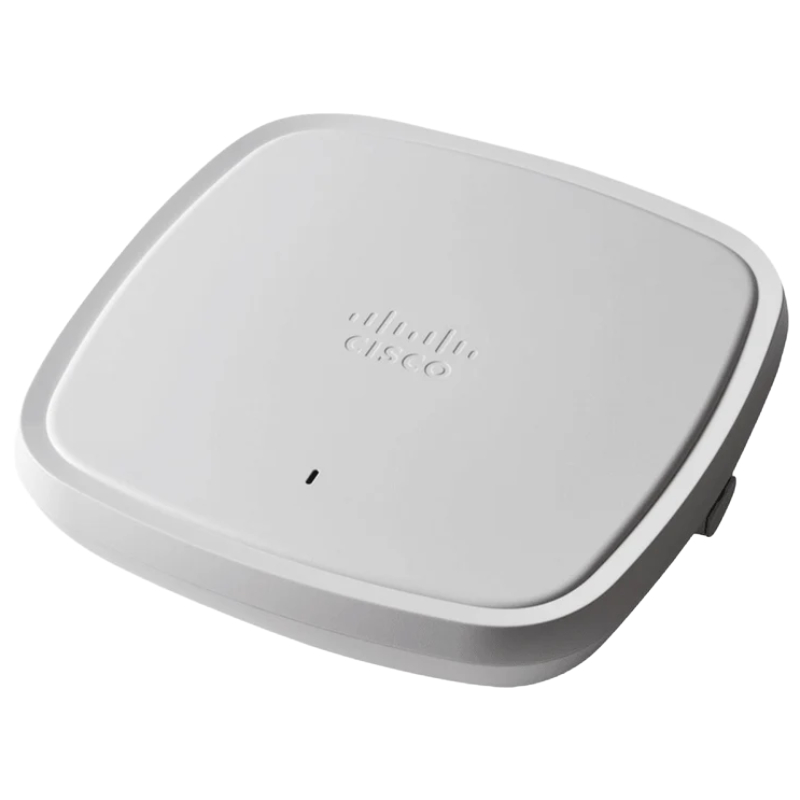

C9105AXI-A Cisco Catalyst 9105axi Wireless AP Bluetooth

Highlights of Cisco Catalyst 9105axi WAP

The Cisco Catalyst C9105AXI-A Wireless Access Point with Bluetooth is a compact, high-performance device designed to deliver reliable dual-band Wi-Fi, advanced encryption, and seamless connectivity for modern enterprise networks.

General Information

• Manufacturer: Cisco Systems
• Part Number: C9105AXI-A
• Device Category: Wireless Access Point

Technical Specifications

• Wi-Fi Standard: 802.11ax (Wi-Fi 6)
• Bluetooth Standard: Bluetooth 5

Network Bands

• Dual Band: 2.40 GHz and 5 GHz
• Indoor Usage: Optimized for indoor environments

Transmission & Performance

• Wireless Speed: Up to 1.49 Gbit/s
• MIMO Technology: Supported
• Beamforming: Enabled
• Data Encryption: Yes
• Encryption Standards: WPA3, WPA2, AES

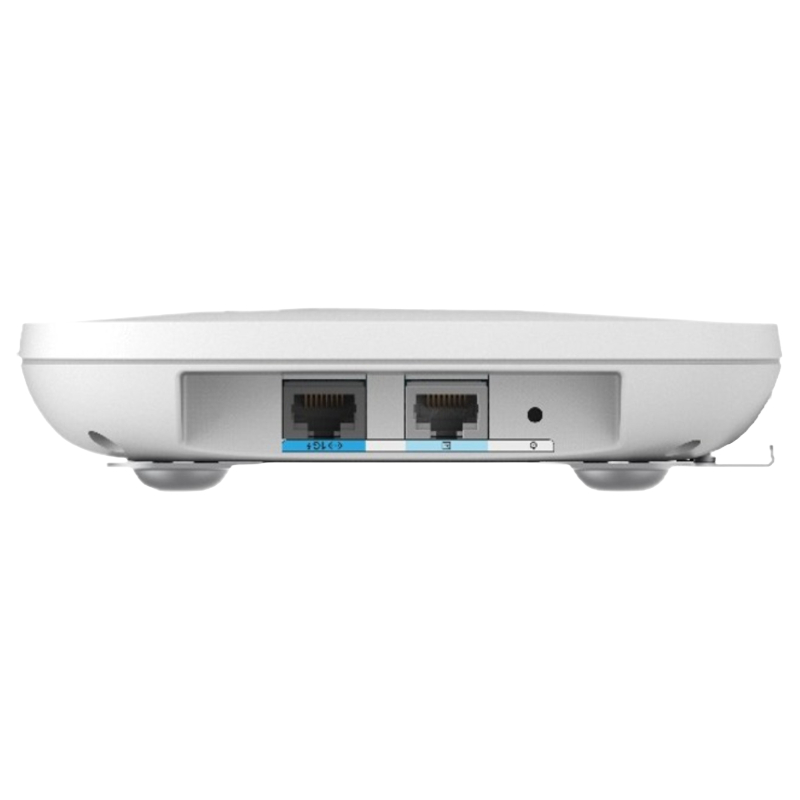

Interfaces & Ports

• Ethernet Technology: Gigabit Ethernet
• RJ-45 Ports: 1
• PoE PD Port: Supported
• Management Port: Available

Physical Characteristics

• Antenna Type: Internal
• Height: 1.2 inches
• Width: 5.9 inches
• Depth: 5.9 inches
• Weight: Approximately 11.20 oz

Cisco 9105AXI-A Wireless Access Point Integration Overview

The Cisco C9105AXI-A Catalyst 9105AXI Wireless AP Bluetooth represents a modern enterprise-grade indoor wireless access point designed to deliver high-performance connectivity, advanced wireless intelligence, and seamless integration of Wi-Fi 6 (802.11ax) technology with embedded Bluetooth Low Energy (BLE) capabilities. Positioned within Cisco’s Catalyst 9100 series, this access point is engineered for high-density environments where reliability, low latency, and secure wireless communication are critical. It is widely deployed in enterprise campuses, branch offices, education facilities, healthcare environments, and smart building infrastructures that require scalable and intelligent wireless connectivity.

Enterprise Wireless Architecture and Design Philosophy

The Cisco Catalyst 9105AXI-A is built upon a robust enterprise wireless architecture that prioritizes performance optimization, intelligent traffic handling, and seamless mobility. Its design follows Cisco’s intent-based networking philosophy, which ensures that network operations are driven by automation, analytics, and policy-based configurations. This access point integrates advanced silicon capable of handling simultaneous high-speed data streams while maintaining consistent service quality across multiple clients.

At the core of its architecture lies support for Wi-Fi 6 technology, which introduces improvements in spectral efficiency and network capacity. The inclusion of Orthogonal Frequency Division Multiple Access (OFDMA) allows the device to handle multiple users in parallel within a single channel, reducing congestion and improving responsiveness in dense environments. This architectural approach ensures that enterprise networks can scale efficiently without degradation in user experience.

Hardware Engineering and Internal Components

The hardware design of the Cisco Catalyst 9105AXI-A emphasizes compact form factor engineering while maintaining enterprise-level performance. It incorporates high-efficiency antennas, optimized RF design, and integrated Bluetooth modules that support location-based services and IoT connectivity. The device is engineered with thermal efficiency in mind, ensuring stable operation even under continuous high-load conditions.

The internal chipset is optimized for multi-gigabit throughput and low-latency processing. This enables the access point to support modern enterprise workloads such as cloud applications, video conferencing, virtual desktop infrastructure, and real-time analytics platforms without network bottlenecks.

Wi-Fi 6 Capabilities and Performance Enhancements

Wi-Fi 6 is a defining feature of the Cisco Catalyst 9105AXI-A, providing significant advancements over previous wireless standards. It introduces improved modulation techniques such as 1024-QAM, which increases data transmission efficiency and allows higher throughput per transmission cycle. This results in faster wireless performance for end users even in crowded environments.

The access point also leverages Target Wake Time (TWT), which improves power efficiency for connected devices by scheduling communication intervals. This is particularly beneficial in enterprise environments where large numbers of IoT devices operate simultaneously, such as sensors, handheld scanners, and smart building systems.

Bluetooth Low Energy Integration and IoT Connectivity

A key differentiator of this access point is its integrated Bluetooth Low Energy capability. BLE functionality enables proximity-based services, asset tracking, and indoor navigation solutions within enterprise environments. This transforms the access point from a traditional wireless connectivity device into a multi-purpose IoT enabler.

The BLE radio can be used for beaconing applications, allowing organizations to implement location-based marketing, wayfinding systems, and workforce tracking solutions. In healthcare environments, it supports equipment tracking and patient flow optimization. In retail environments, it enhances customer engagement through personalized proximity interactions.

Bluetooth-Based Location Services and Smart Infrastructure

The Bluetooth functionality embedded in the Cisco Catalyst 9105AXI-A plays a critical role in smart infrastructure development. It enables real-time location services (RTLS), which are essential for organizations that require visibility into asset movement and personnel tracking. The BLE signal strength data can be processed through Cisco’s analytics platforms to generate precise location insights.

These capabilities allow enterprises to build intelligent environments where physical spaces are connected to digital intelligence systems. This integration improves operational efficiency, reduces asset loss, and enhances user experience across large facilities such as hospitals, universities, and corporate campuses.

Security Framework and Network Protection Mechanisms

Security is a fundamental component of the Cisco Catalyst 9105AXI-A design. It incorporates enterprise-grade encryption protocols, secure boot mechanisms, and advanced threat detection capabilities. The access point supports WPA3, which is the latest Wi-Fi security standard, offering stronger encryption and improved protection against brute-force attacks.

The device also integrates Cisco’s embedded security architecture that helps detect rogue access points and unauthorized network access attempts. This ensures that enterprise wireless networks remain protected against evolving cyber threats.

Identity-Based Access Control and Policy Enforcement

Identity-based networking allows administrators to enforce granular access policies based on user roles, device types, and application requirements. This ensures that only authorized users can access specific network resources, improving both security and compliance. The Cisco Catalyst 9105AXI-A works seamlessly with Cisco Identity Services Engine (ISE) to provide centralized policy management and enforcement.

Through this integration, organizations can segment network traffic dynamically, ensuring that sensitive data remains isolated from general user traffic. This is particularly important in industries such as finance, healthcare, and government sectors where data protection is a critical requirement.

Deployment Flexibility and Enterprise Use Cases

The deployment flexibility of the Cisco Catalyst 9105AXI-A makes it suitable for a wide range of enterprise environments. Its compact design allows it to be installed in ceiling-mounted or wall-mounted configurations, ensuring optimal RF coverage across different architectural layouts. It is designed to support both greenfield deployments and network upgrades in existing infrastructures.

In corporate offices, the access point ensures seamless connectivity for employees using laptops, smartphones, and collaboration tools. In educational institutions, it supports high-density student environments where thousands of devices may be connected simultaneously. In healthcare facilities, it ensures uninterrupted connectivity for critical medical systems and communication tools.

Smart Campus and Digital Workplace Integration

In smart campus environments, the Cisco Catalyst 9105AXI-A enables digital transformation by connecting people, devices, and systems through a unified wireless infrastructure. It supports high-speed access to cloud-based applications, learning management systems, and enterprise collaboration platforms.

Within digital workplaces, the access point ensures reliable connectivity for hybrid work models where employees frequently switch between on-site and remote environments. This supports productivity and enhances user experience by maintaining consistent network performance.

Network Management and Cisco DNA Integration

The Cisco Catalyst 9105AXI-A is fully integrated with Cisco DNA Center, enabling centralized management, automation, and analytics-driven insights. This platform allows IT administrators to configure, monitor, and optimize wireless networks from a single interface.

Automation features reduce manual configuration efforts and help maintain consistent network policies across multiple access points. This ensures faster deployment times and reduces operational complexity in large-scale enterprise environments.

AI-Driven Analytics and Performance Optimization

AI-driven analytics play a crucial role in optimizing wireless performance. The system continuously monitors network traffic patterns, user behavior, and device performance to identify potential issues before they impact end users. This predictive intelligence allows proactive troubleshooting and ensures consistent service quality.

The analytics engine also provides insights into bandwidth usage, application performance, and network health, enabling IT teams to make informed decisions about infrastructure scaling and optimization strategies.

RF Performance and Signal Optimization

The RF design of the Cisco Catalyst 9105AXI-A is optimized for high-density environments where multiple devices compete for wireless resources. It utilizes advanced beamforming techniques to direct signals toward connected devices, improving signal strength and reducing interference.

This ensures stable connectivity even in challenging environments such as conference halls, open office spaces, and multi-floor buildings. The adaptive RF management system continuously adjusts channel selection and power levels to maintain optimal performance.

Interference Management and Channel Efficiency

Interference management is a critical aspect of wireless performance optimization. The access point dynamically analyzes RF conditions and adjusts channel allocation to minimize congestion. This ensures efficient use of available spectrum and reduces latency for connected devices.

Channel efficiency is further enhanced through Wi-Fi 6 technologies that allow simultaneous transmission of data streams to multiple devices, improving overall network capacity and responsiveness.

Scalability and Enterprise Expansion Capability

The Cisco Catalyst 9105AXI-A is designed with scalability in mind, enabling organizations to expand their wireless networks as demand increases. Its architecture supports seamless integration with additional access points, allowing enterprises to extend coverage without compromising performance.

This scalability is essential for growing organizations that require flexible infrastructure capable of adapting to changing business requirements. Whether deployed in small branch offices or large enterprise campuses, the access point maintains consistent performance and reliability.

High-Density Device Handling and Load Distribution

In high-density environments, the access point efficiently distributes network load across multiple devices, ensuring balanced performance. This is achieved through intelligent client steering and load balancing mechanisms that optimize connectivity for each device.

As a result, users experience stable connectivity even during peak usage periods, such as meetings, lectures, or large-scale events.

Power Efficiency and Installation Considerations

The Cisco Catalyst 9105AXI-A supports Power over Ethernet (PoE), simplifying installation and reducing infrastructure complexity. This allows the device to receive both power and data through a single Ethernet cable, making deployment more efficient and cost-effective.

Its energy-efficient design ensures minimal power consumption while maintaining high performance levels. This makes it suitable for sustainable enterprise deployments where energy efficiency is a key consideration.

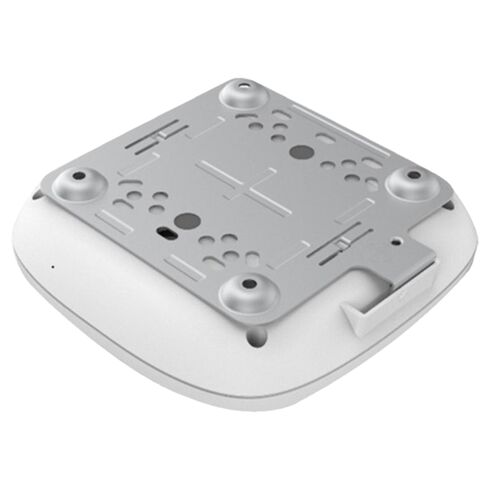

Mounting Options and Physical Deployment

The physical design of the access point supports flexible mounting options, allowing installation on ceilings, walls, or other structural surfaces. This ensures optimal coverage and signal distribution depending on the architectural layout of the environment.

Proper placement is critical to achieving maximum RF performance, and the device is engineered to simplify alignment and positioning during installation.

Support for Emerging Enterprise Applications

Emerging applications such as augmented reality, virtual collaboration, and advanced analytics require high-performance wireless infrastructure. The Cisco Catalyst 9105AXI-A is designed to support these workloads by delivering low-latency, high-throughput connectivity across diverse enterprise environments.

Its adaptability ensures that organizations can adopt new technologies without requiring significant infrastructure changes, making it a long-term investment in wireless networking evolution.
