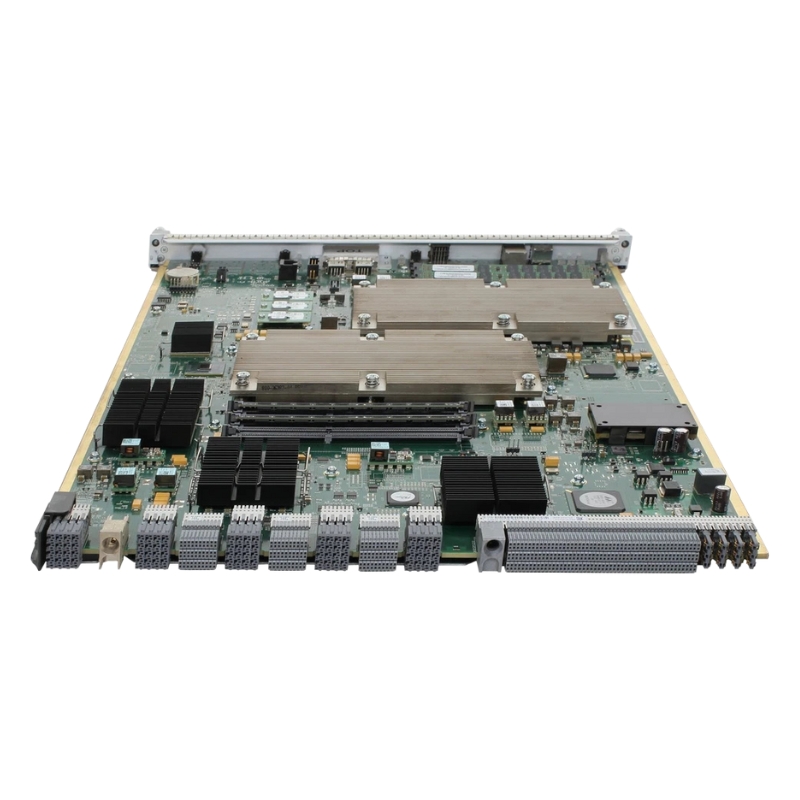

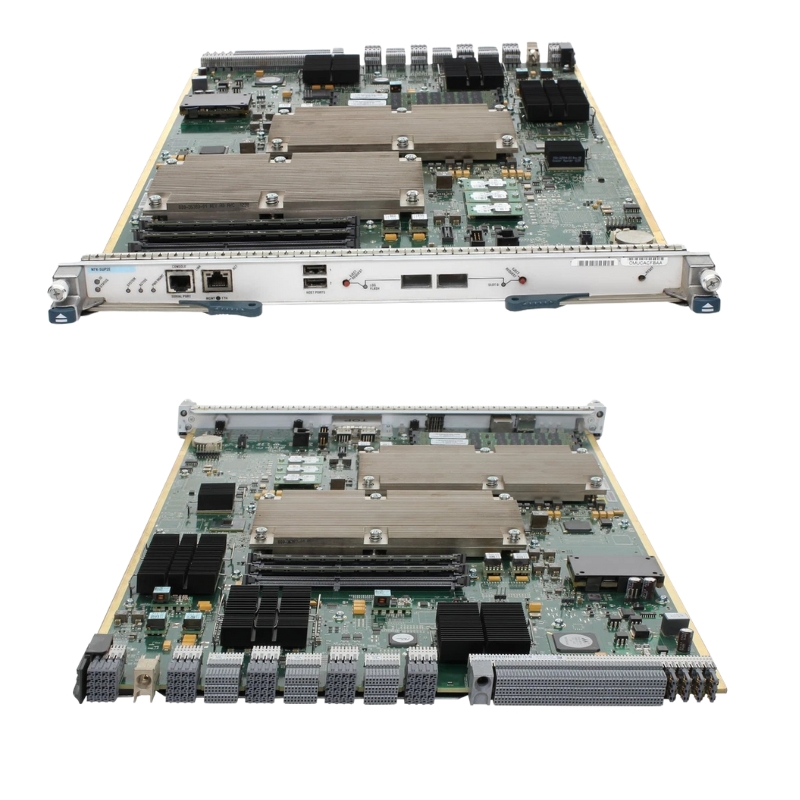

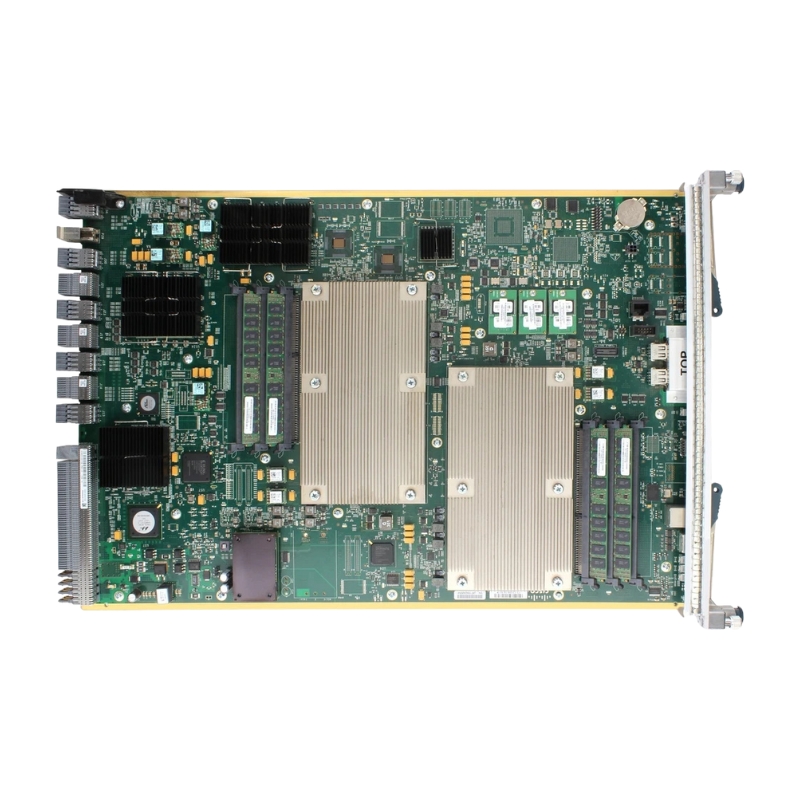

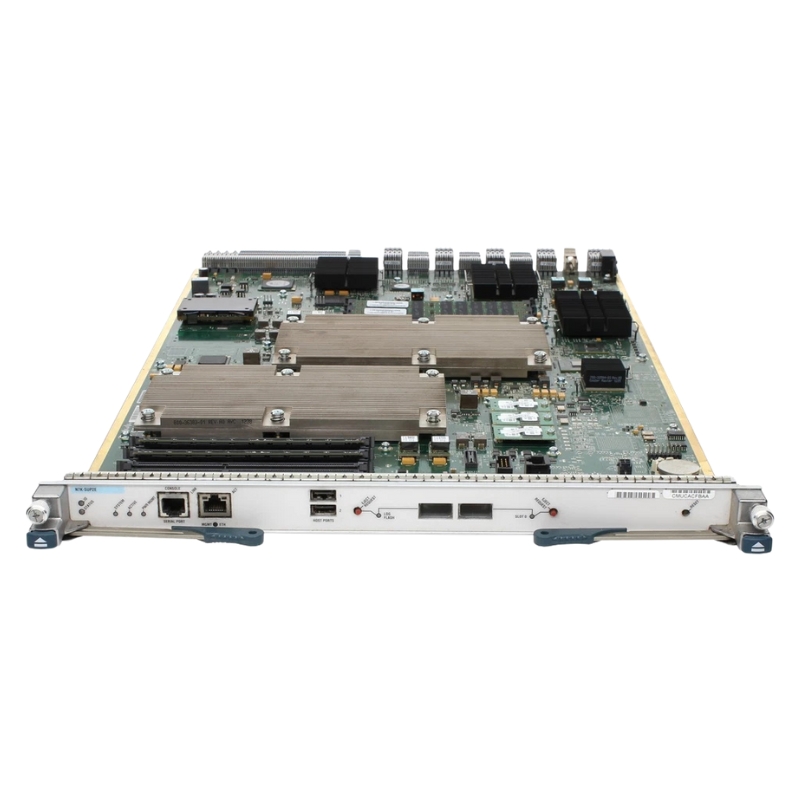

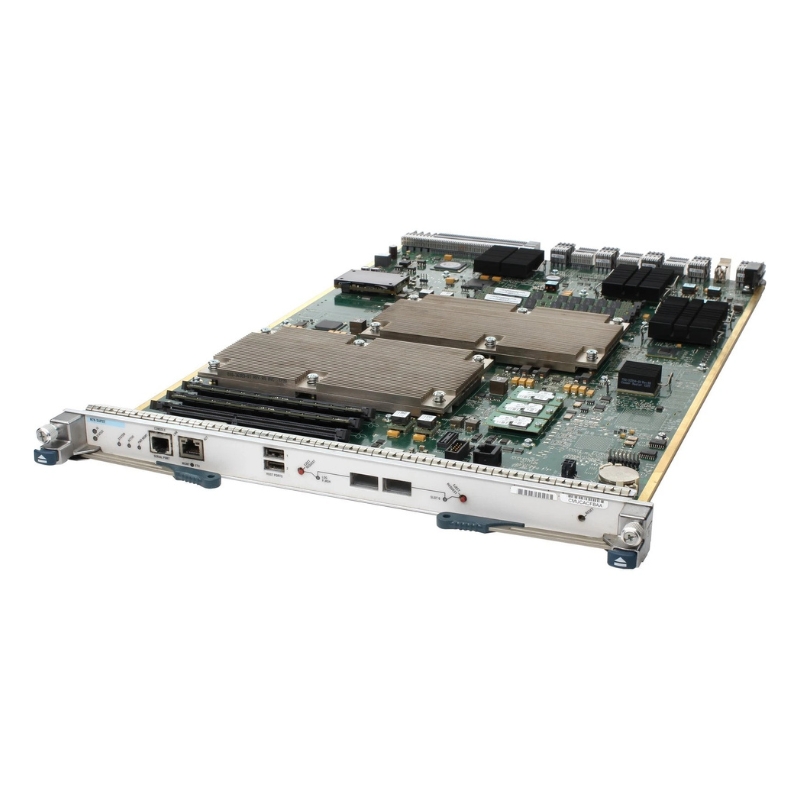

Cisco N7K-SUP2 Nexus 7000 Series Module 10GBPS Supervisor Engine

Specifications of Cisco N7K-SUP2 Supervisor Engine

• Manufacturer: Cisco
• Part Number: SKU# N7K-SUP2
• Product Type: Supervisor Engine

Networking Performance of the Cisco N7K-SUP2

• Equipped with a highly efficient Supervisor Engine module
• Optimized for seamless data flow and network management

Interfaces and Ports Overview

• Management Ports:
• 1 x RJ-45 supporting 10/100/1000Base-T network management
• 3 x USB ports for extended connectivity
• 1 x RJ-45 console management for enhanced control

Key Features of the Cisco N7K-SUP2 Supervisor Module

• Supports critical networking and data management tasks
• Designed for high-performance operations in enterprise environments

Detailed Ports and Connectivity

• Total Ports: 4
• Port Types:
• RJ-45 for high-speed data transmission
• USB for additional device support

Applications and Usage

• Ideal for data networking across large-scale operations
• Designed for use in optical networks for advanced connectivity

Connector Details for Cisco N7K-SUP2

• RJ-45 Connector: Provides versatile network management capabilities
• USB Connectivity: Offers multiple expansion options for peripherals

Optimized for Network Management

• Capable of handling large volumes of data in real-time
• Ensures reliable, high-speed communication across networks

Series: Nexus 7000

The Cisco N7K-SUP2 Supervisor Engine is a crucial component of the Nexus 7000 series, designed to deliver unparalleled performance and scalability for modern data center networks. This series is known for its exceptional capabilities in terms of reliability, security, and flexibility, making it an ideal choice for organizations of all sizes and industries.

Reliability and Availability

One of the key benefits of the Nexus 7000 series is its outstanding reliability. The series incorporates advanced hardware and software features to ensure maximum uptime and minimize the risk of network disruptions. The N7K-SUP2 Supervisor Engine is equipped with redundant components and hot-swappable modules, allowing for seamless operation even in the event of a hardware failure. This high level of reliability is crucial for businesses that heavily rely on their network infrastructure to support critical applications and services.

Redundant Supervisor Engines

With the N7K-SUP2 Supervisor Engine, organizations can further enhance the reliability of their network by deploying redundant supervisor engines. This configuration provides built-in redundancy at the core layer, ensuring continuous operation even if one supervisor engine fails. The redundant supervisor engines automatically synchronize their configurations and seamlessly take over in case of a failure, minimizing downtime and ensuring uninterrupted network services.

Virtual Device Contexts (VDCs)

Another noteworthy feature of the Nexus 7000 series is the ability to create Virtual Device Contexts (VDCs). VDCs allow network administrators to partition a single physical device into multiple logical devices, each with its own dedicated resources and independent control plane. This feature provides enhanced security, as it enables separate virtual networks to be created for different departments or customers while maintaining complete isolation. Additionally, VDCs offer improved resource utilization, allowing organizations to optimize their network infrastructure and reduce operational costs.

Scalability and Flexibility

The Nexus 7000 series, including the N7K-SUP2 Supervisor Engine, is designed to meet the evolving needs of modern data centers. The series offers exceptional scalability, allowing organizations to seamlessly expand their network infrastructure as their requirements grow. With support for high-density line cards and a wide range of interfaces, the Nexus 7000 series can easily accommodate increasing traffic demands and new technologies. This scalability ensures that businesses can future-proof their network investments and adapt to changing industry trends without the need for significant hardware upgrades.

Furthermore, the Nexus 7000 series provides unparalleled flexibility in terms of deployment options. Organizations can choose between different form factors and switch models to suit their specific requirements. Whether it's a small-scale deployment or a large-scale data center, the Nexus 7000 series offers the flexibility to tailor the network infrastructure to meet unique business needs. This versatility is crucial for organizations that require a scalable and adaptable network architecture to support their diverse applications and workloads.

Speed: 10GBPS

The Cisco N7K-SUP2 Supervisor Engine is designed to deliver exceptional speed and performance, making it an ideal choice for high-bandwidth environments. With a blazing-fast data transfer rate of 10 Gigabits per second (10Gbps), the N7K-SUP2 enables organizations to handle massive amounts of data with ease, ensuring smooth and efficient network operations.

Enhanced Network Performance

The 10Gbps speed offered by the N7K-SUP2 Supervisor Engine significantly enhances network performance, especially in bandwidth-intensive applications. Organizations that deal with large file transfers, real-time video streaming, or data-intensive workloads can benefit greatly from this high-speed capability. The increased bandwidth allows for faster data transmission, reduced latency, and improved overall network responsiveness, enabling users to access critical resources and applications without any performance bottlenecks.

Support for High-Density Line Cards

To fully leverage the 10Gbps speed, the N7K-SUP2 Supervisor Engine is compatible with high-density line cards that offer multiple 10Gbps interfaces. These line cards can be easily inserted into the Nexus 7000 series switches, expanding the network's capacity and enabling seamless connectivity at the highest speeds. With support for a wide range of line cards, organizations can scale their network infrastructure to accommodate growing bandwidth requirements and ensure optimal performance for their applications and services.

Future-Proofing Network Investments

The 10Gbps speed provided by the N7K-SUP2 Supervisor Engine ensures that organizations can future-proof their network investments. As data volumes continue to grow exponentially and new technologies emerge, having a high-speed network infrastructure becomes increasingly critical. By deploying the N7K-SUP2 Supervisor Engine, organizations can ensure that their network can handle the demands of tomorrow without requiring costly hardware upgrades. This scalability and future-proofing capability allow businesses to stay ahead of the curve and adapt to evolving industry requirements seamlessly.

Seamless Migration to 10Gbps

For organizations looking to upgrade their existing network infrastructure to 10Gbps, the N7K-SUP2 Supervisor Engine offers a seamless migration path. By replacing the existing supervisor engine with the N7K-SUP2, organizations can leverage its high-speed capabilities without needing to replace the entire switch chassis. This migration approach minimizes disruption, reduces costs, and simplifies the transition to higher network speeds.
