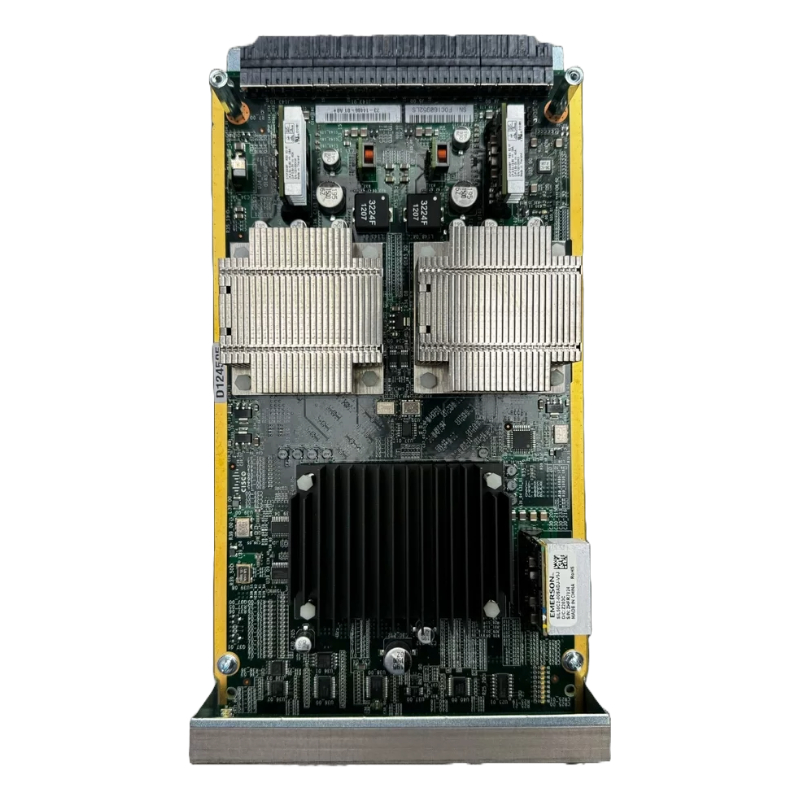

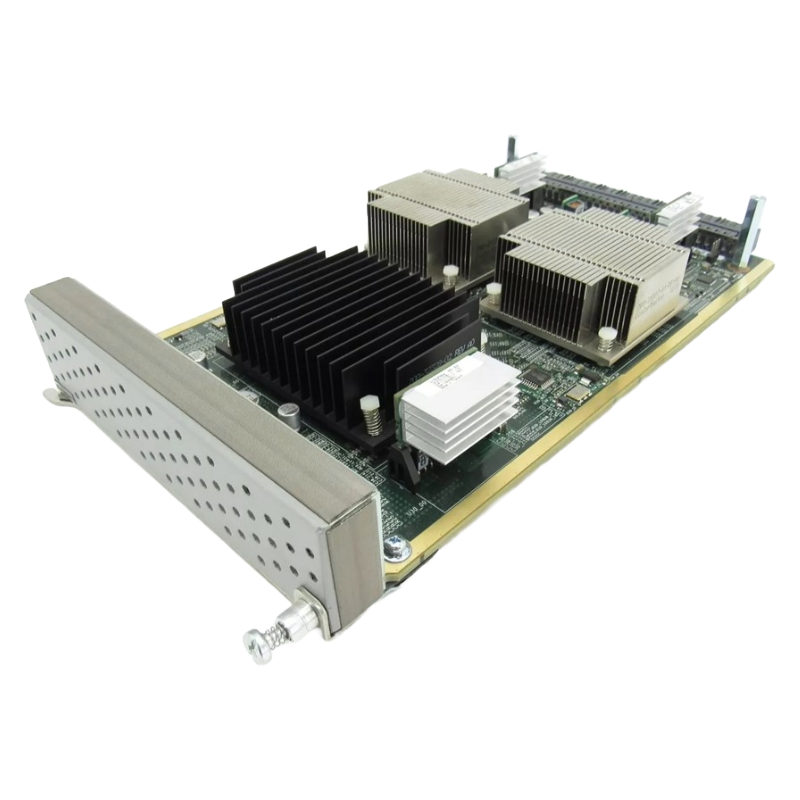

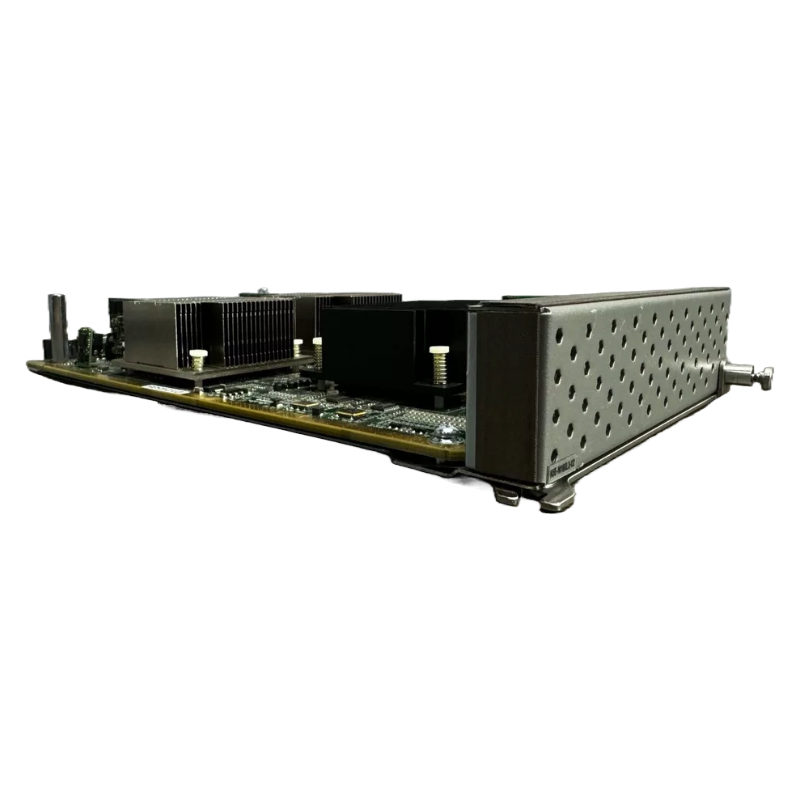

N55-M160L3-V2 Cisco Nexus Layer 3 Optical Network Expansion Module

Overview of the Cisco N55-M160L3-V2 Expansion Module

The N55-M160L3-V2 Cisco Nexus Layer 3 Optical Network Expansion Module is engineered for high-performance data center environments that demand scalable routing, high-density optical connectivity, and advanced Layer 3 network services. Designed as an integral part of Cisco Nexus switching architecture, this expansion module enhances the capabilities of compatible Nexus platforms by enabling optimized routing performance, increased port density, and flexible optical transport options for enterprise, cloud, and service provider networks.

General Information

• Manufacturer: Cisco
• Model: N55-M160L3-V2
• Product Type: Expansion Module

Key Features

• Device Type: Layer 3 expansion module.
• Form Factor: Rear-facing plug-in module.
• Forwarding Bandwidth: Delivers up to 160 Gbps throughput.
• Packet Performance: Processes 240 million packets per second.
• IPv4 Host Capacity: Accommodates 16K host routing entries.
• IPv4 Route Capacity: Supports up to 16K LPM routes.
• IPv6 Host Capacity: Accommodates 8K host routing entries.
• IPv6 Route Capacity: Supports up to 8K LPM routes.
• Multicast Capacity: Manages up to 8K multicast routes.
• IGMP Groups: Handles up to 8K group entries.

Compatibility

• Primary Chassis: Installs directly into Cisco Nexus 5596UP.
• Secondary Chassis: Fits perfectly into Cisco Nexus 5596T.
• Incompatible Chassis: Hardware cannot fit Nexus 5548 series.
• Slot Placement: Plugs exclusively into rear expansion slot 3.
• Maximum Per Switch: Restricted to 1 module per chassis.
• Hot-Swap Restriction: Requires a system reboot to initialize.
• Software Requirement: Requires Cisco NX-OS Release 6.0(2)N1(1a) minimum.
• Licensing Requirement: Requires an active Nexus Enterprise Services license.
• Predecessor Comparison: Doubles the table size of original N55-M160L3.

N55-M160L3-V2 Cisco Nexus Layer 3 Expansion Module

This module is widely used in environments requiring deterministic latency, high-throughput data transfer, and resilient network segmentation. It supports modern network virtualization strategies, making it suitable for hybrid cloud infrastructures, high-frequency trading networks, large-scale enterprise cores, and hyperscale data centers.

Core Architecture and Design Principles

The architecture of the N55-M160L3-V2 Cisco Nexus Layer 3 Optical Network Expansion Module is built around modular scalability and high-speed packet forwarding. It integrates seamlessly into Cisco Nexus switching systems, leveraging the parent chassis for power, control plane coordination, and unified management. The module focuses on enhancing Layer 3 routing capabilities while supporting optical interface expansion for long-distance and high-bandwidth connections.

Layer 3 Routing Capabilities

The Layer 3 functionality of the N55-M160L3-V2 Cisco Nexus Optical Expansion Module provides advanced routing intelligence directly in hardware. This allows network administrators to implement complex routing topologies without compromising performance. It is optimized for environments where high packet throughput and deterministic routing behavior are critical.

Key routing features include support for dynamic routing protocols, route redistribution, policy-based routing, and scalable route table processing. These capabilities make it suitable for multi-tenant data centers and distributed enterprise networks.

Optical Network Expansion Features

One of the defining characteristics of the N55-M160L3-V2 module is its optical expansion capability. The module is designed to support high-speed optical interfaces that extend the reach of Cisco Nexus networks beyond traditional copper limitations. This makes it ideal for inter-data-center connectivity, metropolitan area networks, and high-capacity backbone deployments.

The optical architecture ensures low signal degradation, high bandwidth efficiency, and stable transmission over long distances. It is compatible with a variety of optical transceivers depending on deployment requirements, enabling flexible infrastructure planning.

Performance Optimization and Throughput Efficiency

The N55-M160L3-V2 Cisco Nexus Layer 3 Optical Network Expansion Module is optimized for environments where maximum throughput and minimal packet loss are essential. Its architecture is designed to offload processing from the main chassis CPU, ensuring that routing decisions are executed at hardware speed. This significantly improves overall network efficiency and reduces bottlenecks in high-traffic environments.

By leveraging ASIC-based forwarding and intelligent buffering, the module ensures stable performance even under peak load conditions. This makes it suitable for mission-critical applications such as financial trading systems, real-time analytics platforms, and large-scale virtualization clusters.

Network Scalability and Modular Expansion

Scalability is a core advantage of the N55-M160L3-V2 Cisco Nexus module. It is designed to grow alongside evolving network requirements without requiring complete infrastructure replacement. Organizations can incrementally expand their network capacity by adding additional modules, ensuring cost-effective scaling.

This modular approach allows enterprises to adapt quickly to increasing bandwidth demands, cloud migration strategies, and expanding user bases. It also simplifies network upgrades, reducing downtime and operational disruption.

High Availability and Redundancy Mechanisms

The module supports high availability configurations that ensure continuous network operation even in the event of hardware or link failures. Redundant paths, failover mechanisms, and load-sharing capabilities are integrated into the system architecture to maintain uninterrupted service delivery.

These redundancy features are essential for enterprise-grade networks where downtime can result in significant operational and financial impact.

Security and Traffic Segmentation

Security is deeply integrated into the N55-M160L3-V2 Cisco Nexus Layer 3 Optical Network Expansion Module. It supports advanced segmentation techniques that isolate network traffic across tenants, departments, or applications. This ensures that sensitive data remains protected while maintaining efficient routing performance.

The module also supports access control mechanisms and routing policies that enforce security at the network layer, reducing the attack surface and preventing unauthorized data access.

Compatibility with Cisco Nexus Ecosystem

The N55-M160L3-V2 module is designed to integrate seamlessly into the Cisco Nexus ecosystem, ensuring compatibility with supported chassis, operating systems, and management frameworks. This allows administrators to manage the module using familiar Cisco tools and interfaces.

It aligns with Cisco NX-OS operational standards, enabling unified configuration, monitoring, and troubleshooting across the entire network infrastructure.

Use Cases in Enterprise and Data Center Environments

The versatility of the N55-M160L3-V2 Cisco Nexus Layer 3 Optical Network Expansion Module makes it suitable for a wide range of enterprise and service provider use cases. It is particularly valuable in environments where high-speed optical connectivity and advanced Layer 3 routing are essential.

Traffic Engineering and Quality of Service

Traffic engineering capabilities built into the module allow administrators to prioritize critical applications and optimize bandwidth usage. Quality of Service (QoS) policies ensure that latency-sensitive applications receive priority handling, while less critical traffic is managed efficiently. This makes the module suitable for converged networks where voice, video, and data services operate over the same infrastructure.

Operational Efficiency and Management

Operational efficiency is enhanced through simplified provisioning, monitoring, and diagnostics. The module reduces administrative overhead by integrating with Cisco automation tools and network management systems. This enables faster deployment cycles and more efficient troubleshooting processes.

Hardware Reliability and Build Quality

Built to meet enterprise-grade reliability standards, the N55-M160L3-V2 Cisco Nexus Layer 3 Optical Network Expansion Module is designed for continuous operation in demanding environments. Its hardware components are optimized for thermal stability, power efficiency, and long-term durability.
