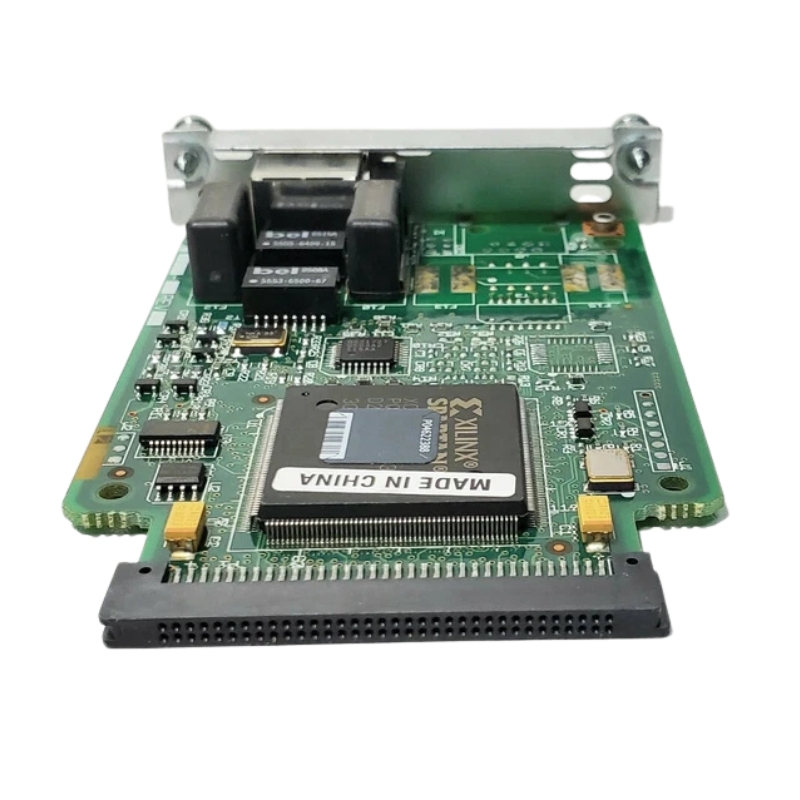

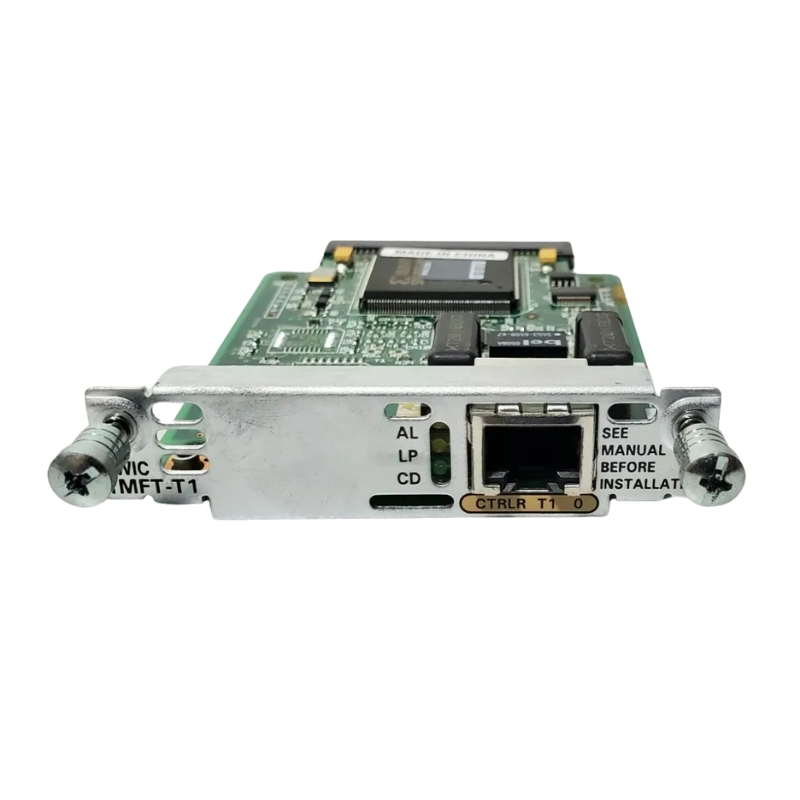

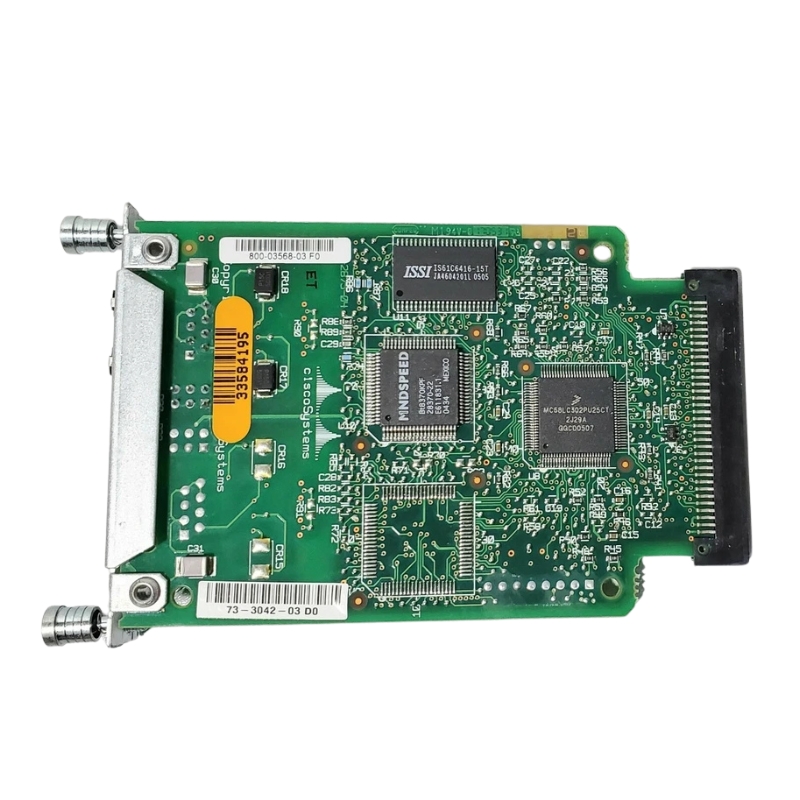

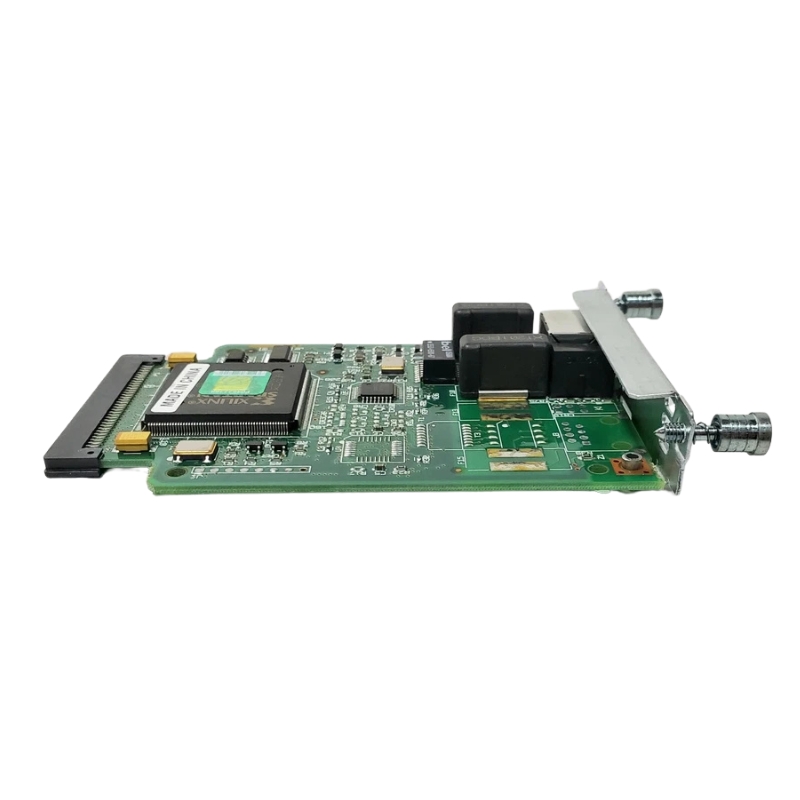

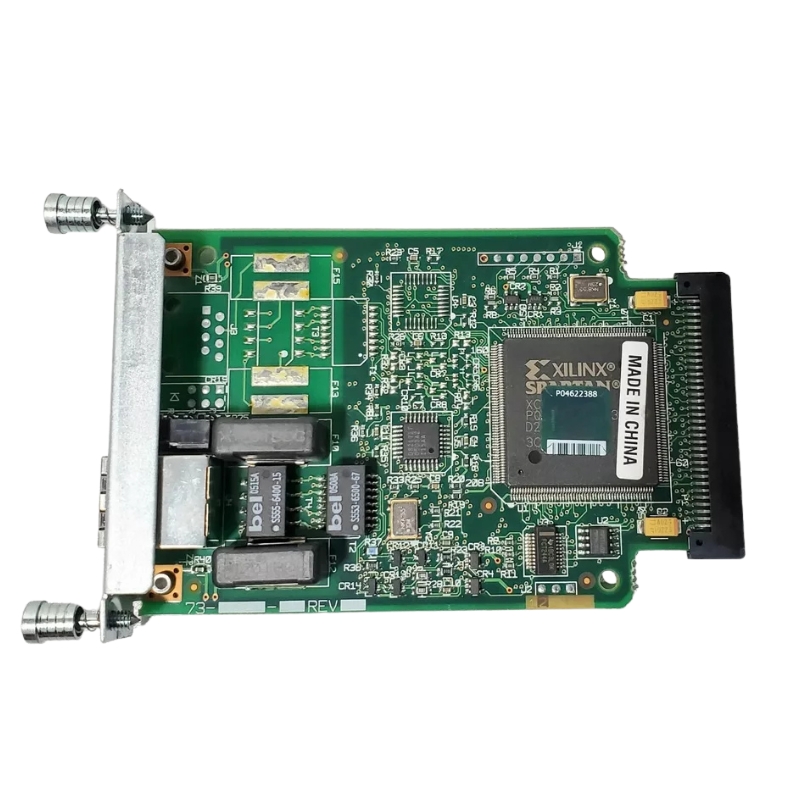

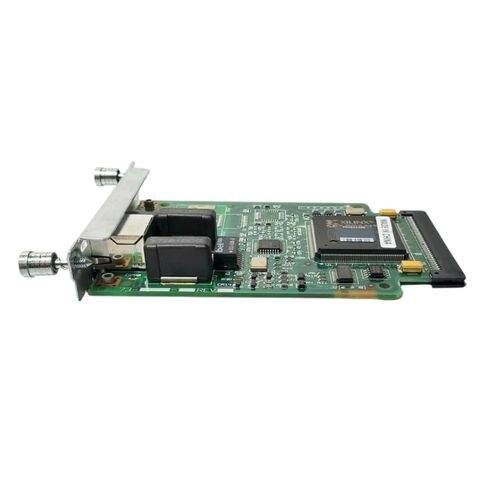

VWIC-1MFT-T1 Cisco 1-Port RJ-48 Voice/WAN Interface Card

Cisco VWIC-1MFT-T1 1-Port Voice/WAN Interface Card

The Cisco VWIC-1MFT-T1 is a high-performance Voice/WAN Interface Card designed to deliver reliable T1 connectivity for voice, fax, and data applications. It is widely used in enterprise networking environments to support integrated communication solutions with stable WAN access and enhanced routing capabilities.

Main Product Information

• Manufacturer: Cisco
• Part Number / SKU: VWIC-1MFT-T1
• Device Category: Network Module
• Product Type: Voice / WAN Interface Card

Core Features of Cisco VWIC-1MFT-T1

Enhanced Voice and Data Integration

This interface card supports seamless convergence of voice, fax, and data traffic, making it suitable for unified communications environments.

• Optimized for voice and WAN connectivity
• Supports integrated fax transmission
• Improves enterprise communication efficiency

Multi-Flex Trunk (MFT) Technology

The Multi-Flex Trunk architecture enables physical layer T1 access, ensuring stable and scalable WAN performance for business-critical applications.

• Reliable T1 physical layer support
• Improved bandwidth utilization
• Designed for scalable enterprise networks

Technical Specifications

Interface and Port Details

• 1 x T1/FT1 WAN interface
• 1 x RJ-48 connector for T1/FT1 WAN

Performance Capabilities

• Data transfer rate up to 1.54 Mbps (T1 standard)
• Stable WAN connectivity for enterprise routing

Supported Applications and Use Cases

Enterprise Network Functions

• LAN-to-LAN routing operations
• Voice and fax integration services
• VPN connectivity and firewall deployments

Business Communication Solutions

This card is ideal for organizations requiring unified communication infrastructure with reliable WAN access.

• Corporate voice communication systems
• Branch office connectivity
• Secure data transmission over WAN

System Compatibility and Platform Support

Supported Cisco Platforms

• Cisco 2600, 2600XM Series
• Cisco 2691, 2811, 2821, 2851
• Cisco 3620, 3631, 3640, 3660
• Cisco 3725, 3745
• Cisco 3825, 3845
• Cisco 1751, 1760, 1721

Supported Network Modules

• NM-1E2W, NM-2E2W
• NM-1FE2W, NM-2FE2W
• NM-1E1R2W, NM-1FE1R2W
• High Density Voice Network Modules

IOS Version Requirements

Minimum Supported Cisco IOS Releases

• 12.0(5)XK
• 12.2(4)YB
• 12.2(8)T1 / 12.2(8)T
• 12.3(8)T4 / 12.3(11)T

Key Benefits of Cisco VWIC-1MFT-T1

Reliable WAN Connectivity

• Ensures stable T1 network access
• Reduces downtime in enterprise communication

Flexible Deployment

• Compatible with multiple Cisco router series
• Supports mixed-media network environments

Integrated Communication Support

• Voice, fax, and data convergence
• Optimized for enterprise-grade networking solutions

Cisco VWIC-1MFT-T1 Voice/WAN Interface Card

The Cisco VWIC-1MFT-T1 1-Port RJ-48 Voice/WAN Interface Card is a highly specialized networking hardware component designed to deliver integrated voice and data connectivity across enterprise-grade Cisco routing platforms. This interface card plays a critical role in enabling legacy telephony integration, WAN optimization, and hybrid communication environments where T1 circuit connectivity is required. It is widely used in enterprise branch offices, call centers, service provider edge deployments, and hybrid PBX-to-IP migration scenarios.

As part of Cisco’s Voice/WAN Interface Card (VWIC) family, the VWIC-1MFT-T1 module is engineered to support both voice and data traffic over a single T1 line using an RJ-48 interface. This allows organizations to consolidate infrastructure while maintaining high reliability and predictable bandwidth allocation. The module is particularly valuable in environments where TDM (Time Division Multiplexing) systems are still in operation but are transitioning toward VoIP-based architectures.

Core Functional Capabilities of VWIC-1MFT-T1

Integrated Voice and Data Transmission

The Cisco VWIC-1MFT-T1 card is designed to handle both voice and WAN data traffic over a single T1 circuit. This dual-purpose capability allows organizations to maximize the utilization of leased lines while minimizing hardware footprint. By integrating voice and data, businesses can reduce operational costs and simplify network architecture without compromising performance.

RJ-48 Interface for T1 Connectivity

The RJ-48 port is a standardized interface used in T1 telecommunications systems. The VWIC-1MFT-T1 utilizes this interface to ensure compatibility with telecom carriers and PBX systems. The card supports digital signaling formats commonly used in North American telephony infrastructure, making it ideal for enterprise WAN deployments.

Flexible Network Deployment Options

This interface card can be deployed in various Cisco router platforms, enabling flexible integration into existing enterprise infrastructure. It supports channelized and unchannelized T1 configurations, giving network engineers control over how bandwidth is allocated between voice channels and data services.

Technical Architecture and Design

Hardware Composition

The VWIC-1MFT-T1 is built on a modular hardware architecture that plugs into compatible Cisco routers. It includes signal processing components, line interface circuitry, and firmware-based control logic that manages synchronization with T1 circuits. The card ensures stable clocking and jitter reduction, which are essential for maintaining voice quality over digital networks.

Signal Processing and Clocking

One of the key technical strengths of this module is its ability to maintain accurate timing synchronization across T1 links. The card supports external and internal clocking modes, ensuring that voice transmissions remain stable even under variable network conditions. Proper clocking is essential for preventing data loss and voice degradation.

Channelized T1 Support

The VWIC-1MFT-T1 supports channelized T1 (also known as fractional T1), where the 1.544 Mbps bandwidth is divided into 24 separate 64 Kbps channels. This enables simultaneous transmission of multiple voice calls or data streams over a single physical line. It is particularly useful in enterprise telephony systems that rely on DS0 channel allocation.

Time Division Multiplexing (TDM) Integration

The card integrates seamlessly with TDM-based systems, allowing legacy PBX systems to connect directly to IP-based routers. This hybrid capability is essential for organizations transitioning from analog to digital voice infrastructure while preserving existing investments.

Deployment Scenarios and Use Cases

Enterprise Branch Office Connectivity

In branch office deployments, the VWIC-1MFT-T1 is commonly used to establish reliable WAN links between remote sites and headquarters. By leveraging T1 leased lines, organizations can ensure predictable bandwidth and low-latency communication for critical business applications such as VoIP, ERP systems, and database replication.

Call Center Infrastructure

Call centers benefit significantly from the voice capabilities of the VWIC-1MFT-T1 card. It enables direct integration with traditional telephony systems while supporting digital routing through Cisco routers. This ensures high call quality and reduced downtime in customer support environments.

Legacy PBX Integration

Many enterprises still rely on legacy PBX systems that require T1 connectivity. The VWIC-1MFT-T1 bridges the gap between these systems and modern IP-based networks, enabling seamless communication without requiring complete infrastructure replacement.

Service Provider Edge Applications

Service providers often deploy this interface card at network edges where customer T1 circuits terminate. It provides reliable demarcation points and supports efficient traffic aggregation for upstream routing and switching.

Performance and Reliability Characteristics

High Availability Design

The VWIC-1MFT-T1 is engineered for carrier-grade reliability, ensuring consistent uptime in mission-critical environments. Its robust hardware design minimizes failure rates and supports continuous operation under heavy traffic loads.

Error Detection and Line Monitoring

The card includes advanced error detection mechanisms such as CRC monitoring, bipolar violations tracking, and alarm indication signals. These features help network administrators quickly identify and resolve connectivity issues.

Loopback Testing Capabilities

Built-in loopback testing allows administrators to diagnose line issues without disconnecting physical infrastructure. This is essential for troubleshooting T1 circuits in live environments where downtime must be minimized.

Jitter and Latency Optimization

By maintaining precise timing synchronization, the VWIC-1MFT-T1 reduces jitter and latency in voice transmissions. This results in clearer voice quality and more stable WAN performance, particularly in VoIP-to-PSTN bridging scenarios.

Compatibility and Cisco Router Integration

Supported Router Platforms

The VWIC-1MFT-T1 is compatible with a range of Cisco modular routers designed for enterprise networking. These platforms provide the necessary slot architecture and software support required for seamless integration.

IOS Configuration Support

The module is fully configurable through Cisco IOS, allowing administrators to define T1 framing, line coding, channel allocation, and voice port configuration. This level of control ensures precise alignment with enterprise networking requirements.

Framing and Line Coding Options

The card supports common T1 framing standards such as ESF (Extended Super Frame) and D4 framing. It also supports line coding schemes like B8ZS, which are essential for maintaining signal integrity over long-distance T1 circuits.

Voice Interface Integration

When used in voice-enabled configurations, the VWIC-1MFT-T1 can integrate with Cisco voice gateways and call control systems, enabling PSTN connectivity and VoIP conversion.

Network Optimization Benefits

Bandwidth Efficiency

By combining voice and data on a single T1 line, the VWIC-1MFT-T1 helps organizations optimize bandwidth usage. This reduces the need for multiple leased lines and simplifies network architecture.

Cost Reduction in WAN Infrastructure

The consolidation of services reduces operational expenses associated with maintaining separate voice and data circuits. Enterprises can achieve significant cost savings while maintaining high performance levels.

Scalability for Growing Enterprises

The modular design of the VWIC-1MFT-T1 allows organizations to scale their network infrastructure as demand increases. Additional interface cards can be deployed across multiple routers to support expanding branch networks.
