VWIC-2MFT-T1 Cisco 2 Ports Voice Interface Card

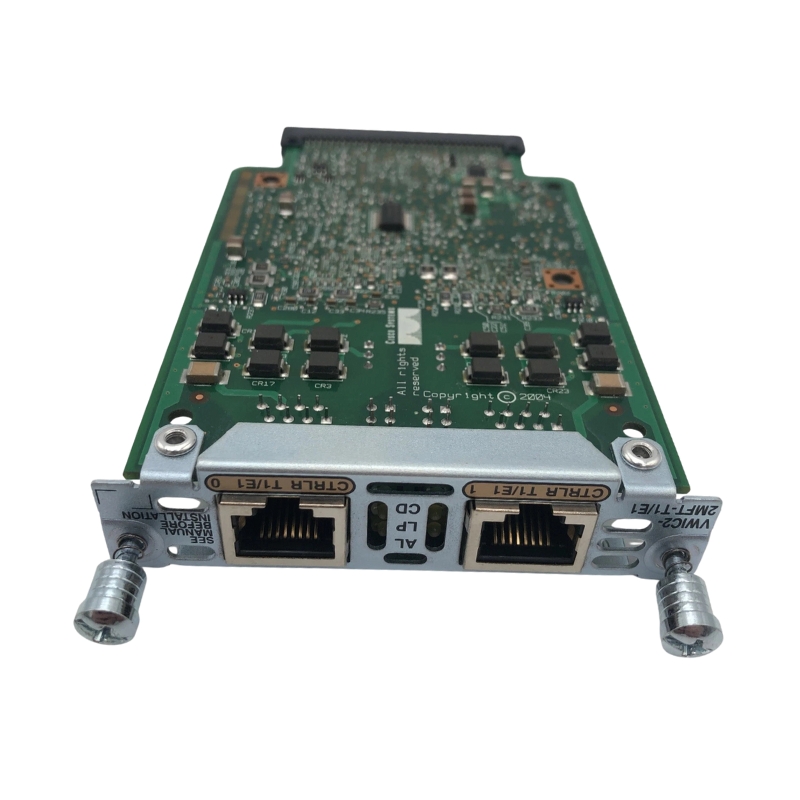

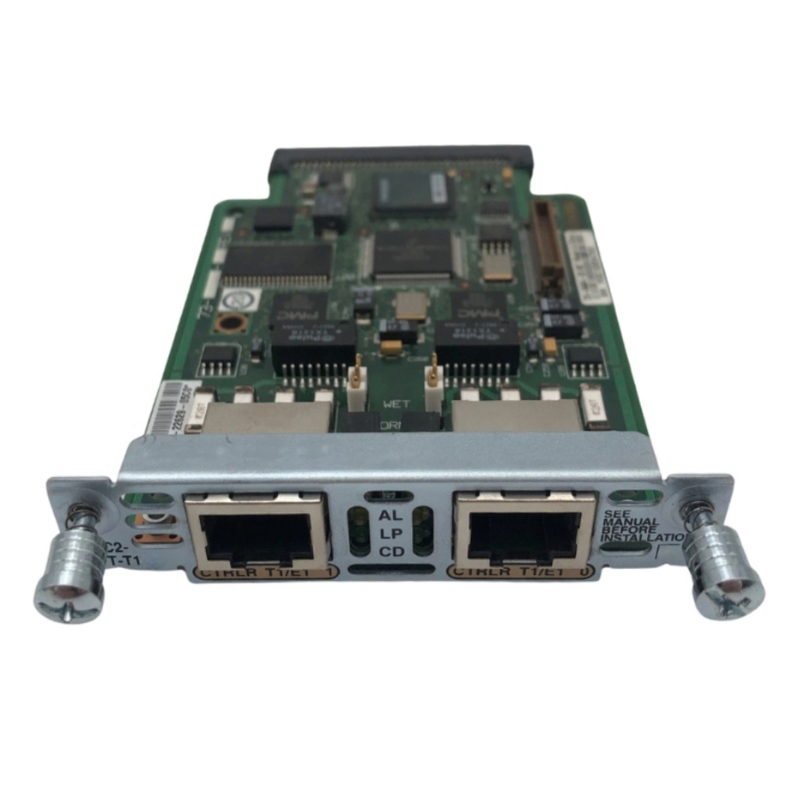

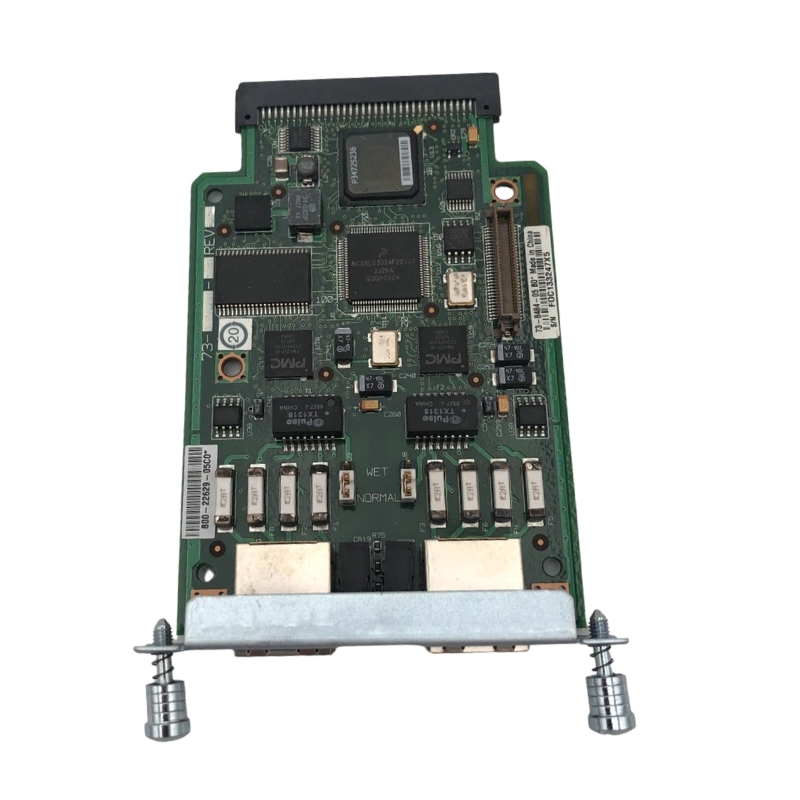

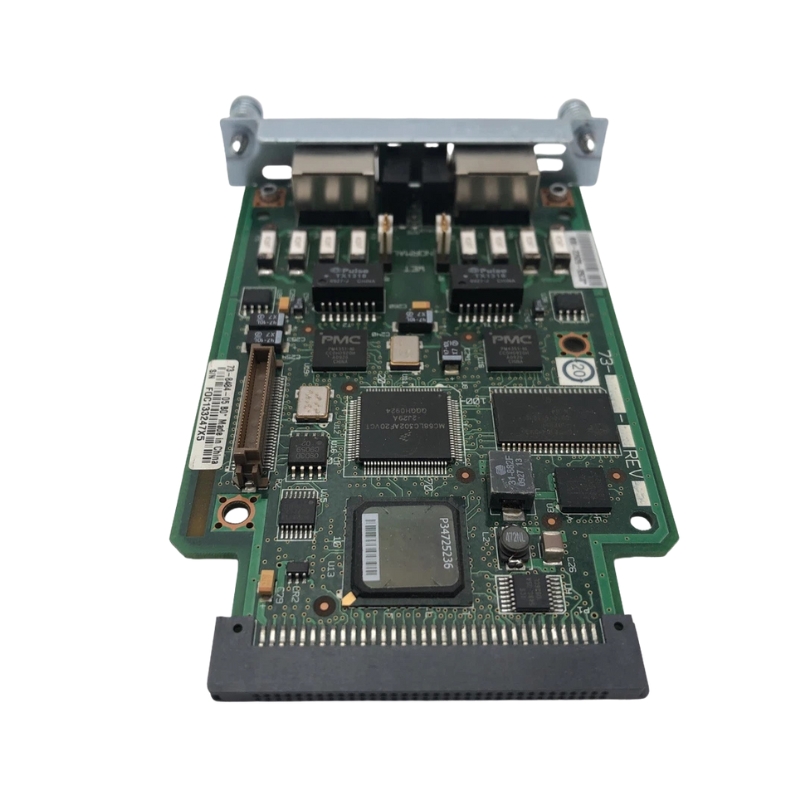

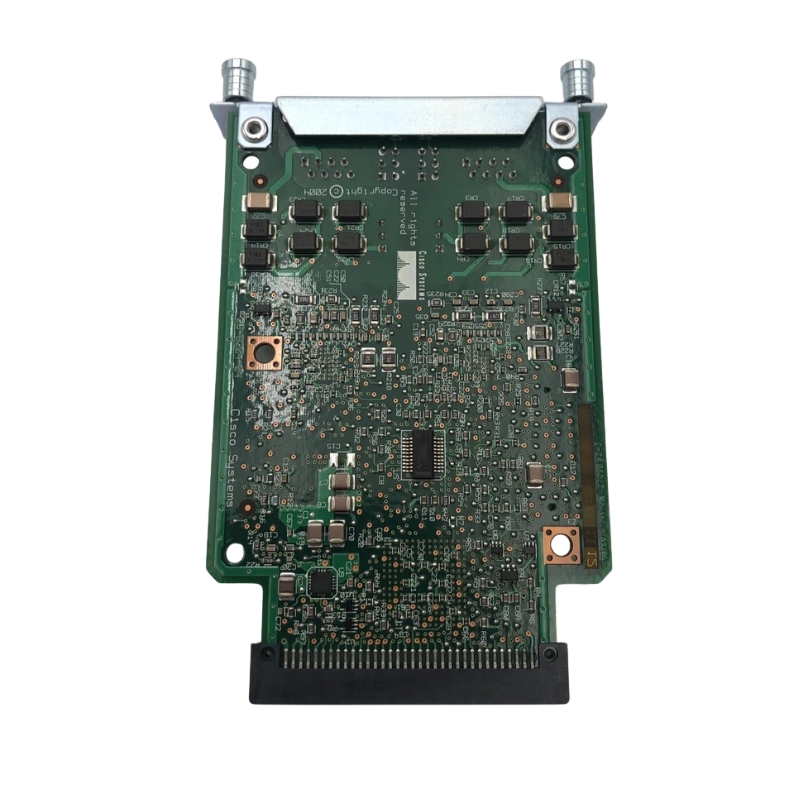

Cisco VWIC-2MFT-T1 Dual-Port Voice / WAN Interface Card

The Cisco VWIC-2MFT-T1 is a high-performance voice and WAN interface expansion module designed to deliver reliable T1 connectivity and voice integration for enterprise-grade networking. This plug-in card enhances router functionality by enabling seamless voice and data transmission over T1 lines.

Key Product Information

Basic Details

• Manufacturer: Cisco
• Part Number / SKU: VWIC-2MFT-T1
• Product Category: Network Module
• Sub-Type: Voice / WAN Interface Card

Technical Specifications

Hardware Features

• Device Type: Expansion module with dual ports
• Form Factor: Plug-in interface card
• Physical Dimensions (W x D x H): 3.1 in x 4.8 in x 0.8 in
• Compatible Slot: 1 expansion slot required

Performance Capabilities

• Data Transfer Rate: Up to 1.544 Mbps
• Line Rate Support: Fractional T1 and full T1
• Interface Type: 2 x T1 network ports (RJ-48)

Compliance and Standards

• FCC Class B certified
• EN 60950 safety standard compliant
• IEC 950 certified design
• UL 1950 safety approval
• VCCI-II compliance
• CSA 22.2 No. 950 certified
• FCC Part 15 compliant

Supported Cisco Platforms

Router Compatibility

This voice interface card is engineered to work with a wide range of Cisco integrated services routers and bundles, ensuring flexible deployment in enterprise networks.

• Cisco 1721, 1751, 1760 VPN bundles
• Cisco 1841 series (DSL, ADSL, T1 Security bundles)
• Cisco 2610M and 2691 VPN platforms
• Cisco 2800 series (2801, 2811, 2821, 2851 variants)
• Cisco 3700 series (3725, 3745)
• Cisco 3800 series (3825, 3845 integrated routers)
• Cisco IAD 2430, 2431, 2432 devices

Advanced Deployment Use Cases

• Voice over IP (VoIP) network integration
• WAN connectivity over T1 circuits
• Branch office secure communication setups
• Enterprise voice and data convergence

Interface and Connectivity Details

Port Configuration

• 2 x T1 network interfaces
• RJ-48 connector support for telecom lines
• Supports fractional and full T1 configurations

Benefits of Cisco VWIC-2MFT-T1 Module

Operational Advantages

• Improved voice and data integration in enterprise networks
• Flexible WAN expansion capability
• Reliable performance for mission-critical communications
• Easy plug-in installation into compatible routers

Cisco VWIC-2MFT-T1 Multiplex 2 Ports Voice Interface Card

The Cisco VWIC-2MFT-T1 Multiplex 2 Ports Voice Interface Card is a high-performance network module designed to enhance voice and data integration across enterprise-grade Cisco routing platforms. This dual-port voice WAN interface card is widely utilized in telecommunication environments where T1 connectivity, multiplexing capabilities, and integrated voice services are required. It is engineered to support both voice and data transmission over T1 circuits, making it a reliable component for organizations transitioning toward unified communications infrastructures.

Built with Cisco’s robust hardware architecture, this voice interface card delivers stable connectivity, efficient bandwidth utilization, and flexible deployment options for legacy and modern telephony systems. It is commonly deployed in branch offices, enterprise data centers, and carrier-grade networks where dependable voice transport is essential.

Core Architecture and Design Principles

Hardware Engineering and Build Quality

The VWIC-2MFT-T1 card is constructed with enterprise-level components that ensure long-term operational reliability. Its compact form factor allows it to be installed into compatible Cisco routers without occupying excessive space, while still delivering powerful voice and WAN interface capabilities. The card is designed to operate under continuous network load conditions, making it suitable for mission-critical environments.

Integrated Voice and WAN Functionality

One of the defining characteristics of this module is its ability to combine voice and WAN functions into a single hardware unit. This integration reduces the need for multiple separate interface cards, thereby optimizing hardware utilization and reducing overall infrastructure costs. It also simplifies network design by consolidating voice and data streams into a unified architecture.

Multiplexing Technology Support

The multiplexing capability of the Cisco VWIC-2MFT-T1 allows multiple voice channels and data streams to be transmitted over a single T1 line. This enhances bandwidth efficiency and ensures that available network resources are used effectively. It is particularly beneficial in environments where bandwidth is limited but high-quality voice communication is essential.

T1 Connectivity and Voice Integration Capabilities

Dual-Port T1 Interface Functionality

This interface card provides two independent T1 ports, enabling simultaneous voice and data transmission across multiple circuits. Each port can be configured individually, allowing network administrators to tailor the setup based on organizational requirements. This dual-port design enhances redundancy and scalability in enterprise networks.

Voice over T1 (VoT1) Applications

The card supports Voice over T1 implementations, enabling traditional telephony systems to integrate with IP-based infrastructures. This functionality allows organizations to maintain compatibility with legacy PBX systems while transitioning to modern VoIP solutions. It ensures seamless communication between analog voice systems and digital networks.

Channelized and Fractional T1 Support

The VWIC-2MFT-T1 supports both channelized and fractional T1 configurations. Channelized T1 allows multiple voice channels to operate independently over a single line, while fractional T1 enables the allocation of only required bandwidth segments. This flexibility helps optimize cost and performance in diverse networking scenarios.

Compatibility with Cisco Router Platforms

Supported Cisco Hardware Series

The Cisco VWIC-2MFT-T1 is compatible with a wide range of Cisco router platforms, including select models from the Cisco 2600, 2800, 2900, 3800, and 3900 series. This compatibility ensures that organizations using legacy or mid-range Cisco infrastructure can integrate voice interface capabilities without requiring a complete system overhaul.

Modular Network Expansion

The modular nature of Cisco routers allows the VWIC-2MFT-T1 card to be inserted into available WAN interface card slots, expanding the router’s functionality. This approach supports scalable network growth, enabling businesses to upgrade voice capabilities as demand increases.

Hot-Swappable Considerations

While installation practices may vary depending on router model, many Cisco platforms support modular upgrades with minimal downtime. Proper configuration and adherence to Cisco guidelines ensure stable integration of the VWIC-2MFT-T1 without disrupting ongoing network operations.

Network Performance and Bandwidth Optimization

Efficient Bandwidth Utilization

The VWIC-2MFT-T1 card is engineered to maximize bandwidth efficiency by supporting multiple voice channels over a single T1 line. This reduces the need for additional physical circuits and lowers operational costs while maintaining high-quality voice transmission.

Traffic Prioritization and QoS

Quality of Service (QoS) features allow administrators to prioritize voice traffic over data traffic. This ensures that real-time communication such as VoIP calls remains clear and uninterrupted even during periods of network congestion.

Low Latency Voice Transmission

The architecture of the card minimizes latency, ensuring near real-time voice communication. This is critical for business environments where communication delays can impact productivity and customer service quality.

Configuration and Deployment Scenarios

Enterprise Branch Office Deployment

In branch office environments, the VWIC-2MFT-T1 is commonly used to establish secure and reliable voice communication channels back to central headquarters. It supports centralized call management systems and distributed telephony networks.

VoIP Gateway Integration

The card can function as part of a VoIP gateway setup, enabling traditional PSTN lines to interface with IP-based communication systems. This is essential for hybrid telephony environments where both analog and digital systems coexist.

PBX Connectivity

Integration with Private Branch Exchange (PBX) systems allows organizations to maintain internal call routing while extending connectivity to external networks. The VWIC-2MFT-T1 ensures stable and efficient PBX interoperability.

Security and Reliability Features

Secure Voice Transmission

The module supports secure transmission protocols when integrated into broader Cisco security frameworks. This ensures that voice communications remain protected against interception and unauthorized access.

Fault Tolerance and Redundancy

Dual-port functionality provides redundancy options, allowing failover configurations in case one T1 line becomes unavailable. This enhances network resilience and uptime.

Error Detection Mechanisms

Built-in error detection capabilities help identify line issues such as jitter, attenuation, and signal loss, enabling proactive maintenance and network optimization.

Use Cases in Modern Networking Environments

Enterprise Unified Communications

The VWIC-2MFT-T1 plays a vital role in unified communications systems by bridging traditional telephony infrastructure with modern IP-based communication platforms.

Service Provider Network Integration

Telecom service providers use this module to deliver T1-based voice services to business clients, ensuring stable and scalable communication infrastructure.

Hybrid Network Architectures

In hybrid environments, the card enables seamless interaction between legacy analog systems and modern digital voice networks, ensuring compatibility across generations of technology.
