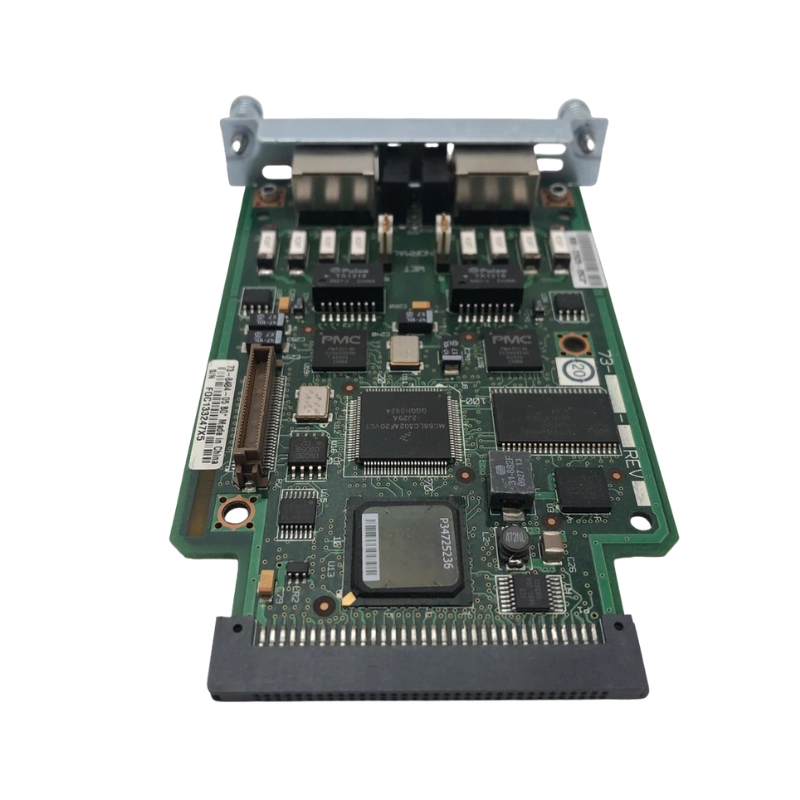

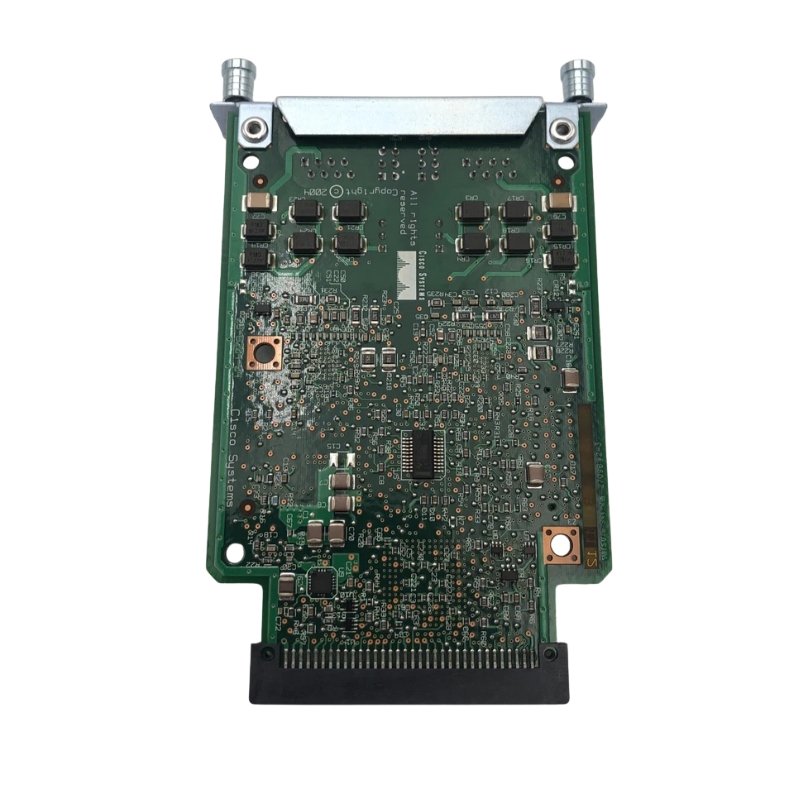

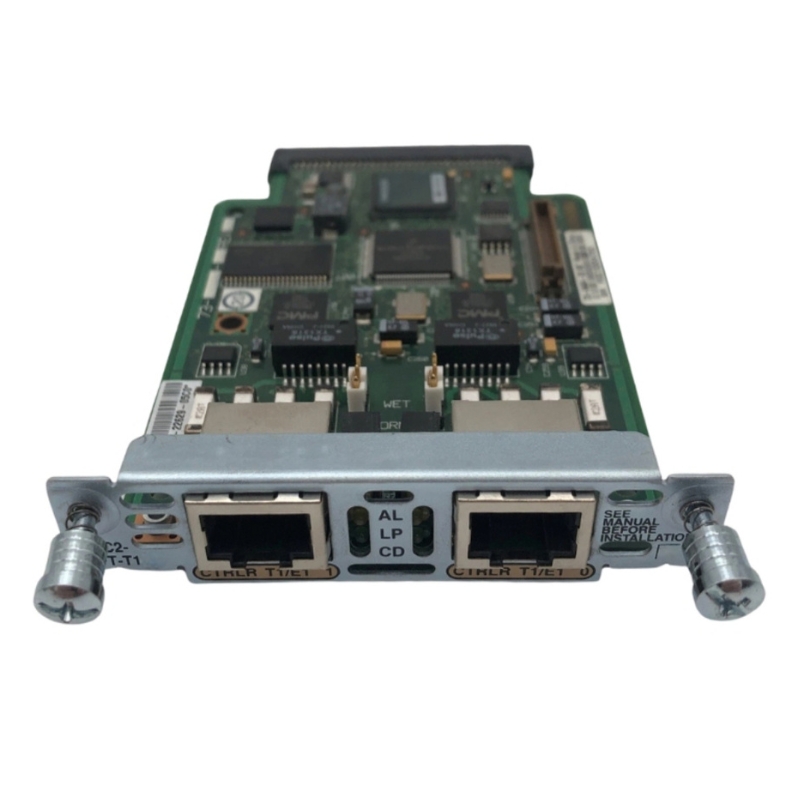

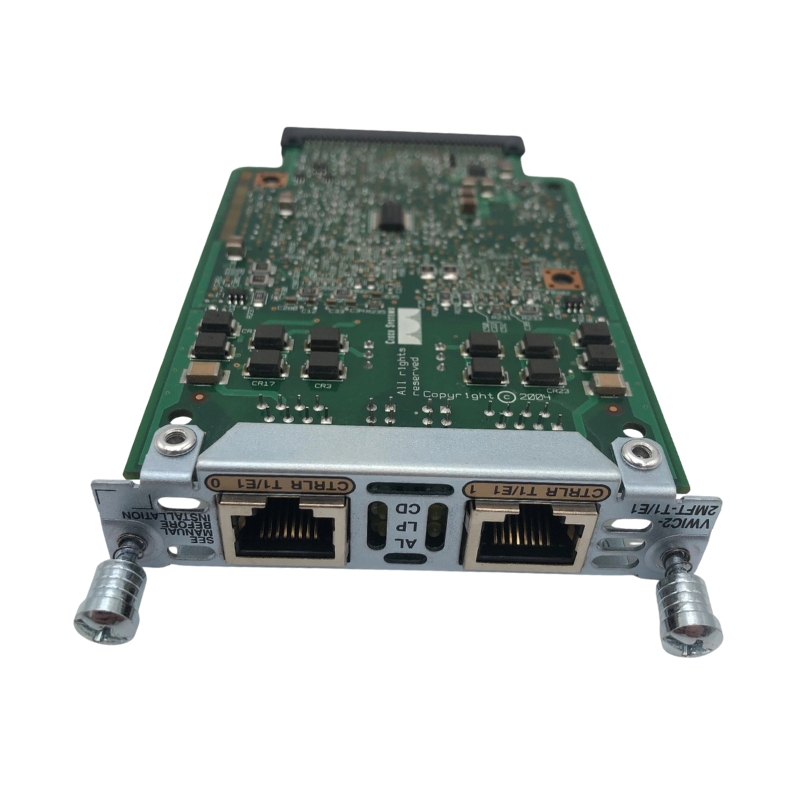

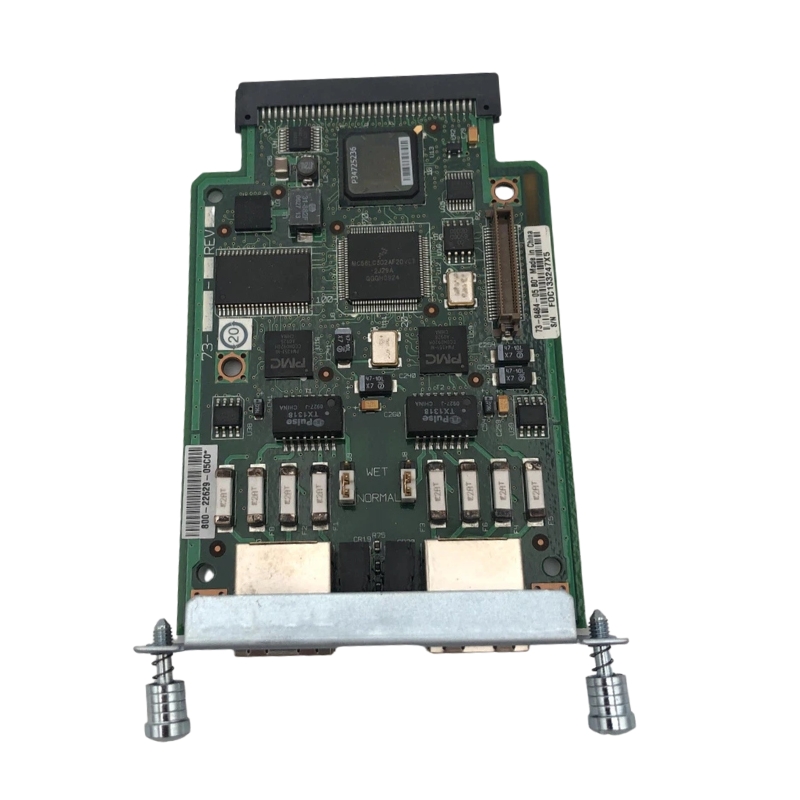

VWIC-2MFT-T1-DIR Cisco 2 Ports Voice/WAN Interface Card

Cisco VWIC-2MFT-T1-DIR 2-Port Voice/WAN Interface Card

The Cisco VWIC-2MFT-T1-DIR is a high-performance networking expansion module designed to provide reliable Voice and WAN connectivity. It is widely used in enterprise-grade Cisco router environments to enable T1 fractional and full T1 line support with stable data transmission.

Product Identification Details

Main Specifications

• Manufacturer: Cisco
• Part Number / SKU: VWIC-2MFT-T1-DIR
• Product Category: Network Expansion Module
• Module Type: Voice / WAN Interface Card

Technical Features and Performance

Device Architecture

Hardware Design

• Expansion module with dual-port configuration
• Plug-in form factor for Cisco routers
• Compact structure for efficient installation

Physical Dimensions

• Width: 3.1 in
• Depth: 4.8 in
• Height: 0.8 in

Data and Network Capabilities

Transmission Specifications

• Maximum data rate: 1.544 Mbps
• Line support: Fractional T1 / Full T1
• Interface type: T1 RJ-48 (2 network ports)

Standards and Compliance Certifications

Regulatory Compliance

Safety and Industry Standards

• FCC Part 15 Class B
• EN 60950 / IEC 950
• UL 1950 certification
• CSA 22.2 No. 950 compliance
• VCCI-II certified

Router Compatibility and Supported Platforms

Compatible Cisco Devices

Supported Router Series

• Cisco 1700 series (1721, 1751, 1760 VPN bundles)
• Cisco 1800 series (1841 DSL, T1 Security, ADSL bundles)
• Cisco 2600M and 2691 VPN platforms
• Cisco 2800 series (2801, 2811, 2821 voice and DSL bundles)
• Cisco 3800 series (3825, 3845 integrated services routers)
• Cisco 3700 series (3725, 3745 VPN bundles)
• Cisco IAD 2430, 2431, 2432 series

Deployment Use Cases

• Enterprise WAN connectivity expansion
• Voice-over-IP (VoIP) integration
• Branch office network infrastructure
• Secure VPN and WAN optimization setups

Interface and Slot Information

Connectivity Options

Ports and Expansion

• 2 x T1 network interfaces
• RJ-48 connector support
• Single expansion slot compatibility

Key Benefits and Advantages

Performance Benefits

Operational Efficiency

• Reliable voice and data integration over T1 lines
• Stable WAN connectivity for enterprise networks
• Flexible deployment across multiple Cisco routers
• Optimized for secure and scalable network expansion

Business Value

Enterprise Advantages

• Cost-effective WAN upgrade solution
• Improved network reliability and uptime
• Supports hybrid voice and data environments

Cisco VWIC-2MFT-T1-DIR 2 Ports WAN Interface Card

The Cisco VWIC-2MFT-T1-DIR 2 Ports Voice/WAN Interface Card is a highly versatile networking hardware module designed to integrate voice and data services over T1 digital circuits within Cisco Integrated Services Routers (ISRs). This category of interface card plays a crucial role in converged network environments where enterprises require simultaneous handling of voice traffic and WAN connectivity. The module provides dual-port T1 support, enabling organizations to optimize bandwidth usage, reduce infrastructure complexity, and ensure reliable digital communication across distributed networks. As part of Cisco’s modular WAN interface portfolio, this card is engineered for high-performance enterprise environments that demand consistent uptime, low latency, and seamless integration with existing Cisco routing infrastructure.

Architectural Design and Functional Composition

The architectural design of the Cisco VWIC-2MFT-T1-DIR is based on modular integration principles that allow it to function as both a voice interface and a WAN data interface. It is built to operate within Cisco routers equipped with voice-enabled network modules, ensuring tight coupling between hardware and software processing layers. The card incorporates two independent T1 ports, each capable of handling 1.544 Mbps of bandwidth, making it suitable for aggregated voice trunks or dual WAN link redundancy. The internal architecture is optimized for digital signal processing, allowing efficient handling of voice compression, packetization, and timing synchronization across T1 circuits.

The design emphasizes deterministic performance, ensuring that voice packets maintain priority over general data traffic. This is achieved through hardware-level QoS integration and deep compatibility with Cisco IOS voice features. The module’s architecture also supports clocking configurations, framing types such as ESF and SF, and line encoding methods like B8ZS and AMI, enabling compatibility with a wide range of telecom carriers and enterprise PBX systems.

Core Features of Cisco VWIC-2MFT-T1-DIR

The Cisco VWIC-2MFT-T1-DIR category is defined by its dual-function capability, allowing both voice and WAN services over a single hardware module. One of its primary features is dual T1 port support, which enhances flexibility in network design by enabling simultaneous voice trunking and data transmission. This reduces the need for separate interface cards and simplifies infrastructure management in enterprise deployments.

Another key feature is its integrated voice support, which allows direct connection to PBX systems using digital T1 interfaces. This ensures high-quality voice transmission with minimal jitter and packet loss. The module also supports robust WAN connectivity, enabling businesses to establish reliable leased-line connections with telecom providers. Its compatibility with Cisco ISR platforms ensures seamless configuration through Cisco IOS, allowing administrators to deploy voice and data services using unified management tools.

Dual-Port T1 Connectivity and Signal Processing

High-Speed Digital Transmission

Each of the two T1 ports on the Cisco VWIC-2MFT-T1-DIR operates at a standard digital transmission rate of 1.544 Mbps. This ensures reliable point-to-point communication between enterprise networks and service providers. The dual-port configuration enables redundancy or load balancing, depending on network design requirements. Organizations can dedicate one port for voice traffic and the other for WAN data, or configure both for aggregated performance depending on operational needs.

Signal Encoding and Framing

The module supports industry-standard encoding formats such as Bipolar with Eight-Zero Substitution (B8ZS) and Alternate Mark Inversion (AMI). These encoding schemes ensure signal integrity over long-distance copper-based T1 lines. In addition, framing formats such as Extended Super Frame (ESF) and Super Frame (SF) provide synchronization and error detection capabilities, which are essential for maintaining stable communication across carrier networks.

Voice Integration Capabilities

PBX Connectivity

The Cisco VWIC-2MFT-T1-DIR is widely used for integrating enterprise PBX systems into IP-based or hybrid communication networks. It enables direct digital voice trunking between Cisco routers and legacy telephony systems. This ensures seamless migration from traditional telephony infrastructure to modern VoIP-based solutions without disrupting existing communication workflows.

Voice Quality Optimization

Voice traffic handled by this interface card benefits from Cisco’s advanced QoS mechanisms, ensuring that latency-sensitive packets are prioritized over general data traffic. This helps maintain clear voice quality, reduces echo, and minimizes jitter even during peak network utilization. The module works in conjunction with Cisco voice gateways and DSP resources to perform voice compression and transcoding where necessary.

WAN Integration and Data Transmission Efficiency

Beyond voice applications, the Cisco VWIC-2MFT-T1-DIR serves as a robust WAN interface solution. It enables businesses to establish dedicated leased-line connections through T1 circuits, which are commonly used for branch office connectivity, data center interconnection, and secure enterprise networking. The dual-port design enhances WAN flexibility, allowing organizations to implement redundancy strategies that ensure continuous network availability in case of link failure.

The module supports synchronization with carrier networks, ensuring stable clocking and minimizing transmission errors. Its integration with Cisco routing platforms allows dynamic routing protocols such as OSPF and EIGRP to function efficiently over T1 links, enabling optimized traffic distribution and failover capabilities.

Cisco ISR Compatibility and Deployment Flexibility

The VWIC-2MFT-T1-DIR is designed specifically for Cisco Integrated Services Routers, including multiple ISR generations. This compatibility ensures that enterprises can deploy the module in existing Cisco environments without requiring major infrastructure changes. The modular nature of Cisco ISRs allows network administrators to mix and match interface cards based on evolving business needs.

Deployment flexibility is a major advantage of this category. Organizations can scale voice and WAN capabilities by simply adding or replacing interface cards rather than investing in entirely new hardware systems. This modular approach reduces capital expenditure while increasing operational agility in enterprise networking environments.

Configuration and Management in Cisco IOS

Initial Setup and Interface Assignment

Configuration of the Cisco VWIC-2MFT-T1-DIR is performed through Cisco IOS, which provides a unified command-line interface for managing network devices. Administrators can assign T1 ports to specific voice or data channels, configure framing and encoding parameters, and define clocking sources. This ensures that the module integrates seamlessly into the broader network architecture.

Voice and WAN Configuration Parameters

Voice configurations typically involve defining dial peers, voice ports, and codec selection to ensure optimal call quality. WAN configurations include IP address assignment, routing protocol setup, and bandwidth allocation. The flexibility of Cisco IOS allows both voice and data services to coexist on the same hardware module without performance degradation.

Performance Optimization and Reliability

The Cisco VWIC-2MFT-T1-DIR is engineered for high reliability in enterprise-grade environments. Its performance is optimized for continuous operation, ensuring minimal downtime even under heavy traffic conditions. The dual-port architecture enables load distribution, reducing the risk of bottlenecks and improving overall network efficiency.

Reliability is further enhanced through built-in error detection and correction mechanisms, which monitor signal integrity across T1 lines. These features allow the module to detect and compensate for transmission issues, ensuring uninterrupted voice and data services.

Enterprise Use Cases and Application Scenarios

The Cisco VWIC-2MFT-T1-DIR is widely deployed in enterprise branch offices, call centers, and data center environments. In branch office deployments, it enables secure and reliable connectivity to central headquarters through leased T1 lines. In call centers, it supports high-volume voice traffic with consistent quality and low latency. In data centers, it facilitates WAN aggregation and redundancy, ensuring continuous data flow between distributed systems.

Service providers also utilize this module in managed voice and data services, where multiple customers require dedicated T1 connections. Its flexibility and reliability make it suitable for multi-tenant environments where performance consistency is critical.
